Overview

Features and Benefits

  • Fixed Output Voltages: –3V, –5V or Low Noise VIN to –VIN Inverted Output
  • ±4% Output Voltage Accuracy
  • Low Quiescent Current: 25µA
  • 100mA Output Current Capability
  • 2.3V to 5.5V Operating Voltage Range
  • Internal 900kHz Oscillator
  • "Zero Current" Shutdown
  • Short-Circuit and Over-Temperature Protected
  • Low Profile (1mm) ThinSOT™ Package

Product Details

The LTC1983-3 and LTC1983-5 are inverting charge pump DC/DC converters that produce negative regulated outputs. The parts require only three tiny external capacitors and can provide up to 100mA of output current. The devices can operate in open loop mode (creating a –VIN supply) or regulated output mode depending on the input supply voltage and the output current.

The LTC1983-3/LTC1983-5 have many useful features for portable applications including very low quiescent current (25µA typical) and a zero current shutdown mode programmed through the SHDN pin.

The LTC1983-3/LTC1983-5 are over-temperature and short-circuit protected. The parts are available in a 6-pin low profile (1mm) ThinSOT package.

Applications

  • –3V Generation in Single-Supply Systems
  • Portable Equipment
  • LCD Bias Supplies
  • GaAs FET Bias Supplies

Product Categories

Markets and Technologies

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

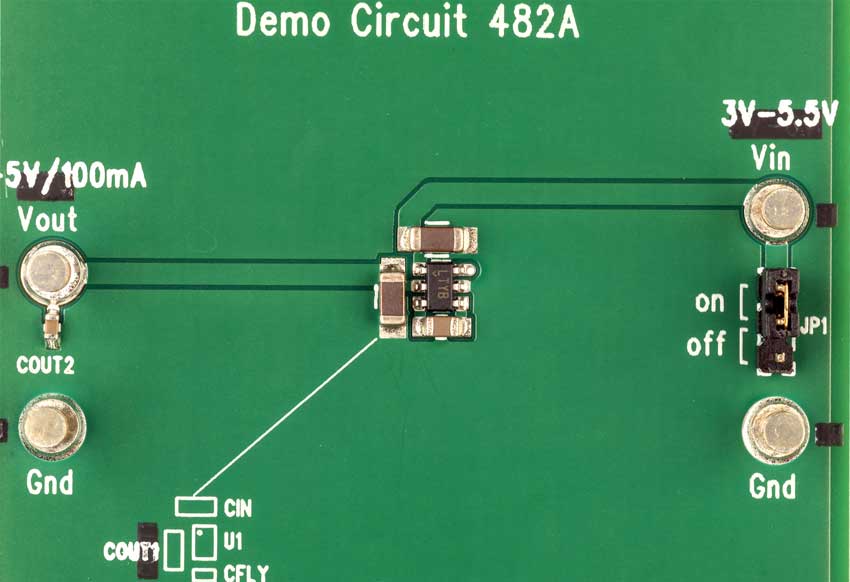

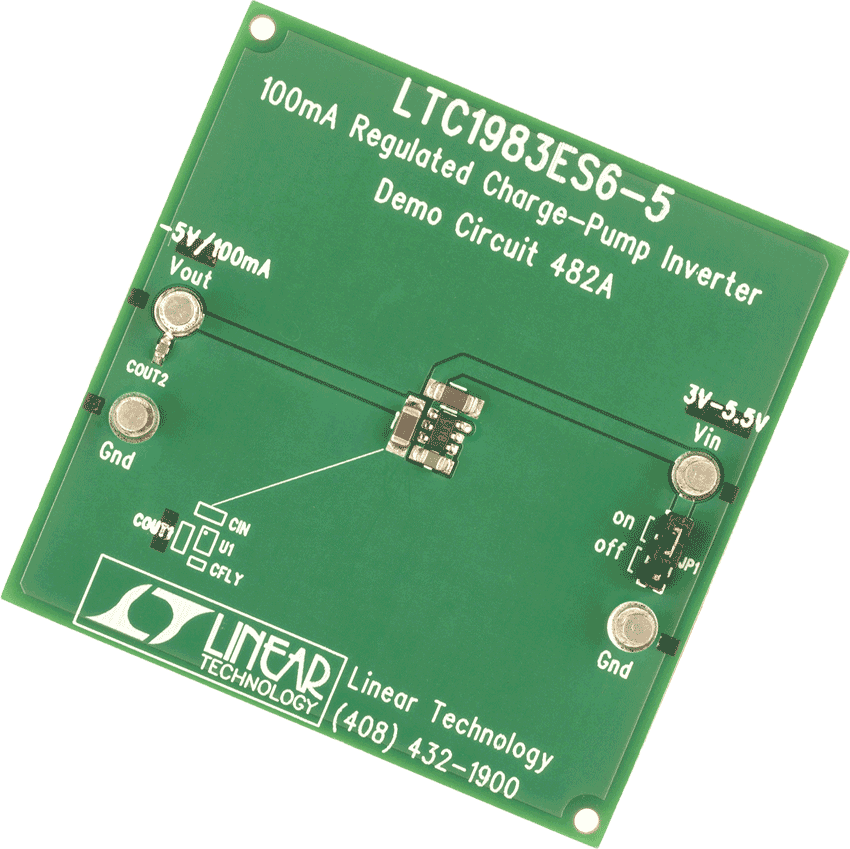

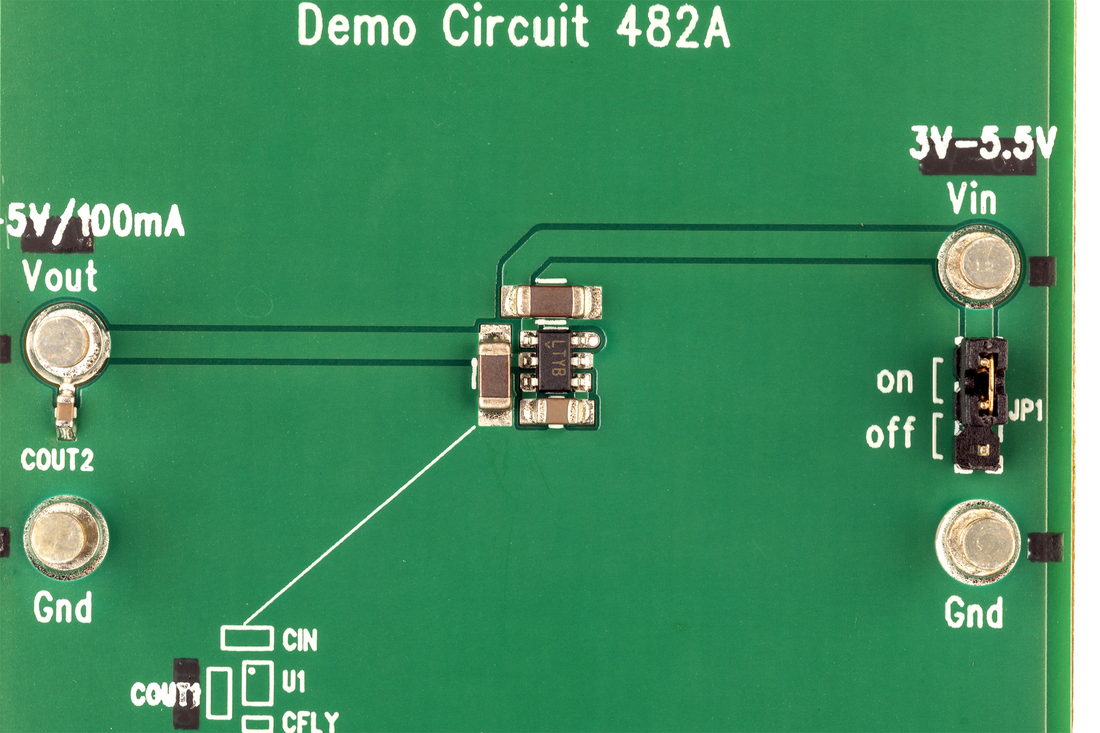

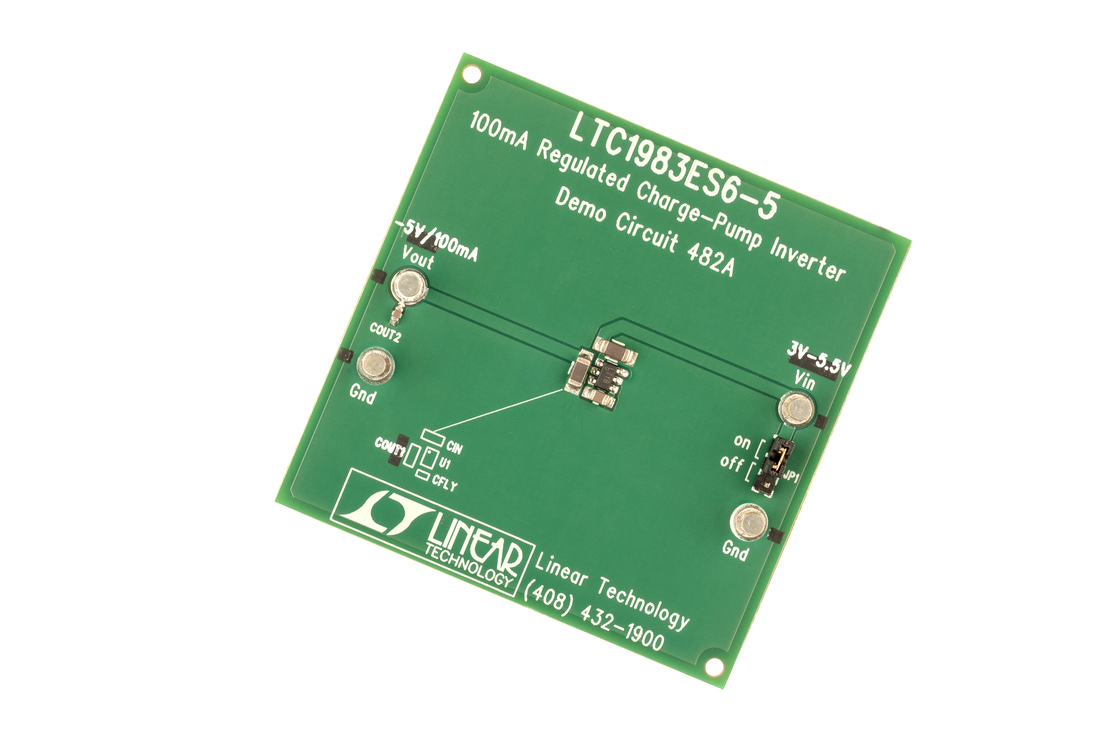

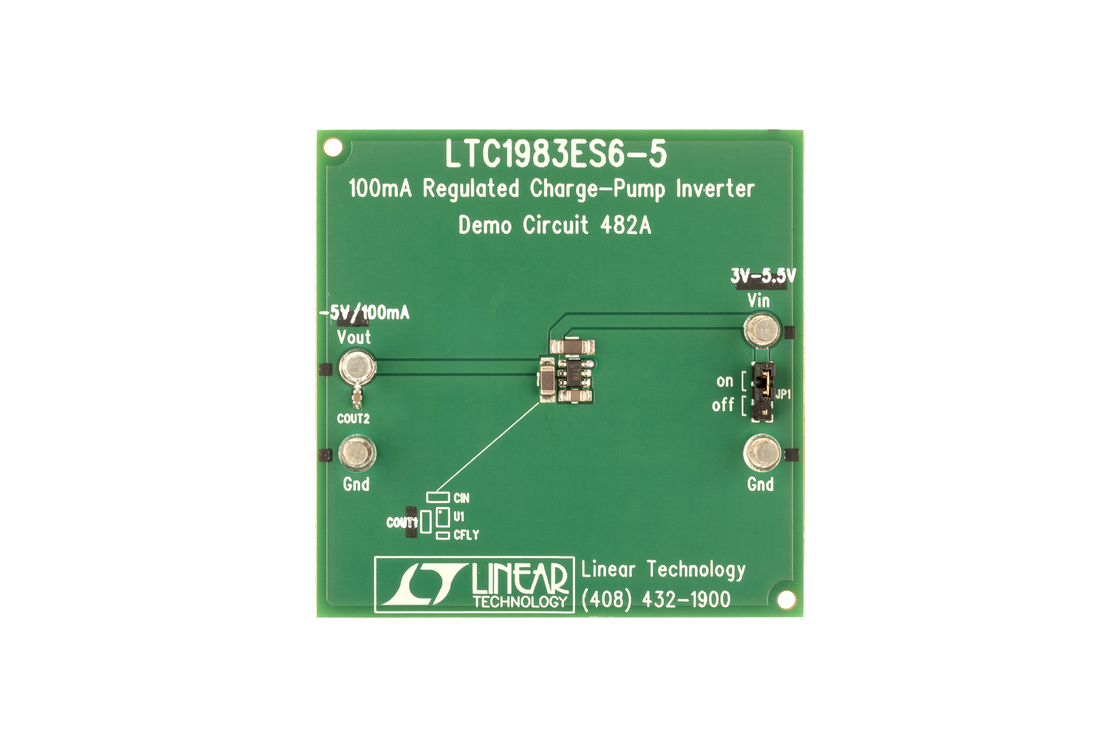

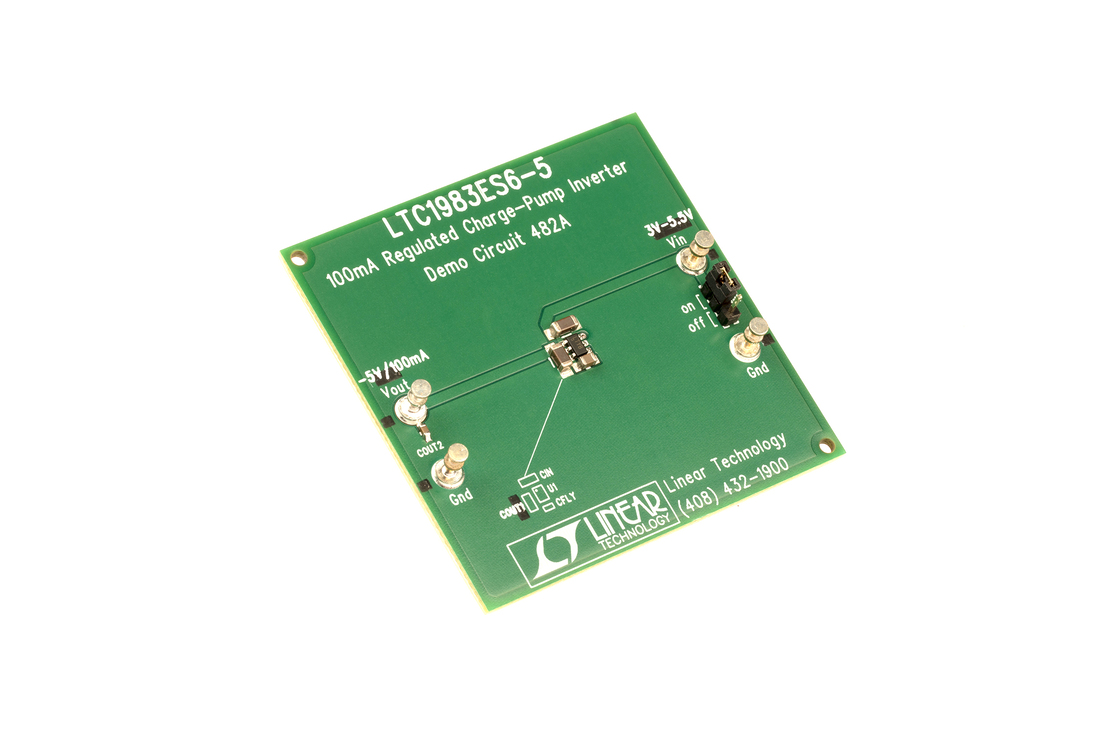

Evaluation Kits (1)

Documentation & Resources

  • View All (5)
  • Data Sheet (1)
  • Reliability Data (1)
  • User Guide (1)
  • Technical Article (2)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    To launch ready-to-run LTspice demonstration circuits for this part:

    Step 1: Download and install LTspice on your computer.

    Step 2: Click on the link in the section below to download a demonstration circuit.

    Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

    LTspice

    LTspice Simulations

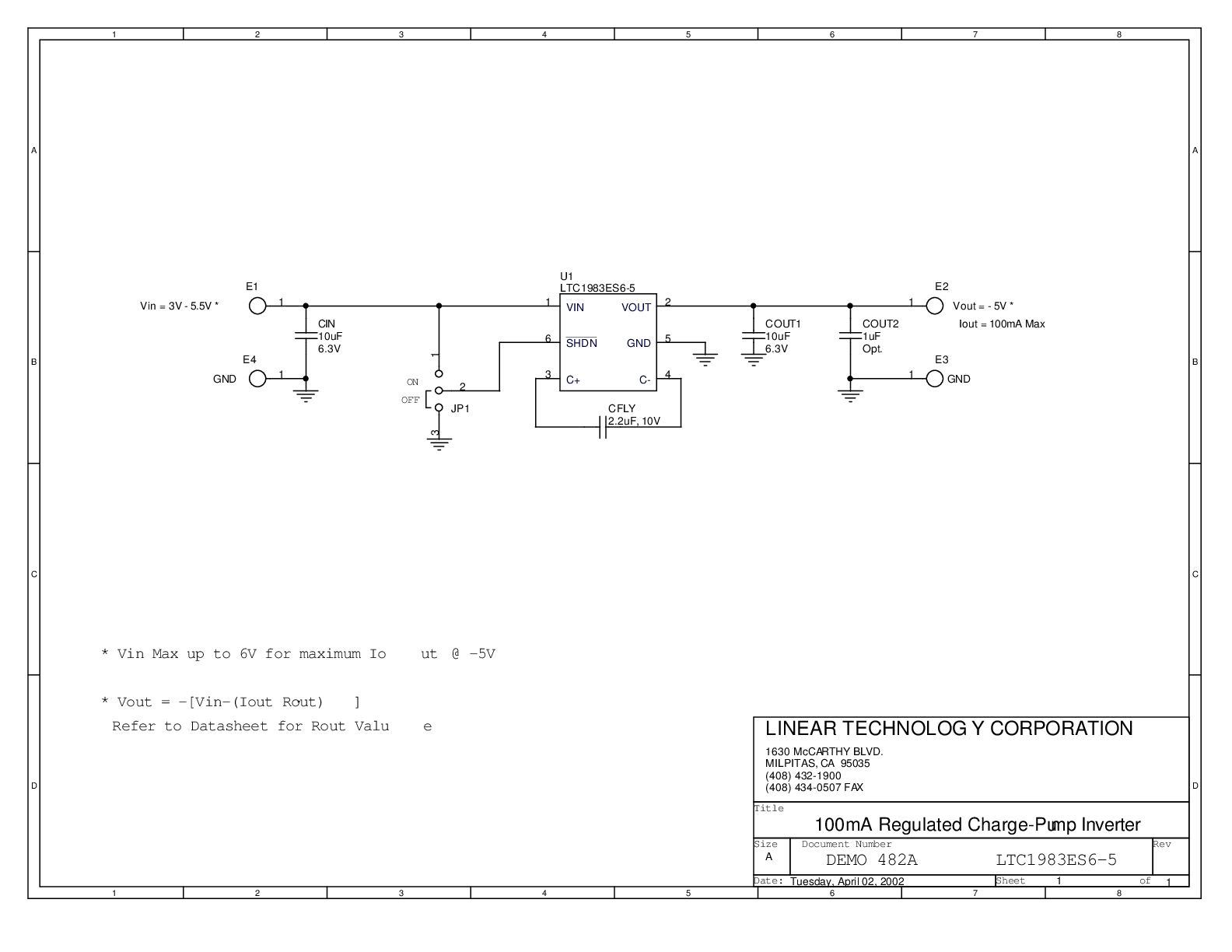

    LTC1983 Demo Circuit - Combined Regulated Inverter & Unregulated Doubler (3-5.5V to -3V @ 100mA & Doubler)

    Models for the following parts are available in LTspice:

    LTC1983-3
    LTC1983-5

    Reference Designs (1)
