LTC3261

High Voltage, Low Quiescent Current Inverting Charge Pump

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Models 8
1ku List Price Starting From $3.45
Features
  • 4.5V to 32V VIN Range
  • Inverting Charge Pump Generates –VIN
  • 60μA Quiescent Current in Burst Mode® Operation
  • Charge Pump Output Current Up to 100mA
  • 50kHz to 500kHz Programmable Oscillator Frequency
  • Short-Circuit/Thermal Protection
  • Low Profile Thermally Enhanced 12-Pin MSOP Package
Additional Details
show more Icon

The LTC3261 is a high voltage inverting charge pump that operates over a wide 4.5V to 32V input range and is capable of delivering up to 100mA of output current.

The charge pump employs either low quiescent current Burst Mode operation or low noise constant frequency mode. In Burst Mode operation the charge pump VOUT regulates to –0.94 • VIN and the LTC3261 draws only 60μA of quiescent current. In constant frequency mode the charge pump produces an output equal to –VIN and operates at a fixed 500kHz or to a programmed frequency between 50kHz to 500kHz using an external resistor. The LTC3261 is available in a thermally enhanced 12-pin MSOP package.

Applications

  • Bipolar/Inverting Supplies
  • Industrial/Instrumentation Bias Generators
  • Portable Medical Equipment
  • Portable Instruments
Part Models 8
1ku List Price Starting From $3.45

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3261EMSE#PBF
  • HTML
  • HTML
LTC3261EMSE#TRPBF
  • HTML
  • HTML
LTC3261HMSE#PBF
  • HTML
  • HTML
LTC3261HMSE#TRPBF
  • HTML
  • HTML
LTC3261IMSE#PBF
  • HTML
  • HTML
LTC3261IMSE#TRPBF
  • HTML
  • HTML
LTC3261MPMSE#PBF
  • HTML
  • HTML
LTC3261MPMSE#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 31, 2020

- 20_0245

Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

LTC3261EMSE#PBF

PRODUCTION

LTC3261EMSE#TRPBF

PRODUCTION

LTC3261HMSE#PBF

PRODUCTION

LTC3261HMSE#TRPBF

PRODUCTION

LTC3261IMSE#PBF

PRODUCTION

LTC3261IMSE#TRPBF

PRODUCTION

LTC3261MPMSE#PBF

PRODUCTION

LTC3261MPMSE#TRPBF

PRODUCTION

Feb 4, 2020

- 20_0129

Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

LTC3261EMSE#PBF

PRODUCTION

LTC3261EMSE#TRPBF

PRODUCTION

LTC3261HMSE#PBF

PRODUCTION

LTC3261HMSE#TRPBF

PRODUCTION

LTC3261IMSE#PBF

PRODUCTION

LTC3261IMSE#TRPBF

PRODUCTION

LTC3261MPMSE#PBF

PRODUCTION

LTC3261MPMSE#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 31, 2020

- 20_0245

arrow down

Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

LTC3261EMSE#PBF

PRODUCTION

LTC3261EMSE#TRPBF

PRODUCTION

LTC3261HMSE#PBF

PRODUCTION

LTC3261HMSE#TRPBF

PRODUCTION

LTC3261IMSE#PBF

PRODUCTION

LTC3261IMSE#TRPBF

PRODUCTION

LTC3261MPMSE#PBF

PRODUCTION

LTC3261MPMSE#TRPBF

PRODUCTION

Feb 4, 2020

- 20_0129

arrow down

Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

LTC3261EMSE#PBF

PRODUCTION

LTC3261EMSE#TRPBF

PRODUCTION

LTC3261HMSE#PBF

PRODUCTION

LTC3261HMSE#TRPBF

PRODUCTION

LTC3261IMSE#PBF

PRODUCTION

LTC3261IMSE#TRPBF

PRODUCTION

LTC3261MPMSE#PBF

PRODUCTION

LTC3261MPMSE#TRPBF

PRODUCTION

Software & Part Ecosystem

Evaluation Kits 1

reference details image

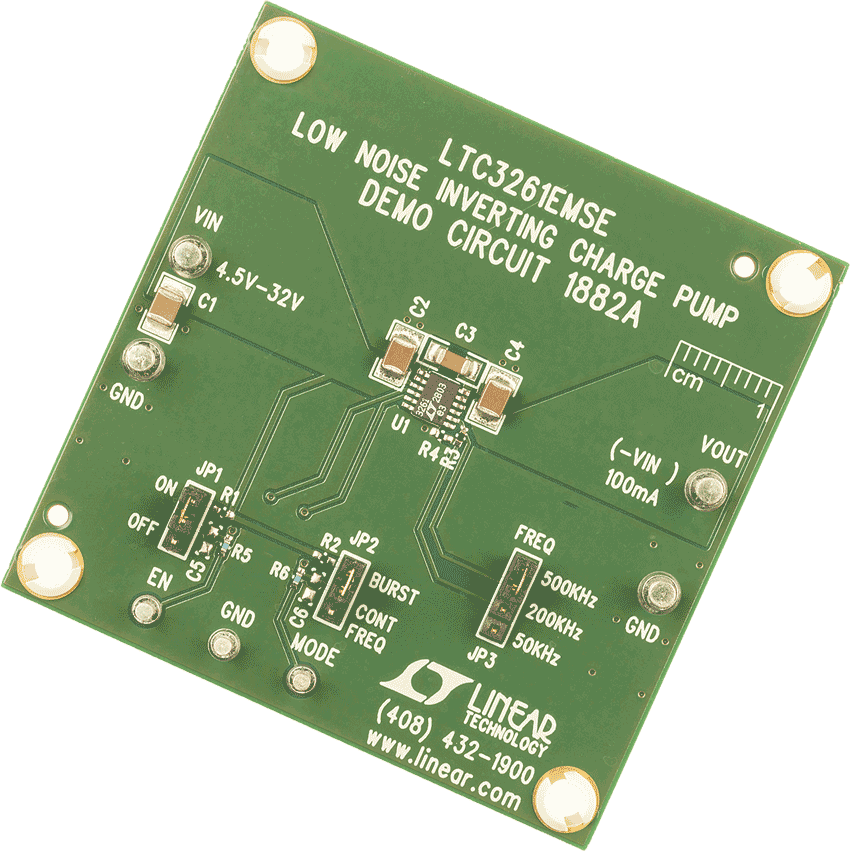

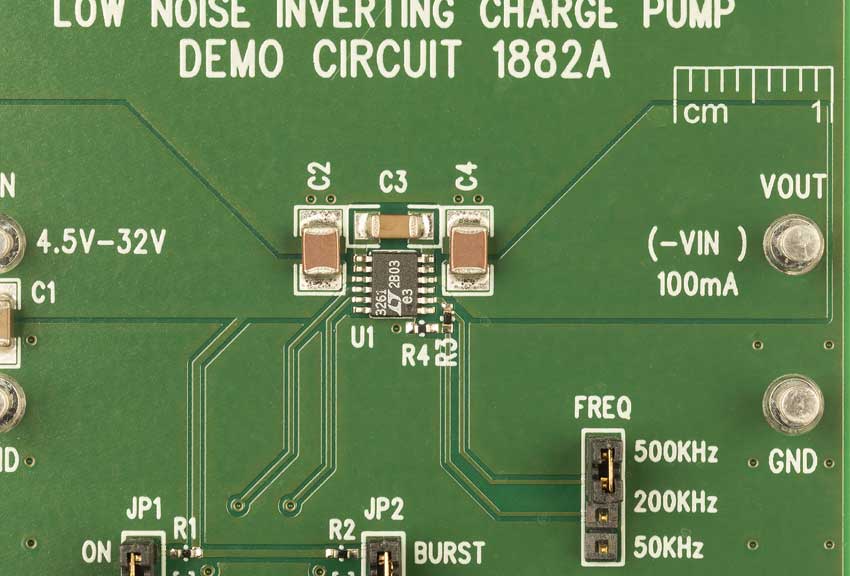

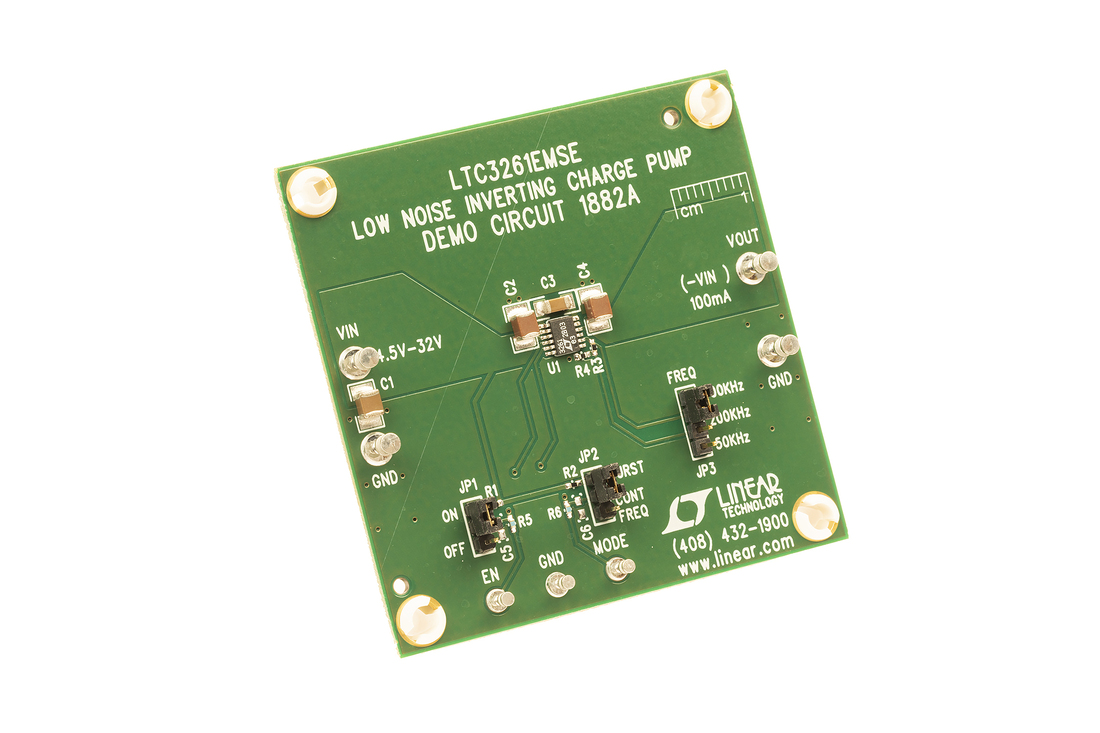

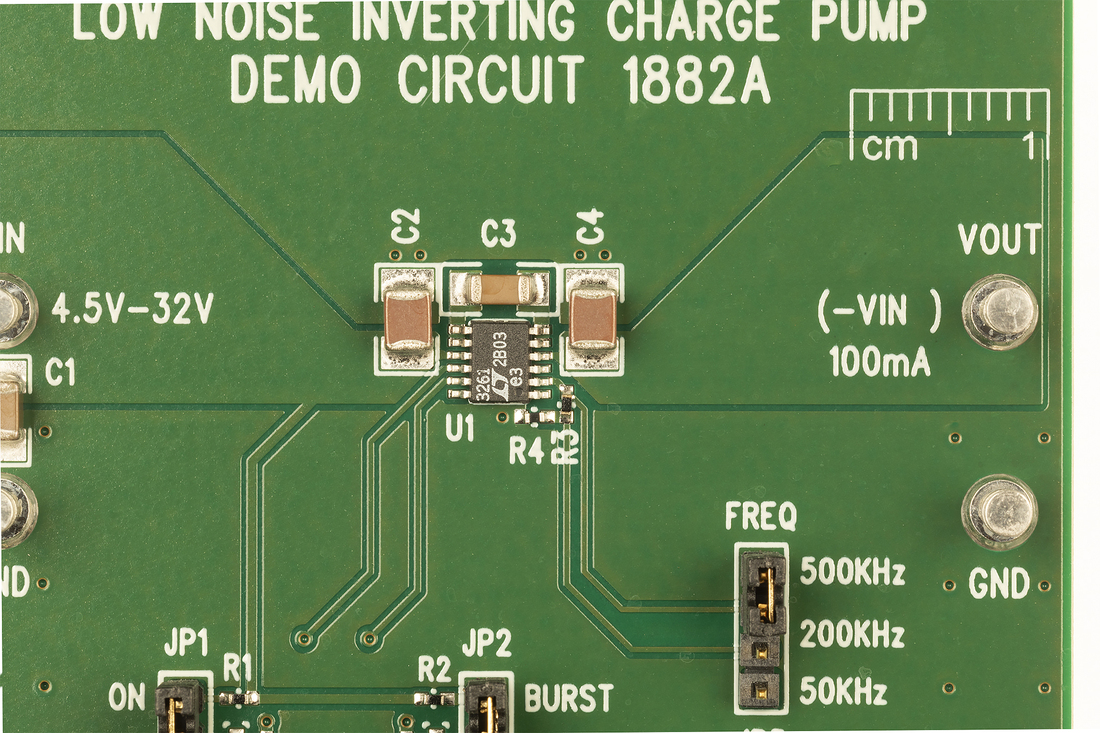

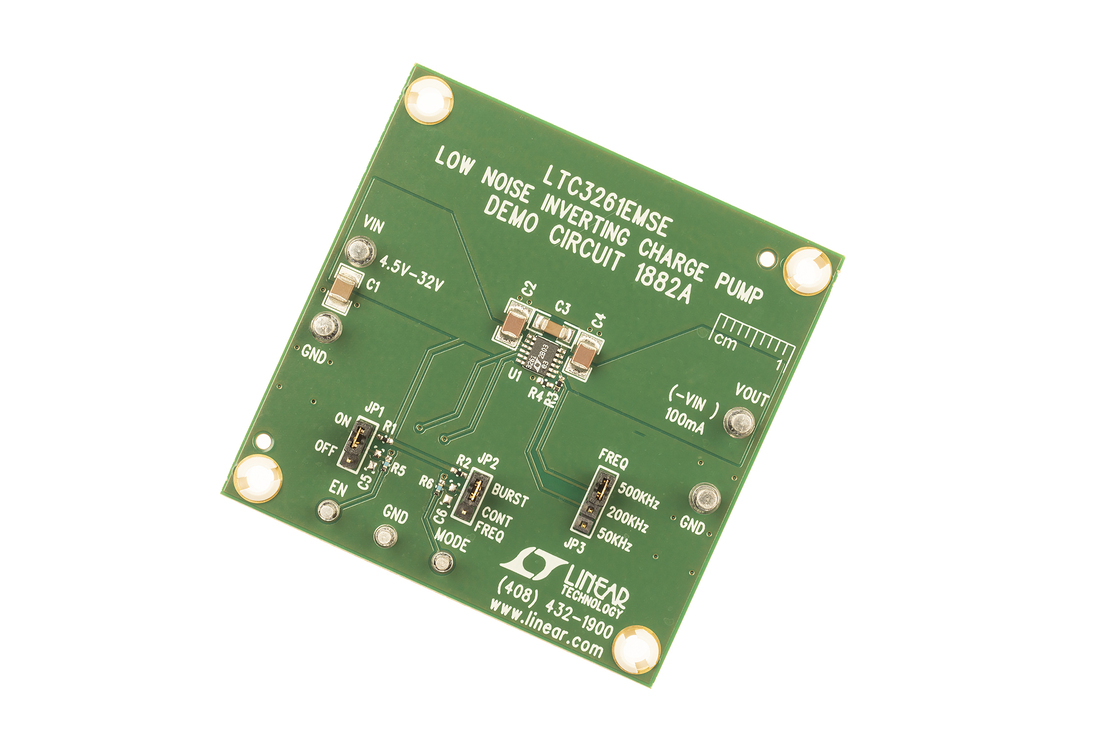

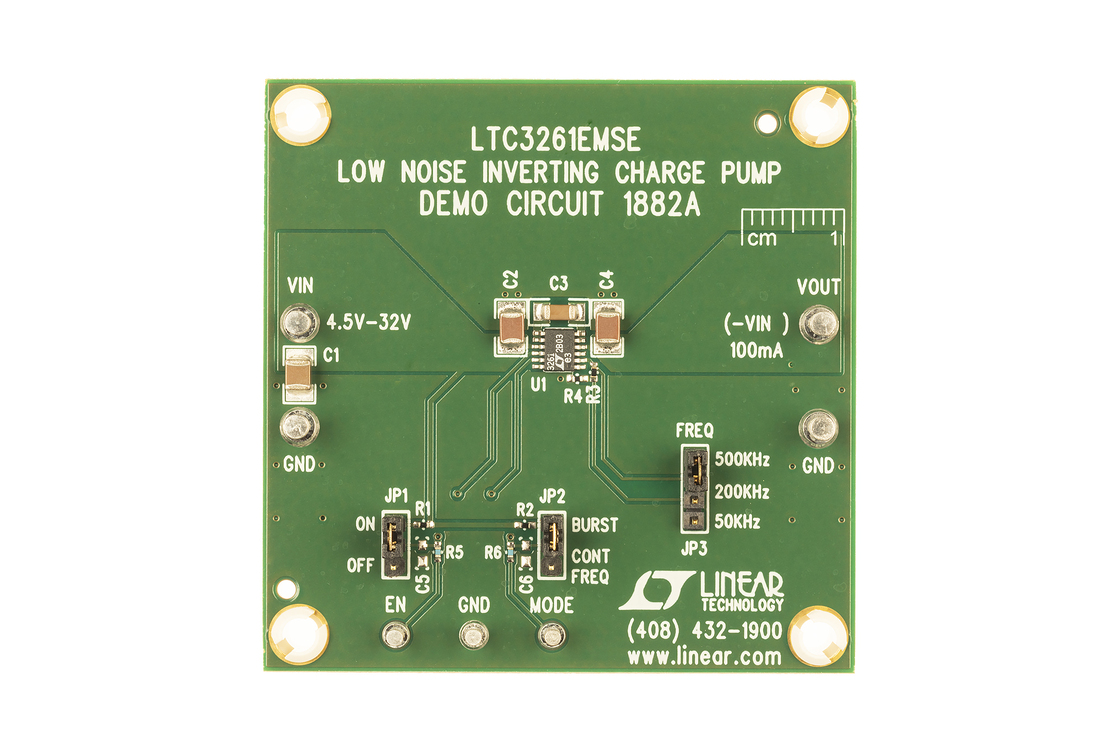

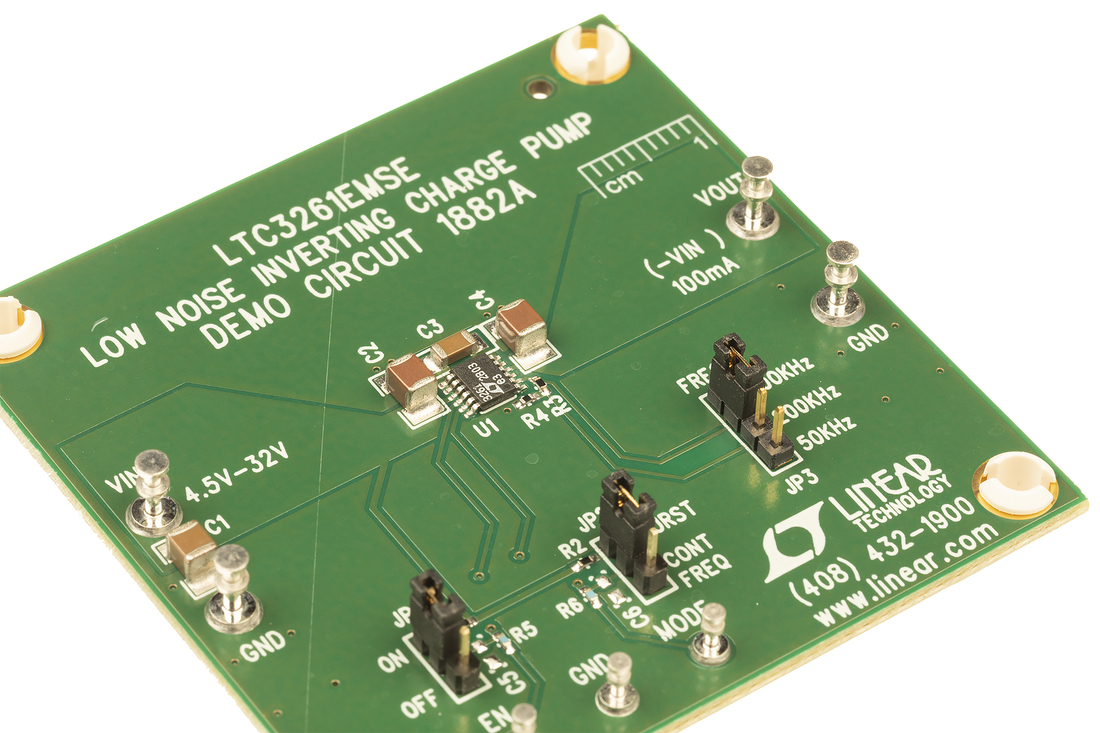

DC1882A

LTC3261EMSE Demo Board | High Voltage, Low IQ Inverting Charge Pump, 4.5V ≤ VIN ≤ 32V, VOUT = -VIN @ 100mA

zoom

DC1882A

LTC3261EMSE Demo Board | High Voltage, Low IQ Inverting Charge Pump, 4.5V ≤ VIN ≤ 32V, VOUT = -VIN @ 100mA

LTC3261EMSE Demo Board | High Voltage, Low IQ Inverting Charge Pump, 4.5V ≤ VIN ≤ 32V, VOUT = -VIN @ 100mA

Product Detail

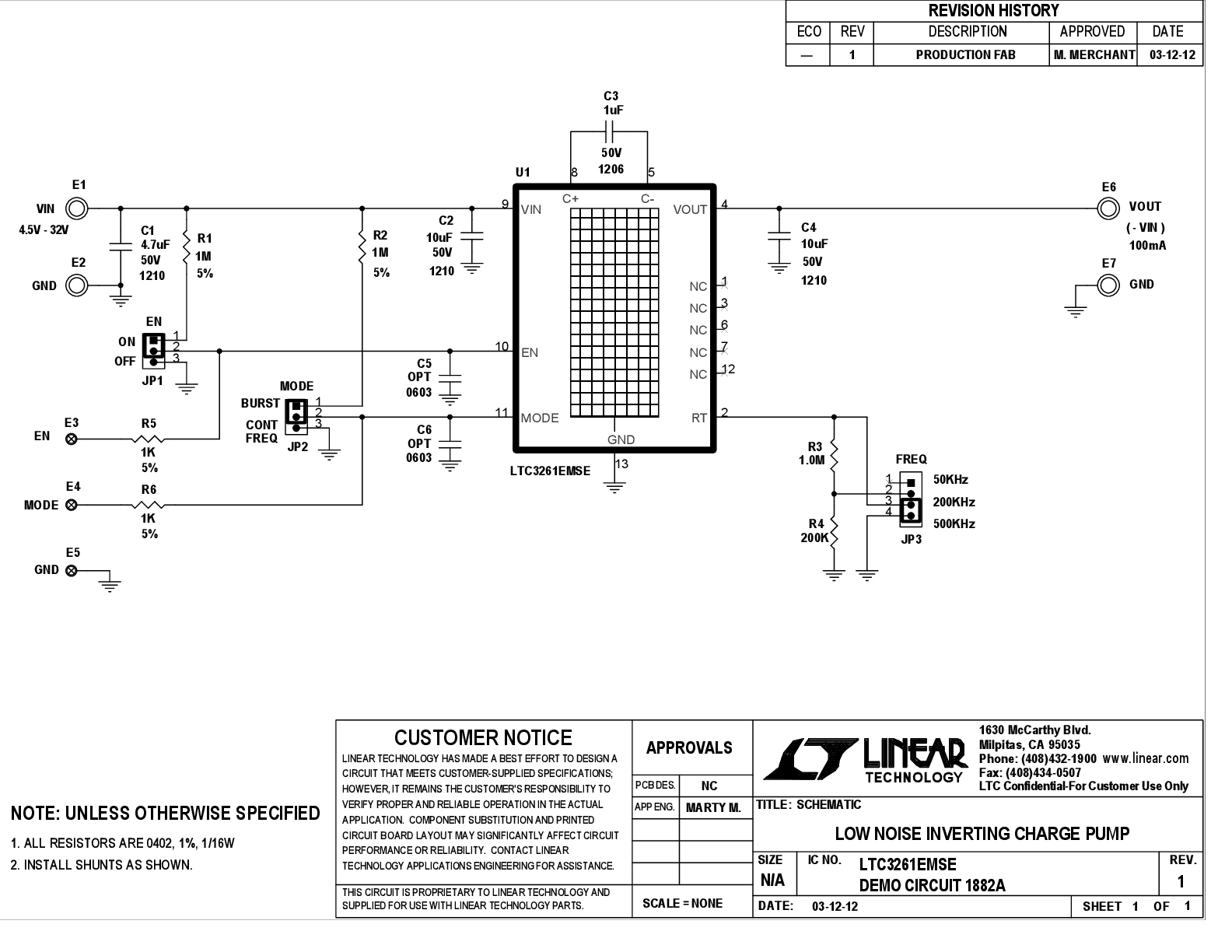

Demonstration circuit 1882 is a high voltage inverting charge pump featuring the LTC3261EMSE. The LTC3261 operates with an input voltage from 4.5V to 32V and provides up to 100mA of output current. The output voltage is unregulated and is the negative of the input voltage (-VIN). The demo board provides selectable Burst Mode® operation or constant-frequency mode operation, plus allows selection of the operating frequency (500kHz, 200kHz or 50kHz).

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
