LT6016

Dual 3.2MHz, 0.8V/μs Low Power, Over-The-Top Precision Op Amp

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LT6015 Demo Circuit - Precision Voltage Limiter Download 2.00KB LTspice LTC3630/LT6016 Demo Circuit - Positive to Negative Converter with Variable Output (24V to -20V @ 200mA) Download 3.00KB LTspice LT6016 Demo Circuit - Precision High Voltage High Side Load Current Monitor Download 2.00KB LTspice LT6016 - Operational Amplifiers (Op Amps) Download 1.52 KB
Part Models 6
1ku List Price Starting From $2.94
Features
  • Input Common Mode Range: V– to V– + 76V
  • Rail-to-Rail Input and Output
  • Low Power: 315μA/Amplifier
  • Operating Temperature Range: –55°C to 150°C
  • VOS: ±50μV (Maximum)
  • CMRR, PSRR: 126dB
  • Reverse Battery Protection to 50V
  • Gain Bandwidth Product: 3.2MHz
  • Specified on 5V and ±15V Supplies
  • High Voltage Gain: 1000V/mV
  • No Phase Reversal
  • No Supply Sequencing Problems
  • Single 5-Lead SOT-23 (ThinSOT™) Package
  • Dual 8-Lead MSOP
  • Quad 22-Lead DFN (6mm × 3mm)
Additional Details
show more Icon

The LT6015/LT6016/LT6017 are single/dual/quad rail-to-rail input operational amplifiers with input offset voltage trimmed to less than 50μV. These amplifiers operate on single and split supplies with a total voltage of 3V to 50V and draw only 315μA per amplifier. They are reverse battery protected, drawing very little current for reverse supplies up to 50V.

The Over-The-Top® input stage of the LT6015/LT6016/ LT6017 is designed to provide added protection in tough environments. The input common mode range extends from V– to V+ and beyond: these amplifiers operate with inputs up to 76V above V– independent of V+. Internal resistors protect the inputs against transient faults up to 25V below the negative supply. The LT6015/LT6016/ LT6017 can drive loads up to 25mA and are unity-gain stable with capacitive loads as large as 200pF. Optional external compensation can be added to extend the capacitive drive capability beyond 200pF.

The LT6015 is offered in a 5-lead SOT package. The LT6016 dual op amp is available in an 8-lead MSOP package. The LT6017 is offered in a 22-pin leadless DFN package.

Applications

  • High Side or Low Side Current Sensing
  • Battery/Power Supply Monitoring
  • 4mA to 20mA Transmitters
  • High Voltage Data Acquisition
  • Battery/Portable Instrumentation
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LT6015 Demo Circuit - Precision Voltage Limiter Download 2.00KB LTspice LTC3630/LT6016 Demo Circuit - Positive to Negative Converter with Variable Output (24V to -20V @ 200mA) Download 3.00KB LTspice LT6016 Demo Circuit - Precision High Voltage High Side Load Current Monitor Download 2.00KB LTspice LT6016 - Operational Amplifiers (Op Amps) Download 1.52 KB
Part Models 6
1ku List Price Starting From $2.94
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LT6016

Documentation

10
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Reliability Data
  • Data Sheet
  • Application Note
  • Design Note
  • All
    TickIcon
  • English
  • Chinese
  • Japanese
resetfilter

Reset Filters

Data Sheet

3

PDF Vector

PDF

UPDATED 10/04/2017
English

LT6015/LT6016/LT6017: 3.2MHz, 0.8V/μs Low Power, Over-The-Top Precision Op Amps Data Sheet

Open PDF File

redirect
0.00M
download

Download PDF

PDF Vector

PDF

UPDATED 09/17/2013
Chinese

LT6015/LT6016/LT6017: 3.2MHz、0.8V/µs 低功率、Over-The-Top 高精度运算放大器 数据手册

Open PDF File

redirect
1.00M
download

Download PDF

PDF Vector

PDF

UPDATED 12/08/2014
Japanese

LT6015/LT6016/LT6017: 3.2 MHz、0.8 V/µs 低消費電力の Over-The-Top 高精度オペアンプ データシート

Open PDF File

redirect
1.00M
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R515 Reliability Data redirect icon

35.82 K

download

Download PDF

Application Note

1

PDF Vector

PDF

UPDATED 10/07/2013
English
AN141 - Risk Assessment Advice for High Reliability Amplifiers redirect icon

292.00K

download

Download PDF

Design Note

5

PDF Vector

PDF

UPDATED 12/08/2016
English
DN533 - Robust High Voltage Over-The-Top Op Amps Maintain High Input Impedance with Inputs Driven Apart or When Powered Down redirect icon

286.00K

download

Download PDF

PDF Vector

PDF

UPDATED 11/06/2014
Chinese
DN533 - 坚固型高电压 Over-The-Top 运放可在驱动输入电压差异很大或断电时保持高阻抗 redirect icon

381.00K

download

Download PDF

PDF Vector

PDF

UPDATED 12/08/2014
Japanese
DN533 - 入力値が離れたときや、パワーダウン時にも高入力インピーダンスを 維持する堅牢な高電圧Over-The-Top オペアンプ redirect icon

175.00K

download

Download PDF

PDF Vector

HTML

UPDATED 10/02/2015
English
Design Note 1034: Low Power, Precision Op Amp Simplifies Driving of MUXed ADCs redirect icon

PDF Vector

HTML

UPDATED 10/02/2015
Japanese
DN-1034: マルチプレクサ内蔵 ADC の駆動を容易にする低電力、高精度オペアンプ redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

Technical Documents 5
show more Icon

Data Sheet 1

LT6015/LT6016/LT6017: 3.2MHz, 0.8V/μs Low Power, Over-The-Top Precision Op Amps Data Sheet

Reliability Data 1

R515 Reliability Data

Application Note 1

AN141 - Risk Assessment Advice for High Reliability Amplifiers

Design Note 2

DN533 - Robust High Voltage Over-The-Top Op Amps Maintain High Input Impedance with Inputs Driven Apart or When Powered Down
Design Note 1034: Low Power, Precision Op Amp Simplifies Driving of MUXed ADCs

Solutions Bulletin & Brochure 1

60V Zero Drift

Product Selector Card 2

High Voltage Amplifiers
SAR ADC Drivers

Video

2

Thumbnail Image

Video

2017-09-18

76V Over-the-Top<sup>®</sup> Input Op Amp Combines Precision, Versatility and Protection

Learn More
Thumbnail Image

Video

2017-09-18

07:38

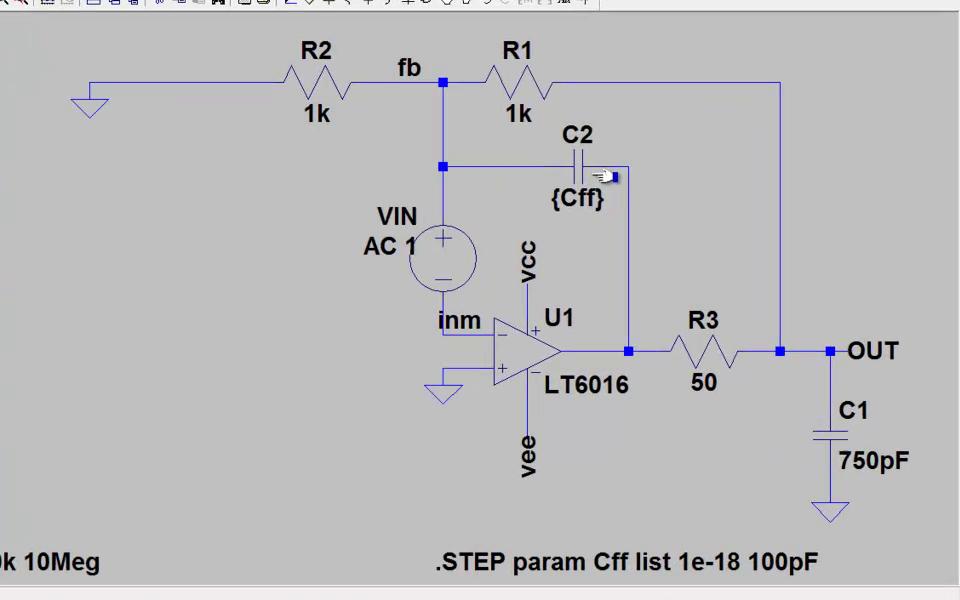

LTspice: Stability of Op Amp Circuits
