LT6017

Quad 3.2MHz, 0.8V/μs Low Power, Over-The-Top Precision Op Amp

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LT6015 Demo Circuit - Precision Voltage Limiter Download 2.00KB LTspice LT6017 - Operational Amplifiers (Op Amps) Download 1.54 KB
Part Models 6
1ku List Price Starting From $4.67
Features
  • Input Common Mode Range: V– to V– + 76V
  • Rail-to-Rail Input and Output
  • Low Power: 315μA/Amplifier
  • Operating Temperature Range: –55°C to 150°C
  • VOS: ±50μV (Maximum)
  • CMRR, PSRR: 126dB
  • Reverse Battery Protection to 50V
  • Gain Bandwidth Product: 3.2MHz
  • Specified on 5V and ±15V Supplies
  • High Voltage Gain: 1000V/mV
  • No Phase Reversal
  • No Supply Sequencing Problems
  • Single 5-Lead SOT-23 (ThinSOT™) Package
  • Dual 8-Lead MSOP
  • Quad 22-Lead DFN (6mm × 3mm)
Additional Details
show more Icon

The LT6015/LT6016/LT6017 are single/dual/quad rail-to-rail input operational amplifiers with input offset voltage trimmed to less than 50μV. These amplifiers operate on single and split supplies with a total voltage of 3V to 50V and draw only 315μA per amplifier. They are reverse battery protected, drawing very little current for reverse supplies up to 50V.

The Over-The-Top® input stage of the LT6015/LT6016/ LT6017 is designed to provide added protection in tough environments. The input common mode range extends from V– to V+ and beyond: these amplifiers operate with inputs up to 76V above V– independent of V+. Internal resistors protect the inputs against transient faults up to 25V below the negative supply. The LT6015/LT6016/ LT6017 can drive loads up to 25mA and are unity-gain stable with capacitive loads as large as 200pF. Optional external compensation can be added to extend the capacitive drive capability beyond 200pF.

The LT6015 is offered in a 5-lead SOT package. The LT6016 dual op amp is available in an 8-lead MSOP package. The LT6017 is offered in a 22-pin leadless DFN package.

Applications

  • High Side or Low Side Current Sensing
  • Battery/Power Supply Monitoring
  • 4mA to 20mA Transmitters
  • High Voltage Data Acquisition
  • Battery/Portable Instrumentation
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LT6015 Demo Circuit - Precision Voltage Limiter Download 2.00KB LTspice LT6017 - Operational Amplifiers (Op Amps) Download 1.54 KB
Part Models 6
1ku List Price Starting From $4.67
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LT6017

Documentation

9
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Reliability Data
  • Data Sheet
  • Design Note
  • All
    TickIcon
  • English
  • Chinese
  • Japanese
resetfilter

Reset Filters

Data Sheet

3

PDF Vector

PDF

UPDATED 10/04/2017
English

LT6015/LT6016/LT6017: 3.2MHz, 0.8V/μs Low Power, Over-The-Top Precision Op Amps Data Sheet

Open PDF File

redirect
0.00M
download

Download PDF

PDF Vector

PDF

UPDATED 09/17/2013
Chinese

LT6015/LT6016/LT6017: 3.2MHz、0.8V/µs 低功率、Over-The-Top 高精度运算放大器 数据手册

Open PDF File

redirect
1.00M
download

Download PDF

PDF Vector

PDF

UPDATED 12/08/2014
Japanese

LT6015/LT6016/LT6017: 3.2 MHz、0.8 V/µs 低消費電力の Over-The-Top 高精度オペアンプ データシート

Open PDF File

redirect
1.00M
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R515 Reliability Data redirect icon

35.82 K

download

Download PDF

Design Note

5

PDF Vector

PDF

UPDATED 12/08/2016
English
DN533 - Robust High Voltage Over-The-Top Op Amps Maintain High Input Impedance with Inputs Driven Apart or When Powered Down redirect icon

286.00K

download

Download PDF

PDF Vector

PDF

UPDATED 11/06/2014
Chinese
DN533 - 坚固型高电压 Over-The-Top 运放可在驱动输入电压差异很大或断电时保持高阻抗 redirect icon

381.00K

download

Download PDF

PDF Vector

PDF

UPDATED 12/08/2014
Japanese
DN533 - 入力値が離れたときや、パワーダウン時にも高入力インピーダンスを 維持する堅牢な高電圧Over-The-Top オペアンプ redirect icon

175.00K

download

Download PDF

PDF Vector

HTML

UPDATED 10/02/2015
English
Design Note 1034: Low Power, Precision Op Amp Simplifies Driving of MUXed ADCs redirect icon

PDF Vector

HTML

UPDATED 10/02/2015
Japanese
DN-1034: マルチプレクサ内蔵 ADC の駆動を容易にする低電力、高精度オペアンプ redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

Product Selector Card 1

High Voltage Amplifiers

Video

2

Thumbnail Image

Video

2017-09-18

76V Over-the-Top<sup>®</sup> Input Op Amp Combines Precision, Versatility and Protection

Learn More
Thumbnail Image

Video

2017-09-18

07:38

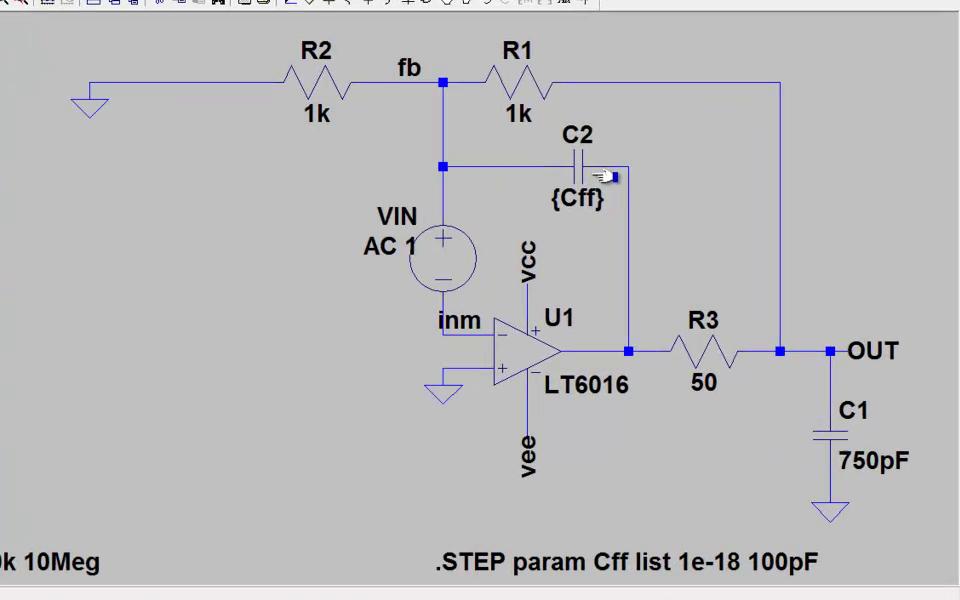

LTspice: Stability of Op Amp Circuits

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT6017HDJC#PBF 22-Lead DFN (6mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT6017HDJC#TRPBF 22-Lead DFN (6mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT6017IDJC#PBF 22-Lead DFN (6mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT6017IDJC#TRPBF 22-Lead DFN (6mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT6017MPDJC#PBF 22-Lead DFN (6mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT6017MPDJC#TRPBF 22-Lead DFN (6mm x 3mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
Software & Part Ecosystem

Software & Part Ecosystem

Parts Product Life Cycle Description

Low Power Op Amps (&le; 1mA/amp) 1
LT6015
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

3.2MHz, 0.8V/μs Low Power, Over-The-Top Precision Op Amps

Precision Op Amps (Vos &le;1mV & TCVos &le;2uV/C)1
LT6016
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Dual 3.2MHz, 0.8V/μs Low Power, Over-The-Top Precision Op Amp

Tools & Simulations

Tools & Simulations 4

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

LT6015 Demo Circuit - Precision Voltage Limiter Download

2.00K

spice tool Lt Spice

LT6017 - Operational Amplifiers (Op Amps) Download

1.54 K
