LT3080

Adjustable 1.1A Single Resistor Low Dropout Regulator

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 23
1ku List Price Starting From $2.20
Features
  • Outputs May Be Paralleled for Higher Current and Heat Spreading
  • Output Current: 1.1A
  • Single Resistor Programs Output Voltage
  • 1% Initial Accuracy of SET Pin Current
  • Output Adjustable to 0V
  • Low Output Noise: 40μVRMS (10Hz to 100kHz)
  • Wide Input Voltage Range: 1.2V to 36V
  • Low Dropout Voltage: 350mV (Except SOT-223 Package)
  • <1mV Load Regulation
  • <0.001%/V Line Regulation
  • Minimum Load Current: 0.5mA
  • Stable with 2.2μF Minimum Ceramic Output Capacitor
  • Current Limit with Foldback and Overtemperature Protected
  • Available in 8-Lead MSOP, 3mm × 3mm DFN
  • 5-Lead DD-Pak, TO-220 and 3-Lead SOT-223
  • AEC-Q100 Qualified for Automotive Applications
Additional Details
show more Icon

The LT3080 is a 1.1A low dropout linear regulator that can be paralleled to increase output current or spread heat in surface mounted boards. Architected as a precision current source and voltage follower allows this new regulator to be used in many applications requiring high current, adjustability to zero, and no heat sink. Also the device brings out the collector of the pass transistor to allow low dropout operation —down to 350 millivolts— when used with multiple supplies.

A key feature of the LT3080 is the capability to supply a wide output voltage range. By using a reference current through a single resistor, the output voltage is programmed to any level between zero and 36V. The LT3080 is stable with 2.2μF of capacitance on the output, and the IC uses small ceramic capacitors that do not require additional ESR as is common with other regulators.

Internal protection circuitry includes current limiting and thermal limiting. The LT3080 regulator is offered in the 8-lead MSOP (with an exposed pad for better thermal characteristics), a 3mm × 3mm DFN, 5-lead DD-Pak, TO-220 and a simple-to-use 3-lead SOT-223 version.


Features
LT3080 -
LT3080-1 Can parallel without additional external resistance

Applications

  • High Current All Surface Mount Supply
  • High Efficiency Linear Regulator
  • Post Regulator for Switching Supplies
  • Low Parts Count Variable Voltage Supply
  • Low Output Voltage Power Supplies
Part Models 23
1ku List Price Starting From $2.20

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT3080EDD#PBF
  • HTML
  • HTML
LT3080EDD#TRPBF
  • HTML
  • HTML
LT3080EMS8E#PBF
  • HTML
  • HTML
LT3080EMS8E#TRPBF
  • HTML
  • HTML
LT3080EQ#PBF
  • HTML
  • HTML
LT3080EQ#TRPBF
  • HTML
  • HTML
LT3080EST#PBF
  • HTML
  • HTML
LT3080EST#TRPBF
  • HTML
  • HTML
LT3080EST#WPBF
  • HTML
  • HTML
LT3080EST#WTRPBF
  • HTML
  • HTML
LT3080ET#31PBF
  • HTML
  • HTML
LT3080ET#PBF
  • HTML
  • HTML
LT3080IDD#PBF
  • HTML
  • HTML
LT3080IDD#TRPBF
  • HTML
  • HTML
LT3080IMS8E#PBF
  • HTML
  • HTML
LT3080IMS8E#TRPBF
  • HTML
  • HTML
LT3080IQ#PBF
  • HTML
  • HTML
LT3080IQ#TRPBF
  • HTML
  • HTML
LT3080IST#PBF
  • HTML
  • HTML
LT3080IST#TRPBF
  • HTML
  • HTML
LT3080IST#WPBF
  • HTML
  • HTML
LT3080IST#WTRPBF
  • HTML
  • HTML
LT3080IT#PBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 3, 2020

- 20_0128

Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC

LT3080EMS8E#PBF

PRODUCTION

LT3080EMS8E#TRPBF

PRODUCTION

LT3080IMS8E#PBF

PRODUCTION

LT3080IMS8E#TRPBF

PRODUCTION

Aug 10, 2022

- 22_0175

Laser Top Mark Conversion for DDPAK & TO220 Packages Assembled in ADPG. Country of Origin Code [MY] To Be Incorporated On Top Mark

LT3080EQ#PBF

PRODUCTION

LT3080EQ#TRPBF

PRODUCTION

LT3080ET#31PBF

PRODUCTION

LT3080ET#PBF

PRODUCTION

LT3080IQ#PBF

PRODUCTION

LT3080IQ#TRPBF

PRODUCTION

LT3080IT#PBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 3, 2020

- 20_0128

arrow down

Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC

LT3080EMS8E#PBF

PRODUCTION

LT3080EMS8E#TRPBF

PRODUCTION

LT3080IMS8E#PBF

PRODUCTION

LT3080IMS8E#TRPBF

PRODUCTION

Aug 10, 2022

- 22_0175

arrow down

Laser Top Mark Conversion for DDPAK & TO220 Packages Assembled in ADPG. Country of Origin Code [MY] To Be Incorporated On Top Mark

LT3080EQ#PBF

PRODUCTION

LT3080EQ#TRPBF

PRODUCTION

LT3080ET#31PBF

PRODUCTION

LT3080ET#PBF

PRODUCTION

LT3080IQ#PBF

PRODUCTION

LT3080IQ#TRPBF

PRODUCTION

LT3080IT#PBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

reference details image

DC1294A

LT3080EDD Demo Board | LT3080(x4), Paralleled, Single Resistor LDOs, 3.8V ≤ VIN ≤ 25V, VOUT = 3.3V @ 4.4A

zoom

DC1294A

LT3080EDD Demo Board | LT3080(x4), Paralleled, Single Resistor LDOs, 3.8V ≤ VIN ≤ 25V, VOUT = 3.3V @ 4.4A

LT3080EDD Demo Board | LT3080(x4), Paralleled, Single Resistor LDOs, 3.8V ≤ VIN ≤ 25V, VOUT = 3.3V @ 4.4A

Product Detail

Demonstration circuit 1294A exercises four adjustable linear regulators in parallel using the LT3080. A small 20 mΩ ballast resistor is required for parallel operation. A short PCB trace can easily serve that purpose. The paralleled devices provide up to 4.4A of output current at 3.3V.


Architected as a precision current source and voltage follower, the LT3080 can be used in many applications requiring high current, adjustability to zero output, and no heat sink. The device brings out the collector of the pass transistor to allow low dropout operation when used with multiple supplies. The LT3080's output voltage can be programmed to any level between 0V and 36V; however the demo board has a reduced input voltage range from 3.8V to 25V due to the input capacitor voltage rating.








reference details image

DC995A

LT3080EDD Demo Board | Single Resistor Prog Linear Regulator, 2.3V ≤ VIN ≤ 25V, VOUT = 0.6V/1.0V/1.2V/1.5V/1.8V/2.5V/3.3V/5V @ 1.1A

zoom

DC995A

LT3080EDD Demo Board | Single Resistor Prog Linear Regulator, 2.3V ≤ VIN ≤ 25V, VOUT = 0.6V/1.0V/1.2V/1.5V/1.8V/2.5V/3.3V/5V @ 1.1A

LT3080EDD Demo Board | Single Resistor Prog Linear Regulator, 2.3V ≤ VIN ≤ 25V, VOUT = 0.6V/1.0V/1.2V/1.5V/1.8V/2.5V/3.3V/5V @ 1.1A

Product Detail

Demonstration circuit 995A is an adjustable 1.1A linear regulator featuring the LT3080. Architected as a precision current source and voltage follower, it allows this new regulator to be used in many applications requiring high current, adjustability to zero output, and no heat sink. The device brings out the collector of the pass transistor to allow low dropout operation when used with multiple supplies. The demo board's input supply voltage range is 2.3V to 25V. For proper regulation, the LT3080 has a control pin; the voltage on this pin must be 1.2V to 1.35V higher than the output voltage.The output voltage is jumper selectable and can be set to 1.8V, a value between 0V and 5V (using trimpot R2) or a user-defined value.


A key feature of the LT3080 is its wide output voltage range. By using a reference current through a single resistor, the output voltage can be programmed to any level between zero and 36V. The DC995A has a reduced input voltage 25V due to input capacitor voltage rating. The DC995A can be used as a high current linear regulator, a post regulator for switching supply,a  variable voltage supply or a low output voltage power supply.

Tools & Simulations

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

Reference Designs

Reference Designs 10

Figure 1. CN0577 Simplified Block Diagram

Analog Front End and Digital Interface for Serial LVDS SAR ADCs

zoomopens a dialog

CN0577

Analog Front End and Digital Interface for Serial LVDS SAR ADCs

CN0577

Circuits from the lab

tooltip Info:Circuits from the lab
Analog Front End and Digital Interface for Serial LVDS SAR ADCs

Features and Benefits

  • 18-Bit Resolution, 15 MSPS Data Acquisition System
  • Arbitrary Voltage Inputs Supported
  • All Clocking and Power Requirements are Onboard
  • FMC Connector for FPGA Interfacing
View Detailed Reference Design external link

Design & Integration Tools

pdf icon

ZIP

6.81 M

MAX 10 NEEK Dev Kit

zoomopens a dialog

max-10-neek-development-kit

max-10-neek-development-kit

Circuits from the lab

tooltip Info:Circuits from the lab

Features and Benefits

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
View Detailed Reference Design external link
DE-10 Nano Kit

zoomopens a dialog

terasic-de10-nano-kit

terasic-de10-nano-kit

Circuits from the lab

tooltip Info:Circuits from the lab

Features and Benefits

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
View Detailed Reference Design external link
DK-DEV-5SGSMD5N DSP Dev Kit

zoomopens a dialog

altera-dsp-development-kit-stratix-v-edition

altera-dsp-development-kit-stratix-v-edition

Circuits from the lab

tooltip Info:Circuits from the lab

Features and Benefits

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
View Detailed Reference Design external link
DK-SI-4SGX230N Kit

zoomopens a dialog

Altera Transceiver Signal Integrity Kit, Stratix IV GX Edition

Altera Transceiver Signal Integrity Kit, Stratix IV GX Edition

Circuits from the lab

tooltip Info:Circuits from the lab

Features and Benefits

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
View Detailed Reference Design external link
Stratix V Advanced System Development Board

zoomopens a dialog

stratix-v-advanced-system-development-board

stratix-v-advanced-system-development-board

Circuits from the lab

tooltip Info:Circuits from the lab

Features and Benefits

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
View Detailed Reference Design external link
SoCKit Dev Kit

zoomopens a dialog

arrow-terasic-sockit-development-kit

arrow-terasic-sockit-development-kit

Circuits from the lab

tooltip Info:Circuits from the lab

Features and Benefits

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
View Detailed Reference Design external link
DE1-SoC Dev Kit

zoomopens a dialog

terasic-de1-soc-development-kit

terasic-de1-soc-development-kit

Circuits from the lab

tooltip Info:Circuits from the lab

Features and Benefits

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
View Detailed Reference Design external link

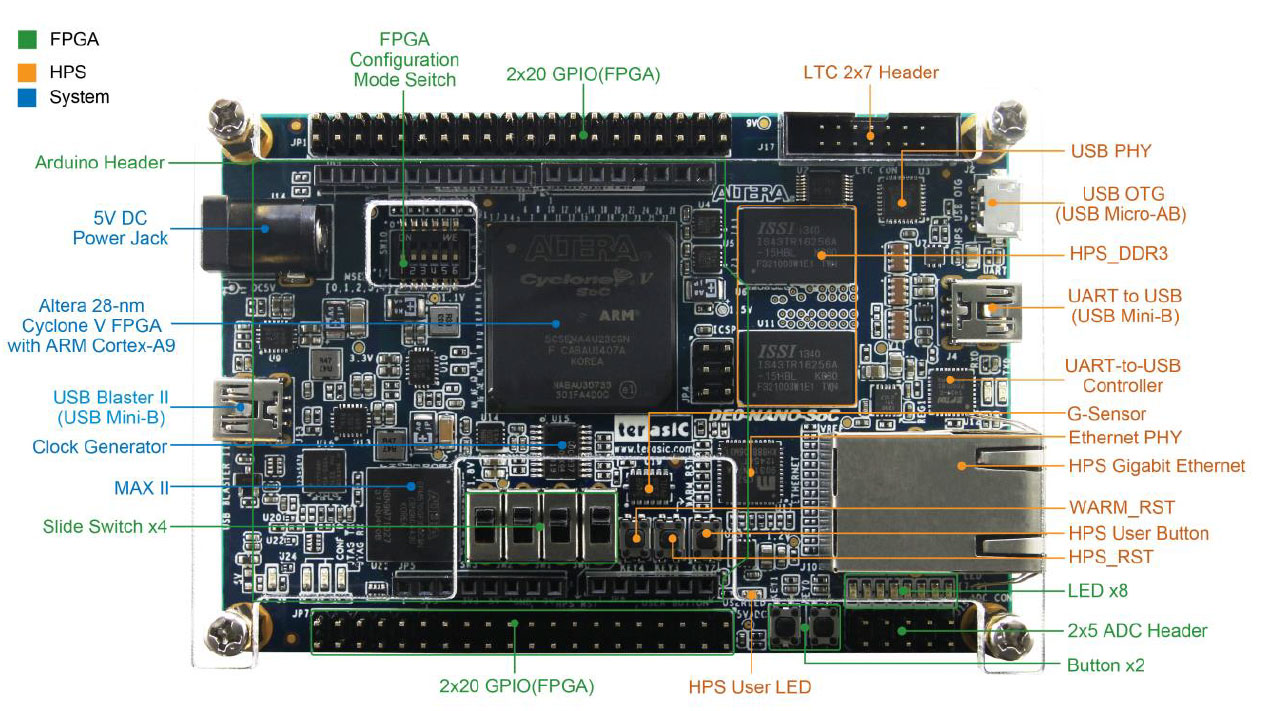

DE0 Nano SoC Dev Platform - Top View
