LTC2945

Wide Range I2C Power Monitor

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.C)
Documentation View All Documentation
Linduino LTC2945 Linduino .CPP File Download 7.00KB Linduino LTC2945 Linduino Header File Download 22.00KB Linduino LTC2945 - DC1697A Linduino .INO File Download 39.00KB LTspice LTC2945 - Specialty Amplifiers Download 2.19 KB
Part Models 26
1ku List Price Starting From $4.27
Features
  • Rail-to-Rail Input Range: 0V to 80V
  • Wide Input Supply Range: 2.7V to 80V
  • Shunt Regulator for Supplies >80V

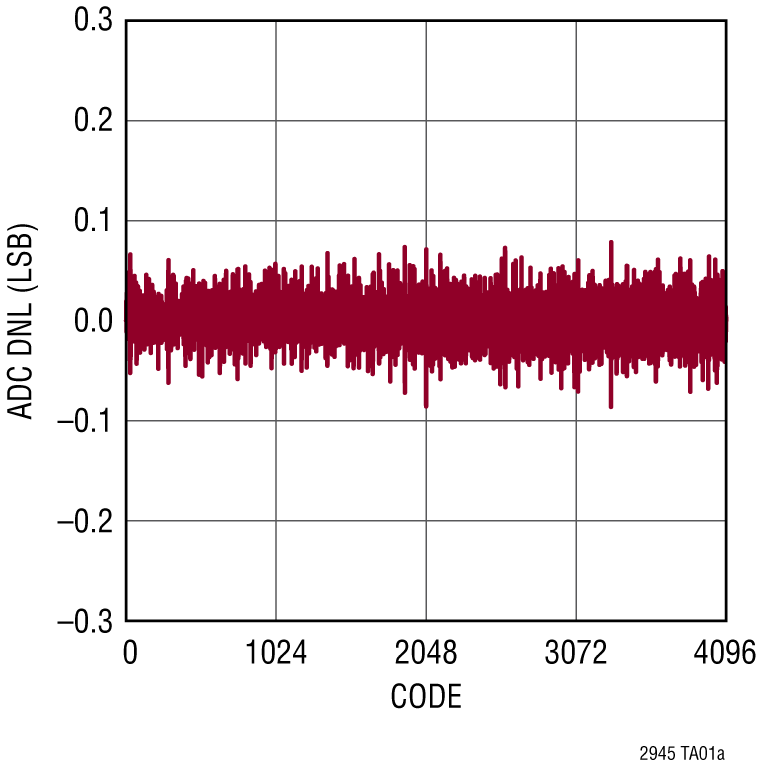

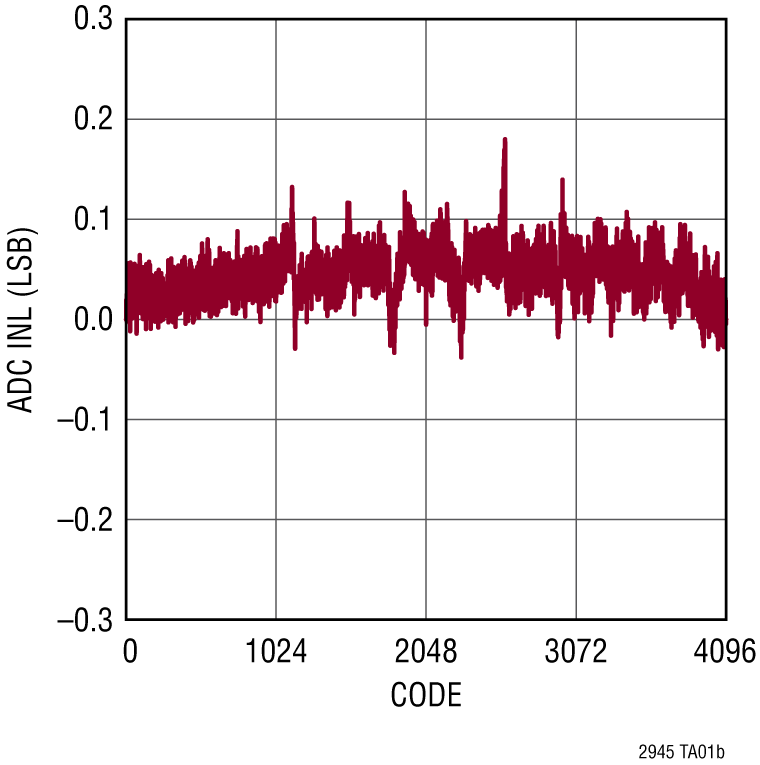

  • ΔΣ ADC with less than ±0.75% Total Unadjusted Error
  • 12-Bit Resolution for Current and Voltages
  • Internal Multiplier Calculates 24-Bit Power Value
  • Stores Minimum and Maximum Values
  • Alerts When Limits Exceeded
  • Additional ADC Input Monitors an External Voltage
  • Continuous Scan and Snapshot Modes
  • Shutdown Mode with IQ < 80μA
  • Split SDA for Opto-Isolation

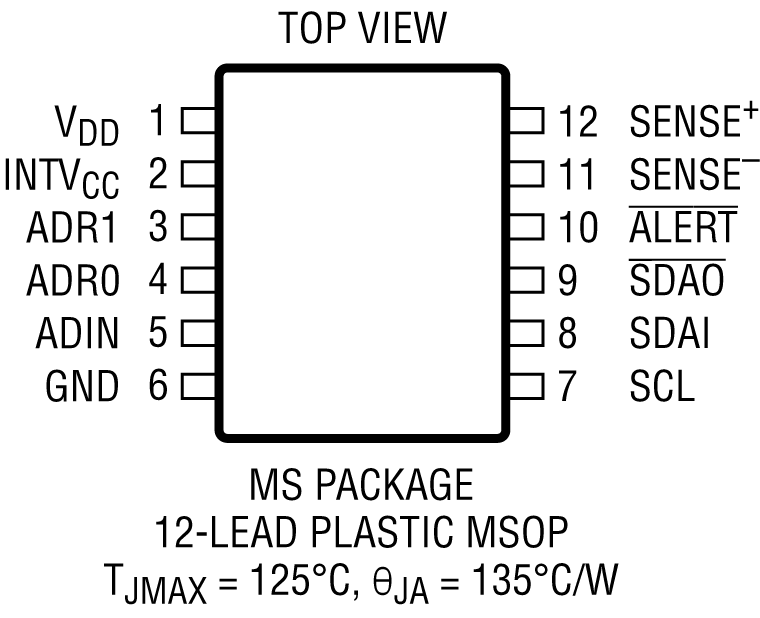

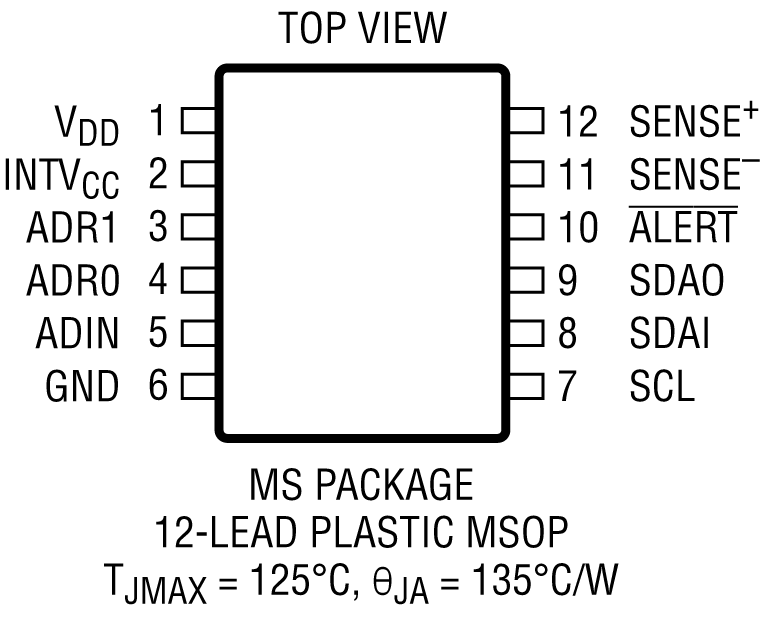

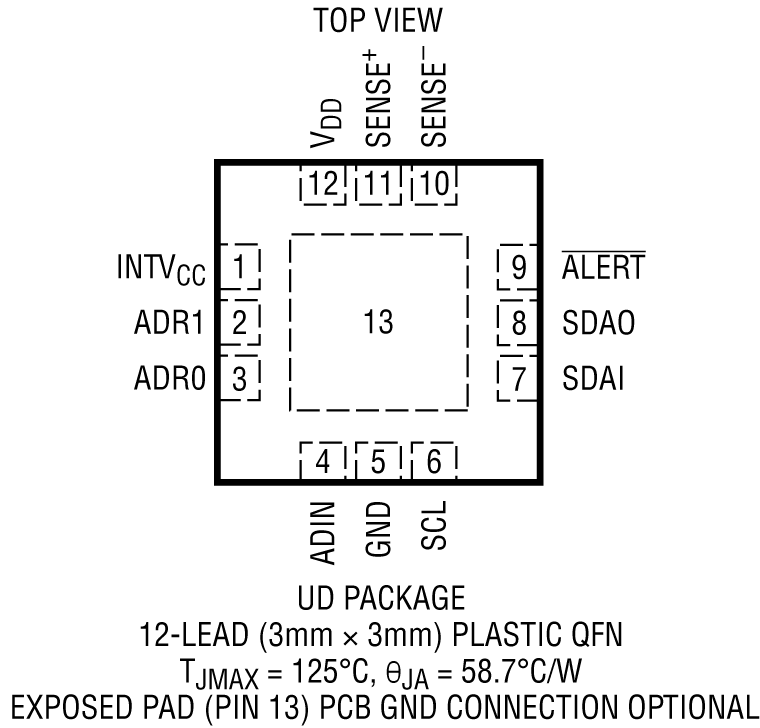

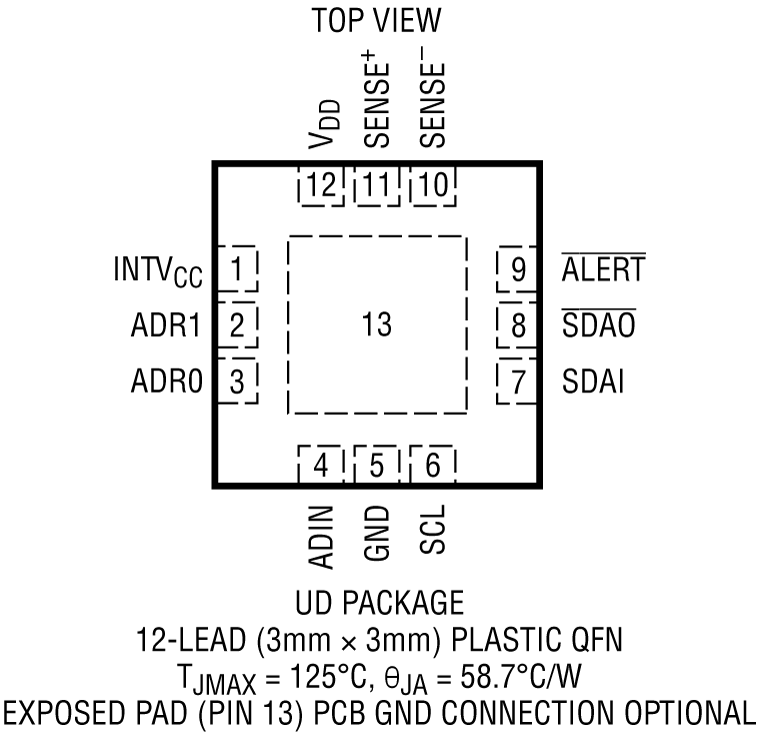

  • Available in 12-Lead 3mm × 3mm QFN and MSOP Packages
  • AEC-Q100 Qualified for Automotive Applications
Additional Details
show more Icon

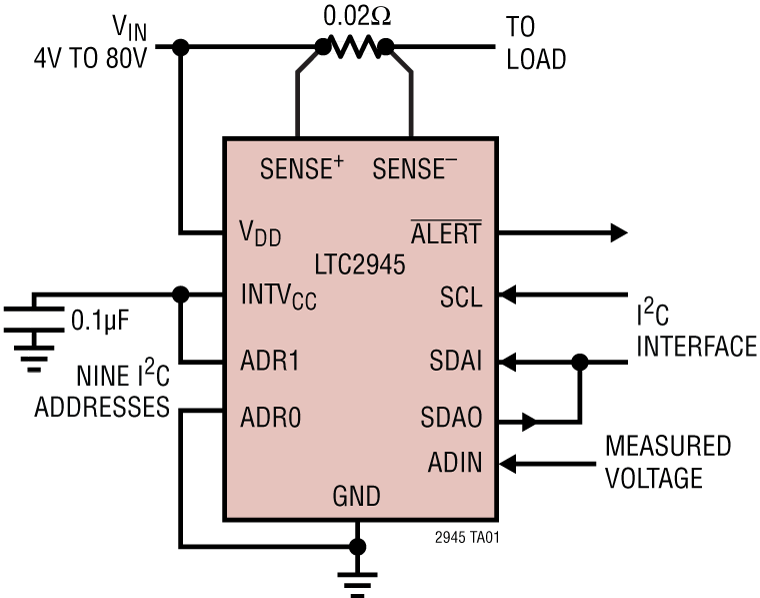

The LTC2945 is a rail-to-rail system monitor that measures current, voltage, and power. It features an operating range of 2.7V to 80V and includes a shunt regulator for supplies above 80V to allow flexibility in the selection of input supply. The current measurement range of 0V to 80V is independent of the input supply. An onboard 0.75% accurate 12-bit ADC measures load current, input voltage and an auxiliary external voltage. A 24-bit power value is generated by digitally multiplying the measured 12-bit load current and input voltage data. Minimum and maximum values are stored and an overrange alert with programmable thresholds minimizes the need for software polling. Data is reported via a standard I2C interface. Shutdown mode reduces power consumption to 20μA.

The LTC2945 I2C interface includes separate data input and output pins for use with standard or opto-isolated I2C connections. The LTC2945-1 has an inverted data output for use with inverting opto-isolator configurations.

APPLICATIONS

  • Telecom Infrastructure
  • Industrial
  • Automotive
  • Consumer
Show More Arrow image
file View Data Sheet (Rev.C)
Documentation View All Documentation
Linduino LTC2945 Linduino .CPP File Download 7.00KB Linduino LTC2945 Linduino Header File Download 22.00KB Linduino LTC2945 - DC1697A Linduino .INO File Download 39.00KB LTspice LTC2945 - Specialty Amplifiers Download 2.19 KB
Part Models 26
1ku List Price Starting From $4.27
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC2945

Documentation

7
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Reliability Data
  • Technical Articles
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 09/17/2015
English

LTC2945: Wide Range I2C Power Monitor Data Sheet (Rev.C)

Open PDF File

redirect
2.48 M
download

Download PDF

PDF Vector

PDF

UPDATED 12/13/2013
Japanese

LTC2945: 範囲の広いI2C電力モニタ データシート

Open PDF File

redirect
1.00M
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 06/13/2016
English
DC1697A - Demo Manual redirect icon

470.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/23/2018
English
R567 Reliability Data redirect icon

122.1 K

download

Download PDF

Technical Articles

3

PDF Vector

HTML

UPDATED 07/01/2013
English
3mm × 3mm QFN IC Directly Monitors 0V to 80V Supplies: Features I2C Interface, Peak Value Tracking and Runs from Any Supply redirect icon

PDF Vector

HTML

UPDATED 07/01/2013
Japanese
0V～80Vの電源を直接モニタする3mm×3mm QFNデバイス：I2Cインタフェース、ピーク値のトラッキングを特長とし、任意の電源で動作 redirect icon

PDF Vector

HTML

UPDATED 02/20/2015
English
Understanding Power Monitor Accuracy redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Device Drivers 1

LTC2945 GitHub Linux Driver Source Code

Product Selector Card 3

Wide Range I2C Power Monitor
Power and Thermal Monitoring
Power System Manager and Super Sequencer Selection Guide

Video

1

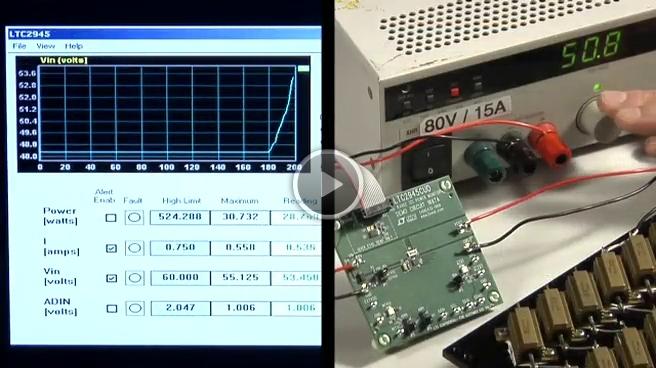

Thumbnail Image

Video

2017-09-18

80V Wide Range I<sup>2</sup>C Power Monitor Simplifies Challenging System Monitoring Tasks

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC2945CMS#PBF 12-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2945CMS#TRPBF 12-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2945CMS-1#PBF 12-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2945CMS-1#TRPBF 12-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2945CUD#PBF 12-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2945CUD#TRPBF 12-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2945CUD-1#PBF 12-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2945CUD-1#TRPBF 12-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2945HMS#PBF 12-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2945HMS#TRPBF 12-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2945HMS-1#PBF 12-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2945HMS-1#TRPBF 12-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2945HUD#PBF 12-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2945HUD#TRPBF 12-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2945HUD#WPBF 12-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2945HUD#WTRPBF 12-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2945HUD-1#PBF 12-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2945HUD-1#TRPBF 12-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2945IMS#PBF 12-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2945IMS#TRPBF 12-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2945IMS-1#PBF 12-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2945IMS-1#TRPBF 12-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2945IUD#PBF 12-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2945IUD#TRPBF 12-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2945IUD-1#PBF 12-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2945IUD-1#TRPBF 12-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0004

Epoxy Change from Henkel 8290 to 8290A for MSOP (3)

LTC2945CMS#PBF

PRODUCTION

LTC2945CMS#TRPBF

PRODUCTION

LTC2945CMS-1#PBF

PRODUCTION

LTC2945CMS-1#TRPBF

PRODUCTION

LTC2945HMS#PBF

PRODUCTION

LTC2945HMS#TRPBF

PRODUCTION

LTC2945IMS#PBF

PRODUCTION

LTC2945IMS#TRPBF

PRODUCTION

LTC2945IMS-1#PBF

PRODUCTION

LTC2945IMS-1#TRPBF

PRODUCTION

pdf

PCN24_0004_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Feb 4, 2020

- 20_0129

Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

LTC2945CMS#PBF

PRODUCTION

LTC2945CMS#TRPBF

PRODUCTION

LTC2945CMS-1#PBF

PRODUCTION

LTC2945CMS-1#TRPBF

PRODUCTION

LTC2945HMS#PBF

PRODUCTION

LTC2945HMS#TRPBF

PRODUCTION

LTC2945HMS-1#PBF

PRODUCTION

LTC2945HMS-1#TRPBF

PRODUCTION

LTC2945IMS#PBF

PRODUCTION

LTC2945IMS#TRPBF

PRODUCTION

LTC2945IMS-1#PBF

PRODUCTION

LTC2945IMS-1#TRPBF

PRODUCTION

pdf

PCN20_0129_Form

external-icon

xls

Material_Report

Download

Oct 11, 2022

- 22_0244

Epoxy Change from Henkel 8290 to 8290A for MSOP Package

LTC2945HMS-1#PBF

PRODUCTION

LTC2945HMS-1#TRPBF

PRODUCTION

pdf

PCN22_0244_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0004

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP (3)

LTC2945CMS#PBF

PRODUCTION

LTC2945CMS#TRPBF

PRODUCTION

LTC2945CMS-1#PBF

PRODUCTION

LTC2945CMS-1#TRPBF

PRODUCTION

LTC2945HMS#PBF

PRODUCTION

LTC2945HMS#TRPBF

PRODUCTION

LTC2945IMS#PBF

PRODUCTION

LTC2945IMS#TRPBF

PRODUCTION

LTC2945IMS-1#PBF

PRODUCTION

LTC2945IMS-1#TRPBF

PRODUCTION

pdf

PCN24_0004_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download
Feb 4, 2020

- 20_0129

arrow down

Laser Mark Conversion for 12-Lead MSOP Packages Assembled in ADPG and UTAC

LTC2945CMS#PBF

PRODUCTION

LTC2945CMS#TRPBF

PRODUCTION

LTC2945CMS-1#PBF

PRODUCTION

LTC2945CMS-1#TRPBF

PRODUCTION

LTC2945HMS#PBF

PRODUCTION

LTC2945HMS#TRPBF

PRODUCTION

LTC2945HMS-1#PBF

PRODUCTION

LTC2945HMS-1#TRPBF

PRODUCTION

LTC2945IMS#PBF

PRODUCTION

LTC2945IMS#TRPBF

PRODUCTION

LTC2945IMS-1#PBF

PRODUCTION

LTC2945IMS-1#TRPBF

PRODUCTION

pdf

PCN20_0129_Form

external-icon

xls

Material_Report

Download
Oct 11, 2022

- 22_0244

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP Package

LTC2945HMS-1#PBF

PRODUCTION

LTC2945HMS-1#TRPBF

PRODUCTION

pdf

PCN22_0244_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Software & Part Ecosystem

Parts Product Life Cycle Description

Current Sense Amplifiers1
LTC2946
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Wide Range I2C Power, Charge and Energy Monitor

High Voltage Hot Swap Controllers1
LTC4260
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Positive High Voltage Hot Swap Controller with I2C Compatible Monitoring

I²C Isolators1
LTM2883
popup image
Cart

PRODUCTION

SPI/Digital or I2C μModule Isolator with Adjustable ±12.5V and 5V Regulated Power

Serial Bus Buffers, Extenders, and Accelerators1
LTC4317
popup image
Cart

PRODUCTION

Dual I2C/SMBus Address Translator


LTC Quick Evaluation Software
Info:False
  • file-icon ZIP ltcqev.zip link-type
    NEW tooltip

    This resource was released within the last 6 months.

    RELEASED Sep 05,2024

    • Evaluation Kits 1

    reference details image

    DC1697A

    LTC2945 Demo Board | Wide Range I2C Power Monitor (requires DC2026)

    zoom

    DC1697A

    LTC2945 Demo Board | Wide Range I2C Power Monitor (requires DC2026)

    download icon

    Download

     print icon

    Print
    DC1697A
    LTC2945 Demo Board | Wide Range I2C Power Monitor (requires DC2026)
    Buy Now View Details

    Product Detail

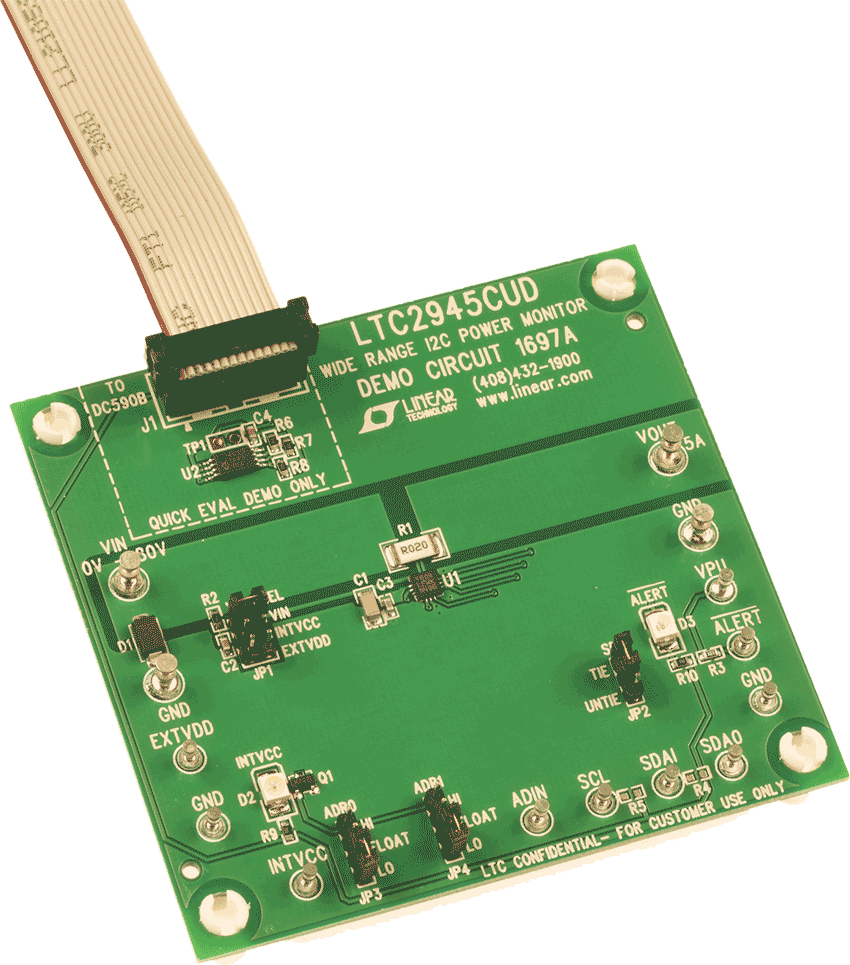

    Demonstration circuit 1697A features the LTC2945. The LTC2945 is a rail-to-rail system monitor that measures current, voltage, and power. It features an operating range of 2.7V to 80V and includes a shunt regulator for supplies above 80V to allow flexibility in the selection of input supply. The current common mode measurement range of 0V to 80V is independent of the input supply. An onboard 0.75% accurate 12-bit ADC measures load current, input voltage and an auxiliary external voltage. A 24-bit power value is generated by digitally multiplying the measured 12-bit load current and input voltage data. Minimum and maximum values are stored and an overrange alert with programmable thresholds minimizes the need for software polling. Data is reported via a standard I2C interface. The demo board is populated for a 5A application. This can be changed by populating R1 accordingly.





    Resources

    pdf icon

    PDF

    DC1697A - Schematic Download

    38.00K

    pdf icon

    ZIP

    DC1697A - Design Files Download

    2.00M

    pdf icon

    PDF

    DC1697A - Demo Manual Download

    470.00K

    Show More Arrow image

    Evaluation Kits1

    evaluation kit item images

    DC1697A

    LTC2945 Demo Board | Wide Range I2C Power Monitor (requires DC2026)

    Tools & Simulations 2

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    To launch ready-to-run LTspice demonstration circuits for this part:

    Step 1: Download and install LTspice on your computer.

    Step 2: Click on the link in the section below to download a demonstration circuit.

    Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

    spice tool Lt Spice

    LTC2945 - Specialty Amplifiers Download

    2.19 K

    Linduino

    Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.

    Linduino code repository on GitHub and instructions on how to use the code.

    Purchase Linduino

    windows iconapple iconcomputer icon
    Linduino download and documentation
    redirectbutton
    Code Files

    toolicon Linduino

    LTC2945 Linduino .CPP File redirect

    LTC2945 Linduino Header File redirect

    LTC2945 - DC1697A Linduino .INO File redirect

    Reference Designs 1

    DE-10 Nano Kit

    Terasic DE10-Nano Kit

    zoomopens a dialog

    Terasic DE10-Nano Kit

    download icon

    Download

     print icon

    Print
    Terasic DE10-Nano Kit

    Circuits from the lab

    tooltip Info:Circuits from the lab

    Features and Benefits

    • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
    • Our reference designs are supported by an intuitive design tool set and IP
    • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
    View Detailed Reference Design external link

    Part Used 18

    LTC1668 reference design link

    LTC2497 reference design link

    LTC2485 reference design link

    LTC4261 reference design link

    LTC4260 reference design link

    LTC4245 reference design link

    LTC4222 reference design link

    LTC4215
    LTC4215-2 reference design link

    LTC4151 reference design link

    LTC2990 reference design link

    LTC2945 reference design link

    ADV7513 reference design link

    ADXL345 reference design link

    LTC2308 reference design link

    LT3580 reference design link

    LT3080 reference design link

    LTC3612 reference design link

    LTC3616 reference design link

    Reference Designs1

    DE-10 Nano Kit

    Terasic DE10-Nano Kit

    Recently Viewed

    Part Details
    Documentation
    Software & Part Ecosystem
    Evaluation Kit
    Tools & Simulations
    Reference Designs
    Latest Discussions
