LTC4151

PRODUCTION

High Voltage I²C Current and Voltage Monitor

Data Sheet Product Selection Table

Part Models: 24
1ku List Price: Starting From $3.14

Viewing:

Part Details

Wide Operating Voltage Range: 7V to 80V

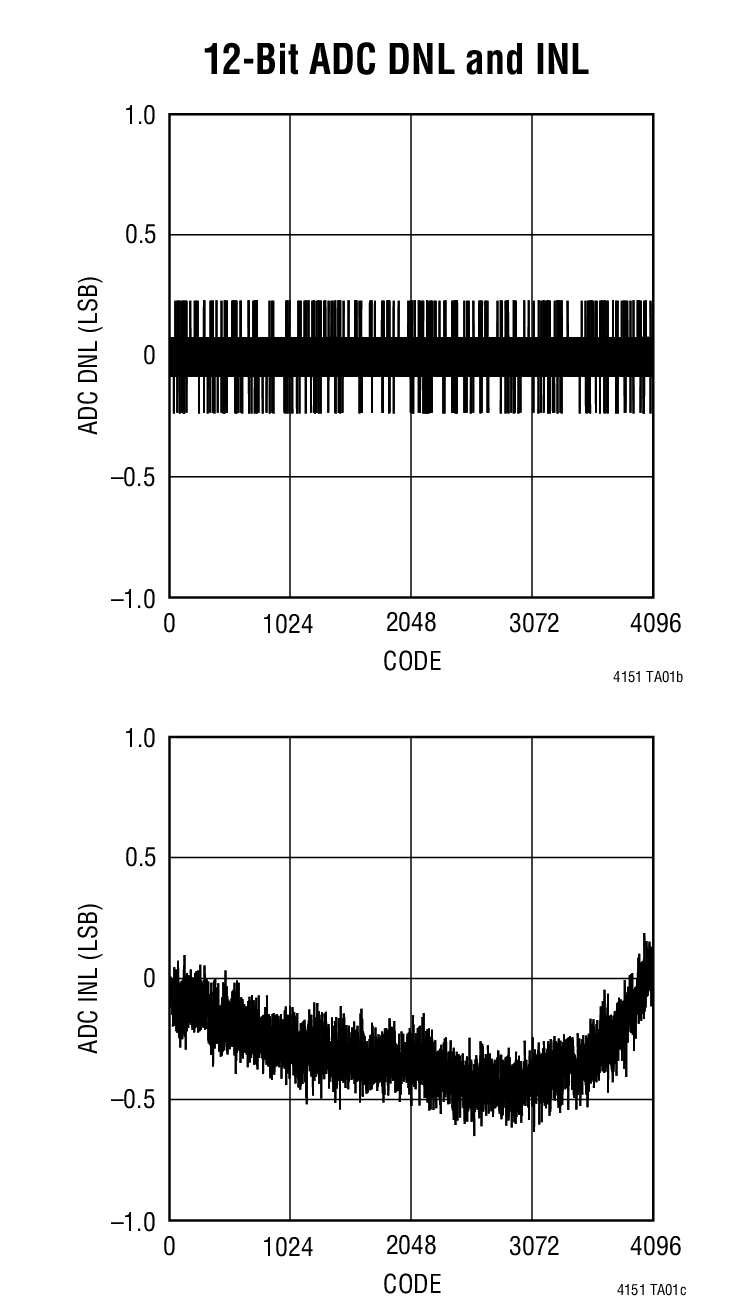

12-Bit Resolution for Both Current and Voltages
I²C Interface
Additional ADC Input Monitors an External Voltage
Continuous Scan and Snapshot Modes
Shutdown Mode (LTC4151) Reduces Quiescent Current to 120μA
Split SDA for Opto-Isolation (LTC4151-1/LTC4151-2)

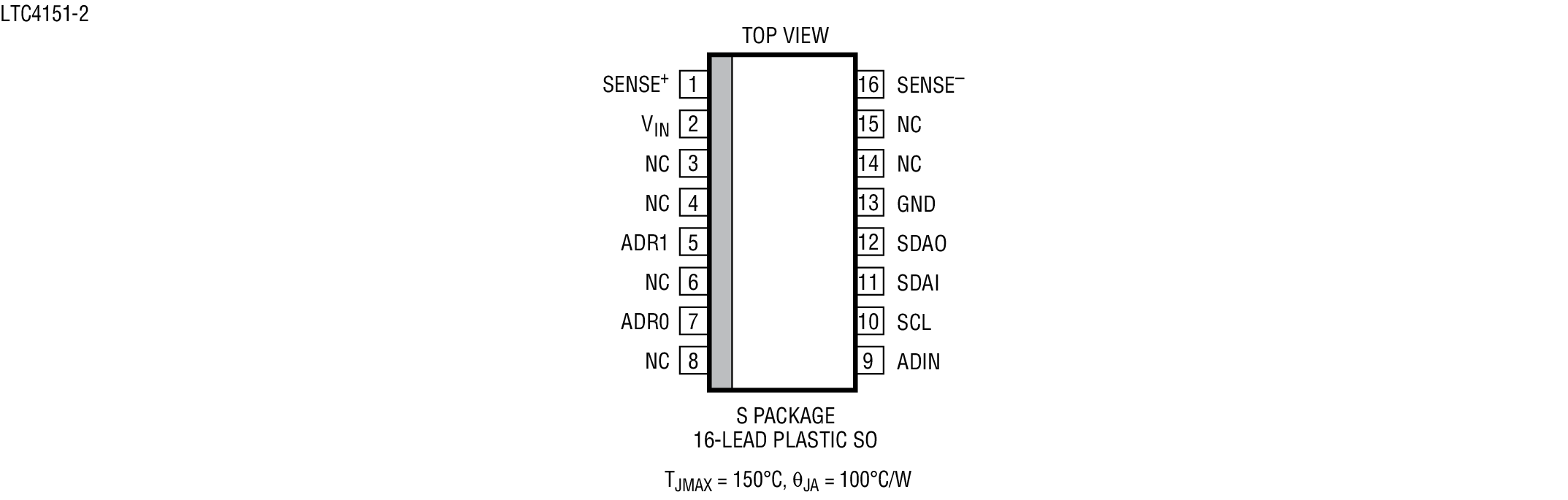

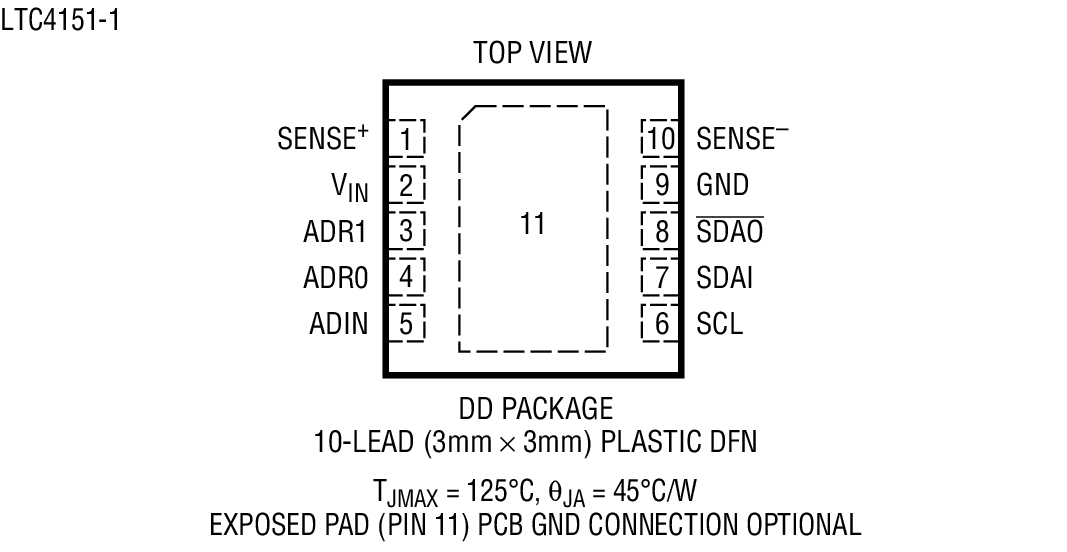

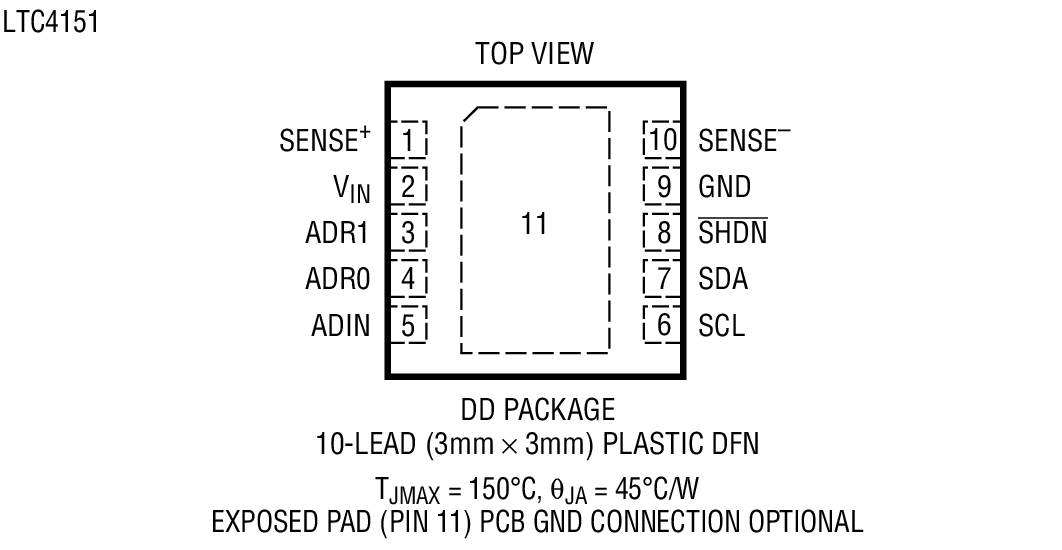

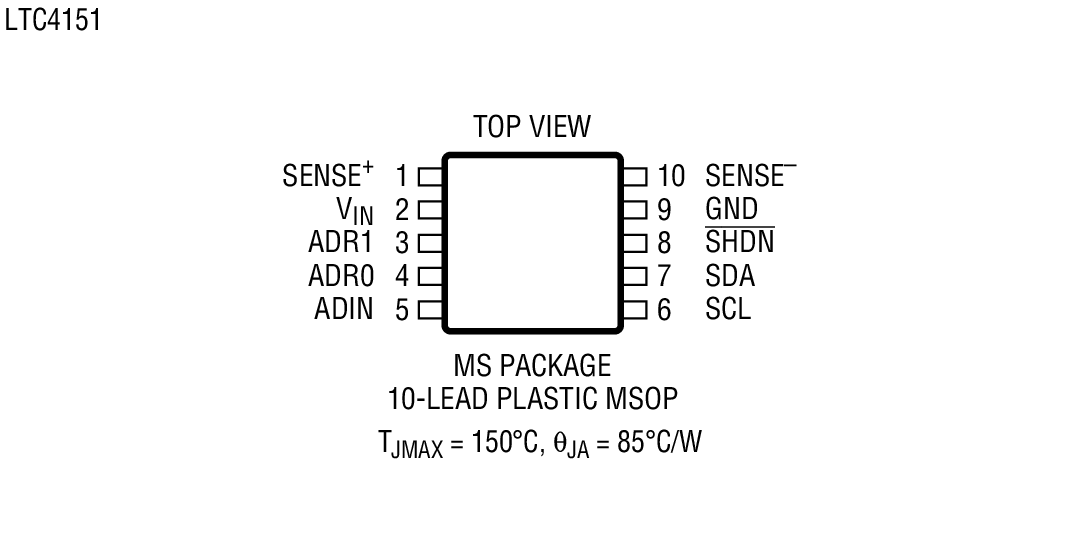

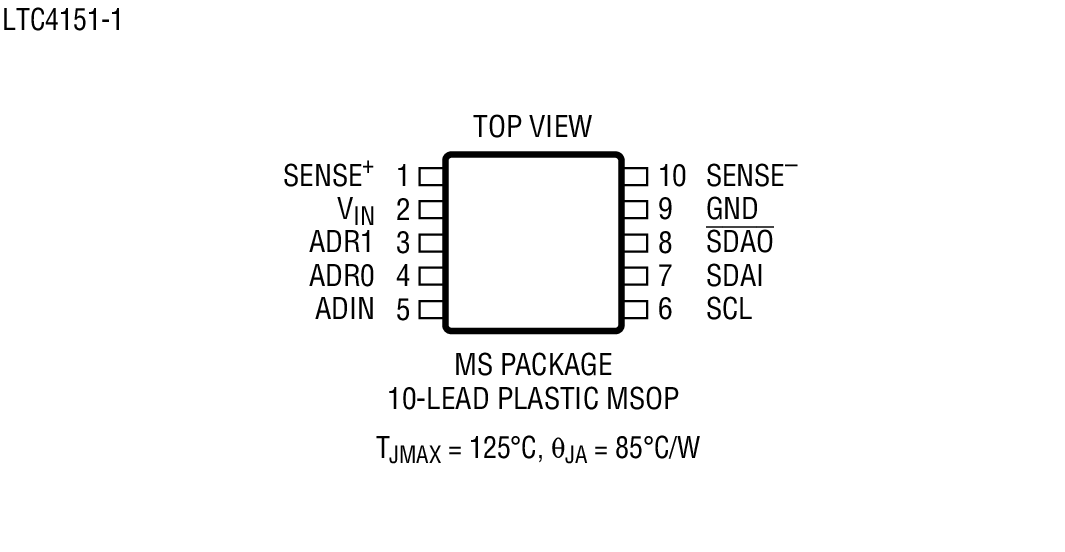

Available in 10-Lead MSOP, 10-Lead 3mm × 3mm DFN and 16-Lead SO Packages

Part Models: 24
1ku List Price: Starting From $3.14

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC4151CDD#PBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4151CDD#TRPBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4151CDD-1#PBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4151CDD-1#TRPBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4151CMS#PBF	10-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4151CMS#TRPBF	10-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4151CMS-1#PBF	10-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4151CMS-1#TRPBF	10-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4151CS-2#PBF	16-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4151CS-2#TRPBF	16-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4151HDD#PBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4151HDD#TRPBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4151HMS#PBF	10-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4151HMS#TRPBF	10-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4151IDD#PBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4151IDD#TRPBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4151IDD-1#PBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4151IDD-1#TRPBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4151IMS#PBF	10-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4151IMS#TRPBF	10-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4151IMS-1#PBF	10-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4151IMS-1#TRPBF	10-Lead MSOP	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4151IS-2#PBF	16-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC4151IS-2#TRPBF	16-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 14, 2025 - 25_0017 Bond Wire Change from Gold to Copper
		PCN25_0017_Form Material_Report Qualification Results Summary
LTC4151CDD#PBF	PRODUCTION
LTC4151CDD#TRPBF	PRODUCTION
LTC4151CDD-1#PBF	PRODUCTION
LTC4151CDD-1#TRPBF	PRODUCTION
LTC4151IDD-1#PBF	PRODUCTION
LTC4151IDD-1#TRPBF	PRODUCTION
Feb 4, 2020 - 20_0130 Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0130_Form Material_Report
LTC4151CMS#PBF	PRODUCTION
LTC4151CMS#TRPBF	PRODUCTION
LTC4151CMS-1#PBF	PRODUCTION
LTC4151CMS-1#TRPBF	PRODUCTION
LTC4151HMS#PBF	PRODUCTION
LTC4151HMS#TRPBF	PRODUCTION
LTC4151IMS#PBF	PRODUCTION
LTC4151IMS#TRPBF	PRODUCTION
LTC4151IMS-1#PBF	PRODUCTION
LTC4151IMS-1#TRPBF	PRODUCTION
Oct 24, 2024 - 24_0246 Migrating Bottom Trace Code Marking to Top Side Laser Marking for SOIC_N Package
		PCN24_0246_Form Material_Report Marking Comparison Delta Qualification Matrix
LTC4151CS-2#PBF	PRODUCTION
LTC4151CS-2#TRPBF	PRODUCTION
LTC4151IS-2#PBF	PRODUCTION
LTC4151IS-2#TRPBF	PRODUCTION
Oct 12, 2022 - 22_0252 Epoxy Change from Henkel 8290 to 8290A for 16-Lead SOIC Package
		PCN22_0252_Form Material_Report Qualification Results Summary
LTC4151CS-2#PBF	PRODUCTION
LTC4151CS-2#TRPBF	PRODUCTION
LTC4151IS-2#PBF	PRODUCTION
LTC4151IS-2#TRPBF	PRODUCTION
Aug 6, 2022 - 22_0173 Laser Top Mark Conversion for SOICN14 and SOICN16 Packages Assembled on ADPG [PNG]
		PCN22_0173_Form Material_Report Delta Qualification Matrix
LTC4151CS-2#PBF	PRODUCTION
LTC4151CS-2#TRPBF	PRODUCTION
LTC4151IS-2#PBF	PRODUCTION
LTC4151IS-2#TRPBF	PRODUCTION
Apr 14, 2025 - 25_0017 Bond Wire Change from Gold to Copper
		PCN25_0017_Form Material_Report Qualification Results Summary
LTC4151HDD#PBF	PRODUCTION
LTC4151HDD#TRPBF	PRODUCTION
Jan 29, 2023 - 22_0244 Epoxy Change from Henkel 8290 to 8290A for MSOP Package
		PCN22_0244_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC4151IMS#PBF	PRODUCTION
LTC4151IMS#TRPBF	PRODUCTION
LTC4151IMS-1#PBF	PRODUCTION
LTC4151IMS-1#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Device Drivers 1

LTC4151 GitHub Linux Driver Source Code

Can't find the software or driver you need?

Hardware Ecosystem

Parts	Product Life Cycle	Description
Current Sense Amplifiers 1
LTC2945	RECOMMENDED FOR NEW DESIGNS	Wide Range I²C Power Monitor
High Voltage Hot Swap Controllers 1
LTC4260	RECOMMENDED FOR NEW DESIGNS	Positive High Voltage Hot Swap Controller with I²C Compatible Monitoring
I²C Isolators 1
LTM2883	PRODUCTION	SPI/Digital or I²C μModule Isolator with Adjustable ±12.5V and 5V Regulated Power
Power Monitors 1
LT2940	PRODUCTION	Power and Current Monitor

Tools & Simulations

Linduino 3

LTpowerPlay®

LTpowerPlay® is a powerful, Windows-based development environment supporting Linear Technology's Digital Power System Management (PSM) products.

Open Tool

Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.

Linduino code repository on GitHub and instructions on how to use the code.

Purchase Linduino

Evaluation Kits

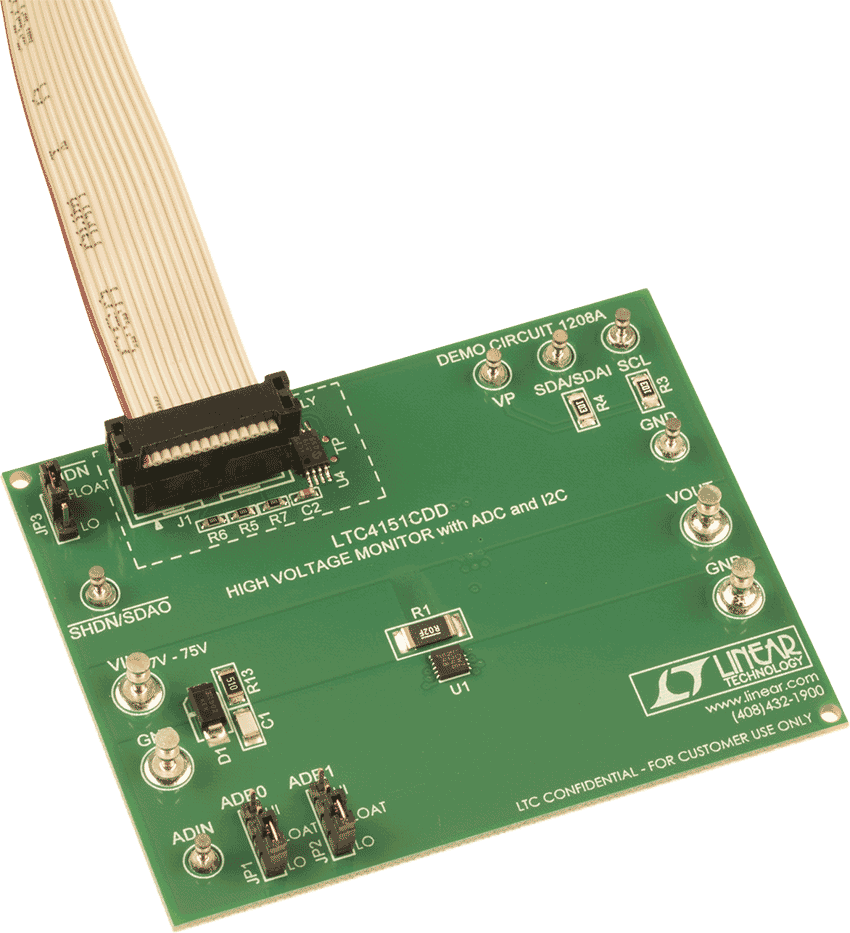

LTC4151 Demo Board | 80V High Side Power Monitor, Requires DC2026

Buy Now View Details

Product Details

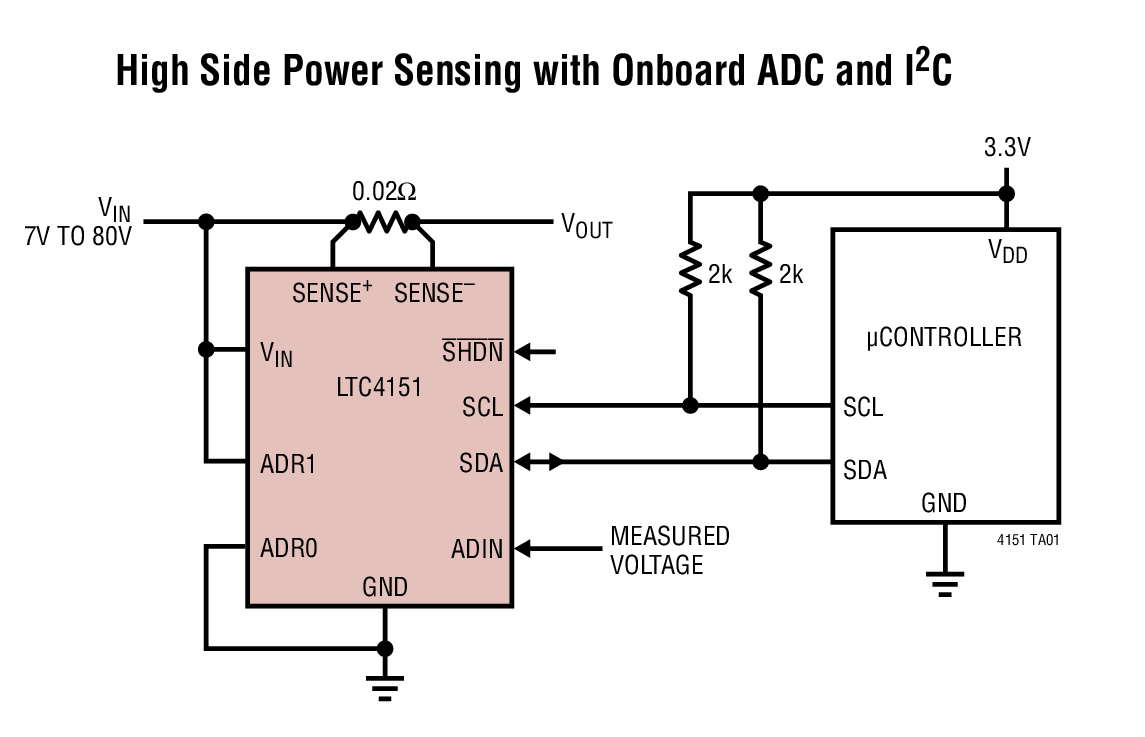

Demonstration circuit 1208A features the LTC4151 high side power monitor that accepts input voltages from 7V to 80V. In default operation mode, the onboard 12-bit ADC continuously measures high side current, input voltage and an external voltage. Data is reported through the I²C interface when polled by a host. The monitors can also perform on-demand measurement in a snapshot mode. The LTC4151 features a dedicated shutdown pin to reduce power consumption.

Resources

DC1208A - Demo Manual
9/24/2009

DC1208A - Design File
9/24/2009

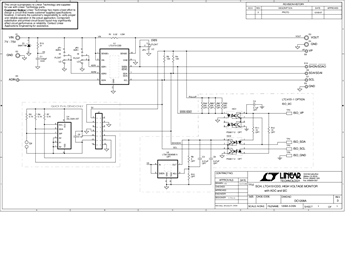

DC1208A - Schematic
9/24/2009
