Overview

Features and Benefits

  • 12-Bit Resolution
  • 500ksps Sampling Rate

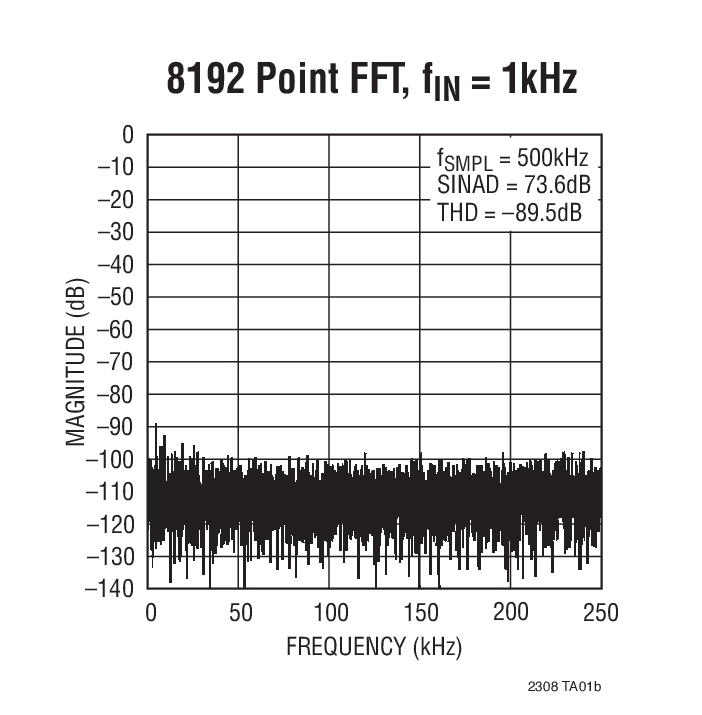

  • Low Noise: SINAD = 73.3dB
  • Guaranteed No Missing Codes
  • Single 5V Supply
  • Auto-Shutdown Scales Supply Current with Sample Rate
  • Low Power:
    • 17.5mW at 500ksps
    • 0.9mW Nap Mode
    • 35µW Sleep Mode
  • Internal Reference
  • Internal 8-Channel Multiplexer
  • Internal Conversion Clock
  • SPI/MICROWIRE™ Compatible Serial Interface
  • Unipolar or Bipolar Input Ranges (Software Selectable)
  • Separate Output Supply OVDD (2.7V to 5.25V)

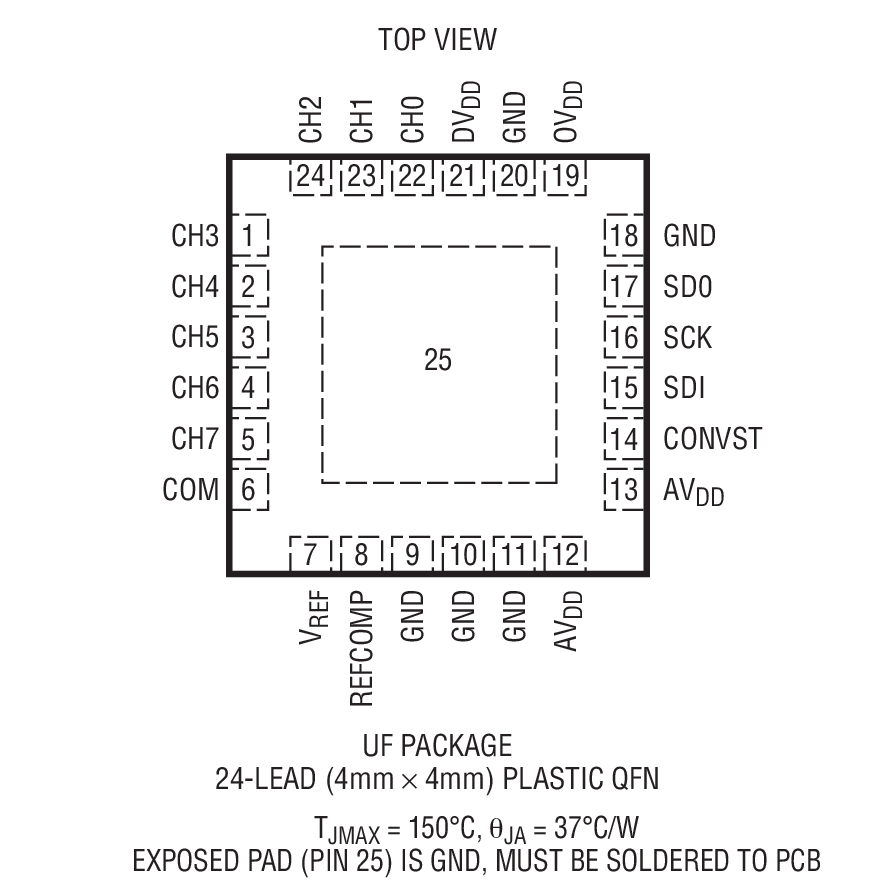

  • 24-Pin 4mm × 4mm QFN Package

Product Details

The LTC2308 is a low noise, 500ksps, 8-channel, 12-bit ADC with an SPI/MICROWIRE compatible serial interface. This ADC includes an internal reference and a fully differential sample-and-hold circuit to reduce common-mode noise. The internal conversion clock allows the external serial output data clock (SCK) to operate at any frequency up to 40MHz.

The LTC2308 operates from a single 5V supply and draws just 3.5mA at a sample rate of 500ksps. The auto-shutdown feature reduces the supply current to 200µA at a sample rate of 1ksps.

The LTC2308 is packaged in a small 24-pin 4mm × 4mm QFN. The internal 2.5V reference and 8-channel multiplexer further reduce PCB board space requirements.

The low power consumption and small size make the LTC2308 ideal for battery operated and portable applications, while the 4-wire SPI compatible serial interface makes this ADC a good match for isolated or remote data acquisition systems.

Applications

  • High Speed Data Acquisition
  • Industrial Process Control
  • Motor Control
  • Accelerometer Measurements
  • Battery Operated Instruments
  • Isolated and/or Remote Data Acquisition

Product Categories

Markets and Technologies

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

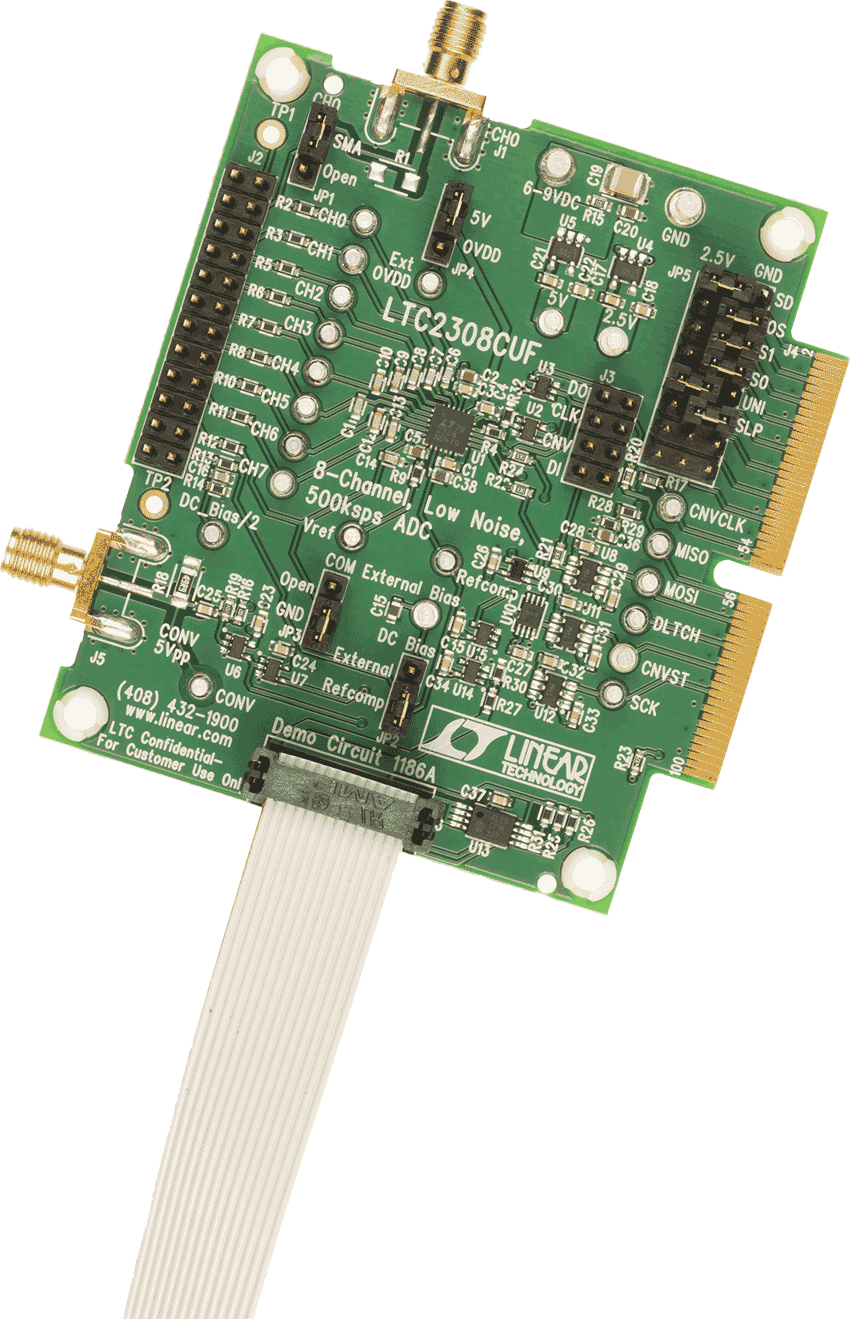

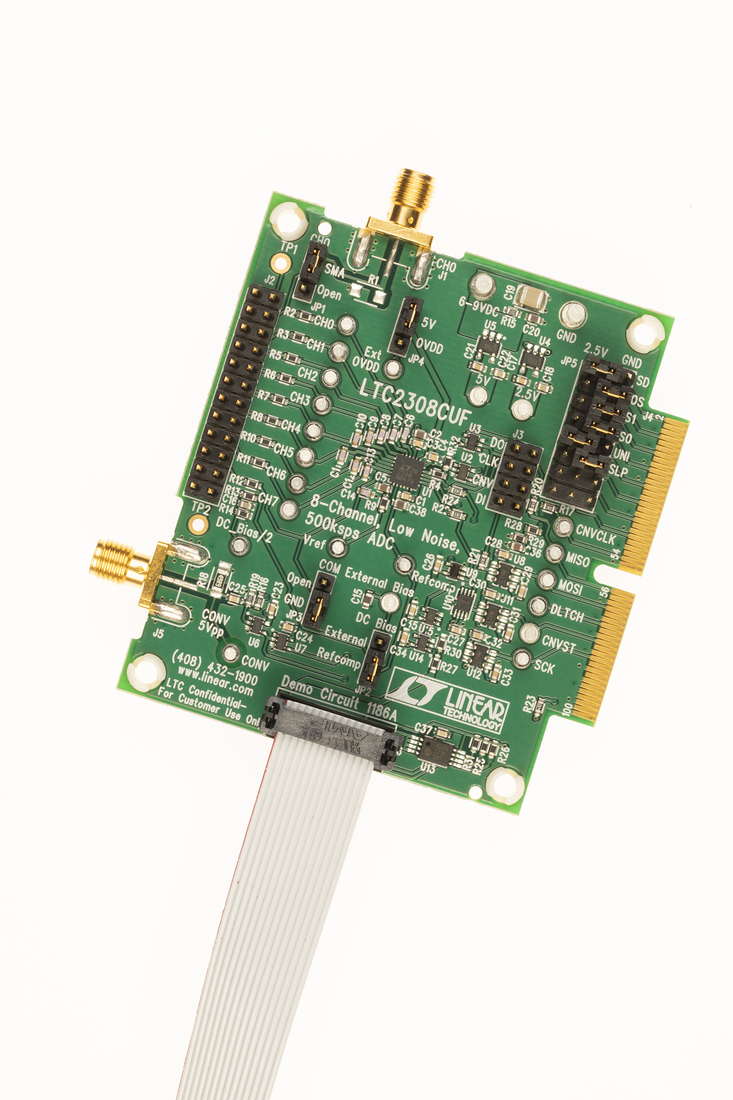

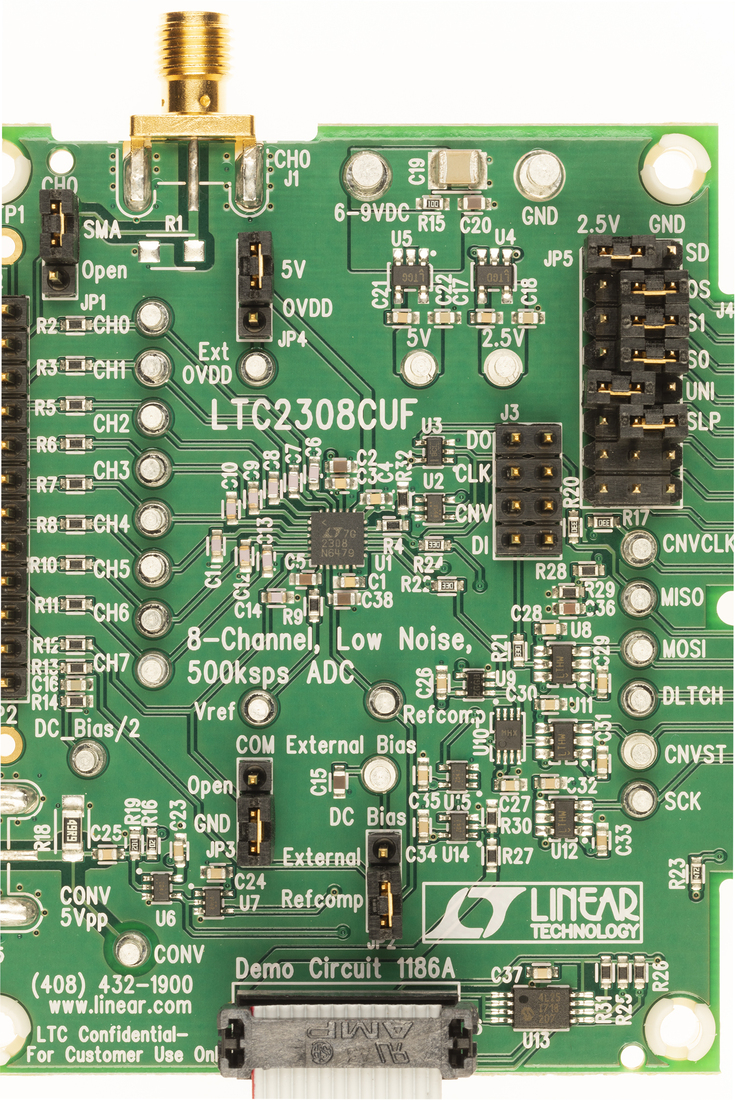

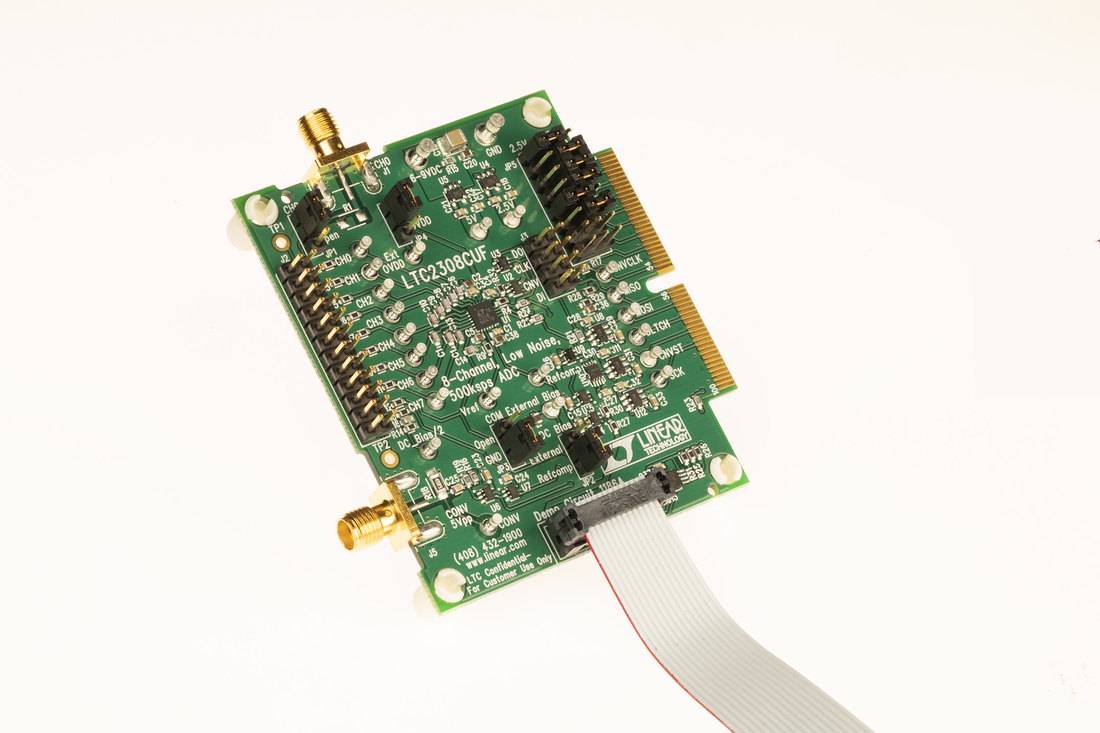

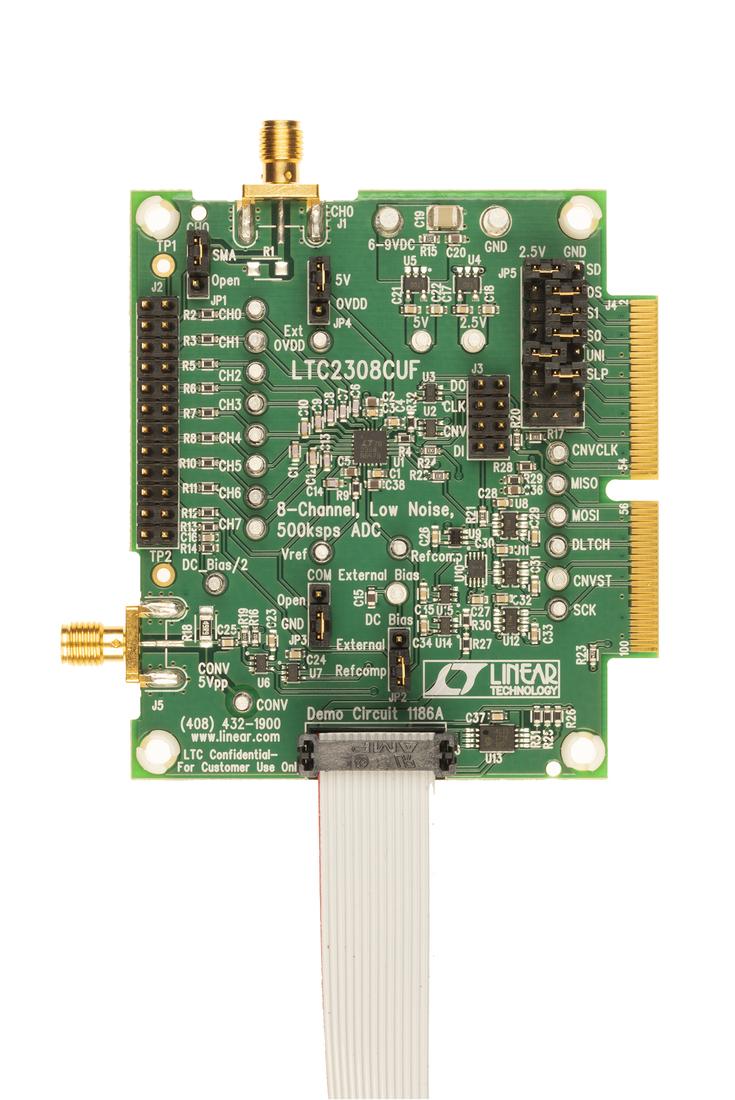

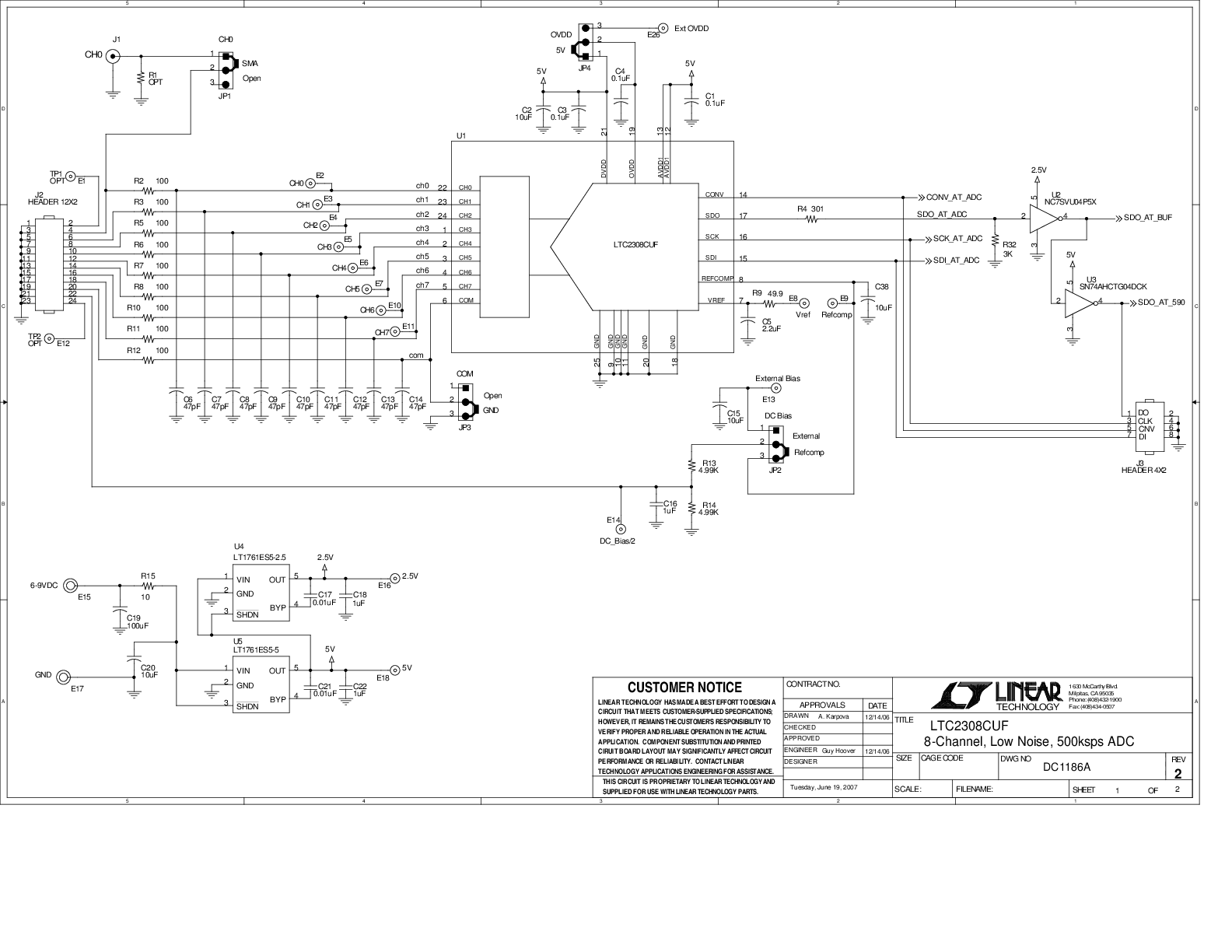

Evaluation Kits (1)

Documentation & Resources

  • View All (6)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (1)
  • Product Selector Card (2)
  • Press Releases (1)
    • Document Type

    Software & Systems Requirements

    Evaluation Software

    LinearLab Tools
    A collection of Matlab and Python programs that provide direct access to Linear Technology’s data converter evaluation boards.

    Tools & Simulations

    Linduino

    Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.

    Linduino code repository on GitHub and instructions on how to use the code.

    Purchase Linduino

    Linduino

    Code Files

    LTC2308 - DC1186A.INO File
    LTC2308 - Linduino Header File
    LTC2308 - Linduino.CPP File

    Reference Designs (2)
