LT3080-1

Parallelable 1.1A Adjustable Single Resistor Low Dropout Regulator

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 8
1ku List Price Starting From $2.28
Features
  • Internal Ballast Resistor Permits Direct Connection to Power Plane for Higher Current and Heat Spreading
  • Output Current: 1.1A
  • Single Resistor Programs Output Voltage
  • 1% Initial Accuracy of SET Pin Current
  • Output Adjustable to 0V
  • Low Output Noise: 40μVRMS (10Hz to 100kHz)
  • Wide Input Voltage Range: 1.2V to 36V
  • Low Dropout Voltage: 300mV
  • <0.001%/V Line Regulation
  • Minimum Load Current: 0.5mA
  • Stable with 2.2μF Minimum Ceramic Output Capacitor
  • Current Limit with Foldback and Overtemperature Protected

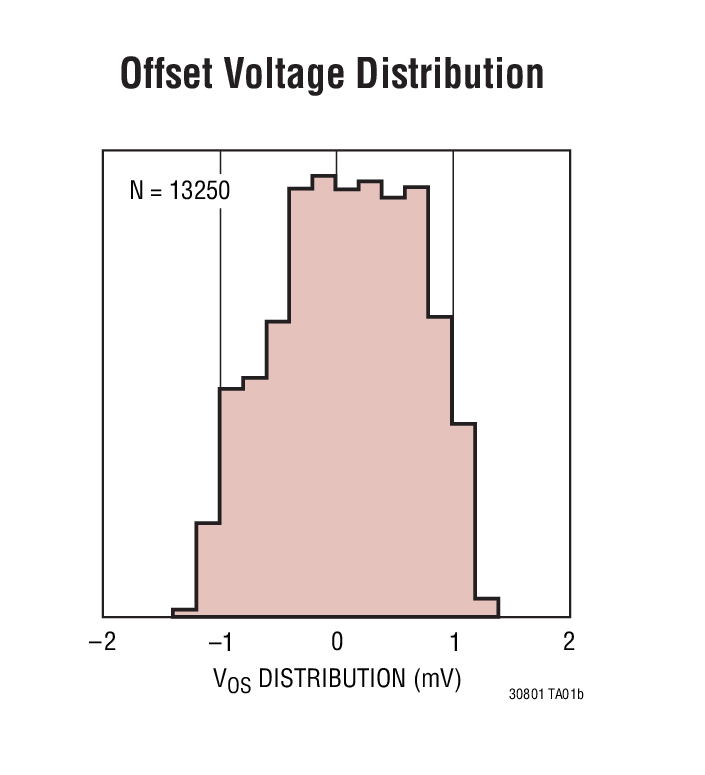

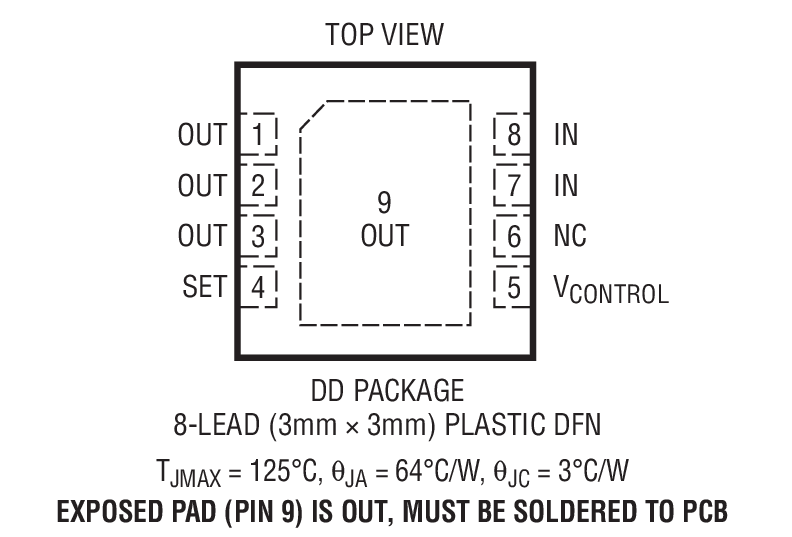

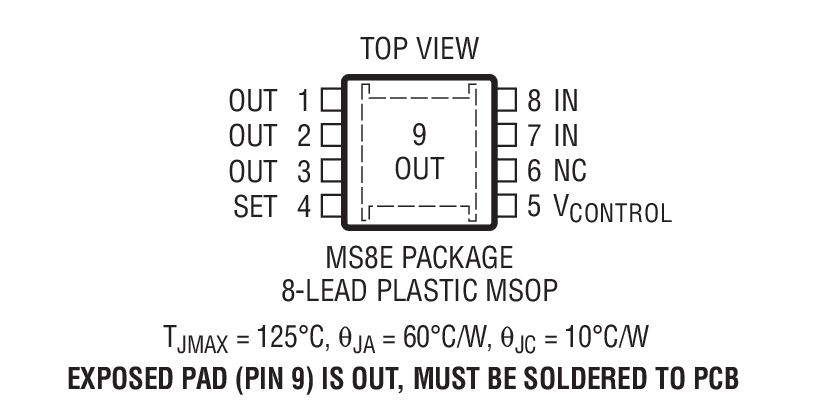

  • Available in 8-Lead MSOP and 3mm × 3mm DFN
Additional Details
show more Icon

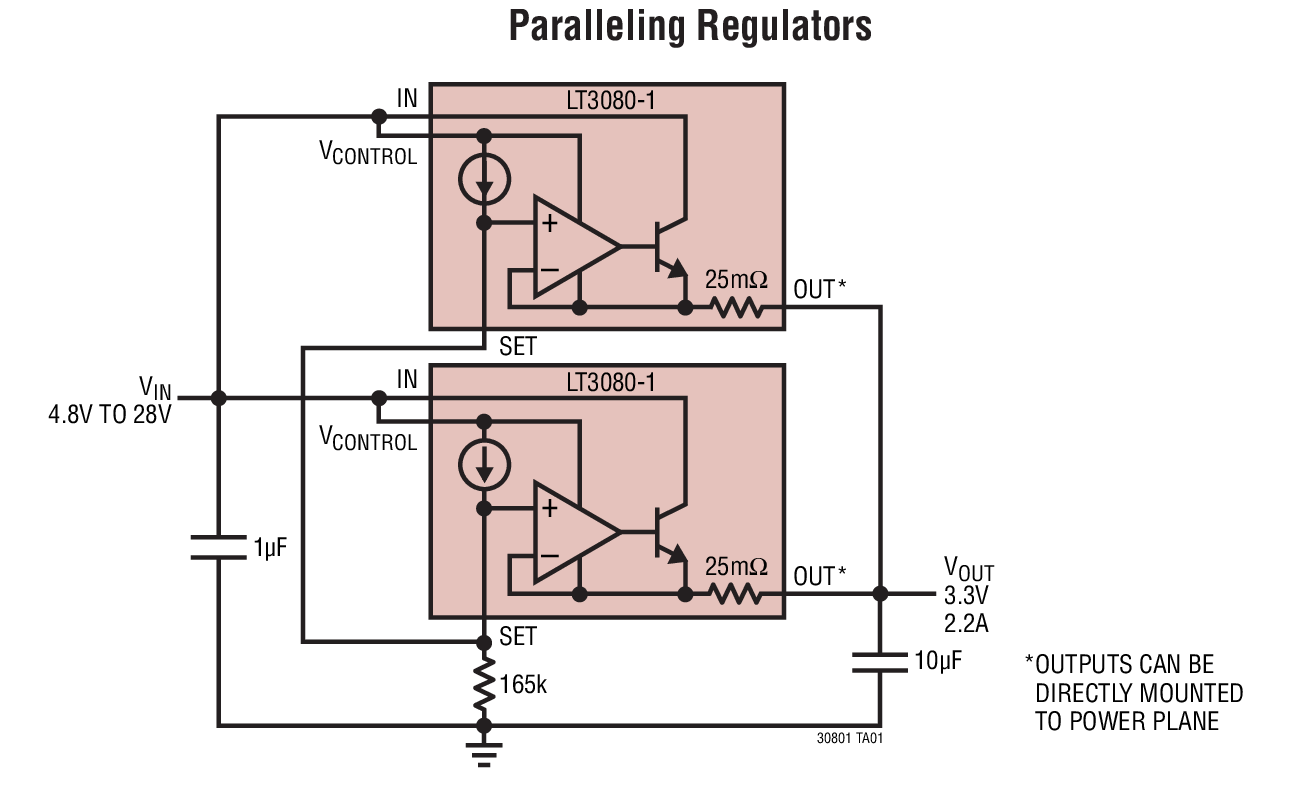

The LT3080-1 is a 1.1A low dropout linear regulator that incorporates an internal ballast resistor to allow direct paralleling of devices without the need for PC board trace resistors. The internal ballast resistor allows multiple devices to be paralleled directly on a surface mount board for higher output current and power dissipation while keeping board layout simple and easy. The device brings out the collector of the pass transistor to allow low dropout operation—down to 350mV—when used with multiple input supplies.

The LT3080-1 is capable of supplying a wide output voltage range. A reference current through a single resistor programs the output voltage to any level between zero and 36V. The LT3080-1 is stable with 2.2μF of ceramic capacitance on the output, not requiring additional ESR as is common with other regulators.

Internal protection includes current limiting and thermal limiting. The LT3080-1 regulator is offered in the 8-lead MSOP (with an Exposed Pad for better thermal characteristics) and 3mm × 3mm DFN packages.


Features
LT3080 -
LT3080-1 Can parallel without additional external resistance

Applications

  • High Current All Surface Mount Supply
  • High Efficiency Linear Regulator
  • Post Regulator for Switching Supplies
  • Low Parts Count Variable Voltage Supply
  • Low Output Voltage Power Supplies
Part Models 8
1ku List Price Starting From $2.28

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT3080EDD-1#PBF
  • HTML
  • HTML
LT3080EDD-1#TRPBF
  • HTML
  • HTML
LT3080EMS8E-1#PBF
  • HTML
  • HTML
LT3080EMS8E-1#TRPBF
  • HTML
  • HTML
LT3080IDD-1#PBF
  • HTML
  • HTML
LT3080IDD-1#TRPBF
  • HTML
  • HTML
LT3080IMS8E-1#PBF
  • HTML
  • HTML
LT3080IMS8E-1#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 18, 2022

- 22_0050

UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices

Feb 3, 2020

- 20_0128

Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC

LT3080EMS8E-1#PBF

PRODUCTION

LT3080EMS8E-1#TRPBF

PRODUCTION

LT3080IMS8E-1#PBF

PRODUCTION

LT3080IMS8E-1#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 18, 2022

- 22_0050

arrow down

UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices

Feb 3, 2020

- 20_0128

arrow down

Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC

LT3080EMS8E-1#PBF

PRODUCTION

LT3080EMS8E-1#TRPBF

PRODUCTION

LT3080IMS8E-1#PBF

PRODUCTION

LT3080IMS8E-1#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

DC1368A

LT3080EDD-1 Demo Board | LT3080-1(x4), Paralleled, Single Resistor Prog Low Noise LDOs, 1.7V ≤ VIN ≤ 25V, VOUT = 1.2V @ 4.4A

zoom

DC1368A

LT3080EDD-1 Demo Board | LT3080-1(x4), Paralleled, Single Resistor Prog Low Noise LDOs, 1.7V ≤ VIN ≤ 25V, VOUT = 1.2V @ 4.4A

LT3080EDD-1 Demo Board | LT3080-1(x4), Paralleled, Single Resistor Prog Low Noise LDOs, 1.7V ≤ VIN ≤ 25V, VOUT = 1.2V @ 4.4A

Product Detail

Demonstration circuit 1368A exercises four adjustable linear regulators in parallel using the LT3080-1, which incorporates an internal ballast resistor. The ballast resistor allows direct paralleling of devices without the need for PC board resistors or sensor resistors.The paralleled devices provide up to 4.4A of output current at 1.2V.


Architected as a precision current source and voltage follower, the LT3080-1 can be used in many applications requiring high current, adjustability to zero output, and no heat sink. The device brings out the collector of the pass transistor to allow low dropout operation when used with multiple supplies. The LT3080-1's output voltage can be programmed to any level between 0V and 36V; however the demo board has a reduced input voltage range from 1.7V to 25V due to the input capacitor voltage rating.

Tools & Simulations

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

Reference Designs

Reference Designs 9

DK-DEV-5SGXEA7N Dev Kit

zoomopens a dialog

altera-stratix-v-gx-fpga-development-kit

altera-stratix-v-gx-fpga-development-kit

Circuits from the lab

tooltip Info:Circuits from the lab

Features and Benefits

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
View Detailed Reference Design external link
DK-DEV-4SGX230N Dev Kit

zoomopens a dialog

altera-stratix-iv-gx-fpga-development-kit

altera-stratix-iv-gx-fpga-development-kit

Circuits from the lab

tooltip Info:Circuits from the lab

Features and Benefits

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
View Detailed Reference Design external link

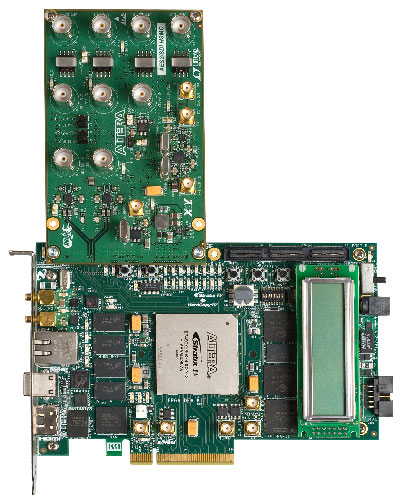

DK-VIDEO-4SGX230N Dev Kit

zoomopens a dialog

altera-audio-video-development-kit-stratix-iv-gx-edition

altera-audio-video-development-kit-stratix-iv-gx-edition

Circuits from the lab

tooltip Info:Circuits from the lab

Features and Benefits

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
View Detailed Reference Design external link
DE5-Net Dev Kit

zoomopens a dialog

terasic-de5-net-stratix-v-board

terasic-de5-net-stratix-v-board

Circuits from the lab

tooltip Info:Circuits from the lab

Features and Benefits

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
View Detailed Reference Design external link
TR5-F40W Dev Kit

zoomopens a dialog

terasic-tr5-f40w-stratix-v-gx-fpga-development-kit

terasic-tr5-f40w-stratix-v-gx-fpga-development-kit

Circuits from the lab

tooltip Info:Circuits from the lab

Features and Benefits

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
View Detailed Reference Design external link

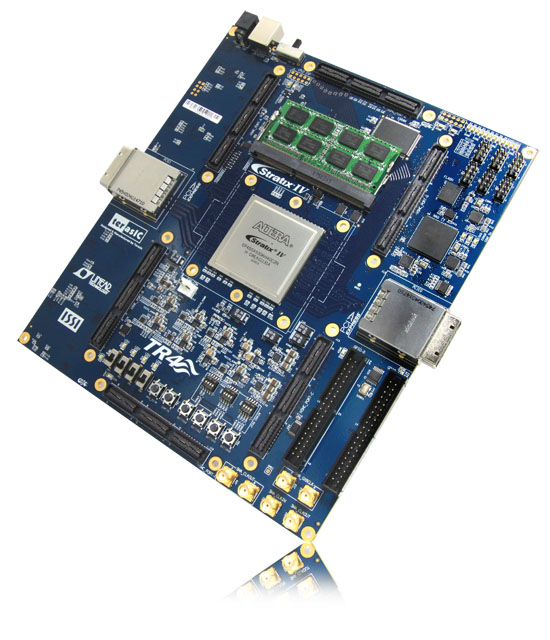

TR4 Stratix IV Board
