Overview

Features and Benefits

  • Complete Dual DC/DC Regulator System
  • Input Voltage Range: 2.7V to 5.5V
  • Dual 8A Outputs, or Single 16A Output with a 0.6V to 5V Range
  • Output Voltage Tracking and Margining
  • ±1.75% Total DC Output Error (–55°C to 125°C)
  • Current Mode Control/Fast Transient Response
  • Power Good Tracking and Margining
  • Overcurrent/Thermal Shutdown Protection
  • Onboard Frequency Synchronization
  • Spread Spectrum Frequency Modulation
  • Multiphase Operation
  • Selectable Burst Mode® Operation
  • Output Overvoltage Protection
  • SnPb (BGA) or RoHS Compliant (LGA and BGA) Finish
  • Small Surface Mount Footprint, Low Profile
    • (15mm × 15mm × 2.82mm) LGA and
    • (15mm × 15mm × 3.42mm) BGA Packages

Product Details

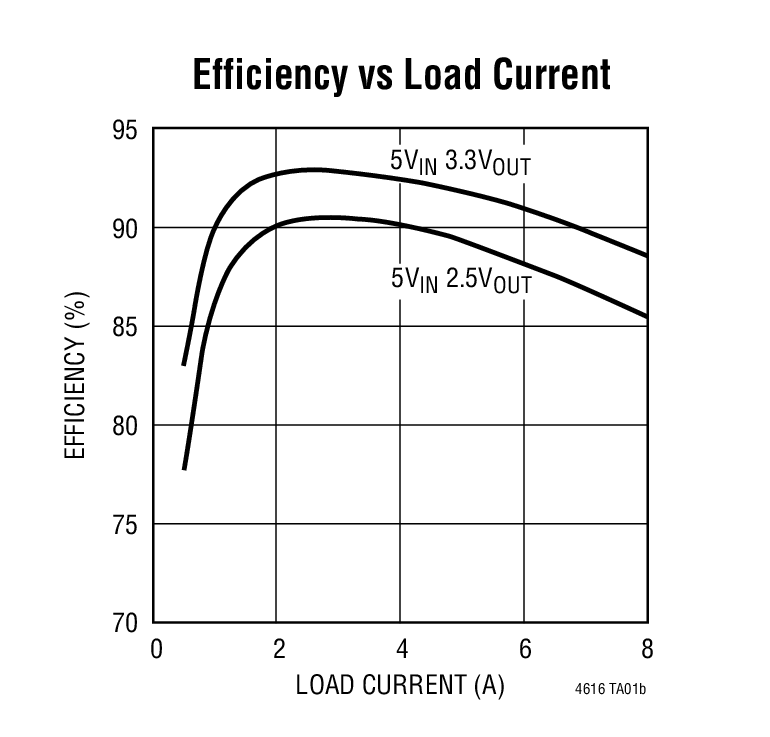

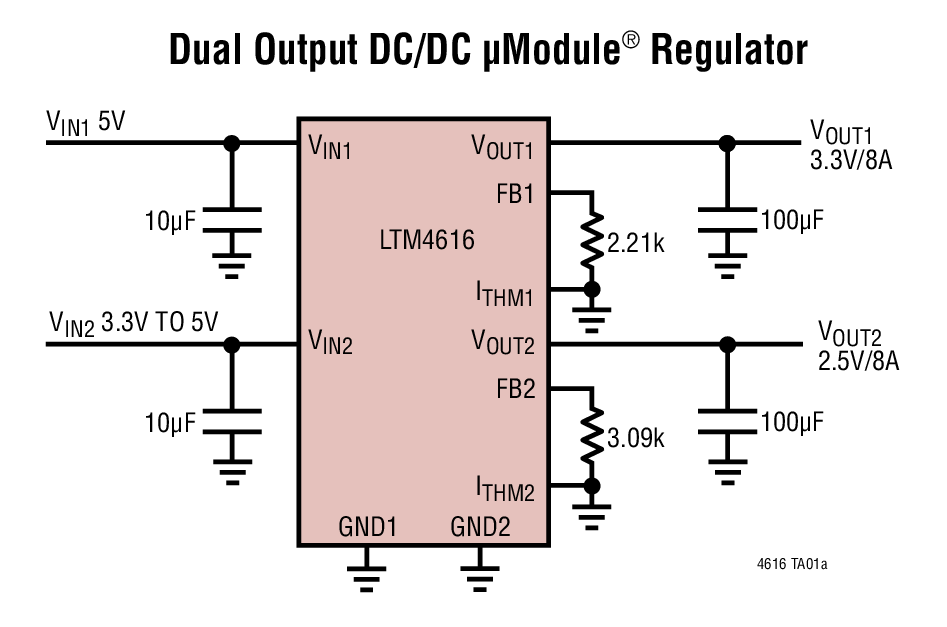

The LTM4616 is a complete dual 2-phase 8A per channel switch mode DC/DC power regulator system in a 15mm × 15mm surface mount LGA or BGA package. Included in the package are the switching controller, power FETs, inductor and all support components. Operating from an input voltage range of 2.7V to 5.5V, the LTM4616 supports two outputs within a voltage range of 0.6V to 5V, each set by a single external resistor. This high efficiency design delivers up to 8A continuous current (10A peak) for each output. Only bulk input and output capacitors are needed, depending on ripple requirement. The part can also be configured for a 2-phase single output at up to 16A.

The low profile package enables utilization of unused space on the back side of PC boards for high density point-ofload regulation.

Fault protection features include overvoltage protection, overcurrent protection and thermal shutdown. The power module is offered in space saving and thermally enhanced 15mm × 15mm × 2.82mm LGA and 15mm × 15mm × 3.42mm BGA packages. The LTM4616 is available with SnPb (BGA) or RoHS compliant terminal finish.

Applications

  • Telecom, Networking and Industrial Equipment
  • Storage and ATCA, PCI Express Cards
  • Battery Operated Equipment

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

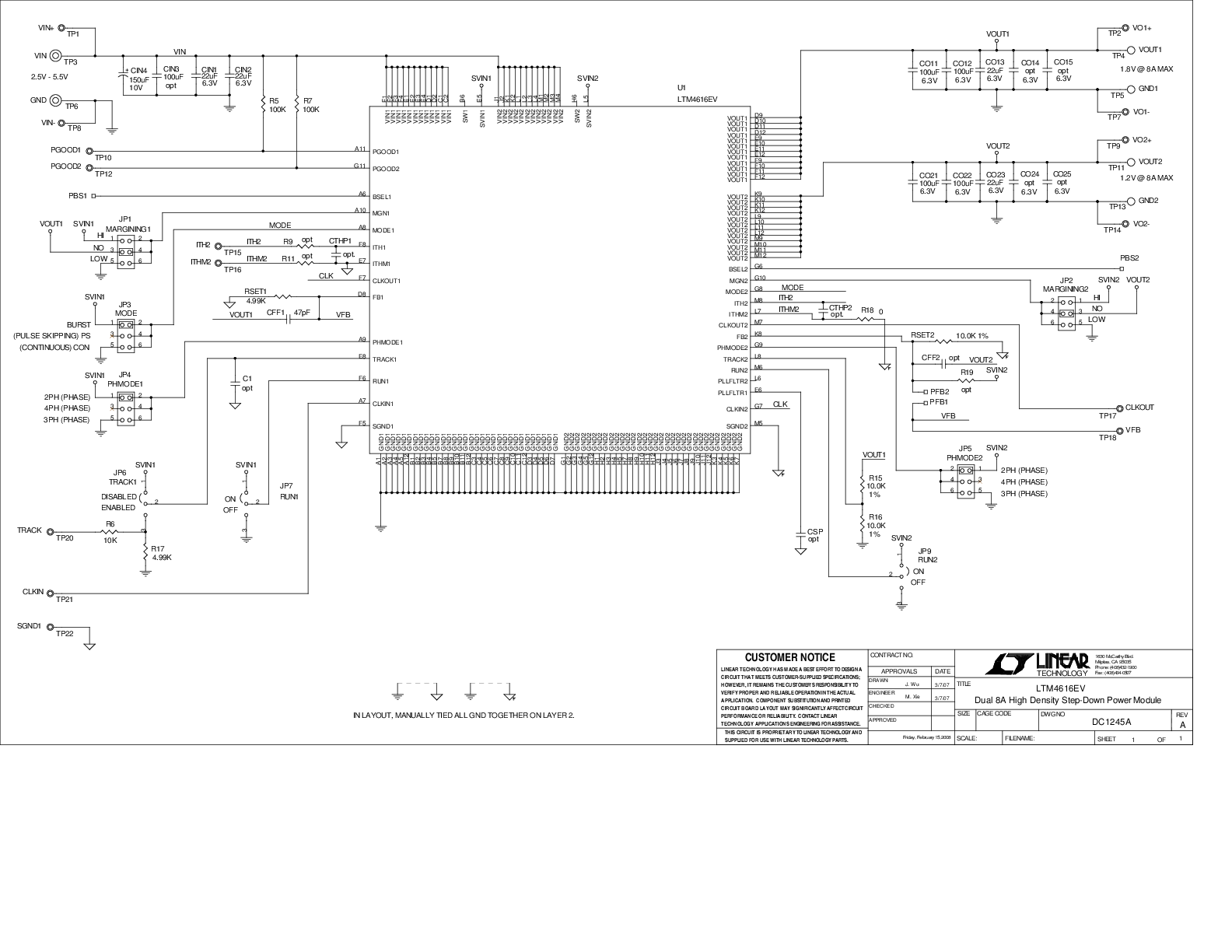

Evaluation Kits (1)

Documentation & Resources

  • View All (12)
  • Data Sheets (1)
  • Reliability Data (1)
  • User Guides (1)
  • Design Notes (1)
  • Product Selector Card (2)
  • Informational (1)
  • Press Releases (1)
  • Webcasts (1)
  • Technical Articles (3)
    • Document Type

    Tools & Simulations

    LTspice

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    To launch ready-to-run LTspice demonstration circuits for this part:

    Step 1: Download and install LTspice on your computer.

    Step 2: Click on the link in the section below to download a demonstration circuit.

    Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

    LTspice

    LTspice Simulations

    LTM4616 Demo Circuit - Dual 8A, Step-Down uModule (5V to 1.8V @ 8A & 1.2V @ 8A)

    Models for the following parts are available in LTspice:

    LTM4616

    LTpowerCAD

    LTpowerCAD® is a power supply design program which selects power stage components, provides detailed power efficiency, shows quick loop Bode plot stability and load transient analysis, and can export to LTspice for simulation.

    To open the project file for this circuit:

    Step 1: Download and install LTpowerCAD on your computer.

    Step 2: Click on the link(s) in the section below to download part-specific project files.

    Step 3: If the project file doesn't run, right-click the link and select "Save Target As." Then start the LTpowerCAD tool and open the project file by selecing "Open Project" from the "File" menu.

    LTPowerCAD

    LTpowerCAD Project Files

    LTM4616 Project - Dual 8A per Channel, Low Vin uModule Regulator (2.7-5.5V to 1.8V @ 8A & 1.2V @ 8A)

    Design tools for the following parts are available in LTpowerCAD:

    LTM4616

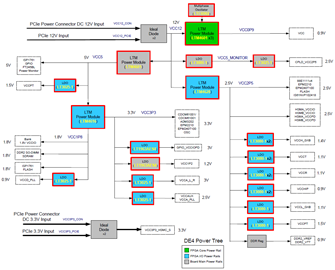

    Reference Designs (2)

    Product Recommendations

    LTM4616 Companion Parts

    Recommended Related Parts

    Recommended Suggested Oscillator

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models

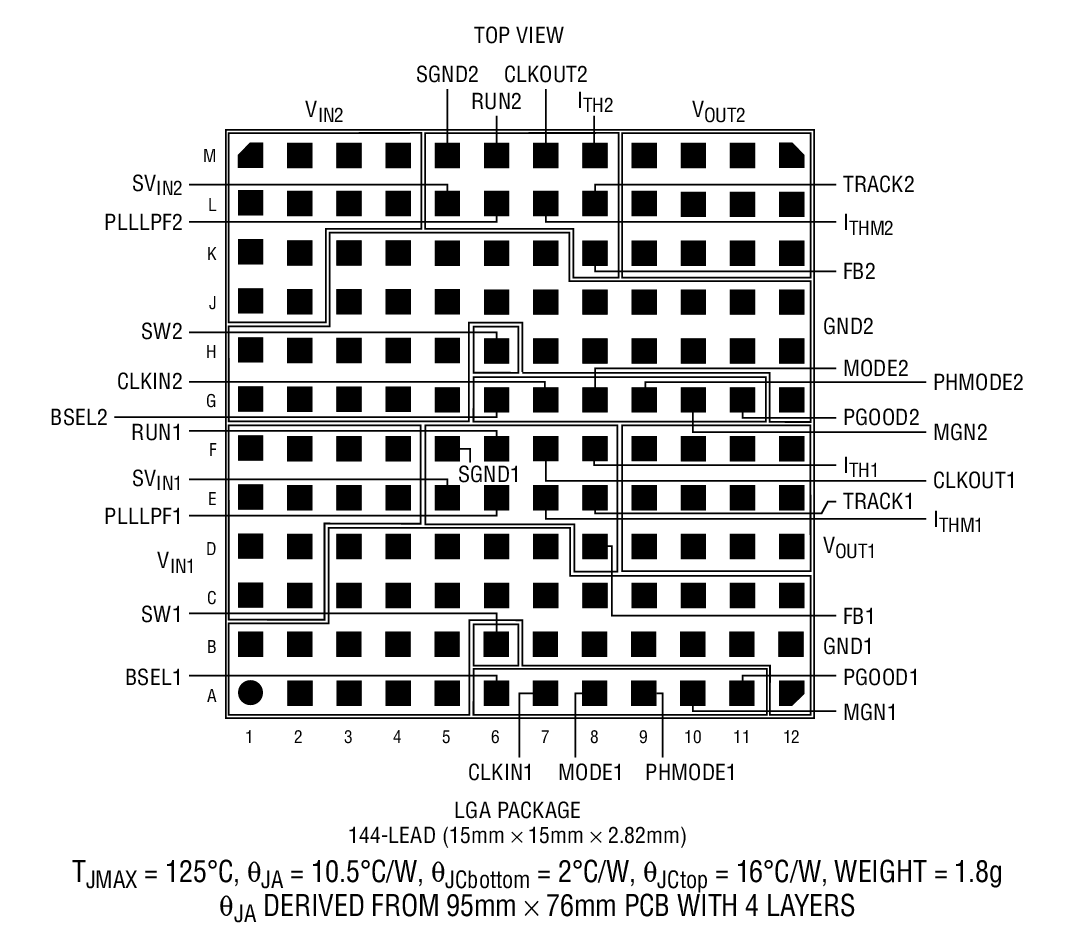

    LTM4616EV#PBF Material Declaration Reliability Data 144-Lead LGA (15mm x 15mm x 2.82mm)

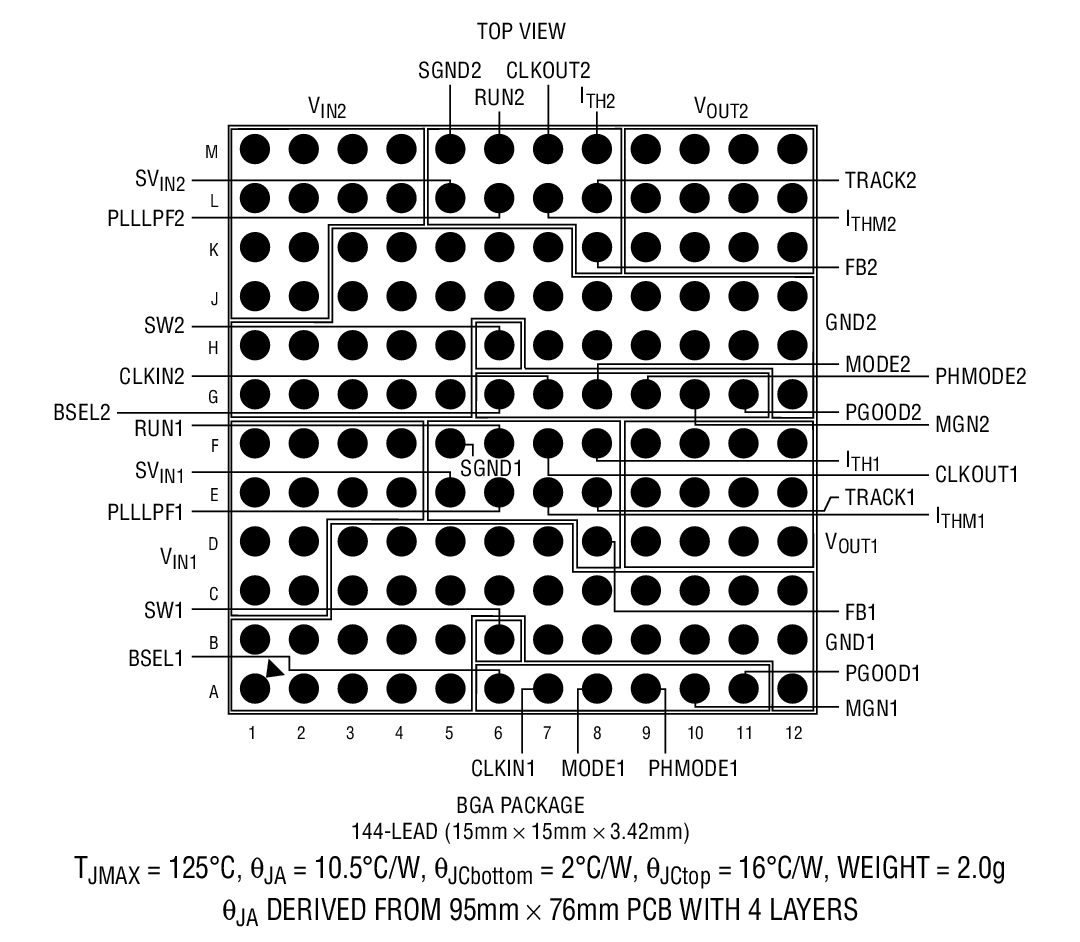

    LTM4616EY#PBF Material Declaration Reliability Data 144-Lead BGA (15mm x 15mm x 3.42mm)
    LTM4616IV#PBF Material Declaration Reliability Data 144-Lead LGA (15mm x 15mm x 2.82mm)
    LTM4616IY Material Declaration Reliability Data 144-Lead BGA (15mm x 15mm x 3.42mm)
    LTM4616IY#PBF Material Declaration Reliability Data 144-Lead BGA (15mm x 15mm x 3.42mm)
    LTM4616MPV#PBF Material Declaration Reliability Data 144-Lead LGA (15mm x 15mm x 2.82mm)
    LTM4616MPY Material Declaration Reliability Data 144-Lead BGA (15mm x 15mm x 3.42mm)
    LTM4616MPY#PBF Material Declaration Reliability Data 144-Lead BGA (15mm x 15mm x 3.42mm)
