LTM4612

EN55022B Compliant 36VIN, 15VOUT, 5A, DC/DC μModule (Power Module) Regulator

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Models 3
1ku List Price Starting From $23.41
Features
  • Complete Low EMI Switch Mode Power Supply
  • EN55022 Class B Compliant
  • Wide Input Voltage Range: 5V to 36V
  • 3.3V to 15V Output Voltage Range
  • 5A DC, 7A Peak Output Current
  • Low Input and Output Referred Noise
  • Output Voltage Tracking and Margining
  • Power Good Tracks with Margining
  • PLL Frequency Synchronization
  • ±1.5% Set Point Accuracy
  • Current Foldback Protection (Disabled at Start-Up)
  • Parallel/Current Sharing
  • Ultrafast Transient Response
  • Current Mode Control
  • Programmable Soft-Start
  • Output Overvoltage Protection
  • –55°C to 125°C Operating Temperature Range (LTM4612MPV)
  • Small Surface Mount Footprint, Low Profile (15mm × 15mm × 2.8mm) LGA Package
Additional Details
show more Icon

The LTM4612 is a EN55022 Class B certified high voltage input and output, 5A switching mode DC/DC power supply. Included in the package are the switching controller, power FETs, inductor and all support components. Operating over an input voltage range of 5V to 36V, the LTM4612 supports an output voltage range of 3.3V to 15V, set by a single resistor. Only bulk input and output capacitors are needed to finish the design.

High switching frequency and an adaptive on-time current mode architecture enables a very fast transient response to line and load changes without sacrificing stability.

The on-board input filter and noise cancellation circuits achieve low noise coupling, thus effectively reducing the electromagnetic interference (EMI)—see Figures 4 and 8. Furthermore, the DC/DC μModule® regulator can be synchronized with an external clock to reduce undesirable frequency harmonics and allow PolyPhase® operation for high load currents.

The LTM4612 is offered in a space saving and thermally enhanced 15mm × 15mm × 2.8mm LGA package, which enables utilization of unused space on the bottom of PC boards for high density point-of-load regulation. The LTM4612 is Pb-free and RoHS compliant.

Applications

  • Telecom and Networking Equipment
  • Industrial and Avionic Equipment
  • RF Systems
Part Models 3
1ku List Price Starting From $23.41

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTM4612EV#PBF
  • HTML
  • HTML
LTM4612IV#PBF
  • HTML
  • HTML
LTM4612MPV#PBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 21, 2021

- 21_0159

Ink Mark to Laser Mark Conversion for µModule

LTM4612EV#PBF

PRODUCTION

LTM4612IV#PBF

PRODUCTION

LTM4612MPV#PBF

PRODUCTION

Feb 28, 2020

- 20_0123

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM4612EV#PBF

PRODUCTION

LTM4612IV#PBF

PRODUCTION

LTM4612MPV#PBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 21, 2021

- 21_0159

arrow down

Ink Mark to Laser Mark Conversion for µModule

LTM4612EV#PBF

PRODUCTION

LTM4612IV#PBF

PRODUCTION

LTM4612MPV#PBF

PRODUCTION

Feb 28, 2020

- 20_0123

arrow down

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM4612EV#PBF

PRODUCTION

LTM4612IV#PBF

PRODUCTION

LTM4612MPV#PBF

PRODUCTION

Software & Part Ecosystem

Evaluation Kits 1

reference details image

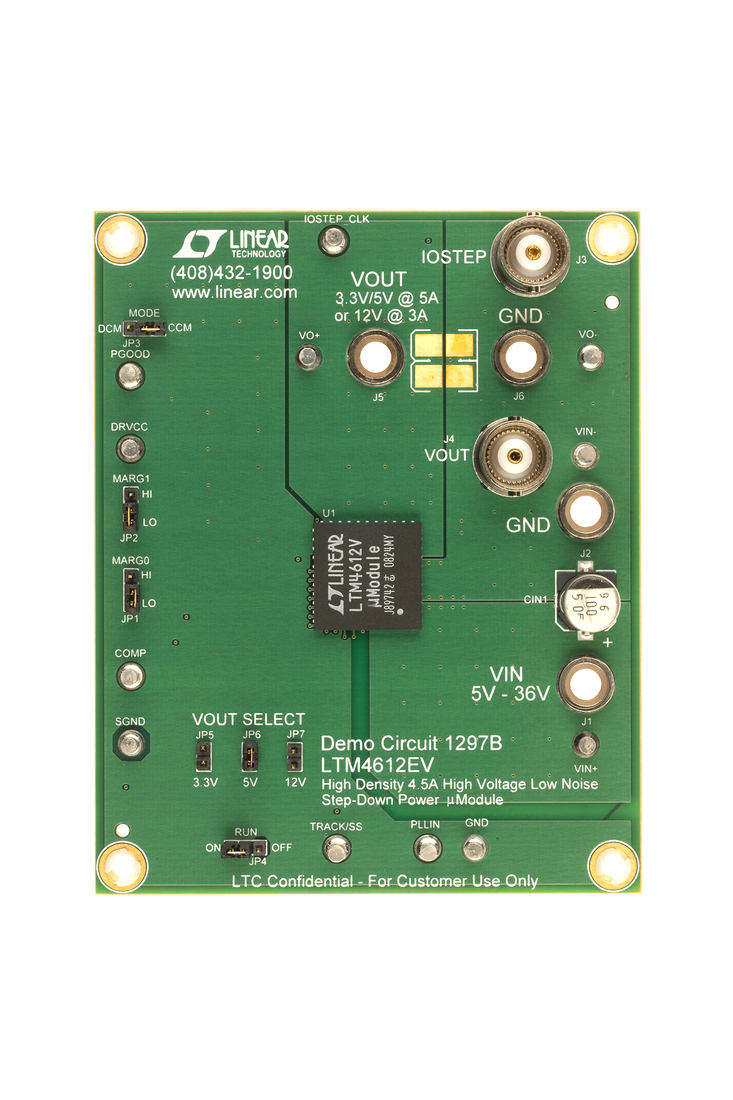

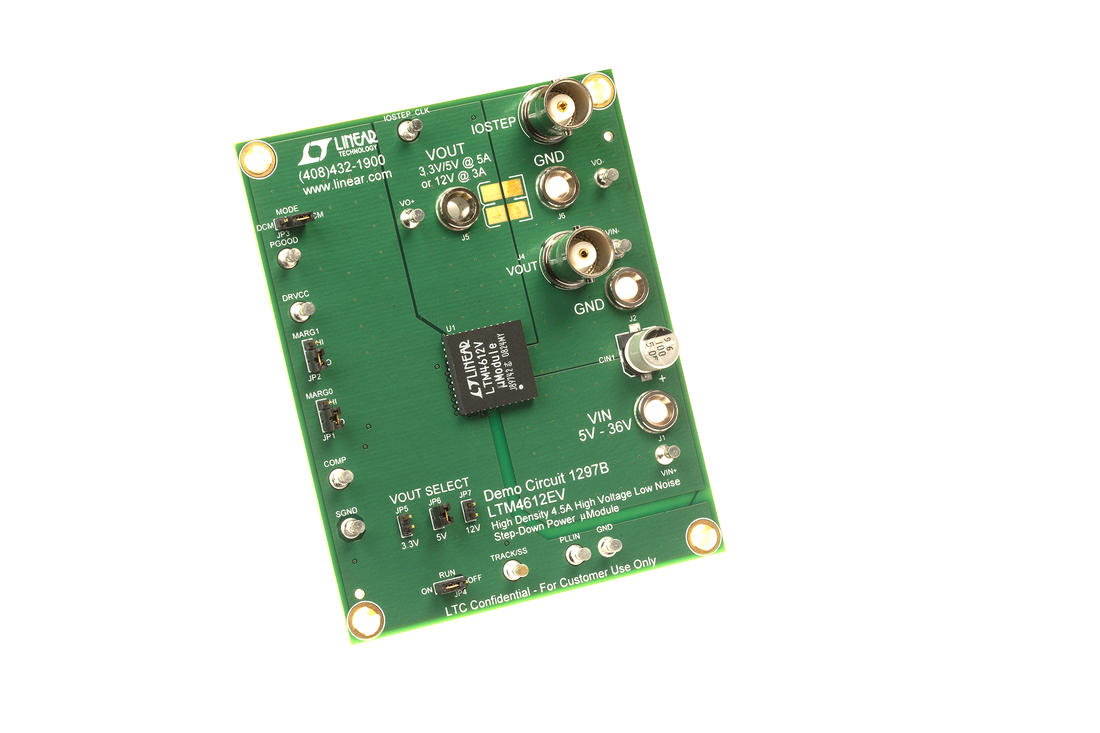

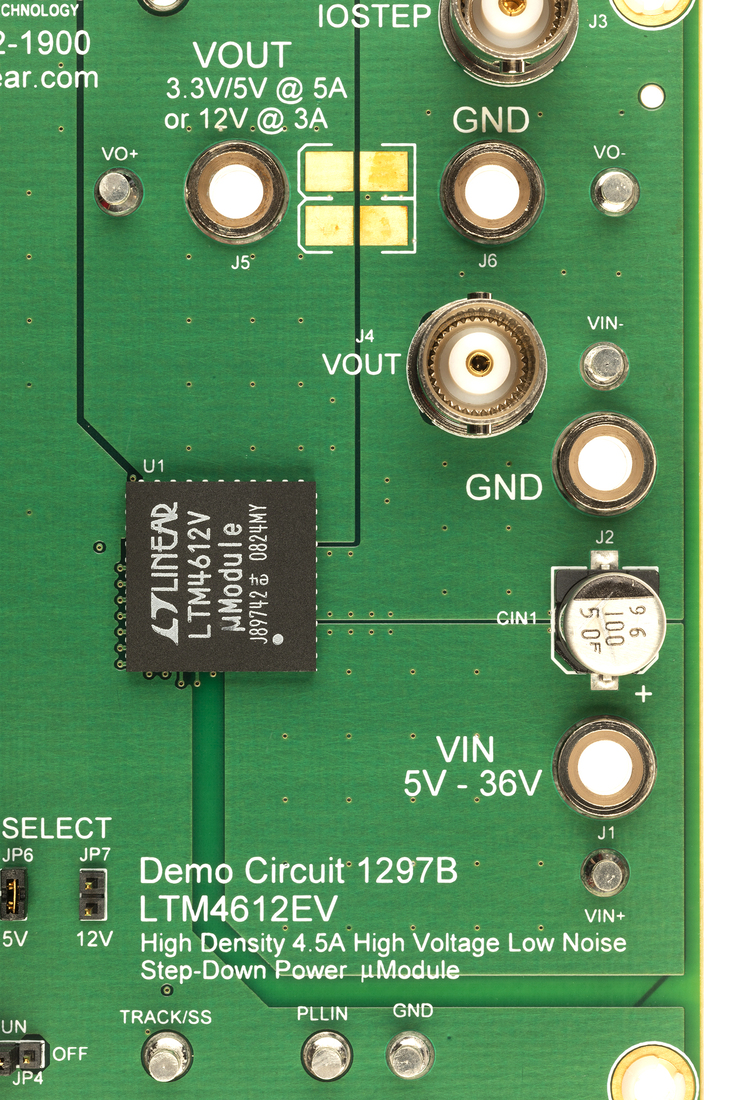

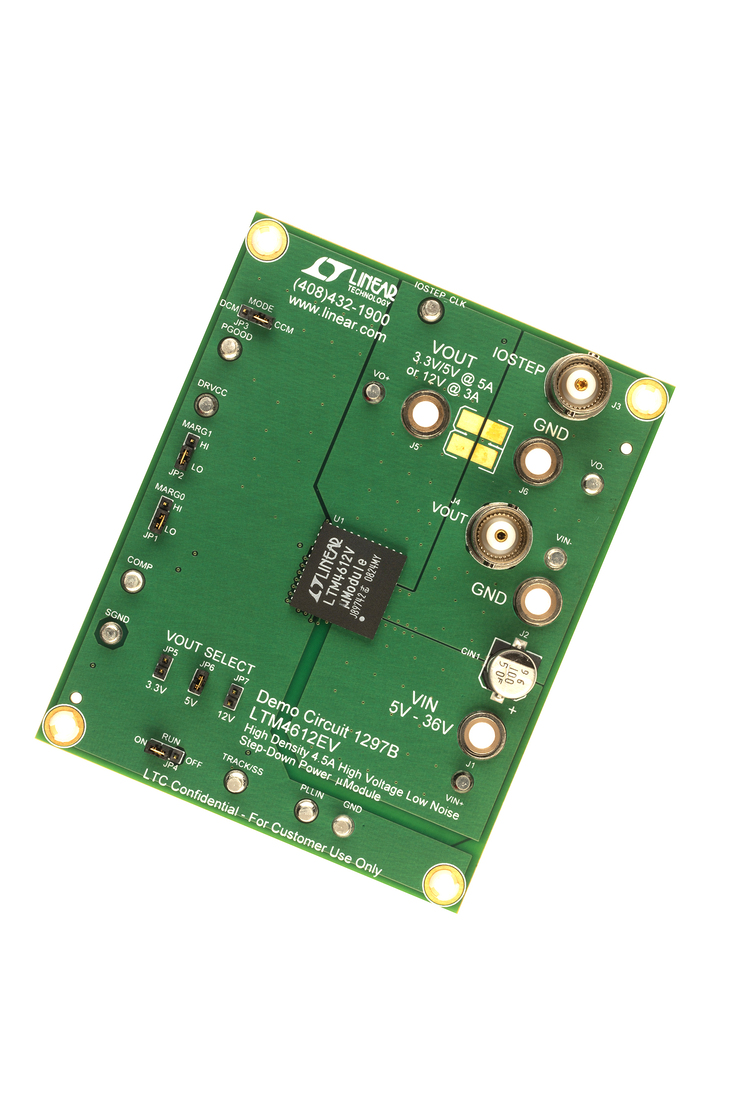

DC1297B

LTM4612EV Demo Board | EN55022B Compliant, 5V ≤ VIN ≤ 36V, VOUT = 3.3V or 5V @ 5A, or VOUT = 12V @ 3A

zoom

DC1297B

LTM4612EV Demo Board | EN55022B Compliant, 5V ≤ VIN ≤ 36V, VOUT = 3.3V or 5V @ 5A, or VOUT = 12V @ 3A

LTM4612EV Demo Board | EN55022B Compliant, 5V ≤ VIN ≤ 36V, VOUT = 3.3V or 5V @ 5A, or VOUT = 12V @ 3A

Product Detail

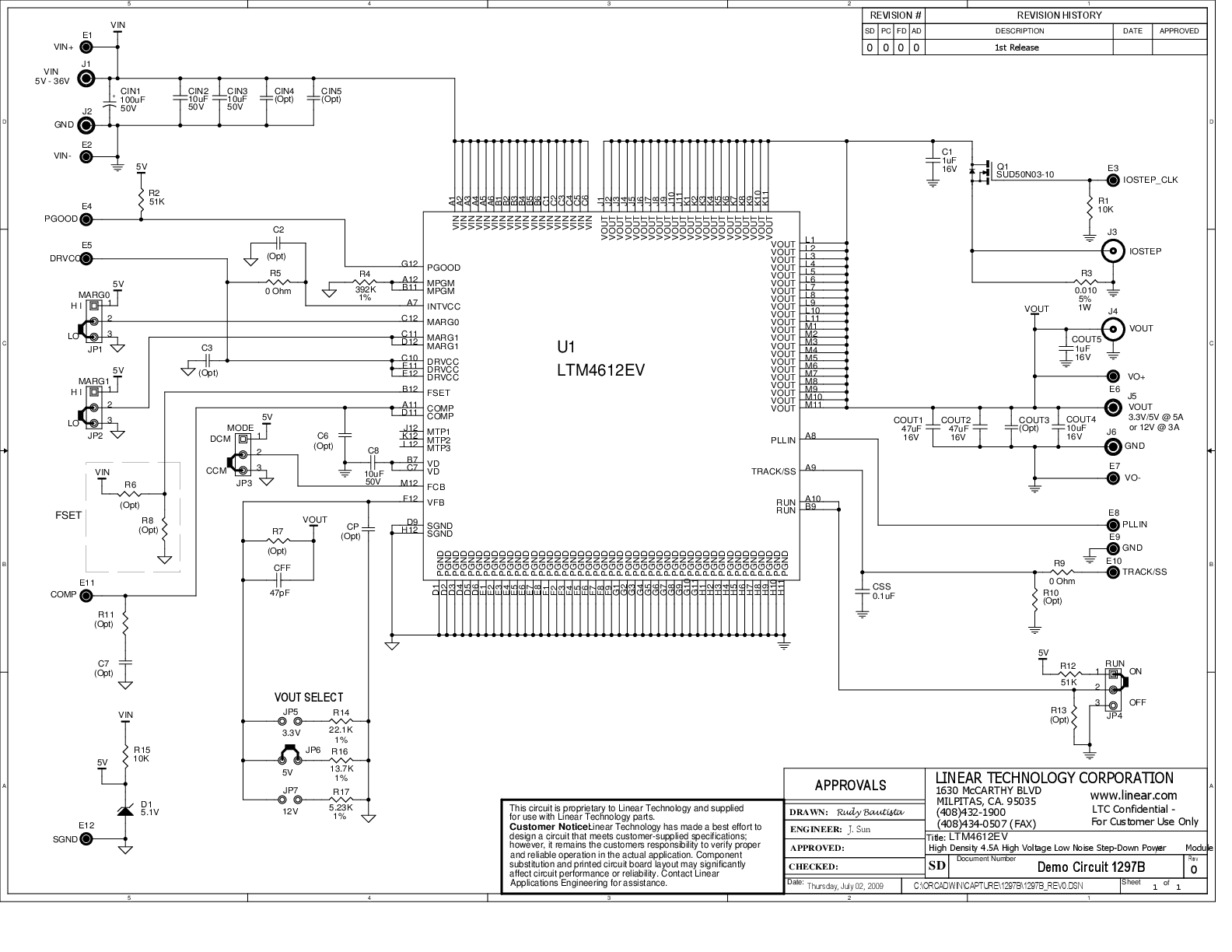

Demonstration circuit DC1297B features the LTM4612EV, an EN55022 Class B certified synchronous step-down power module. The board accepts an input voltage from 5V to 36V and delivers a jumper programmable output voltage of 3.3V, 5V or 12V. The rated load current is 5A for 3.3V and 5V output voltages, or 3A for a 12V output. Current derating is necessary for certain VIN, VOUT, and thermal conditions.

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

Reference Designs 1

TR5-F40W Dev Kit

zoomopens a dialog

Terasic TR5-F40W Stratix V GX FPGA Development Kit

Terasic TR5-F40W Stratix V GX FPGA Development Kit

Circuits from the lab

tooltip Info:Circuits from the lab

Features and Benefits

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
View Detailed Reference Design external link
