LTC2960

RECOMMENDED FOR NEW DESIGNS

36V Nano-Current Two-Input Voltage Monitor

Part Models: 48
1ku List Price: Starting From $2.08

Viewing:

Overview

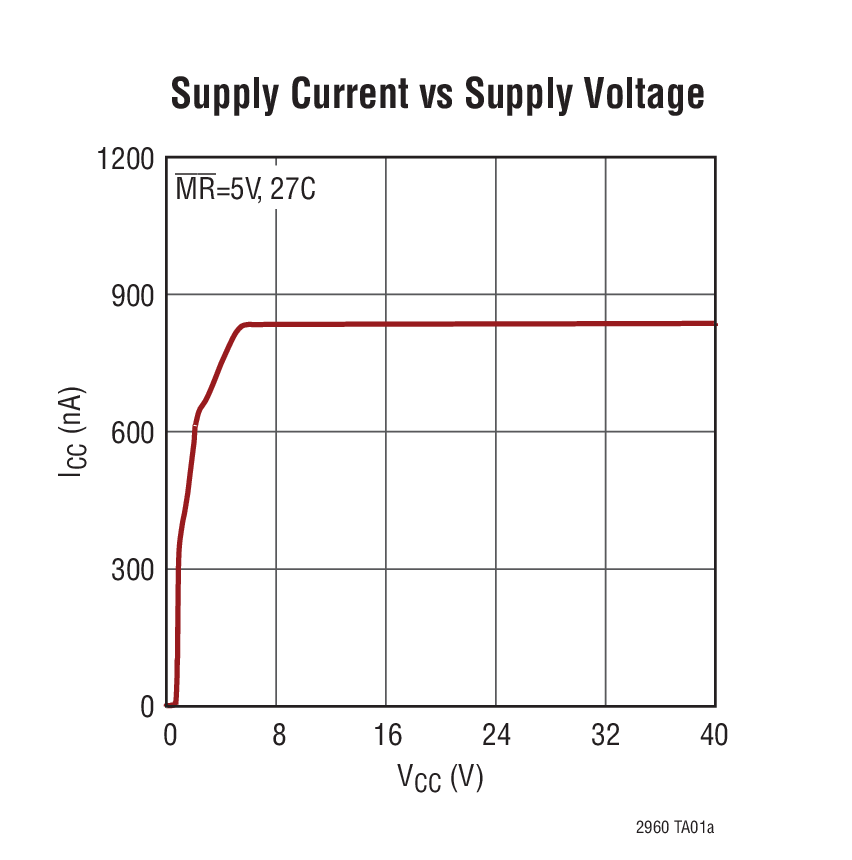

850nA Quiescent Current
Operating Range: 2.5V < V_CC < 36V
1.5% (Max) Accuracy Over Temperature
Adjustable Reset Threshold
Wide Temperature Range (–40°C to 125°C)
Adjustable IN⁺/IN^– Threshold
Manual Reset Input

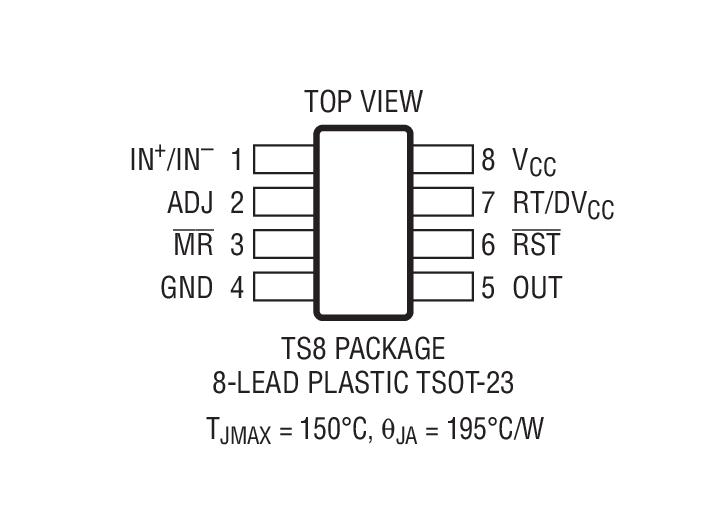

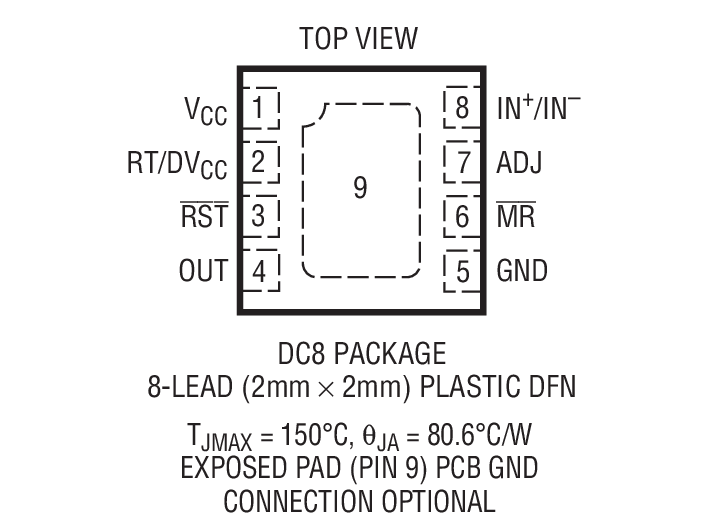

Compact 2mm × 2mm 8-lead DFN and TSOT-23 (ThinSOT^™) Packages

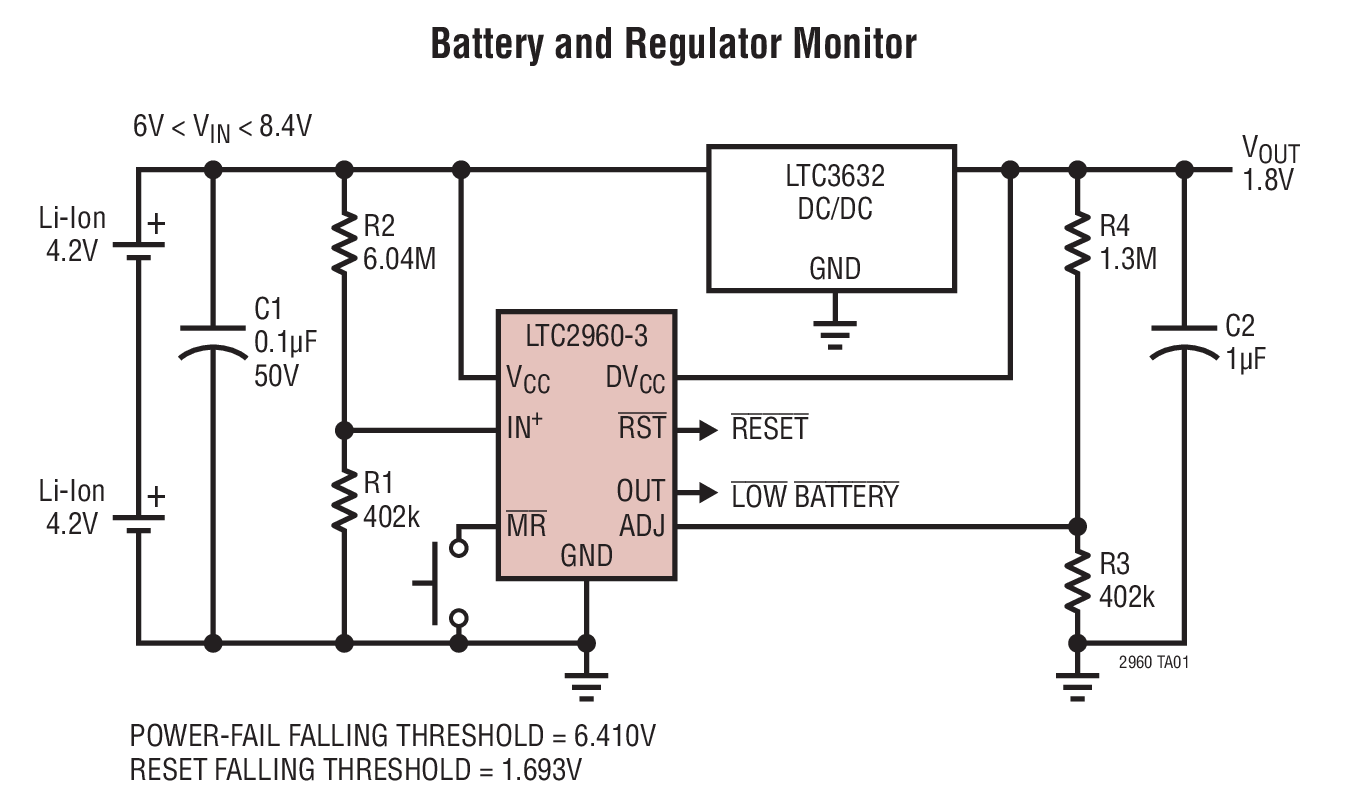

The LTC2960 is a nano-current, high voltage two-input voltage monitor, ideally suited for multicell battery applications. External resistive dividers configure custom comparator thresholds. The supervisory circuit monitors the ADJ input and pulls the RST output low when the input drops below threshold. A reset timeout period delays the return of the RST output to a high state when the input rises above the threshold. The spare comparator allows voltage conditions to be detected with either a non-inverting input, IN⁺(LTC2960-1/LTC2960-3) or an inverting input, IN^– (LTC2960-2/LTC2960-4). A manual reset (MR) input is provided for external activation of the reset output.

Other options provided on the LTC2960-1/LTC2960-2 include a reset timeout period select pin, RT, to select between 15ms or 200ms reset timeout periods. The LTC2960-3/LTC2960-4 have a fixed 200ms reset timeout period. The RST and OUT outputs are available with active pull-up circuits to an output logic supply pin (LTC2960-3/LTC2960-4) or 36V open-drain outputs (LTC2960-1/LTC2960-2).

Applications

Portable Equipment
Battery Powered Equipment
Security Systems
Automotive Systems

Part Models: 48
1ku List Price: Starting From $2.08

Documentation

Data Sheet 1

LTC2960: 36V Nano-Current Two-Input Voltage Monitor Data Sheet 12/30/2013

Reliability Data 1

R567 Reliability Data 03/23/2018

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC2960CDC-1#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960CDC-1#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960CDC-2#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960CDC-2#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960CDC-3#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960CDC-3#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960CDC-4#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960CDC-4#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960CTS8-1#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960CTS8-1#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960CTS8-2#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960CTS8-2#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960CTS8-3#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960CTS8-3#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960CTS8-4#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960CTS8-4#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960HDC-1#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960HDC-1#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960HDC-2#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960HDC-2#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960HDC-3#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960HDC-3#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960HDC-4#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960HDC-4#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960HTS8-1#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960HTS8-1#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960HTS8-2#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960HTS8-2#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960HTS8-3#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960HTS8-3#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960HTS8-4#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960HTS8-4#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960IDC-1#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960IDC-1#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960IDC-2#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960IDC-2#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960IDC-3#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960IDC-3#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960IDC-4#TRMPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960IDC-4#TRPBF	8-Lead DFN (2mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960ITS8-1#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960ITS8-1#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960ITS8-2#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960ITS8-2#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960ITS8-3#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960ITS8-3#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960ITS8-4#TRMPBF	8-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC2960ITS8-4#TRPBF	8-Lead SOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Protection Switches & Controllers 3
LTC4365	RECOMMENDED FOR NEW DESIGNS	Overvoltage, Undervoltage and Reverse Supply Protection Controller
LTC4359	RECOMMENDED FOR NEW DESIGNS	Ideal Diode Controller with Reverse Input Protection
LTC2955	RECOMMENDED FOR NEW DESIGNS	Pushbutton On/Off Controller with Automatic Turn-On
Supervisory Circuits & Reset ICs 1
LTC2935	PRODUCTION	Ultra-Low Power Supervisor with Power-Fail Output, Selectable Thresholds

Tools & Simulations

LTspice 1

LT3008 - LDO Linear Regulators, LTC2960 - Supervisory Circuits

Models for the following parts are available in LTspice:

LTC2960-1
LTC2960-2
LTC2960-3
LTC2960-4

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
