LTC4365

RECOMMENDED FOR NEW DESIGNS

Overvoltage, Undervoltage and Reverse Supply Protection Controller

Data Sheet (Rev. B) Product Selection Table
Viewing:

Overview

  • Wide Operating Voltage Range: 2.5V to 34V
  • Overvoltage Protection to 60V
  • Reverse Supply Protection to –40V
  • LTC4365: Blocks 50Hz and 60Hz AC Power
  • LTC4365-1: Fast (1ms) Recovery from Fault
  • No Input Capacitor or TVS Required for Most Applications
  • Adjustable Undervoltage and Overvoltage Protection Range
  • Charge Pump Enhances External N-Channel MOSFET
  • Low Operating Current: 125μA
  • Low Shutdown Current: 10μA
  • Compact 8-Lead, 3mm × 2mm DFN and TSOT-23 (ThinSOT™) Packages
  • AEC-Q100 Qualified for Automotive Applications
LTC4365
Overvoltage, Undervoltage and Reverse Supply Protection Controller
LTC4365 Application Circuit LTC4365 Pin Configuration LTC4365 Pin Configuration LTC4365 Perofrmance GRaph
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

User Guide 2

Design Note 2

Technical Articles 3

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts Product Life Cycle Description
Hot Swap Controllers 2
LTC4231
RECOMMENDED FOR NEW DESIGNS Micropower Hot Swap Controller
LT4363
RECOMMENDED FOR NEW DESIGNS High Voltage Surge Stopper with Current Limit
Ideal Diodes and PowerPath Controllers 1
LTC4359
RECOMMENDED FOR NEW DESIGNS Ideal Diode Controller with Reverse Input Protection
Modal heading
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project

Tools & Simulations

LTspice 2

Models for the following parts are available in LTspice:

  • LTC4365
  • LTC4365-1
LTspice

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

eval board
schematic 1
schematic 2
schematic 3
schematic 4
schematic 5
DC1555B

LTC4365CTS8 Demo Board: High Voltage NFET Driver for UV, OV and Reverse Supply Protection

Buy Now View Details

Product Details

DC1555B: Demo Board for the LTC4365 Overvoltage, Undervoltage and Reverse Supply Protection Controller.





eval board
schematic 6
schematic 7
schematic 8
schematic 9
schematic 10
DC1555C-B

LTC4365CTS8-1 Demo Board | High Voltage NFET Driver for UV, OV and Reverse Supply Protection with 1ms Fault Recovery

Buy Now View Details

Product Details

Demonstration circuit DC1555C is intended to demonstrate the performance of the LTC4365 and LTC4365-1 Undervoltage, Overvoltage and Reverse Supply Protection Controllers. The LTC4365/LTC4365-1 protect circuits from input voltages that may be too high, too low or negative. It operates by controlling the gates of two back-to-back connected MOSFETs to keep the output in a safe range. The OV and UV protection levels are adjusted by resistive dividers at the OV and UV pins. Asserting the SHDN pin disables the MOSFETs and places the controller in a low-current shutdown state. The FAULT pin is asserted when the Controller is in shutdown mode or when the input voltage is outside of the UV or OV level.



DC1555B
LTC4365CTS8 Demo Board: High Voltage NFET Driver for UV, OV and Reverse Supply Protection

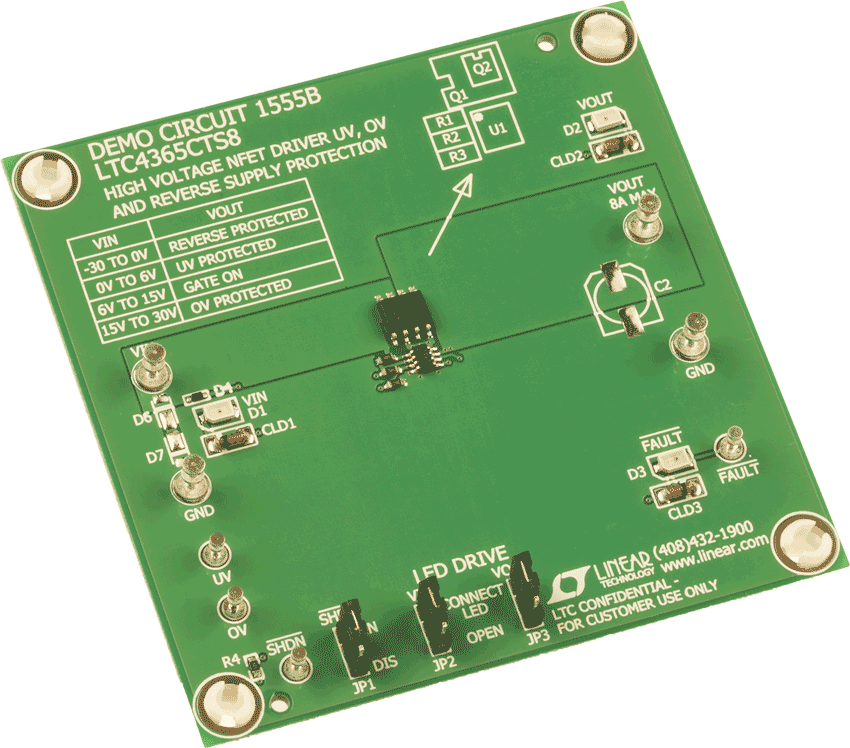

DC1555B Demo Board DC1555B Demo Board DC1555B Demo Board DC1555B Demo Board DC1555B - Schematic
DC1555C-B
LTC4365CTS8-1 Demo Board | High Voltage NFET Driver for UV, OV and Reverse Supply Protection with 1ms Fault Recovery
DC1555C-B Demo Board DC1555C-B Demo Board DC1555C-B Demo Board DC1555C-B Demo Board DC1555C - Schematic

Reference Designs

agilex7 alternative umodule
agilex7 alternative umodule
Intel Agilex 7 FPGA F-series Development Kit (Alternative µModule) Circuits from the lab

Altera FPGA

View Detailed Reference Design

Features and Benefits

  • Intel Agilex 7 F-Series devices target a wide range of applications across many markets. This series offers transceiver rates up to 58 Gbps, advanced DSP blocks supporting multiple precisions of fixed-point and floating-point operations, and high-performance crypto blocks.
