LTM4650

Dual 25A or Single 50A DC/DC μModule Regulator

Buy Now

Recommended for New Designs

Top

Alternative Parts

LTM4650-1

Dual 25A or Single 50A µModule Regulator with 0.8% DC and 3% Transient Accuracy

Overview

Features and Benefits
Product Details

Features and Benefits

Dual 25A or Single 50A Output
Input Voltage Range: 4.5V to 15V
Output Voltage Range: 0.6V to 1.8V
±1.5% Maximum Total DC Output Error Over Line, Load and Temperature
Differential Remote Sense Amplifier
Current Mode Control/Fast Transient Response
Adjustable Switching Frequency
Frequency Synchronization

Overcurrent Foldback Protection
Multiphase Parallel Current Sharing with Multiple LTM4650s Up to 300A
Internal Temperature Monitor
Pin Compatible with the LTM4620 (Dual 13A, Single 26A) and LTM4630 (Dual 18A, Single 36A)
Selectable Burst Mode^® Operation
Soft-Start/Voltage Tracking
Output Overvoltage Protection

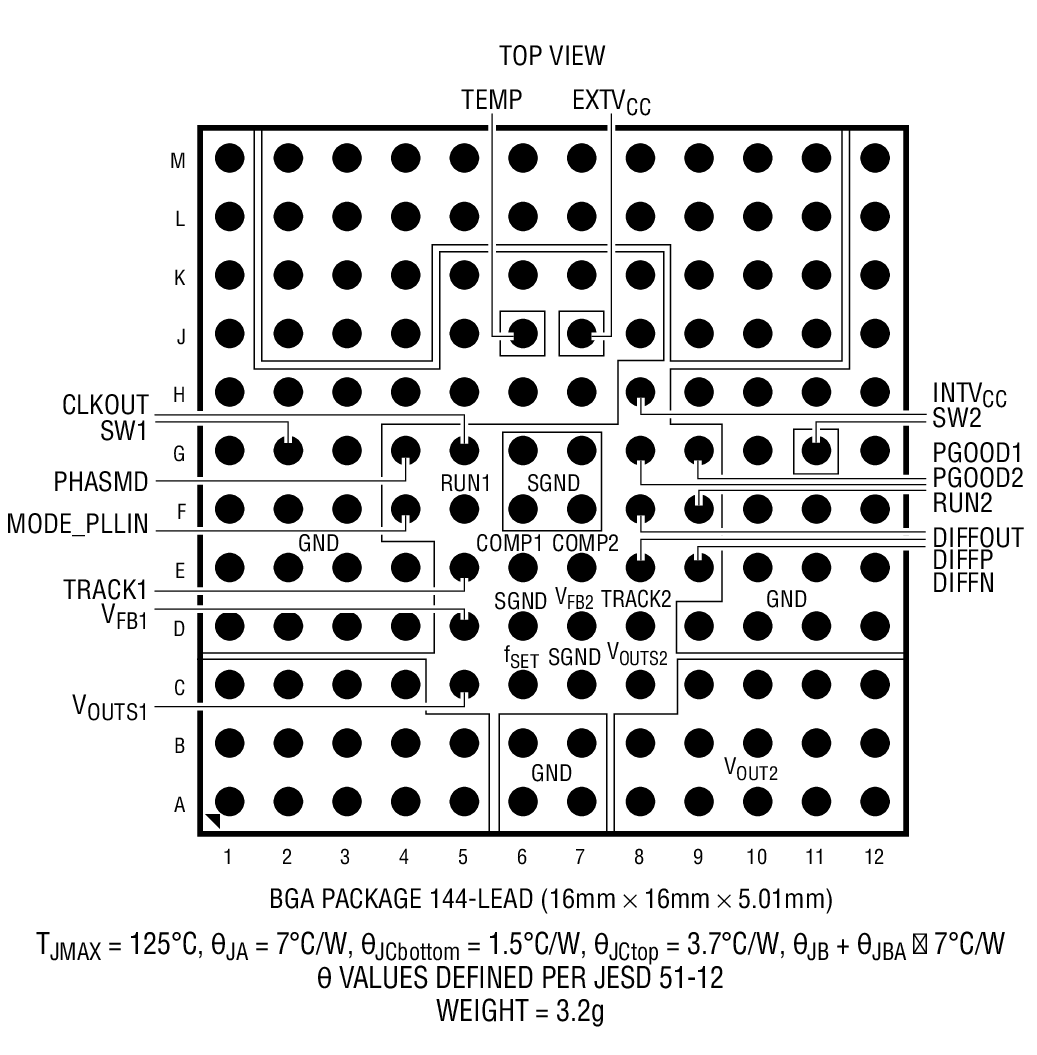

16mm × 16mm × 5.01mm BGA Package

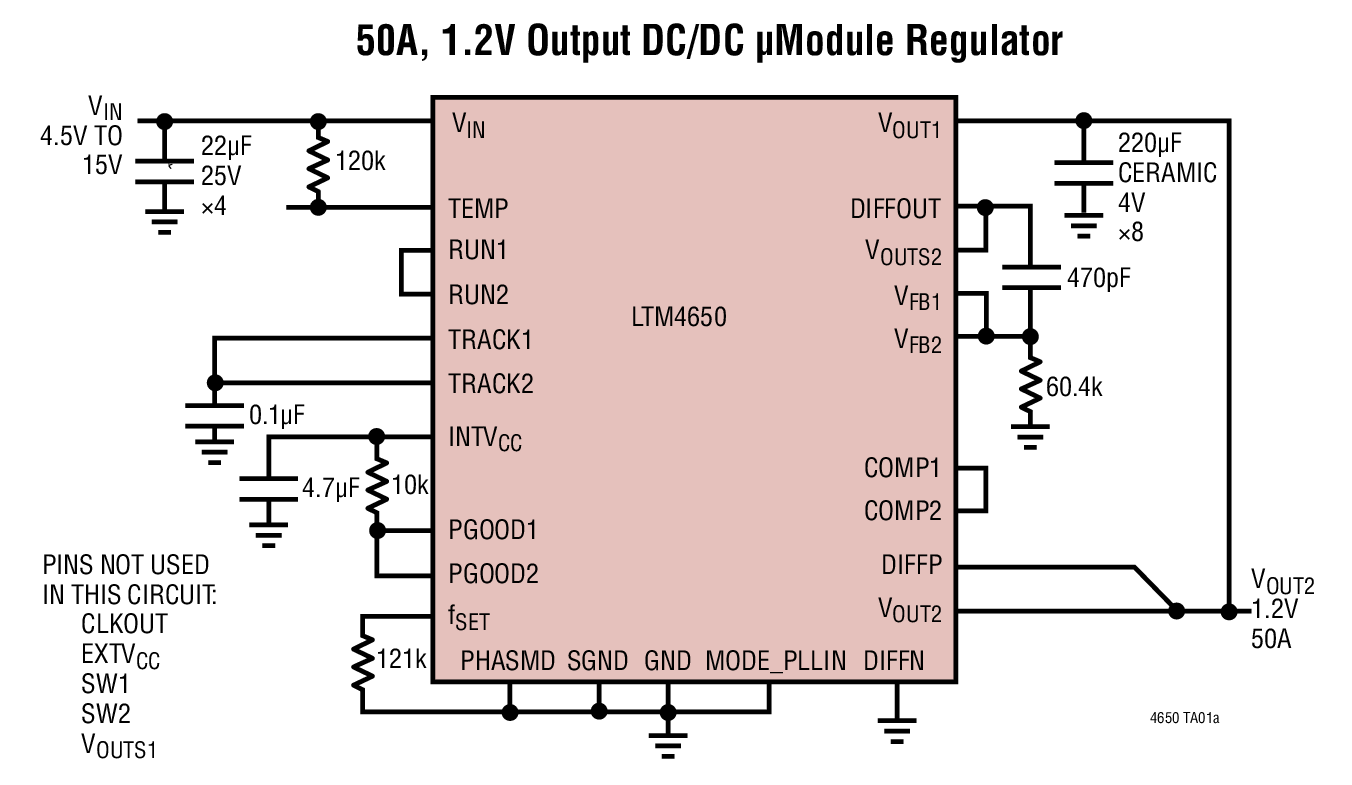

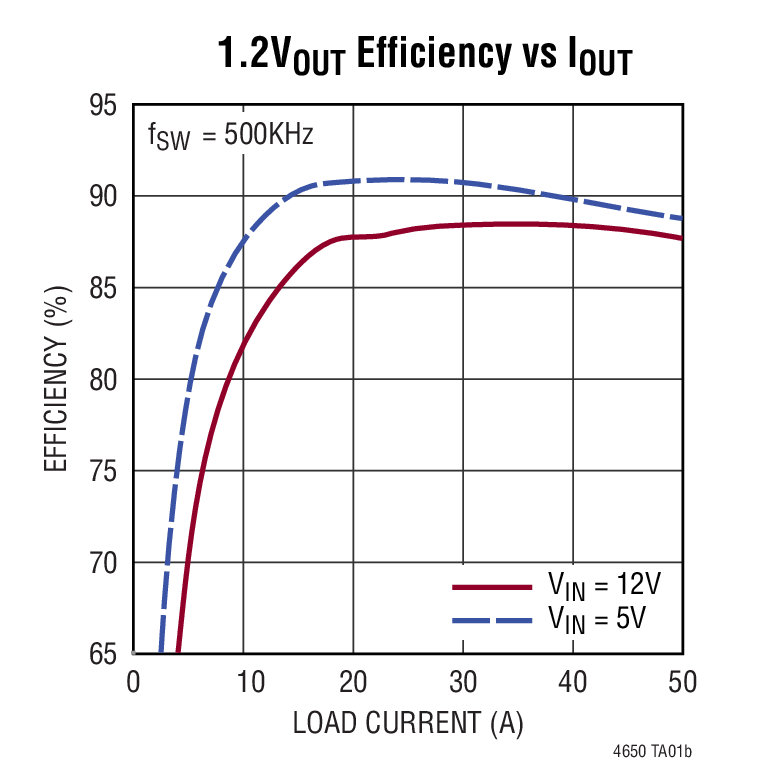

Product Details

The LTM4650 is a dual 25A or single 50A output switching mode step-down DC/DC μModule^® (power module) regulator. Included in the package are the switching controllers, power FETs, inductors, and all supporting components. Operating from an input voltage range of 4.5V to 15V, the LTM4650 supports two outputs each with an output voltage range of 0.6V to 1.8V, each set by a single external resistor. Its high efficiency design delivers up to 25A continuous current for each output. Only a few input and output capacitors are needed. The LTM4650 is pin compatible with the LTM4620 (dual 13A, single 26A) and the LTM4630 (dual 18A, single 36A).

The device supports frequency synchronization, multiphase operation, Burst Mode operation and output voltage tracking for supply rail sequencing and has an onboard temperature diode for device temperature monitoring. High switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability.

Fault protection features include overvoltage and overcurrent protection. The LTM4650 is offered in a 16mm × 16mm × 5.01mm BGA package.


	Vin Range	Vout Range	Comp	DC Vout Accy
LTM4650	4.5V to 15V	0.6V to 1.8V	Internal	1.5%
LTM4650-1B	4.5V to 15V	0.6V to 1.8V	External	1.5%
LTM4650-1A	4.5V to 15V	0.6V to 1.8V	External	0.8%
LTM4650A	4.5V to 16V	0.6V to 5.5V	Internal	1%
LTM4650A-1	4.5V to 16V	0.6V to 5.5V	External	1%

APPLICATIONS

Processor, ASIC and FPGA Core Power
Telecom and Networking Equipment
Storage and ATCA Cards
Industrial Equipment

Product Categories

Power Management
- µModule Buck Regulators
- Multiple Output Buck Regulators

Markets and Technologies

Data Center

Comparable Parts Click to see all in Parametric Search

Product Lifecycle Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

Evaluation Kits (5)

DC2481B-A

LTM4677 and LTM4650 Demo Board | Step-Down μModule Regulator with PMBus Power System Management LTM4677 + LTM4650, 86A

DC2479A-A

LTM4650EY Demo Board | Dual Phase Buck μModule Regulator, 4.5V ≤ V_IN ≤ 15V, V_OUT = 0.6V to 1.8V @ 50A

DC2481A-B

LTM4677/LTM4650 Demo Board | Buck μModule Regulator with Digital PSM, LTM4677 + LTM4650(x3), 4.5V ≤ V_IN ≤ 16V, V_OUT = 0.5V to 1.8V @ 186A

DC2378A-A

LTM4650 Demo Board | Dual Buck µModule Regulator, 4.5V ≤ V_IN ≤ 15V, V_OUT = 0.6V to 1.8V @ 50A or Dual 25A

DC2481A-A

LTM4677/LTM4650 Demo Board | Buck μModule Regulator with Digital PSM, LTM4677 + LTM4650, 4.5V ≤ V_IN ≤ 16V, V_OUT = 0.5V to 1.8V @ 86A

DC2481B-A

View Detailed Evaluation Kit Information

Demonstration circuit 2481B-A is a high efficiency, high density, μModule^® regulator with 4.5V to 15V input range. The output voltage is adjustable from 0.6V to 1.8V, and it can supply 86A maximum load current. The demo board has 1× LTM4677 and 1× LTM4650 μModule regulators. The LTM4677 is a dual 18A or single 36A step-down regulator with PMBus power system management, and the LTM4650 is a dual 25A or single 50A step-down regulator. Please see LTM4677 and LTM4650 data sheets for more detailed information.

DC2481B-A powers up to default settings and produce power based on configuration resistors without the need for any serial bus communication. This allows easy evaluation of the DC/DC converter. To fully explore the extensive power system management features of the part, download the GUI software LTpowerPlay^® onto your PC and use Analog Devices I²C/SMBus/PMBus dongle DC1613A to connect to the board. LTpowerPlay allows the user to reconfigure the part on the fly and store the configuration in EEPROM, view telemetry of voltage, current, temperature and fault status.

For more details and instructions of LTpowerPlay, please refer to LTpowerPlay Software GUI.
