LTM4630

Dual 18A or Single 36A DC/DC μModule (Power Module) Regulator

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Features
  • Dual 18A or Single 36A Output
  • Wide Input Voltage Range: 4.5V to 15V
  • Output Voltage Range: 0.6V to 1.8V
  • ±1.5% Maximum Total DC Output Error Over Line, Load and Temperature
  • Differential Remote Sense Amplifier
  • Current Mode Control/Fast Transient Response
  • Adjustable Switching Frequency
  • Overcurrent Foldback Protection
  • Multiphase Parallel Current Sharing with Multiple LTM4630s Up to 144A
  • Frequency Synchronization
  • Internal Temperature Monitor
  • Pin Compatible with the LTM4620 and LTM4620A (Dual 13A, Single 26A) and LTM4628 (Dual 8A, Single 16A)
  • Selectable Burst Mode® Operation
  • Soft-Start/Voltage Tracking
  • Output Overvoltage Protection

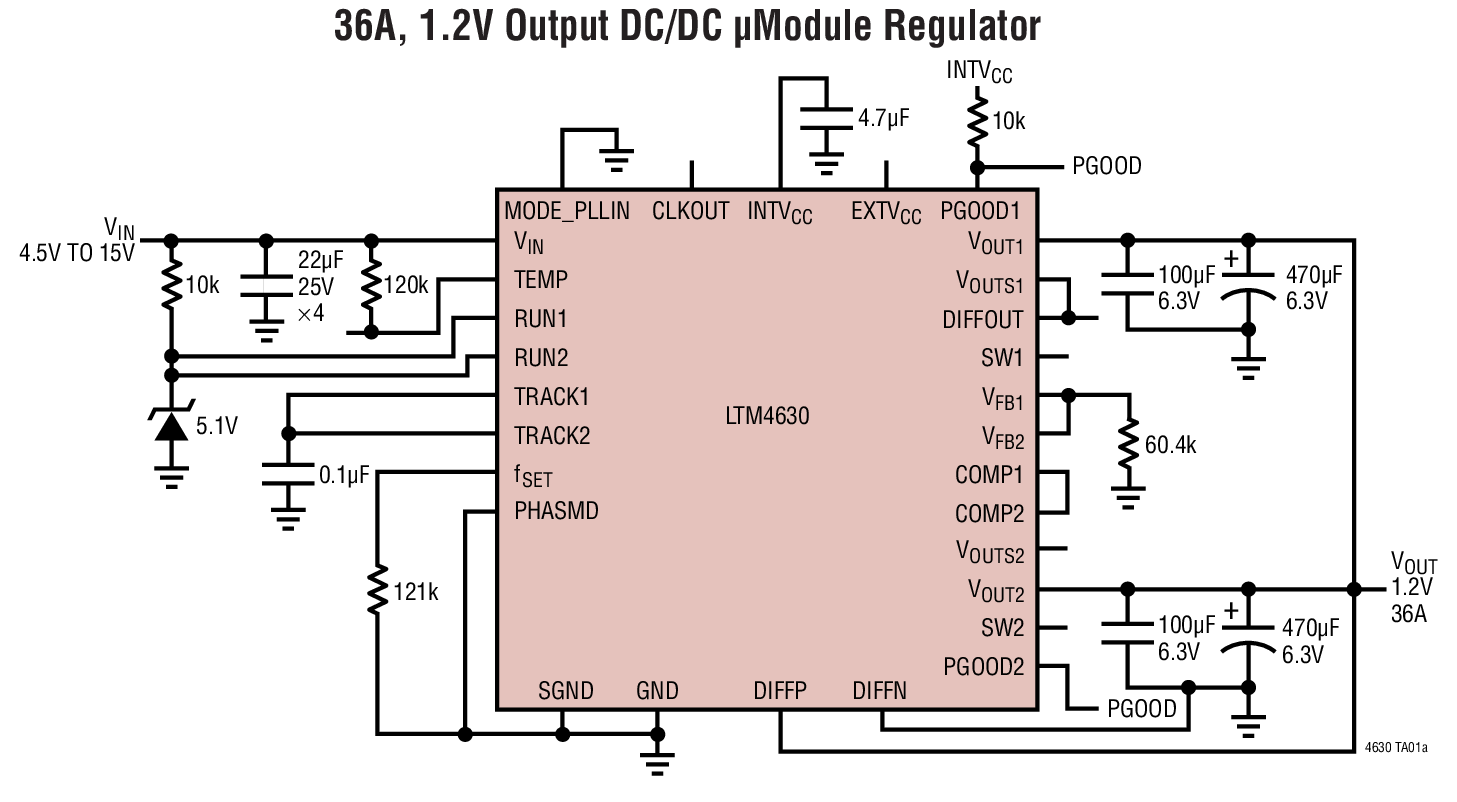

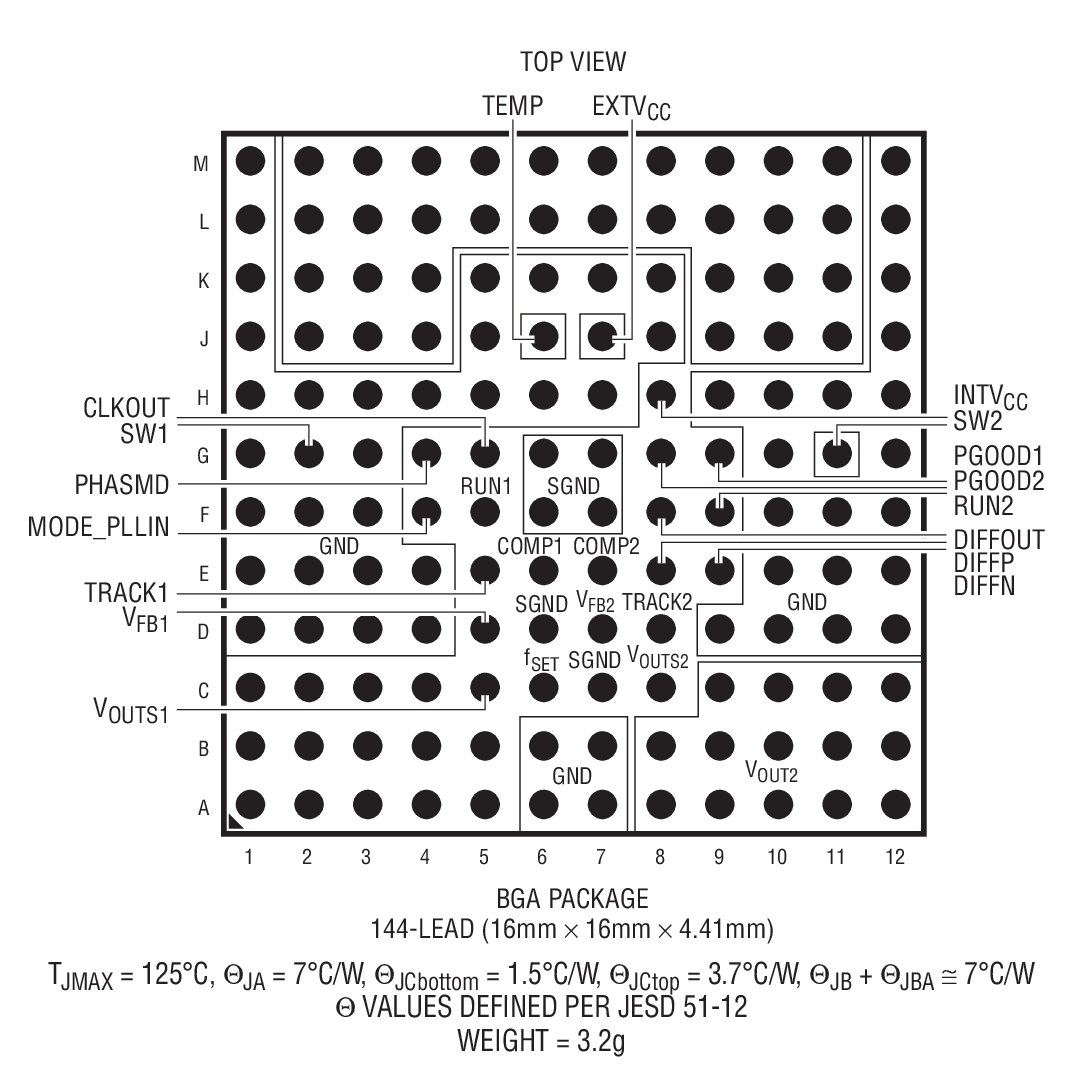

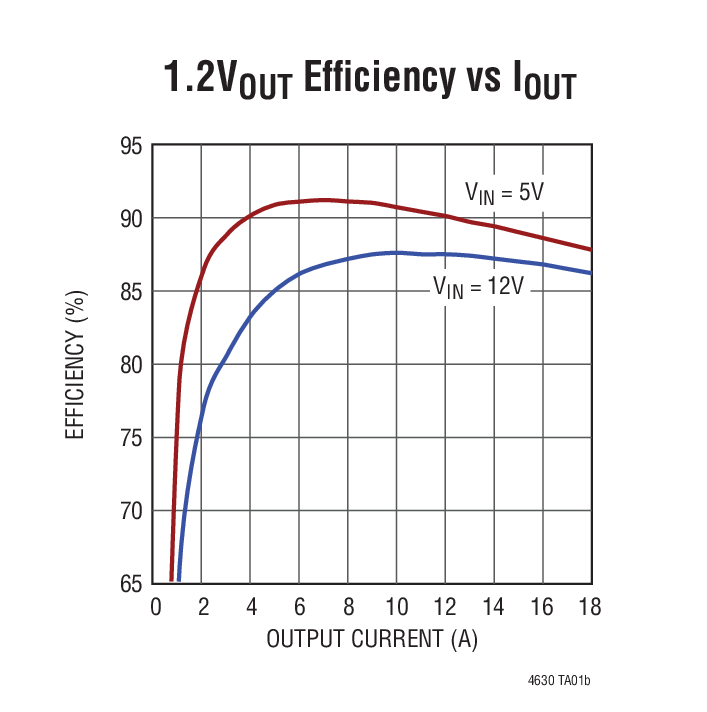

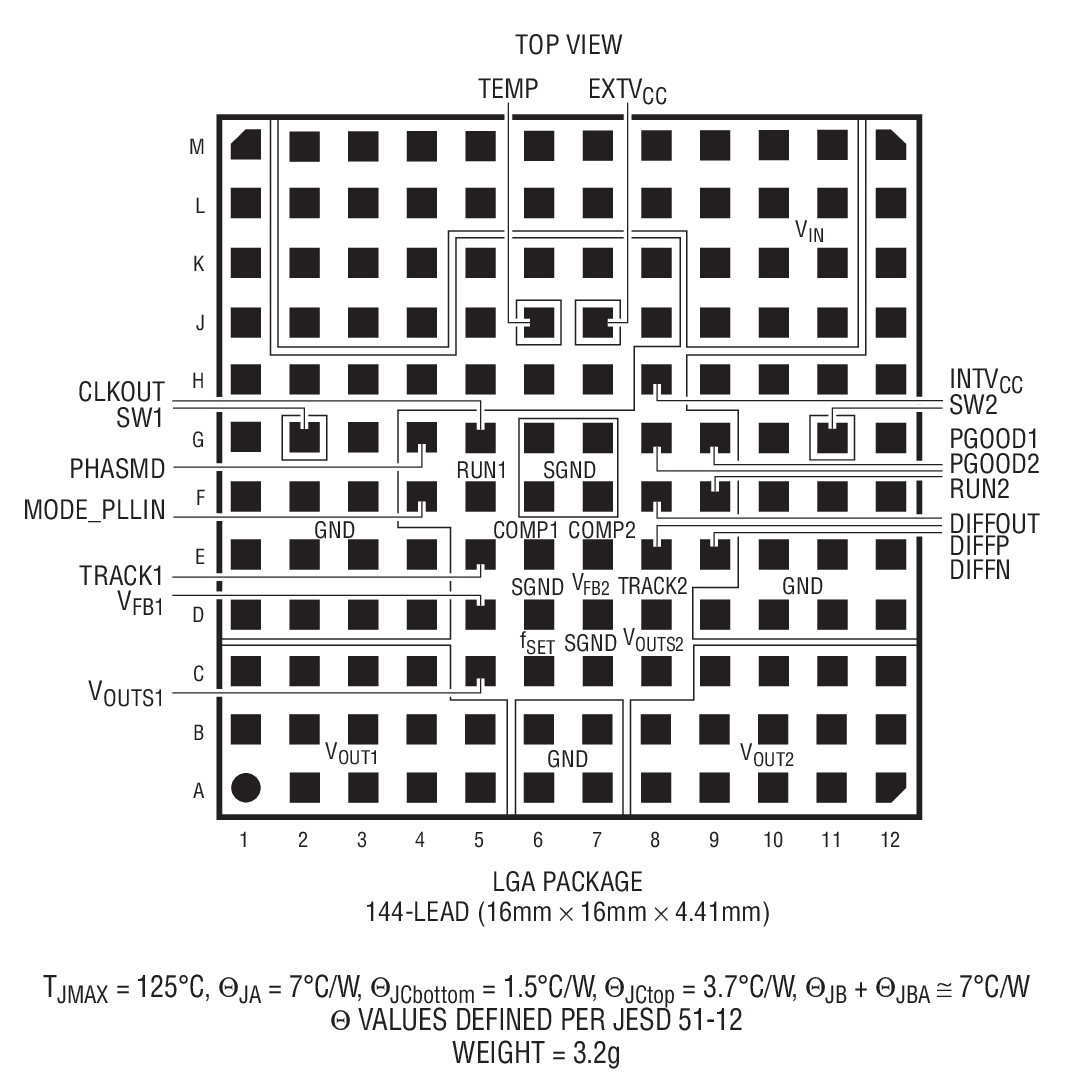

  • 16mm × 16mm × 4.41mm LGA and 16mm × 16mm × 5.01mm BGA Packages
Additional Details
show more Icon

The LTM4630 is a dual 18A or single 36A output switching mode step-down DC/DC μModule® (power module) regulator. Included in the package are the switching controllers, power FETs, inductors, and all supporting components. Operating from an input voltage range of 4.5V to 15V, the LTM4630 supports two outputs each with an output voltage range of 0.6V to 1.8V, each set by a single external resistor. Its high efficiency design delivers up to 18A continuous current for each output. Only a few input and output capacitors are needed. The LTM4630 is pin compatible with the LTM4620 and LTM4620A (dual 13A, single 26A) and the LTM4628 (dual 8A, single 16A).

The device supports frequency synchronization, multiphase operation, Burst Mode operation and output voltage tracking for supply rail sequencing and has an onboard temperature diode for device temperature monitoring. High switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability.

Fault protection features include overvoltage and overcurrent protection. The LTM4630 is offered in 16mm × 16mm × 4.41mm LGA and 16mm × 16mm × 5.01mm BGA packages. The LTM4630 is ROHS compliant.




Features Vout
LTM4630
0.6V to 1.8V
LTM4630-1 0.8% DC and 3% Transient Accuracy 0.6V to 1.8V
LTM4630A Higher Light Load Efficiency 0.6V to 5.3V


Applications

  • Telecom and Networking Equipment
  • Storage and ATCA Cards
  • Industrial Equipment

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTM4630EV#PBF
  • HTML
  • HTML
LTM4630EY#PBF
  • HTML
  • HTML
LTM4630IV#PBF
  • HTML
  • HTML
LTM4630IY
  • HTML
  • HTML
LTM4630IY#PBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 28, 2021

- 20_0245

Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

LTM4630EV#PBF

PRODUCTION

LTM4630EY#PBF

PRODUCTION

LTM4630IV#PBF

PRODUCTION

LTM4630IY

PRODUCTION

LTM4630IY#PBF

PRODUCTION

Jul 21, 2021

- 21_0159

Ink Mark to Laser Mark Conversion for µModule

LTM4630EV#PBF

PRODUCTION

LTM4630EY#PBF

PRODUCTION

LTM4630IV#PBF

PRODUCTION

LTM4630IY

PRODUCTION

LTM4630IY#PBF

PRODUCTION

Feb 28, 2020

- 20_0123

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM4630EV#PBF

PRODUCTION

LTM4630EY#PBF

PRODUCTION

LTM4630IV#PBF

PRODUCTION

LTM4630IY

PRODUCTION

LTM4630IY#PBF

PRODUCTION

Feb 5, 2020

- 20_0127

Supplier Material Change for µModule

LTM4630EV#PBF

PRODUCTION

LTM4630EY#PBF

PRODUCTION

LTM4630IV#PBF

PRODUCTION

LTM4630IY

PRODUCTION

LTM4630IY#PBF

PRODUCTION

Jul 25, 2019

- 19_0115

Notification of Additional Assembly Location, ASE Korea for LTM4630 and LTM4630A

LTM4630EV#PBF

PRODUCTION

LTM4630EY#PBF

PRODUCTION

LTM4630IV#PBF

PRODUCTION

LTM4630IY

PRODUCTION

LTM4630IY#PBF

PRODUCTION

Jul 22, 2019

- 19_0164

Notification of qualification of a new mold compound for the LTM4630 µModule Regulator

LTM4630EV#PBF

PRODUCTION

LTM4630EY#PBF

PRODUCTION

LTM4630IV#PBF

PRODUCTION

LTM4630IY

PRODUCTION

LTM4630IY#PBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 28, 2021

- 20_0245

arrow down

Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

LTM4630EV#PBF

PRODUCTION

LTM4630EY#PBF

PRODUCTION

LTM4630IV#PBF

PRODUCTION

LTM4630IY

PRODUCTION

LTM4630IY#PBF

PRODUCTION

Jul 21, 2021

- 21_0159

arrow down

Ink Mark to Laser Mark Conversion for µModule

LTM4630EV#PBF

PRODUCTION

LTM4630EY#PBF

PRODUCTION

LTM4630IV#PBF

PRODUCTION

LTM4630IY

PRODUCTION

LTM4630IY#PBF

PRODUCTION

Feb 28, 2020

- 20_0123

arrow down

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM4630EV#PBF

PRODUCTION

LTM4630EY#PBF

PRODUCTION

LTM4630IV#PBF

PRODUCTION

LTM4630IY

PRODUCTION

LTM4630IY#PBF

PRODUCTION

Feb 5, 2020

- 20_0127

arrow down

Supplier Material Change for µModule

LTM4630EV#PBF

PRODUCTION

LTM4630EY#PBF

PRODUCTION

LTM4630IV#PBF

PRODUCTION

LTM4630IY

PRODUCTION

LTM4630IY#PBF

PRODUCTION

Jul 25, 2019

- 19_0115

arrow down

Notification of Additional Assembly Location, ASE Korea for LTM4630 and LTM4630A

LTM4630EV#PBF

PRODUCTION

LTM4630EY#PBF

PRODUCTION

LTM4630IV#PBF

PRODUCTION

LTM4630IY

PRODUCTION

LTM4630IY#PBF

PRODUCTION

Jul 22, 2019

- 19_0164

arrow down

Notification of qualification of a new mold compound for the LTM4630 µModule Regulator

LTM4630EV#PBF

PRODUCTION

LTM4630EY#PBF

PRODUCTION

LTM4630IV#PBF

PRODUCTION

LTM4630IY

PRODUCTION

LTM4630IY#PBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 6

reference details image

DC2007A-B

LTM4630 Demo Board | 105A Polyphase Step-Down (3x LTM4630), 4.5V ≤ VIN ≤ 15V, VOUT = 0.9V to 1.8V @ 105A

zoom

DC2007A-B

LTM4630 Demo Board | 105A Polyphase Step-Down (3x LTM4630), 4.5V ≤ VIN ≤ 15V, VOUT = 0.9V to 1.8V @ 105A

LTM4630 Demo Board | 105A Polyphase Step-Down (3x LTM4630), 4.5V ≤ VIN ≤ 15V, VOUT = 0.9V to 1.8V @ 105A

Product Detail

Demonstration circuit 2007A-B features a PolyPhase® design using the LTM4630EV, the high efficiency, high density, dual 18A, switch mode step-down power μModule® regulator. The input voltage is from 4.5V to 15V. The output voltage is jumper selectable from 0.9V to 1.8V. The DC2007A-B can deliver a nominal 105A output current. As explained in the data sheet, output current derating is necessary for certain VIN, VOUT, and thermal conditions. The LTM4630 on DC2007A-B always operates in continuous conduction mode. The switching frequency can be programmed through a resistor or can be synchronized to an external clock signal.

reference details image

DC2106B-B

LTM4676AEY/LTM4630EV Demo Board | PMBus Buck µModule (LTM4676A) + LTM4630 (x3), 4.5V ≤ VIN ≤ 16V, VOUT = 0.5V to 1.8V @ 130A

zoom

DC2106B-B

LTM4676AEY/LTM4630EV Demo Board | PMBus Buck µModule (LTM4676A) + LTM4630 (x3), 4.5V ≤ VIN ≤ 16V, VOUT = 0.5V to 1.8V @ 130A

LTM4676AEY/LTM4630EV Demo Board | PMBus Buck µModule (LTM4676A) + LTM4630 (x3), 4.5V ≤ VIN ≤ 16V, VOUT = 0.5V to 1.8V @ 130A

Product Detail

Demonstration circuit 2106B-B is a high efficiency, high density, paralleled, multi-chip μModule regulator solution with a 4.5V to 16V input range and 130A  of output current. The output voltage (1V default value) is adjustable from 0.5V to 1.8V. The demo board has 1× LTM4676A acting as the master controller, and 3× LTM4630 μModule slave controllers. All devices having their outputs paralleled to provide 130A of current. Please see the LTM4676A and LTM4630 data sheets for more detailed information.

reference details image

DC2007A-A

LTM4630 Demo Board | 70A Polyphase Step-Down (2x LTM4630), 4.5V ≤ VIN ≤ 15V, VOUT = 0.9V to 1.8V @ 70A

zoom

DC2007A-A

LTM4630 Demo Board | 70A Polyphase Step-Down (2x LTM4630), 4.5V ≤ VIN ≤ 15V, VOUT = 0.9V to 1.8V @ 70A

LTM4630 Demo Board | 70A Polyphase Step-Down (2x LTM4630), 4.5V ≤ VIN ≤ 15V, VOUT = 0.9V to 1.8V @ 70A

Product Detail

Demonstration Circuit 2007A-A features a PolyPhase® design using the LTM4630EV, the high efficiency, high density, dual 18A, switch mode step-down power μModule® regulator. The input voltage is from 4.5V to 15V. The output voltage is jumper selectable from 0.9V to 1.8V. The DC2007A-A can deliver a nominal 70A output current. As explained in the data sheet, output current derating is necessary for certain VIN, VOUT, and thermal conditions. The LTM4630 on the DC2007A-A always operates in continuous conduction mode. The switching frequency can be programmed through a resistor or can be synchronized to an external clock signal. The board allows the user to program how its output voltage ramps up and down through the TRACK pin.





reference details image

DC1892A

LTM4630 Demo Board | Dual Buck µModule Regulator, 4.5V ≤ VIN ≤ 15V, VOUT1 = 1.5V @ 18A, VOUT2 = 1.0V @ 18A

zoom

DC1892A

LTM4630 Demo Board | Dual Buck µModule Regulator, 4.5V ≤ VIN ≤ 15V, VOUT1 = 1.5V @ 18A, VOUT2 = 1.0V @ 18A

LTM4630 Demo Board | Dual Buck µModule Regulator, 4.5V ≤ VIN ≤ 15V, VOUT1 = 1.5V @ 18A, VOUT2 = 1.0V @ 18A

Product Detail

Demonstration circuit 1892A features the LTM4630EV, the high efficiency, high density, dual 18A, switch mode step-down power module regulator. The input voltage is from 4.5V to 15V. The output voltage is programmable from 0.6V to 1.8V. DC1892A can deliver up to 18A maximum in each channel. As explained in the LTM4630 data sheet, output current derating is necessary for certain VIN, VOUT and thermal conditions. The board operates in continuous conduction mode in heavy load conditions. For high efficiency at low load currents, the MODE jumper (JP1) selects pulse-skipping mode for noise-sensitive applications or Burst Mode® operation in less noise-sensitive applications.

reference details image

DC2007A-C

LTM4630 Demo Board | 140A Polyphase Step-Down (4x LTM4630), 4.5V ≤ VIN ≤ 15V, VOUT = 0.9V to 1.8V @ 140A

zoom

DC2007A-C

LTM4630 Demo Board | 140A Polyphase Step-Down (4x LTM4630), 4.5V ≤ VIN ≤ 15V, VOUT = 0.9V to 1.8V @ 140A

LTM4630 Demo Board | 140A Polyphase Step-Down (4x LTM4630), 4.5V ≤ VIN ≤ 15V, VOUT = 0.9V to 1.8V @ 140A

Product Detail

Demonstration circuit 2007A-C features a PolyPhase® design using the LTM4630EV, the high efficiency, high density, dual 18A, switch mode step-down power μModule® regulator. The input voltage is from 4.5V to 15V. The output voltage is jumper selectable from 0.9V to 1.8V. The DC2007A-C can deliver a nominal 140A output current. As explained in the data sheet, output current derating is necessary for certain VIN, VOUT, and thermal conditions. The LTM4630 on the DC2007A-C always operates in continuous conduction mode. The switching frequency can be programmed through a resistor or can be synchronized to an external clock signal. The board allows the user to program how its output voltage ramps up and down through the TRACK pin.





reference details image

DC2081A-A

LTM4630EV Demo Board | Step-Down μModule Regulator, 4.5V ≤ VIN ≤ 15V, VOUT = 1V @ 36A

zoom

DC2081A-A

LTM4630EV Demo Board | Step-Down μModule Regulator, 4.5V ≤ VIN ≤ 15V, VOUT = 1V @ 36A

LTM4630EV Demo Board | Step-Down μModule Regulator, 4.5V ≤ VIN ≤ 15V, VOUT = 1V @ 36A

Product Detail

Demonstration circuit 2081A-A features the LTM4630EV, the high efficiency, high density, dual 18A, switch mode step-down μModule® regulator. The input voltage is from 4.5V to 15V. The output voltage is programmable from 0.6V to 1.8V. DC2081A-A is configured as dual-phase, single-output, which can deliver up to 36A maximum. The board designs with minimum components to demonstrate this high efficiency, high density μModule. As explained in the data sheet, output current de-rating is necessary for certain VIN, VOUT, and thermal conditions.

Tools & Simulations

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
