Features
  • Dual, Fast, Analog Loops with Digital Interface for Control and Monitoring
  • Wide Input Voltage Range: 4.5V to 26.5V
  • Output Voltage Range: 0.5V to 5.4V (4V on VOUT0)
  • ±1% Maximum DC Output Error Over Temperature
  • ±2.5% Current Readback Accuracy at 10A Load
  • 400kHz PMBus-Compliant I2C Serial Interface
  • Integrated 16-Bit ΔΣ ADC
  • Constant Frequency Current Mode Control
  • Parallel and Current Share Multiple Modules
  • 16 Slave Addresses; Rail/Global Addressing
  • 16mm × 16mm × 5.01mm BGA Package
Readable Data:
  • Input and Output Voltages, Currents, and Temperatures
  • Running Peak Values, Uptime, Faults and Warnings
  • Onboard EEPROM Fault Log Record
Writable Data and Configurable Parameters:
  • Output Voltage, Voltage Sequencing and Margining
  • Digital Soft-Start/Stop Ramp
  • OV/UV/OT, UVLO, Frequency and Phasing
Additional Details
show more Icon

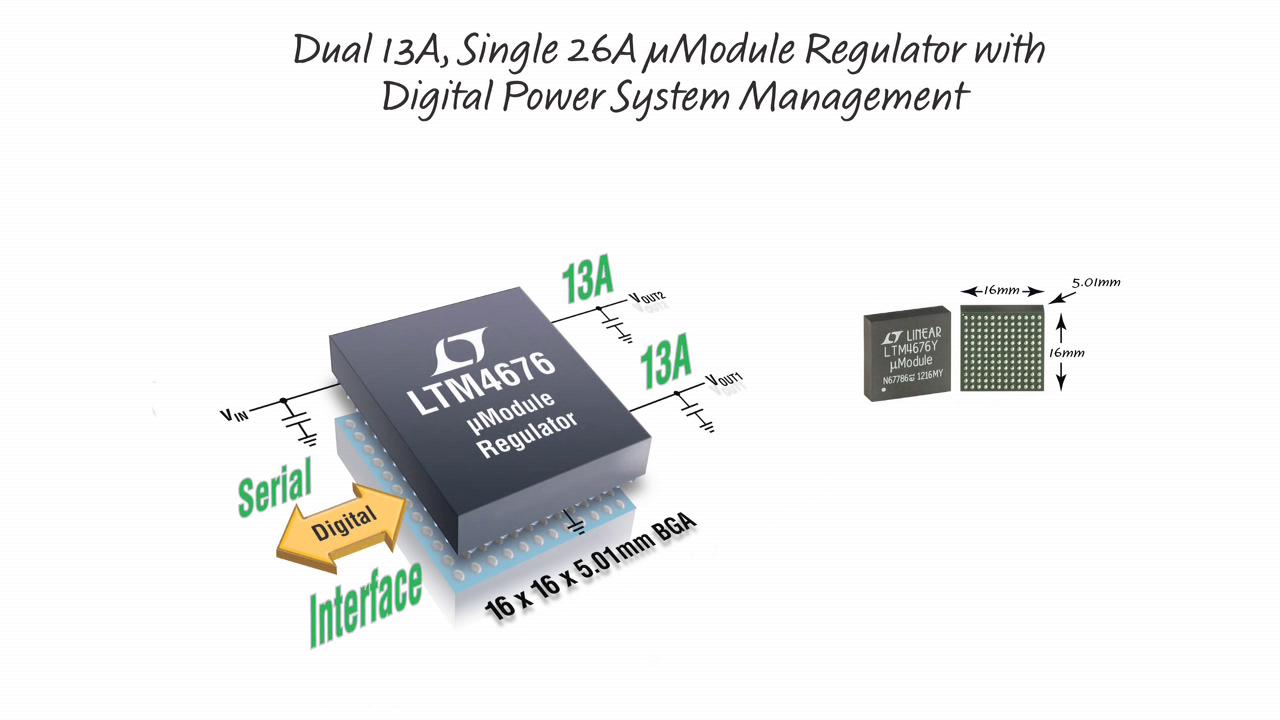

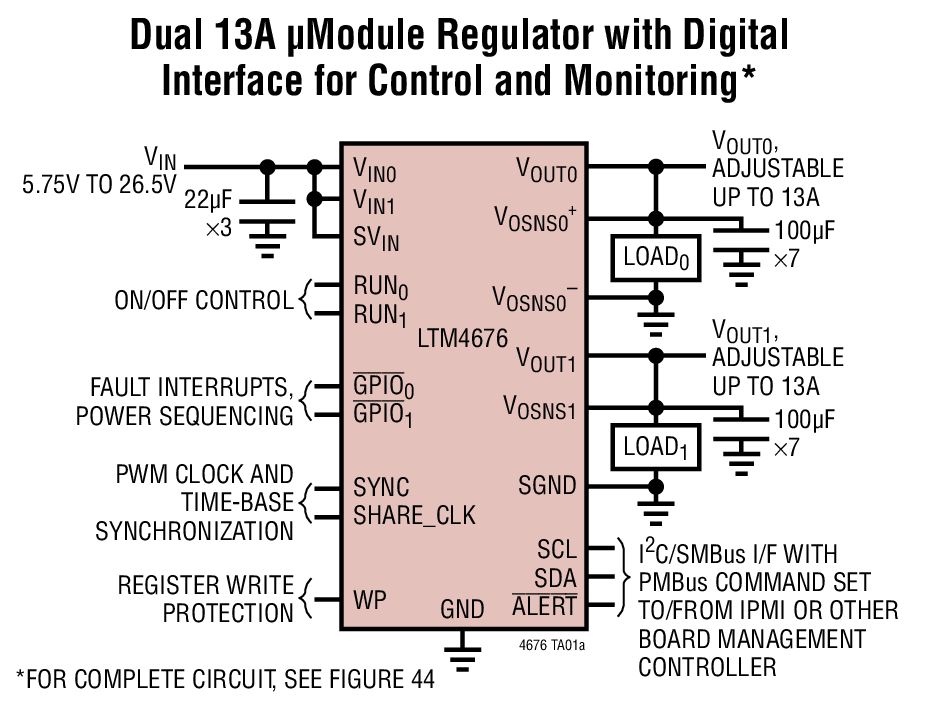

The LTM4676 is a dual 13A or single 26A step-down uModule® (power module) DC/DC regulator featuring remote configurability and telemetry-monitoring of power management parameters over PMBus— an open standard I2C-based digital interface protocol. The LTM4676 is comprised of fast analog control loops, precision mixedsignal circuitry, EEPROM, power MOSFETs, inductors and supporting components.

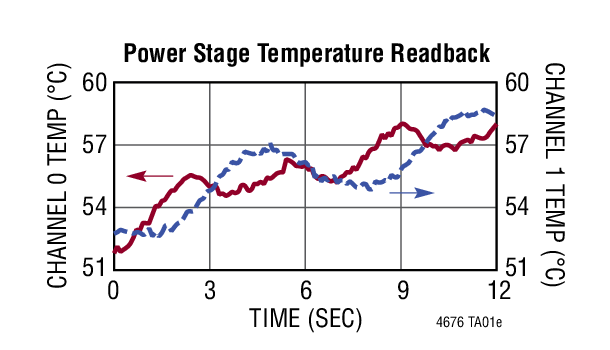

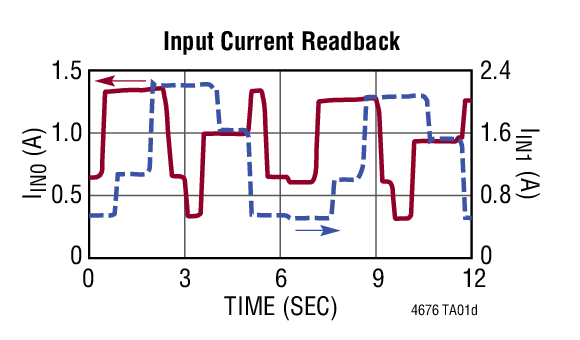

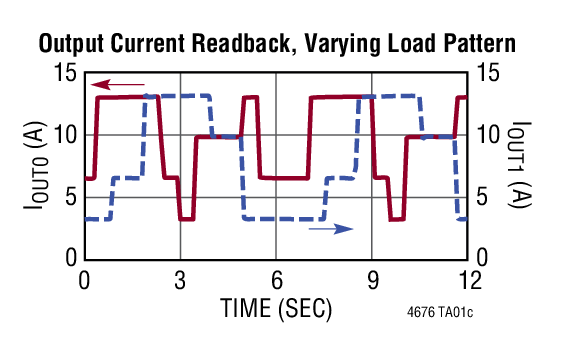

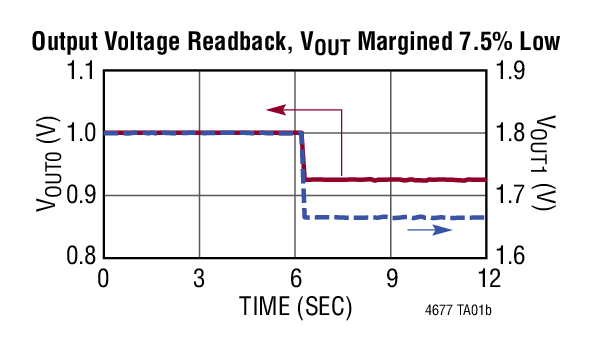

The LTM4676’s 2-wire serial interface allows outputs to be margined, tuned and ramped up and down at programmable slew rates with sequencing delay times. Input and output currents and voltages, output power, temperatures, uptime and peak values are readable. Custom configuration of the EEPROM contents is not required. At start-up, output voltages, switching frequency, and channel phase angle assignments can be set by pin-strapping resistors. The LTpowerPlay GUI and DC1613 USB-to-PMBus converter and demo kits are available.

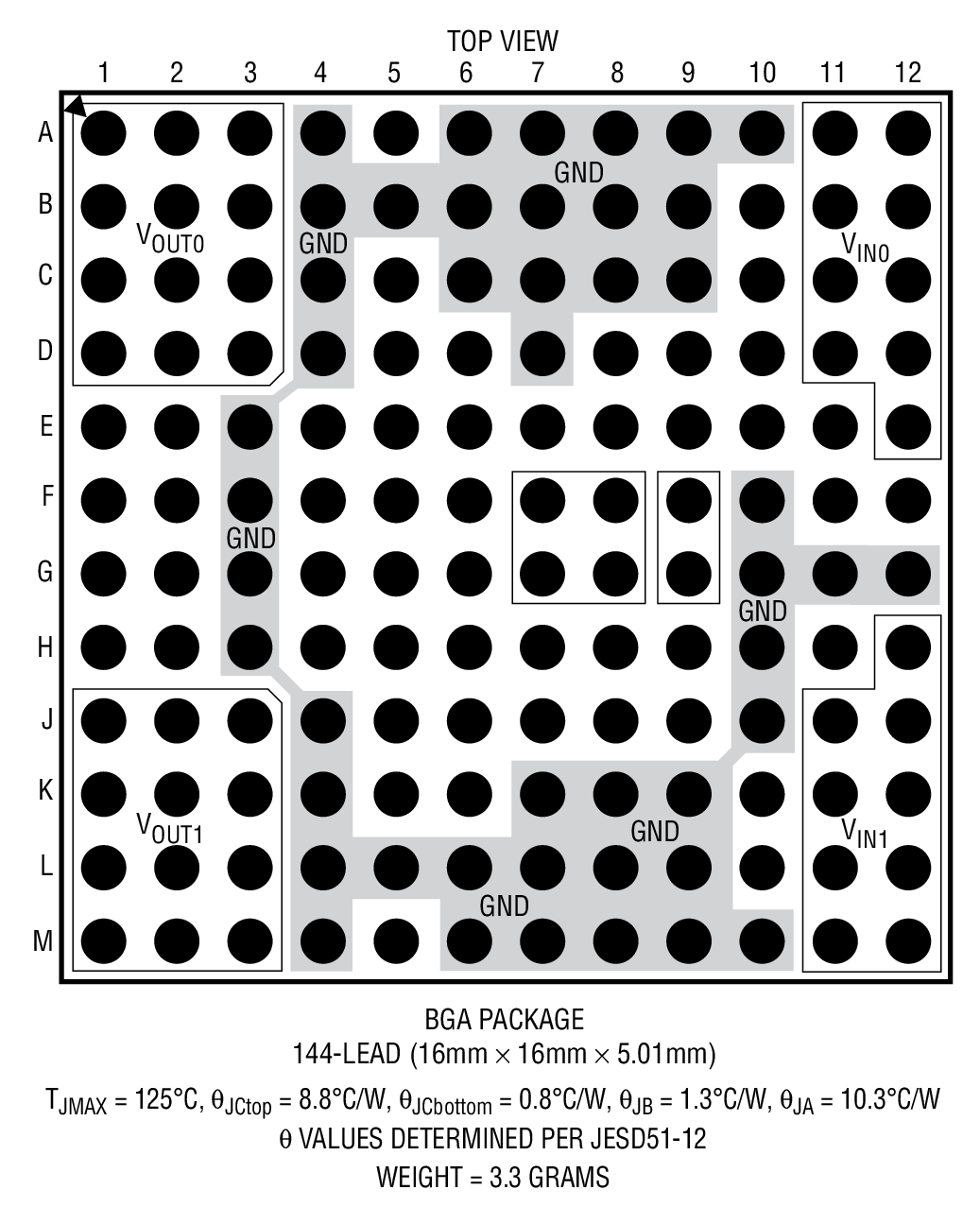

The LTM4676 is offered in a 16mm × 16mm × 5.01mm BGA package available with SnPb or RoHS compliant terminal finish.

Part Number Turn-on Start-up Time (MAX) (ms) VIN Range (V) VOUT Range (V) Pin-compatible
LTM4676 170 4.5 to 26.5 0.5V to 4 (CH0)
0.5 to 5.5 (Both CH)
Yes
LTM4676A 70 4.5 to 17 0.5 to 5.5 (Both CH)

Applications

  • System Optimization, Characterization and Data Mining in Prototype, Production and Field Environments
  • Telecom, Datacom, and Storage Systems
Part Models 3
1ku List Price
price unavailable

close icon
Documentation

Documentation

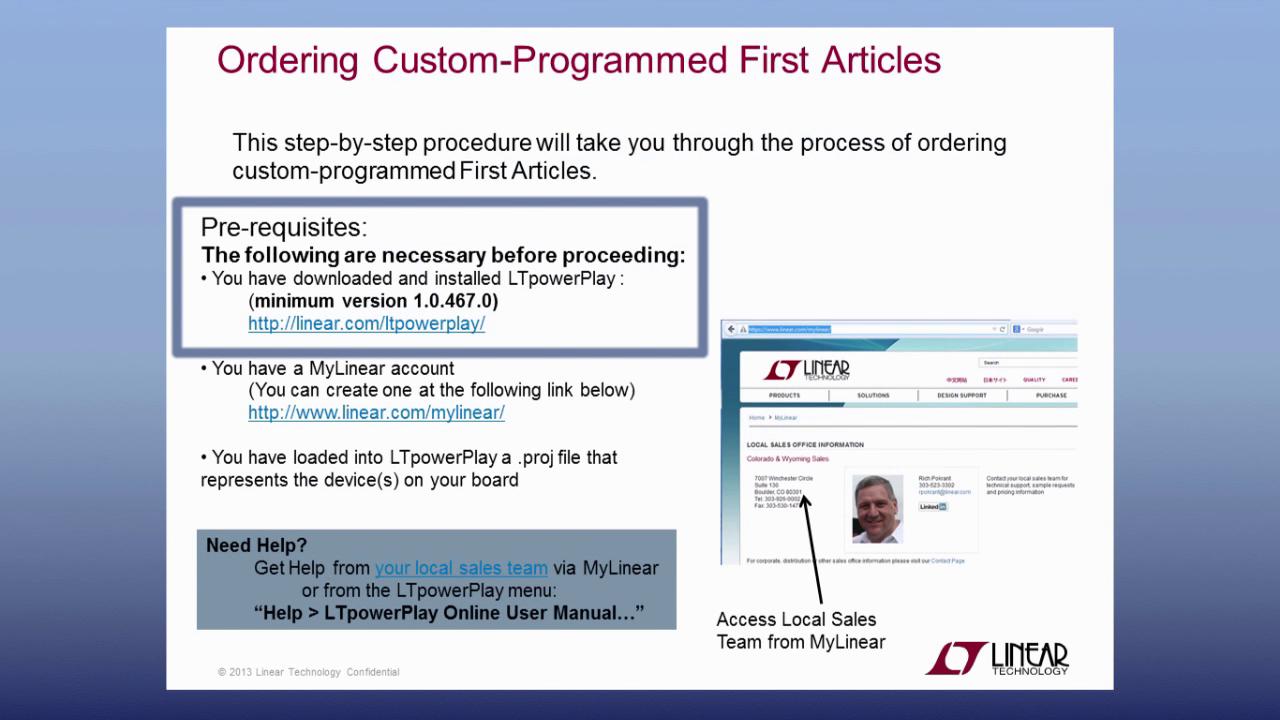

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTM4676EY#PBF
  • HTML
  • HTML
LTM4676IY
  • HTML
  • HTML
LTM4676IY#PBF
  • HTML
  • HTML
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 3

reference details image

DC2087A

LTM4676 Demo Board | Buck µModule, 4.5V ≤ VIN ≤ 16V, VOUT = 1V @ 26A

zoom

DC2087A

LTM4676 Demo Board | Buck µModule, 4.5V ≤ VIN ≤ 16V, VOUT = 1V @ 26A

LTM4676 Demo Board | Buck µModule, 4.5V ≤ VIN ≤ 16V, VOUT = 1V @ 26A

Product Detail

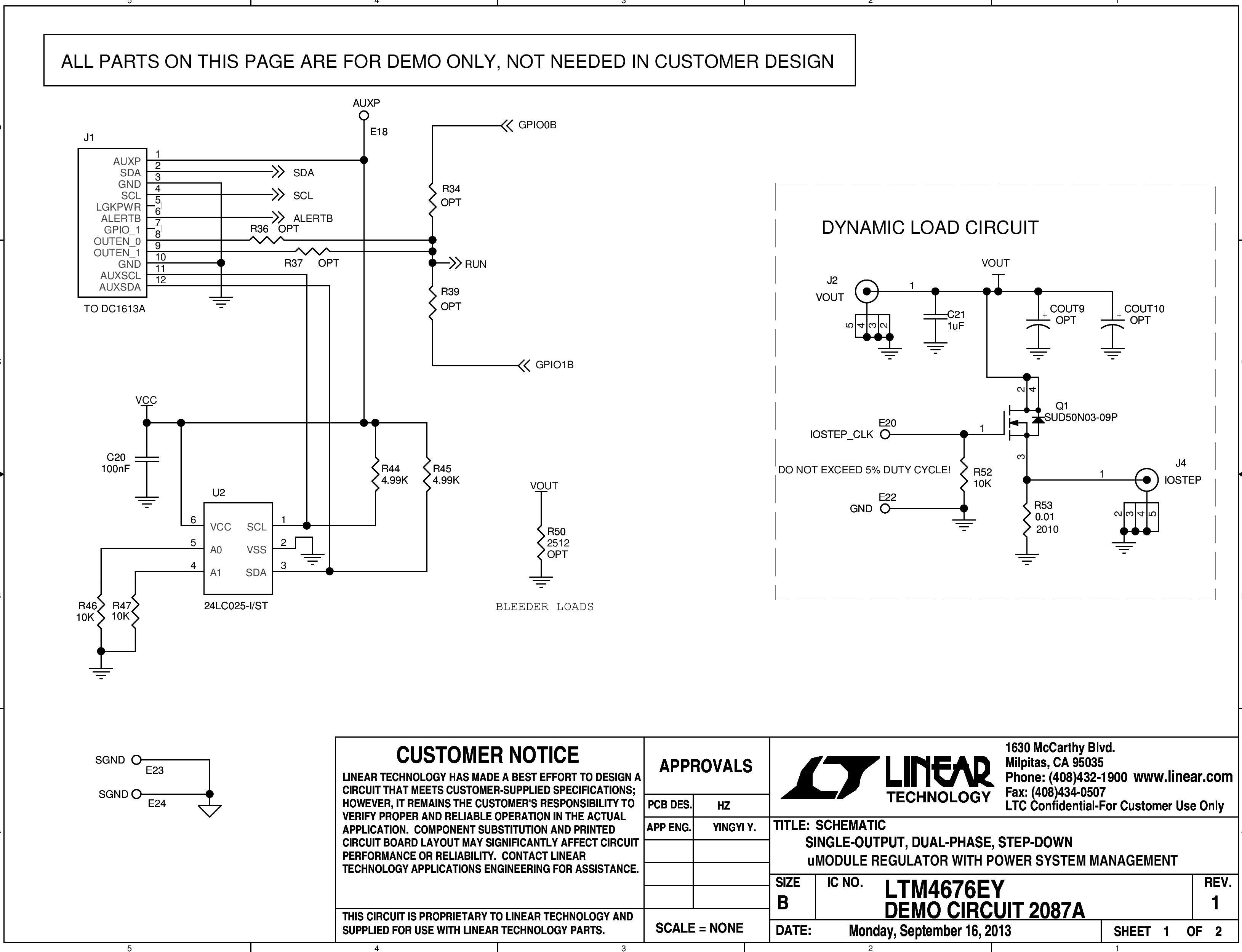

Demonstration circuit 2087A is a single-output, high efficiency, high density, μModule® regulator with 4.5V to 16V input range. It can supply 26A maximum load current. The demo board has a LTM4676 μModule regulator, which is a dual 13A or single 26A step-down regulator with PMBus power system management. Please see LTM4676 data sheet for more detailed information.





reference details image

DC1811B-KIT

LTM4676 with DC1613A Demo Kit | LTM4676 (DC1811) with USB-to-PMBus Adapter (DC1613A)

zoom

DC1811B-KIT

LTM4676 with DC1613A Demo Kit | LTM4676 (DC1811) with USB-to-PMBus Adapter (DC1613A)

LTM4676 with DC1613A Demo Kit | LTM4676 (DC1811) with USB-to-PMBus Adapter (DC1613A)

Product Detail

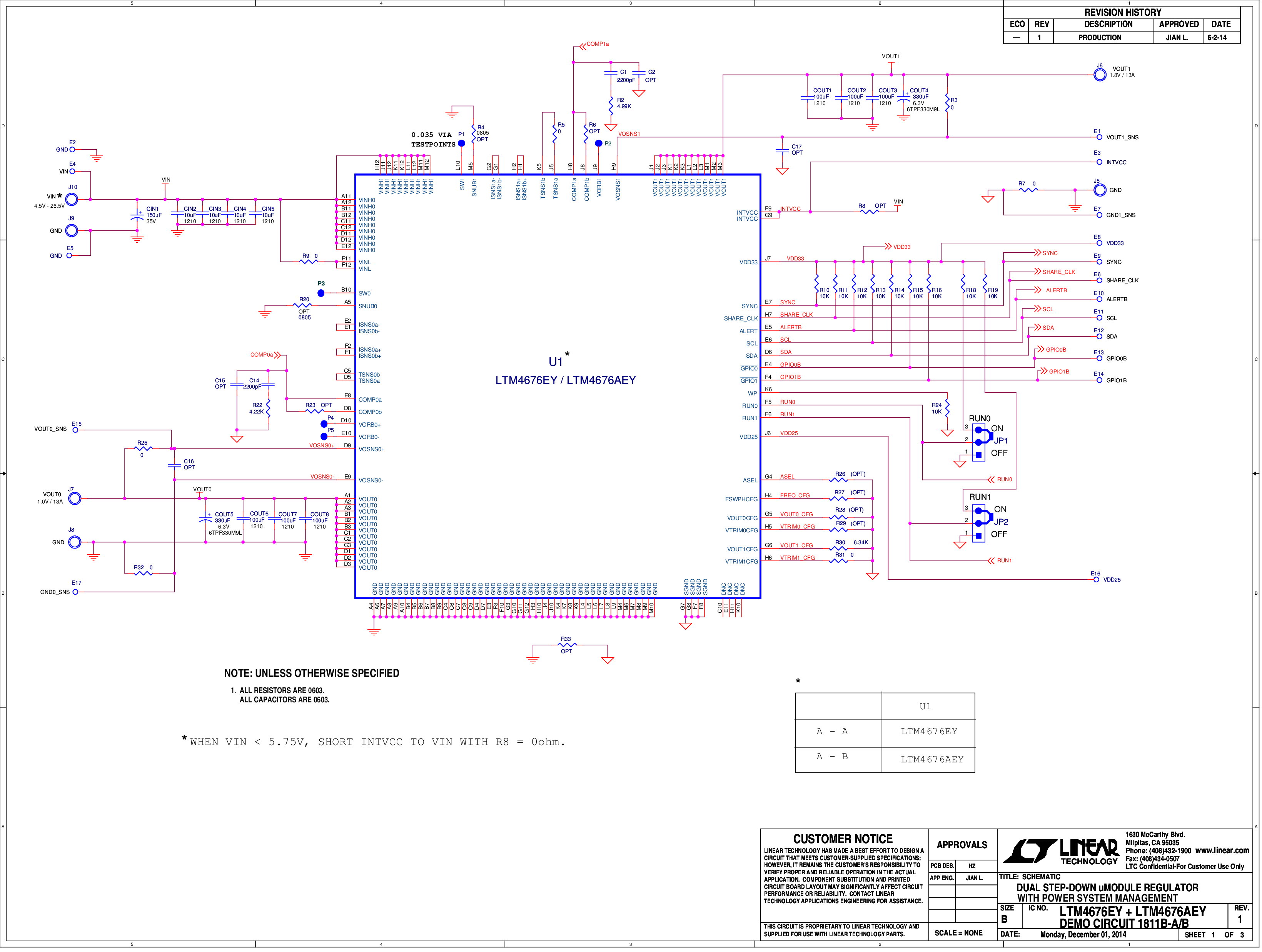

Demonstration circuit 1811B-A is a dual-output, high efficiency, high density, μModule® regulator with 4.5V to 26.5V input range. Each output can supply 13A maximum load current. The demo board has a LTM4676 μModule regulator, which is a dual 13A or single 26A step-down regulator with PMBus power system management. Please see LTM4676 data sheet for more detailed information.





reference details image

DC2269A-A

LTM4676 Plug-In Demo Board | 1.5" × 1.2" with Edge Connector, Dual 13A Buck μModule with PMBus, 4.5V ≤ VIN ≤ 26.5V, VOUT0 = 1V @ 13A, VOUT1 = 1.8V @ 13A

zoom

DC2269A-A

LTM4676 Plug-In Demo Board | 1.5" × 1.2" with Edge Connector, Dual 13A Buck μModule with PMBus, 4.5V ≤ VIN ≤ 26.5V, VOUT0 = 1V @ 13A, VOUT1 = 1.8V @ 13A

LTM4676 Plug-In Demo Board | 1.5" × 1.2" with Edge Connector, Dual 13A Buck μModule with PMBus, 4.5V ≤ VIN ≤ 26.5V, VOUT0 = 1V @ 13A, VOUT1 = 1.8V @ 13A

Product Detail

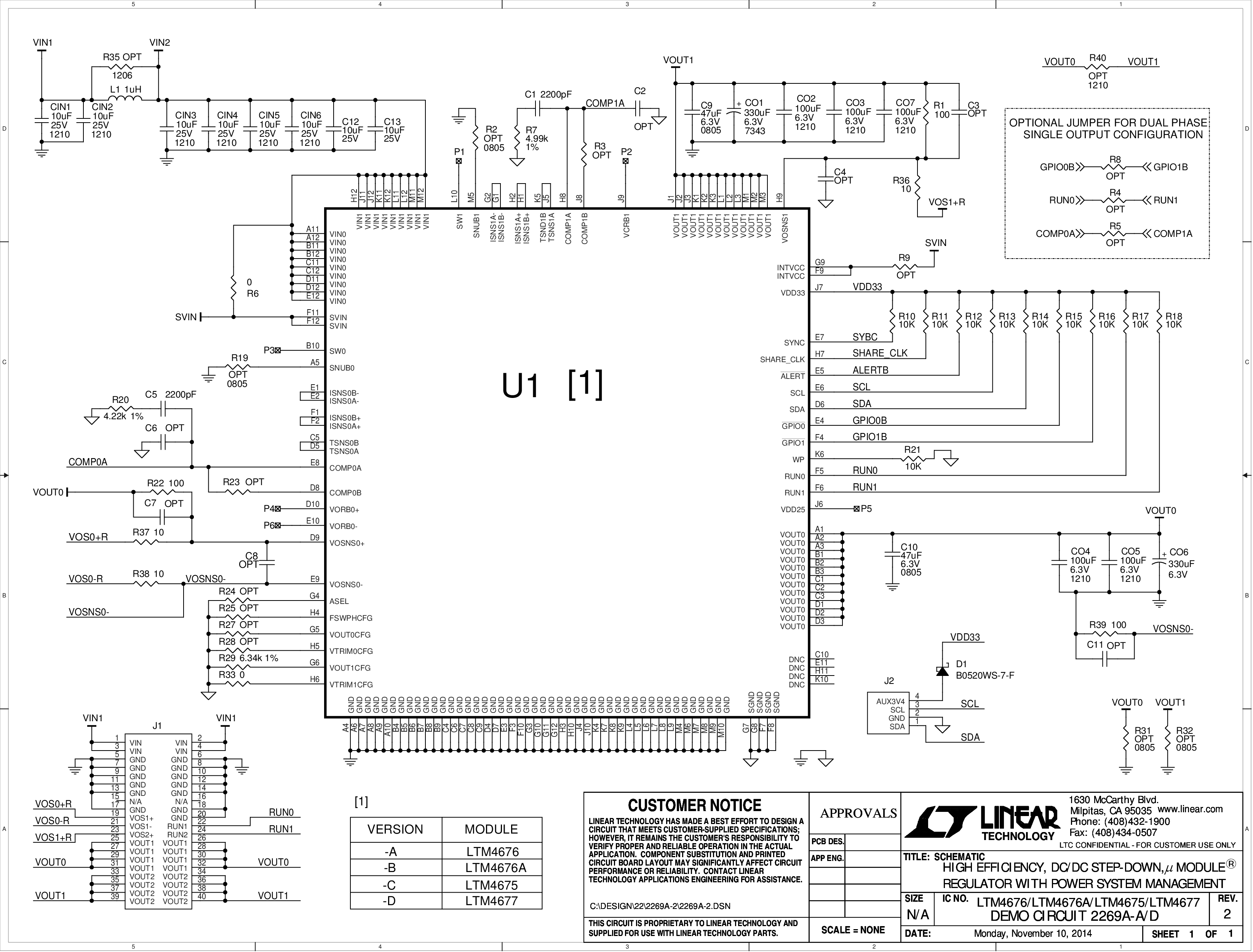

Demonstration circuit 2269A-A is a dual-output, high efficiency, high density, μModule® supply on a small 1.5" × 1.2" PCB board with 4.5V to 26.5V input range. Each output can supply 13A maximum load current. The demo board has a LTM4676 μModule regulator, which is a dual 13A or single 26A step-down regulator with PMBus power system management. The DC2269A can be easily inserted to an edge connector for testing and debugging. It has an optional input filter inductor (L1) to further reduce input ripple EMI noise.
