LT1389

Nanopower Precision Shunt Voltage Reference

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 10
1ku List Price Starting From $4.46
Features
  • Initial Voltage Accuracy: 0.05%
  • Low Operating Current: 800nA

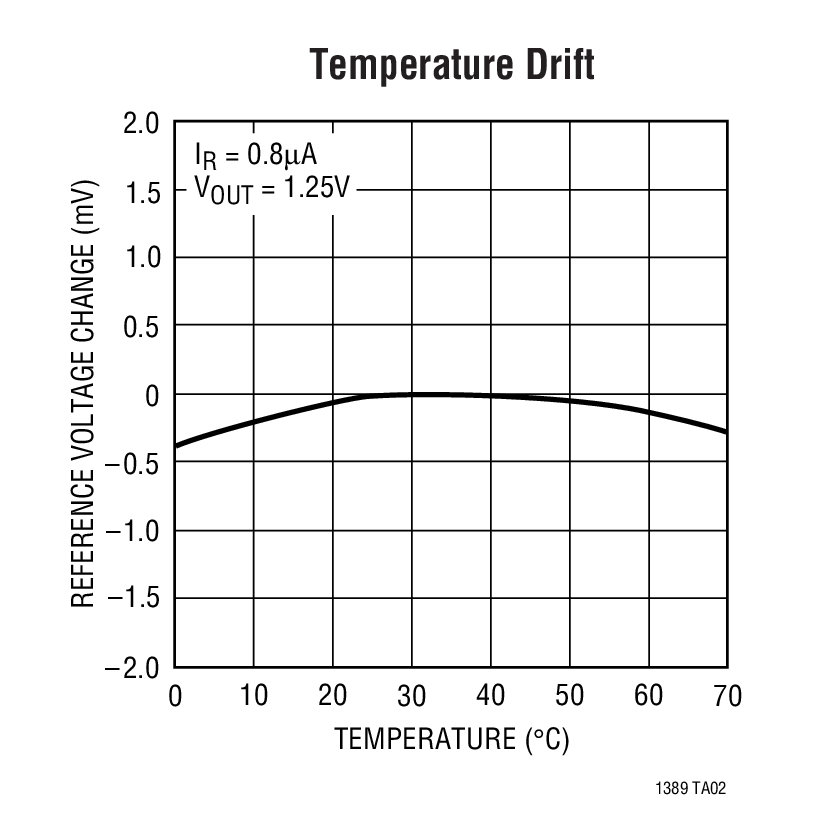

  • Low Drift: 10ppm/°C Max
  • Less Than 1Ω Dynamic Impedance

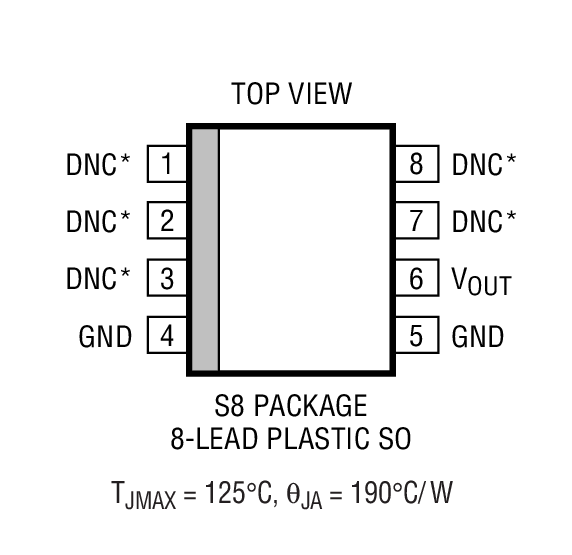

  • Available in 1.25V, 2.5V, 4.096V and 5V SO-8 Packages
Additional Details
show more Icon

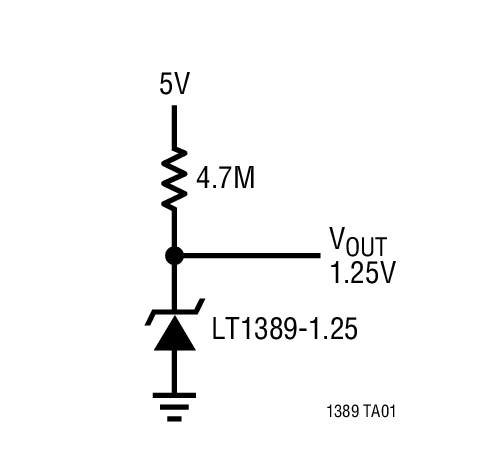

The LT1389 is a nanopower, precision shunt voltage reference. The bandgap reference uses trimmed precision thin-film resistors and improved curvature correction techniques to achieve 0.05% initial voltage accuracy with guaranteed 10ppm/°C maximum temperature drift. Voltage regulation is maintained to an ultralow 800nA operating current. Advances in design, processing and packaging achieve low temperature cycling hysteresis.

The LT1389 does not require an output compensation capacitor, but is stable with capacitive loads. Low dynamic impedance makes the LT1389 reference easy to use from unregulated supplies.

The LT1389 reference can be used as a high performance upgrade to the LM185/LM385, LT1004, LT1034 and LT1634 where lowest power and guaranteed temperature drift are required.

Applications

  • Portable Meters
  • Precision Regulators
  • A/D and D/A Converters
  • Calibrators
