LTM4630-1

Dual 18A or Single 36A μModule (Power Module) Regulator with 0.8% DC and 3% Transient Accuracy

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 6
1ku List Price Starting From $42.44
Features
  • ±0.8% Maximum Total DC Output Error Over Line, Load and Temperature (LTM4630-1A)
  • ±3% Transient Output Error with Minimum Output Capacitance
  • Dual 18A or Single 36A Output
  • 4.5V to 15V Input, 0.6V to 1.8V Output Voltage Range
  • Differential Remote Sense Amplifier
  • Current Mode Control/Fast Transient Response
  • Current Sharing Up to 144A
  • 16mm × 16mm × 5.01mm BGA Package
Additional Details
show more Icon

The LTM4630-1A/LTM4630-1B are dual 18A or single 36A output step-down μModule® (power module) regulators with ±0.8% (LTM4630-1A) and ±1.5% (LTM4630-1B) total DC output error, respectively, with ±3% transient output error. Included in the package are the switching controller, power FETs, inductors, and all supporting components. External compensation allows for fast transient response to minimize output capacitance when powering FPGAs, ASICs, and processors. With synchronized multiphase parallel current sharing, four LTM4630-1 devices can deliver up to 144A. The LTM4630-1 is offered in a 16mm × 16mm × 5.01 BGA package.

Features Vout
LTM4630   0.6V to 1.8V
LTM4630-1 0.8% DC and 3% Transient Accuracy 0.6V to 1.8V
LTM4630A Higher Light Load Efficiency 0.6V to 5.3V

Applications

  • FPGA, ASIC, μProcessor Core Voltage Regulation
  • Information, Communication Systems


Part Models 6
1ku List Price Starting From $42.44

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTM4630EY-1A#PBF
  • HTML
  • HTML
LTM4630EY-1B#PBF
  • HTML
  • HTML
LTM4630IY-1A
  • HTML
  • HTML
LTM4630IY-1A#PBF
  • HTML
  • HTML
LTM4630IY-1B
  • HTML
  • HTML
LTM4630IY-1B#PBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Dec 12, 2023

- 23_0218

LTM4630-1 Data Sheet Revision

LTM4630EY-1A#PBF

PRODUCTION

LTM4630EY-1B#PBF

PRODUCTION

LTM4630IY-1A

PRODUCTION

LTM4630IY-1A#PBF

PRODUCTION

LTM4630IY-1B

PRODUCTION

LTM4630IY-1B#PBF

PRODUCTION

Feb 2, 2022

- 19_0164

Notification of qualification of a new mold compound for the LTM4630, LTM4630-1 µModule Regulator

LTM4630EY-1A#PBF

PRODUCTION

LTM4630EY-1B#PBF

PRODUCTION

LTM4630IY-1A

PRODUCTION

LTM4630IY-1A#PBF

PRODUCTION

LTM4630IY-1B

PRODUCTION

LTM4630IY-1B#PBF

PRODUCTION

Jul 21, 2021

- 21_0159

Ink Mark to Laser Mark Conversion for µModule

LTM4630EY-1A#PBF

PRODUCTION

LTM4630EY-1B#PBF

PRODUCTION

LTM4630IY-1A

PRODUCTION

LTM4630IY-1A#PBF

PRODUCTION

LTM4630IY-1B

PRODUCTION

LTM4630IY-1B#PBF

PRODUCTION

Feb 28, 2020

- 20_0123

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM4630EY-1A#PBF

PRODUCTION

LTM4630EY-1B#PBF

PRODUCTION

LTM4630IY-1A

PRODUCTION

LTM4630IY-1A#PBF

PRODUCTION

LTM4630IY-1B

PRODUCTION

LTM4630IY-1B#PBF

PRODUCTION

Feb 5, 2020

- 20_0127

Supplier Material Change for µModule

LTM4630EY-1A#PBF

PRODUCTION

LTM4630EY-1B#PBF

PRODUCTION

LTM4630IY-1A

PRODUCTION

LTM4630IY-1A#PBF

PRODUCTION

LTM4630IY-1B

PRODUCTION

LTM4630IY-1B#PBF

PRODUCTION

Jul 25, 2019

- 19_0115

Notification of Additional Assembly Location, ASE Korea for LTM4630 and LTM4630A

LTM4630EY-1A#PBF

PRODUCTION

LTM4630EY-1B#PBF

PRODUCTION

LTM4630IY-1A

PRODUCTION

LTM4630IY-1A#PBF

PRODUCTION

LTM4630IY-1B

PRODUCTION

LTM4630IY-1B#PBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Dec 12, 2023

- 23_0218

arrow down

LTM4630-1 Data Sheet Revision

LTM4630EY-1A#PBF

PRODUCTION

LTM4630EY-1B#PBF

PRODUCTION

LTM4630IY-1A

PRODUCTION

LTM4630IY-1A#PBF

PRODUCTION

LTM4630IY-1B

PRODUCTION

LTM4630IY-1B#PBF

PRODUCTION

Feb 2, 2022

- 19_0164

arrow down

Notification of qualification of a new mold compound for the LTM4630, LTM4630-1 µModule Regulator

LTM4630EY-1A#PBF

PRODUCTION

LTM4630EY-1B#PBF

PRODUCTION

LTM4630IY-1A

PRODUCTION

LTM4630IY-1A#PBF

PRODUCTION

LTM4630IY-1B

PRODUCTION

LTM4630IY-1B#PBF

PRODUCTION

Jul 21, 2021

- 21_0159

arrow down

Ink Mark to Laser Mark Conversion for µModule

LTM4630EY-1A#PBF

PRODUCTION

LTM4630EY-1B#PBF

PRODUCTION

LTM4630IY-1A

PRODUCTION

LTM4630IY-1A#PBF

PRODUCTION

LTM4630IY-1B

PRODUCTION

LTM4630IY-1B#PBF

PRODUCTION

Feb 28, 2020

- 20_0123

arrow down

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM4630EY-1A#PBF

PRODUCTION

LTM4630EY-1B#PBF

PRODUCTION

LTM4630IY-1A

PRODUCTION

LTM4630IY-1A#PBF

PRODUCTION

LTM4630IY-1B

PRODUCTION

LTM4630IY-1B#PBF

PRODUCTION

Feb 5, 2020

- 20_0127

arrow down

Supplier Material Change for µModule

LTM4630EY-1A#PBF

PRODUCTION

LTM4630EY-1B#PBF

PRODUCTION

LTM4630IY-1A

PRODUCTION

LTM4630IY-1A#PBF

PRODUCTION

LTM4630IY-1B

PRODUCTION

LTM4630IY-1B#PBF

PRODUCTION

Jul 25, 2019

- 19_0115

arrow down

Notification of Additional Assembly Location, ASE Korea for LTM4630 and LTM4630A

LTM4630EY-1A#PBF

PRODUCTION

LTM4630EY-1B#PBF

PRODUCTION

LTM4630IY-1A

PRODUCTION

LTM4630IY-1A#PBF

PRODUCTION

LTM4630IY-1B

PRODUCTION

LTM4630IY-1B#PBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 6

reference details image

DC2164A-B

LTM4630EY-1 Demo Board | 3 Paralleled Buck µModules, 4.5V ≤ VIN ≤ 15V, VOUT = 0.9V to 1.8V @ 105A

zoom

DC2164A-B

LTM4630EY-1 Demo Board | 3 Paralleled Buck µModules, 4.5V ≤ VIN ≤ 15V, VOUT = 0.9V to 1.8V @ 105A

LTM4630EY-1 Demo Board | 3 Paralleled Buck µModules, 4.5V ≤ VIN ≤ 15V, VOUT = 0.9V to 1.8V @ 105A

Product Detail

Demonstration Circuit 2164A-B features a PolyPhase design using three LTM4630EY-1's (A-grade), the high efficiency, high density, dual 18A, switch mode step-down power module regulator. The input voltage is from 4.5V to 15V. The output voltage is jumper selectable and can be set to 0.9V, 1.0V, 1.2V, 1.5V or 1.8V. DC2164A-B can deliver nominal 105A output current. As explained in the data sheet, output current derating is necessary for certain VIN, VOUT, and thermal conditions. The LTM4630-1A on DC2164A-B always operate in continuous conduction mode. The switching frequency can be programmed through a resistor or can be synchronized to an external clock signal. The board allows the user to program how its output voltage ramps up and down through the TRACK pin.





reference details image

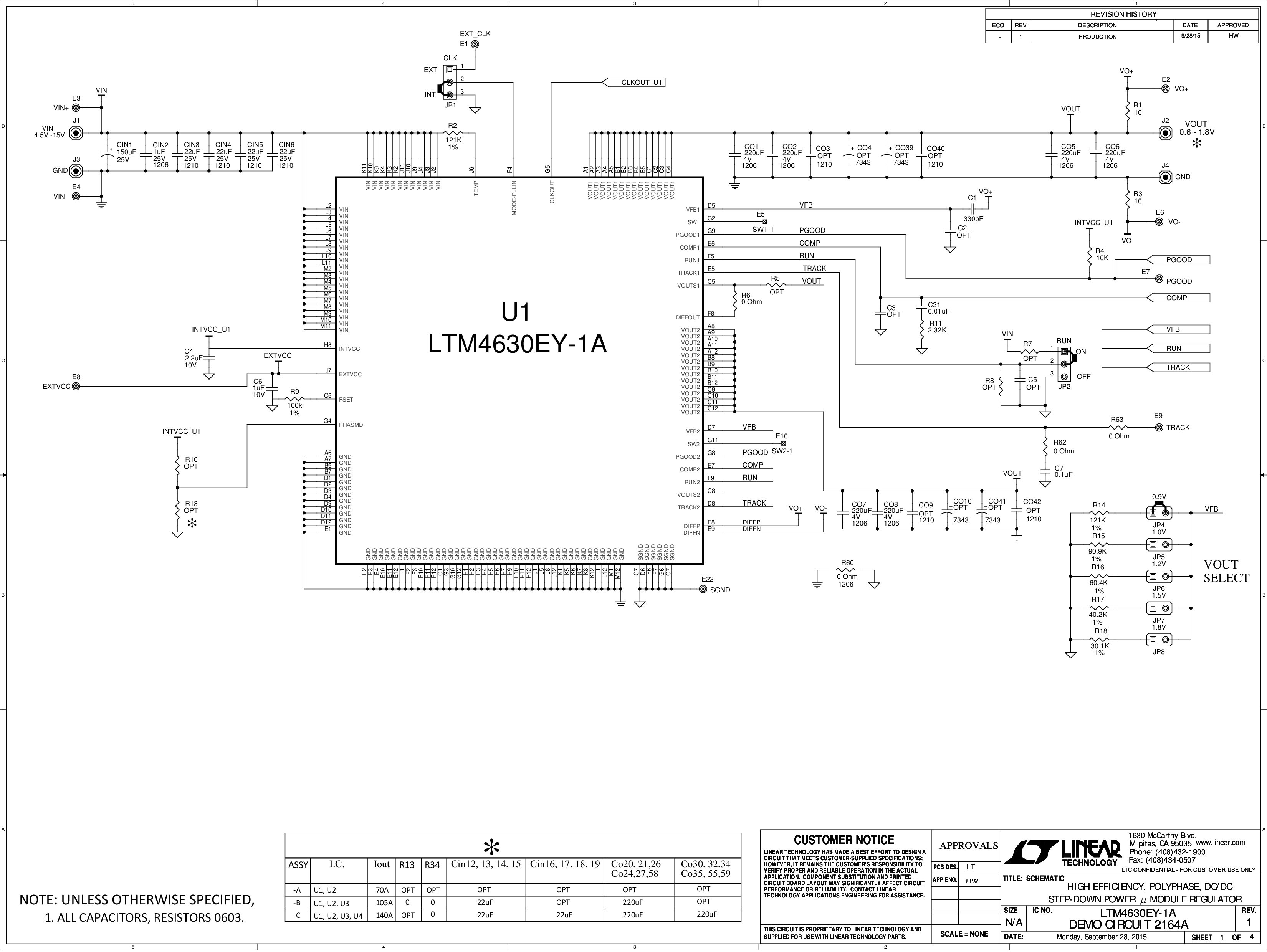

DC2164A-A

LTM4630EY-1 Demo Board | 2 Paralleled Buck μModules, 4.5V ≤ VIN ≤ 15V, VOUT = 0.9V to 1.8V @ 70A

zoom

DC2164A-A

LTM4630EY-1 Demo Board | 2 Paralleled Buck μModules, 4.5V ≤ VIN ≤ 15V, VOUT = 0.9V to 1.8V @ 70A

LTM4630EY-1 Demo Board | 2 Paralleled Buck μModules, 4.5V ≤ VIN ≤ 15V, VOUT = 0.9V to 1.8V @ 70A

Product Detail

Demonstration Circuit 2164A-A features a PolyPhase® design using two paralleled LTM4630EY-1's (A-grade), the high efficiency, high density, dual 18A, switch mode step-down power module regulator. The input voltage is from 4.5V to 15V. The output voltage is jumper selectable and can be set to 0.9V, 1.0V, 1.2V, 1.5V or 1.8V. DC2164A-A can deliver nominal 70A output current. As explained in the data sheet, output current derating is necessary for certain VIN, VOUT, and thermal conditions. The LTM4630-1A on DC2164A-A always operate in continuous conduction mode. The switching frequency can be programmed through a resistor or can be synchronized to an external clock signal. The board allows the user to program how its output voltage ramps up and down through the TRACK pin.





reference details image

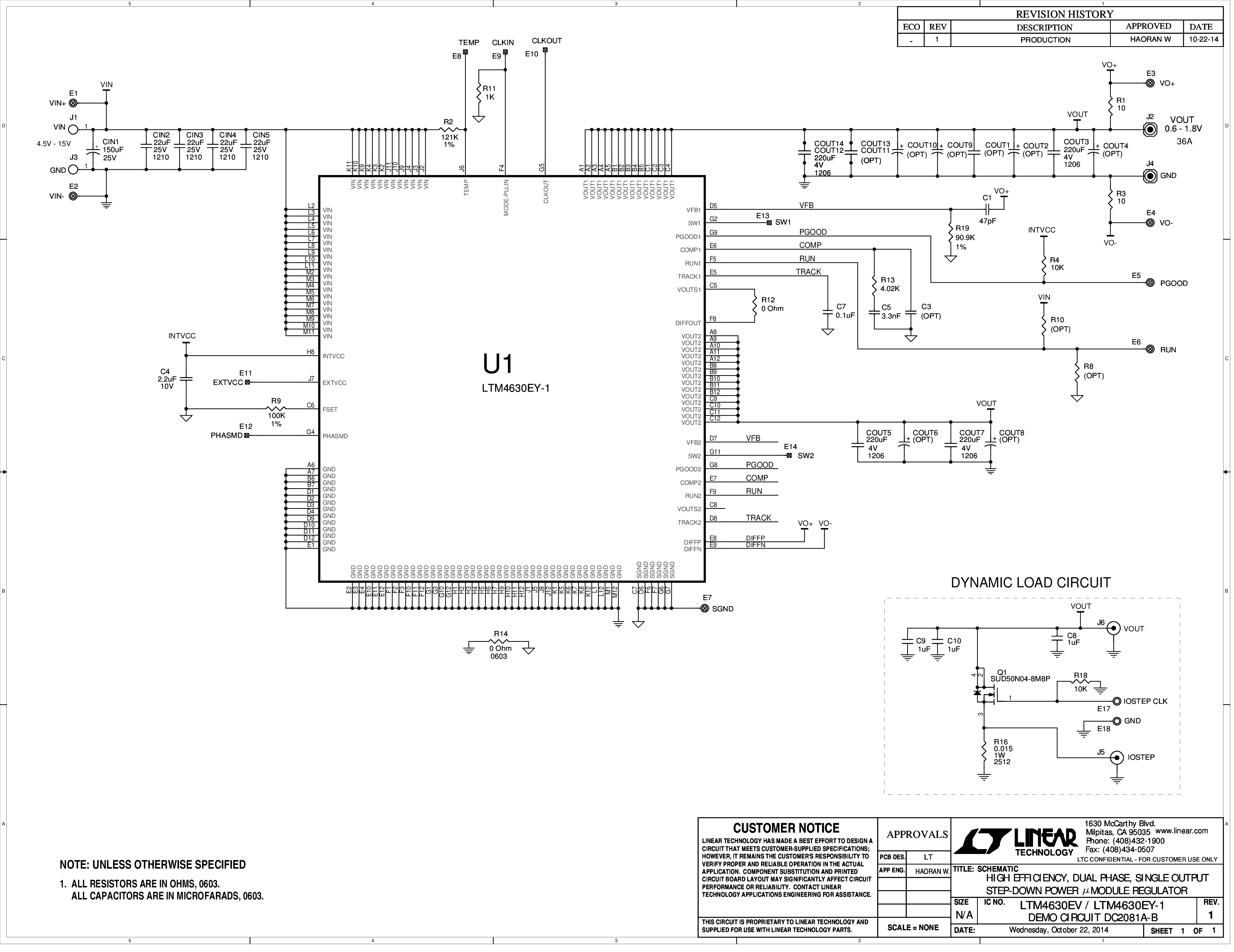

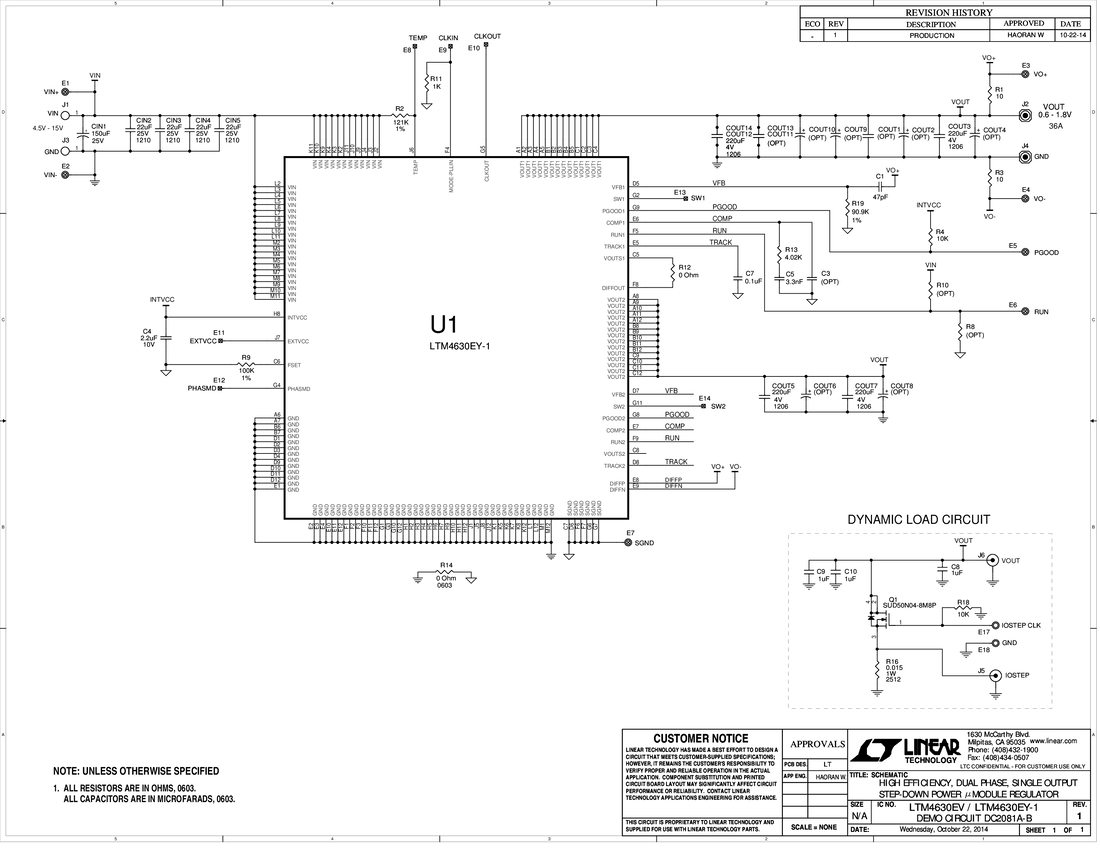

DC2081A-B

LTM4630EY-1 Demo Board | Step-Down μModule Regulator, 4.5V ≤ VIN ≤ 15V, VOUT = 1V @ 36A

zoom

DC2081A-B

LTM4630EY-1 Demo Board | Step-Down μModule Regulator, 4.5V ≤ VIN ≤ 15V, VOUT = 1V @ 36A

LTM4630EY-1 Demo Board | Step-Down μModule Regulator, 4.5V ≤ VIN ≤ 15V, VOUT = 1V @ 36A

Product Detail

Demonstration circuit 2081A-B features the LTM4630EY-1, the high efficiency, high density, dual 18A, switch mode step-down μModule® regulator with ±0.8% total DC output accuracy. The input voltage is from 4.5V to 15V. The output voltage is programmable from 0.6V to 1.8V. DC2081A-B is configured as dual-phase, single-output, which can deliver up to 36A maximum. With the help of external compensation, ±3% transient accuracy can be achieved with 25% load step. The board designs with minimum components to demonstrate this high efficiency, high density μModule.

reference details image

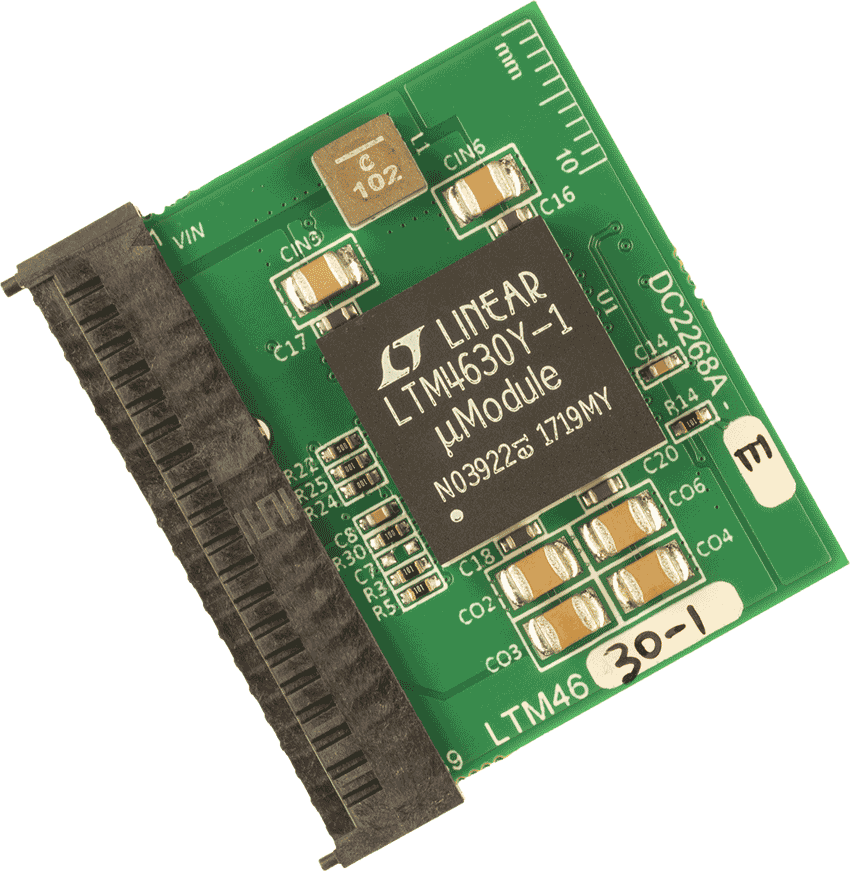

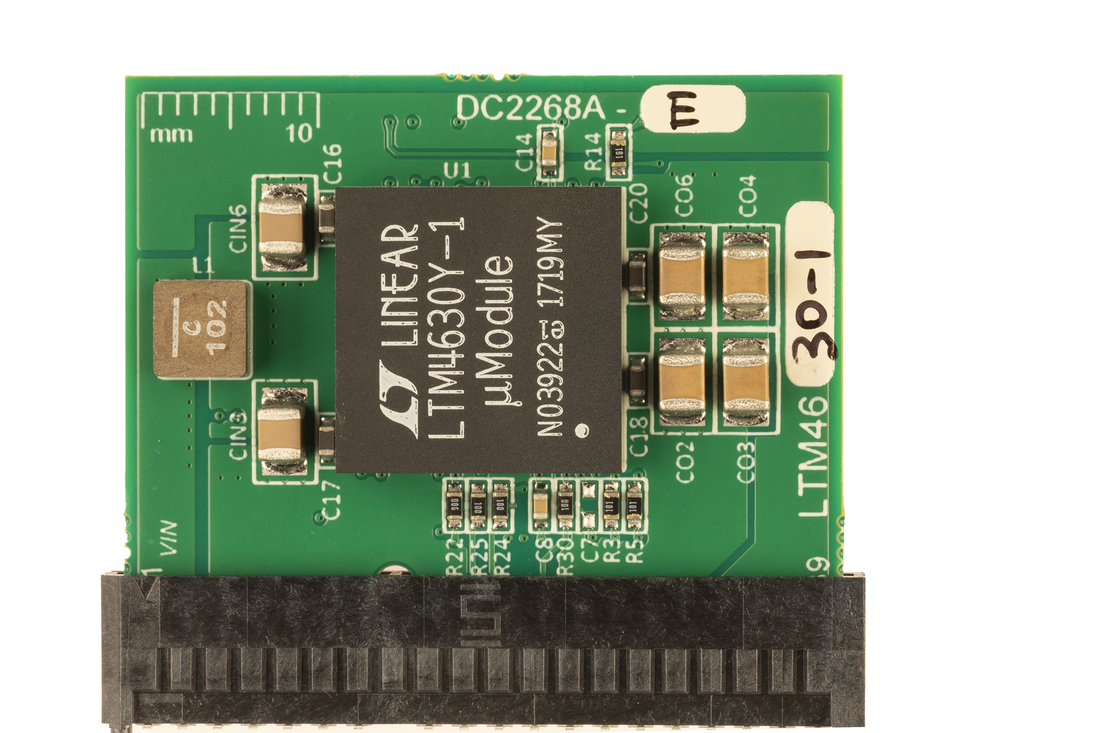

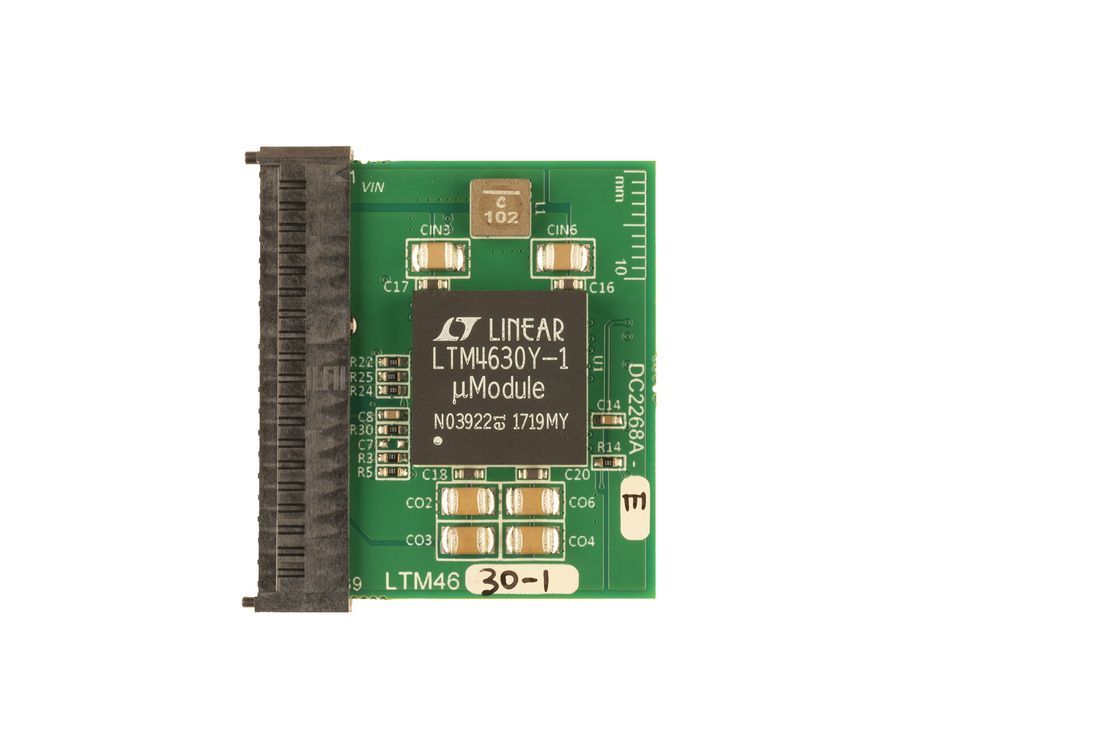

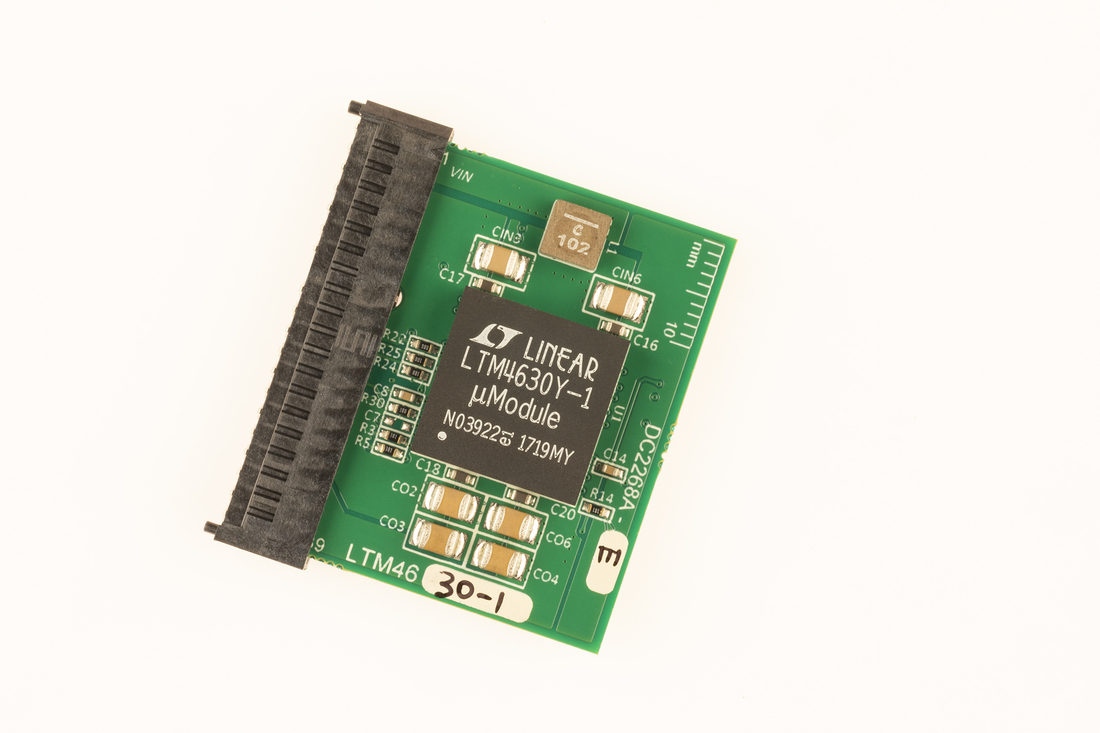

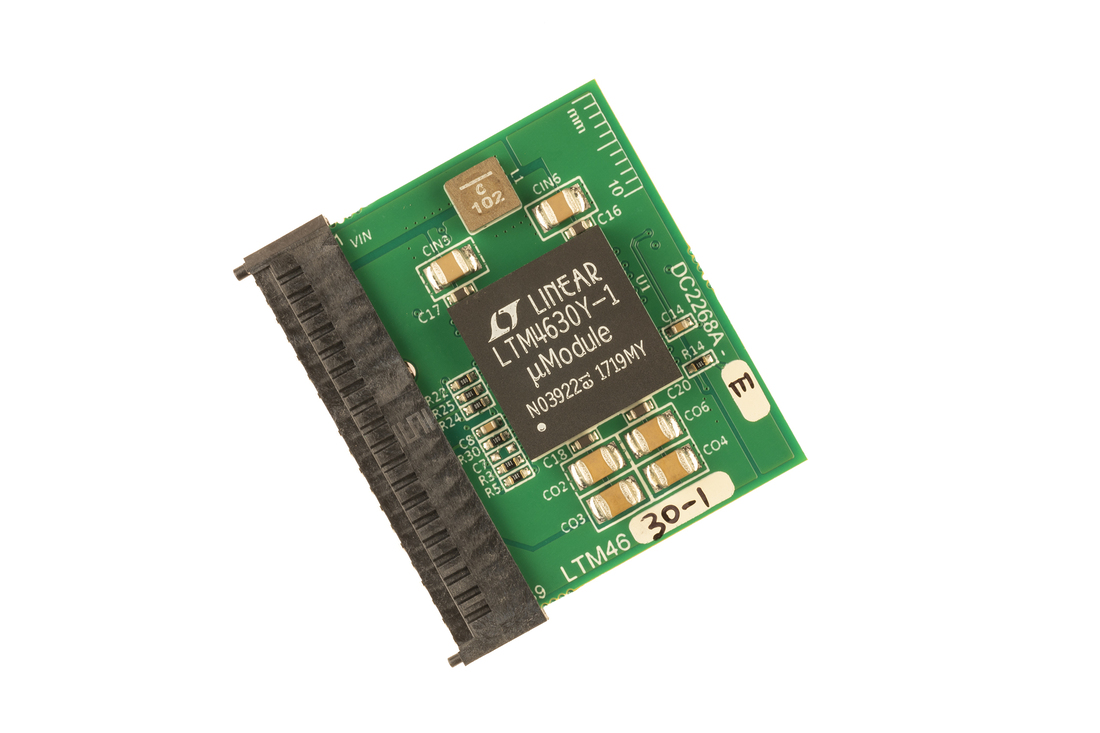

DC2268A-E

LTM4630EY-1 Demo Board | 1.5' × 1.2' PCB, Dual 18A/Single 36A Buck μModule Regulator, 4.5V ≤ VIN ≤ 15V, VOUT1 = 1V @ 18A, VOUT2 = 1.5V @ 18A

zoom

DC2268A-E

LTM4630EY-1 Demo Board | 1.5' × 1.2' PCB, Dual 18A/Single 36A Buck μModule Regulator, 4.5V ≤ VIN ≤ 15V, VOUT1 = 1V @ 18A, VOUT2 = 1.5V @ 18A

LTM4630EY-1 Demo Board | 1.5' × 1.2' PCB, Dual 18A/Single 36A Buck μModule Regulator, 4.5V ≤ VIN ≤ 15V, VOUT1 = 1V @ 18A, VOUT2 = 1.5V @ 18A

Product Detail

Demonstration circuit 2268A-E is a high efficiency, high density, dual 18A, switch mode step-down power supply on a compact 1.5' × 1.2' PCB. It features the LTM4630-1 μModule regulator. The input voltage is from 4.5V to 15V. The output voltage is programmable from 0.6V to 1.8V. DC2268A-E can deliver up to 18A maximum in each channel. With the help of external compensation, ±3% transient accuracy can be achieved with 25% load step. As explained in the data sheet, output current derating is necessary for certain VIN, VOUT, and thermal conditions. The board operates in continuous conduction mode in heavy load conditions. For high efficiency at low load currents, the resistor jumper (R1/R2) selects pulse-skipping mode for noise sensitive applications or Burst Mode® in less noise sensitive applications. Two outputs can be connected in parallel for a single 36A output solution with optional jumper resistors.

reference details image

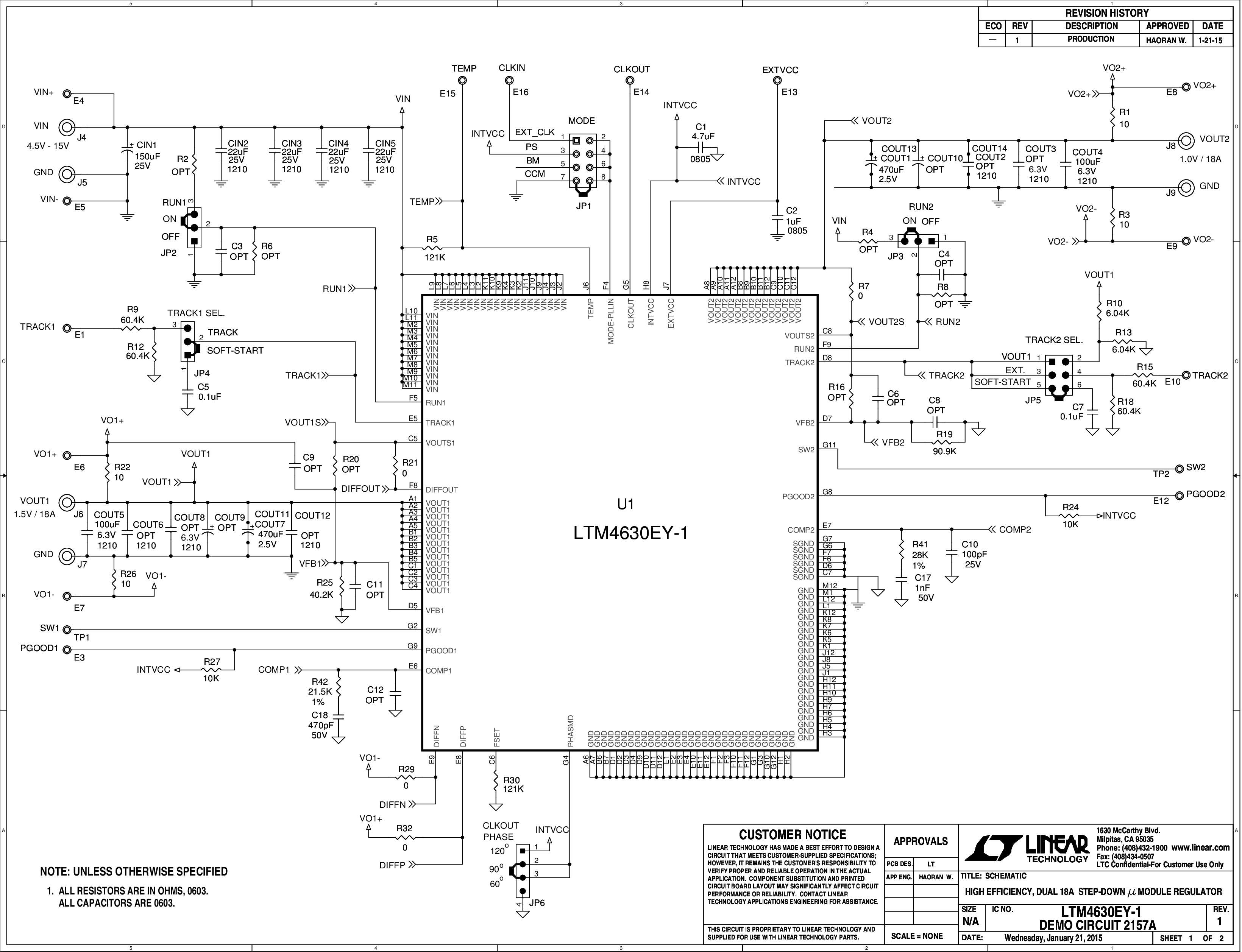

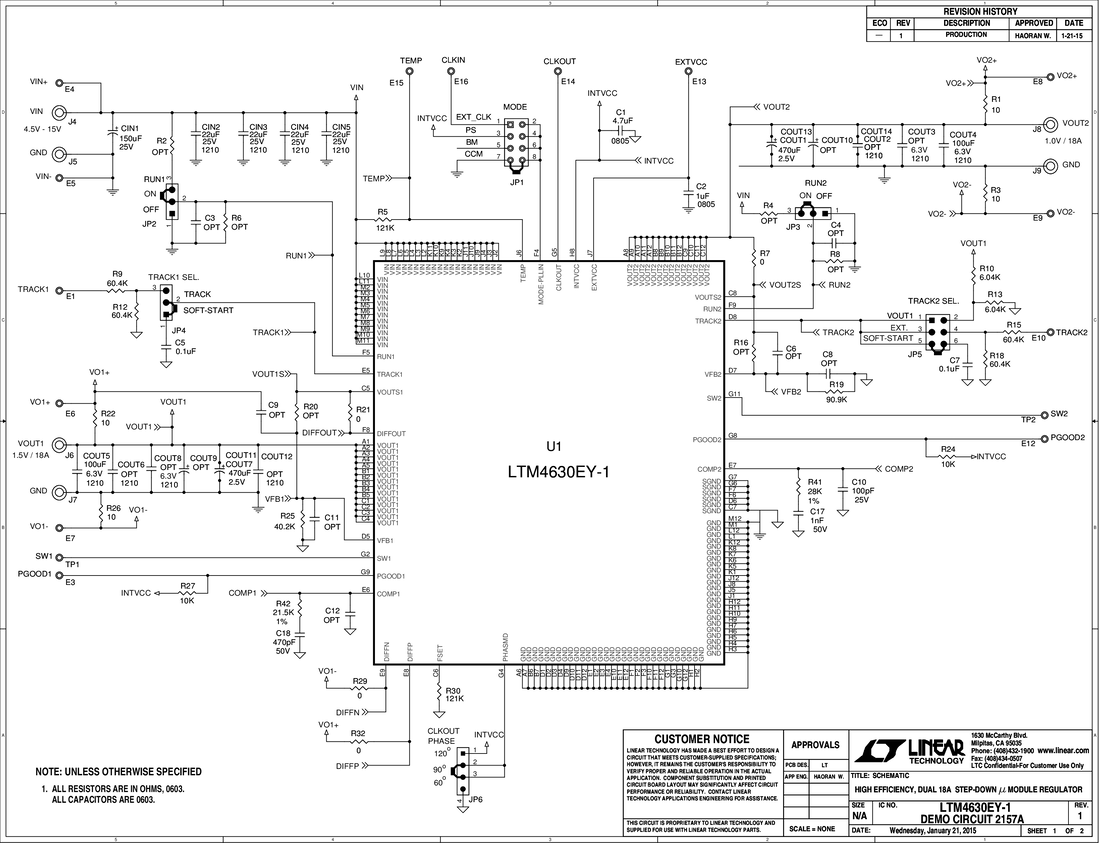

DC2157A

LTM4630EY-1 Demo Board | Dual 18A/Single 36A Buck μModule Regulator, 4.5V ≤ VIN ≤ 15V, VOUT1 = 1.5V @ 18A, VOUT2 = 1V @ 18A

zoom

DC2157A

LTM4630EY-1 Demo Board | Dual 18A/Single 36A Buck μModule Regulator, 4.5V ≤ VIN ≤ 15V, VOUT1 = 1.5V @ 18A, VOUT2 = 1V @ 18A

LTM4630EY-1 Demo Board | Dual 18A/Single 36A Buck μModule Regulator, 4.5V ≤ VIN ≤ 15V, VOUT1 = 1.5V @ 18A, VOUT2 = 1V @ 18A

Product Detail

Demonstration circuit 2157A features the LTM4630EY-1, the high efficiency, high density, dual 18A, switch mode step-down power module regulator with ±0.8% total DC output accuracy. The input voltage is from 4.5V to 15V. The output voltage is programmable from 0.6V to 1.8V. DC2157A can deliver up to 18A maximum in each channel. With the help of external compensation, ±3% transient accuracy can be achieved with 25% load step. As explained in the data sheet, output current derating is necessary for certain VIN, VOUT, and thermal conditions. The board operates in continuous conduction mode in heavy load conditions. For high efficiency at low load currents, the MODE jumper (JP1) selects pulse-skipping mode for noise sensitive applications or Burst Mode® operation in less noise sensitive applications. Two outputs can be connected in parallel for a single 36A output solution with optional jumper resistors.





reference details image

DC2164A-C

LTM4630EY-1 Demo Board | 4 Paralleled Buck µModules, 4.5V ≤ VIN ≤ 15V, VOUT = 0.9V to 1.8V @ 140A

zoom

DC2164A-C

LTM4630EY-1 Demo Board | 4 Paralleled Buck µModules, 4.5V ≤ VIN ≤ 15V, VOUT = 0.9V to 1.8V @ 140A

LTM4630EY-1 Demo Board | 4 Paralleled Buck µModules, 4.5V ≤ VIN ≤ 15V, VOUT = 0.9V to 1.8V @ 140A

Product Detail

Demonstration Circuit 2164A-C features a PolyPhase® design using four paralleled LTM4630EY-1's (A-grade), the high efficiency, high density, dual 18A, switch mode step-down power module regulator. The input voltage is from 4.5V to 15V. The output voltage is jumper selectable and can be set to 0.9V, 1.0V, 1.2V, 1.5V or 1.8V. DC2164A-C can deliver nominal 140A output current. As explained in the data sheet, output current derating is necessary for certain VIN, VOUT, and thermal conditions. The LTM4630-1A on the DC2164A-C always operate in continuous conduction mode. The switching frequency can be programmed through a resistor or can be synchronized to an external clock signal. The board allows the user to program how its output voltage ramps up and down through the TRACK pin.





Tools & Simulations

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

Reference Designs

Reference Designs 1

DC2352A - Top View

zoomopens a dialog

xilinx-tested-power-solution-for-the-virtex-ultrascale-mgts-multi-gigabit-transceivers

Features and Benefits

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
View Detailed Reference Design external link
