DC2081A-B
LTM4630EY-1 Demo Board | Step-Down μModule Regulator, 4.5V ≤ VIN ≤ 15V, VOUT = 1V @ 36A
Top
Overview
Product Details
Demonstration circuit 2081A-B features the LTM4630EY-1, the high efficiency, high density, dual 18A, switch mode step-down μModule® regulator with ±0.8% total DC output accuracy. The input voltage is from 4.5V to 15V. The output voltage is programmable from 0.6V to 1.8V. DC2081A-B is configured as dual-phase, single-output, which can deliver up to 36A maximum. With the help of external compensation, ±3% transient accuracy can be achieved with 25% load step. The board designs with minimum components to demonstrate this high efficiency, high density μModule.
Applicable Parts
Documentation & Resources
-

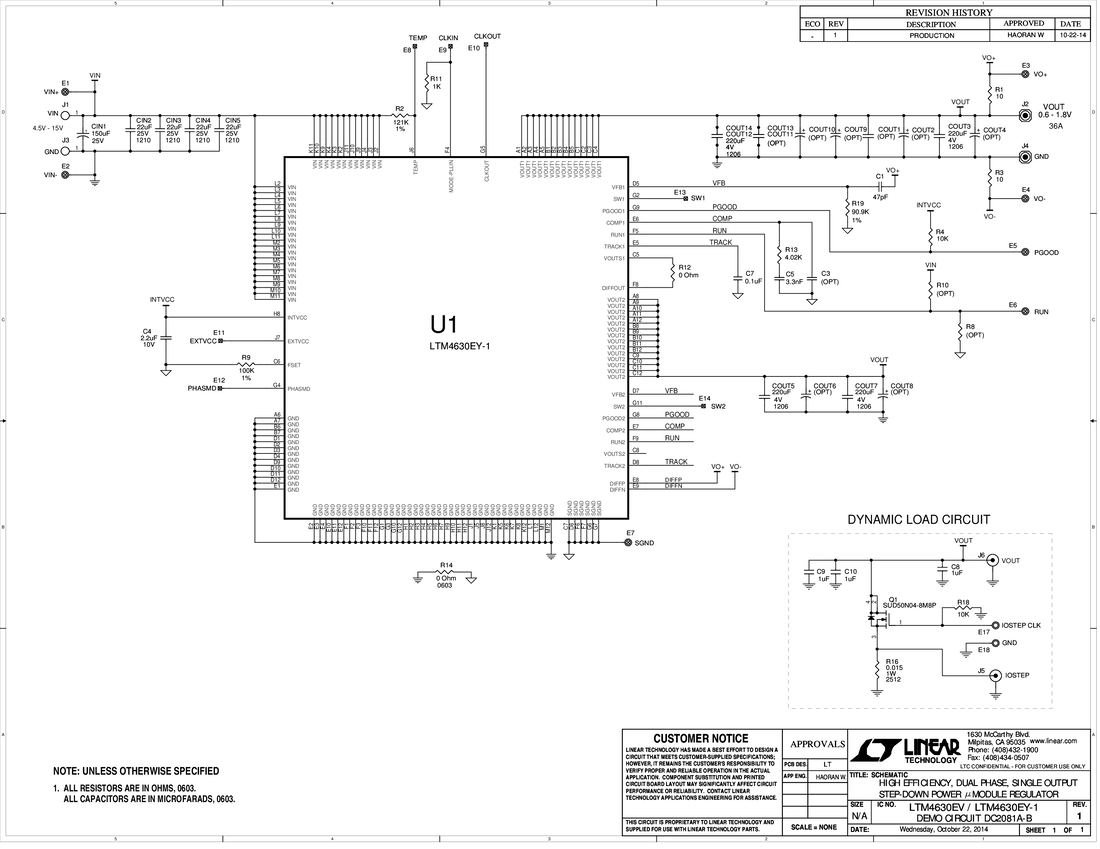

DC2081A-B - Schematic9/23/2015PDF53K
-
DC2081A-B - Demo Manual7/13/2015PDF878K
-
DC2081A - Design Files2/6/2015ZIP1M
