LTM4622

RECOMMENDED FOR NEW DESIGNS

LTM4622

Dual Ultrathin 2.5A or Single 5A Step-Down DC/DC μModule Regulator

RECOMMENDED FOR NEW DESIGNS

RECOMMENDED FOR NEW DESIGNS

LTM4622 Application Circuit slide

LTM4622 Pin Configuration slide

LTM4622 Pin Configuration slide

LTM4622 Performance Graph slide

LTM4622 Application Circuit

LTM4622 Pin Configuration

LTM4622 Pin Configuration

LTM4622 Performance Graph

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Search

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

EngineerZone Icon

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 5

1ku List Price Starting From $8.42

Features

Complete Solution in <1cm²
Wide Input Voltage Range:3.6V to 20V
3.3V Input Compatible with V_IN Tied to INTV_CC
0.6V to 5.5V Output Voltage
Dual 2.5A (3A Peak) or Single 5A Output Current
±1.5% Maximum Total Output Voltage Regulation Error Over Load, Line and Temperature
Current Mode Control, Fast Transient Response
External Frequency Synchronization

Multiphase Parallelable with Current Sharing
Output Voltage Tracking and Soft-Start Capability
Selectable Burst Mode^® Operation
Overvoltage Input and Overtemperature Protection
Power Good Indicators
6.25mm × 6.25mm × 1.82mm LGA and 6.25mm × 6.25mm × 2.42mm BGA Packages

Additional Details

The LTM4622 is a complete dual 2.5A step-down switching mode μModule® (powermodule) regulator in a tiny ultrathin 6.25mm × 6.25mm × 1.82mm LGA and 6.25mm × 6.25mm × 2.42mm BGA packages. Included in the package are the switching controller, power FETs, inductor and support components. Operating over an input voltage range of 3.6V to 20V, the LTM4622 supports an output voltage range of 0.6V to 5.5V, set by a single external resistor. Its high efficiency design delivers dual 2.5A continuous, 3A peak, output current. Only a few ceramic input and output capacitors are needed.

The LTM4622 supports selectable Burst Mode operation and output voltage tracking for supply rail sequencing. Its high switching frequency and current mode control enable a very fast transient response to line and load changes without sacrificing stability.

Fault protection features include input overvoltage, output overcurrent and overtemperature protection.

The LTM4622 is available with SnPb (BGA) or RoHS compliant terminal finish.

Product Selection Guide
Part Number	V_IN Range	V_OUT Range	I_OUT
LTM4622	3.6V to 20V	0.6V to 5.5V	Dual 2.5A or Single 5A
LTM4622A	3.6V to 20V	1.5V to 12V	Dual 2A or Single 4A

Applications

General Purpose Point of Load Conversion
Telecom, Networking and Industrial Equipment
Medical Diagnostic Equipment
Test and Debug Systems

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Search

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

EngineerZone Icon

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 5

1ku List Price Starting From $8.42

{{#if toggleButtonDescription}} {{/if}} {{#if newProjectTitle}} {{/if}}

Technical Documents 9

LTM4622: Dual Ultrathin 2.5A or Single 5A Step-Down DC/DC μModule Regulator Data Sheet (Rev.J) 08/21/2024

Show More

R504 Reliability Data 03/26/2018

Show More

DC2249B - Demo Manual 11/15/2019

DC2249A - Demo Manual 07/21/2015

Show More

DN546 - Ultrathin Dual 2.5A or Single 5A μModule Regulator Fits on the Backside of PCBs, Allowing Space on the Topside for Digital ICs 11/23/2015

3.6 V Input, Dual Output µModule Buck Regulator Produces 2 A per Channel in a 3 mm × 4 mm Footprint 03/01/2020

Show More

Ultrathin & High Power µModule Regulators Are Ideal for Communications Systems 07/07/2016

Place DC/DC Regulators on Backside of PCB to Clear Room on the Topside for Digital ICs 07/11/2016

Show More

μModule Design and Manufacturing Resources 01/30/2018

Show More

Reference Materials 7

μModule Power Products Simplify Power 04/11/2018

μModule Power Products 04/04/2017

μModule Regulators for Analog Devices’ Processors and DSPs 12/07/2016

Thinner & Smaller Power Circuits for PCIe Boards 11/08/2016

Designing Power Solutions for Precision Signal Chain Applications 08/23/2023

Designing Power Solutions for RF Signal Chain Applications (EngineerZone) 06/20/2022

Video

1

Thumbnail Image

Video

2018-05-30

03:15

Sequence 8 Power Rails on an Intel Arria ARM Cortex 20nm SoC FPGA

Learn More

Show More

Design Resources 5

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTM4622EV#PBF	25-Lead LGA (6.25mm x 6.25mm x 1.82mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTM4622EY#PBF	25-Lead BGA (6.25mm x 6.25mm x 2.42mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTM4622IV#PBF	25-Lead LGA (6.25mm x 6.25mm x 1.82mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTM4622IY	25-Lead BGA (6.25mm x 6.25mm x 2.42mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTM4622IY#PBF	25-Lead BGA (6.25mm x 6.25mm x 2.42mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

LTM4622EV#PBF
Pin/Package Drawing
25-Lead LGA (6.25mm x 6.25mm x 1.82mm)
Documentation

HTML Material Declaration

external-link

HTML Reliablity Data

external-link

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTM4622EY#PBF
Pin/Package Drawing
25-Lead BGA (6.25mm x 6.25mm x 2.42mm)
Documentation

HTML Material Declaration

external-link

HTML Reliablity Data

external-link

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTM4622IV#PBF
Pin/Package Drawing
25-Lead LGA (6.25mm x 6.25mm x 1.82mm)
Documentation

HTML Material Declaration

external-link

HTML Reliablity Data

external-link

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTM4622IY
Pin/Package Drawing
25-Lead BGA (6.25mm x 6.25mm x 2.42mm)
Documentation

HTML Material Declaration

external-link

HTML Reliablity Data

external-link

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTM4622IY#PBF
Pin/Package Drawing
25-Lead BGA (6.25mm x 6.25mm x 2.42mm)
Documentation

HTML Material Declaration

external-link

HTML Reliablity Data

external-link

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

PCN/PDN Information

Filter by Model

Part Models

Product Lifecycle

PCN

Jul 29, 2024

- 24_0139

LTM4622 Datasheet Revision

LTM4622EV#PBF

PRODUCTION

LTM4622EY#PBF

PRODUCTION

LTM4622IV#PBF

PRODUCTION

LTM4622IY

PRODUCTION

LTM4622IY#PBF

PRODUCTION

pdf

PCN24_0139_Form

xls

Material_Report

pdf

Datasheet Specification Comparison

Jul 21, 2021

- 21_0159

Ink Mark to Laser Mark Conversion for µModule

LTM4622EV#PBF

PRODUCTION

LTM4622EY#PBF

PRODUCTION

LTM4622IV#PBF

PRODUCTION

LTM4622IY

PRODUCTION

LTM4622IY#PBF

PRODUCTION

pdf

PCN21_0159_Form

xls

Material_Report

xlsm

Delta Qualification Matrix

Feb 28, 2020

- 20_0123

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM4622EV#PBF

PRODUCTION

LTM4622EY#PBF

PRODUCTION

LTM4622IV#PBF

PRODUCTION

LTM4622IY

PRODUCTION

LTM4622IY#PBF

PRODUCTION

pdf

PCN20_0123_Form

xls

Material_Report

Test Correlation Report

pdf

Qualification Results Summary

Aug 5, 2019

- 19_0176

LTM4622 - Notification of qualification of a new mold compound

LTM4622EV#PBF

PRODUCTION

LTM4622EY#PBF

PRODUCTION

LTM4622IV#PBF

PRODUCTION

LTM4622IY

PRODUCTION

LTM4622IY#PBF

PRODUCTION

pdf

PCN19_0176_Form

xls

Material_Report

pdf

Qualification Results Summary

Jun 26, 2019

- 19_0116

Notification of Additional Assembly Location, ASE Korea for LTM4622/LTM4622A

LTM4622EV#PBF

PRODUCTION

LTM4622EY#PBF

PRODUCTION

LTM4622IV#PBF

PRODUCTION

LTM4622IY

PRODUCTION

LTM4622IY#PBF

PRODUCTION

pdf

PCN19_0116_Form

xls

Material_Report

pdf

Other

pdf

Qualification Results Summary

pdf

Marking Comparison

Filter by Model

Part Models

Product Lifecycle

PCN

Jul 29, 2024

- 24_0139

LTM4622 Datasheet Revision

LTM4622EV#PBF

PRODUCTION

LTM4622EY#PBF

PRODUCTION

LTM4622IV#PBF

PRODUCTION

LTM4622IY

PRODUCTION

LTM4622IY#PBF

PRODUCTION

pdf

PCN24_0139_Form

xls

Material_Report

pdf

Datasheet Specification Comparison

Jul 21, 2021

- 21_0159

Ink Mark to Laser Mark Conversion for µModule

LTM4622EV#PBF

PRODUCTION

LTM4622EY#PBF

PRODUCTION

LTM4622IV#PBF

PRODUCTION

LTM4622IY

PRODUCTION

LTM4622IY#PBF

PRODUCTION

pdf

PCN21_0159_Form

xls

Material_Report

xlsm

Delta Qualification Matrix

Feb 28, 2020

- 20_0123

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM4622EV#PBF

PRODUCTION

LTM4622EY#PBF

PRODUCTION

LTM4622IV#PBF

PRODUCTION

LTM4622IY

PRODUCTION

LTM4622IY#PBF

PRODUCTION

pdf

PCN20_0123_Form

xls

Material_Report

Test Correlation Report

Other

pdf

Qualification Results Summary

Aug 5, 2019

- 19_0176

LTM4622 - Notification of qualification of a new mold compound

LTM4622EV#PBF

PRODUCTION

LTM4622EY#PBF

PRODUCTION

LTM4622IV#PBF

PRODUCTION

LTM4622IY

PRODUCTION

LTM4622IY#PBF

PRODUCTION

pdf

PCN19_0176_Form

xls

Material_Report

pdf

Qualification Results Summary

Jun 26, 2019

- 19_0116

Notification of Additional Assembly Location, ASE Korea for LTM4622/LTM4622A

LTM4622EV#PBF

PRODUCTION

LTM4622EY#PBF

PRODUCTION

LTM4622IV#PBF

PRODUCTION

LTM4622IY

PRODUCTION

LTM4622IY#PBF

PRODUCTION

pdf

PCN19_0116_Form

xls

Material_Report

pdf

Other

pdf

Qualification Results Summary

pdf

Marking Comparison

Companion Parts 1

Parts	Product Life Cycle	Description
Digital Power System Managers1
LTC2970 LTC2970-1		Dual I²C Power Supply Monitor and Margining Controller

Alternative Parts 2

Parts	Product Life Cycle	Description
LTM4622A	RECOMMENDED FOR NEW DESIGNS	Dual Ultrathin 2A or Single 4A Step-Down DC/DC μModule Regulator
LTM4623	RECOMMENDED FOR NEW DESIGNS	Ultrathin 20V_IN, 3A Step-Down DC/DC μModule (Power Module) Regulator

reference details image

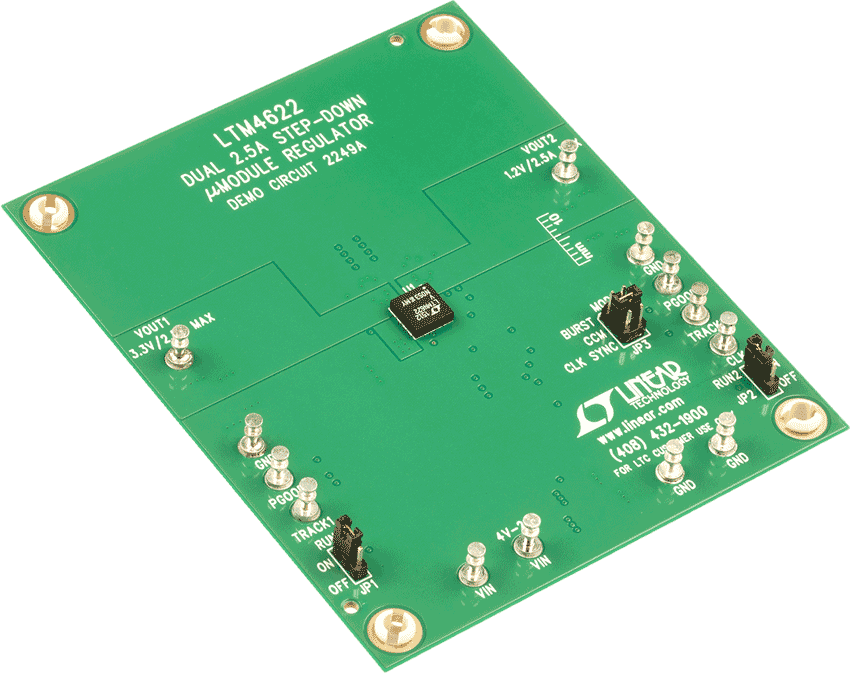

DC2249A

OBSOLETE: LTM4622EV Demo Board | Ultrathin Dual Step-Down μModule Regulator, 3.6V ≤ VIN ≤ 20V, VOUT1/VOUT2 = 3.3V/1.2V @ 2.5A

DC2249A Demo Board

DC2249A Demo Board

DC2249A Demo Board

DC2249A Demo Board

DC2249A Demo Board

DC2249A - Schematic

OBSOLETE: LTM4622EV Demo Board | Ultrathin Dual Step-Down μModule Regulator, 3.6V ≤ VIN ≤ 20V, VOUT1/VOUT2 = 3.3V/1.2V @ 2.5A

Download

Print

DC2249A Demo Board

DC2249A Demo Board

DC2249A Demo Board

DC2249A Demo Board

DC2249A Demo Board

DC2249A - Schematic

DC2249A Demo Board

DC2249A Demo Board

DC2249A Demo Board

DC2249A Demo Board

DC2249A Demo Board

DC2249A - Schematic

DC2249A

OBSOLETE: LTM4622EV Demo Board | Ultrathin Dual Step-Down μModule Regulator, 3.6V ≤ VIN ≤ 20V, VOUT1/VOUT2 = 3.3V/1.2V @ 2.5A

Buy Now View Details

Product Detail

This evaluation board is obsolete and no longer recommended. The replacement board is the DC2249B

Demonstration Circuit 2249A features the LTM4622EV μModule^® regulator, a tiny low profile high performance high efficiency dual step-down regulator. The LTM4622 has an operating input voltage range of 3.6V to 20V and is able to provide an output current of up to 2.5A for each channel. Each output’s voltage is programmable from 0.6V to 5.5V. The LTM4622 is a complete DC-DC point of load regulator in a low profile thermally enhanced 6.25mm × 6.25mm × 1.82mm LGA package requiring only a few input and output capacitors. Output voltage tracking is available through the TRACK/SS pin for supply rail sequencing.

Resources

PDF

DC2249A - Demo Manual

685.00K

ZIP

DC2249A - Design Files

891.00K

PDF

DC2249A - Schematic

32.00K

Show More

reference details image

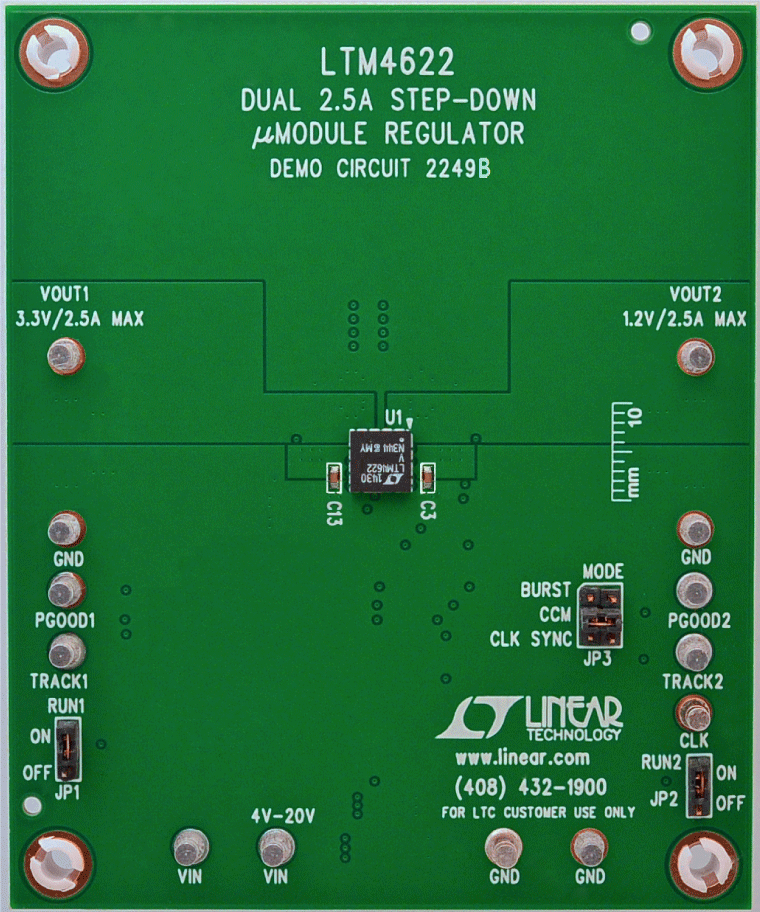

DC2249B

LTM4622 Demo Board | Ultrathin Dual 2.5A Step-Down µModule Regulator

DC2249B Application Circuit

DC2249B Application Circuit

LTM4622 Demo Board | Ultrathin Dual 2.5A Step-Down µModule Regulator

Download

Print

DC2249B Application Circuit

DC2249B Application Circuit

DC2249B Application Circuit

DC2249B Application Circuit

DC2249B

LTM4622 Demo Board | Ultrathin Dual 2.5A Step-Down µModule Regulator

Buy Now View Details

Product Detail

Demonstration circuit 2249B features the LTM4622 µModule^® regulator, a tiny low profile high performance high efficiency dual step-down regulator. The LTM4622 has an operating input voltage range of 3.6V to 20V and is able to provide an output current of up to 2.5A for each channel. Each output’s voltage is programmable from 0.6V to 5.5V. The LTM4622 is a complete DC-DC point of load regulator in a low profile thermally enhanced 6.25mm × 6.25mm × 1.82mm LGA package requiring only a few input and output capacitors. Output voltage tracking is available through the TRACK/SS pin for supply rail sequencing. External clock synchronization is available through the SYNC/MODE pin. For high efficiency at low load currents the MODE pin jumper (JP3) selects the Burst Mode^® option for operation in less noise sensitive applications. The LTM4622 data sheet must be read in conjunction with this demo manual for working on or modifying demo circuit 2249B.

Resources

PDF

DC2249B - Demo Manual

390.43 K

PDF

DC2249B - Schematic

96.71 K

ZIP

DC2249B - Design Files

1.19 M

Show More

evaluation kit item images

DC2249A

OBSOLETE: LTM4622EV Demo Board | Ultrathin Dual Step-Down μModule Regulator, 3.6V ≤ VIN ≤ 20V, VOUT1/VOUT2 = 3.3V/1.2V @ 2.5A

evaluation kit item images

DC2249B

LTM4622 Demo Board | Ultrathin Dual 2.5A Step-Down µModule Regulator

LTspice 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

Lt Spice

LTM4622 - Step-Down (Buck) Regulators

Lt Spice

LTM4622 Demo Circuit - Dual Step-Down Regulator (3.6-20V to 3.3V & 1.2V @ 2.5A)

LTpowerCAD 2

LTpowerCAD^® is a power supply design program which selects power stage components, provides detailed power efficiency, shows quick loop Bode plot stability and load transient analysis, and can export to LTspice for simulation.

To open the project file for this circuit:

Step 1: Download and install LTpowerCAD on your computer.

Step 2: Click on the link(s) in the section below to download part-specific project files.

Step 3: If the project file doesn't run, right-click the link and select "Save Target As." Then start the LTpowerCAD tool and open the project file by selecing "Open Project" from the "File" menu.

LTpowerCAD download and documentation

Simulation Model

LTpowerCAD

LTM4622 (Inverting) Project - Inverting Buck-Boost μModule Regulator (5-12Vin to -1.2Vout @ 1.5A)

LTpowerCAD

LTM4622 Project - Dual Ultrathin Step-Down μModule Regulator (4-14V to 3.3V @ 2.5A & 1.2V @ 2.5A)

Stratix 10 GX PCIE FPGA Development Kit

Intel Stratix 10 FPGA PCIe Development Kit

Stratix 10 GX PCIE FPGA Development Kit

Stratix 10 GX PCIE FPGA Development Kit Block Diagram

Stratix 10 GX PCIE FPGA Development Kit (Recommended Simplified Power Tree: 12Vin to required I/O voltages)

Stratix 10 GX PCIE FPGA Development Kit (Actual Power Tree representative of components used on board)

zoomopens a dialog

Download

Print

Stratix 10 GX PCIE FPGA Development Kit

Stratix 10 GX PCIE FPGA Development Kit Block Diagram

Stratix 10 GX PCIE FPGA Development Kit (Recommended Simplified Power Tree: 12Vin to required I/O voltages)

Stratix 10 GX PCIE FPGA Development Kit (Actual Power Tree representative of components used on board)

Stratix 10 GX PCIE FPGA Development Kit

Stratix 10 GX PCIE FPGA Development Kit Block Diagram

Stratix 10 GX PCIE FPGA Development Kit (Recommended Simplified Power Tree: 12Vin to required I/O voltages)

Stratix 10 GX PCIE FPGA Development Kit (Actual Power Tree representative of components used on board)

Intel Stratix 10 FPGA PCIe Development Kit

Circuits from the lab

Features and Benefits

Analog Devices has worked closely with Intel PSG to develop verified power solutions that optimize cost, size and efficiency in high performance applications.
The validated power solutions include uModules power products that address time and space constraints while delivering high efficiency, reliability, and low noise.
The actual power tree represents the best solution at time of design.
A recommended power tree has also been included to present the ideal solution at time of Stratix 10 GX PCIe development kit release. An updated alternate version of the power tree represents the latest solutions available from Analog Devices. For many applications, an intermediate rail is not ideal, so recommendations an alternate power tree that allow for direct power conversion from 12V input is provided below.

View Detailed Reference Design

Part Used 16

LTC2418

LT3062

LTM4626

LTM4622

LTC4365

LTM4642

LTM4630A

LTM4630A

LTM4620A

LTC4357

LTM2987

LTM4638

LTM4627

LTM4700

LTM4677

LTM4650

Monolithic Power Tree Solution for the ZU7 FPGA

ZCU104

Zynq UltraScale+ MPSoC ZCU104 Paper Reference Design

Monolithic Power Tree Solution for the ZU7 FPGA

uModule Power Tree for the ZU7 FPGA

zoomopens a dialog

Zynq UltraScale+ MPSoC ZCU104 Paper Reference Design

Download

Print

Monolithic Power Tree Solution for the ZU7 FPGA

uModule Power Tree for the ZU7 FPGA

Monolithic Power Tree Solution for the ZU7 FPGA

uModule Power Tree for the ZU7 FPGA

ZCU104

Circuits from the lab

Zynq UltraScale+ MPSoC ZCU104 Paper Reference Design

Features and Benefits

The ZCU104 Evaluation Kit enables designers to jumpstart designs for embedded vision applications such as surveillance, Advanced Driver Assisted Systems (ADAS), machine vision, Augmented Reality (AR), drones and medical imaging.

The ADI Power delivery solutions support multiple reference designs using DC/DC module and monolithic solutions. ADI offers several options for powering the Zu7 FPGA.

Our module-based solutions combine a small footprint, while maximizing efficiency and tight regulation. Our monolithic based solutions support a lower cost optimized power delivery solution for mass production.

ADI provides supporting documentation to enable you to validate the power solution for your application seamlessly.

For a complete list power designs and use cases, please contact your local FAE.

Please refer to the circuit descriptions below that best support your design.

View Detailed Reference Design

Part Used 10

ADP1752

LTM4623

LTM4657

LTM4676A

LTM4622

ADP1753

LT3045

LTC3633A
LTC3633A-1

LT8652S

LTC3605A

Figure 1. CN0511 Functional Block Diagram

CN0511

DC to 5.5 GHz Signal Generator with +/-0.5 dB Calibrated Output Power

Figure 1. CN0511 Functional Block Diagram

EVAL-CN0511-RPIZ Evaluation Board

EVAL-CN0511-RPIZ Evaluation Board - Top View

EVAL-CN0511-RPIZ Evaluation Board - Bottom View

zoomopens a dialog

DC to 5.5 GHz Signal Generator with +/-0.5 dB Calibrated Output Power

Download

Print

Figure 1. CN0511 Functional Block Diagram

EVAL-CN0511-RPIZ Evaluation Board

EVAL-CN0511-RPIZ Evaluation Board - Top View

EVAL-CN0511-RPIZ Evaluation Board - Bottom View

Figure 1. CN0511 Functional Block Diagram

EVAL-CN0511-RPIZ Evaluation Board

EVAL-CN0511-RPIZ Evaluation Board - Top View

EVAL-CN0511-RPIZ Evaluation Board - Bottom View

CN0511

Circuits from the lab

DC to 5.5 GHz Signal Generator with +/-0.5 dB Calibrated Output Power

Features and Benefits

DC to 5.5 GHz Single Tone Generator
+/- 0.5 dB Wideband Amplitude Calibration from 0 dBm to -40 dBm
48-Bit Frequency Tuning Resolution (~43 uHz)
Onboard VCXO for Quick Bring Up
Compatible with Raspberry Pi 3B+, 4, Zero W, Zero 2W

View Detailed Reference Design

Part Used 12

ADP1761

ADP5073

LTM4622

AD5693R

ADM7154

LTC2928

ADM7150

LTM8045

ADP7183

ADF4372

LT3090

AD9166

Resources

WIKI

ADF4372 Linux Device Driver

URL

AD9166 Linux GitHub Driver Source Code

Show More

Design & Integration Tools

ZIP

CN0568 Design Files

7.78 M

Stratix 10 GX PCIE FPGA Development Kit

Intel Stratix 10 FPGA PCIe Development Kit

Monolithic Power Tree Solution for the ZU7 FPGA

ZCU104

Zynq UltraScale+ MPSoC ZCU104 Paper Reference Design

Figure 1. CN0511 Functional Block Diagram

CN0511

DC to 5.5 GHz Signal Generator with +/-0.5 dB Calibrated Output Power

7 Weeks Ago

RE: LTM4622 start-up not monotonic

1 Years Ago

RE: LTM4622 &LTM4705 Frequency Set for Dual Output voltage

View related discussion on EngineerZone

Software & Part Ecosystem

Tools & Simulations

Reference Designs

Latest Discussions
