ADP7183

-300 mA, Ultralow Noise, High PSRR, Low Dropout Linear Regulator

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 10
1ku List Price Starting From $1.86
Features
  • Input voltage range: −2.0 V to −5.5 V
  • Maximum output current: −300 mA
  • Fixed output voltage options: −0.5 V to −4.5 V
  • Adjustable output from −0.5 V to −VIN + 0.5 V
  • Low output noise: 4 µV rms from 100 Hz to 100 kHz
  • Noise spectral density: 20 nV/√Hz, 10 kHz to 1 MHz
  • Power supply rejection ratio (PSRR) at −300 mA load
    • 75 dB typical at 10 kHz
    • 62 dB typical at 100 kHz
    • 40 dB typical at 1 MHz
  • Low dropout voltage: −130mV typical at −300 mA load
  • Initial output voltage accuracy (VOUT): ±0.5% at IOUT = −10 mA
  • Output voltage accuracy over line, load, and temperature: ±2.6%
  • Operating supply current (IGND): −0.6 mA typical at no load
  • Low shutdown current: −2 µA typical at VIN = −5.5 V
  • Stable with small 4.7 µF ceramic input and output capacitor
  • Positive or negative enable logic
  • Current-limit and thermal overload protection
  • 8-lead, 2 mm × 2 mm LFCSP package
  • Supported by ADIsimPOWER voltage regulator design tool

Additional Details
show more Icon

The ADP7183 is a complementary metal oxide semiconductor (CMOS), low dropout (LDO) linear regulator that operates from −2.0 V to −5.5 V and provides up to −300 mA of output current. This LDO regulator is ideal for regulation of high performance analog and mixed-signal circuits operating from −0.5 V down to −4.5 V. Using an advanced proprietary architecture, the ADP7183 provides high PSRR and low noise, and it achieves excellent line and load transient response with a small 4.7 μF ceramic output capacitor.

The ADP7183 is available in 15 fixed output voltage options. The following voltages are available from stock: −0.5 V, −1.0 V, −1.2 V, −1.5 V, −1.8 V, −2.0 V, −2.5 V, −3.0 V, and −3.3 V. Additional voltages available by special order are −0.8 V, −0.9 V, −1.3 V, −2.8 V, −4.2 V, and −4.5 V. An adjustable version is also available that allows output voltages that range from −0.5 V to −VIN + 0.5 V with an external feedback divider.

The enable logic feature is capable of interfacing with positive or negative logic levels for maximum flexibility.

The ADP7183 regulator output noise is 4 μV rms independent of the output voltage. The ADP7183 is available in an 8-lead, 2 mm × 2 mm LFCSP, making it not only a very compact solution but also providing excellent thermal performance for applications requiring up to −300 mA of output current in a small, low profile footprint.

Applications

  • Regulation to noise sensitive applications: analog-to-digital converters (ADCs), digital-to-analog converters (DACs), precision amplifiers
  • Communications and infrastructure
  • Medical and healthcare
  • Industrial and instrumentation
Part Models 10
1ku List Price Starting From $1.86

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADP7183ACPZN-R7
  • HTML
  • HTML
ADP7183ACPZN0.5-R7
  • HTML
  • HTML
ADP7183ACPZN1.0-R7
  • HTML
  • HTML
ADP7183ACPZN1.2-R7
  • HTML
  • HTML
ADP7183ACPZN1.5-R7
  • HTML
  • HTML
ADP7183ACPZN1.8-R7
  • HTML
  • HTML
ADP7183ACPZN2.0-R7
  • HTML
  • HTML
ADP7183ACPZN2.5-R7
  • HTML
  • HTML
ADP7183ACPZN3.0-R7
  • HTML
  • HTML
ADP7183ACPZN3.3-R7
  • HTML
  • HTML
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

EVAL-ADP7183 / ADP7185

ADP7183/ADP7185 Evaluation Board

zoom

EVAL-ADP7183 / ADP7185

ADP7183/ADP7185 Evaluation Board

ADP7183/ADP7185 Evaluation Board

Features and Benefits

  • Input voltage range: −2.0 V to −5.5 V
  • Output current range
    • ADP7183: 0 mA to −300 mA
    • ADP7185: 0 mA to −500 mA
  • Output voltage accuracy
    • ADP7183: ±2.6%
    • ADP7185: ±2.2%
  • Operating temperature range: −40°C to +125°C
  • Adjustable option voltage set with two external resistors (R1 and R2), VOUT = −0.5 V × (1 + R1/R2)

Product Detail

The ADP7183 and ADP7185 evaluation boards demonstrate the functionality of the ADP7183 and ADP7185 series of linear regulators.


Simple device measurements such as line and load regulation, dropout voltage, and ground current can be demonstrated with only a single voltage supply, a voltmeter, an ammeter, and load resistors.


For full details on the ADP7183 and ADP7185 linear regulators, see ADP7183 and ADP7185 data sheet, which must be consulted in conjunction with user guide UG-795 when using these evaluation boards.

Tools & Simulations

Tools & Simulations 1

Reference Designs

Reference Designs 3

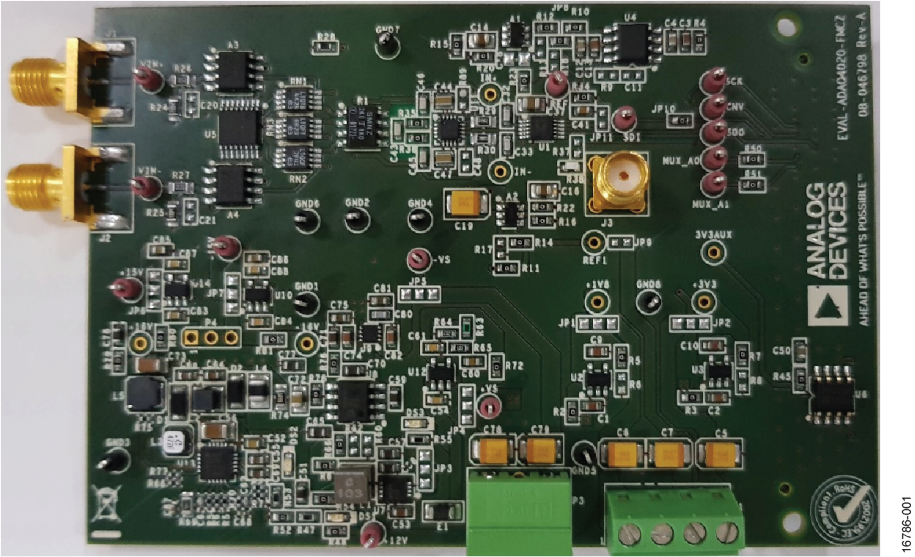

CN0513 Board

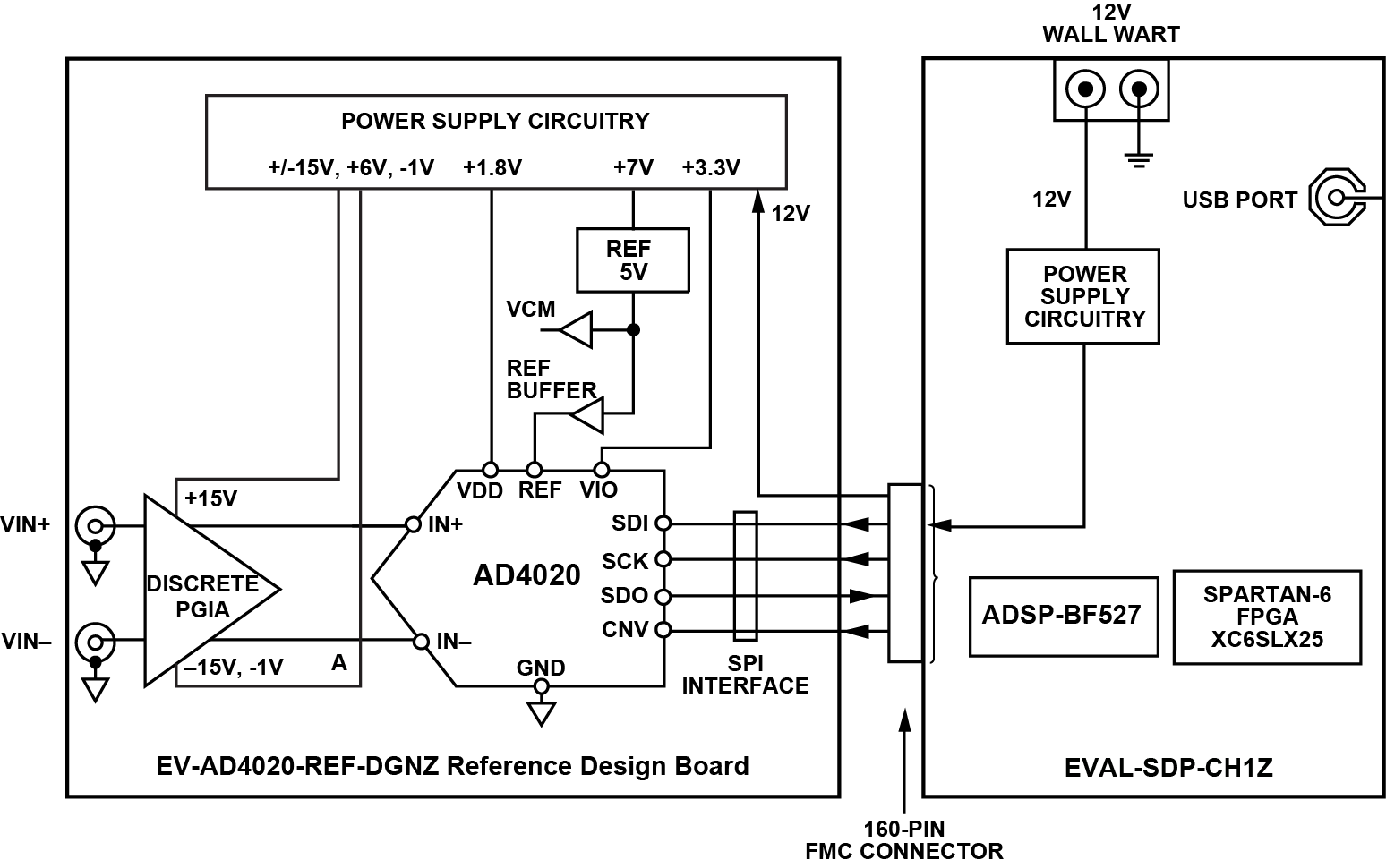

20-Bit, 1.8 MSPS, ±2.5 ppm INL, Low Drift, High Accuracy Data Acquisition Solution

zoomopens a dialog

CN0513

20-Bit, 1.8 MSPS, ±2.5 ppm INL, Low Drift, High Accuracy Data Acquisition Solution

CN0513

Circuits from the lab

tooltip Info:Circuits from the lab
20-Bit, 1.8 MSPS, ±2.5 ppm INL, Low Drift, High Accuracy Data Acquisition Solution

Features and Benefits

  • Data acquisition solution fully characterized over 0°C to 70°C
  • Guaranteed 20-bit no missing codes
  • INL: ±2 ppm, DNL: ±0.25 ppm
  • Throughput: 1.8 MSPS
  • Offset error drift: ±3.5 ppm/°C; gain error drift: ±6 ppm/°C
  • SNR: 98 dB at G = 1, 92 dB at G = 10, fIN = 1 kHz
  • THD: −120 dB at G = 1, −116 dB at G = 10, fIN = 1 kHz
  • Oversampled dynamic range: 102 dB at 900 kSPS, OSR = 2
  • Software programmable bipolar input ranges (±1 V to ±10 V)
    • Allows single-ended and differential signals
  • CMRR: 92 dB typical
  • GΩ input impedance allows direct interface with sensors
  • Ease of use features reduce system power and complexity
  • ADC Input overvoltage clamp protection sinks up to 50 mA
  • On-board 5 V reference and buffer
  • First conversion accurate, no latency/pipeline delay
  • Fast conversion time allows low SPI clock rates
  • SPI-/QSPI-/MICROWIRE-/DSP-compatible serial interface
View Detailed Reference Design external link

Design & Integration Tools

pdf icon

ZIP

12.44 M

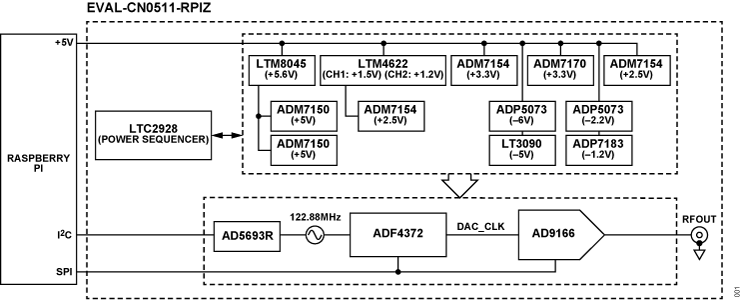

Figure 1. CN0511 Functional Block Diagram

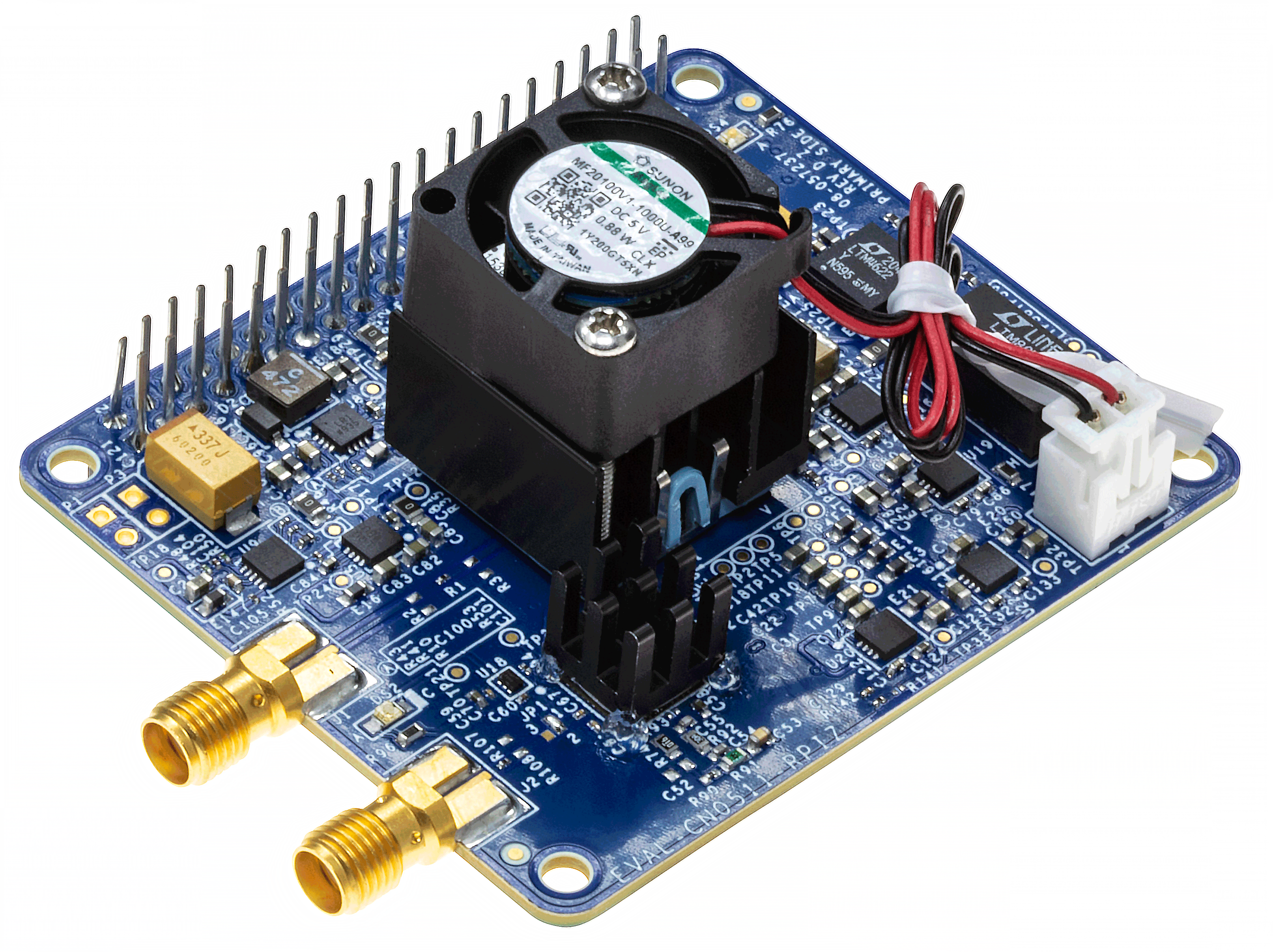

DC to 5.5 GHz Signal Generator with +/-0.5 dB Calibrated Output Power
