LTM8049

RECOMMENDED FOR NEW DESIGNS

LTM8049

Dual SEPIC or Inverting μModule DC/DC Converter

RECOMMENDED FOR NEW DESIGNS

Part Details

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 3

1ku List Price Starting From $16.71

Features

Two Complete Switch Mode Power Supplies
SEPIC or Inverting Topology
Wide Input Voltage Range: 2.6V to 20V
2.5V to 24V or –2.5V to –24V Output Voltage
1A at 5V_OUT from 12V_IN
Selectable Switching Frequency: 200kHz to 2.5MHz
Power Good Outputs for Event Based Sequencing
User Configurable Undervoltage Lockout
(e4) RoHS Compliant Package with Gold Pad Finish
Low Profile 15mm × 9mm × 2.42mm Surface Mount BGA Package

Additional Details

The LTM8049 is a Dual SEPIC/Inverting μModule^® (power module) DC/DC Converter. Each of the two outputs can be easily configured as a SEPIC or Inverting converter by simply grounding the appropriate output rail. The LTM8049 includes power devices, inductors, control circuitry and passive components. All that is needed to complete the design are input and output caps, and small resistors to set the output voltages and switching frequency. Other components may be used to control the soft-start and undervoltage lockout.

The LTM8049 is packaged in a thermally enhanced, compact (15mm × 9mm) over-molded Ball Grid Array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8049 is RoHS compliant.

Applications

Battery Powered Regulator
Local Negative Voltage Regulator
Low Noise Amplifier Power

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 3

1ku List Price Starting From $16.71

Documentation

Technical Documents 4

LTM8049: Dual SEPIC or Inverting μModule DC/DC Converter Data Sheet (Rev.B) 08/22/2016

R598 Reliability Data 03/26/2018

DC2244A - Demo Manual 10/19/2016

μModule Design and Manufacturing Resources 01/30/2018

Design Resources 3

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTM8049EY#PBF	77-Lead BGA (15mm x 9mm x 2.42mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTM8049IY	77-Lead BGA (15mm x 9mm x 2.42mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
LTM8049IY#PBF	77-Lead BGA (15mm x 9mm x 2.42mm)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

LTM8049EY#PBF
Pin/Package Drawing
77-Lead BGA (15mm x 9mm x 2.42mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTM8049IY
Pin/Package Drawing
77-Lead BGA (15mm x 9mm x 2.42mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

LTM8049IY#PBF
Pin/Package Drawing
77-Lead BGA (15mm x 9mm x 2.42mm)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

PCN/PDN Information

Filter by Model

Part Models

Product Lifecycle

PCN

Jul 21, 2021

- 21_0159

Ink Mark to Laser Mark Conversion for µModule

LTM8049EY#PBF

PRODUCTION

LTM8049IY

PRODUCTION

LTM8049IY#PBF

PRODUCTION

pdf

PCN21_0159_Form

xls

Material_Report

xlsm

Delta Qualification Matrix

Feb 28, 2020

- 20_0123

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM8049EY#PBF

PRODUCTION

LTM8049IY

PRODUCTION

LTM8049IY#PBF

PRODUCTION

pdf

PCN20_0123_Form

xls

Material_Report

Test Correlation Report

Other

pdf

Qualification Results Summary

Filter by Model

Part Models

Product Lifecycle

PCN

Jul 21, 2021

- 21_0159

Ink Mark to Laser Mark Conversion for µModule

LTM8049EY#PBF

PRODUCTION

LTM8049IY

PRODUCTION

LTM8049IY#PBF

PRODUCTION

pdf

PCN21_0159_Form

xls

Material_Report

xlsm

Delta Qualification Matrix

Feb 28, 2020

- 20_0123

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM8049EY#PBF

PRODUCTION

LTM8049IY

PRODUCTION

LTM8049IY#PBF

PRODUCTION

pdf

PCN20_0123_Form

xls

Material_Report

Test Correlation Report

Other

pdf

Qualification Results Summary

Software & Part Ecosystem

Companion Parts 2

Parts	Product Life Cycle	Description
PowerPath, Ideal Diodes, and Load Switches1
LTC4417	RECOMMENDED FOR NEW DESIGNS	Prioritized PowerPath^™ Controller
Surge Stopper, Overvoltage, and Overcurrent Protection1
LTC4367	RECOMMENDED FOR NEW DESIGNS	100V Overvoltage, Undervoltage and Reverse Supply Protection Controller

Evaluation Kit

AD-FMCXMWBR1-EBZ

FMC X-Microwave Compatible Level Translator and Power Supply Kit

FMC X-Microwave Compatible Level Translator and Power Supply Kit

Download

AD-FMCXMWBR1-EBZ

FMC X-Microwave Compatible Level Translator and Power Supply Kit

Features and Benefits

FMC-compatible form factor
Powered from FMC connector with external supply possibility
Provides level translation and various supply values
Compatible with RaspberryPi X-MW controller

Buy Now View Details

Product Detail

The AD-FMCXMWBR1-EBZ is a level translator and power supply board, with FMC-compatible form factor. It is powered from the FMC connector, with the possibility to add an external supply, for application that require higher load currents. In this case, the external supply is prioritized.

AD-FMCXMWBR1-EBZ allows multiple level translated digital communications paths between a controller/FPGA device and X-MW blocks. The module provides multiple supply voltages with high current capability, that can be used to bias the X-MW blocks or other IC’s in a prototype design.

APPLICATIONS

RF and Microwave designs
Voltage level translation
General-purpose software radios
Radar systems
Point to point communication systems
Multiple input/multiple output (MIMO) radios
Automated test equipment

Resources

WIKI

AD-FMCXMWBR1-EBZ User Guide

DC2244A

LTM8049 Demo Board | Dual SEPIC/Inverting μModule, 2.8V ≤ VIN ≤ 18V, VOUT1/2 = ±12V @ 1A

LTM8049 Demo Board | Dual SEPIC/Inverting μModule, 2.8V ≤ VIN ≤ 18V, VOUT1/2 = ±12V @ 1A

Download

DC2244A

LTM8049 Demo Board | Dual SEPIC/Inverting μModule, 2.8V ≤ VIN ≤ 18V, VOUT1/2 = ±12V @ 1A

Buy Now View Details

Product Detail

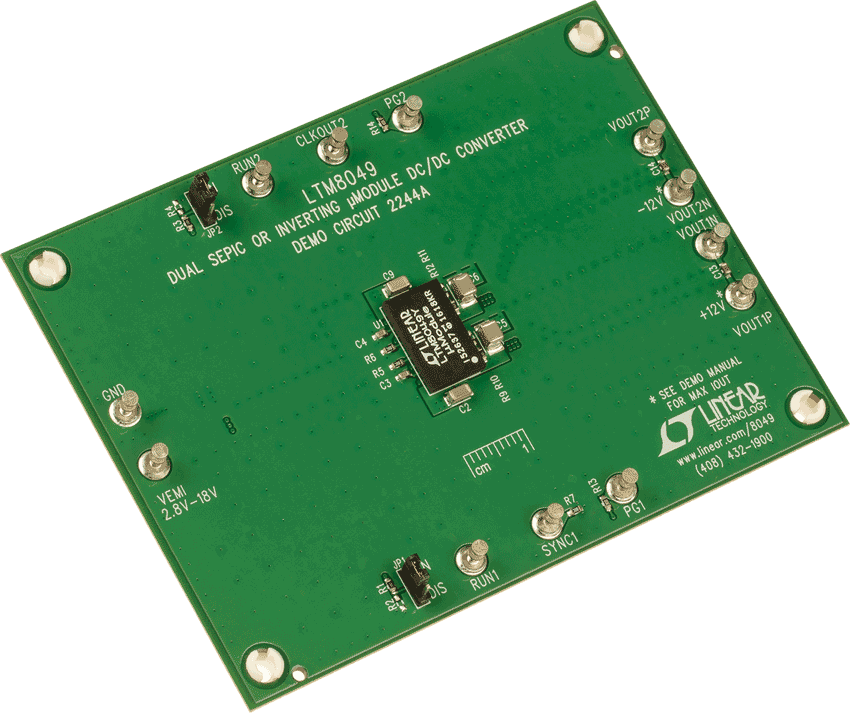

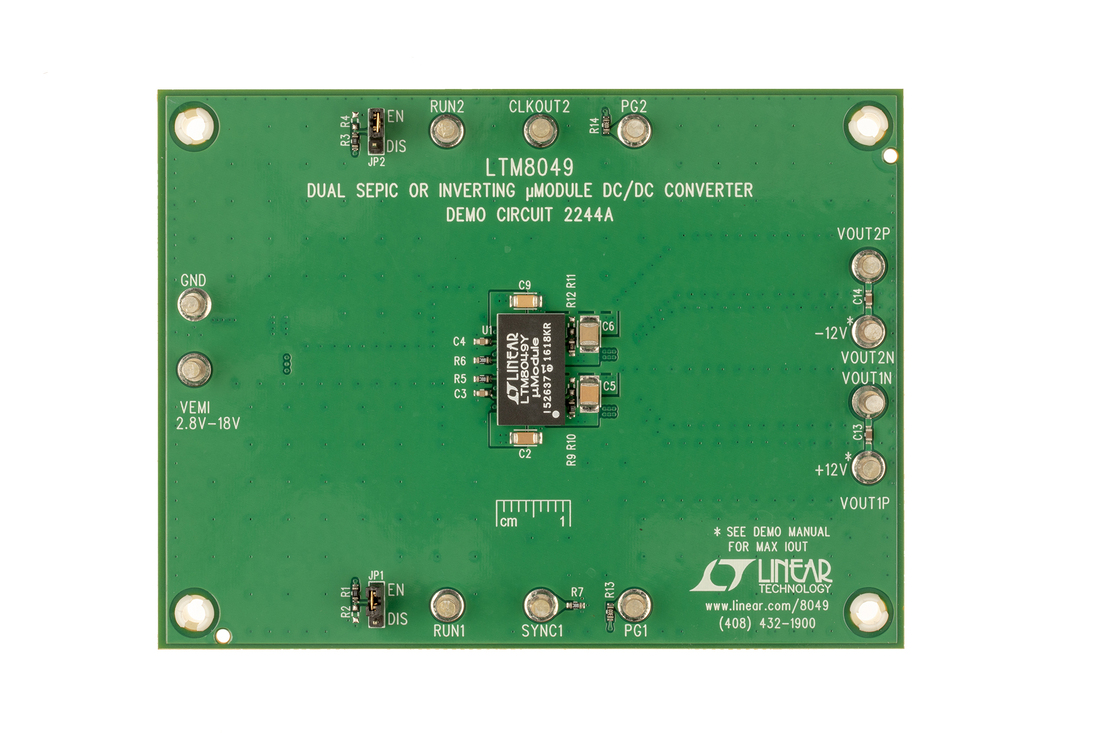

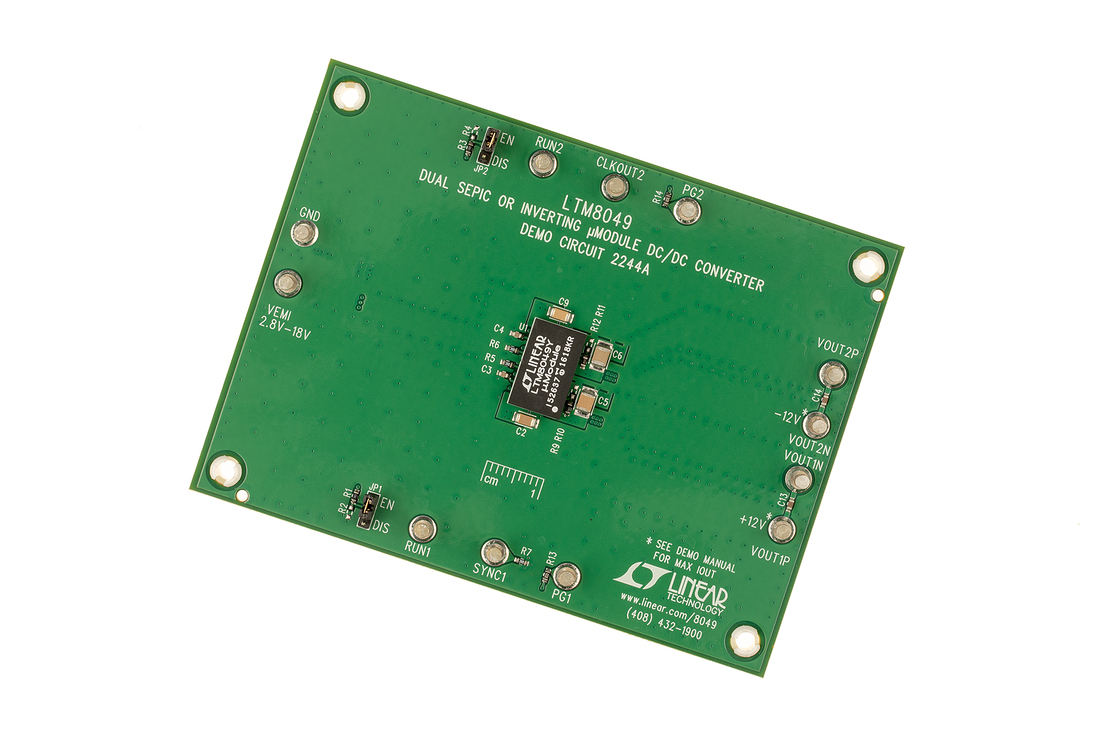

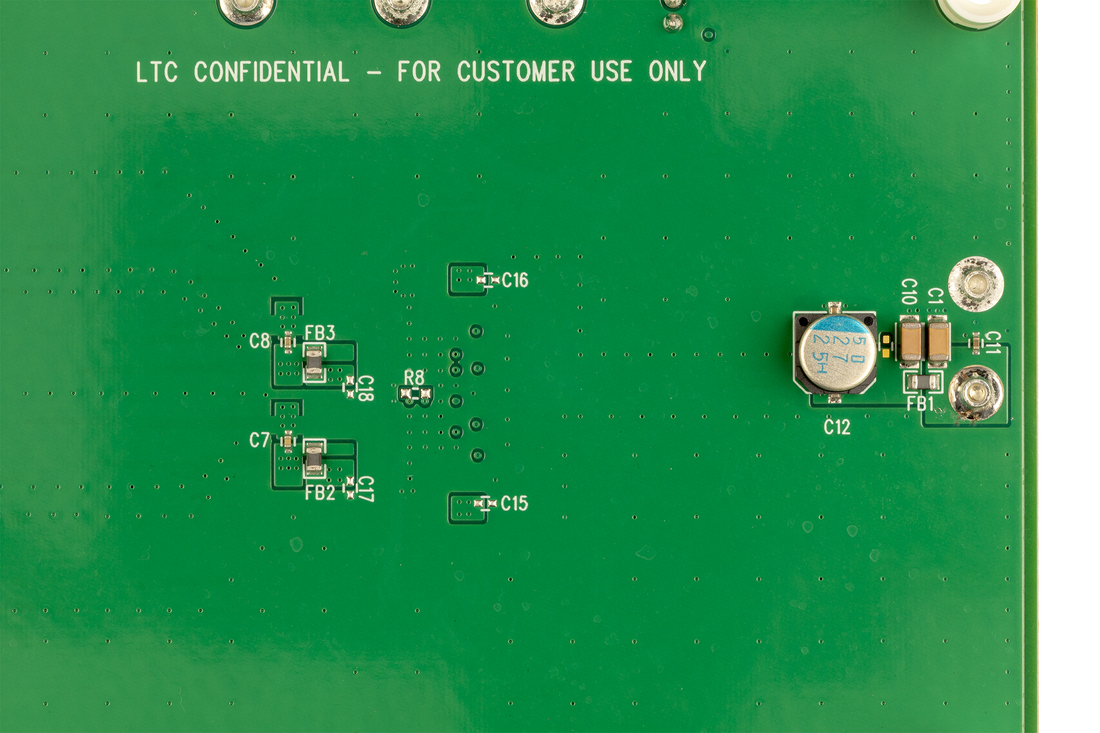

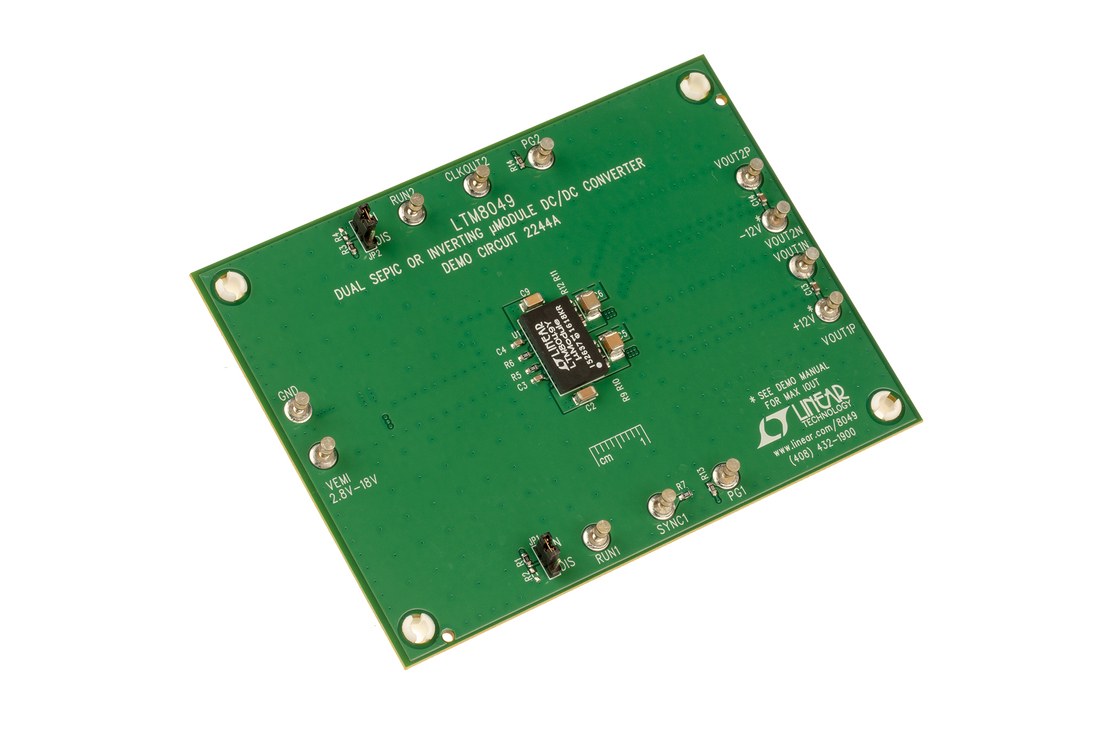

Demonstration circuit 2244A features the LTM8049, a dual SEPIC or inverting μModule^® regulator. The demo circuit is configured as two stand-alone SEPIC and Inverting DC/DC converters with +12V and –12V output voltages from an input voltage up to 20V. The switching frequencies of both channels are set at 1MHz on DC2244A. The frequency foldbacks when the output is 15% below the target regulation point during a fault or output overload, thus protects the power switch from damage.

Resources

PDF

DC2244A - Schematic

30.00K

PDF

DC2244A - Demo Manual

1.00M

ZIP

DC2244A - Design Files

1.00M

AD-FMCXMWBR1-EBZ

FMC X-Microwave Compatible Level Translator and Power Supply Kit

DC2244A

LTM8049 Demo Board | Dual SEPIC/Inverting μModule, 2.8V ≤ VIN ≤ 18V, VOUT1/2 = ±12V @ 1A

Tools & Simulations

LTspice 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
