LTC4367

RECOMMENDED FOR NEW DESIGNS

100V Overvoltage, Undervoltage and Reverse Supply Protection Controller

Data Sheet (Rev. C) Product Selection Table

Part Models: 40
1ku List Price: Starting From $2.13

Viewing:

Overview

Wide Operating Voltage Range: 2.5V to 60V
Overvoltage Protection to 100V
Reverse Supply Protection to –40V
LTC4367: Blocks 50Hz and 60Hz AC Power
LTC4367: 32ms Recovery from Fault
LTC4367-1: Fast 500μs Recovery from Fault
No Input Capacitor or TVS Required for Most Applications

Adjustable Undervoltage and Overvoltage Thresholds

Controls Back-to-Back N-Channel MOSFETs

Low Operating Current: 70μA

Low Shutdown Current: 5μA

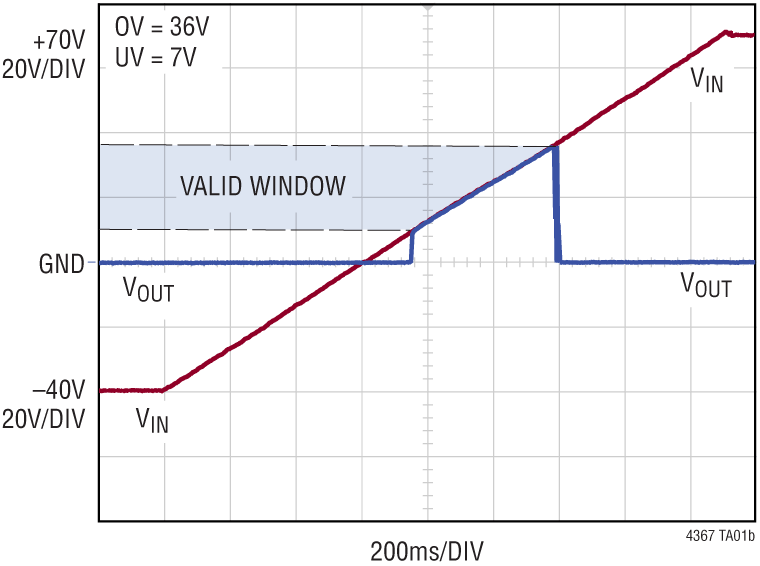

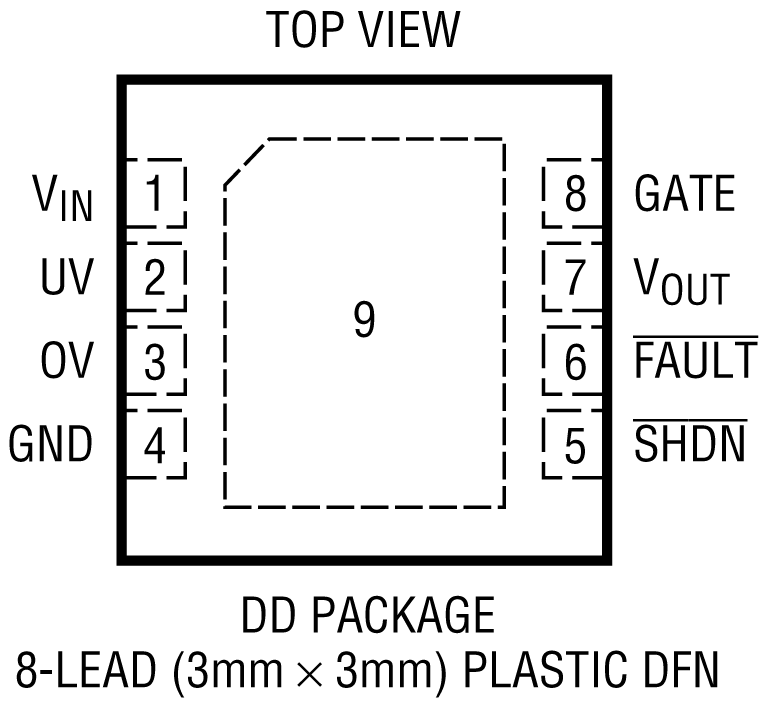

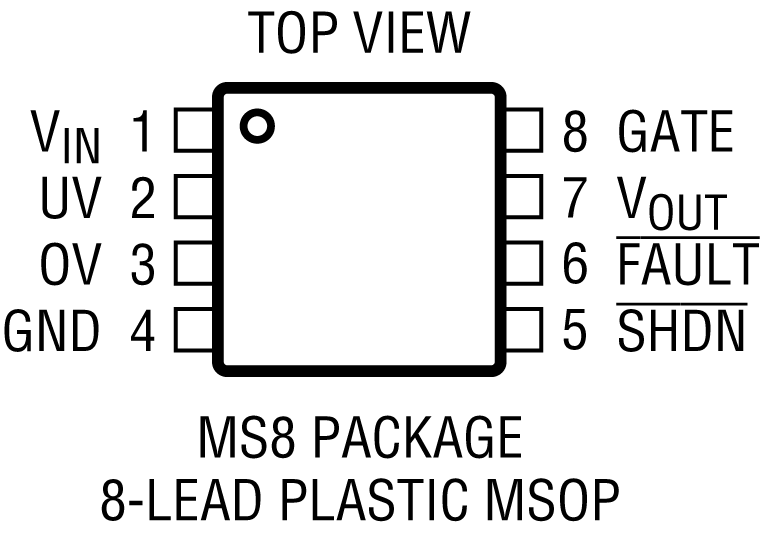

8-Pin MSOP and 3mm × 3mm DFN Packages

AEC-Q100 Qualified for Automotive Applications

The LTC4367 protects applications where power supply input voltages may be too high, too low or even negative. It does this by controlling the gate voltages of a pair of external N-channel MOSFETs to ensure that the output stays within a safe operating range.The LTC4367 withstands voltages between –40V and 100V and has an operating range of 2.5V to 60V, while consuming only 70μA in normal operation.

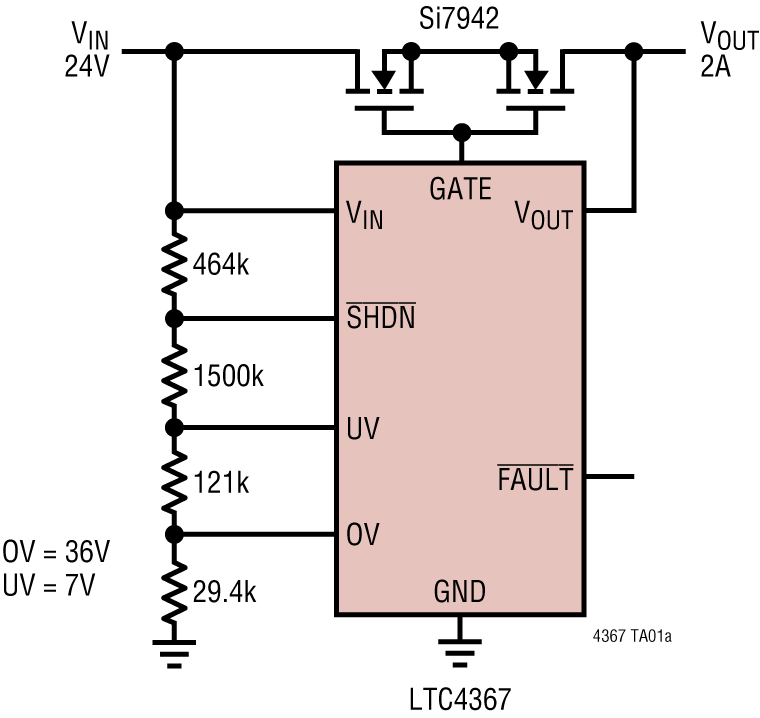

Two comparator inputs allow configuration of the overvoltage (OV) and undervoltage (UV) set points using an external resistive divider. A shutdown pin provides external control for enabling and disabling the MOSFETs as well as placing the device in a low current shutdown state. A fault output indicates that the GATE pin is pulling low when the part is in shutdown or the input voltage is outside the UV and OV set points.

The LTC4367 has a 32ms turn-on delay that debounces live connections and blocks 50Hz to 60Hz AC power. For fast recovery after faults, the LTC4367-1 has a reduced turn-on delay of 500μs.

Applications

Portable Instrumentation
Industrial Automation
Automotive Surge (Load Dump) Protection
Network Equipment
