LTM4622A

Dual Ultrathin 2A or Single 4A Step-Down DC/DC μModule Regulator

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Models 5
1ku List Price Starting From $8.42
Features
  • Complete Solution in <1cm2
  • Wide Input Voltage Range: 3.6V to 20V
  • 1.5V to 12V Output Voltage
  • Dual 2A (3A Peak) or Single 4A Output Current
  • ±1.5% Maximum Total Output Voltage Regulation Error Over Load, Line and Temperature
  • Current Mode Control, Fast Transient Response
  • External Frequency Synchronization
  • Multiphase Parallelable with Current Sharing
  • Output Voltage Tracking and Soft-Start Capability
  • Selectable Burst Mode® Operation
  • Overvoltage Input and Overtemperature Protection
  • Power Good Indicators

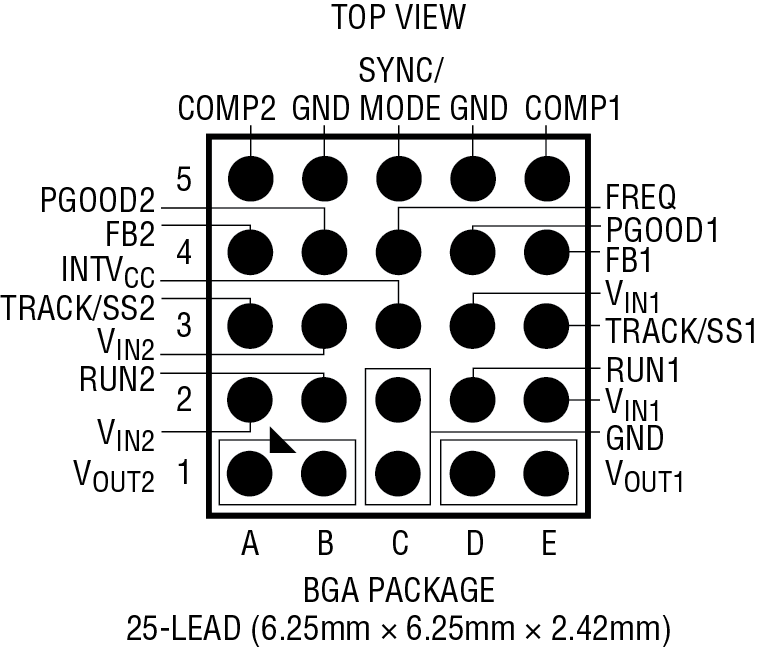

  • 6.25mm × 6.25mm × 1.82mm LGA and 6.25mm × 6.25mm × 2.42mm BGA Packages
Additional Details
show more Icon

The LTM4622A is a complete dual 2A step-down switching mode μModule® (micromodule) regulator in a tiny ultrathin 6.25mm × 6.25mm × 1.82mm LGA and 2.42mm BGA packages. Included in the package are the switching controller, power FETs, inductor and support components. Operating over an input voltage range of 3.6V to 20V, the LTM4622A supports an output voltage range of 1.5V to 12V, set by a single external resistor. Its high efficiency design delivers dual 2A continuous, 3A peak, output current. Only a few ceramic input and output capacitors are needed.

The LTM4622A supports selectable Burst Mode operation and output voltage tracking for supply rail sequencing. Its high switching frequency and current mode control enable a very fast transient response to line and load changes without sacrificing stability.

Fault protection features include input overvoltage, output overcurrent and overtemperature protection.

The LTM4622A is available with SnPb (BGA) or RoHS compliant terminal finish.

Product Selection Guide
Part Number VIN Range VOUT Range IOUT
LTM4622 3.6V to 20V 0.6V to 5.5V Dual 2.5A or Single 5A
LTM4622A 1.5V to 12V Dual 2A or Single 4A

Applications

  • General Purpose Point-of-Load Conversion
  • Telecom, Networking and Industrial Equipment
  • Medical Diagnostic Equipment
  • Test and Debug Systems
Part Models 5
1ku List Price Starting From $8.42

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTM4622AEV#PBF
  • HTML
  • HTML
LTM4622AEY#PBF
  • HTML
  • HTML
LTM4622AIV#PBF
  • HTML
  • HTML
LTM4622AIY
  • HTML
  • HTML
LTM4622AIY#PBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 29, 2024

- 24_0140

LTM4622A Datasheet Revision

LTM4622AEV#PBF

PRODUCTION

LTM4622AEY#PBF

PRODUCTION

LTM4622AIV#PBF

PRODUCTION

LTM4622AIY

PRODUCTION

LTM4622AIY#PBF

PRODUCTION

Jul 21, 2021

- 21_0159

Ink Mark to Laser Mark Conversion for µModule

LTM4622AEV#PBF

PRODUCTION

LTM4622AEY#PBF

PRODUCTION

LTM4622AIV#PBF

PRODUCTION

LTM4622AIY

PRODUCTION

LTM4622AIY#PBF

PRODUCTION

Feb 28, 2020

- 20_0123

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM4622AEV#PBF

PRODUCTION

LTM4622AEY#PBF

PRODUCTION

LTM4622AIV#PBF

PRODUCTION

LTM4622AIY

PRODUCTION

LTM4622AIY#PBF

PRODUCTION

Jun 26, 2019

- 19_0116

Notification of Additional Assembly Location, ASE Korea for LTM4622/LTM4622A

LTM4622AEV#PBF

PRODUCTION

LTM4622AEY#PBF

PRODUCTION

LTM4622AIV#PBF

PRODUCTION

LTM4622AIY

PRODUCTION

LTM4622AIY#PBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 29, 2024

- 24_0140

arrow down

LTM4622A Datasheet Revision

LTM4622AEV#PBF

PRODUCTION

LTM4622AEY#PBF

PRODUCTION

LTM4622AIV#PBF

PRODUCTION

LTM4622AIY

PRODUCTION

LTM4622AIY#PBF

PRODUCTION

Jul 21, 2021

- 21_0159

arrow down

Ink Mark to Laser Mark Conversion for µModule

LTM4622AEV#PBF

PRODUCTION

LTM4622AEY#PBF

PRODUCTION

LTM4622AIV#PBF

PRODUCTION

LTM4622AIY

PRODUCTION

LTM4622AIY#PBF

PRODUCTION

Feb 28, 2020

- 20_0123

arrow down

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM4622AEV#PBF

PRODUCTION

LTM4622AEY#PBF

PRODUCTION

LTM4622AIV#PBF

PRODUCTION

LTM4622AIY

PRODUCTION

LTM4622AIY#PBF

PRODUCTION

Jun 26, 2019

- 19_0116

arrow down

Notification of Additional Assembly Location, ASE Korea for LTM4622/LTM4622A

LTM4622AEV#PBF

PRODUCTION

LTM4622AEY#PBF

PRODUCTION

LTM4622AIV#PBF

PRODUCTION

LTM4622AIY

PRODUCTION

LTM4622AIY#PBF

PRODUCTION

Software & Part Ecosystem

Evaluation Kits 1

reference details image

DC2568A

LTM4622A Demo Board | Ultrathin Dual Buck μModule; 4V ≤ VIN ≤ 20V, VOUT1 = 5V @ 2A, VOUT2 = 3.3V @ 2A

zoom

DC2568A

LTM4622A Demo Board | Ultrathin Dual Buck μModule; 4V ≤ VIN ≤ 20V, VOUT1 = 5V @ 2A, VOUT2 = 3.3V @ 2A

LTM4622A Demo Board | Ultrathin Dual Buck μModule; 4V ≤ VIN ≤ 20V, VOUT1 = 5V @ 2A, VOUT2 = 3.3V @ 2A

Product Detail

Demonstration circuit 2568A features the LTM4622A μModule® regulator, a tiny low profile high performance high efficiency dual step-down regulator. The LTM4622A has an operating input voltage range of 3.6V to 20V and is able to provide an output current of up to 2A for each channel. Each output’s voltage is programmable from 1.5V to 12V. The LTM4622A is a complete DC/DC point of load regulator in a low profile thermally enhanced 6.25mm × 6.25mm × 1.82mm LGA package requiring only a few input and output capacitors. Output voltage tracking is available through the TRACK/SS pin for supply rail sequencing. External clock synchronization is available through the MODE pin. For high efficiency at low load currents, the MODE pin jumper (JP3) selects the Burst Mode® option for operation in less noise sensitive applications. The LTM4622A data sheet must be read in conjunction with this demo manual for working on or modifying demo circuit 2568A.

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
