3.6 V Input, Dual Output µModule Buck Regulator Produces 2 A per Channel in a 3 mm × 4 mm Footprint

Introduction

The LTM4691 is a high efficiency, dual output step-down µModule^® buck regulator capable of 2 A continuous output current for each channel from input voltages between 2.25 V and 3.6 V. This switch-mode power supply comes in a tiny 3 mm × 4 mm × 1.18 mm LGA package. This small footprint comprises the switching controller, power FETs, inductors, and all supporting components. Each output is independently resistor programmable from 0.5 V to 2.5 V.

Figure 1. The small profile of the LTM4691 can be seen when placed next to a thin coin and a 1210 sized ceramic capacitor.

The LTM4691 can deliver 2 A per output with just a few small capacitors and resistors. The µModule regulator includes internal feedback loop compensation, reducing the number and size of additional components. The switching frequency defaults to 2 MHz without any external component or input, but it can be synchronized to a 1 MHz to 3 MHz external clock. To maximize the performance of the feedback loop, only a few small external capacitors need be added to complete the internally compensated loop—yielding sufficient stability margins and good transient performance. Other features include a PGOOD signal, output overvoltage protection, overtemperature protection, precision run thresholds, and output short-circuit protection.

Small Solution Using All-Ceramic Capacitors

Figure 3 shows the scheme for a compact, all-ceramic capacitor solution, which takes maximum advantage of the internal circuitry of the LTM4691. Figure 2 shows a photo of the tiny solution. Figure 4, Figure 5, Figure 6, and Figure 7 show the thermal performance, efficiency, and load step performance for a DC2910A demo board.

Figure 2. The small LTM4691 on the DC2910A demoboard. Other than the two input capacitors shown, output voltage setting resistors and a couple capacitors populate the back of the board.

Figure 2. The small LTM4691 on the DC2910A demoboard. Other than the two input capacitors shown, output voltage setting resistors and a couple capacitors populate the back of the board.

Figure 3. A simplified schematic for the LTM4691 set up for V_IN = 3.3 V, V_OUT1 = 1.2 V, V_OUT2 = 1.8 V, and f_SW = 2 MHz.

Figure 3. A simplified schematic for the LTM4691 set up for V_IN = 3.3 V, V_OUT1 = 1.2 V, V_OUT2 = 1.8 V, and f_SW = 2 MHz.

LTM4691 V<sub>IN</sub> = 3.3 V, V<sub>OUT1</sub> = 1.2 V, V<sub>OUT2</sub> = 1.8 V, f<sub>SW</sub> = 2 MHz, I<sub>OUT1</sub> = 2 A, I<sub>OUT2</sub> = 2 A, — Figure 4. LTM4691 V_IN = 3.3 V, V_OUT1 = 1.2 V, V_OUT2 = 1.8 V, f_SW = 2 MHz, I_OUT1 = 2 A, I_OUT2 = 2 A, and Ta = 23°C, with no forced airflow.

Figure 4. LTM4691 V_IN = 3.3 V, V_OUT1 = 1.2 V, V_OUT2 = 1.8 V, f_SW = 2 MHz, I_OUT1 = 2 A, I_OUT2 = 2 A, and Ta = 23°C, with no forced airflow.

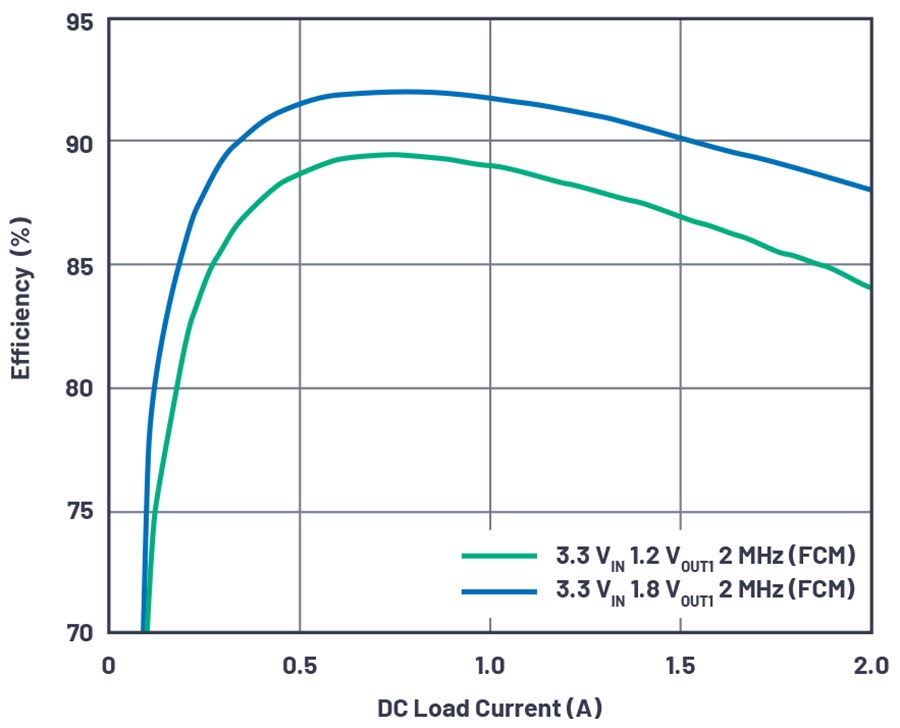

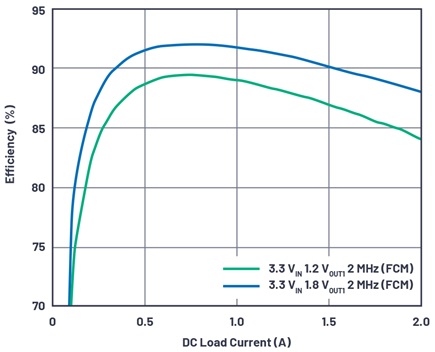

LTM4691 V<sub>IN</sub> = 3.3 V, V<sub>OUT1</sub> = 1.2 V, V<sub>OUT2</sub> = 1.8 V, and f<sub>SW</sub> = 2 MHz efficiency curves — Figure 5. LTM4691 V_IN = 3.3 V, V_OUT1 = 1.2 V, V_OUT2 = 1.8 V, and f_SW = 2 MHz efficiency curves.

Figure 5. LTM4691 V_IN = 3.3 V, V_OUT1 = 1.2 V, V_OUT2 = 1.8 V, and f_SW = 2 MHz efficiency curves.

Load step at V<sub>IN</sub> = 3.3 V, V<sub>OUT</sub> = 1.2 V, and f<sub>SW</sub> = 2 MHz — Figure 6. Load step at V_IN = 3.3 V, V_OUT = 1.2 V, and f_SW = 2 MHz.

Figure 6. Load step at V_IN = 3.3 V, V_OUT = 1.2 V, and f_SW = 2 MHz.

Load step at V<sub>IN</sub> = 3.3 V, V<sub>OUT</sub> = 1.8 V, and f<sub>SW</sub> = 2 MHz. — Figure 7. Load step at V_IN = 3.3 V, V_OUT = 1.8 V, and f_SW = 2 MHz.

Figure 7. Load step at V_IN = 3.3 V, V_OUT = 1.8 V, and f_SW = 2 MHz.

Conclusion

The LTM4691’s compact footprint and low profile enable it to fit tight spaces. Arguably just as important for compact designs: the LTM4691’s thermal performance and efficiency are high, minimizing the need for bulky thermal mitigation components. Likewise, transient performance and output stability are not sacrificed to fit the tiny package.
