LTM4678

Dual 25A or Single 50A µModule Regulator with Digital Power System Management

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.B)
Documentation View All Documentation
LTspice LTM4678 - ?Module Regulators Download 6.06 KB LTspice LTM4678 Demo Circuit - Dual, High Efficiency, High Density Regulator with I2C/SMBus/PMBus Interface (4.5-16V to 1V & 1.8V @ 25A) Download 8.36 KB
Part Models 3
1ku List Price Starting From $55.89
Features
  • Dual Digitally Adjustable Analog Loops with Digital Interface for Control and Monitoring
  • Wide Input Voltage Range: 4.5V to 16V
  • Output Voltage Range: 0.5V to 3.4V
  • ±0.5% Maximum DC Output Error Over Temperature
  • ±3.5% Current Readback Accuracy, –20°C to 125°C
  • Sub-Milliohm DCR Current Sensing
  • Integrated Input Current Sense Amplifier
  • 400kHz PMBus-Compliant I2C Serial Interface
  • Supports Telemetry Polling Rates up to 125Hz
  • Integrated 16-Bit ∆Σ ADC
  • Constant Frequency Current Mode Control
  • Parallel and Current Share Up to 250A
  • 16mm × 16mm × 5.86mm CoP-BGA Package
    Readable Data

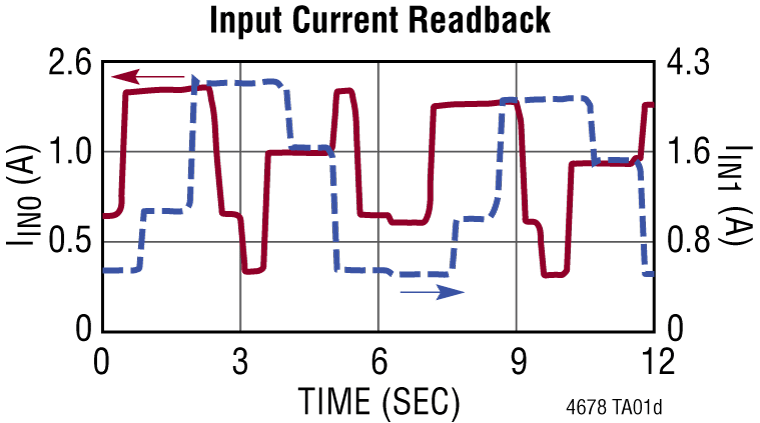

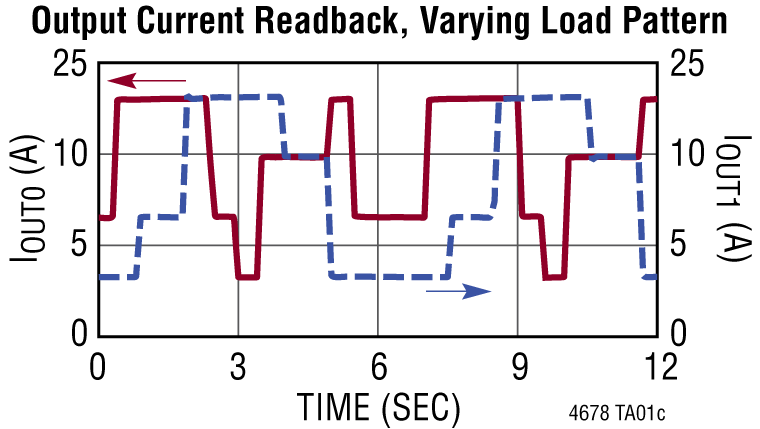

    • Input and Output Voltages, Currents, and Temperatures
    • Running Peak Values, Uptime, Faults and Warnings
    • Onboard EEPROM Fault Log Record

    Writable Data and Configurable Parameters

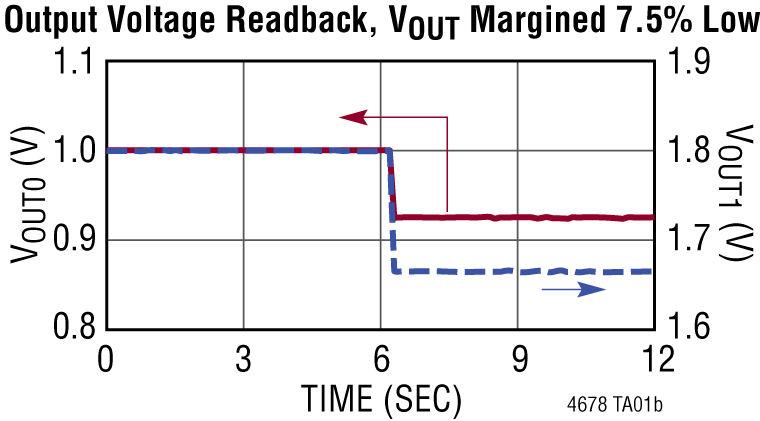

    • Output Voltage, Voltage Sequencing and Margining
    • Digital Soft-Start/Stop Ramp, Program Analog Loop
    • OV/UV/OT, UVLO, Frequency and Phasing
Additional Details
show more Icon

The LTM4678 is a dual 25A or single 50A step-down µModule® (power module) DC/DC regulator featuring remote configurability and telemetry-monitoring of power management parameters over PMBus—an open standard I2C-based digital interface protocol . The LTM4678 is comprised of digitally programmable analog control loops, precision mixed-signal circuitry, EEPROM, power MOSFETs, inductors and supporting components.

The LTM4678’s 2-wire serial interface allows outputs to be margined, tuned and ramped up and down at programmable slew rates with sequencing delay times. True input current sense, output currents and voltages, output power, temperatures, uptime and peak values are readable. Custom configuration of the EEPROM contents is not required. At start-up, output voltages, switching frequency, and channel phase angle assignments can be set by pin-strapping resistors. The LTpowerPlay® GUI and DC1613 USB-to-PMBus converter and demo kits are available.

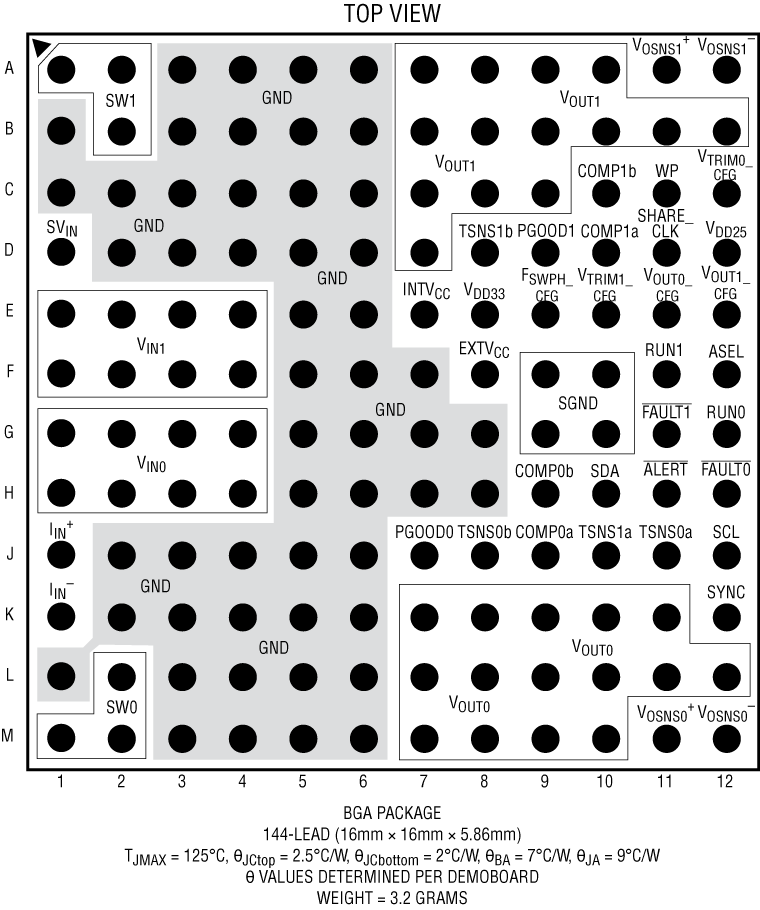

The LTM4678 is offered in a 16mm × 16mm × 5.86mm CoP-BGA package available with SnPb or RoHS compliant terminal finish.

APPLICATIONS

  • System Optimization, Characterization and Data Mining in Prototype, Production and Field Environments
Show More Arrow image
file View Data Sheet (Rev.B)
Documentation View All Documentation
LTspice LTM4678 - ?Module Regulators Download 6.06 KB LTspice LTM4678 Demo Circuit - Dual, High Efficiency, High Density Regulator with I2C/SMBus/PMBus Interface (4.5-16V to 1V & 1.8V @ 25A) Download 8.36 KB
Part Models 3
1ku List Price Starting From $55.89
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTM4678

Documentation

10
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Reliability Data
  • Design Note
  • All
    TickIcon
  • English
  • Japanese
  • Chinese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 05/30/2018
English

LTM4678: Dual 25A or Single 50A μModule Regulator with Digital Power System Management Data Sheet (Rev.B)

Open PDF File

redirect
6.82 M
download

Download PDF

PDF Vector

PDF

UPDATED 05/30/2018
Japanese

LTM4678: デジタル・パワー・システム・マネージメント機能を備えたデュアル25Aまたはシングル50A μModuleレギュレータ データシート (Rev.0)

Open PDF File

redirect
6.42 M
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 06/27/2018
English
DC2552A - Demo Manual (Rev.A) redirect icon

1.62 M

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R583 Reliability Data redirect icon

345.11 K

download

Download PDF

Design Note

6

PDF Vector

HTML

UPDATED 03/01/2019
English
High Efficiency, High Density PSM μModule Regulator with Programmable Compensation redirect icon

PDF Vector

HTML

UPDATED 03/01/2019
Chinese
具可编程补偿功能的高效率、高密度 PSM μModule 稳压器 redirect icon

PDF Vector

HTML

UPDATED 03/01/2019
Japanese
プログラマブルな補償機能を備えた高効率、高密度のPSM μModuleレギュレータ redirect icon

PDF Vector

HTML

UPDATED 11/01/2020
English
Flexible, Dual Output, 6-Phase Buck Controller Drives 12 V to 1.0 V/200 A Core Supply with 90.0% Efficiency redirect icon

PDF Vector

HTML

UPDATED 11/01/2020
Chinese
灵活的双输出6相降压控制器按90.0%的效率将12 V驱动至1.0 V/200 A核心电源 redirect icon

PDF Vector

HTML

UPDATED 11/01/2020
Japanese
柔軟なデュアル出力の6フェーズ降圧コントローラが90.0%の効率で12V～1.0V/200Aコア電源を駆動 redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Technical Documents 5
show more Icon

Data Sheet 1

LTM4678: Dual 25A or Single 50A μModule Regulator with Digital Power System Management Data Sheet (Rev.B)

Reliability Data 1

R583 Reliability Data

User Guide 1

DC2552A - Demo Manual (Rev.A)

Design Note 2

High Efficiency, High Density PSM μModule Regulator with Programmable Compensation
Flexible, Dual Output, 6-Phase Buck Controller Drives 12 V to 1.0 V/200 A Core Supply with 90.0% Efficiency

Device Drivers 1

LTC297x GitHub Linux Driver Source Code

Power Reference Designs 1

Intel Agilex 7 FPGA F-series Transceiver-SoC Development Kit (P-Tile & E-Tile) Power Tree

Analog Dialogue 1

Current Sensing with PMBus Digital Power System Managers—Part 1

Webcast 3

Simplify Power with µModule Regulators
Simplify Power Designs with Micromodule Products
Component on Package uModule DC/DC Regulators - Less Heat, More Power

Video

1

Thumbnail Image

Video

2018-09-21

01:11

Introducing ADI's 4th Generation µModule ® Regulators

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTM4678EY#PBF 144-Lead BGA (16mm × 16mm × 5.86mm) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTM4678IY 144-Lead BGA (16mm × 16mm × 5.86mm) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTM4678IY#PBF 144-Lead BGA (16mm × 16mm × 5.86mm) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Sep 13, 2022

- 22_0193

Laser Top Mark Conversion for uModule COP and TMSV_COP Packages

LTM4678EY#PBF

PRODUCTION

LTM4678IY

PRODUCTION

LTM4678IY#PBF

PRODUCTION

pdf

PCN22_0193_Form

external-icon

xls

Material_Report

Download

Feb 28, 2020

- 20_0123

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM4678EY#PBF

PRODUCTION

LTM4678IY

PRODUCTION

LTM4678IY#PBF

PRODUCTION

pdf

PCN20_0123_Form

external-icon

xls

Material_Report

Download

Test Correlation Report

Other

pdf

Qualification Results Summary

external-icon

Feb 5, 2020

- 20_0127

Supplier Material Change for µModule

LTM4678EY#PBF

PRODUCTION

LTM4678IY

PRODUCTION

LTM4678IY#PBF

PRODUCTION

pdf

PCN20_0127_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

Jul 15, 2019

- 19_0144

Notification of qualification of a new mold compound for the LTM4678 µModule Regulator

LTM4678EY#PBF

PRODUCTION

LTM4678IY

PRODUCTION

LTM4678IY#PBF

PRODUCTION

pdf

PCN19_0144_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Sep 13, 2022

- 22_0193

arrow down

Laser Top Mark Conversion for uModule COP and TMSV_COP Packages

LTM4678EY#PBF

PRODUCTION

LTM4678IY

PRODUCTION

LTM4678IY#PBF

PRODUCTION

pdf

PCN22_0193_Form

external-icon

xls

Material_Report

Download
Feb 28, 2020

- 20_0123

arrow down

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM4678EY#PBF

PRODUCTION

LTM4678IY

PRODUCTION

LTM4678IY#PBF

PRODUCTION

pdf

PCN20_0123_Form

external-icon

xls

Material_Report

Download
Test Correlation Report
Other

pdf

Qualification Results Summary

external-icon
Feb 5, 2020

- 20_0127

arrow down

Supplier Material Change for µModule

LTM4678EY#PBF

PRODUCTION

LTM4678IY

PRODUCTION

LTM4678IY#PBF

PRODUCTION

pdf

PCN20_0127_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon
Jul 15, 2019

- 19_0144

arrow down

Notification of qualification of a new mold compound for the LTM4678 µModule Regulator

LTM4678EY#PBF

PRODUCTION

LTM4678IY

PRODUCTION

LTM4678IY#PBF

PRODUCTION

pdf

PCN19_0144_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

Software & Part Ecosystem

Parts Product Life Cycle Description
LTM4650-1
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Dual 25A or Single 50A µModule Regulator with 0.8% DC and 3% Transient Accuracy

LTM4650
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Dual 25A or Single 50A DC/DC μModule Regulator

LTM4677
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Dual 18A or Single 36A μModule (Power Module) Regulator with Digital Power System Management

LTM4676A
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Dual 13A or Single 26A μModule Regulator with Digital Power System Management

Evaluation Kits 6

reference details image

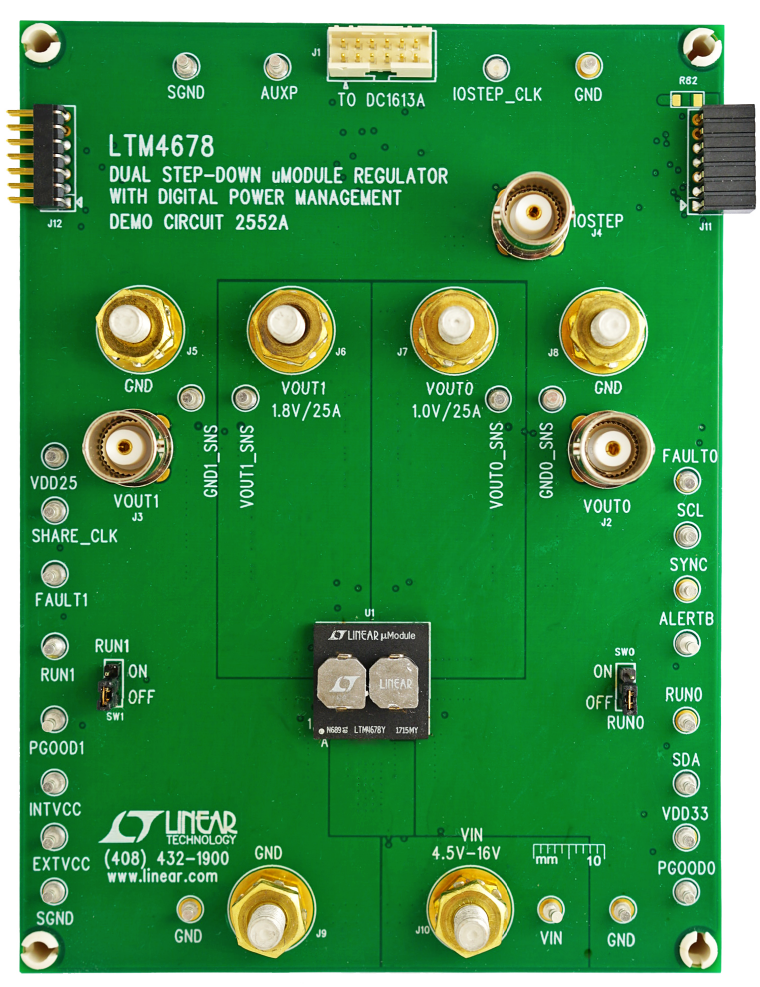

DC2552A

LTM4678 Demo Board | Dual 25A or Single 50A μModule Regulator with Digital Power System Management

zoom

DC2552A

LTM4678 Demo Board | Dual 25A or Single 50A μModule Regulator with Digital Power System Management

download icon

Download

 print icon

Print
DC2552A
LTM4678 Demo Board | Dual 25A or Single 50A μModule Regulator with Digital Power System Management
Buy Now View Details

Product Detail

Demonstration circuit 2552A is a dual-output, high efficiency, high density, µModule regulator with 4.5V to 16V input range. Each output can supply 25A maximum load current. The demo board has a LTM4678 µModule regulator, which is a dual 25A or single 50A step-down regulator with digital power system management. Please see LTM4678 data sheet for more detailed information.

DC2552A powers up to default settings and produce power based on configuration resistors without the need for any serial bus communication. This allows easy evaluation of the DC/DC converter. To fully explore the extensive power system management features of the part, download the GUI software LTpowerPlay® onto your PC and use Analog Devices’ I2C/SMBus/PMBus dongle DC1613A to connect to the board. LTpowerPlay allows the user to reconfigure the part on the fly and store the configuration in EEPROM, view telemetry of voltage, current, temperature and fault status.

Resources

pdf icon

PDF

DC2552A - Schematic Download

93.26 K

pdf icon

ZIP

DC2552A Design Files Download

3.2 M

pdf icon

PDF

DC2552A - Demo Manual (Rev.A) Download

1.62 M

Show More Arrow image
reference details image

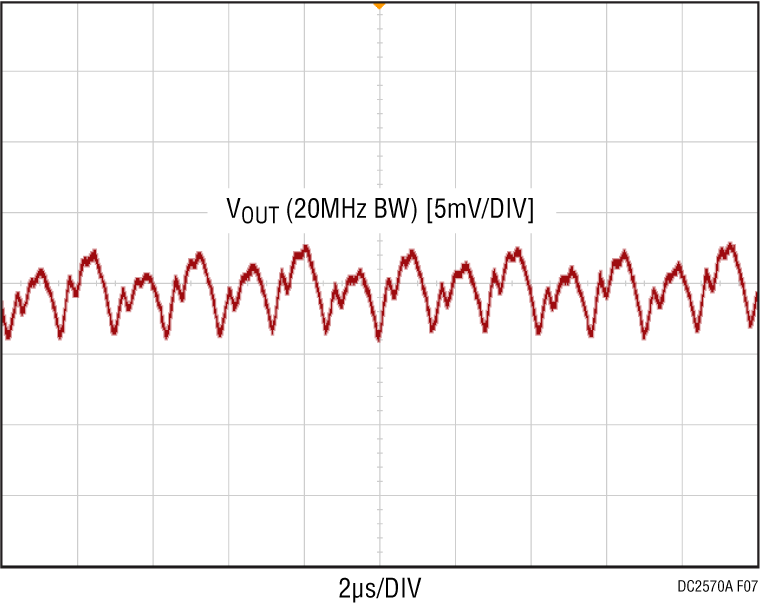

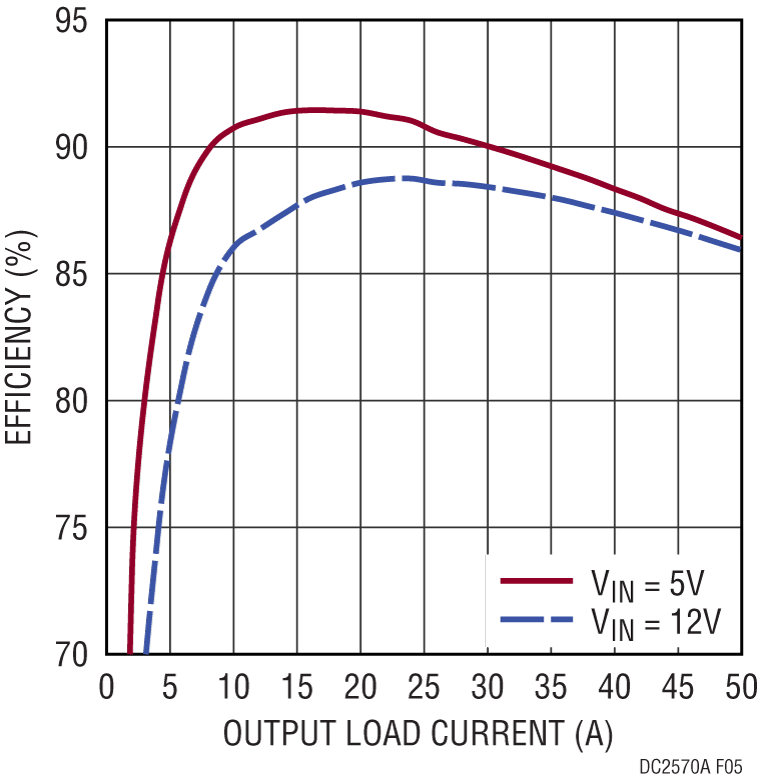

DC2570A

LTM4678 Dual 25A or Single 50A µModule Regulator with Digital Power System Management,1× LTM4678, 50A

zoom

DC2570A

LTM4678 Dual 25A or Single 50A µModule Regulator with Digital Power System Management,1× LTM4678, 50A

download icon

Download

 print icon

Print
DC2570A
LTM4678 Dual 25A or Single 50A µModule Regulator with Digital Power System Management,1× LTM4678, 50A
Buy Now View Details

Product Detail

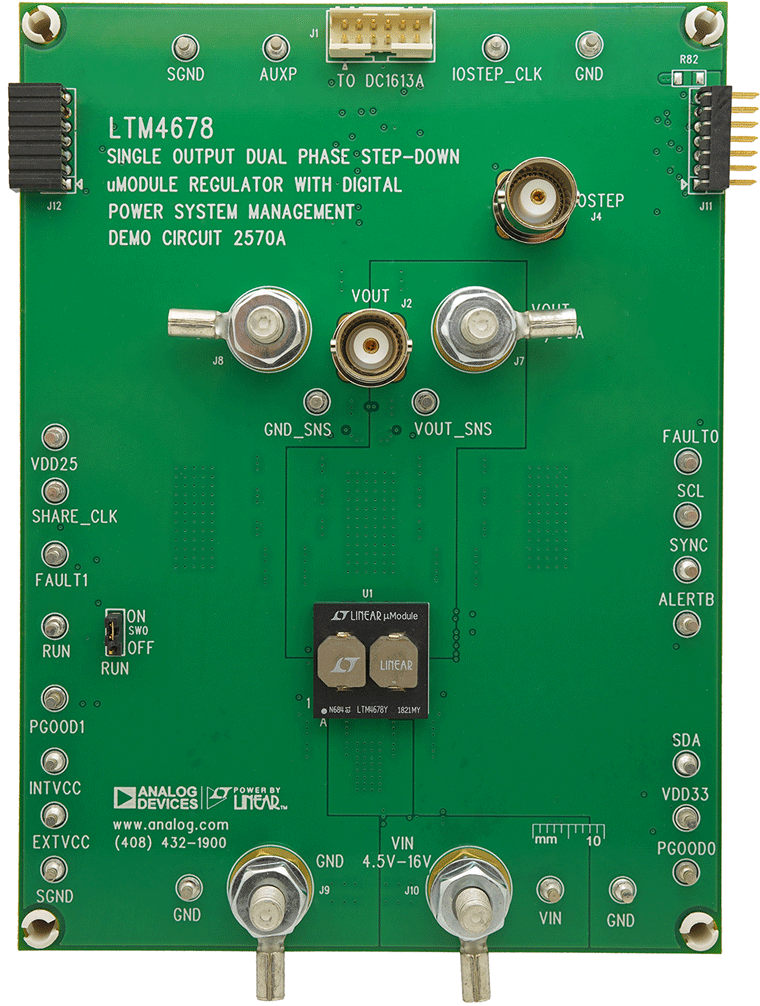

Demonstration circuit 2570A is a dual output, high efficiency, high density, µModule® regulator with 4.5V to 16V input range. The output voltage is adjustable from 0.5V to 33V and it can supply 50A maximum load current. The demo board has a LTM4678 µModule regulator, which is a dual 25A or single 50A step-down regulator with digital power system management. Please see LTM4678 data sheet for more detailed information.

DC2570A powers up to default settings and produces power based on configuration resistors without the need for any serial bus communication. This allows easy evaluation of the DC/DC converter. To fully explore the extensive power system management features of the part, download the GUI software LTpowerPlay onto your PC and use Analog Devices’ I2C/SMBus/PMBus dongle DC1613A to connect to the board. LTpowerPlay allows the user to reconfigure the part on-the-fly and store the configuration in EEPROM, view telemetry of voltage, current, temperature and fault status.

Resources

pdf icon

ZIP

DC2570A - Design Files Download

4.06 M

pdf icon

PDF

DC2570A - Schematic Download

99.26 K

pdf icon

PDF

DC2570A - Demo Manual Download

2.47 M

Show More Arrow image
reference details image

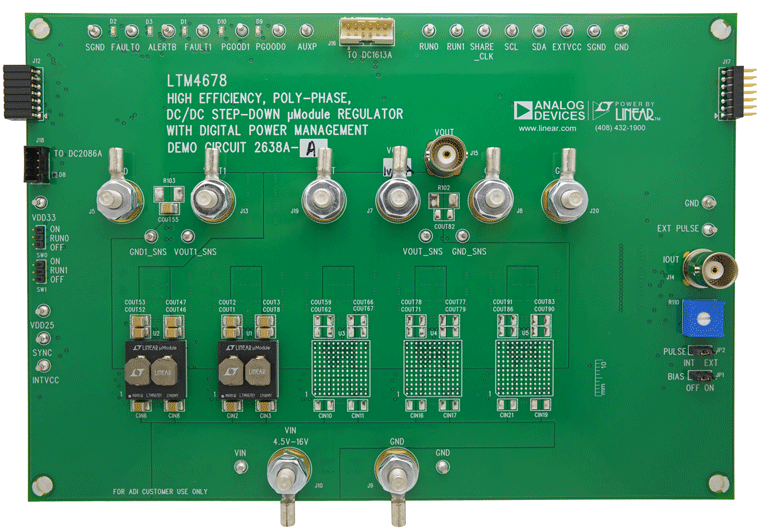

DC2638A-A

LTM4678 Demo Board | Dual 25A or Single 50A μModule Regulator with Digital Power System Management 2x LTM4678; 100A

zoom

DC2638A-A

LTM4678 Demo Board | Dual 25A or Single 50A μModule Regulator with Digital Power System Management 2x LTM4678; 100A

download icon

Download

 print icon

Print
DC2638A-A
LTM4678 Demo Board | Dual 25A or Single 50A μModule Regulator with Digital Power System Management 2x LTM4678; 100A
Buy Now View Details

Product Detail

Demonstration circuit 2638A-A is a high efficiency, high density, μModule regulator with 4.5V to 16V input range. The output voltage is adjustable from 0.5V to 3.3V, and it can supply 100A maximum load current. The demo board has two LTM4678 μModule® regulators, and the LTM4678 is a dual 25A or single 50A step-down regulator with PMBus power system management. Please see LTM4678 data sheet for more detailed information.

DC2638A-A powers up to default settings and produce power based on configuration resistors without the need for any serial bus communication. This allows easy evaluation of the DC/DC converter. To fully explore the extensive power system management features of the part, download the GUI software LTpowerPlay® onto your PC and use ADI’s I2C/SMBus/PMBus dongle DC1613A to connect to the board. LTpowerPlay allows the user to reconfigure the part on-the-fly and store the configuration in EEPROM, view telemetry of voltage, current, temperature and fault status.

GUI Download: The software can be downloaded from: LTpowerPlay.

For more details and instructions of LTpowerPlay, please refer to LTpowerPlay GUI for LTM4678 Quick Start Guide.

Resources

pdf icon

PDF

DC2638A - Schematic Download

189.66 K

pdf icon

ZIP

DC2638A - Design Files Download

11.94 M

pdf icon

PDF

DC2638A-A - Demo Manual (Rev.0) Download

2.14 M

Show More Arrow image
reference details image

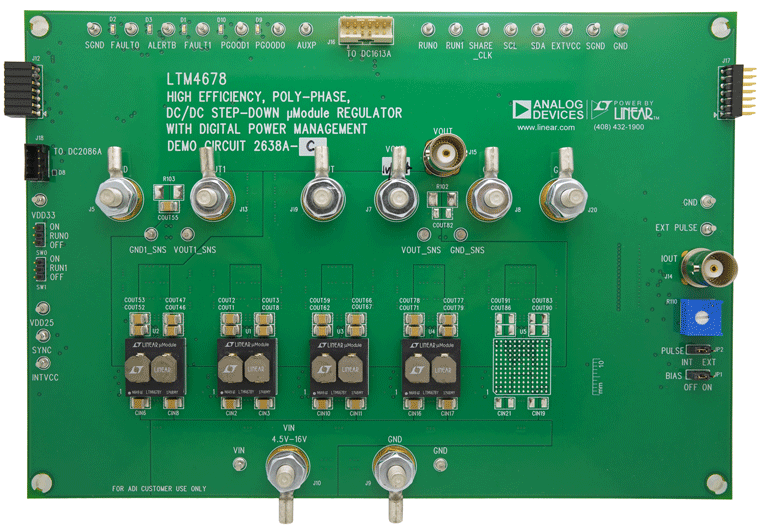

DC2638A-C

LTM4678 Demo Board | Dual 25A or Single 50A μModule Regulator with Digital Power System Management 4x LTM4678; 200A

zoom

DC2638A-C

LTM4678 Demo Board | Dual 25A or Single 50A μModule Regulator with Digital Power System Management 4x LTM4678; 200A

download icon

Download

 print icon

Print
DC2638A-C
LTM4678 Demo Board | Dual 25A or Single 50A μModule Regulator with Digital Power System Management 4x LTM4678; 200A
Buy Now View Details

Product Detail

Demonstration circuit 2638A-C is a high efficiency, high density, μModule regulator with 4.5V to 16V input range. The output voltage is adjustable from 0.5V to 3.3V, and it can supply 200A maximum load current. The demo board has four LTM4678 μModule® regulators, and the LTM4678 is a dual 25A or single 50A step-down regulator with PMBus power system management. Please see LTM4678 data sheet for more detailed information.

DC2638A-C powers up to default settings and produce power based on configuration resistors without the need for any serial bus communication. This allows easy evaluation of the DC/DC converter. To fully explore the extensive power system management features of the part, download the GUI software LTpowerPlay® onto your PC and use ADI’s I2C/SMBus/PMBus dongle DC1613A to connect to the board. LTpowerPlay allows the user to reconfigure the part on-the-fly and store the configuration in EEPROM, view telemetry of voltage, current, temperature and fault status.

GUI Download: The software can be downloaded from: LTpowerPlay.

For more details and instructions of LTpowerPlay, please refer to LTpowerPlay GUI for LTM4678 Quick Start Guide.

Resources

pdf icon

PDF

DC2638A - Schematic Download

189.66 K

pdf icon

ZIP

DC2638A - Design Files Download

11.94 M

pdf icon

PDF

DC2638A-C - Demo Manual (Rev.0) Download

2.52 M

Show More Arrow image
reference details image

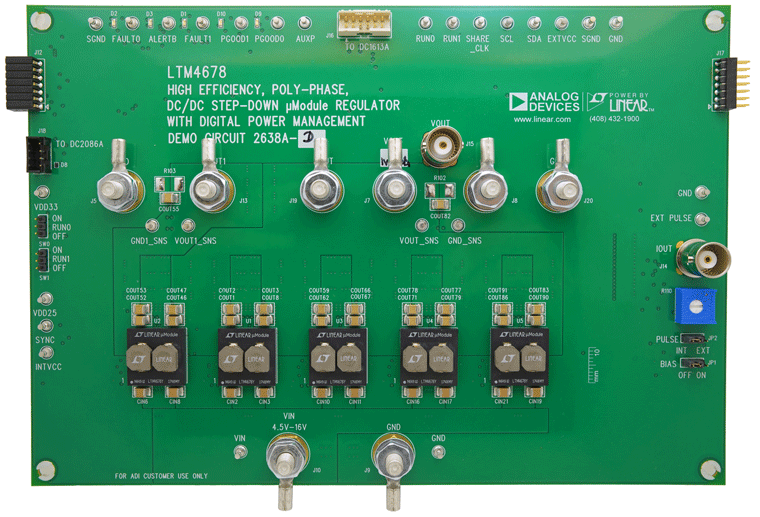

DC2638A-D

LTM4678 Demo Board | Dual 25A or Single 50A μModule Regulator with Digital Power System Management 5x LTM4678; 250A

zoom

DC2638A-D

LTM4678 Demo Board | Dual 25A or Single 50A μModule Regulator with Digital Power System Management 5x LTM4678; 250A

download icon

Download

 print icon

Print
DC2638A-D
LTM4678 Demo Board | Dual 25A or Single 50A μModule Regulator with Digital Power System Management 5x LTM4678; 250A
Buy Now View Details

Product Detail

Demonstration circuit 2638A-D is a high efficiency, high density, μModule regulator with 4.5V to 16V input range. The output voltage is adjustable from 0.5V to 3.3V, and it can supply 250A maximum load current. The demo board has five LTM4678 μModule® regulators, and the LTM4678 is a dual 25A or single 50A step-down regulator with PMBus power system management. Please see LTM4678 data sheet for more detailed information.

DC2638A-D powers up to default settings and produce power based on configuration resistors without the need for any serial bus communication. This allows easy evaluation of the DC/DC converter. To fully explore the extensive power system management features of the part, download the GUI software LTpowerPlay® onto your PC and use ADI’s I2C/SMBus/PMBus dongle DC1613A to connect to the board. LTpowerPlay allows the user to reconfigure the part on-the-fly and store the configuration in EEPROM, view telemetry of voltage, current, temperature and fault status.

GUI Download: The software can be downloaded from: LTpowerPlay.

For more details and instructions of LTpowerPlay, please refer to LTpowerPlay GUI for LTM4678 Quick Start Guide.

Resources

pdf icon

PDF

DC2638A - Schematic Download

189.66 K

pdf icon

ZIP

DC2638A - Design Files Download

11.94 M

pdf icon

PDF

DC2638A-D - Demo Manual (Rev.0) Download

2.56 M

Show More Arrow image
reference details image

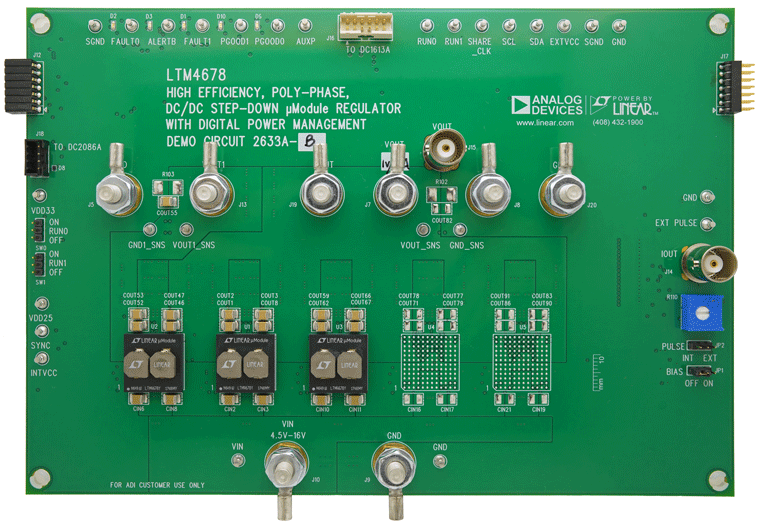

DC2638A-B

LTM4678 Demo Board | Dual 25A or Single 50A μModule Regulator with Digital Power System Management 3x LTM4678; 150A

zoom

DC2638A-B

LTM4678 Demo Board | Dual 25A or Single 50A μModule Regulator with Digital Power System Management 3x LTM4678; 150A

download icon

Download

 print icon

Print
DC2638A-B
LTM4678 Demo Board | Dual 25A or Single 50A μModule Regulator with Digital Power System Management 3x LTM4678; 150A
Buy Now View Details

Product Detail

Demonstration circuit 2638A-B is a high efficiency, high density, μModule regulator with 4.5V to 16V input range. The output voltage is adjustable from 0.5V to 3.3V, and it can supply 150A maximum load current. The demo board has three LTM4678 µModule® regulators, and the LTM4678 is a dual 25A or single 50A step-down regulator with PMBus power system management. Please see LTM4678 data sheet for more detailed information.

DC2638A-B powers up to default settings and produce power based on configuration resistors without the need for any serial bus communication. This allows easy evaluation of the DC/DC converter. To fully explore the extensive power system management features of the part, download the GUI software LTpowerPlay® onto your PC and use ADI’s I2C/SMBus/PMBus dongle DC1613A to connect to the board. LTpowerPlay allows the user to reconfigure the part on-the-fly and store the configuration in EEPROM, view telemetry of voltage, current, temperature and fault status.

GUI Download: The software can be downloaded from: LTpowerPlay.

For more details and instructions of LTpowerPlay, please refer to LTpowerPlay GUI for LTM4678 Quick Start Guide.

Resources

pdf icon

PDF

DC2638A - Schematic Download

189.66 K

pdf icon

ZIP

DC2638A - Design Files Download

11.94 M

pdf icon

PDF

DC2638A-B - Demo Manual (Rev.0) Download

2.17 M

Show More Arrow image

Evaluation Kits6

evaluation kit item images

DC2552A

LTM4678 Demo Board | Dual 25A or Single 50A μModule Regulator with Digital Power System Management
evaluation kit item images

DC2570A

LTM4678 Dual 25A or Single 50A µModule Regulator with Digital Power System Management,1× LTM4678, 50A
evaluation kit item images

DC2638A-A

LTM4678 Demo Board | Dual 25A or Single 50A μModule Regulator with Digital Power System Management 2x LTM4678; 100A
evaluation kit item images

DC2638A-C

LTM4678 Demo Board | Dual 25A or Single 50A μModule Regulator with Digital Power System Management 4x LTM4678; 200A
evaluation kit item images

DC2638A-D

LTM4678 Demo Board | Dual 25A or Single 50A μModule Regulator with Digital Power System Management 5x LTM4678; 250A
evaluation kit item images

DC2638A-B

LTM4678 Demo Board | Dual 25A or Single 50A μModule Regulator with Digital Power System Management 3x LTM4678; 150A

Tools & Simulations 2

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

LTM4678 - ?Module Regulators Download

6.06 K

spice tool Lt Spice

LTM4678 Demo Circuit - Dual, High Efficiency, High Density Regulator with I2C/SMBus/PMBus Interface (4.5-16V to 1V & 1.8V @ 25A) Download

8.36 K

Reference Designs 2

Intel Agilex 7 FPGA F-series Development Kit (P-Tile and E-Tile) Power Tree

Intel Agilex 7 FPGA F-series Development Kit (P-Tile and E-Tile)

Altera FPGA

zoomopens a dialog

Intel Agilex 7 FPGA F-series Development Kit (P-Tile and E-Tile)

Altera FPGA

download icon

Download

 print icon

Print
Intel Agilex 7 FPGA F-series Development Kit (P-Tile and E-Tile)

Circuits from the lab

tooltip Info:Circuits from the lab
Altera FPGA

Features and Benefits

  • Intel Agilex 7 F-Series devices target a wide range of applications across many markets. This series offers transceiver rates up to 58 Gbps, advanced DSP blocks supporting multiple precisions of fixed-point and floating-point operations, and high-performance crypto blocks.
  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications.
  • Our reference designs are supported by an intuitive design tool set and IP.
  • ADI provides supporting documentation including LTpowerPlanner and applicable LTpowerPlay configuration files to enable you to validate the power solution for your application seamlessly. Our team can provide samples and/or evaluation boards for quick validation that can speed time to market in the most complex applications.
  • For a complete list power designs and use cases, please contact your local FAE.
View Detailed Reference Design external link

Part Used 12

LTC3888-1 reference design link

LTC7051 reference design link

LTM4678 reference design link

LTM4686-1 reference design link

LTM4668 reference design link

LTM4623 reference design link

LTM4657 reference design link

LTC7151S reference design link

LTM4608 reference design link

LTC4365 reference design link

LTM4625 reference design link

LTM4643 reference design link

Intel Agilex 7 FPGA F-series Transceiver-SoC Development Kit (P-Tile & E-Tile)

Intel Agilex 7 FPGA F-series Transceiver-SoC Development Kit (P-Tile & E-Tile)

Altera FPGA

zoomopens a dialog

Intel Agilex 7 FPGA F-series Transceiver-SoC Development Kit (P-Tile & E-Tile)

Altera FPGA

download icon

Download

 print icon

Print
Intel Agilex 7 FPGA F-series Transceiver-SoC Development Kit (P-Tile & E-Tile)

Circuits from the lab

tooltip Info:Circuits from the lab
Altera FPGA

Features and Benefits

  • Intel Agilex 7 F-Series devices target a wide range of applications across many markets. This series offers transceiver rates up to 58 Gbps, advanced DSP blocks supporting multiple precisions of fixed-point and floating-point operations, and high-performance crypto blocks.
  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications.
  • Our reference designs are supported by an intuitive design tool set and IP.
  • ADI provides supporting documentation including LTpowerPlanner and applicable LTpowerPlay configuration files to enable you to validate the power solution for your application seamlessly. Our team can provide samples and/or evaluation boards for quick validation that can speed time to market in the most complex applications.
  • For a complete list power designs and use cases, please contact your local FAE.
View Detailed Reference Design external link

Part Used 7

LTC3888-1 reference design link

LTC7051 reference design link

LTM4680 reference design link

LTM4678 reference design link

LTM4677 reference design link

LTM4608A reference design link

LTM4623 reference design link

Reference Designs2

Intel Agilex 7 FPGA F-series Development Kit (P-Tile and E-Tile) Power Tree

Intel Agilex 7 FPGA F-series Development Kit (P-Tile and E-Tile)

Altera FPGA

Intel Agilex 7 FPGA F-series Transceiver-SoC Development Kit (P-Tile & E-Tile)

Intel Agilex 7 FPGA F-series Transceiver-SoC Development Kit (P-Tile & E-Tile)

Altera FPGA

Recently Viewed

Part Details
Documentation
Software & Part Ecosystem
Evaluation Kit
Tools & Simulations
Reference Designs
Latest Discussions
