LTC4359

RECOMMENDED FOR NEW DESIGNS

Ideal Diode Controller with Reverse Input Protection

Data Sheet (Rev. F) Product Selection Table

Part Models: 26
1ku List Price: Starting From $2.54

Viewing:

Overview

Reduces Power Dissipation by Replacing a Power Schottky Diode
Wide Operating Voltage Range: 4V to 80V
Reverse Input Protection to – 40V
Low 9µA Shutdown Current
Low 150μA Operating Current

Smooth Switchover without Oscillation
Controls Single or Back-to-Back N-Channel MOSFETs
Available in 6-Pin (2mm × 3mm) DFN, 8-Lead MSOP and 8-Lead SO Packages
AEC-Q100 Qualified for Automotive Applications

The LTC4359 is a positive high voltage ideal diode controller that drives an external N-channel MOSFET to replace a Schottky diode. It controls the forward-voltage drop across the MOSFET to ensure smooth current delivery without oscillation even at light loads. If a power source fails or is shorted, a fast turn-off minimizes reverse current transients. A shutdown mode is available to reduce the quiescent current to 9μA for load switch and 14µA for ideal diode applications.

When used in high current diode applications, the LTC4359 reduces power consumption, heat dissipation, voltage loss and PC board area. With its wide operating voltage range, the ability to withstand reverse input voltage, and high temperature rating, the LTC4359 satisfies the demanding requirements of both automotive and telecom applications. The LTC4359 also easily ORs power sources in systems with redundant supplies.

Applications

Automotive Battery Protection
Redundant Power Supplies
Supply Holdup
Telecom Infrastructure
Computer Systems/Servers
Solar Systems

Part Models: 26
1ku List Price: Starting From $2.54

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC4359CDCB#TRMPBF	6-Lead DFN (2mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4359CDCB#TRPBF	6-Lead DFN (2mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4359CMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4359CMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4359CS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4359CS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4359HDCB#TRMPBF	6-Lead DFN (2mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4359HDCB#TRPBF	6-Lead DFN (2mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4359HDCB#WTRMPBF	6-Lead DFN (2mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4359HDCB#WTRPBF	6-Lead DFN (2mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4359HMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4359HMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4359HMS8#WPBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4359HMS8#WTRPBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4359HS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4359HS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4359IDCB#TRMPBF	6-Lead DFN (2mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4359IDCB#TRPBF	6-Lead DFN (2mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4359IDCB#WTRMPBF	6-Lead DFN (2mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4359IDCB#WTRPBF	6-Lead DFN (2mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4359IMS8#PBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4359IMS8#TRPBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4359IMS8#WPBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4359IMS8#WTRPBF	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4359IS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4359IS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jul 31, 2020 - 20_0245 Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)
		PCN20_0245_Form Material_Report Delta Qualification Matrix Other Qualification Results Summary
LTC4359CDCB#TRMPBF	PRODUCTION
LTC4359CDCB#TRPBF	PRODUCTION
LTC4359CMS8#PBF	PRODUCTION
LTC4359CMS8#TRPBF	PRODUCTION
LTC4359CS8#PBF	PRODUCTION
LTC4359CS8#TRPBF	PRODUCTION
LTC4359HDCB#TRMPBF	PRODUCTION
LTC4359HDCB#TRPBF	PRODUCTION
LTC4359HMS8#PBF	PRODUCTION
LTC4359HMS8#TRPBF	PRODUCTION
LTC4359HMS8#WPBF	PRODUCTION
LTC4359HMS8#WTRPBF	PRODUCTION
LTC4359HS8#PBF	PRODUCTION
LTC4359HS8#TRPBF	PRODUCTION
LTC4359IDCB#TRMPBF	PRODUCTION
LTC4359IDCB#TRPBF	PRODUCTION
LTC4359IMS8#PBF	PRODUCTION
LTC4359IMS8#TRPBF	PRODUCTION
LTC4359IMS8#WPBF	PRODUCTION
LTC4359IMS8#WTRPBF	PRODUCTION
LTC4359IS8#PBF	PRODUCTION
LTC4359IS8#TRPBF	PRODUCTION
Feb 3, 2020 - 20_0128 Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0128_Form Material_Report
LTC4359CMS8#PBF	PRODUCTION
LTC4359CMS8#TRPBF	PRODUCTION
LTC4359HMS8#PBF	PRODUCTION
LTC4359HMS8#TRPBF	PRODUCTION
LTC4359HMS8#WPBF	PRODUCTION
LTC4359HMS8#WTRPBF	PRODUCTION
LTC4359IMS8#PBF	PRODUCTION
LTC4359IMS8#TRPBF	PRODUCTION
LTC4359IMS8#WPBF	PRODUCTION
LTC4359IMS8#WTRPBF	PRODUCTION
Oct 24, 2024 - 24_0246 Migrating Bottom Trace Code Marking to Top Side Laser Marking for SOIC_N Package
		PCN24_0246_Form Material_Report Marking Comparison Delta Qualification Matrix
LTC4359CS8#PBF	PRODUCTION
LTC4359CS8#TRPBF	PRODUCTION
LTC4359HS8#PBF	PRODUCTION
LTC4359HS8#TRPBF	PRODUCTION
LTC4359IS8#PBF	PRODUCTION
LTC4359IS8#TRPBF	PRODUCTION
Oct 12, 2022 - 22_0255 Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 2 of 2)
		PCN22_0255_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC4359CS8#PBF	PRODUCTION
LTC4359CS8#TRPBF	PRODUCTION
LTC4359HS8#PBF	PRODUCTION
LTC4359HS8#TRPBF	PRODUCTION
LTC4359IS8#PBF	PRODUCTION
LTC4359IS8#TRPBF	PRODUCTION
Jun 16, 2021 - 21_0026 Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM
		PCN21_0026_Form Material_Report Delta Qualification Matrix
LTC4359CS8#PBF	PRODUCTION
LTC4359CS8#TRPBF	PRODUCTION
LTC4359HS8#PBF	PRODUCTION
LTC4359HS8#TRPBF	PRODUCTION
LTC4359IS8#PBF	PRODUCTION
LTC4359IS8#TRPBF	PRODUCTION
Oct 11, 2022 - 22_0244 Epoxy Change from Henkel 8290 to 8290A for MSOP Package
		PCN22_0244_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC4359HMS8#WPBF	PRODUCTION
LTC4359HMS8#WTRPBF	PRODUCTION
Jul 12, 2022 - 22_0157 UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages [With Modification in BOM]
		PCN22_0157_Form Material_Report Qualification Results Summary Delta Qualification Matrix Detailed Parts List
LTC4359HMS8#WPBF	PRODUCTION
LTC4359HMS8#WTRPBF	PRODUCTION
Jun 21, 2022 - 22_0050 UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices
		PCN22_0050_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC4359HMS8#WPBF	PRODUCTION
LTC4359HMS8#WTRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

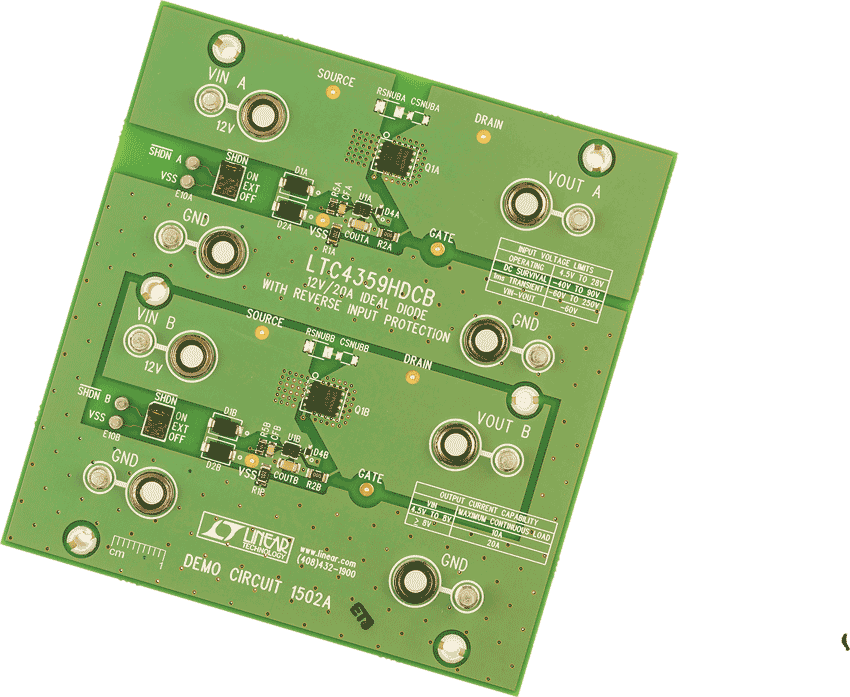

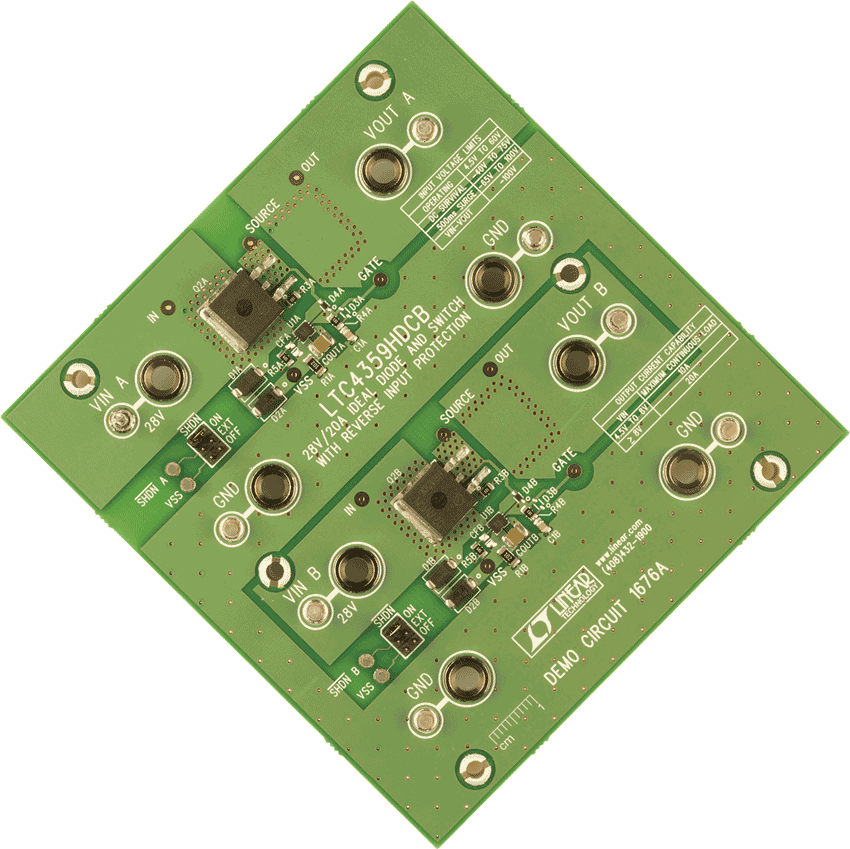

Hardware Ecosystem

Parts	Product Life Cycle	Description
Protection Switches & Controllers 2
LTC4364	RECOMMENDED FOR NEW DESIGNS	Surge Stopper with Ideal Diode
LT4363	RECOMMENDED FOR NEW DESIGNS	High Voltage Surge Stopper with Current Limit

Parts	Product Life Cycle	Description
LTC4357	RECOMMENDED FOR NEW DESIGNS	Positive High Voltage Ideal Diode Controller
LTC4358	RECOMMENDED FOR NEW DESIGNS	5A Ideal Diode

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

LTC4359

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
