LTC4358

5A Ideal Diode

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 8
1ku List Price Starting From $2.55
Features
  • Replaces a Power Schottky Diode
  • Internal 20mΩ N-Channel MOSFET
  • 0.5μs Turn-Off Time Limits Peak Fault Current
  • Operating Voltage Range: 9V to 26.5V
  • Smooth Switchover without Oscillation
  • No Reverse DC Current
  • Available in 14-Pin (4mm × 3mm) DFN and 16-Lead TSSOP Packages
Additional Details
show more Icon

The LTC4358 is a 5A ideal diode that uses an internal 20mΩ N-channel MOSFET to replace a Schottky diode when used in diode-OR and high current diode applications. The LTC4358 reduces power consumption, heat dissipation, and PC board area.

The LTC4358 easily ORs power supplies together to increase total system reliability. In diode-OR applications, the LTC4358 regulates the forward voltage drop across the internal MOSFET to ensure smooth current transfer from one path to the other without oscillation. If the power source fails or is shorted, a fast turnoff minimizes reverse current transients.

Applications

  • N+1 Redundant Power Supplies
  • High Availability Systems
  • Telecom Infrastructure
  • Automotive Systems
Part Models 8
1ku List Price Starting From $2.55

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC4358CDE#PBF
  • HTML
  • HTML
LTC4358CDE#TRPBF
  • HTML
  • HTML
LTC4358CFE#PBF
  • HTML
  • HTML
LTC4358CFE#TRPBF
  • HTML
  • HTML
LTC4358IDE#PBF
  • HTML
  • HTML
LTC4358IDE#TRPBF
  • HTML
  • HTML
LTC4358IFE#PBF
  • HTML
  • HTML
LTC4358IFE#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC4358CFE#PBF

PRODUCTION

LTC4358CFE#TRPBF

PRODUCTION

LTC4358IFE#PBF

PRODUCTION

LTC4358IFE#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC4358CFE#PBF

PRODUCTION

LTC4358CFE#TRPBF

PRODUCTION

LTC4358IFE#PBF

PRODUCTION

LTC4358IFE#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

Tools & Simulations

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

Reference Designs

Reference Designs 2

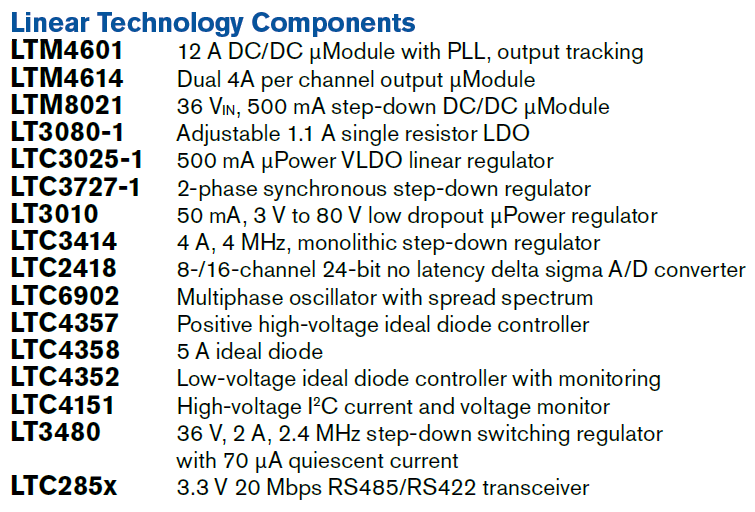

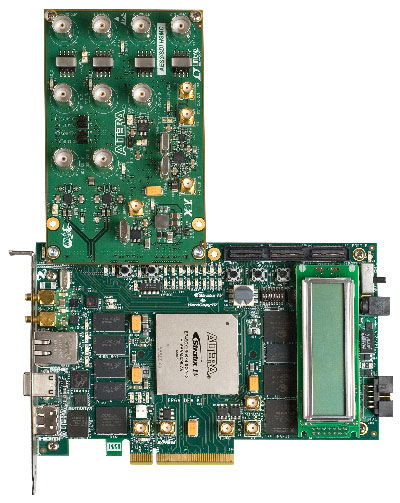

DK-VIDEO-4SGX230N Dev Kit

zoomopens a dialog

altera-audio-video-development-kit-stratix-iv-gx-edition

altera-audio-video-development-kit-stratix-iv-gx-edition

Circuits from the lab

tooltip Info:Circuits from the lab

Features and Benefits

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
View Detailed Reference Design external link
DK-DEV-4SGX230N Dev Kit

zoomopens a dialog

altera-stratix-iv-gx-fpga-development-kit

altera-stratix-iv-gx-fpga-development-kit

Circuits from the lab

tooltip Info:Circuits from the lab

Features and Benefits

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
View Detailed Reference Design external link
