LTM4614

RECOMMENDED FOR NEW DESIGNS

Dual 4A per Channel Low V_IN DC/DC μModule (Power Module) Regulator

Data Sheet Product Selection Table

Part Models: 2
1ku List Price: Starting From $18.24

Viewing:

Part Details

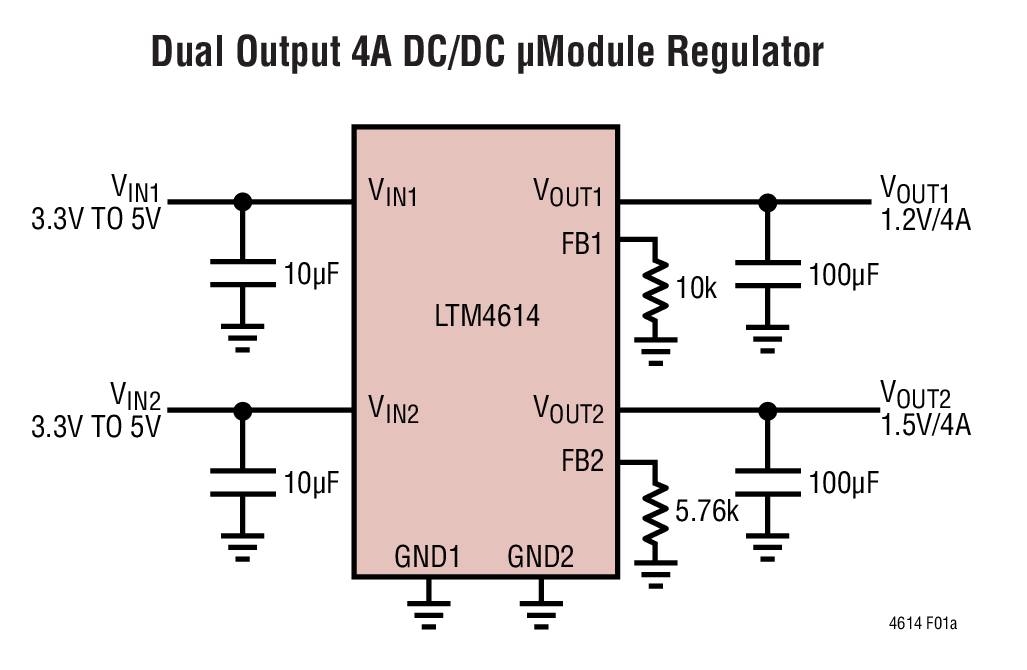

Dual 4A Output Power Supply
Input Voltage Range: 2.375V to 5.5V
4A DC Typical, 5A Peak Output Current Each
0.8V Up to 5V Output Each, Parallelable
±2% Total DC Output Error (0°C ≤ T_J ≤ 125°C)
Output Voltage Tracking

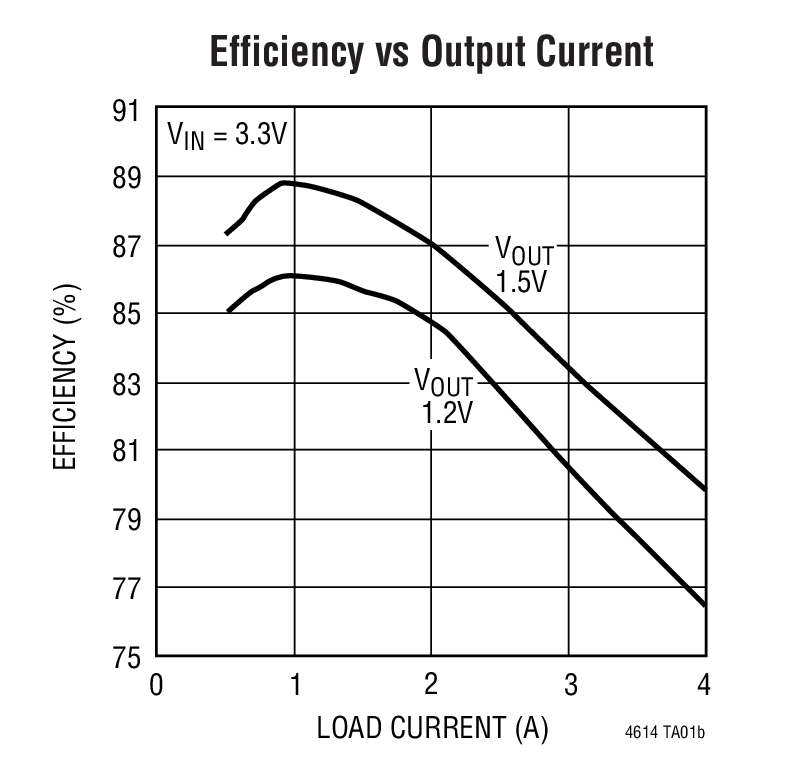

Up to 95% Efficiency
Programmable Soft-Start
Short-Circuit and Overtemperature Protection
Power Good Indicators

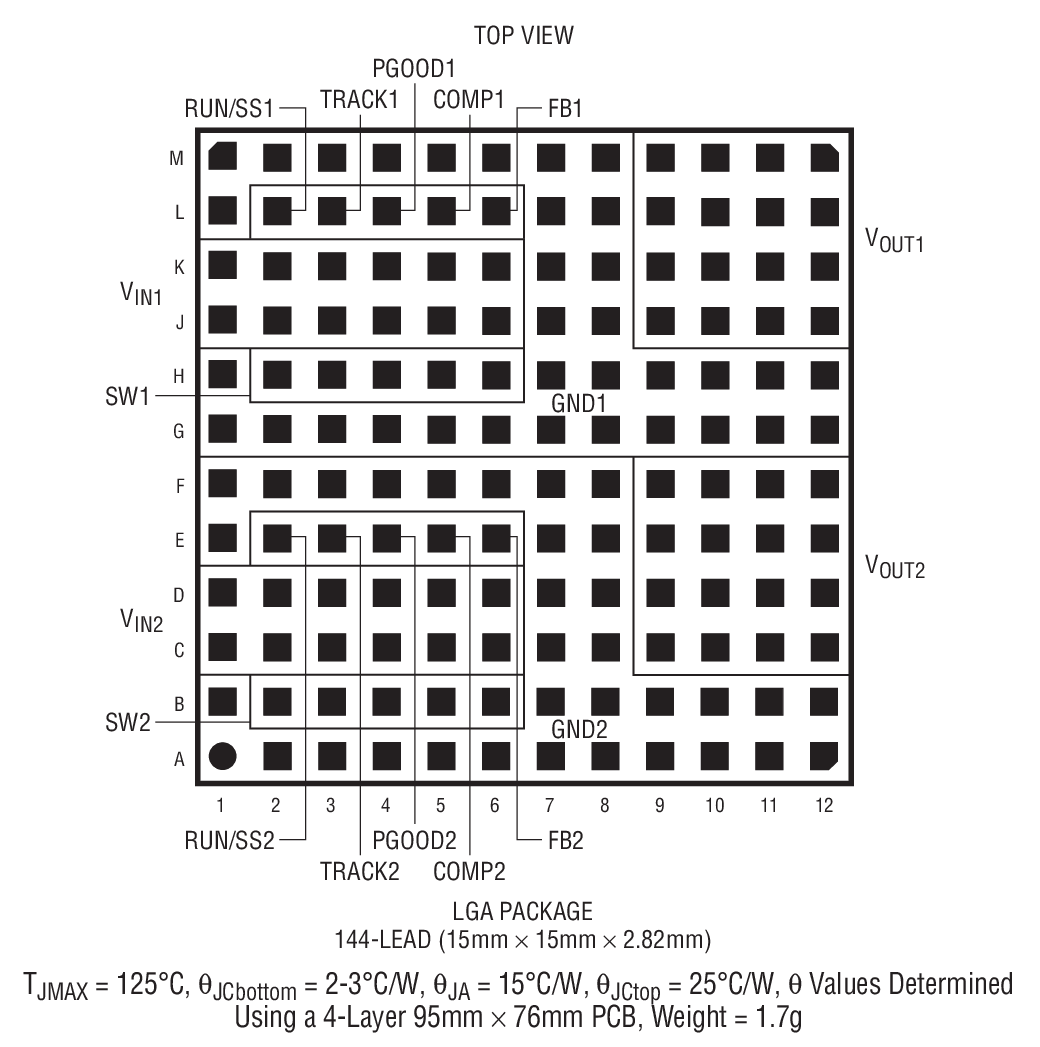

Small and Very Low Profile Package: 15mm × 15mm × 2.82mm

Part Models: 2
1ku List Price: Starting From $18.24

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTM4614EV#PBF	144-Lead LGA (15mm x 15mm x 2.82mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTM4614IV#PBF	144-Lead LGA (15mm x 15mm x 2.82mm)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jul 21, 2021 - 21_0159 Ink Mark to Laser Mark Conversion for µModule
		PCN21_0159_Form Material_Report Delta Qualification Matrix
LTM4614EV#PBF	PRODUCTION
LTM4614IV#PBF	PRODUCTION
Feb 28, 2020 - 20_0123 Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia
		PCN20_0123_Form Material_Report Test Correlation Report Other Qualification Results Summary
LTM4614EV#PBF	PRODUCTION
LTM4614IV#PBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
µModule Buck Regulators 1
LTM4624	RECOMMENDED FOR NEW DESIGNS	14V_IN, 4A Step-Down DC/DC μModule (Power Module) Regulator
Digital Power System Managers 1
LTC2974	RECOMMENDED FOR NEW DESIGNS	4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement
Dual-Supply Monitors 1
LTC2960	RECOMMENDED FOR NEW DESIGNS	36V Nano-Current Two-Input Voltage Monitor
Multiple Output Buck Regulators 2
LTC3880	RECOMMENDED FOR NEW DESIGNS	Dual Output PolyPhase Step-Down DC/DC Controller with Digital Power System Management

LTM4644
LTM4644-1

Quad DC/DC μModule (Power Module) Regulator with Configurable 4A Output Array

Tools & Simulations

LTspice 2

Models for the following parts are available in LTspice:

LTM4614

LTpowerCAD 1

LTM4614 Project - Dual 4A per Channel, Low Vin uModule Regulator (2.4-5.5V to 1.2V @ 4A & 1.8V @ 4A)

Design tools for the following parts are available in LTpowerCAD:

LTM4614

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

LTpowerCAD^® is a power supply design program which selects power stage components, provides detailed power efficiency, shows quick loop Bode plot stability and load transient analysis, and can export to LTspice for simulation.

Evaluation Kits

LTM4614EV Demo Board | Dual µModule Regulator, 2.375V ≤ VIN ≤ 5.5V, VOUT1 = 1.2V at 4A, VOUT2 = 1.8V at 4A

Buy Now View Details

Product Details

Demonstration circuit DC1385A features the LTM4614EV, the high efficiency, high density power module with dual 4A switch mode outputs. In the default configuration, the two outputs share the same input supply, which ranges from 2.375V to 5.5V, however each regulator may have its own input supply simply by removing a resistor. The device is configured for 1.2V and 1.8V outputs. Derating is necessary for certain V_IN, V_OUT, and thermal conditions.

Resources

DC1385A - Demo Manual
2/2/2011

DC1385A - Design File
9/24/2009

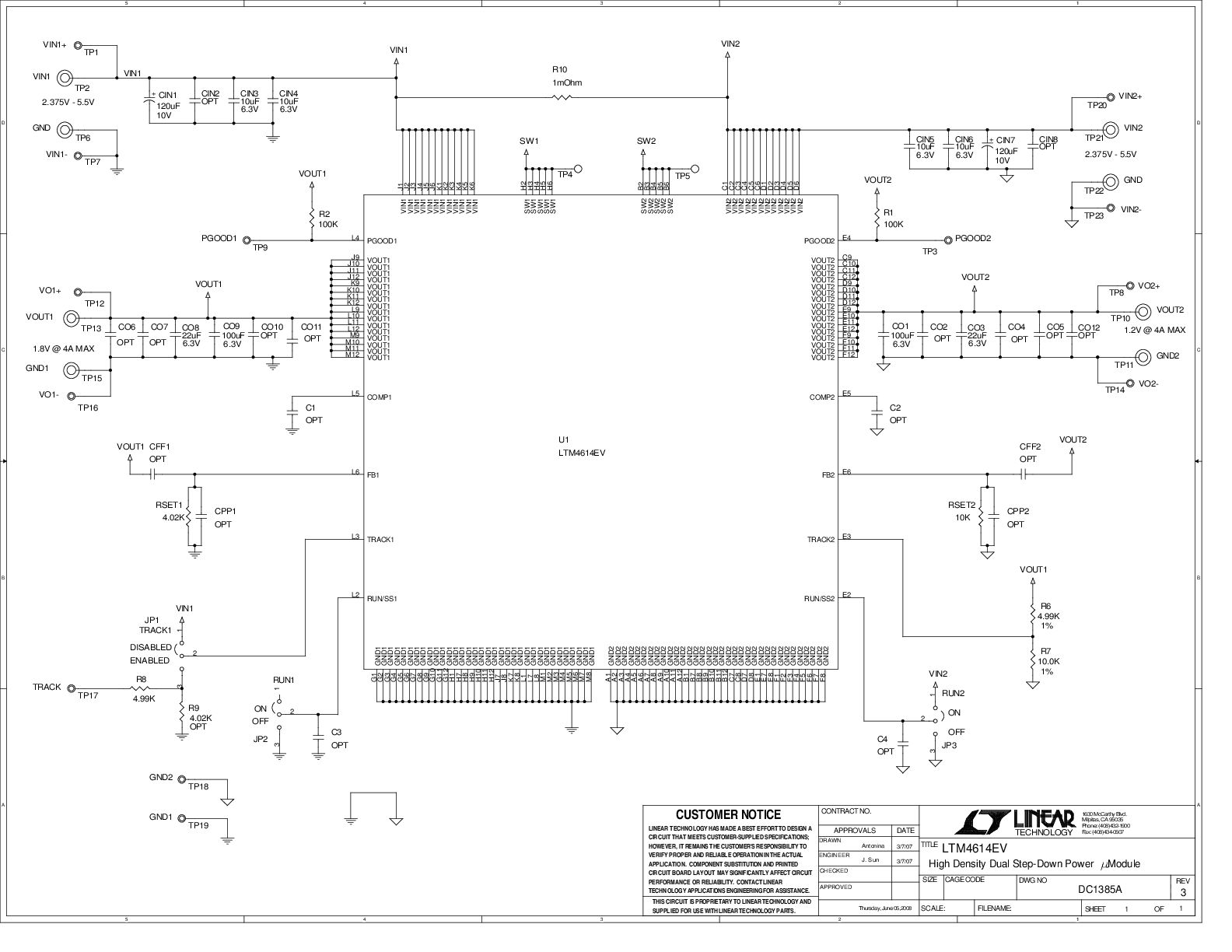

DC1385A - Schematic
9/24/2009

Reference Designs

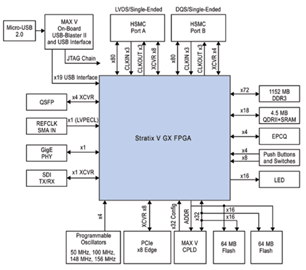

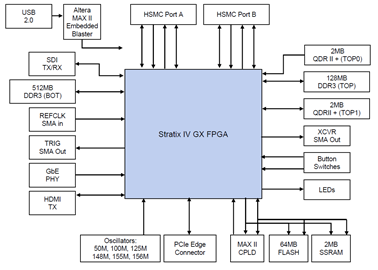

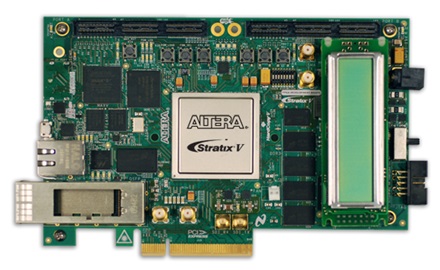

View Detailed Reference Design

Features and Benefits

Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
Our reference designs are supported by an intuitive design tool set and IP
Our team can provide designs for quick prototypes that can speed time to market in the most complex applications

Part Used

LTC3025-1
LTC3025-2
LTC3025-3
LTC3025-4

View Detailed Reference Design

Features and Benefits

Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
Our reference designs are supported by an intuitive design tool set and IP
Our team can provide designs for quick prototypes that can speed time to market in the most complex applications

Part Used

View Detailed Reference Design

Features and Benefits

Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
Our reference designs are supported by an intuitive design tool set and IP
Our team can provide designs for quick prototypes that can speed time to market in the most complex applications

Part Used

LTC3025-1
LTC3025-2
LTC3025-3
LTC3025-4

View Detailed Reference Design

Features and Benefits

Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
Our reference designs are supported by an intuitive design tool set and IP
Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
