LTC3414

4A, 4MHz, Monolithic Synchronous Step-Down Regulator

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Models 6
1ku List Price Starting From $5.58
Features
  • High Efficiency: Up to 95%
  • 4A Output Current
  • Low Quiescent Current: 64µA
  • Low RDS(ON) Internal Switch: 67mΩ
  • Programmable Frequency: 300KHz to 4MHz
  • 2.25V to 5.5V Input Voltage Range
  • ±2% Output Voltage Accuracy
  • 0.8V Reference Allows Low Output Voltage
  • Selectable Forced Continuous/Burst Mode® Operation with Adjustable Burst Clamp
  • Synchronizable Switching Frequency
  • Low Dropout Operation: 100% Duty Cycle
  • Power Good Output Voltage Monitor
  • Overtemperature Protected
  • Available in 20-Lead Exposed TSSOP Package
Additional Details
show more Icon

The LTC3414 is a high efficiency monolithic synchronous, step-down DC/DC converter utilizing a constant frequency, current mode architecture. It operates from an input voltage range of 2.25V to 5.5V and provides a regulated output voltage from 0.8V to 5V while delivering up to 4A of output current. The internal synchronous power switch with 67mΩ on-resistance increases efficiency and eliminates the need for an external Schottky diode. Switching frequency is set by an external resistor or can be synchronized to an external clock. 100% duty cycle provides low dropout operation extending battery life in portable systems. OPTI-LOOP® compensation allows the transient response to be optimized over a wide range of loads and output capacitors.

The LTC3414 can be configured for either Burst Mode operation or forced continuous operation. Forced continuous operation reduces noise and RF interference while Burst Mode operation provides high efficiency by reducing gate charge losses at light loads. In Burst Mode operation, external control of the burst clamp level allows the output voltage ripple to be adjusted according to the requirements of the application.

Applications

  • Point-of-Load Regulation
  • Notebook Computers
  • Portable Instruments
  • Distributed Power Systems
Part Models 6
1ku List Price Starting From $5.58

close icon

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3414EFE#PBF
  • HTML
  • HTML
LTC3414EFE#TRPBF
  • HTML
  • HTML
LTC3414IFE#PBF
  • HTML
  • HTML
LTC3414IFE#TRPBF
  • HTML
  • HTML
LTC3414MPFE#PBF
  • HTML
  • HTML
LTC3414MPFE#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC3414EFE#PBF

PRODUCTION

LTC3414EFE#TRPBF

PRODUCTION

LTC3414IFE#PBF

PRODUCTION

LTC3414IFE#TRPBF

PRODUCTION

LTC3414MPFE#PBF

PRODUCTION

LTC3414MPFE#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 6, 2022

- 22_0068

arrow down

Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL

LTC3414EFE#PBF

PRODUCTION

LTC3414EFE#TRPBF

PRODUCTION

LTC3414IFE#PBF

PRODUCTION

LTC3414IFE#TRPBF

PRODUCTION

LTC3414MPFE#PBF

PRODUCTION

LTC3414MPFE#TRPBF

PRODUCTION

Software & Part Ecosystem

Evaluation Kits 1

reference details image

DC556A

LTC3414EFE Demo Board | 2.5V ≤ VIN ≤ to 5.5V, VOUT = 1.8V/2.5V/3.3V/Adjusted @ 4A

zoom

DC556A

LTC3414EFE Demo Board | 2.5V ≤ VIN ≤ to 5.5V, VOUT = 1.8V/2.5V/3.3V/Adjusted @ 4A

LTC3414EFE Demo Board | 2.5V ≤ VIN ≤ to 5.5V, VOUT = 1.8V/2.5V/3.3V/Adjusted @ 4A

Product Detail

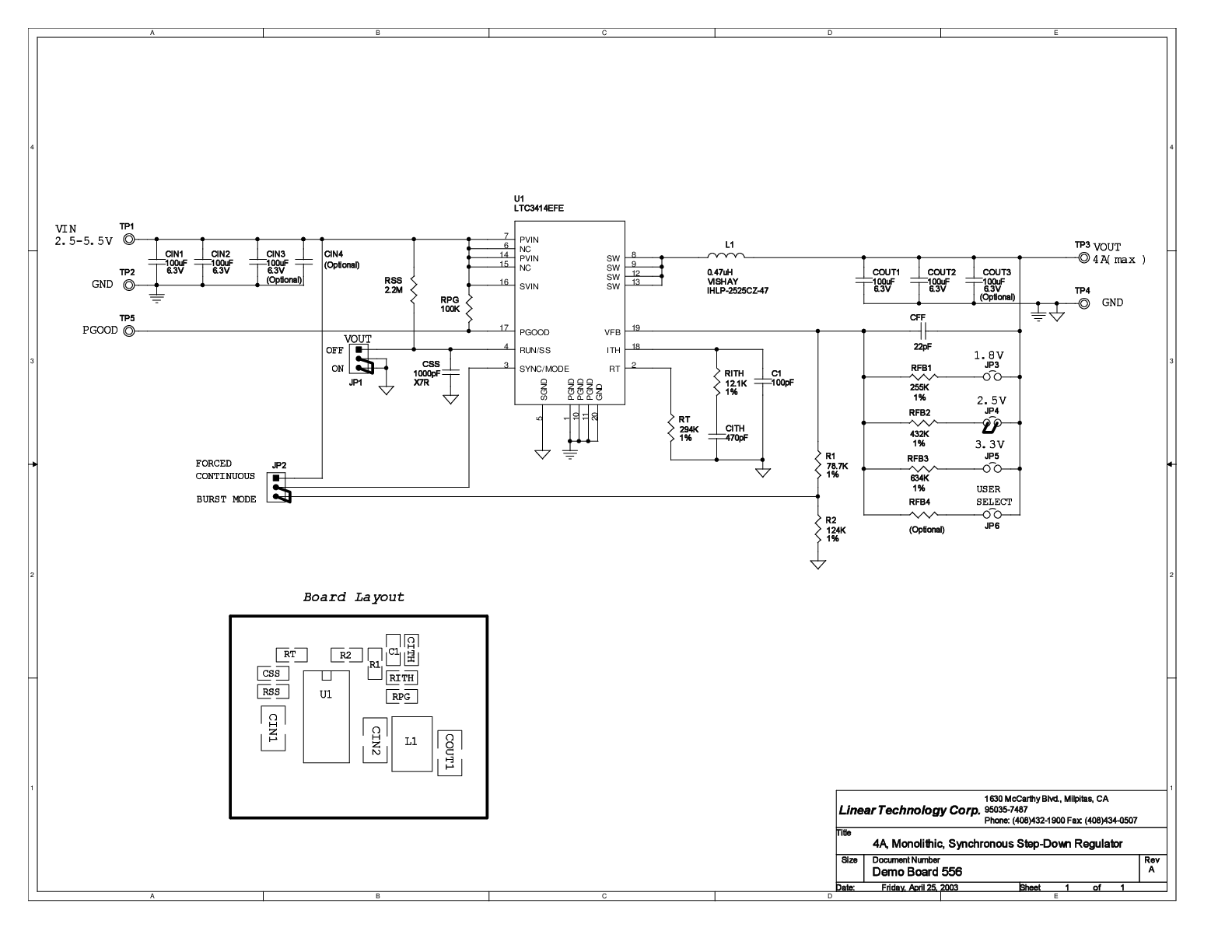

Demonstration circuit 556 is a high efficiency, high frequency buck converter, incorporating the LTC3414 monolithic synchronous regulator. The DC556 has an input voltage range of 2.5V to 5.5V and provides up to 4A of output. The jumper-selectable output voltage can be set at 1.8V, 2.5V, 3.3V or a user-determined value.
