LTC2990

Quad I2C Voltage, Current and Temperature Monitor

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.F)
Documentation View All Documentation
Linduino LTC2990 - DC1338 Linduino.INO File Download 25.00KB Linduino LTC2990 - Linduino.CPP File Download 9.00KB Linduino LTC2990 - Linduino Header File Download 19.00KB Linduino LTC2990, DC2026 Linduino<sup>&reg;</sup> Lowpass Filter Example Code Download 8.00KB
Part Models 4
1ku List Price Starting From $2.72
Features
  • Measures Voltage, Current and Temperature
  • Measures Two Remote Diode Temperatures
  • ±0.5°C Accuracy, 0.06°C Resolution (Typ)
  • ±1°C Internal Temperature Sensor (Typ)
  • 14-Bit ADC Measures Voltage/Current
  • 3V to 5.5V Supply Operating Voltage
  • Four Selectable Addresses
  • Internal 10ppm/°C Voltage Reference
  • 10-Lead MSOP Package
Additional Details
show more Icon

The LTC®2990 is used to monitor system temperatures, voltages and currents. Through the I2C serial interface, the device can be configured to measure many combinations of internal temperature, remote temperature, remote voltage, remote current and internal VCC. The internal 10ppm/°C reference minimizes the number of supporting components and area required. Selectable address and configurable functionality give the LTC2990 flexibility to be incorporated in various systems needing temperature, voltage or current data. The LTC2990 fits well in systems needing sub-millivolt voltage resolution, 1% current measurement and 1°C temperature accuracy
or any combination of the three.

Applications

  • Temperature Measurement
  • Supply Voltage Monitoring
  • Current Measurement
  • Remote Data Acquisition
  • Environmental Monitoring
Show More Arrow image
file View Data Sheet (Rev.F)
Documentation View All Documentation
Linduino LTC2990 - DC1338 Linduino.INO File Download 25.00KB Linduino LTC2990 - Linduino.CPP File Download 9.00KB Linduino LTC2990 - Linduino Header File Download 19.00KB Linduino LTC2990, DC2026 Linduino® Lowpass Filter Example Code Download 8.00KB
Part Models 4
1ku List Price Starting From $2.72
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC2990

Documentation

6
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Reliability Data
  • User Guide
  • Data Sheet
  • Application Note
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 11/14/2016
English

LTC2990: Quad I2C Voltage, Current and Temperature Monitor Data Sheet (Rev.F)

Open PDF File

redirect
296.00K
download

Download PDF

PDF Vector

PDF

UPDATED 09/30/2014
Japanese

LTC2990: I2Cインタフェース搭載のクワッド電圧、電流、温度モニタ データシート (Rev.D)

Open PDF File

redirect
534.00K
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R544 Reliability Data redirect icon

151.77 K

download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 12/04/2012
English
DC1338B - Demo Manual redirect icon

212.00K

download

Download PDF

Application Note

2

PDF Vector

HTML

UPDATED 12/01/2005
English
AN-105: Current Sense Circuit Collection Making Sense of Current redirect icon

PDF Vector

HTML

UPDATED 12/01/2005
Japanese
AN-105: 電流センス（検出）回路集 電流に対するセンスを養う redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

Product Selector Card 5

Power System Manager and Super Sequencer Selection Guide
Temperature Monitors
Precision High Side Current Sense Amplifiers
I2C System Monitor
Power and Thermal Monitoring

3rd Party Solutions 2

MIKROE-4207, Click Board, I2C Extend Click, Featuring LTC4331
MIKROE-4353, Click Board, VCT Monitor Click

Thought Leadership Page 1

Selecting the Right Supplies for Powering 5G Base Stations Components

Video

2

Thumbnail Image

Video

2017-09-18

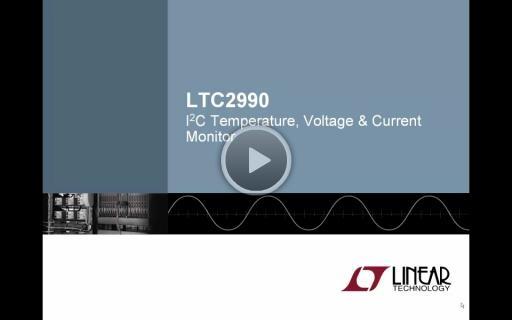

LTC2990 Video Product Brief

Learn More
Thumbnail Image

Video

2017-09-18

Instrumentation Applications for High Accuracy Temperature Monitor Products

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC2990CMS#PBF 10-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2990CMS#TRPBF 10-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2990IMS#PBF 10-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC2990IMS#TRPBF 10-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0004

Epoxy Change from Henkel 8290 to 8290A for MSOP (3)

LTC2990CMS#PBF

PRODUCTION

LTC2990CMS#TRPBF

PRODUCTION

LTC2990IMS#PBF

PRODUCTION

LTC2990IMS#TRPBF

PRODUCTION

pdf

PCN24_0004_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Feb 4, 2020

- 20_0130

Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC

LTC2990CMS#PBF

PRODUCTION

LTC2990CMS#TRPBF

PRODUCTION

LTC2990IMS#PBF

PRODUCTION

LTC2990IMS#TRPBF

PRODUCTION

pdf

PCN20_0130_Form

external-icon

xls

Material_Report

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0004

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP (3)

LTC2990CMS#PBF

PRODUCTION

LTC2990CMS#TRPBF

PRODUCTION

LTC2990IMS#PBF

PRODUCTION

LTC2990IMS#TRPBF

PRODUCTION

pdf

PCN24_0004_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download
Feb 4, 2020

- 20_0130

arrow down

Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC

LTC2990CMS#PBF

PRODUCTION

LTC2990CMS#TRPBF

PRODUCTION

LTC2990IMS#PBF

PRODUCTION

LTC2990IMS#TRPBF

PRODUCTION

pdf

PCN20_0130_Form

external-icon

xls

Material_Report

Download
Software & Part Ecosystem

Software & Part Ecosystem

Parts Product Life Cycle Description

Current Sense Amplifiers1
LTC4151
popup image
Cart

PRODUCTION

High Voltage I2C Current and Voltage Monitor

Digital Temperature Sensors1
LTC2991
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Octal I2C Voltage, Current, and Temperature Monitor

I²C Isolators1
LTM2883
popup image
Cart

PRODUCTION

SPI/Digital or I2C μModule Isolator with Adjustable ±12.5V and 5V Regulated Power

Serial Bus Buffers, Extenders, and Accelerators2
LTC4314
popup image
Cart

PRODUCTION

Pin-Selectable, 4-Channel, 2-Wire Multiplexer with Bus Buffers

LTC4317
popup image
Cart

PRODUCTION

Dual I2C/SMBus Address Translator

Evaluation Kit

Evaluation Kits 1

reference details image

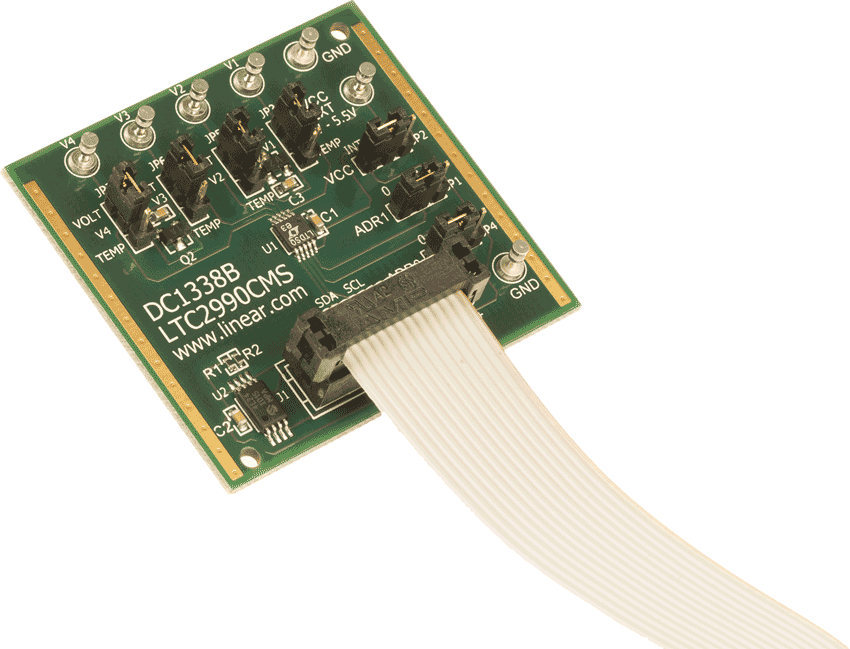

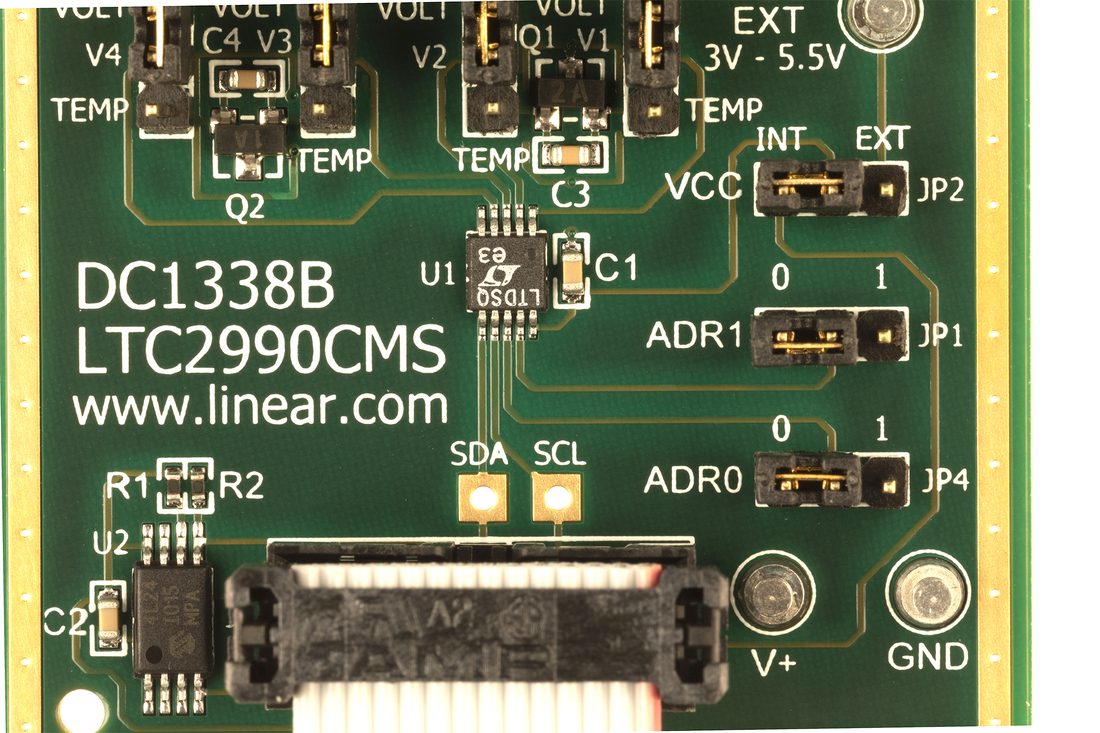

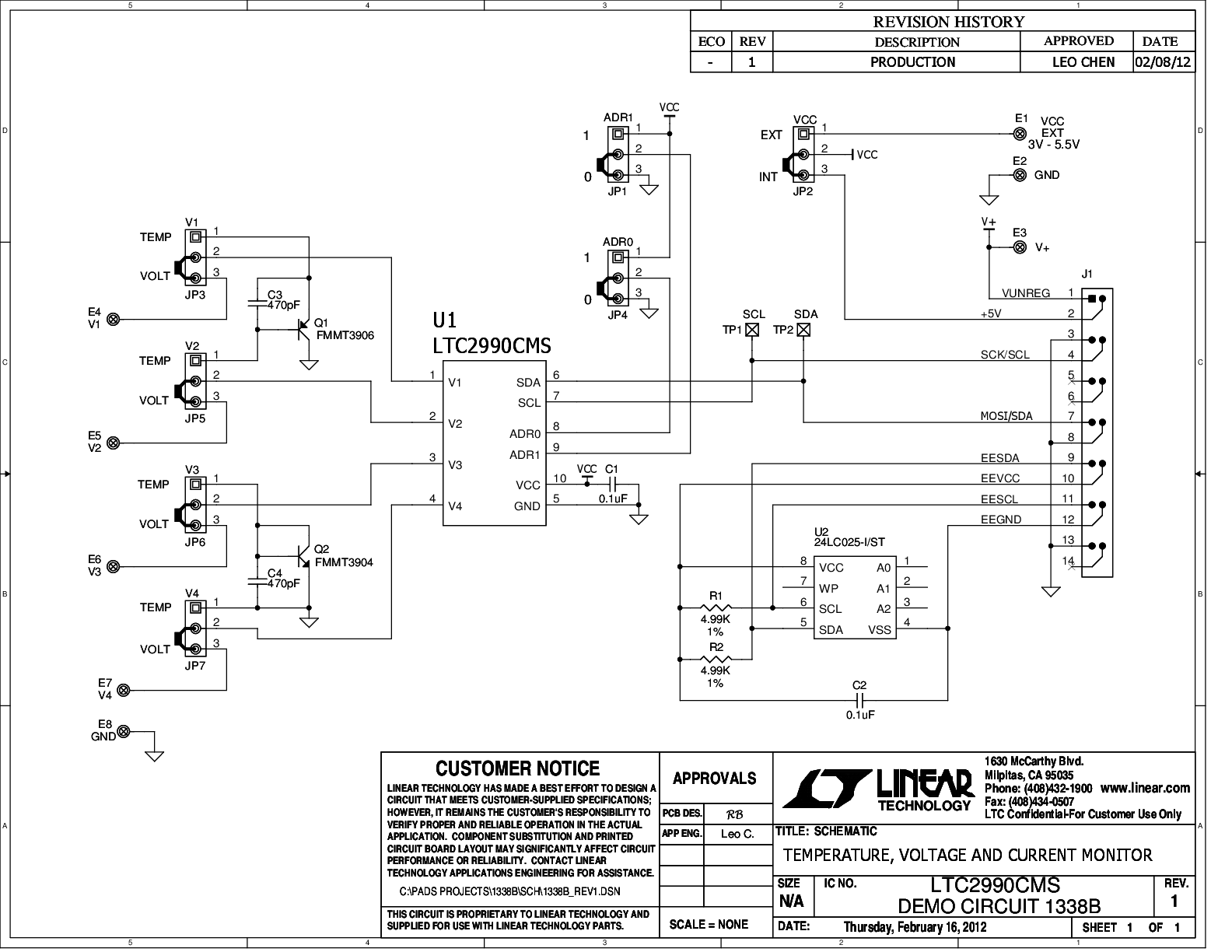

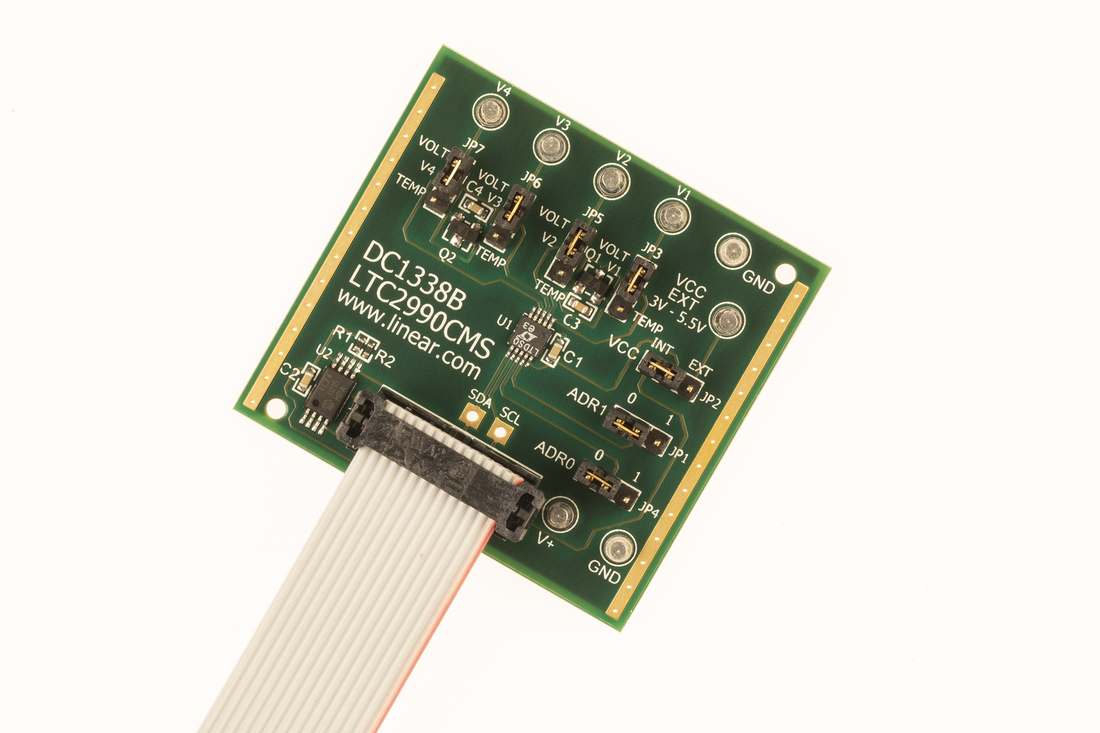

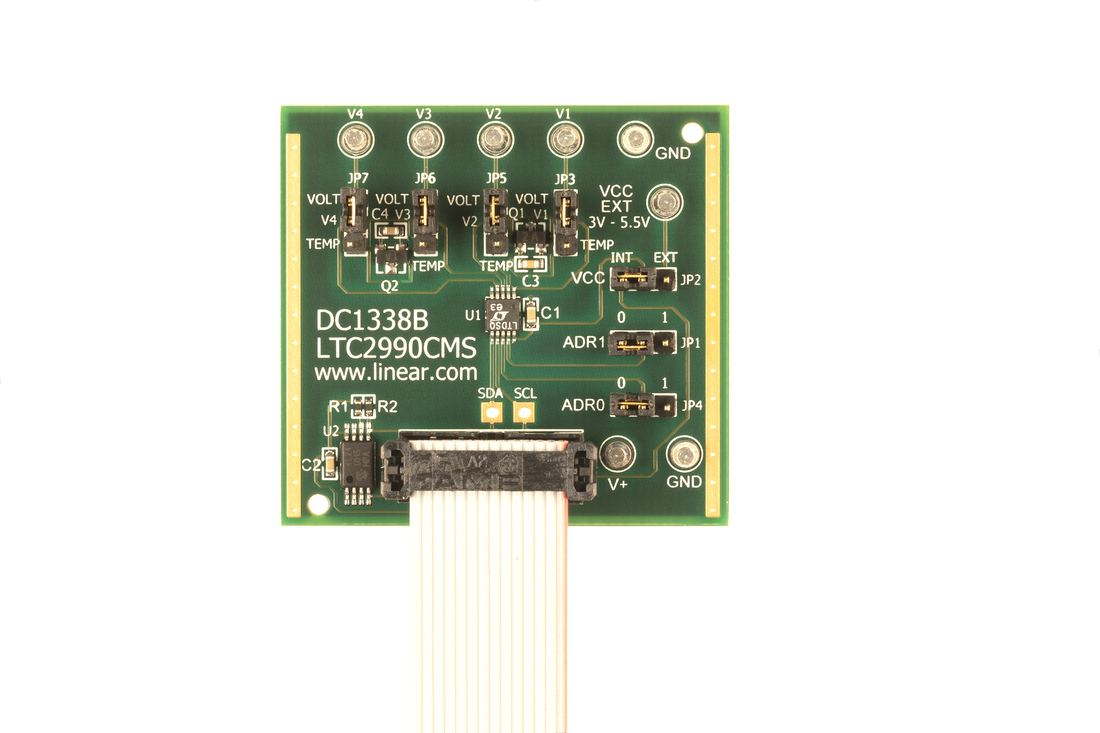

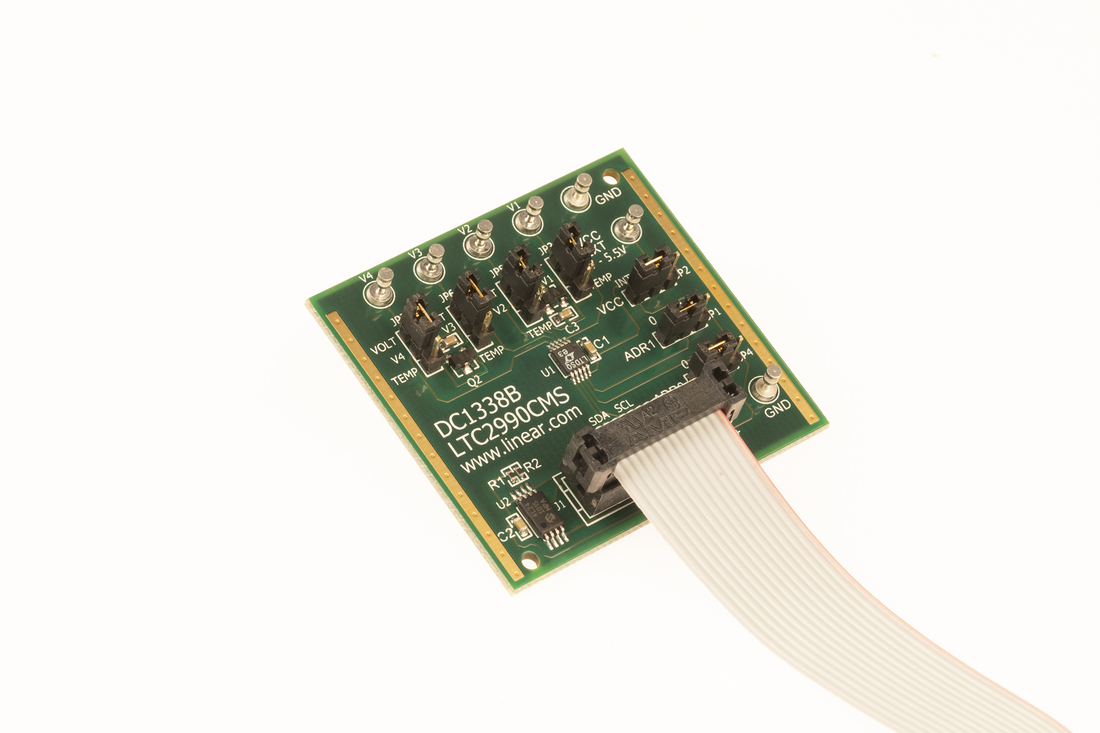

DC1338B
