LT1962

300mA, Low Noise, Micropower LDO Regulators

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LT1962 - LDO Linear Regulators Download 0.75 KB LTspice LT1962 Demo Circuit - Low Noise, µPower LDO Regulator (10V to 2.5V@300mA) Download 2.00KB
Part Models 16
1ku List Price Starting From $2.11
Features
  • Low Noise: 20µVRMS (10Hz to 100kHz)
  • Output Current: 300mA
  • Low Quiescent Current: 30µA
  • Wide Input Voltage Range: 1.8V to 20V
  • Low Dropout Voltage: 270mV
  • Very Low Shutdown Current: < 1µA
  • No Protection Diodes Needed
  • Fixed Output Voltages: 1.5V, 1.8V, 2.5V, 3V, 3.3V, 5V
  • Adjustable Output from 1.22V to 20V
  • Stable with 3.3µF Output Capacitor
  • Stable with Aluminum, Tantalum or Ceramic Capacitors
  • Reverse Battery Protection
  • No Reverse Current
  • Overcurrent and Overtemperature Protected
  • 8-Lead MSOP Package
Additional Details
show more Icon

The LT1962 series are micropower, low noise, low dropout regulators. The devices are capable of supplying 300mA of output current with a dropout voltage of 270mV. Designed for use in battery-powered systems, the low 30µA quiescent current makes them an ideal choice. Quiescent current is well controlled; it does not rise in dropout as it does with many other regulators.

A key feature of the LT1962 regulators is low output noise. With the addition of an external 0.01µF bypass capacitor, output noise drops to 20µVRMS over a 10Hz to 100kHz bandwidth. The LT1962 regulators are stable with output capacitors as low as 3.3µF. Small ceramic capacitors can be used without the series resistance required by other regulators.

Internal protection circuitry includes reverse battery protection, current limiting, thermal limiting and reverse current protection. The parts come in fixed output voltages of 1.5V, 1.8V, 2.5V, 3V, 3.3V and 5V, and as an adjustable device with a 1.22V reference voltage. The LT1962 regulators are available in the 8-lead MSOP package.

Applications

  • Cellular Phones
  • Battery-Powered Systems
  • Noise-Sensitive Instrumentation Systems
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LT1962 - LDO Linear Regulators Download 0.75 KB LTspice LT1962 Demo Circuit - Low Noise, µPower LDO Regulator (10V to 2.5V@300mA) Download 2.00KB
Part Models 16
1ku List Price Starting From $2.11
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LT1962

Documentation

9
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • User Guide
  • Reliability Data
  • Application Note
  • Data Sheet
  • Technical Articles
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 05/12/2015
English

LT1962: 300mA, Low Noise, Micropower LDO Regulators Data Sheet

Open PDF File

redirect
469.00K
download

Download PDF

PDF Vector

PDF

UPDATED 06/22/2015
Japanese

LT1962: 300mA、低ノイズ、マイクロパワーLDOレギュレータ データシート

Open PDF File

redirect
1.00M
download

Download PDF

User Guide

2

PDF Vector

PDF

UPDATED 02/01/2021
English
SCP-LT1962-EVALZ - Demo Manual (Rev.0) redirect icon

1.35 M

download

Download PDF

PDF Vector

PDF

UPDATED 09/24/2009
English
DC339A - Demo Manual redirect icon

196.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/22/2018
English
R386 Reliability Data redirect icon

139.91 K

download

Download PDF

Application Note

1

PDF Vector

PDF

UPDATED 08/20/2007
English
AN83 - Performance Verification of Low Noise, Low Dropout Regulators redirect icon

528.00K

download

Download PDF

Technical Articles

3

PDF Vector

HTML

UPDATED 11/01/2004
English
Power Supply Tracking for Linear Regulators redirect icon

PDF Vector

HTML

UPDATED 11/01/2004
Japanese
リニア・レギュレータの電源トラッキングを実現する redirect icon

PDF Vector

HTML

UPDATED 10/18/2023
Japanese
電源特性がシグナルチェーンの精度を左右する redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LT1962EMS8#PBF 8-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1962EMS8#TRPBF 8-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1962EMS8-1.5#PBF 8-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1962EMS8-1.5#TRPBF 8-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1962EMS8-1.8#PBF 8-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1962EMS8-1.8#TRPBF 8-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1962EMS8-2.5#PBF 8-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1962EMS8-2.5#TRPBF 8-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1962EMS8-3#PBF 8-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1962EMS8-3#TRPBF 8-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1962EMS8-3.3#PBF 8-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1962EMS8-3.3#TRPBF 8-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1962EMS8-5#PBF 8-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1962EMS8-5#TRPBF 8-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1962IMS8#PBF 8-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LT1962IMS8#TRPBF 8-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LT1962EMS8#PBF

PRODUCTION

LT1962EMS8#TRPBF

PRODUCTION

LT1962EMS8-1.5#PBF

PRODUCTION

LT1962EMS8-1.5#TRPBF

PRODUCTION

LT1962EMS8-1.8#PBF

PRODUCTION

LT1962EMS8-1.8#TRPBF

PRODUCTION

LT1962EMS8-2.5#PBF

PRODUCTION

LT1962EMS8-2.5#TRPBF

PRODUCTION

LT1962EMS8-3#PBF

PRODUCTION

LT1962EMS8-3#TRPBF

PRODUCTION

LT1962EMS8-5#PBF

PRODUCTION

LT1962EMS8-5#TRPBF

PRODUCTION

LT1962IMS8#PBF

PRODUCTION

LT1962IMS8#TRPBF

PRODUCTION

pdf

PCN24_0003_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Feb 3, 2020

- 20_0128

Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC

LT1962EMS8#PBF

PRODUCTION

LT1962EMS8#TRPBF

PRODUCTION

LT1962EMS8-1.5#PBF

PRODUCTION

LT1962EMS8-1.5#TRPBF

PRODUCTION

LT1962EMS8-1.8#PBF

PRODUCTION

LT1962EMS8-1.8#TRPBF

PRODUCTION

LT1962EMS8-2.5#PBF

PRODUCTION

LT1962EMS8-2.5#TRPBF

PRODUCTION

LT1962EMS8-3#PBF

PRODUCTION

LT1962EMS8-3#TRPBF

PRODUCTION

LT1962EMS8-3.3#PBF

PRODUCTION

LT1962EMS8-3.3#TRPBF

PRODUCTION

LT1962EMS8-5#PBF

PRODUCTION

LT1962EMS8-5#TRPBF

PRODUCTION

LT1962IMS8#PBF

PRODUCTION

LT1962IMS8#TRPBF

PRODUCTION

pdf

PCN20_0128_Form

external-icon

xls

Material_Report

Download

Oct 11, 2022

- 22_0244

Epoxy Change from Henkel 8290 to 8290A for MSOP Package

LT1962EMS8-3.3#PBF

PRODUCTION

LT1962EMS8-3.3#TRPBF

PRODUCTION

pdf

PCN22_0244_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Jul 12, 2022

- 22_0157

UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages [With Modification in BOM]

LT1962EMS8-3.3#PBF

PRODUCTION

LT1962EMS8-3.3#TRPBF

PRODUCTION

pdf

PCN22_0157_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Detailed Parts List

Jun 21, 2022

- 22_0050

UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices

LT1962EMS8-3.3#PBF

PRODUCTION

LT1962EMS8-3.3#TRPBF

PRODUCTION

pdf

PCN22_0050_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LT1962EMS8#PBF

PRODUCTION

LT1962EMS8#TRPBF

PRODUCTION

LT1962EMS8-1.5#PBF

PRODUCTION

LT1962EMS8-1.5#TRPBF

PRODUCTION

LT1962EMS8-1.8#PBF

PRODUCTION

LT1962EMS8-1.8#TRPBF

PRODUCTION

LT1962EMS8-2.5#PBF

PRODUCTION

LT1962EMS8-2.5#TRPBF

PRODUCTION

LT1962EMS8-3#PBF

PRODUCTION

LT1962EMS8-3#TRPBF

PRODUCTION

LT1962EMS8-5#PBF

PRODUCTION

LT1962EMS8-5#TRPBF

PRODUCTION

LT1962IMS8#PBF

PRODUCTION

LT1962IMS8#TRPBF

PRODUCTION

pdf

PCN24_0003_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download
Feb 3, 2020

- 20_0128

arrow down

Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC

LT1962EMS8#PBF

PRODUCTION

LT1962EMS8#TRPBF

PRODUCTION

LT1962EMS8-1.5#PBF

PRODUCTION

LT1962EMS8-1.5#TRPBF

PRODUCTION

LT1962EMS8-1.8#PBF

PRODUCTION

LT1962EMS8-1.8#TRPBF

PRODUCTION

LT1962EMS8-2.5#PBF

PRODUCTION

LT1962EMS8-2.5#TRPBF

PRODUCTION

LT1962EMS8-3#PBF

PRODUCTION

LT1962EMS8-3#TRPBF

PRODUCTION

LT1962EMS8-3.3#PBF

PRODUCTION

LT1962EMS8-3.3#TRPBF

PRODUCTION

LT1962EMS8-5#PBF

PRODUCTION

LT1962EMS8-5#TRPBF

PRODUCTION

LT1962IMS8#PBF

PRODUCTION

LT1962IMS8#TRPBF

PRODUCTION

pdf

PCN20_0128_Form

external-icon

xls

Material_Report

Download
Oct 11, 2022

- 22_0244

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP Package

LT1962EMS8-3.3#PBF

PRODUCTION

LT1962EMS8-3.3#TRPBF

PRODUCTION

pdf

PCN22_0244_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download
Jul 12, 2022

- 22_0157

arrow down

UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages [With Modification in BOM]

LT1962EMS8-3.3#PBF

PRODUCTION

LT1962EMS8-3.3#TRPBF

PRODUCTION

pdf

PCN22_0157_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download
Detailed Parts List
Jun 21, 2022

- 22_0050

arrow down

UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices

LT1962EMS8-3.3#PBF

PRODUCTION

LT1962EMS8-3.3#TRPBF

PRODUCTION

pdf

PCN22_0050_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Software & Part Ecosystem

Parts Product Life Cycle Description

PowerPath, Ideal Diodes, and Load Switches1
LTC4417
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Prioritized PowerPath™ Controller

Surge Stopper, Overvoltage, and Overcurrent Protection1
LT4363
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

High Voltage Surge Stopper with Current Limit

Parts Product Life Cycle Description
LT3085
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Adjustable 500mA Single Resistor Low Dropout Regulator

Evaluation Kits 2

reference details image

SCP-LT1962-EVALZ

LT1962 Signal Chain Evaluation Board | 300mA Low Noise Positive LDO

zoom

SCP-LT1962-EVALZ

LT1962 Signal Chain Evaluation Board | 300mA Low Noise Positive LDO

download icon

Download

 print icon

Print
SCP-LT1962-EVALZ
LT1962 Signal Chain Evaluation Board | 300mA Low Noise Positive LDO
Buy Now View Details

Product Detail

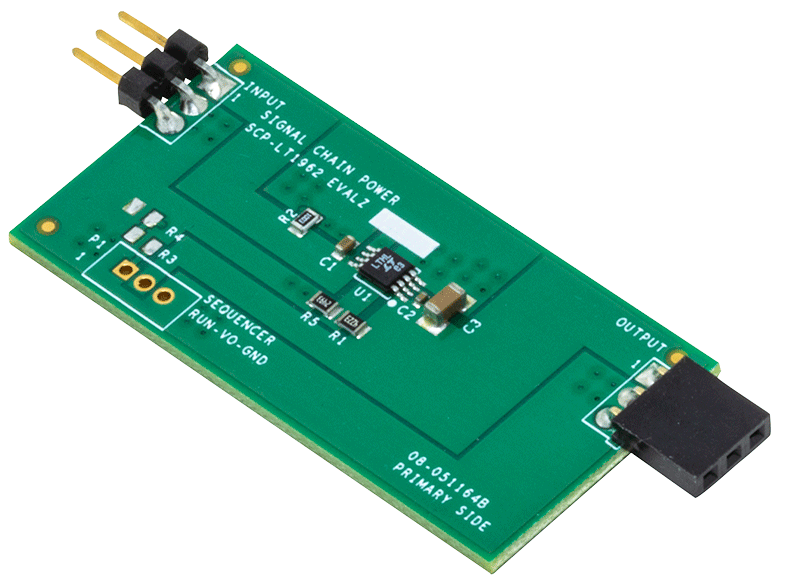

Demonstration circuit SCP-LT1962-EVALZ is a 20V, 300mA Low Dropout (LDO) regulator designed to allow low noise operation in noise sensitive circuits. It is easily configured for a wide output range and can provide extremely quiet operation with its high PSRR.

Like all boards in the Signal Chain Power series, this board is designed to be easily plugged into other SCP boards to form a complete signal chain power system, enabling fast evaluation of low power signal chains. To evaluate this board, some universal SCP hardware is required, namely:

  • SCP-INPUT-EVALZ
  • SCP-OUTPUT-EVALZ
  • SCP-1X5BKOUT-EVALZ
  • SCP-THRUBRD-EVALZ
  • SCP-FILTER-EVALZ
  • SCP-1X2BKOUT-EVALZ
  • SCP-5X1-EVALZ



To properly evaluate SCP series demo boards, you will need the SCP Configurator companion software. SCP Configurator can help you choose the right board and topology for your design.

Note that the Demo Manual does not cover details important to the operation and configuration regarding the LT1962. Please refer to the LT1962 data sheet for a complete description of the part.

Resources

pdf icon

PDF

SCP-LT1962-EVALZ - Demo Manual (Rev.0) Download

1.35 M

pdf icon

ZIP

SCP-LT1962-EVALZ - Design Files Download

2.2 M

pdf icon

PDF

SCP-LT1962-EVALZ - Schematic Download

45 K

Show More Arrow image
reference details image

DC339A-B

LT1962EMS8 Demo Board | Low Noise LDO Regulator, 2.3V ≤ VIN ≤ 20V, VOUT = 1.22/2.5/3.0/3.3/5VOUT @ 300mA

zoom

DC339A-B

LT1962EMS8 Demo Board | Low Noise LDO Regulator, 2.3V ≤ VIN ≤ 20V, VOUT = 1.22/2.5/3.0/3.3/5VOUT @ 300mA

download icon

Download

 print icon

Print
DC339A-B
LT1962EMS8 Demo Board | Low Noise LDO Regulator, 2.3V ≤ VIN ≤ 20V, VOUT = 1.22/2.5/3.0/3.3/5VOUT @ 300mA
Buy Now View Details

Product Detail

Demonstration circuit DC339-B is a low noise micropower voltage regulator using the 300mA output current LT1962 linear regulator in an 8-lead MSOP package. The demo board has an input voltage range from 2.3V to 20V and a jumper-selectable output votlage that can be set to 1.22V, 2.5V, 3.0V, 3.3V, 5V or a user-defined value. The LT1962's low 20µVRMS (10Hz to 100kHz bandwidth) output noise and low 30µA quiescent current make the device ideal for voltage-controlled oscillators, RF power supplies and local regulators in larger systems.

Resources

pdf icon

PDF

DC339A - Schematic Download

12.00K

pdf icon

PDF

DC339A - Demo Manual Download

196.00K

pdf icon

ZIP

DC339A - Design File Download

243.00K

Show More Arrow image

Evaluation Kits2

evaluation kit item images

SCP-LT1962-EVALZ

LT1962 Signal Chain Evaluation Board | 300mA Low Noise Positive LDO
evaluation kit item images

DC339A-B

LT1962EMS8 Demo Board | Low Noise LDO Regulator, 2.3V ≤ VIN ≤ 20V, VOUT = 1.22/2.5/3.0/3.3/5VOUT @ 300mA

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

LT1962 - LDO Linear Regulators Download

0.75 K

spice tool Lt Spice

LT1962 Demo Circuit - Low Noise, µPower LDO Regulator (10V to 2.5V@300mA) Download

2.00K

Reference Designs 1

MAX 10 NEEK Dev Kit

MAX 10 NEEK Development Kit

zoomopens a dialog

MAX 10 NEEK Development Kit

download icon

Download

 print icon

Print
MAX 10 NEEK Development Kit

Circuits from the lab

tooltip Info:Circuits from the lab

Features and Benefits

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
View Detailed Reference Design external link

Part Used 6

LTC2990 reference design link

LT1962 reference design link

LT3080 reference design link

LT3022 reference design link

LT3030 reference design link

LTC3612 reference design link

Reference Designs1

MAX 10 NEEK Dev Kit

MAX 10 NEEK Development Kit

Recently Viewed

Part Details
Documentation
Software & Part Ecosystem
Evaluation Kit
Tools & Simulations
Reference Designs
Latest Discussions
