LTC3129-1

15V, 200mA Synchronous Buck-Boost DC/DC Converter with 1.3μA Quiescent Current

Show More showmore-icon

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LTC3129-1 Demo Circuit - µPower, Synchronous Buck-Boost Converter (2.4-15V to 5V @ 200mA) Download 2.65 KB LTspice LTC3129-1 - Buck-Boost Regulators Download 1.64 KB
Part Models 7
1ku List Price Starting From $3.54
Features
  • Regulates VOUT Above, Below or Equal to VIN
  • Wide VIN Range: 2.42V to 15V, 1.92V to 15V After Start-Up (Bootstrapped)
  • Fixed Output Voltage with Eight User-Selectable Settings from 2.5V to 15V
  • 200mA Output Current in Buck Mode
  • Single Inductor
  • 1.3μA Quiescent Current
  • Programmable Maximum Power Point Control
  • 1.2MHz Ultralow Noise PWM
  • Current Mode Control
  • Pin Selectable Burst Mode® Operation
  • Up to 95% Efficiency
  • Accurate RUN Pin Threshold
  • Power Good Indicator
  • 10nA Shutdown Current
  • Thermally Enhanced 3mm × 3mm QFN and 16-Lead MSOP Packages
Additional Details
show more Icon

The LTC3129-1 is a high efficiency, 200mA buck-boost DC/DC converter with a wide VIN and VOUT range. It includes an accurate RUN pin threshold to allow predictable regulator turn-on and a maximum power point control (MPPC) capability that ensures maximum power extraction from non-ideal power sources such as photovoltaic panels.

The LTC3129-1 employs an ultralow noise, 1.2MHz PWM switching architecture that minimizes solution footprint by allowing the use of tiny, low profile inductors and ceramic capacitors. Built-in loop compensation and soft-start simplify the design. For high efficiency operation at light loads, automatic Burst Mode operation can be selected, reducing the quiescent current to just 1.3μA. To further reduce part count and improve light load efficiency, the LTC3129-1 includes an internal voltage divider to provide eight selectable fixed output voltages.

Additional features include a power good output, less than 10nA of shutdown current and thermal shutdown.

The LTC3129-1 is available in thermally enhanced 3mm × 3mm QFN and 16-lead MSOP packages. For an adjustable output voltage, see the functionally equivalent LTC3129.

Output Voltage
LTC3129 Adjustable 1.4V to 15.75V via resistor divider
LTC3129-1 8 pin programmable output voltages from 2.5V to 15V


Applications

  • Industrial Wireless Sensor Nodes
  • Post-Regulator for Harvested Energy
  • Solar Panel Post-Regulator/Charger
  • Intrinsically Safe Power Supplies
  • Wireless Microphones
  • Avionics-Grade Wireless Headsets
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LTC3129-1 Demo Circuit - µPower, Synchronous Buck-Boost Converter (2.4-15V to 5V @ 200mA) Download 2.65 KB LTspice LTC3129-1 - Buck-Boost Regulators Download 1.64 KB
Part Models 7
1ku List Price Starting From $3.54
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LTC3129-1

Documentation

4
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Reliability Data
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 10/29/2015
English

LTC3129-1: 15V, 200mA Synchronous Buck-Boost DC/DC Converter with 1.3μA Quiescent Current Data Sheet

Open PDF File

redirect
1.00M
download

Download PDF

PDF Vector

PDF

UPDATED 01/07/2015
Japanese

LTC3129-1: 静止電流が1.3μAの15V、200mA同期整流式昇降圧DC/DCコンバータ データシート

Open PDF File

redirect
0.00M
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 06/05/2013
English
DC1923A - Demo Manual redirect icon

334.00K

download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 03/26/2018
English
R526 Reliability Data redirect icon

365.77 K

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Solutions Bulletin & Brochure 1

15V Sync Buck-Boost, IQ=1.3μA

3rd Party Solutions 1

MIKROE-2806, Click Board, Buck -Boost Click; Featuring LTC3129-1

Video

1

Thumbnail Image

Video

2017-09-18

LTC3129 Video Product Brief

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3129EMSE-1#PBF 16-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3129EMSE-1#TRPBF 16-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3129EUD-1#PBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3129EUD-1#TRPBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3129IMSE-1#TRPBF 16-Lead MSOP w/ EP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3129IUD-1#PBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
LTC3129IUD-1#TRPBF 16-Lead QFN (3mm x 3mm x 0.75mm w/ EP) external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LTC3129EMSE-1#PBF

PRODUCTION

LTC3129EMSE-1#TRPBF

PRODUCTION

LTC3129IMSE-1#TRPBF

PRODUCTION

pdf

PCN24_0003_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download

Feb 4, 2020

- 20_0132

Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC

LTC3129EMSE-1#PBF

PRODUCTION

LTC3129EMSE-1#TRPBF

PRODUCTION

LTC3129IMSE-1#TRPBF

PRODUCTION

pdf

PCN20_0132_Form

external-icon

xls

Material_Report

Download

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0003

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)

LTC3129EMSE-1#PBF

PRODUCTION

LTC3129EMSE-1#TRPBF

PRODUCTION

LTC3129IMSE-1#TRPBF

PRODUCTION

pdf

PCN24_0003_Form

external-icon

xls

Material_Report

Download

pdf

Qualification Results Summary

external-icon

xlsm

Delta Qualification Matrix

Download
Feb 4, 2020

- 20_0132

arrow down

Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC

LTC3129EMSE-1#PBF

PRODUCTION

LTC3129EMSE-1#TRPBF

PRODUCTION

LTC3129IMSE-1#TRPBF

PRODUCTION

pdf

PCN20_0132_Form

external-icon

xls

Material_Report

Download

Software & Part Ecosystem

Parts Product Life Cycle Description

PowerPath, Ideal Diodes, and Load Switches1
LTC4417
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Prioritized PowerPath™ Controller

Surge Stopper, Overvoltage, and Overcurrent Protection1
LTC4365
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Overvoltage, Undervoltage and Reverse Supply Protection Controller

Evaluation Kits 1

reference details image

DC1923A

LTC3129-1 Demo Board | 2.42V to 15V Input, 5VOUT at 200mA

zoom

DC1923A

LTC3129-1 Demo Board | 2.42V to 15V Input, 5VOUT at 200mA

download icon

Download

 print icon

Print
DC1923A
LTC3129-1 Demo Board | 2.42V to 15V Input, 5VOUT at 200mA
Buy Now View Details

Product Detail

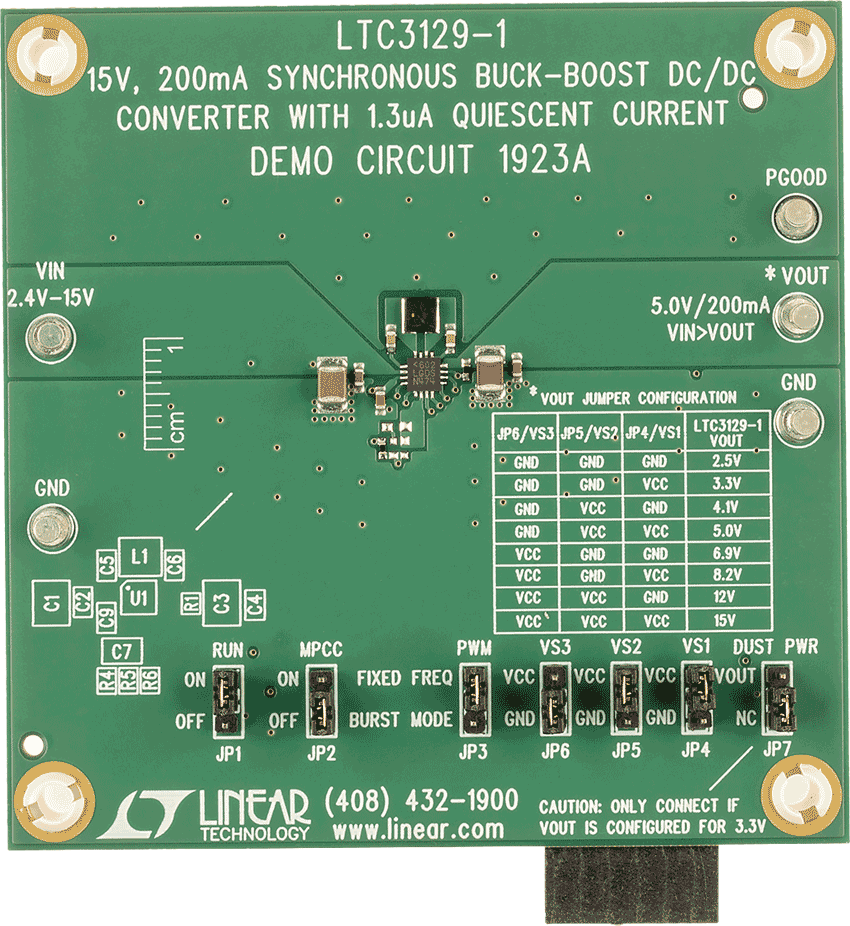

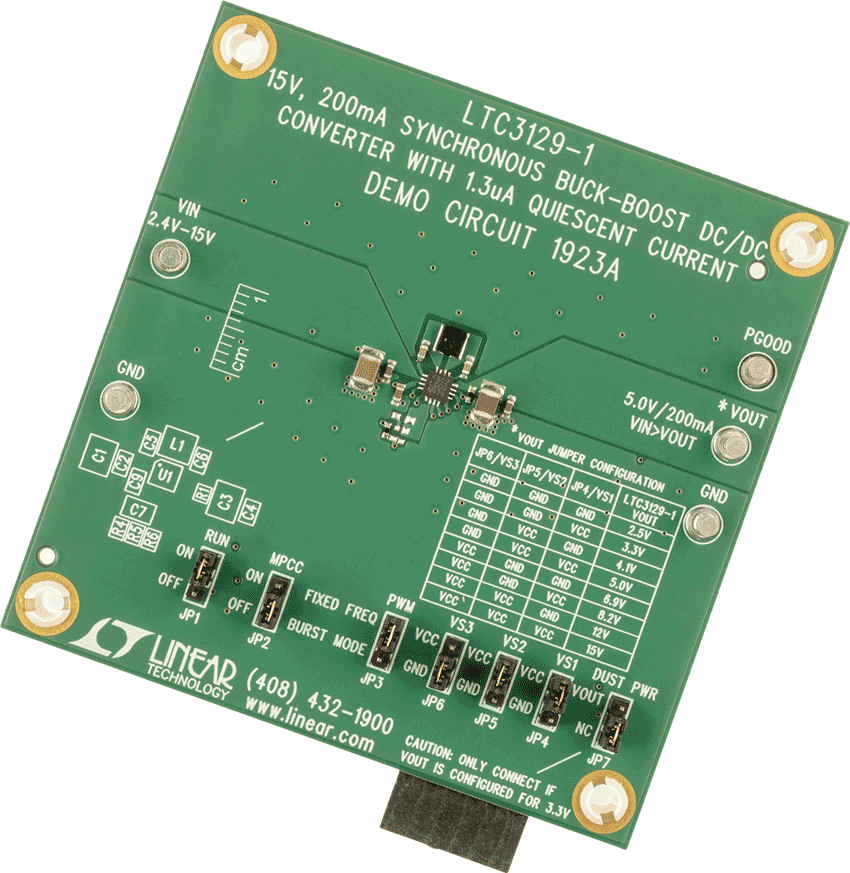

Demonstration circuit 1923A features the LTC3129-1, a high efficiency 200mA output buck-boost DC/DC converter with a wide VIN and VOUT range. The DC1923A operates with a 2.42V to 15V input voltage range, and has been designed with the output voltage set to 5V. The demo board can be programmed to any of eight voltage settings (2.5V, 3.3V, 4.1V, 5V, 6.9V, 8.2V, 12V, 15V) by using jumpers.





Resources

pdf icon

PDF

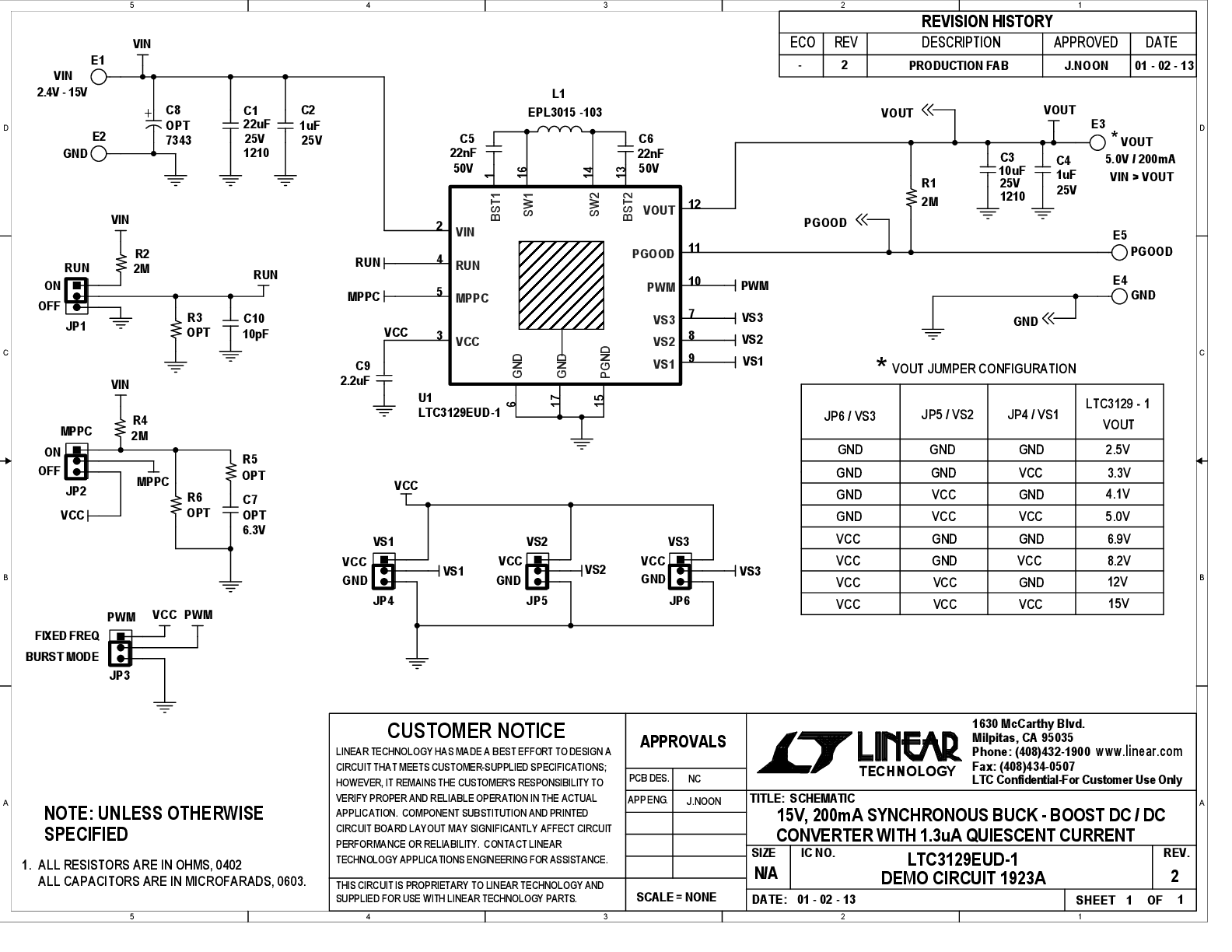

DC1923A - Schematic Download

79.00K

pdf icon

ZIP

DC1923A - Design Files Download

913.00K

pdf icon

PDF

DC1923A - Demo Manual Download

334.00K

Show More Arrow image

Evaluation Kits1

evaluation kit item images

DC1923A

LTC3129-1 Demo Board | 2.42V to 15V Input, 5VOUT at 200mA

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

LTC3129-1 Demo Circuit - µPower, Synchronous Buck-Boost Converter (2.4-15V to 5V @ 200mA) Download

2.65 K

spice tool Lt Spice

LTC3129-1 - Buck-Boost Regulators Download

1.64 K
