LTM2883

PRODUCTION

SPI/Digital or I²C μModule Isolator with Adjustable ±12.5V and 5V Regulated Power

Part Models: 12
1ku List Price: Starting From $14.07

Viewing:

Overview

2500V_RMS for One Minute per UL1577
Isolated Adjustable DC Power:
- 3V to 5V at Up to 30mA
- ±12.5V at Up to 20mA
No External Components Required
SPI (LTM2883-S) or I²C (LTM2883-I) Options
High Common Mode Transient Immunity: 30kV/μs
High Speed Operation:
- 10MHz Digital Isolation
- 4MHz/8MHz SPI Isolation
- 400kHz I²C Isolation

3.3V (LTM2883-3) or 5V (LTM2883-5) Operation
1.62V to 5.5V Logic Supply
±10kV ESD HBM Across the Isolation Barrier
Maximum Continuous Working Voltage: 560V_PEAK
Low Current Shutdown Mode (<10μA)
Low Profile (15mm × 11.25mm × 3.42mm) BGA Package

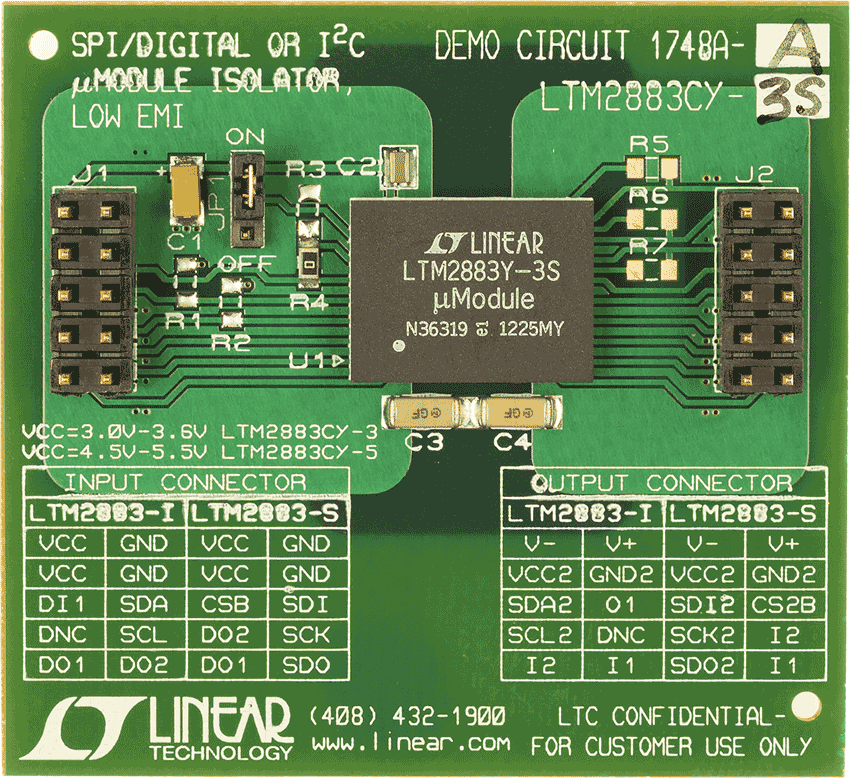

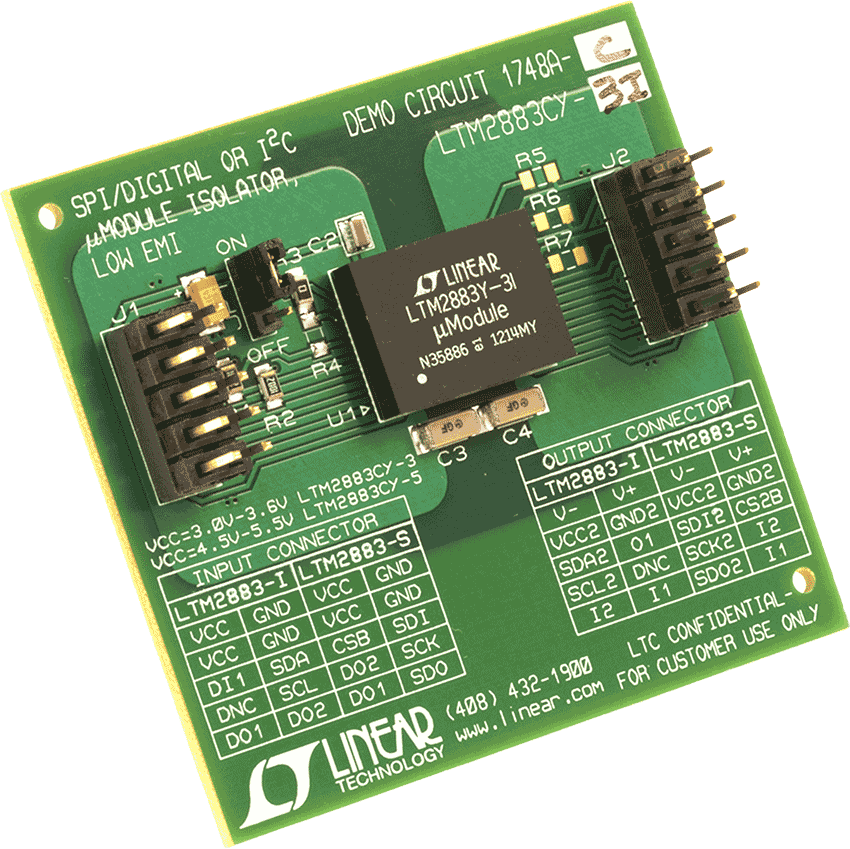

The LTM2883 is a complete galvanic 6-channel digital μModule^® (micromodule) isolator. No external components are required. A single 3.3V or 5V supply powers both sides of the interface through an integrated, isolated DC/DC converter. A logic supply pin allows easy interfacing with different logic levels from 1.62V to 5.5V, independent of the main supply.

Available options are compliant with SPI and I²C (master mode only) specifications.

The isolated side includes ±12.5V and 5V nominal power supplies, each capable of providing more than 20mA of load current. Each supply may be adjusted from its nominal value using a single external resistor.

Coupled inductors and an isolation power transformer provide 2500V_RMS of isolation between the input and output logic interface. This device is ideal for systems where the ground loop is broken, allowing for a large common mode voltage range. Communication is uninterrupted for common mode transients greater than 30kV/μs.

Applications

Isolated SPI or I²C Interfaces
Industrial Systems
Test and Measurement Equipment
Breaking Ground Loops
