Overview

Features and Benefits

  • 6-Channel Logic Isolator: 3500VRMS for 1 Minute
  • UL-CSA Recognized File #E151738
  • 3V to 5.5V Supply Operation
  • No External Components Required
  • SPI/Digital (LTM2892-S) or I2C (LTM2892-I) Options
  • High Common Mode Transient Immunity: 50kV/μs
  • High Speed Operation:
    • 10MHz Digital Isolation
    • 4MHz/8MHz SPI Isolation
    • 400kHz I2C Isolation
  • Operation Up to 125°C (H-Grade)
  • 1.62V to 5.5V Logic Supplies for Flexible Digital Interfacing
  • ±15kV ESD HBM Across the Isolation Barrier
  • Maximum Continuous Working Voltage: 850VPEAK
  • Low Current Shutdown Mode (<10μA)
  • Small (9mm × 6.25mm × 2.91mm) BGA Package

Product Details

The LTM2892 is a complete galvanic digital μModule® (micromodule) isolator. No external components are required. Individual 3V to 5.5V supplies power each side of the digital isolator. Separate logic supply pins allow easy interfacing with different logic levels from 1.62V to 5.5V, independent of the main supply.

Module options are available with compatibility to SPI (LTM2892-S) and I2C (LTM2892-I), master mode only, specifications.

Coupled inductors provide 3500VRMS of isolation between the input and output logic interface. This device is ideal for systems where the ground loop is broken, allowing uninterrupted communication through large common mode transients faster than 50kV/μs.

Applications

  • Isolated SPI or I2C Interfaces
  • Industrial Systems
  • Test and Measurement Equipment
  • Breaking Ground Loops

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

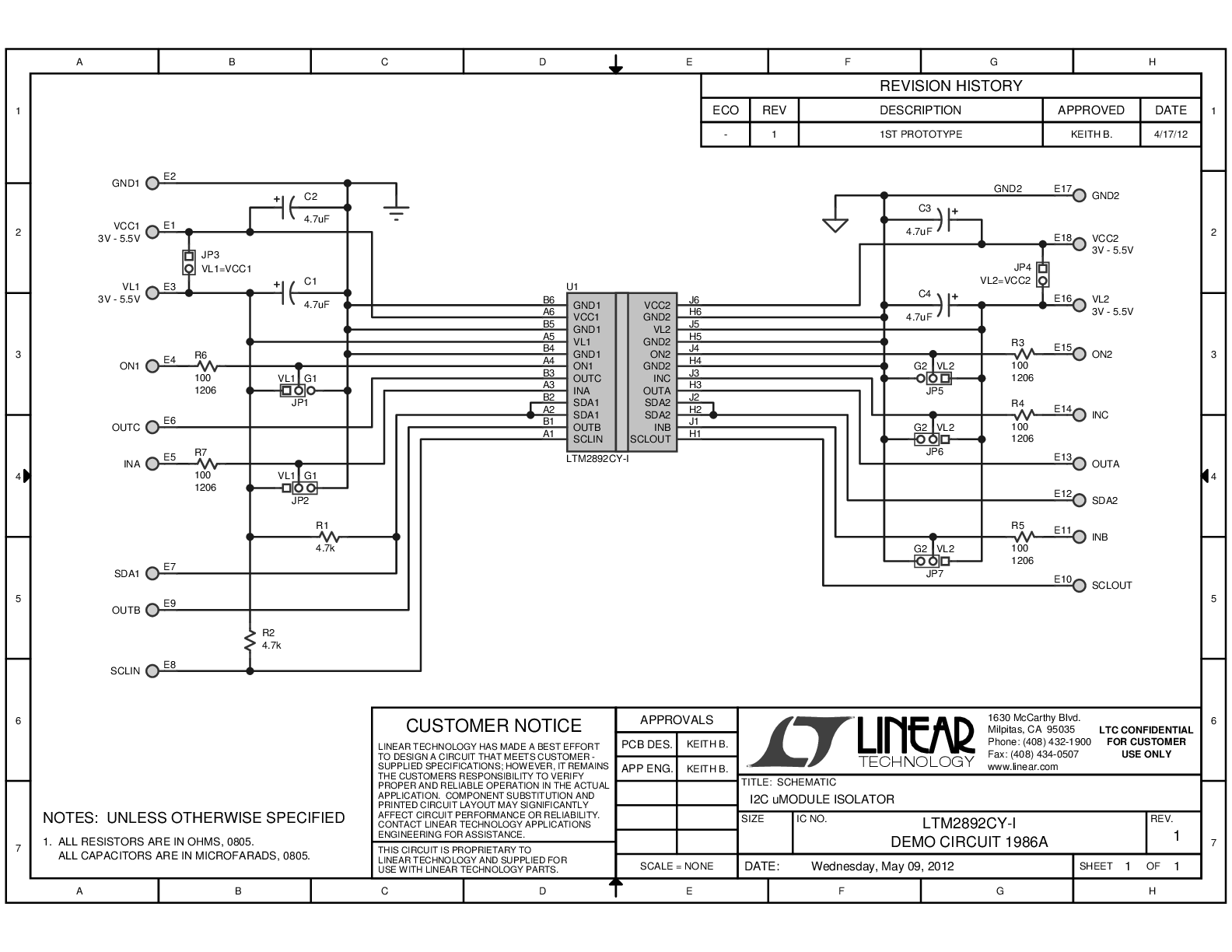

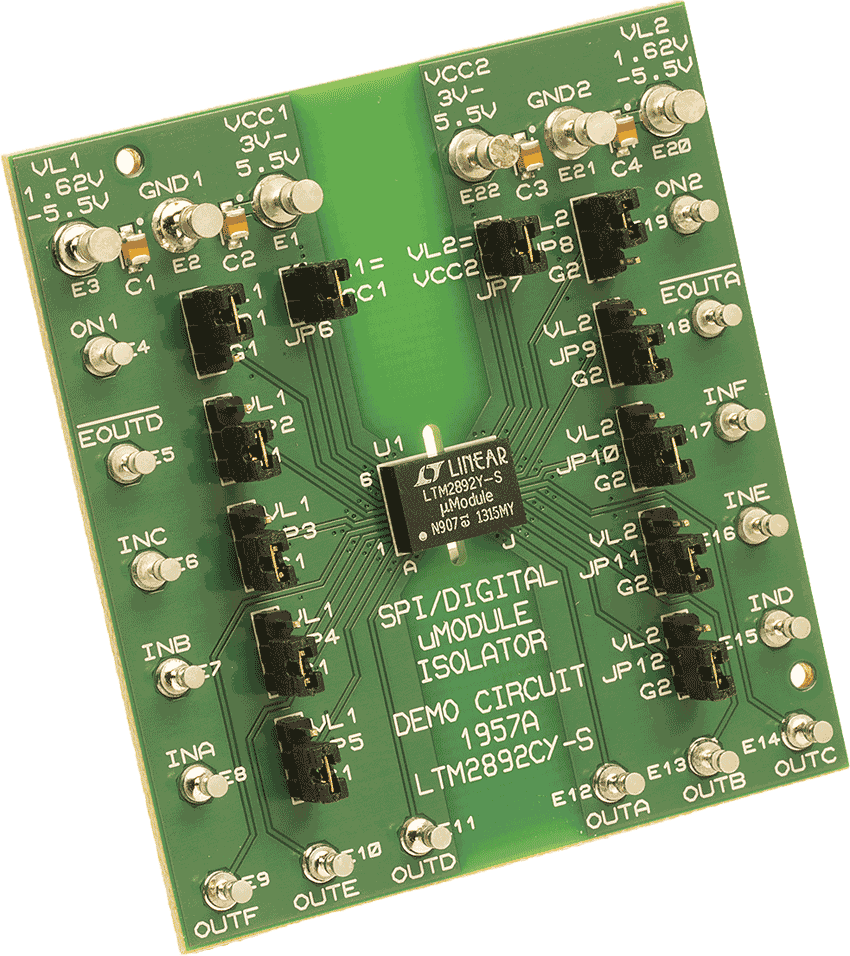

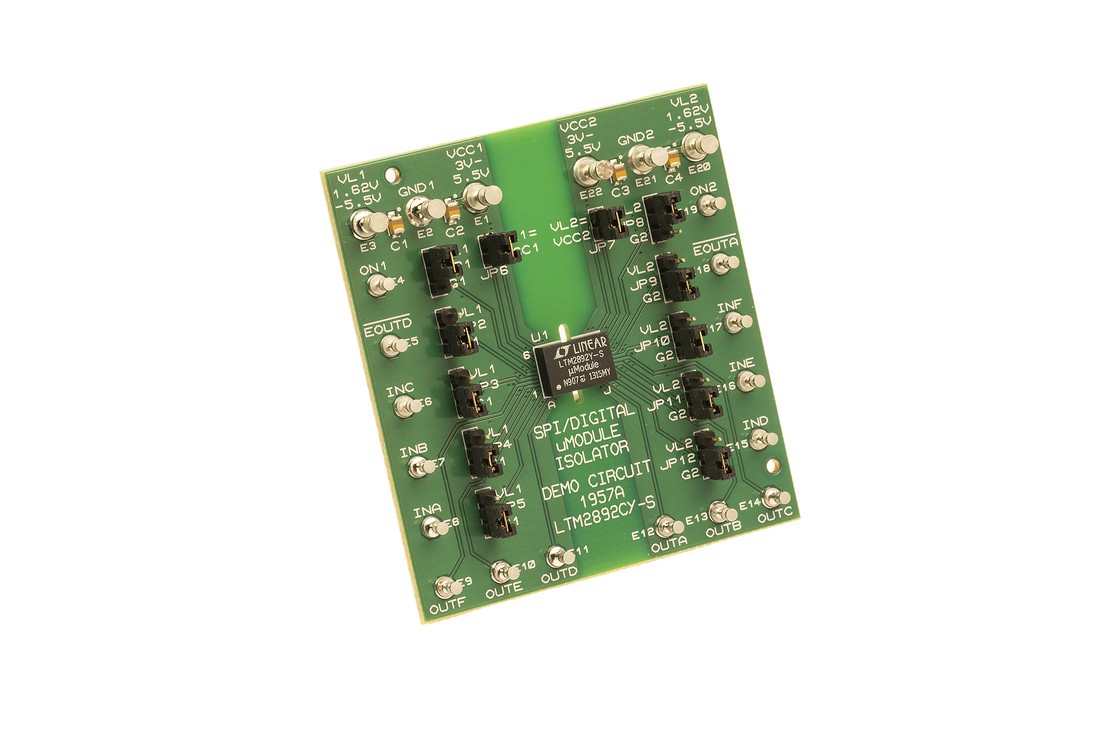

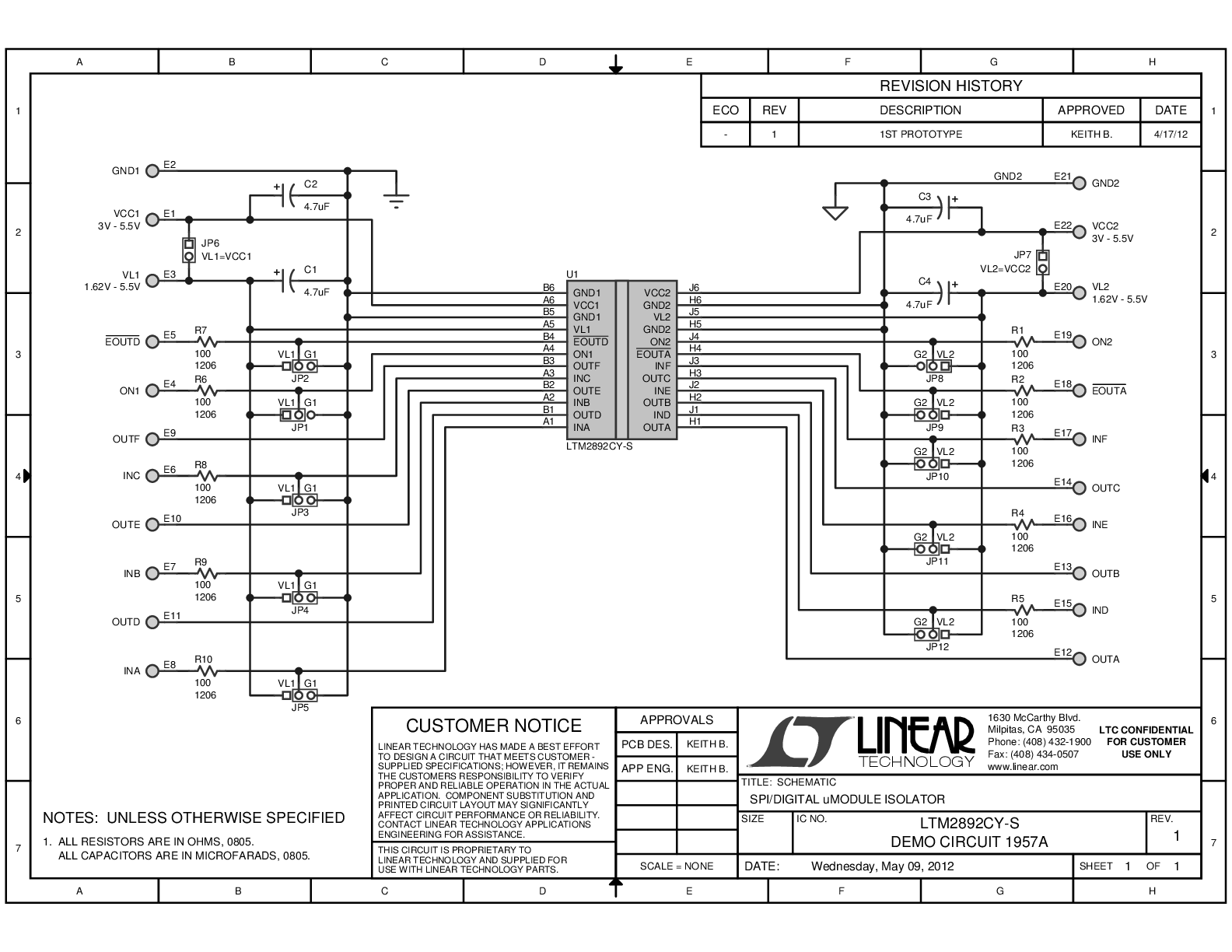

Evaluation Kits (2)

Documentation & Resources

  • View All (12)
  • Data Sheet (1)
  • Reliability Data (1)
  • User Guide (2)
  • Product Selector Card (2)
  • Safety and Regulatory Compliance (1)
  • Informational (1)
  • Product Selection Guide (1)
  • Solutions Bulletin & Brochure (1)
  • Video (2)
    • Document Type

    Product Recommendations

    LTM2892 Companion Parts

    Recommended Related Parts

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    LTM2892CY-I#PBF Material Declaration Reliability Data 24-Lead BGA (9mm x 6.25mm x 2.91mm)
    LTM2892CY-S#PBF Material Declaration Reliability Data 24-Lead BGA (9mm x 6.25mm x 2.91mm)
    LTM2892HY-I#PBF Material Declaration Reliability Data 24-Lead BGA (9mm x 6.25mm x 2.91mm)
    LTM2892HY-S#PBF Material Declaration Reliability Data 24-Lead BGA (9mm x 6.25mm x 2.91mm)
    LTM2892IY-I#PBF Material Declaration Reliability Data 24-Lead BGA (9mm x 6.25mm x 2.91mm)
    LTM2892IY-S#PBF Material Declaration Reliability Data 24-Lead BGA (9mm x 6.25mm x 2.91mm)
    Wafer Fabrication Data R596 Reliability Data
