LT2940

Power and Current Monitor

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet
Documentation View All Documentation
LTspice LT2940 - Power Monitor, Control, and Protection Download 2.12 KB
Part Models 8
1ku List Price Starting From $2.48
Features
  • Four-Quadrant Power Measurement
  • ±5% Power Measurement Accuracy
  • 4V to 80V High Side Sense, 100V Max
  • Current Mode Power and Current Outputs
  • Output Bandwidth Exceeds 500kHz
  • ±3% Current Measurement Accuracy
  • 6V to 80V Supply Range, 100V Max
  • Inverting and Noninverting Open-Collector Comparator Outputs
  • Available in 12-Pin DFN (3mm × 3mm) and 12-Lead MSOP Packages
Additional Details
show more Icon

The LT2940 measures a high side current and a differential voltage, multiplies them and outputs a current proportional to instantaneous power. Bidirectional high side currents and bipolar voltage differences are correctly handled by the four-quadrant multiplier and push-pull output stage, which allows the LT2940 to indicate forward and reverse power flow.

An integrated comparator with inverting and noninverting open-collector outputs makes the LT2940 a complete power level monitor. In addition, an output current proportional to the sensed high side current allows current monitoring. The current mode outputs make scaling, filtering and time integration as simple as selecting external resistors and/or capacitors.

Applications

  • Board Level Power and Current Monitoring
  • Line Card and Server Power Monitoring
  • Power Sense Circuit Breaker
  • Power Control Loops
  • Power/Energy Meters
  • Battery Charger Metering
Show More Arrow image
file View Data Sheet
Documentation View All Documentation
LTspice LT2940 - Power Monitor, Control, and Protection Download 2.12 KB
Part Models 8
1ku List Price Starting From $2.48
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

LT2940

Documentation

4
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Reliability Data
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 11/30/2009
English

LT2940: Power and Current Monitor Data Sheet

Open PDF File

redirect
342.00K
download

Download PDF

PDF Vector

PDF

UPDATED 06/27/2011
Japanese

LT2940: 電力・電流モニタ データシート

Open PDF File

redirect
1.00M
download

Download PDF

User Guide

1

PDF Vector

PDF

UPDATED 02/22/2010
English

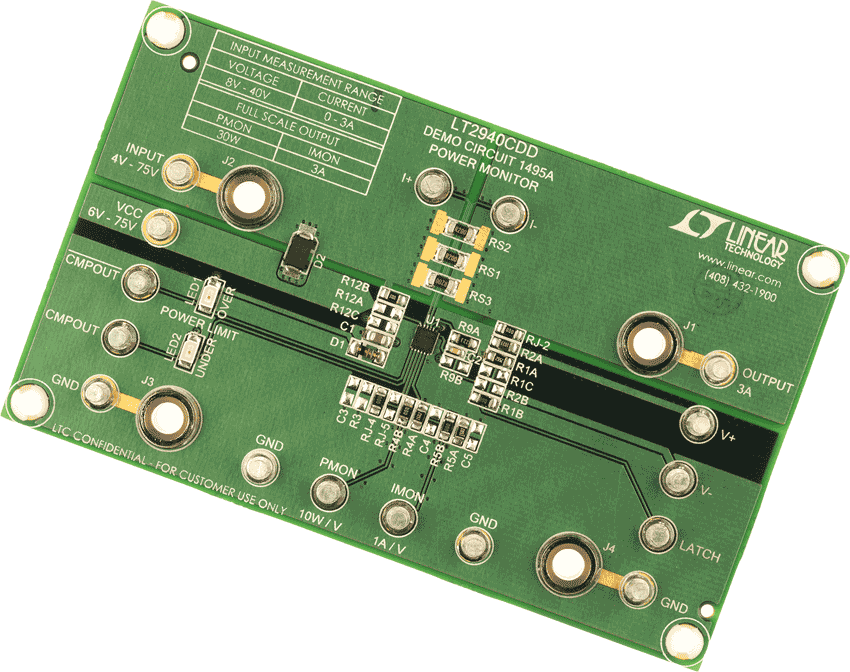

DC1495A - Demo Manual redirect icon
