LTC3026

1.5A Low Input Voltage VLDO Linear Regulator

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 8
1ku List Price Starting From $2.66
Features
  • Input Voltage Range:
    • 1.14V to 3.5V (with Boost Enabled)
    • 1.14V to 3.5V (with Boost Enabled)

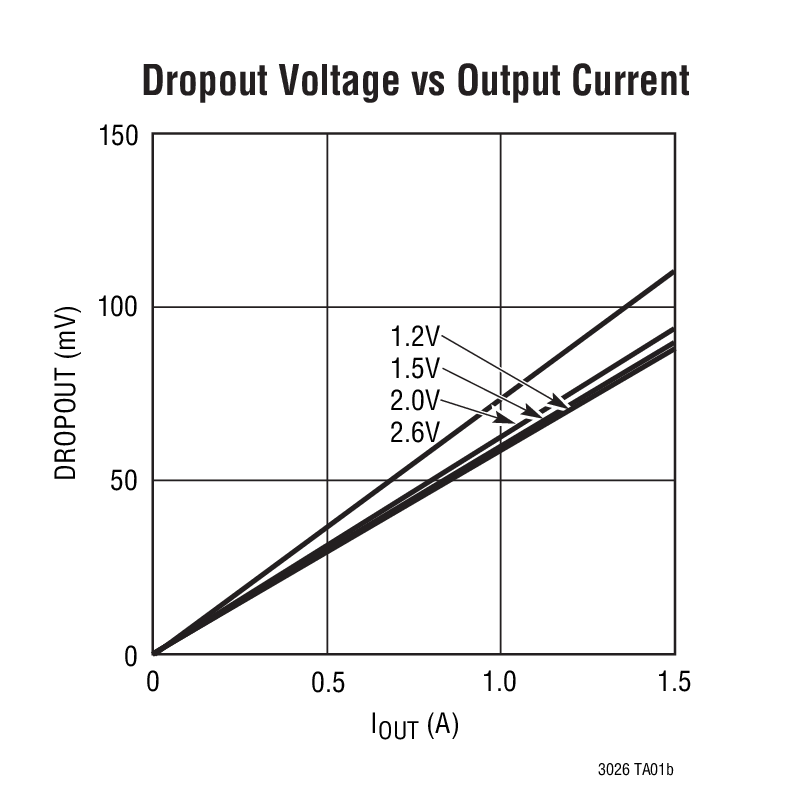

  • Low Dropout Voltage: 100mV at IOUT = 1.5A
  • Adjustable Output Range: 0.4V to 2.6V
  • Output Current: Up to 1.5A
  • Excellent Supply Rejection Even Near Dropout
  • Shutdown Disconnects Load from VIN and VBST
  • Low Operating Current: IIN = 950µA at VIN = 1.5V
  • Low Shutdown Current:
    • IIN < 1µA (Typ)
    • IBST = 0.1µA (Typ)
  • Stable with 10µF or Greater Ceramic Capacitors
  • Short-Circuit, Reverse Current Protected
  • Overtemperature Protected

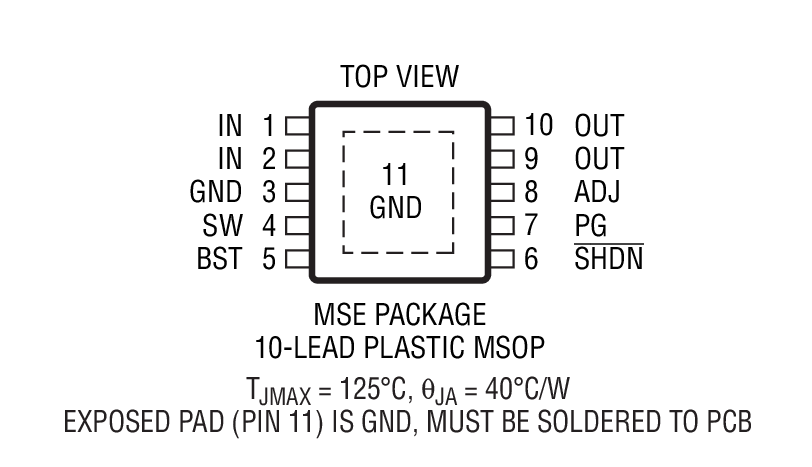

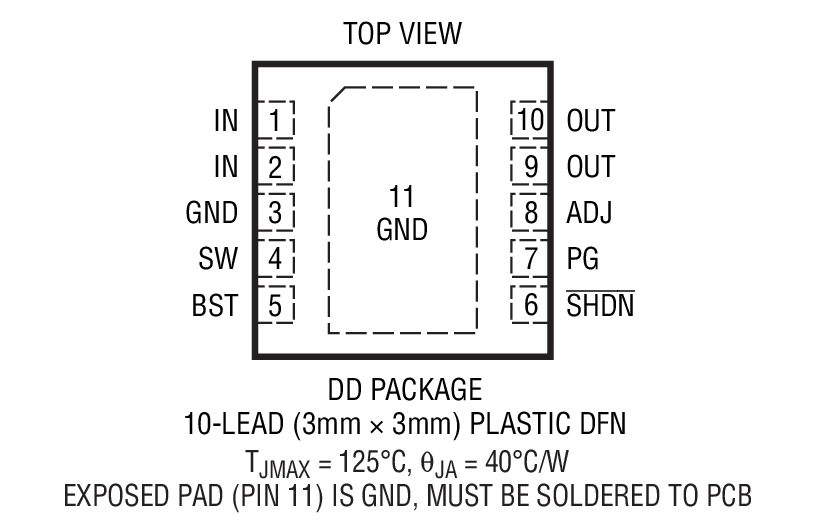

  • Available in 10-Lead MSOP and 10-Lead (3mm × 3mm) DFN Packages
Additional Details
show more Icon

The LTC3026 is a very low dropout (VLDO) linear regulator that can operate at input voltages down to 1.14V. The device is capable of supplying 1.5A of output current with a typical dropout voltage of only 100mV. To allow operation at low input voltages the LTC3026 includes a boost converter that provides the necessary headroom for the internal LDO circuitry.

Output current comes directly from the input supply to maximize efficiency. The boost converter requires only a small chip inductor and ceramic capacitor for operation. Additionally, the boosted output voltage of one LTC3026 can supply the boost voltage for other LTC3026s, thus requiring a single inductor for multiple LDOs. A user supplied boost voltage can be used eliminating the need for an inductor altogether.

The LTC3026 regulator is stable with 10μF or greater ceramic output capacitors. The device has a low 0.4V reference voltage which is used to program the output voltage via two external resistors. The device also has internal current limit, overtemperature shutdown, and reverse output current protection. The LTC3026 is available in a small 10-lead MSOP or low profile (0.75mm) 10-lead 3mm × 3mm DFN package.

Features
LTC3026 Integrated boost converter
LTC3026-1 Boost converter internally disabled and required an external 5V supply to operate

Applications

  • High Efficiency Linear Regulator
  • Post Regulator for Switching Supplies
  • Microprocessor Supply
Part Models 8
1ku List Price Starting From $2.66

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
LTC3026EDD#PBF
  • HTML
  • HTML
LTC3026EDD#TRPBF
  • HTML
  • HTML
LTC3026EMSE#PBF
  • HTML
  • HTML
LTC3026EMSE#TRPBF
  • HTML
  • HTML
LTC3026IDD#PBF
  • HTML
  • HTML
LTC3026IDD#TRPBF
  • HTML
  • HTML
LTC3026IMSE#PBF
  • HTML
  • HTML
LTC3026IMSE#TRPBF
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0004

Epoxy Change from Henkel 8290 to 8290A for MSOP (3)

LTC3026EMSE#PBF

PRODUCTION

LTC3026EMSE#TRPBF

PRODUCTION

LTC3026IMSE#PBF

PRODUCTION

LTC3026IMSE#TRPBF

PRODUCTION

Feb 4, 2020

- 20_0130

Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC

LTC3026EMSE#PBF

PRODUCTION

LTC3026EMSE#TRPBF

PRODUCTION

LTC3026IMSE#PBF

PRODUCTION

LTC3026IMSE#TRPBF

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jun 5, 2024

- 24_0004

arrow down

Epoxy Change from Henkel 8290 to 8290A for MSOP (3)

LTC3026EMSE#PBF

PRODUCTION

LTC3026EMSE#TRPBF

PRODUCTION

LTC3026IMSE#PBF

PRODUCTION

LTC3026IMSE#TRPBF

PRODUCTION

Feb 4, 2020

- 20_0130

arrow down

Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC

LTC3026EMSE#PBF

PRODUCTION

LTC3026EMSE#TRPBF

PRODUCTION

LTC3026IMSE#PBF

PRODUCTION

LTC3026IMSE#TRPBF

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

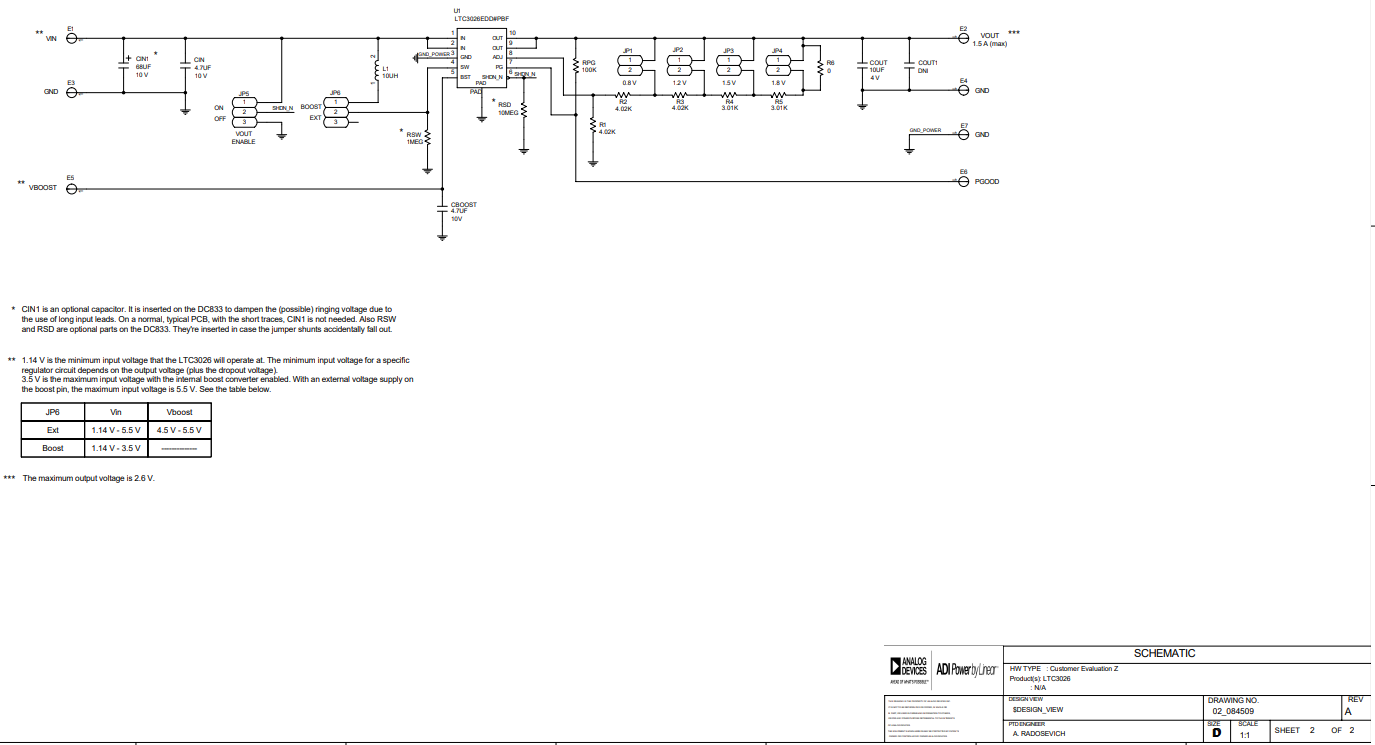

DC833A

LTC3026EDD | Low VIN, VLDO Linear Regulator, 1.14V ≤ VIN ≤ 5.5V (3.5V Using Internal Boost), VOUT = 0.8V/1.2V/1.5V/1.8V/Adjustable @ 1.5A

zoom

DC833A

LTC3026EDD | Low VIN, VLDO Linear Regulator, 1.14V ≤ VIN ≤ 5.5V (3.5V Using Internal Boost), VOUT = 0.8V/1.2V/1.5V/1.8V/Adjustable @ 1.5A

LTC3026EDD | Low VIN, VLDO Linear Regulator, 1.14V ≤ VIN ≤ 5.5V (3.5V Using Internal Boost), VOUT = 0.8V/1.2V/1.5V/1.8V/Adjustable @ 1.5A

Product Detail

Demonstration circuit 833 is an ultralow dropout voltage supply using the 1.5A output current LTC3026 linear regulator in a small 3mm × 3mm 10-Pin DFN package. The DC833 has an input voltage range from 1.14V to 3.5V when the internal boost converter is enabled, and a maximum input voltage of 5.5V when an external source is supplied. The output voltage jumper-selectable and can be set to 0.8V, 1.2V, 1.5V, 1.5V, 1.8V or a user-defined value between 0.4V and 2.6V. The 0.4V reference of the LTC3026 allows the DC833 to supply power to very low voltage applications. The DC833 is also an excellent choice for post regulation of step-down switching regulators, creating a high efficiency low-noise supply. The DC833 comes assembled with small ceramic capacitors, showing the LTC3026's ability to maintain stability with ceramic output capacitors.

Tools & Simulations

Tools & Simulations 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
