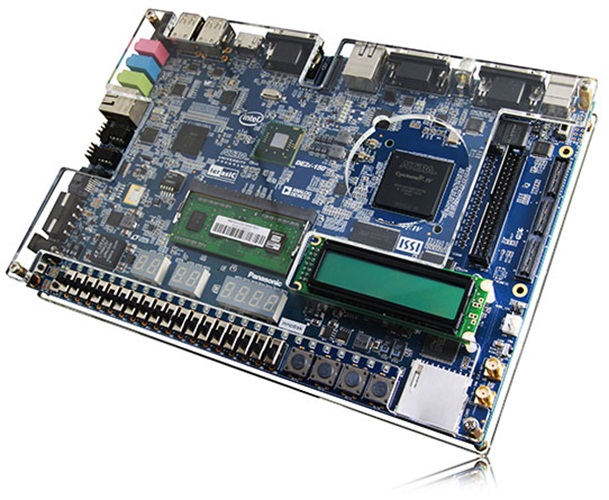

Terasic DE2i-150 Cyclone IV Board
Top
Overview
Features & Benefits
- Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
- Our reference designs are supported by an intuitive design tool set and IP
- Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
Circuit Description

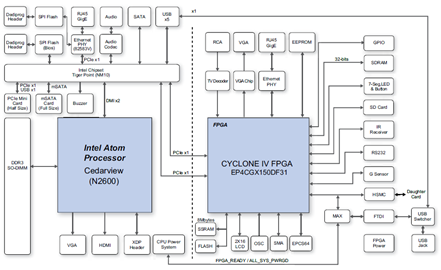

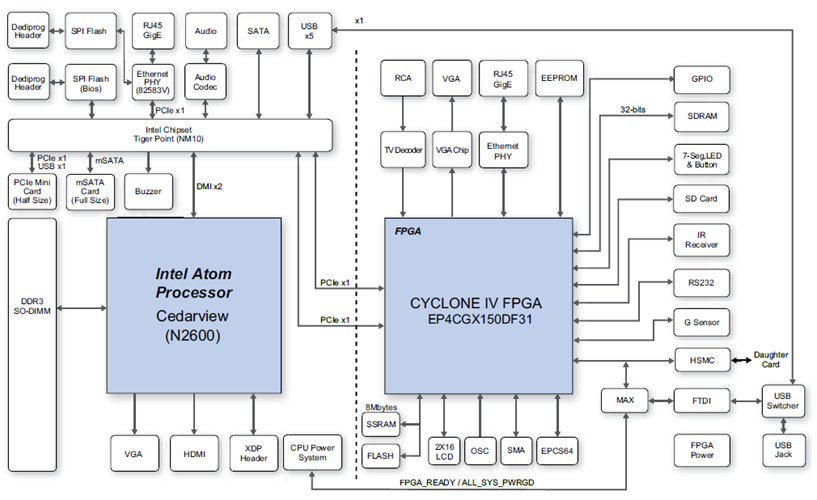

Combining the Intel Atom Processor and Altera Cyclone IV GX, the DE2i-150 FPGA Development Kit fuses together the world of high performance processing and unbelievably high configurability. Linked together through two high-speed PCIe lanes, the processor and FPGA have access to high-speed communication between each other, leading to a powerful hardware-software co-development environment with truly unlimited potential.
