Circuit Description

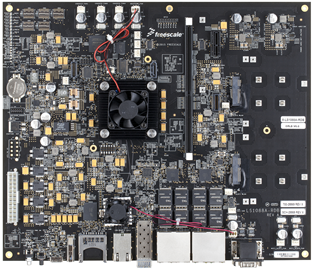

The QorIQ LS1088A reference design board (LS1088A-RDB) is designed to exercise most capabilities of the LS1088A device; with up to eight ARM® Cortex®-A53 cores with the advanced, high-performance data-path and network peripheral interfaces required for wireless access points, networking infrastructure, intelligent edge access, including virtual customer premise equipment (vCPE) and high-performance industrial applications.

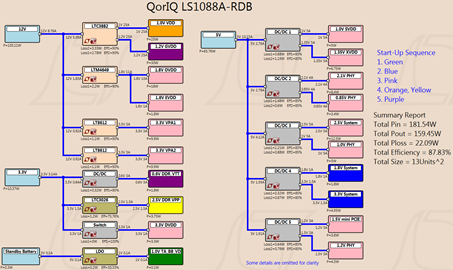

Rail/Function | Part Number | General Description of Part |
1.0V : VDD 1.2V : GVDD |
LTC3882 | Dual Output PolyPhase Step-Down DC/DC Voltage Mode Controller with Digital Power System Management |
1.8V : OVDD | LTM4649 | 10A Step-Down DC/DC µModule Regulator |
3.3V : VPA | LT8612 | 42V, 6A Synchronous Step-Down Regulator with 3µA Quiescent Current |
2.5V : DDR VPP | LTC3026 | 1.5A Low Input Voltage VLDO Linear Regulator |
