特性
- 输入电压范围：
- 1.14V 至 3.5V (升压转换器使能)
- 1.14V 至 5.5V (采用外部 5V 升压)
- 低压差电压：100mV (在 IOUT = 1.5A)
- 可调输出范围：0.4V 至 2.6V
- 输出电流：高达 1.5A
- 卓越的电源抑制性能 (即使在接近压差的条件下也不例外)
- 停机模式将负载从 VIN 和 VBST 断接
- 低工作电流：IIN = 950μA (在 VIN = 1.5V)
- 低停机电流：
- IIN < 1μA (典型值)
- IBST = 0.1μA (典型值)
- 在采用 10μF 或更大的陶瓷电容器时可实现稳定
- 短路、反向电流保护
- 过热保护
- 采用 10 引脚 MSOP 和 10 引脚 (3mm x 3mm) DFN 封装
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=zh&h=24&w=24&hash=7CDDC996281D9E966D391D97E93C6727){kind=icon}
LTC®3026 是一款非常低压差 (VLDO™) 线性稳压器，可在输入电压低至 1.14V 的条件下运作。该器件能够提供 1.5A 输出电流，典型压差电压仅为 100mV。为了允许在低输入电压条件下运作，LTC3026 内置了一个升压型转换器，该升压型转换器负责提供内部 LDO 电路所必需的空间。
输出电流直接来自输入电源，旨在实现效率的较大化。升压型转换器仅需一个小型片式电感器和陶瓷电容器便可执行操作。此外，一个 LTC3026 的升压输出电压还能够提供用于其他 LTC3026 的升压电压，因而多个 LDO 只需单个电感器。可以采用一个由用户提供的升压电压，从而完全免除了增设电感器的需要。
LTC3026 稳压器可在采用 10μF 或更大的陶瓷输出电容器时保持稳定。该器件具有一个 0.4V 的低基准电压，用于通过两个外部电阻器来设置输出电压。这款器件还具有内部电流限制、过热停机和反向输出电流保护功能。LTC3026 采用小外形 10 引脚 MSOP 或扁平 (高度仅 0.75mm) 10 引脚 3mm x 3mm DFN 封装。
应用
- 高效率线性稳压器
- 用于开关电源的后置稳压器
- 微处理器电源
3
提问
在下面提交您的问题，我们将从 ADI 的知识库中给出最佳答案:
搜索
您可以在其他地方找到帮助
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
LTC3026
文档
筛查
1 应用
-
全部
-
可靠性数据
-
数据手册
-
用户手册
-
全部
-
英文
-
日文
数据手册
2
可靠性数据
1
25.65 K
用户手册
1
391.00K
产品技术资料帮助
ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
参考资料
ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。
| 产品型号 | 引脚/封装图-中文版 | 文档 | CAD 符号，脚注和 3D模型 |
|---|---|---|---|
| LTC3026EDD#PBF |
10-Lead DFN (3mm x 3mm w/ EP)
|
|
|
| LTC3026EDD#TRPBF |
10-Lead DFN (3mm x 3mm w/ EP)
|
|
|
| LTC3026EMSE#PBF |
10-Lead MSOP w/ EP
|
|
|
| LTC3026EMSE#TRPBF |
10-Lead MSOP w/ EP
|
|
|
| LTC3026IDD#PBF |
10-Lead DFN (3mm x 3mm w/ EP)
|
|
|
| LTC3026IDD#TRPBF |
10-Lead DFN (3mm x 3mm w/ EP)
|
|
|
| LTC3026IMSE#PBF |
10-Lead MSOP w/ EP
|
|
|
| LTC3026IMSE#TRPBF |
10-Lead MSOP w/ EP
|
|
- LTC3026EDD#PBF
- 引脚/封装图-中文版
-
10-Lead DFN (3mm x 3mm w/ EP)
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
- LTC3026EDD#TRPBF
- 引脚/封装图-中文版
-
10-Lead DFN (3mm x 3mm w/ EP)
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
- LTC3026EMSE#PBF
- 引脚/封装图-中文版
-
10-Lead MSOP w/ EP
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
- LTC3026EMSE#TRPBF
- 引脚/封装图-中文版
-
10-Lead MSOP w/ EP
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
- LTC3026IDD#PBF
- 引脚/封装图-中文版
-
10-Lead DFN (3mm x 3mm w/ EP)
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
- LTC3026IDD#TRPBF
- 引脚/封装图-中文版
-
10-Lead DFN (3mm x 3mm w/ EP)
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
- LTC3026IMSE#PBF
- 引脚/封装图-中文版
-
10-Lead MSOP w/ EP
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
- LTC3026IMSE#TRPBF
- 引脚/封装图-中文版
-
10-Lead MSOP w/ EP
- 文档
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD 符号，脚注和 3D模型
-
Ultra Librarian
-
SamacSys
根据型号筛选
产品型号
产品生命周期
PCN
6月 5, 2024
- 24_0004
Epoxy Change from Henkel 8290 to 8290A for MSOP (3)
LTC3026EMSE#PBF
量产
LTC3026EMSE#TRPBF
量产
LTC3026IMSE#PBF
量产
LTC3026IMSE#TRPBF
量产
2月 4, 2020
- 20_0130
Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC
LTC3026EMSE#PBF
量产
LTC3026EMSE#TRPBF
量产
LTC3026IMSE#PBF
量产
LTC3026IMSE#TRPBF
量产
根据型号筛选
产品型号
产品生命周期
PCN
6月 5, 2024
- 24_0004
Epoxy Change from Henkel 8290 to 8290A for MSOP (3)
LTC3026EMSE#PBF
量产
LTC3026EMSE#TRPBF
量产
LTC3026IMSE#PBF
量产
LTC3026IMSE#TRPBF
量产
2月 4, 2020
- 20_0130
Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC
LTC3026EMSE#PBF
量产
LTC3026EMSE#TRPBF
量产
LTC3026IMSE#PBF
量产
LTC3026IMSE#TRPBF
量产
评估套件 1
DC833A
LTC3026EDD | 低VIN、VLDO线性稳压器，1.14V ≤ VIN ≤ 5.5V（使用内部升压时为3.5V），VOUT = 0.8V/1.2V/1.5V/1.8V/可调(1.5A)
产品详情

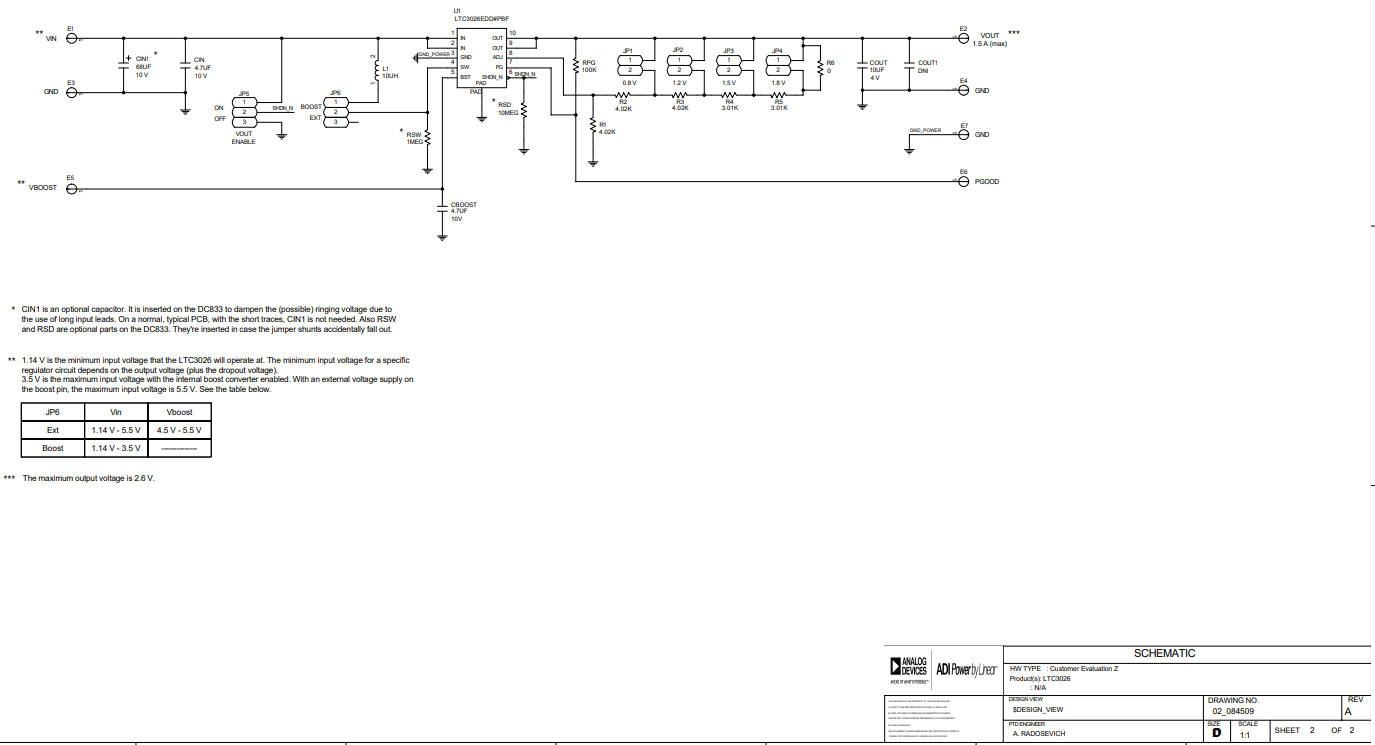

演示电路833是一款使用1.5A输出电流LTC3026线性稳压器的低压差电源，该稳压器采用小型3mm × 3mm 10引脚DFN封装。当内部升压转换器使能时，DC833的输入电压范围为1.14V至3.5V，当提供外部电源时最大输入电压为5.5V。输出电压通过跳线选择，可以设置为0.8V、1.2V、1.5V、1.8V或0.4V至2.6V之间的用户定义值。LTC3026具有0.4V的基准电压，使DC833可向低电压应用供电。DC833还非常适用于降压开关稳压器后置调节，可构建高效率低噪声电源。DC833采用小型陶瓷电容，表明LTC3026使用陶瓷输出电容能够保持稳定性。
