LTM4618

具跟踪和频率同步功能的 6A DC/DC μModule 稳压器

更多 showmore-icon

Info: : 量产 tooltip
Info: : 量产 tooltip
产品详情
产品模型 4
特性
  • 完整的独立型电源
  • 宽输入电压范围:4.5V 至 26.5V
  • 6A DC (典型值)、8A 峰值输出电流
  • 0.8V 至 5V 输出
  • 输出电压跟踪
  • 最大值为 ±1.75% 的总 DC 误差
  • 电流模式控制 / 快速瞬态响应
  • 可锁相固定频率:250kHz 至 780kHz
  • 板上频率同步
  • 可选的突发模式 (Burst Mode®) 操作
  • 电源良好电压指示器
  • 输出过压保护
  • 输出电流折返限制
  • 9mm x 15mm x 4.32mm LGA 封装和 9mm x 15mm x 4.92mm BGA 封装

更多细节
show more Icon

LTM®4618 是一款完整的 6A 输出开关模式 DC/DC 电源。封装中内置了开关控制器、功率 FET、电感器以及所有的支持元件。LTM4618 可一个在 4.5V 至 26.5V 的输入电压范围内运作,支持一个 0.8V 至 5V 的输出电压范围 (由单个外部电阻器来设定)。其高效率设计可提供 6A 的连续电流 (峰值为 8A)。仅需少量的输入和输出电容器。

高开关频率和一种电流模式架构的运用实现了针对电压和负载变化的快速瞬态响应,而并未牺牲稳定性。该器件支持频率同步和用于电源轨排序的输出电压跟踪功能。在轻负载条件下,可选择执行突发模式操作或脉冲跳跃模式。

该器件的故障保护功能包括过压保护、过流保护和用于提供短路保护的折返电流限制。

LTM4618 采用 9mm x 15mm x 4.32mm LGA 和 9mm x 15mm x 4.92mm BGA 封装,并具符合 RoHS 标准的引脚涂层。



Applications

  • 电信和网络设备
  • 服务器
  • 存储卡
  • ATCA 卡
  • 工业设备
  • 负载点调节
  • 医疗系统
产品模型 4

产品技术资料帮助

close icon

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

参考资料

参考资料

产品型号 引脚/封装图-中文版 文档 CAD 符号,脚注和 3D模型
LTM4618EV#PBF
  • HTML
  • HTML
LTM4618EY#PBF
  • HTML
  • HTML
LTM4618IV#PBF
  • HTML
  • HTML
LTM4618IY#PBF
  • HTML
  • HTML

根据型号筛选

reset

重置过滤器

产品型号

产品生命周期

PCN

7月 21, 2021

- 21_0159

Ink Mark to Laser Mark Conversion for µModule

LTM4618EV#PBF

量产

LTM4618EY#PBF

量产

LTM4618IV#PBF

量产

LTM4618IY#PBF

量产

2月 28, 2020

- 20_0123

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM4618EV#PBF

量产

LTM4618EY#PBF

量产

LTM4618IV#PBF

量产

LTM4618IY#PBF

量产

根据型号筛选

reset

重置过滤器

产品型号

产品生命周期

PCN

7月 21, 2021

- 21_0159

arrow down

Ink Mark to Laser Mark Conversion for µModule

LTM4618EV#PBF

量产

LTM4618EY#PBF

量产

LTM4618IV#PBF

量产

LTM4618IY#PBF

量产

2月 28, 2020

- 20_0123

arrow down

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM4618EV#PBF

量产

LTM4618EY#PBF

量产

LTM4618IV#PBF

量产

LTM4618IY#PBF

量产

软件和型号相关生态系统

软件和型号相关生态系统

评估套件

评估套件 1

reference details image

DC1472A

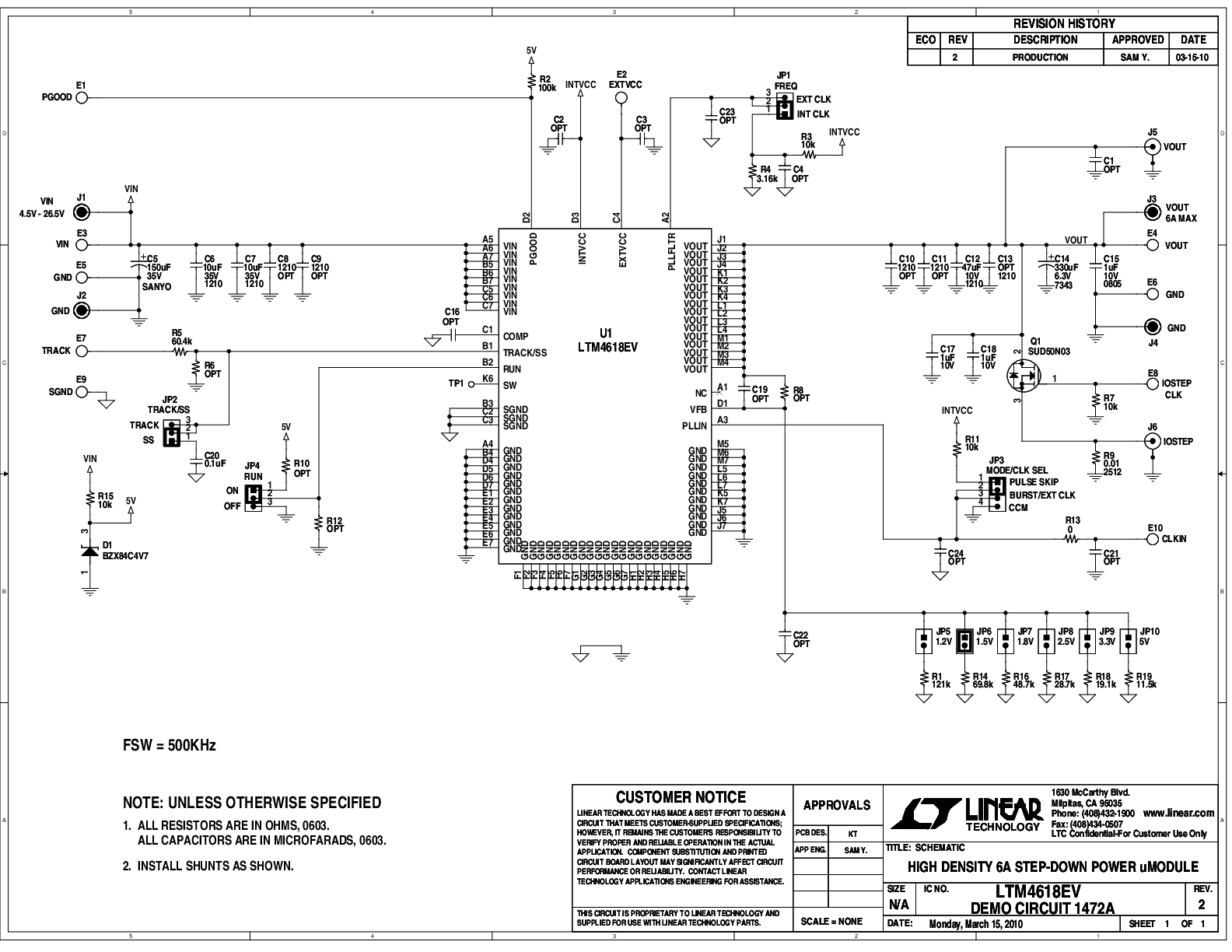

LTM4618EV Demo Board | µModule Regulator, 4.5V ≤ VIN ≤ 26.5V, VOUT = Programmable 1.2V to 5V @ 6A

zoom

DC1472A

LTM4618EV Demo Board | µModule Regulator, 4.5V ≤ VIN ≤ 26.5V, VOUT = Programmable 1.2V to 5V @ 6A

LTM4618EV Demo Board | µModule Regulator, 4.5V ≤ VIN ≤ 26.5V, VOUT = Programmable 1.2V to 5V @ 6A

产品详情

Demonstration circuit 1472 features the LTM4618EV μModule® regulator, a complete high efficiency synchronous buck regulator with tracking. The DC1472 input range is from 4.5V to 26.5V and is capable of delivering up to 6A of output current; however, current derating may be necessary under certain VIN, VOUT, frequency and thermal conditions. The output voltage is jumper programmable from 1.2V to 5V and can be set as low as 0.8V, the reference voltage of the LTM4618EV.

工具和仿真

工具及仿真模型 2

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器,为改善模拟电路的仿真提供增强功能和模型。

启动此部分的现成LTspice演示电路:

1步:下载并在计算机上安装LTspice

2步:单击下面的链接,下载演示电路。

3步:如果在单击以下链接之后LTspice未自动打开,可通过右击该链接并选择“目标另存为”来运行该仿真。将文件保存到计算机之后,请启动LTspice并从“文件”菜单中选择“打开”来打开演示电路。

参考电路

参考电路 8

HTG-K7-PCIE Dev Board

zoomopens a dialog

xilinx-kintex-7-pci-express-development-board

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link
Virtex™ -7 V2000T PCI Express Dev Board

zoomopens a dialog

xilinx-virtex-7-v2000t-pci-express-development-board

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link
Virtex 7 PCI Express Gen 3 /100Gig Networking Card - Top View

zoomopens a dialog

Xilinx Virtex 7 PCI Express Gen 3/100Gig Networking Card

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link
Virtex™ -7 High-End Networking Card With Dual CXP Ports

zoomopens a dialog

xilinx-virtex-7-high-end-networking-card-with-dual-cxp-ports

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link
Virtex-7™  10G/40G/100G Optical Interface FPGA Platform

zoomopens a dialog

xilinx-virtex-7-10g-40g-100g-optical-interface-fpga-platform

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link
HTG-V7-PCIE-FF Block Diagram

zoomopens a dialog

xilinx-virtex-7-high-end-networking-card-with-samtec-firefly

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link
DK-DEV-5AGTD7N Dev Kit

zoomopens a dialog

Altera Arria V GT FPGA Development Kit

Altera Arria V GT FPGA Development Kit

参考设计

tooltip Info:参考设计

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link
DK-DEV-5AGXB3NES Dev Kit

zoomopens a dialog

altera-arria-v-gx-fpga-development-kit

altera-arria-v-gx-fpga-development-kit

参考设计

tooltip Info:参考设计

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link
