LTM4628

双通道 8A 或单通道 16A DC/DC μModule 稳压器

更多 showmore-icon

Info: : 量产 tooltip
Info: : 量产 tooltip
产品详情
产品模型 5
特性
  • 完整的独立型双通道电源
  • 单通道 16A 或双通道 8A 输出
  • 宽输入电压范围:4.5V 至 26.5V
  • 输出范围:0.6V 至 5.5V
  • ±1.5% 的总 DC 输出误差
  • 差分远端采样放大器
  • 电流模式控制 / 快速瞬态响应
  • 可调开关频率
  • 过流折返保护
  • 利用多个 LTM4628 实现多相并联均流
  • 频率同步
  • 内部温度检测二极管输出
  • 可选的突发模式 (Burst Mode®) 操作
  • 软起动 / 电压跟踪
  • 输出过压保护
  • 小型表面贴装、扁平 15mm x 15mm x 4.32mm LGA 和 15mm x 15mm x 4.92mm BGA 封装

更多细节
show more Icon

LTM®4628 是一款完整的双通道 8A 输出开关模式 DC/DC 电源,可容易地通过配置提供单路两相 16A 输出。封装中内置了开关控制器、功率 FET、电感器和所有的支持元件。LTM4628 可在一个 4.5V 至 26.5V 的输入电压范围内运作,支持两个输出电压范围均为 0.6V 至 5.5V (由单个外部电阻器来设定) 的输出。该器件的高效率设计能够为每个输出提供 8A 连续电流。仅需少量的输入和输出电容器。

这款器件支持频率同步、多相操作、突发模式操作以及用于电源轨排序的输出电压跟踪功能。它具有一个负责监视器件温度的板上温度二极管。高开关频率和一种电流模式架构的运用实现了针对电压和负载变化的快速瞬态响应,而并未牺牲稳定性。

故障保护功能包括过压和过流保护。该电源模块采用节省空间和耐热性能增强型 15mm x 15mm x 4.32mm LGA 和15mm x 15mm x 4.92mm BGA 封装。LTM4628 具有符合 SnPb (BGA) 或 RoHS 标准的引脚涂层。


Applications

  • 电信和网络设备
  • 存储和 ATCA 卡
  • 工业设备

产品模型 5

产品技术资料帮助

close icon

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

参考资料

参考资料

视频

产品型号 引脚/封装图-中文版 文档 CAD 符号,脚注和 3D模型
LTM4628EV#PBF
  • HTML
  • HTML
LTM4628EY#PBF
  • HTML
  • HTML
LTM4628IV#PBF
  • HTML
  • HTML
LTM4628IY
  • HTML
  • HTML
LTM4628IY#PBF
  • HTML
  • HTML

根据型号筛选

reset

重置过滤器

产品型号

产品生命周期

PCN

8月 7, 2023

- 23_0141

LTM4628 Data Sheet Revision

LTM4628EV#PBF

量产

LTM4628EY#PBF

量产

LTM4628IV#PBF

量产

LTM4628IY

量产

LTM4628IY#PBF

量产

7月 28, 2021

- 20_0245

Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

LTM4628EV#PBF

量产

LTM4628EY#PBF

量产

LTM4628IV#PBF

量产

LTM4628IY

量产

LTM4628IY#PBF

量产

7月 21, 2021

- 21_0159

Ink Mark to Laser Mark Conversion for µModule

LTM4628EV#PBF

量产

LTM4628EY#PBF

量产

LTM4628IV#PBF

量产

LTM4628IY

量产

LTM4628IY#PBF

量产

2月 28, 2020

- 20_0123

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM4628EV#PBF

量产

LTM4628EY#PBF

量产

LTM4628IV#PBF

量产

LTM4628IY

量产

LTM4628IY#PBF

量产

11月 20, 2023

- 23_0180

New Tray Design for BGA Package

LTM4628EY#PBF

量产

LTM4628IY

量产

LTM4628IY#PBF

量产

根据型号筛选

reset

重置过滤器

产品型号

产品生命周期

PCN

8月 7, 2023

- 23_0141

arrow down

LTM4628 Data Sheet Revision

LTM4628EV#PBF

量产

LTM4628EY#PBF

量产

LTM4628IV#PBF

量产

LTM4628IY

量产

LTM4628IY#PBF

量产

7月 28, 2021

- 20_0245

arrow down

Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

LTM4628EV#PBF

量产

LTM4628EY#PBF

量产

LTM4628IV#PBF

量产

LTM4628IY

量产

LTM4628IY#PBF

量产

7月 21, 2021

- 21_0159

arrow down

Ink Mark to Laser Mark Conversion for µModule

LTM4628EV#PBF

量产

LTM4628EY#PBF

量产

LTM4628IV#PBF

量产

LTM4628IY

量产

LTM4628IY#PBF

量产

2月 28, 2020

- 20_0123

arrow down

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM4628EV#PBF

量产

LTM4628EY#PBF

量产

LTM4628IV#PBF

量产

LTM4628IY

量产

LTM4628IY#PBF

量产

11月 20, 2023

- 23_0180

arrow down

New Tray Design for BGA Package

LTM4628EY#PBF

量产

LTM4628IY

量产

LTM4628IY#PBF

量产

软件和型号相关生态系统

软件和型号相关生态系统

评估

评估套件 1

reference details image

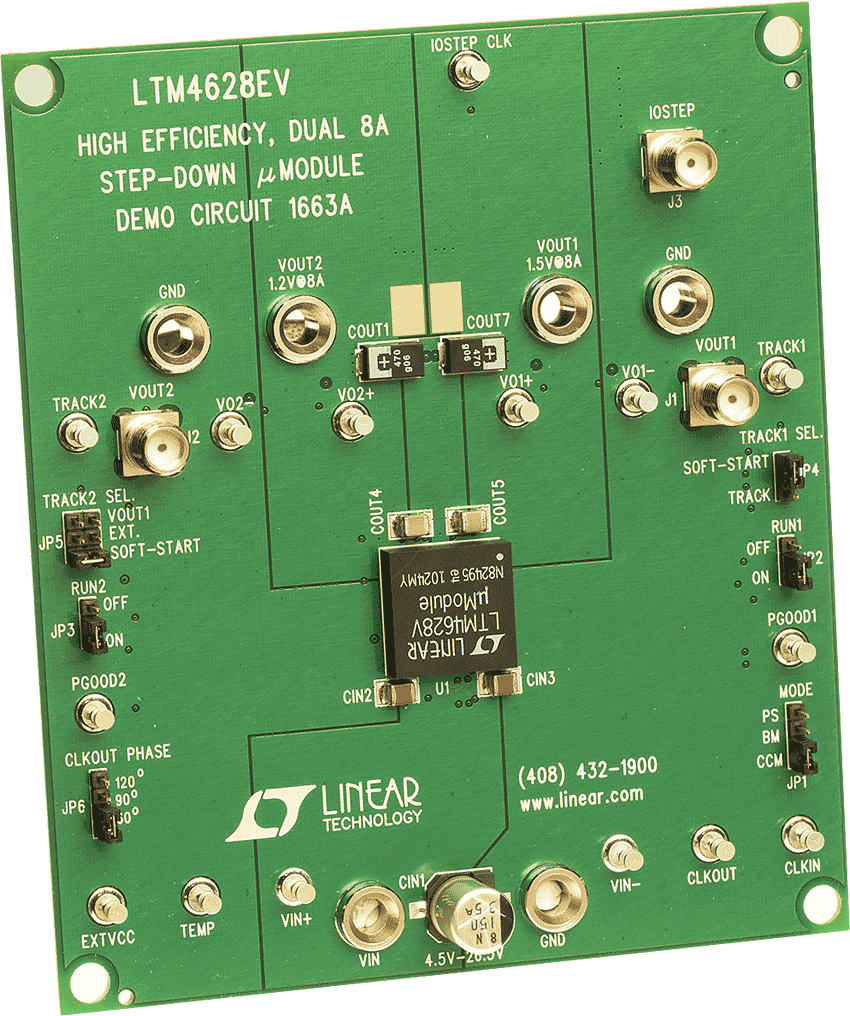

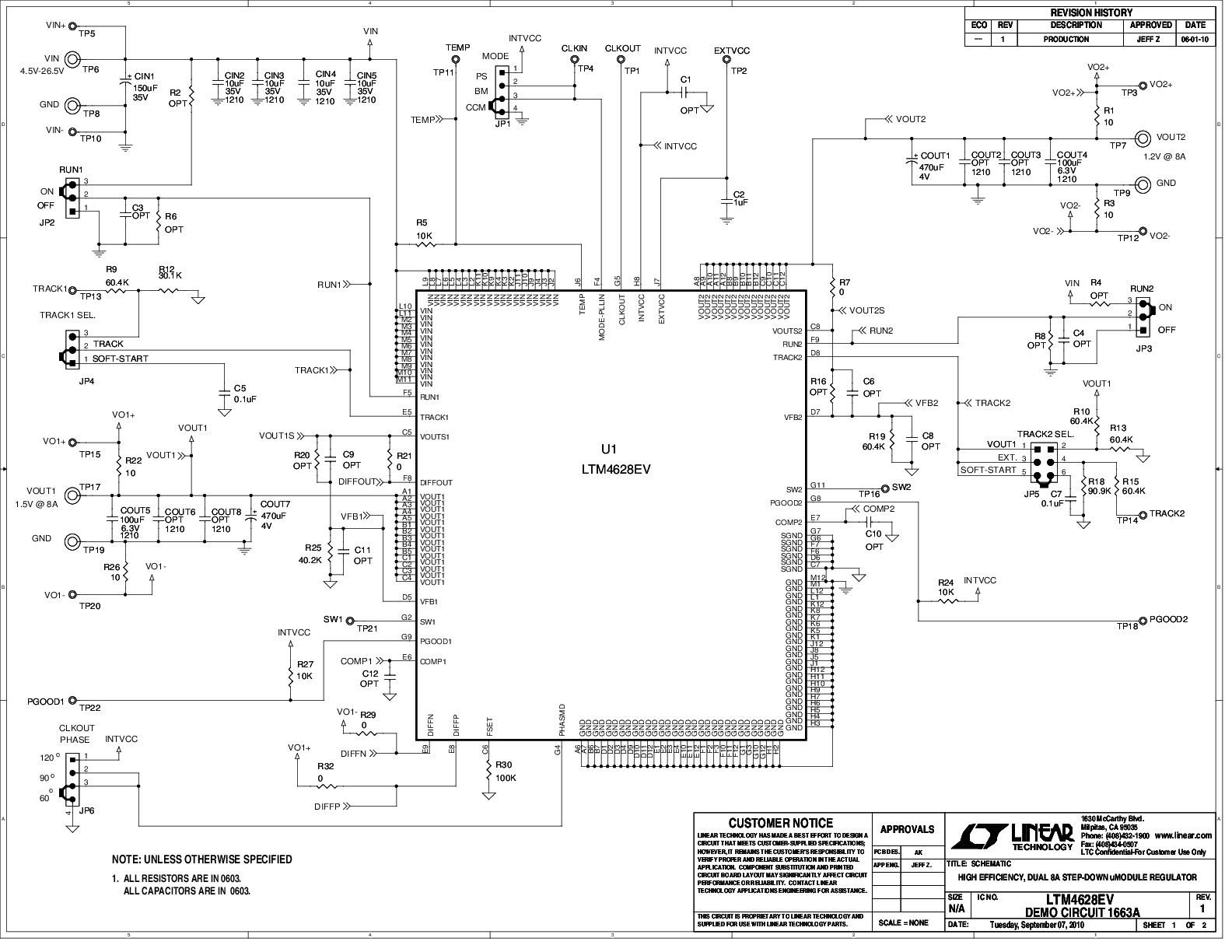

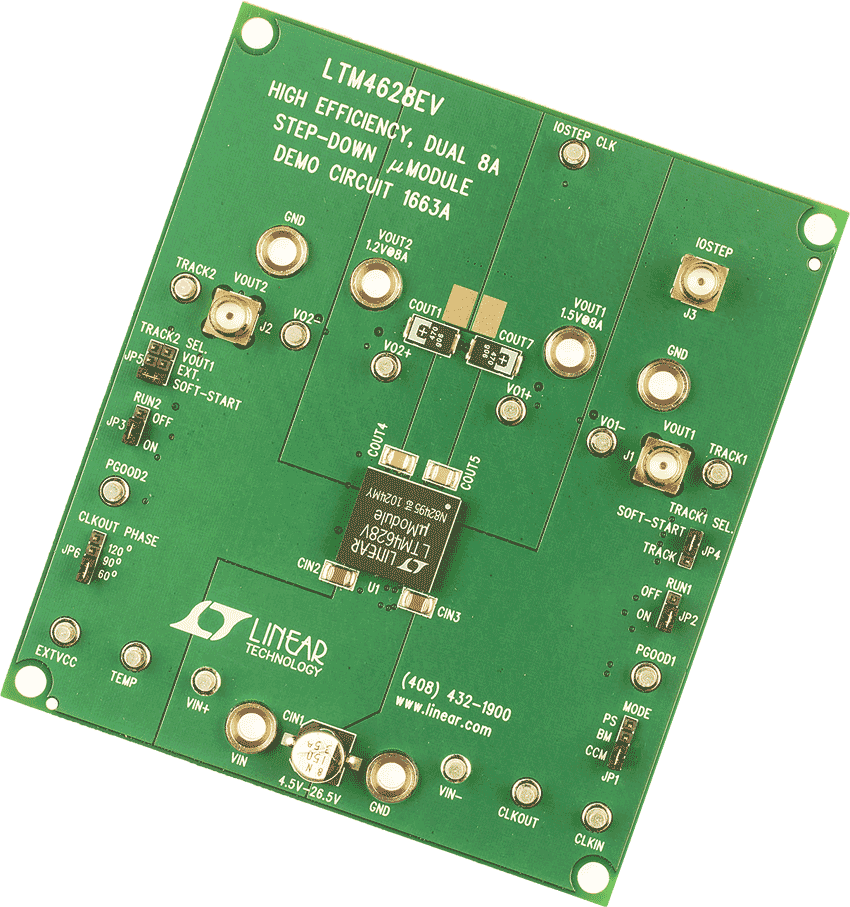

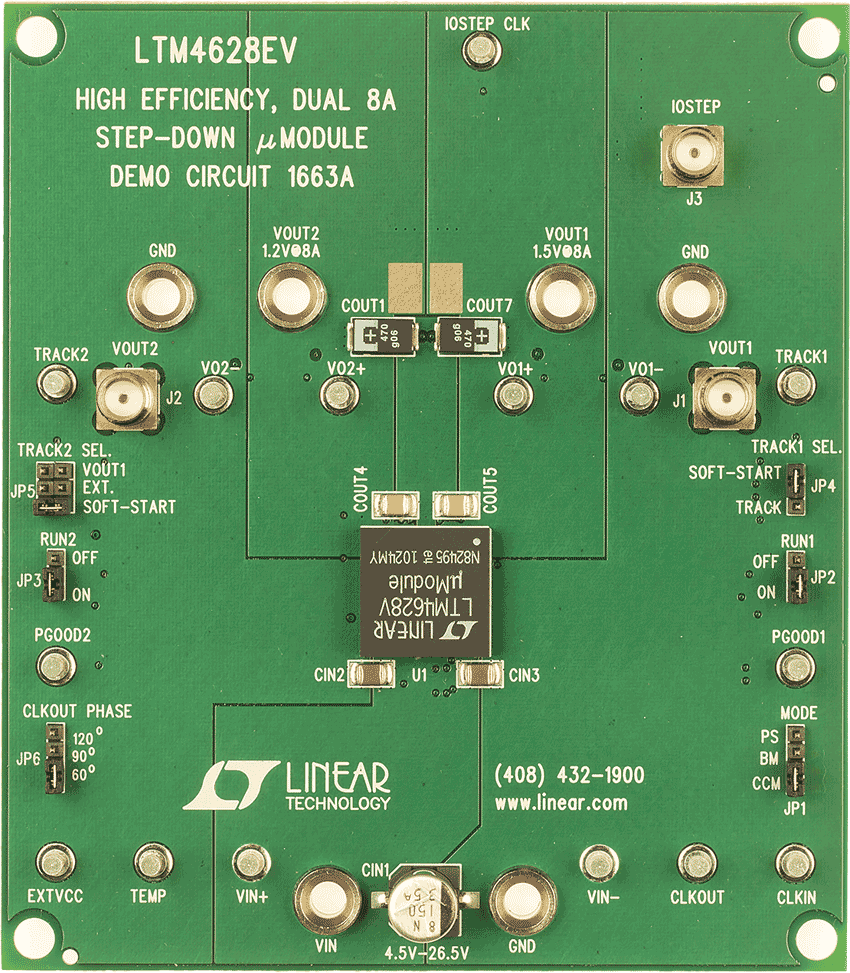

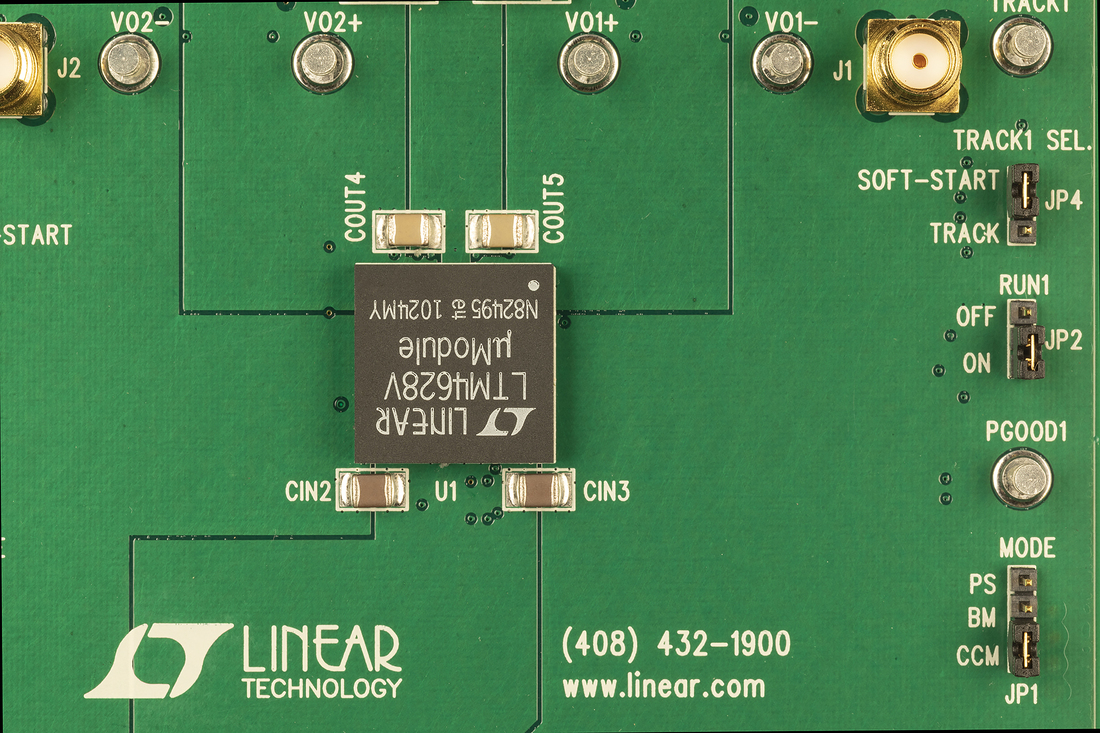

DC1663A

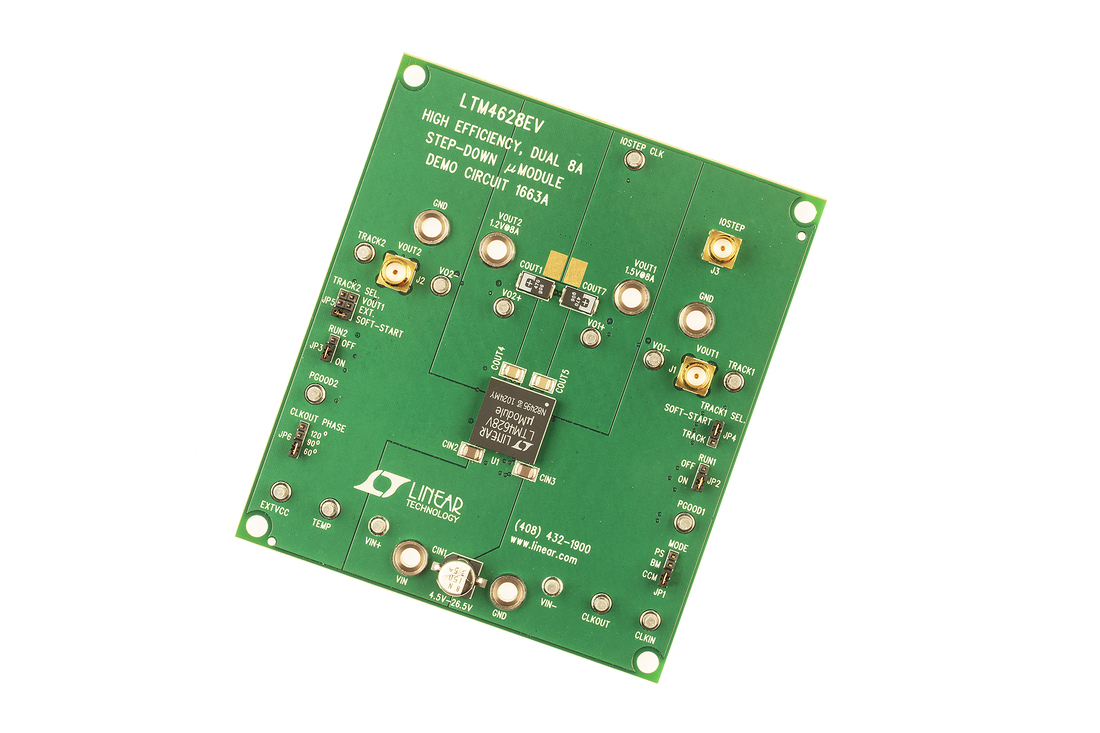

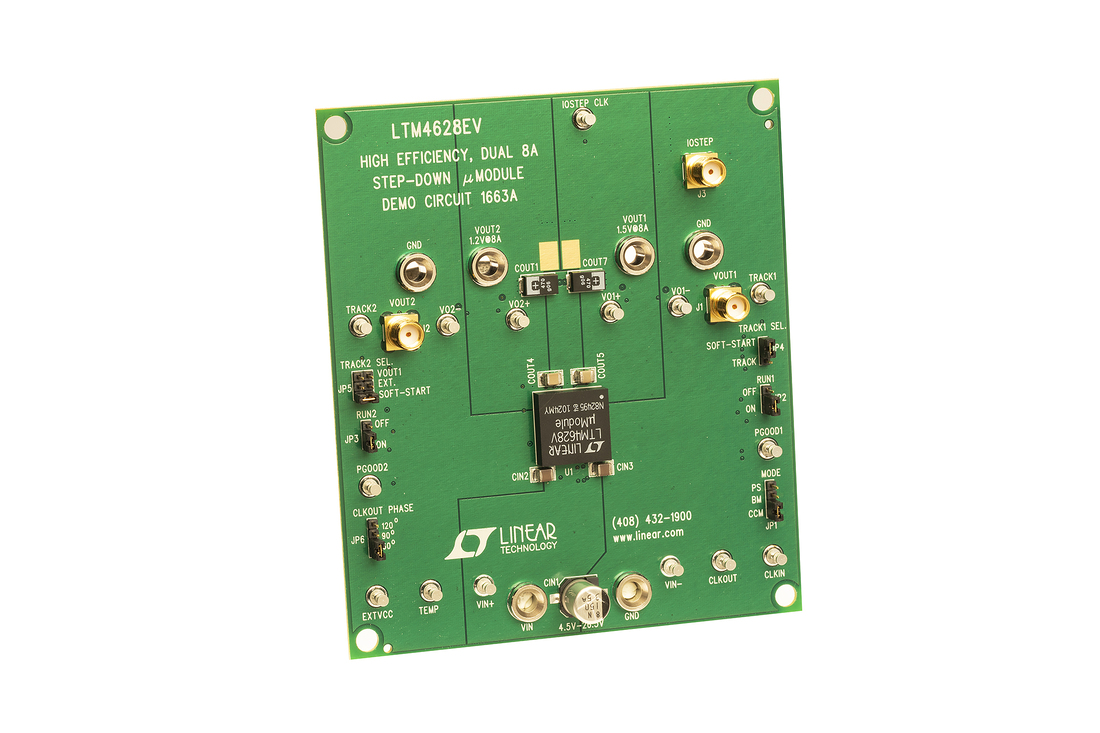

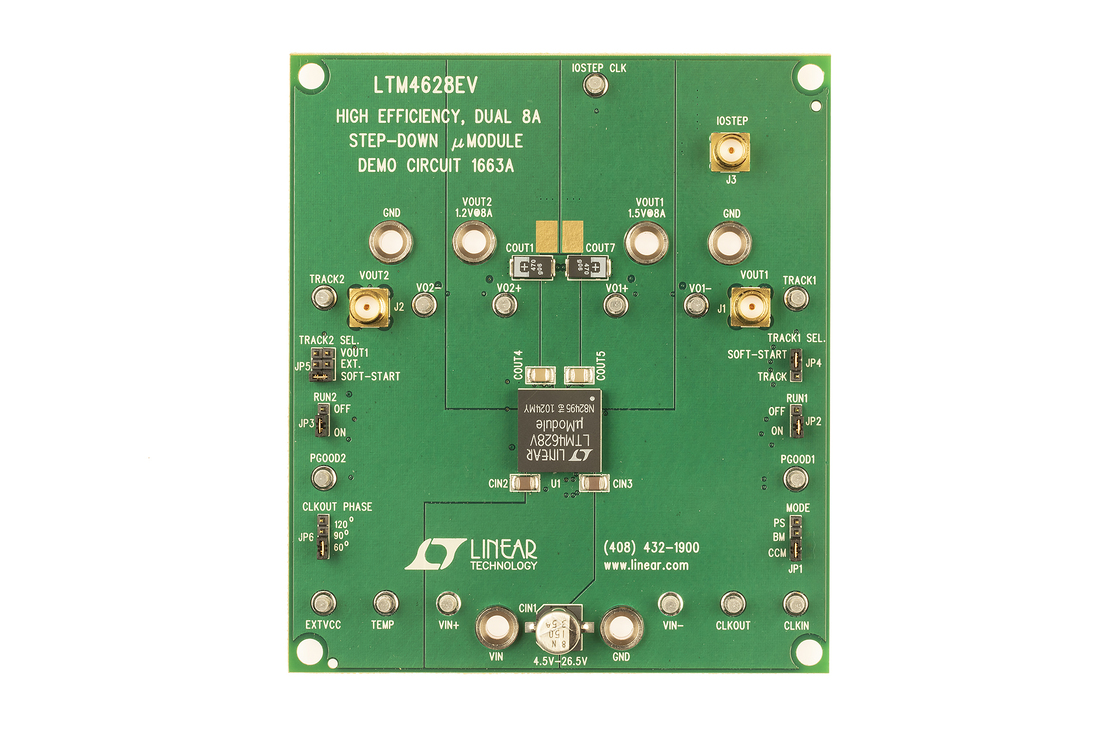

LTM4628 Demo Board | Buck µModule, 4.5V ≤ VIN ≤ 26V, VOUT1 = 1.5V @ 8A, VOUT2 = 1.2V @ 8A

zoom

DC1663A

LTM4628 Demo Board | Buck µModule, 4.5V ≤ VIN ≤ 26V, VOUT1 = 1.5V @ 8A, VOUT2 = 1.2V @ 8A

LTM4628 Demo Board | Buck µModule, 4.5V ≤ VIN ≤ 26V, VOUT1 = 1.5V @ 8A, VOUT2 = 1.2V @ 8A

产品详情

Demonstration circuit DC1663A features the LTM4628EV, the high efficiency, high density, dual 8A output, switch mode step-down power module. The input voltage is from 4.5V to 26.5V. The output voltage is programmable from 0.6V to 5.5V. Output current derating is necessary for certain VIN, VOUT, and thermal conditions. The board operates in continuous conduction mode in heavy load conditions. For high efficiency at low load currents, the MODE jumper (JP1) selects pulse-skipping mode for noise sensitive applications or Burst Mode® operation in less noise sensitive applications. The DC1663A sets the LTM4628EV default switching frequency to 400kHz; however the frequency is resistor programmable from 250kHz up to 780kHz.

工具和仿真

工具及仿真模型 2

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器,为改善模拟电路的仿真提供增强功能和模型。

启动此部分的现成LTspice演示电路:

1步:下载并在计算机上安装LTspice

2步:单击下面的链接,下载演示电路。

3步:如果在单击以下链接之后LTspice未自动打开,可通过右击该链接并选择“目标另存为”来运行该仿真。将文件保存到计算机之后,请启动LTspice并从“文件”菜单中选择“打开”来打开演示电路。

参考电路

参考电路 13

DK-DEV-5AGTD7N Dev Kit

zoomopens a dialog

Altera Arria V GT FPGA Development Kit

Altera Arria V GT FPGA Development Kit

参考设计

tooltip Info:参考设计

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link
DK-DEV-5SGSMD5N DSP Dev Kit

zoomopens a dialog

altera-dsp-development-kit-stratix-v-edition

altera-dsp-development-kit-stratix-v-edition

参考设计

tooltip Info:参考设计

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link
HTG-9100 900 Gb Optical Networking Platform

zoomopens a dialog

xilinx-virtex-ultrascale-multi-100-gig-optical-networking-platform

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link
Virtex-7™  10G/40G/100G Optical Interface FPGA Platform

zoomopens a dialog

xilinx-virtex-7-10g-40g-100g-optical-interface-fpga-platform

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link
TR5-F40W Dev Kit

zoomopens a dialog

terasic-tr5-f40w-stratix-v-gx-fpga-development-kit

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link
DK-DEV-5SGXEA7N Dev Kit

zoomopens a dialog

altera-stratix-v-gx-fpga-development-kit

altera-stratix-v-gx-fpga-development-kit

参考设计

tooltip Info:参考设计

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link

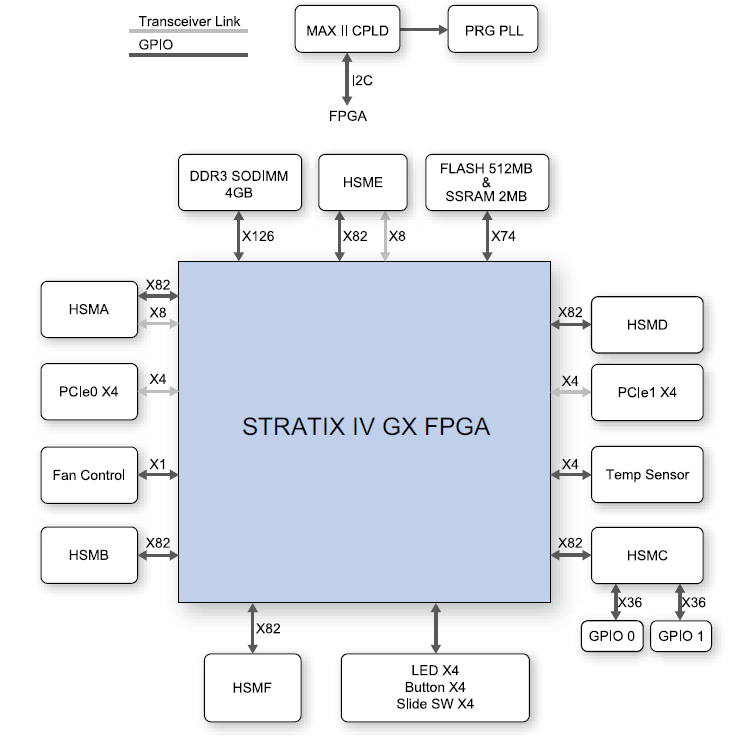

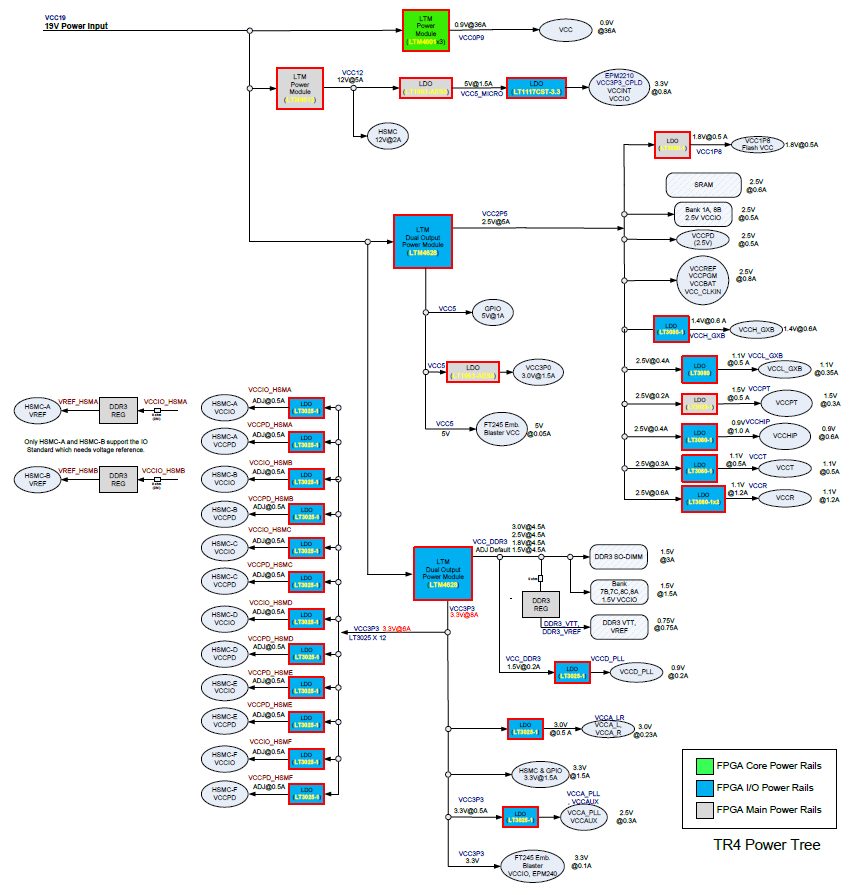

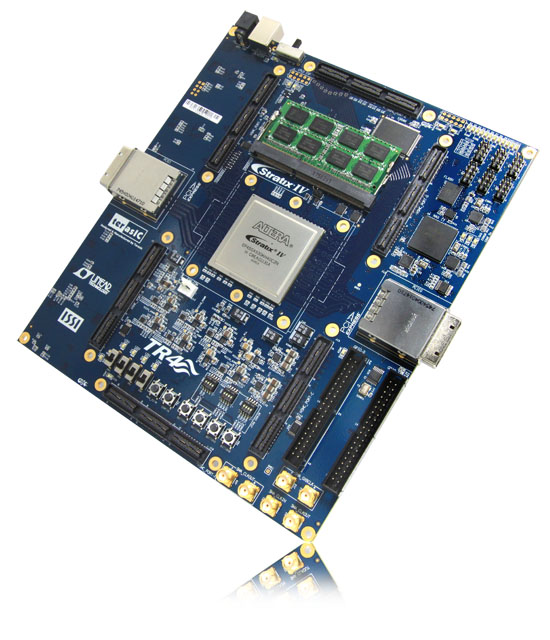

TR4 Stratix IV Board

zoomopens a dialog

terasic-tr4-stratix-iv-board

terasic-tr4-stratix-iv-board

参考设计

tooltip Info:参考设计

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link
HTG-K7-PCIE Dev Board

zoomopens a dialog

xilinx-kintex-7-pci-express-development-board

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link
Terasic DE2i-150 Cyclone IV Board

zoomopens a dialog

terasic-de2i-150-cyclone-iv-board

terasic-de2i-150-cyclone-iv-board

参考设计

tooltip Info:参考设计

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link

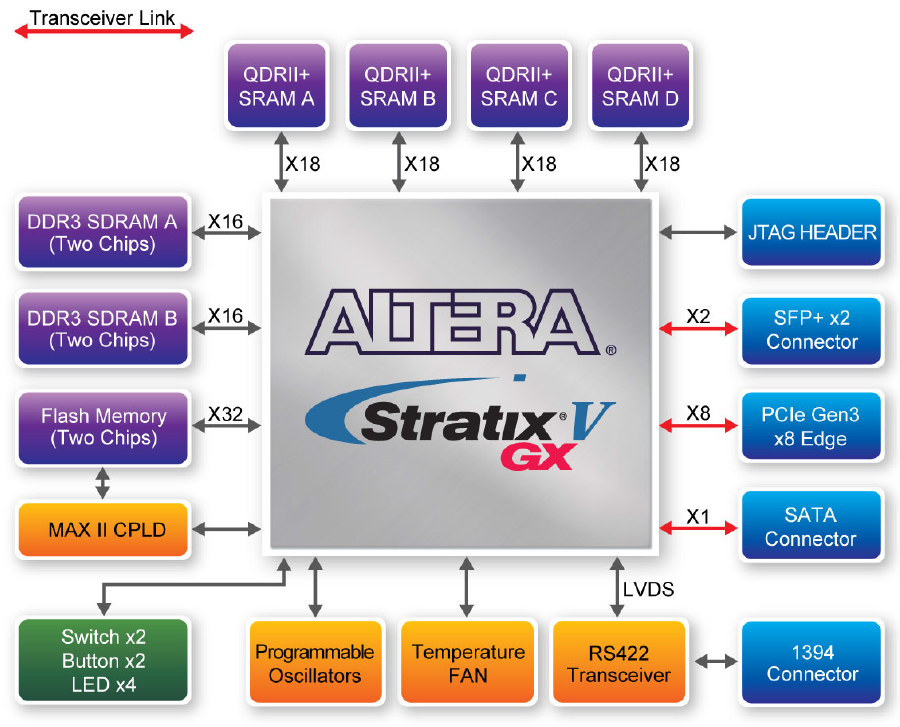

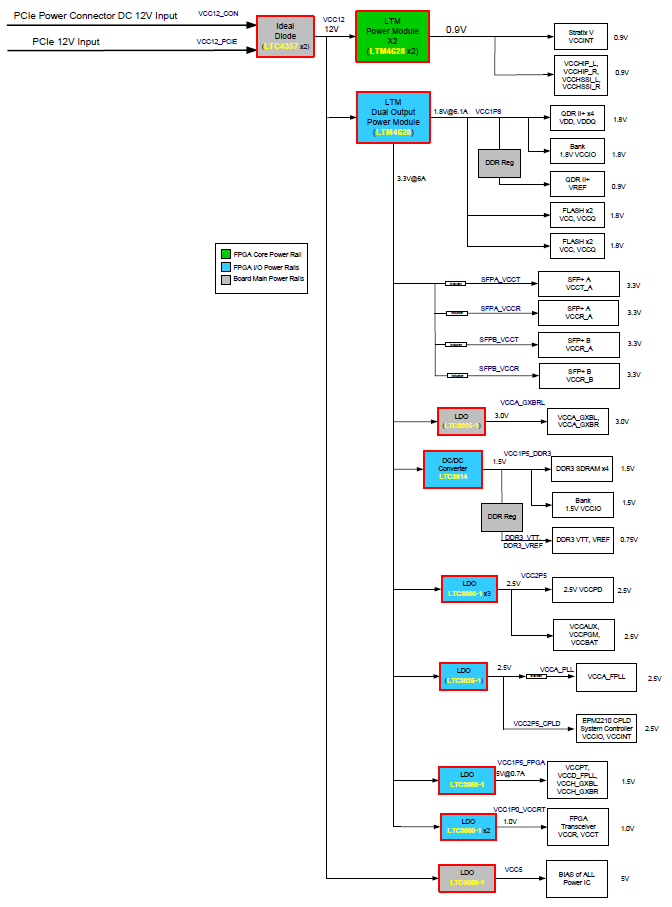

TR5-Lite Dev Kit

zoomopens a dialog

terasic-tr5-lite-stratix-v-fpga-development-kit

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link

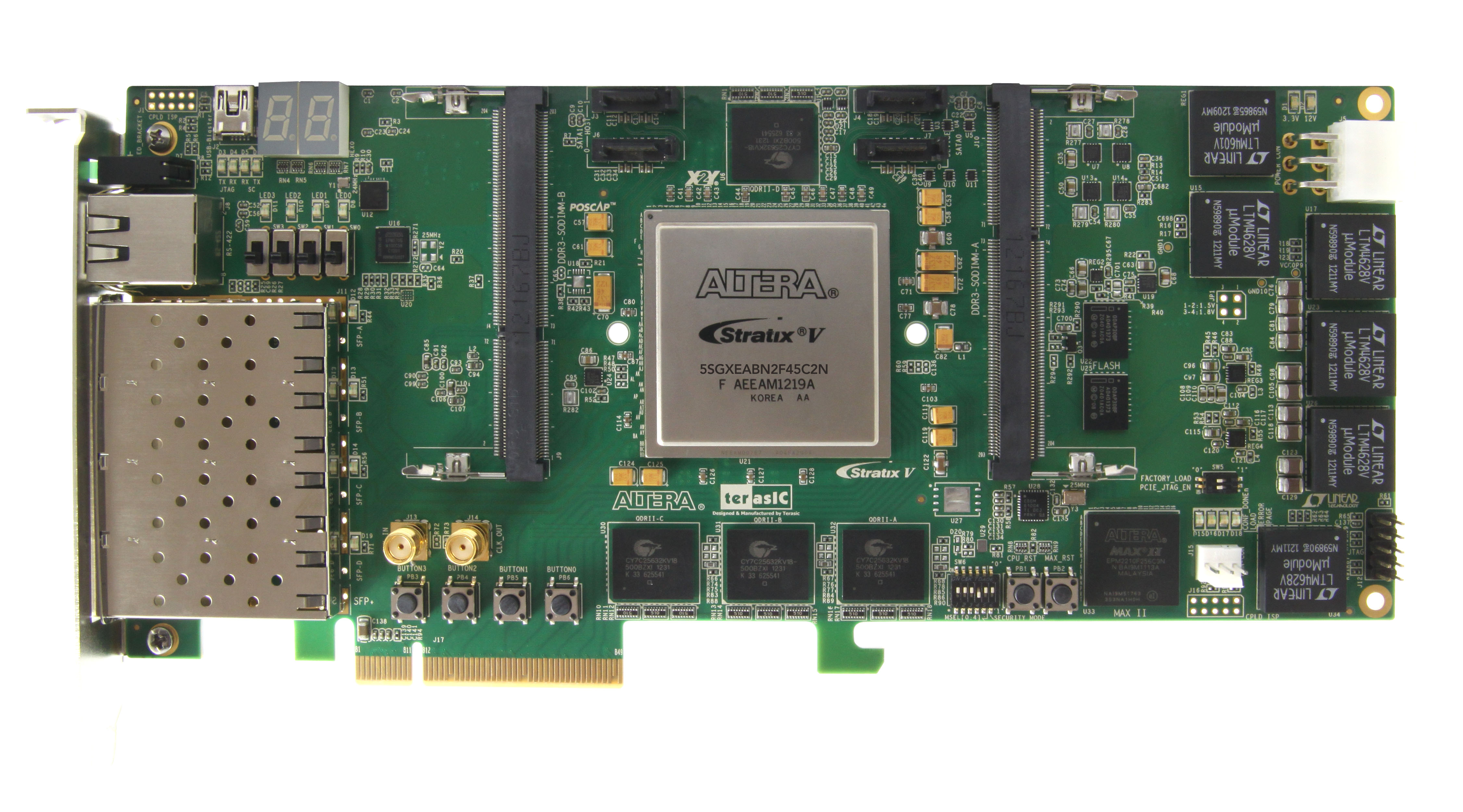

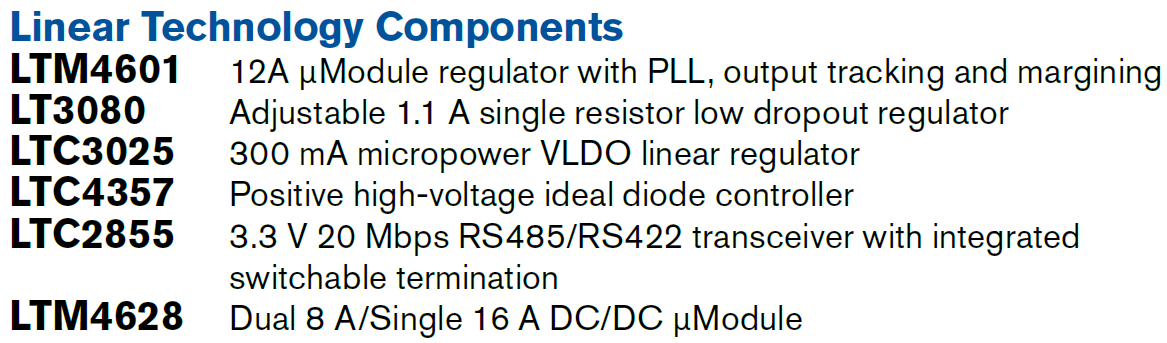

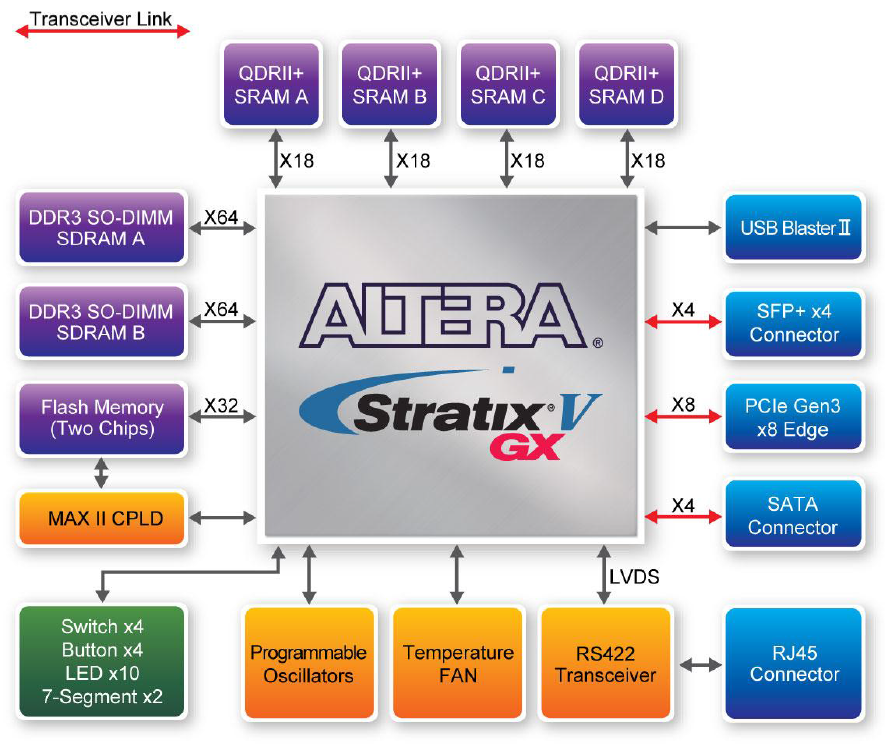

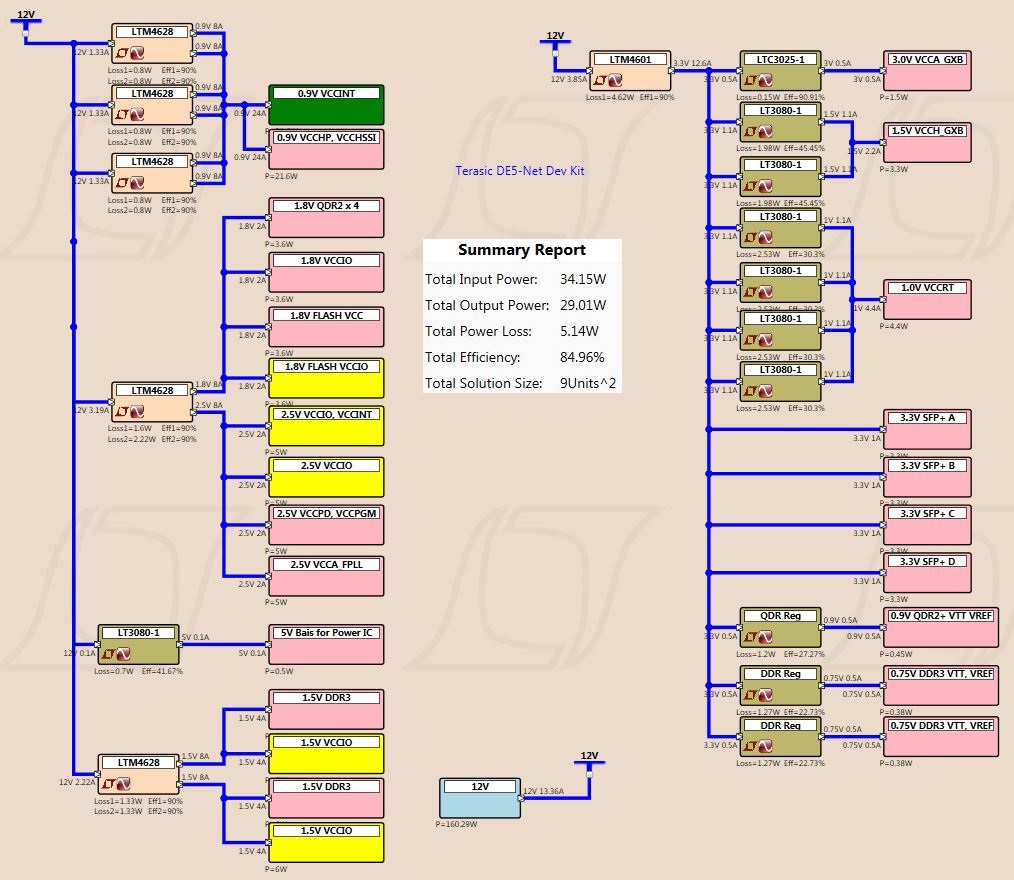

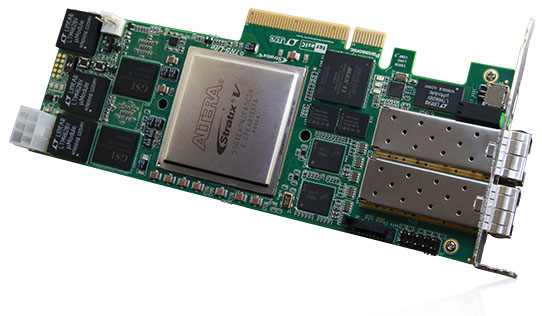

DE5-Net Dev Kit
