LTM4649

推荐用于新设计

10A、降压型 DC/DC μModule 稳压器

产品模型: 3

Viewing:

概述

10A DC 输出电流
输入电压范围：4.5V 至 16V
输出电压范围：0.6V 至高达 3.3V
在高达 85°C 的环境温度下无需散热器或电流降额
±1.5% 的总 DC 电压输出误差
多相操作和均流
远端采样放大器
内置通用温度监视器
可选的脉冲跳跃模式 / 突发模式 (Burst Mode^®) 操作以在轻负载条件下实现高效率
软起动 / 电压跟踪
保护：输出过压和过流折返
9mm x 15mm x 4.92mm BGA 封装

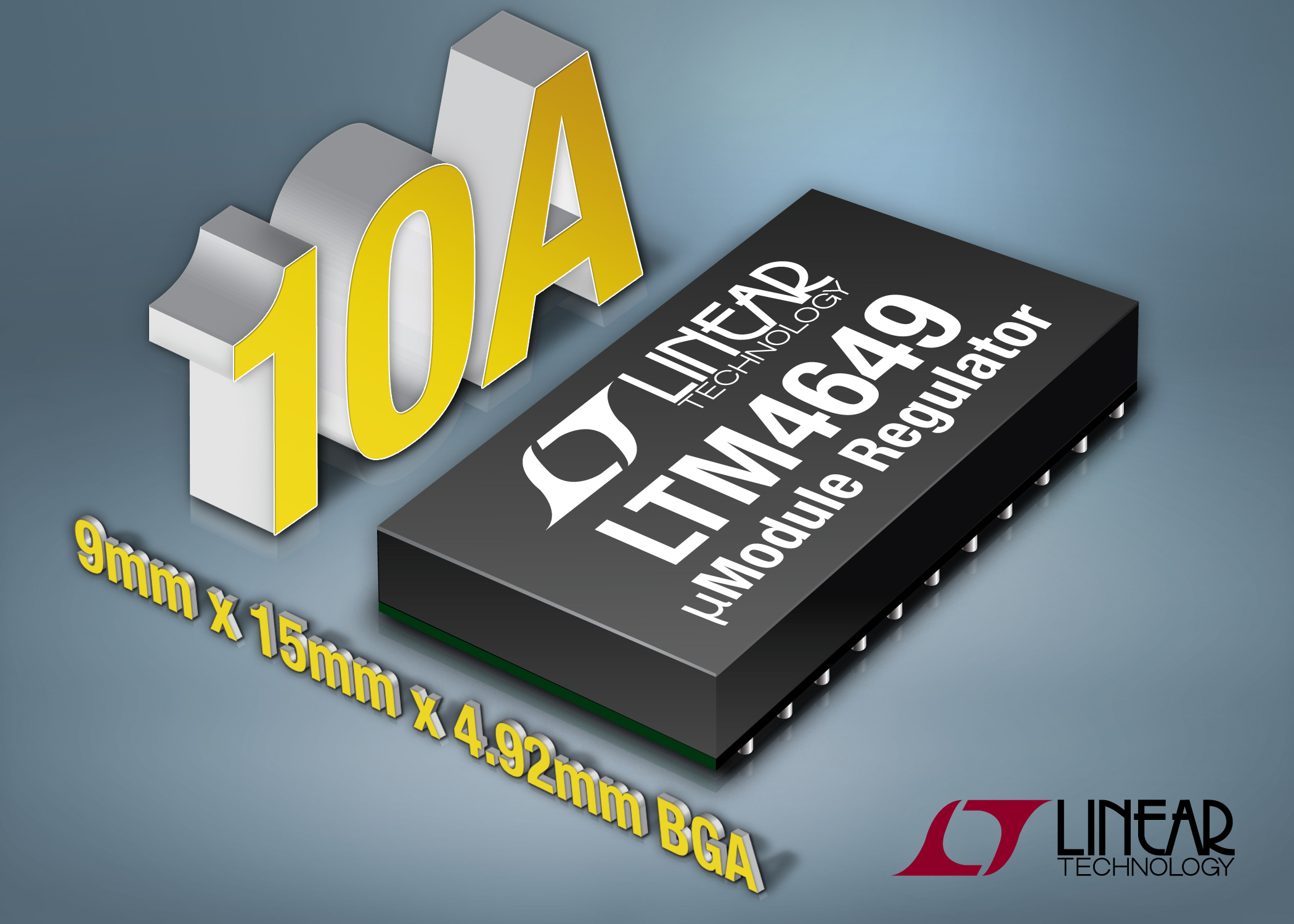

LTM^®4649 是一款完整的 10A、高效率、开关模式降压型 μModule^®稳压器，其采用 9mm x 15mm x 4.92mm BGA 封装。封装中内置了开关控制器、功率 FET、电感器和所有的支持组件。LTM4649 可在一个 4.5V 至 16V 的输入电压范围内运作，支持一个 0.6V 至 3.3V 的输出电压范围 (由单个外部电阻器来设定)。这种高效设计可提供 10A 的连续电流。仅需大容量的输入和输出电容器。

高开关频率和一种电流模式架构的运用提供了针对电压和负载变化的快速瞬态响应，并且未牺牲稳定性。该器件支持频率同步、可编程多相运作、扩频以及用于电源轨排序的输出电压跟踪功能。

故障保护功能包括过压保护、过流保护。LTM4649 采用小外形的耐热性能增强型 9mm x 15mm x 4.92mm BGA 封装。LTM4649 采用小外形 9mm x 15mm x 4.92mm BGA 封装，具有 SnPb 或符合 RoHS 标准的引脚涂层。

Applications

电信、网络和工业设备
负载点调节

产品模型: 3

参考资料

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
LTM4649EY#PBF	68-Lead BGA (15mm x 9mm x 4.92mm)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LTM4649IY	68-Lead BGA (15mm x 9mm x 4.92mm)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LTM4649IY#PBF	68-Lead BGA (15mm x 9mm x 4.92mm)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN

10月 4, 2024 - 24_0225 LTM4620, LTM4620A, LTM4677, LTM4648 and LTM4649 Change of FET
		PCN24_0225_Form Material_Report Qualification Results Summary
LTM4649EY#PBF	量产
LTM4649IY	量产
LTM4649IY#PBF	量产
9月 18, 2023 - 23_0190 LTM4649 Data Sheet Revision
		PCN23_0190_Form Material_Report Datasheet Specification Comparison
LTM4649EY#PBF	量产
LTM4649IY	量产
LTM4649IY#PBF	量产
7月 28, 2021 - 20_0245 Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)
		PCN20_0245_Form Material_Report Delta Qualification Matrix Other Qualification Results Summary
LTM4649EY#PBF	量产
LTM4649IY	量产
LTM4649IY#PBF	量产
7月 21, 2021 - 21_0159 Ink Mark to Laser Mark Conversion for µModule
		PCN21_0159_Form Material_Report Delta Qualification Matrix
LTM4649EY#PBF	量产
LTM4649IY	量产
LTM4649IY#PBF	量产
2月 28, 2020 - 20_0123 Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia
		PCN20_0123_Form Material_Report Test Correlation Report Other Qualification Results Summary
LTM4649EY#PBF	量产
LTM4649IY	量产
LTM4649IY#PBF	量产
2月 5, 2020 - 20_0127 Supplier Material Change for µModule
		PCN20_0127_Form Material_Report Qualification Results Summary
LTM4649EY#PBF	量产
LTM4649IY	量产
LTM4649IY#PBF	量产
11月 20, 2019 - 19_0227 LTM4648, LTM4649 - MOSFET Supplier Material Change
		PCN19_0227_Form Material_Report Qualification Results Summary
LTM4649EY#PBF	量产
LTM4649IY	量产
LTM4649IY#PBF	量产

这是最新版本的数据手册

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

硬件生态系统

部分模型	产品周期	描述
保护开关和控制器 1
LTC4370	推荐用于新设计	双电源二极管 “合路” 电流平衡控制器
开关稳压器和控制器 2
LTM4633	推荐用于新设计	三输出 10A 降压型 DC/DC μModule 稳压器
LTM4641	推荐用于新设计	具高级输入和负载保护功能的 38V、10A DC/DC μModule 稳压器

工具及仿真模型

LTspice 1

LTM4649 Demo Circuit - 10A Buck µModule Regulator (4.5-16V to 1.5V @ 10A)

LTspice中提供以下器件型号：

LTM4649

LTpowerCAD 1

LTM4649 Project - 10A Step-Down μModule Regulator (4.5-16V to 1.8V @ 10A)

LTpowerCAD中提供以下器件的设计工具：

LTM4649

LTspice^®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

LTpowerCAD^®是一种电源设计程序，它选择功率级元件，提供详细效率信息，显示快速环路波特图稳定性和负载瞬态分析，并可导出至LTspice进行仿真。

评估套件

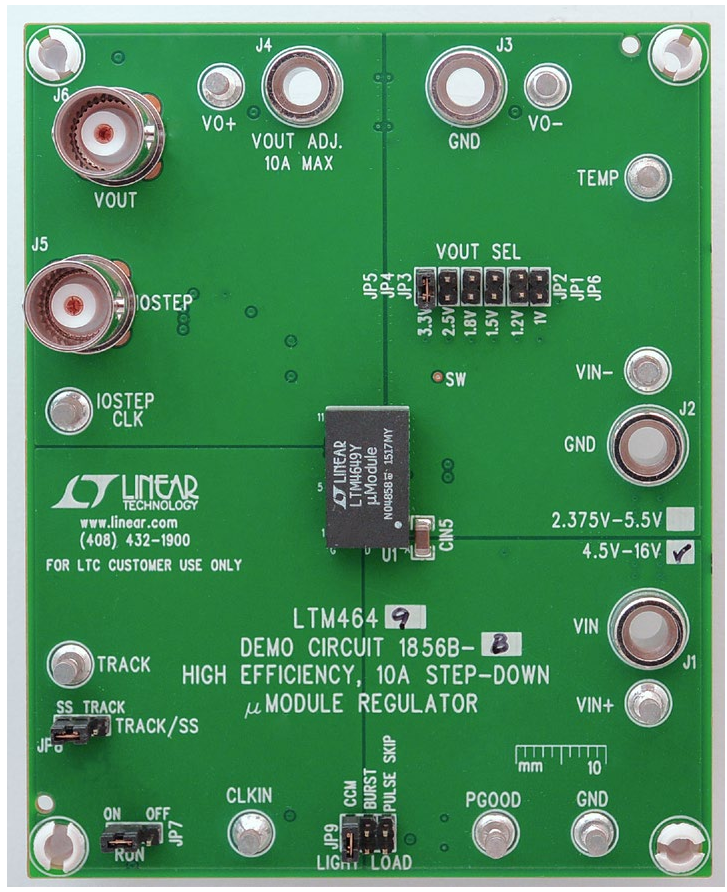

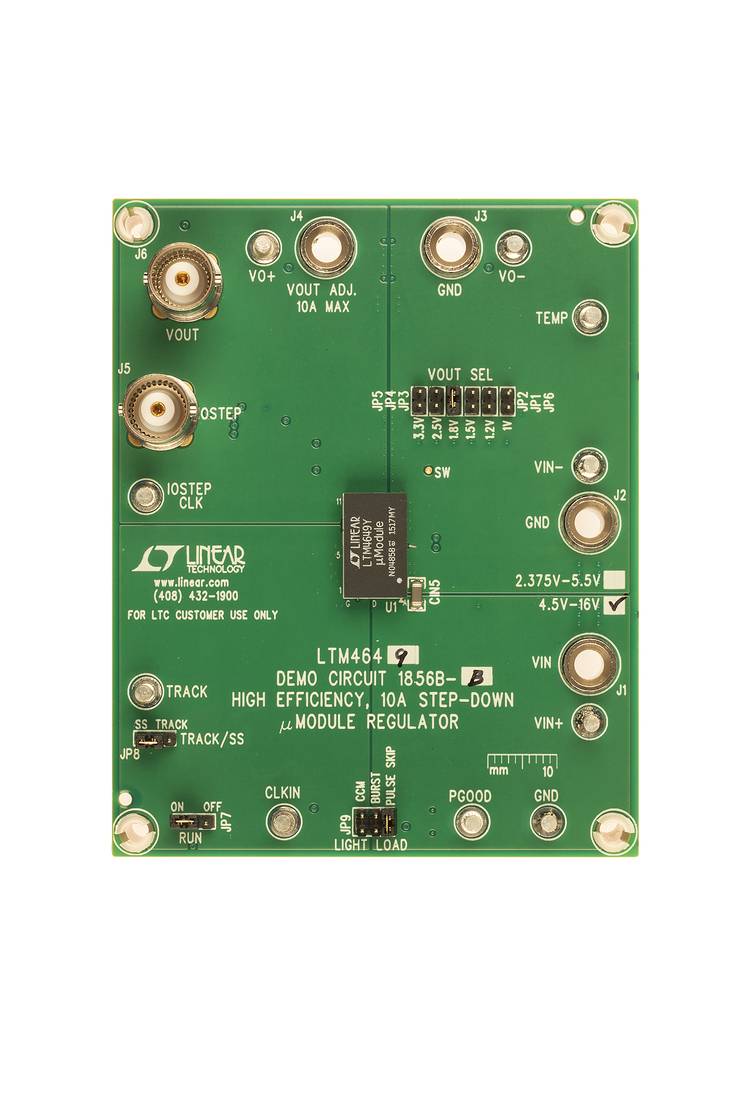

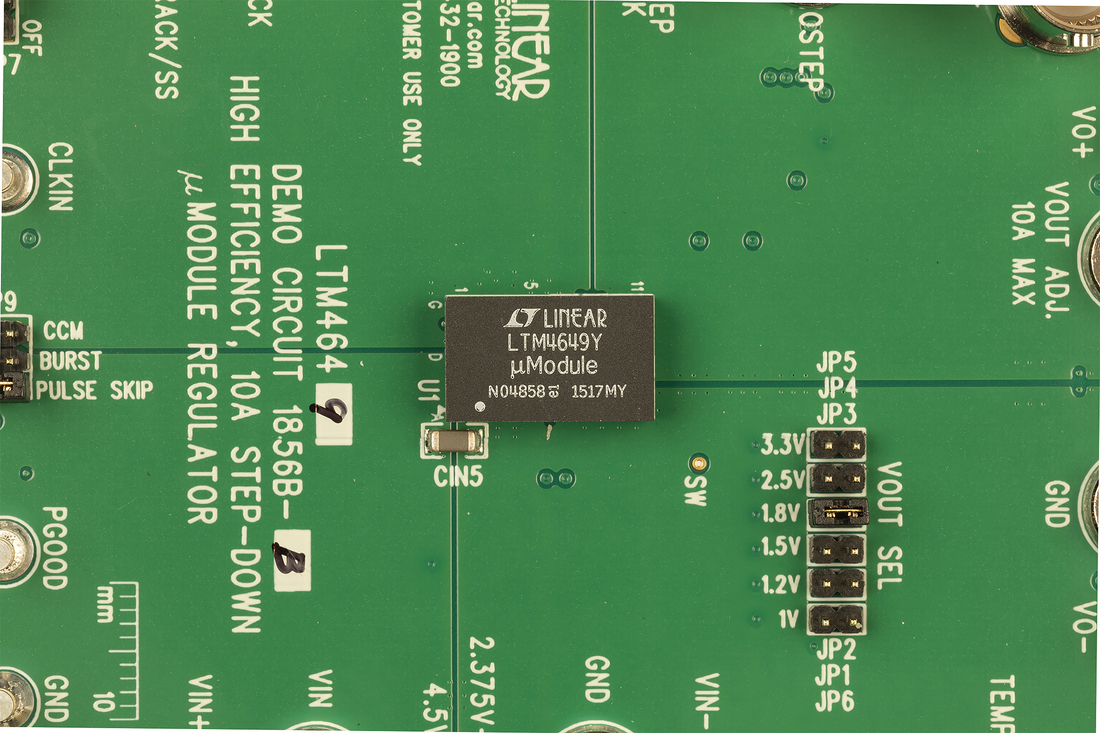

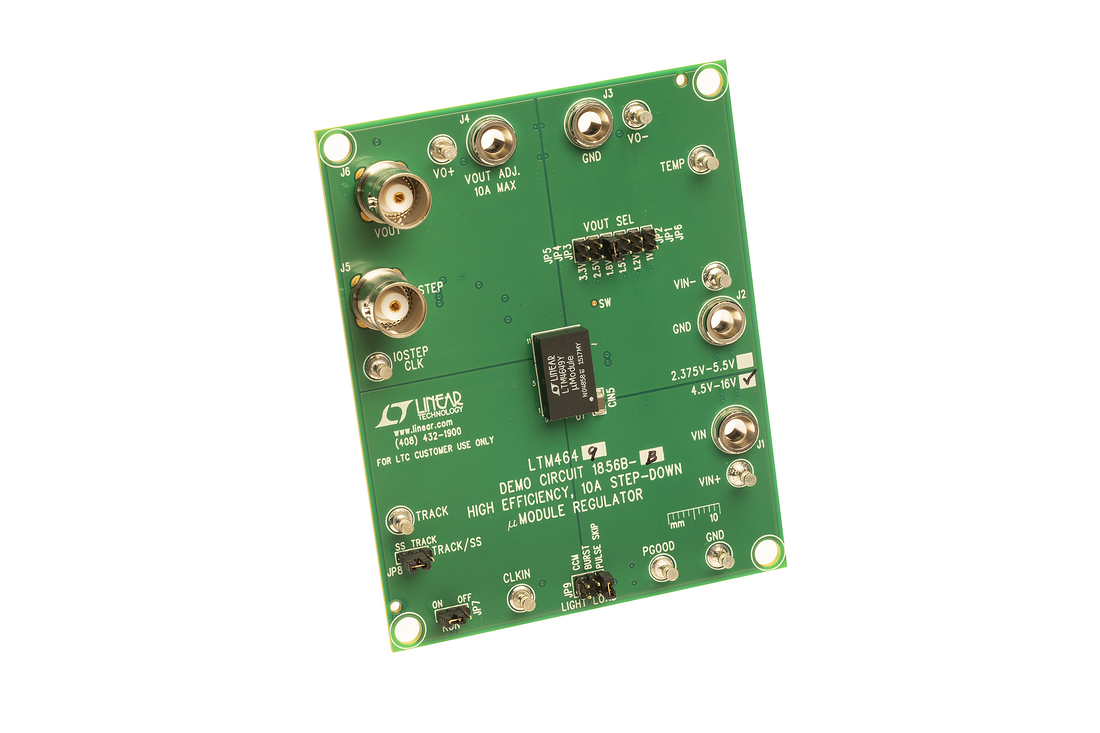

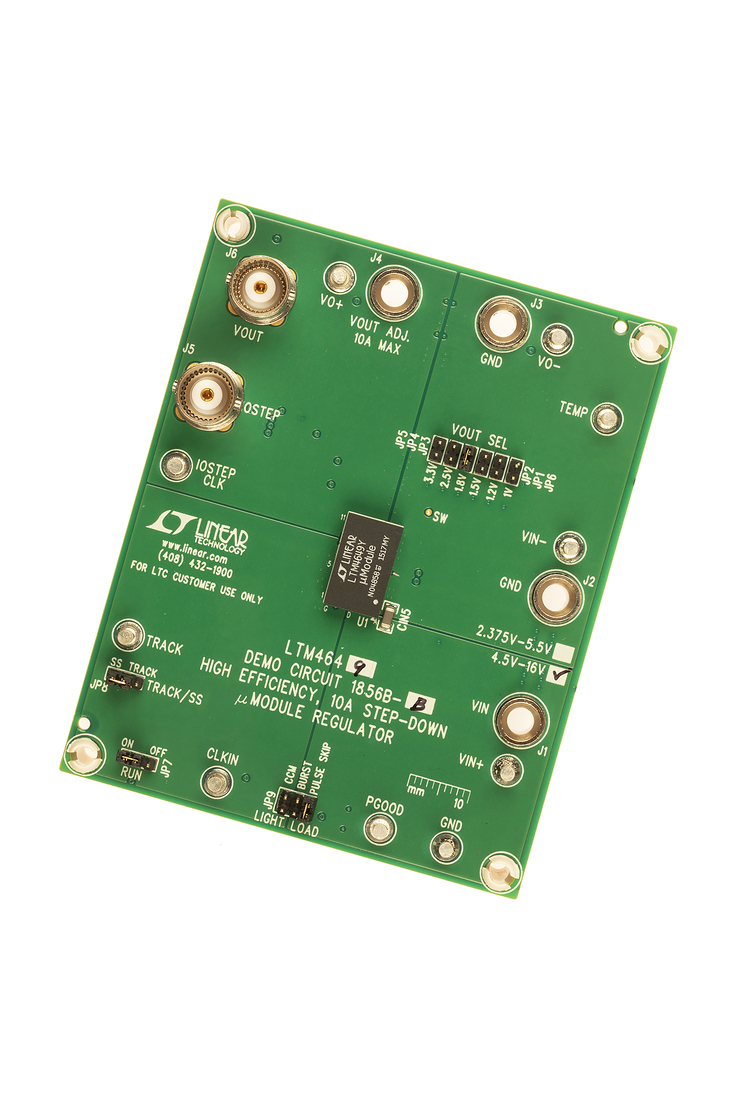

LTM4649EY Demo Board | 16V 10A Step-Down µModule Regulator

立即购买更多内容

产品详情

Demonstration circuit 1856B-B features the LTM4649EY μModule^® regulator, a high performance high efficiency step-down regulator. The LTM4649EY has an operating input voltage range of 4.5V to 16V and is able to provide an output current of up to 10A. The output voltage is programmable from 0.6V to 3.3V and can be remotely sensed with the internal differential remote sensing amplifier. The LTM4649EY is a complete DC-DC point of load regulator in a thermally enhanced 15mm × 9mm × 4.92mm BGA package requiring only a few input and output capacitors.

资料

DC1856B-B - Demo Manual
2016/2/17

DC1856B - Design Files
2016/2/17

DC1856B - Schematic
2016/2/17
