LTM4633

三输出 10A 降压型 DC/DC μModule 稳压器

英文数据手册

推荐新设计使用

顶部

概览

优势和特点
产品详情

优势和特点

三个独立的 10A DC 输出电流调节器通道
输入电压范围：4.7V 至 16V
- 2.375V 至 16V (采用外部 5V 偏置)
V_OUT1,2 电压范围：0.8V 至 1.8V
V_OUT3 电压范围：0.8V 至 5.5V
±1.5% 最大总 DC 输出误差
电流模式控制 / 快速瞬态响应
频率同步
输出过压和过流保护
多相操作 (在 V_OUT1 和 V_OUT2 上实现均流)
通用温度监视器
软起动 / 电压跟踪
电源良好监视器
15mm x 15mm x 5.01mm BGA 封装

产品详情

LTM^®4633 μModule^® (微型模块) 稳压器将三个完整的 10A 开关模式 DC/DC 转换器整合在一个小型封装之中。封装中内置了开关控制器、功率 FET、电感器和大多数支持组件。LTM4633 的三个稳压器依靠 4.7V 至 16V 输入电压轨或 2.375V 至 16V (采用一个外部 5V 偏置) 电压运作。V_OUT1 和 V_OUT2 输出范围为 0.8V 至 1.8V，而 V_OUT3 输出范围则为 0.8V 至 5.5V。每个输出由一个外部电阻器来设定。

高开关频率和一种电流模式架构的运用实现了针对电压和负载变化的快速瞬态响应，并且未牺牲稳定性。该器件支持频率同步、V_OUT1 和 V_OUT2 的多相并行运作、软起动以及用于电源轨排序的输出电压跟踪。

故障保护功能包括过压、过流保护和温度监视。该电源模块采用节省空间的耐热性能增强型 15mm x 15mm x 5.01mm BGA 封装。LTM4633 符合 RoHS 标准，并采用无铅涂层。

应用

电信、网络和工业设备
高密度负载点调节

产品分类

电源管理
- 多个输出降压调节器

类似器件点击在参数搜索中查看所有

产品生命周期推荐新设计使用

本产品已上市。数据手册包含所有最终性能规格和工作条件。ADI公司推荐新设计使用这些产品。

评估套件 (2)

QUAD-MxFE Platform

16Tx/16Rx Direct L/S/C-Band Sampled Phased-Array/RADAR/EW/SATCOM Development Platform

DC1905A

LTM4633 Demo Board | Triple Buck µModule Regulator, 4.7V ≤ V_IN ≤ 16V, V_OUT1 & V_OUT2 = 0.8V to 1.8V @ 10A, V_OUT3 = 0.8V to 5.5V @ 10A

QUAD-MxFE Platform

查看此评估套件详细信息

The Quad-MxFE System Development Platform contains four MxFE® software defined, direct RF sampling transceivers, as well as associated RF front-ends, clocking, and power circuitry. The target application is phased array radars, electronic warfare, and ground-based SATCOM, specifically a 16 transmit/16 receive channel direct sampling phased array at L/S/C band (0.1 GHz to ~5GHz). The Rx & Tx RF front-end has drop-in configurations that allow for customized frequency ranges, depending on the user’s application.

The Quad-MxFE System Development Platform highlights a complete system solution. It is intended as a testbed for demonstrating multi-chip synchronization as well as the implementation of system level calibrations, beamforming algorithms, and other signal processing algorithms. The system is designed to mate with a VCU118 Evaluation Board from Xilinx®, which features the Virtex® UltraScale+™ XCVU9P FPGA, with provided reference software, HDL code, and MATLAB system-level interfacing.

In addition to the Quad-MxFE Digitizing Card, the kit also contains a 16Tx / 16Rx Calibration Board that is used to develop system-level calibration algorithms, or otherwise more easily demonstrate power-up phase determinism in situations pertinent to their own use case. The Calibration Board also allows the user to demonstrate combined-channel dynamic range, spurious, and phase noise improvements and can also be controlled via a free MATLAB add-on when connected to the PMOD interface of the VCU118.

The system can be used to enable quick time-to-market development programs for applications like:

ADEF (Phased-Array, RADAR, EW, SATCOM)
Communications Infrastructure (Multiband 5G and mmWave 5G)
Electronic Test and Measurement

优势和特点

Quad-MxFE Digitizing Card

Multi-Channel, Wideband System Development Platform Using MxFE
Mates With Xilinx VCU118 Evaluation Board (Not Included)
16x RF Receive (Rx) Channels (32x Digital Rx Channels)
- Total 16x 1.5GSPS to 4GSPS ADC
- 48x Digital Down Converters (DDCs), Each Including Complex Numerically-Controlled Oscillators (NCOs)
- 16x Programmable Finite Impulse Response Filters (pFIRs)
16x RF Transmit (Tx) Channels (32x Digital Tx Channels)
- Total 16x 3GSPS to 12GSPS DAC
- 48x Digital Up Converters (DUCs) , Each Including Complex Numerically-Controlled Oscillators (NCOs)
Flexible Rx & Tx RF Front-Ends
- Rx: Filtering, Amplification, Digital Step Attenuation for Gain Control
- Tx: Filtering, Amplification
On-Board Power Regulation from Single 12V Power Adapter (Included)
Flexible Clock Distribution
- On-Board Clock Distribution from Single External 500MHz Reference
- Support for External Converter Clock per MxFE

16Tx / 16Rx Calibration Board

Mates to Quad-MxFE Digitizing Card & VCU118 PMOD Interface (Cable Included)
Provides Both Individual Adjacent Channel Loopback and Combined Channel Loopback Options
Combined Tx Channels Out Via SMA Option
Combined Rx Channels In Via SMA Option
On-Board Log Power Detectors With AD5592R Output To VCU118 Over PMOD
On-Board Power Regulation from Single 12V Power Adapter (Included)

Software Features and Benefits
Easy Control Tools and Platform Interfaces to Simplify Software Framework Developments:

IIO Oscilloscope GUI
MATLAB Add-Ons & Example Scripts
Example HDL Builds including JESD204b/JESD204c Bring-Up
Embedded Software Solutions for Linux and Device Drivers
MATLAB System Applications GUI

Software Reference Design Examples for ADEF Applications to Reduce Prototyping Time:

Multi-Chip Synchronization for Power-Up Phase Determinism
System-Level Amplitude/Phase Alignment Using NCOs
Low-Latency ADC-to-DAC Loopback Bypassing JESD Interface
pFIR Control for Broadband Channel-to-Channel Amplitude/Phase Alignment
Fast-Frequency Hopping
Calibration Board MATLAB Driver File
FPGA Programming MATLAB Script

软件

Quad-MxFE Software Quick Start Guide

WIKI

DC1905A

查看此评估套件详细信息

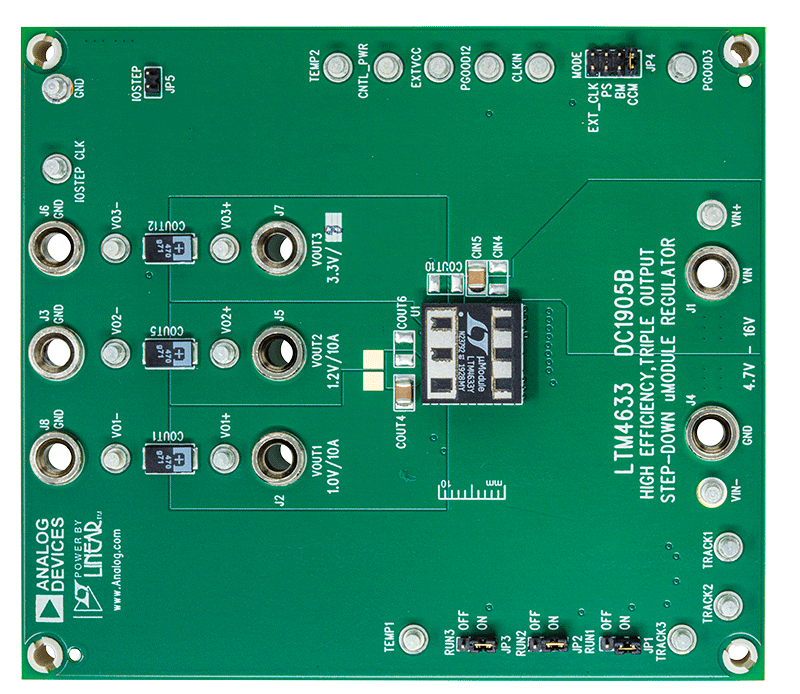

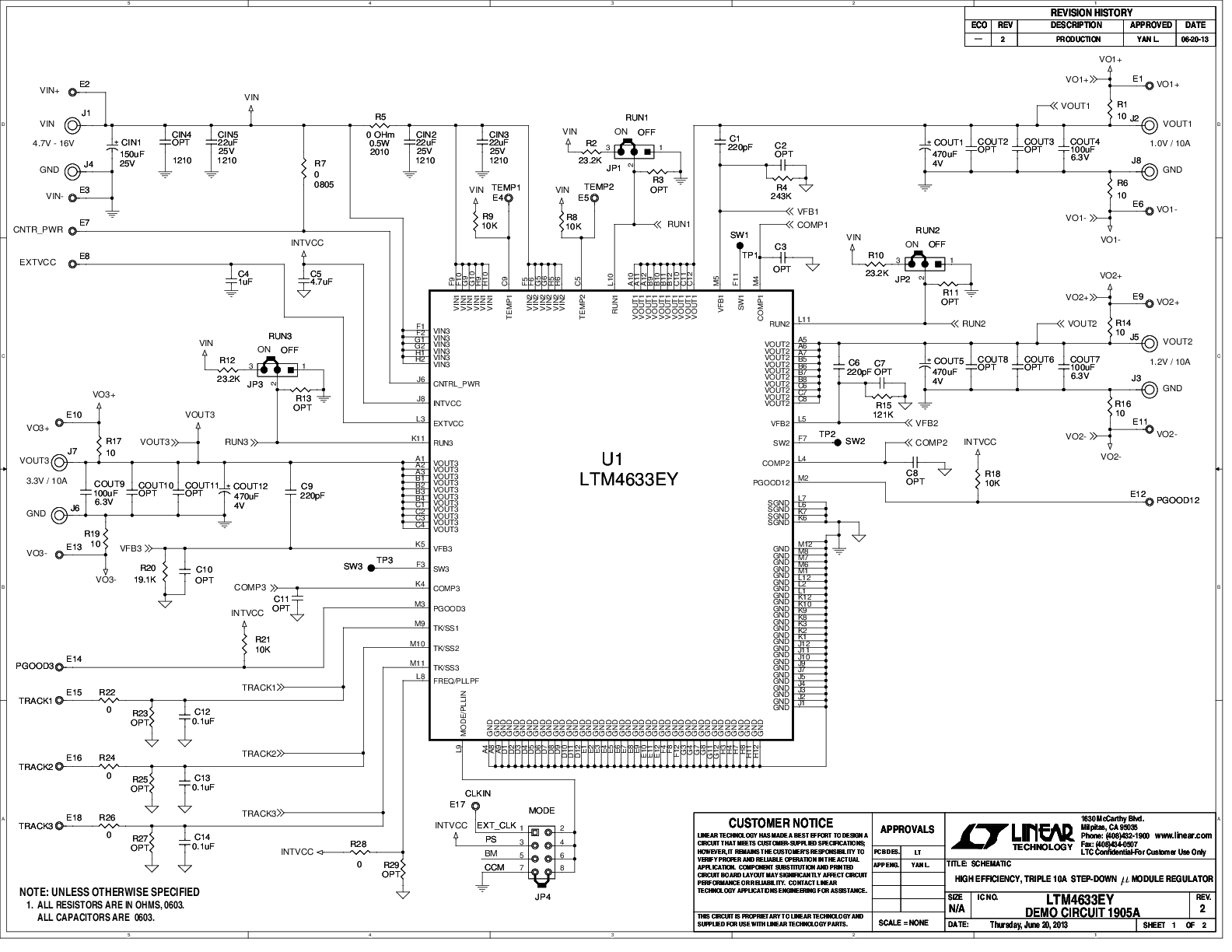

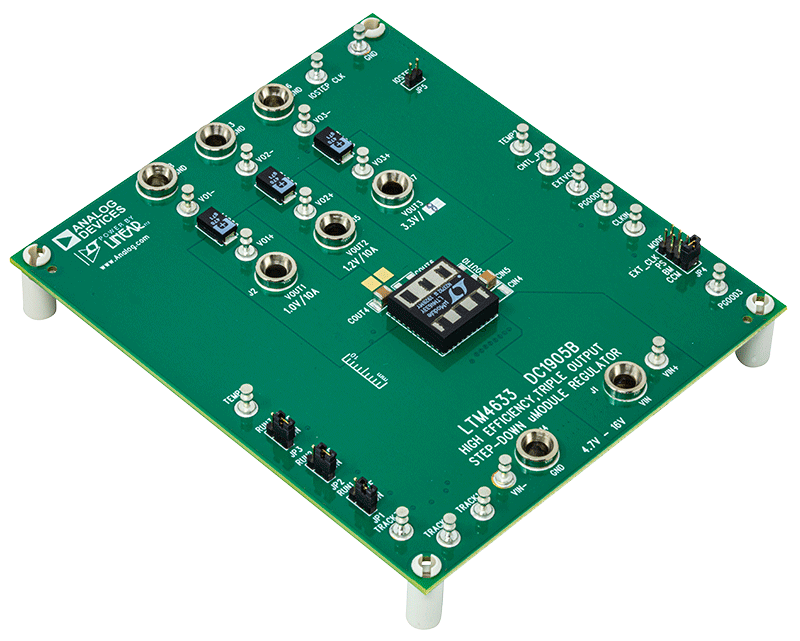

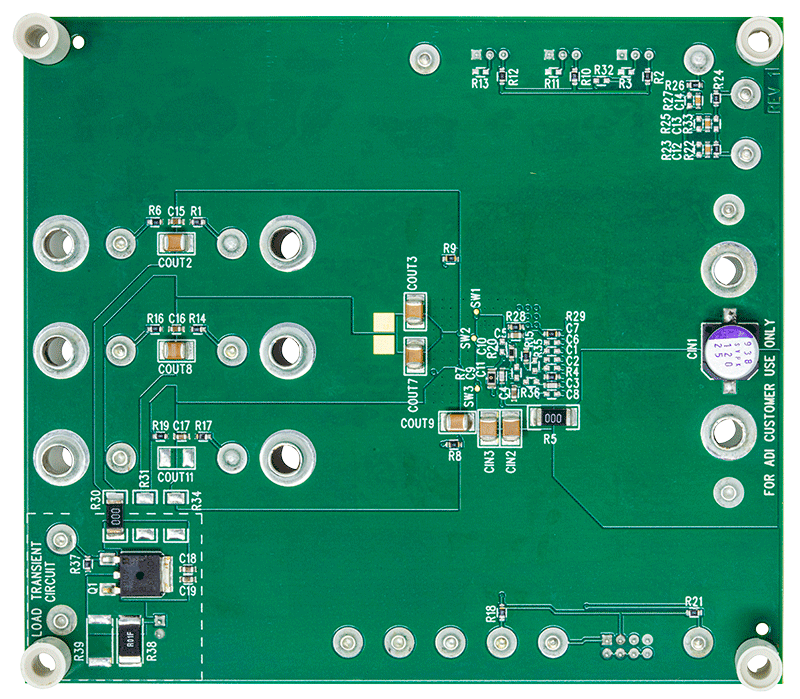

Demonstration circuit DC1905A features the LTM4633EY, a high efficiency, triple 10A step-down power μModule^® regulator. The input voltage range is from 4.7V to 16V with common input source, or 2.375V to 16V with an external bias supply. The output voltage range is 0.8V to 1.8V for Channel 1 and Channel 2, 0.8V to 5.5V for Channel 3. Derating is necessary for certain V_IN, V_OUT, frequency and thermal conditions. The DC1905A offers access to the TRACK/SS pins allowing the user to program output tracking or soft-start period. The board operates in continuous conduction mode in heavy load conditions. For high efficiency at low load currents, the MODE jumper (JP4) selects pulse-skipping mode for noise sensitive applications or Burst-Mode^® operation in less noise sensitive applications. Channel 1 and 2 can be connected in parallel for a single 20A output solution with optional jumper resistors.
