LTM4627

15A、DC/DC μModule 稳压器

更多 showmore-icon

Info: : 量产 tooltip
Info: : 量产 tooltip
产品详情
产品模型 7
特性
  • 完整的 15A 开关模式电源
  • 宽输入电压范围:4.5V 至 20V
  • 0.6V 至 5V 输出范围
  • ±1.5% 总 DC 输出误差
  • 用于实现精准稳压的差分远端采样放大器
  • 电流模式控制 / 快速瞬态响应
  • 频率同步
  • 并联均流 (高达 60A)
  • 可选的脉冲跳跃或突发模式 (Burst Mode®) 操作
  • 软起动 / 电压跟踪

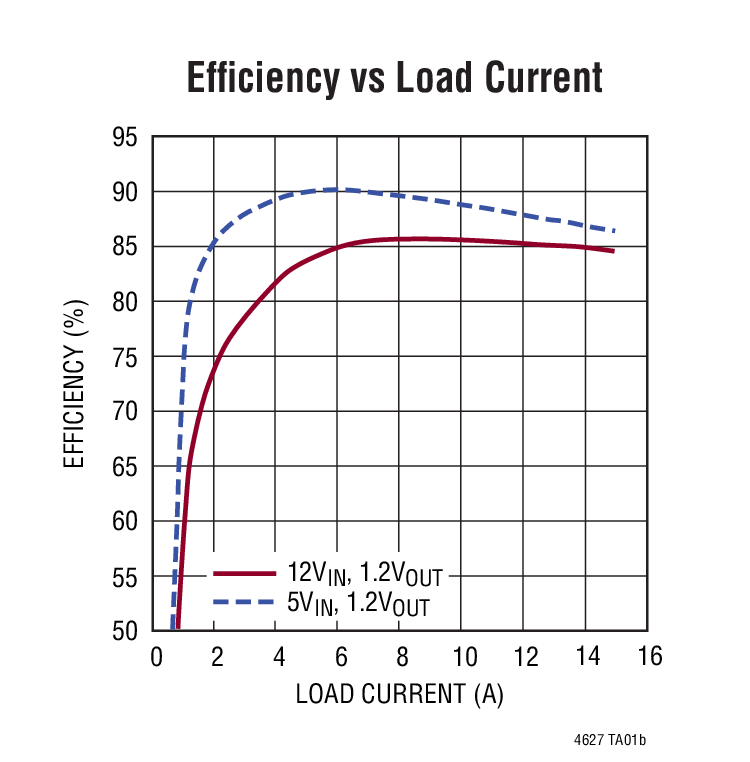

  • 效率高达 93% (12VIN、3.3VOUT)
  • 过流折返保护
  • 输出过压保护

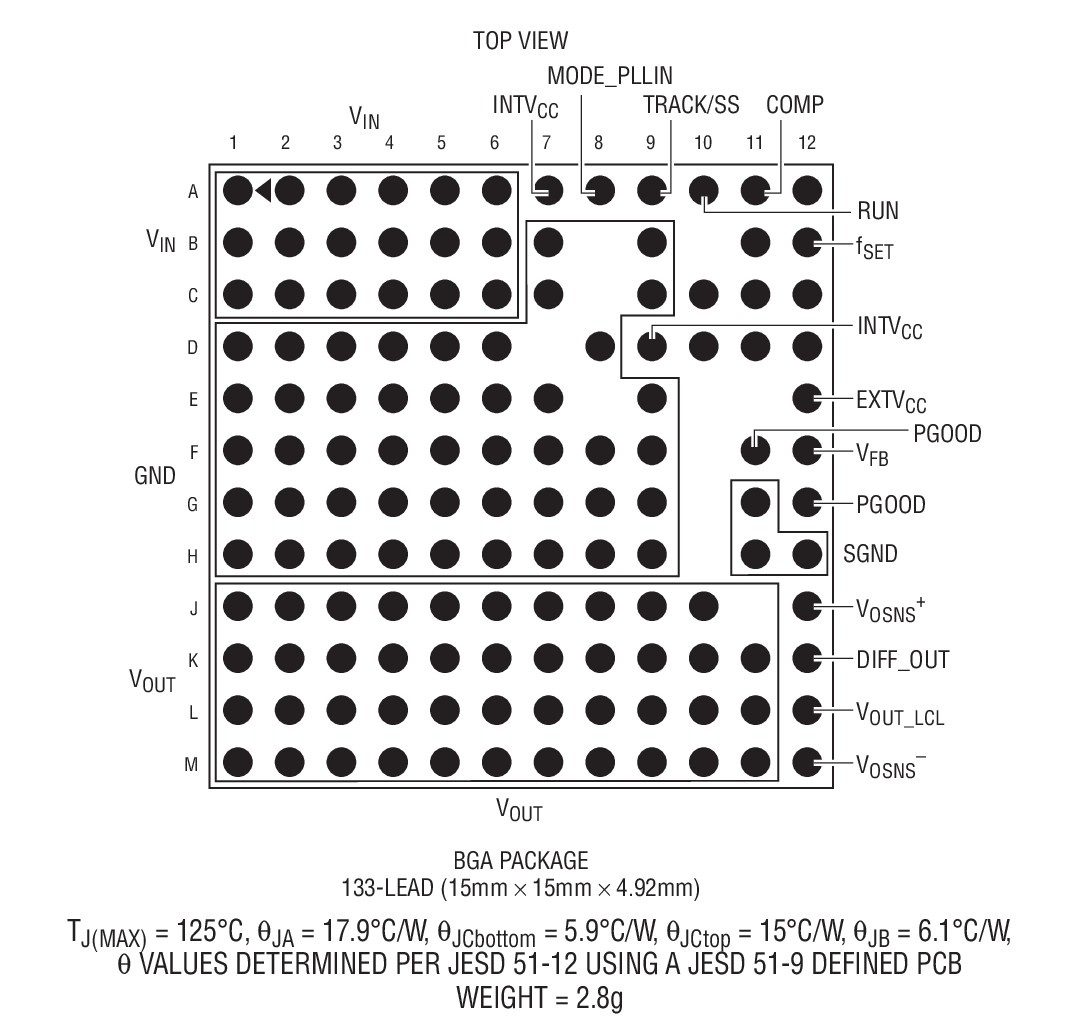

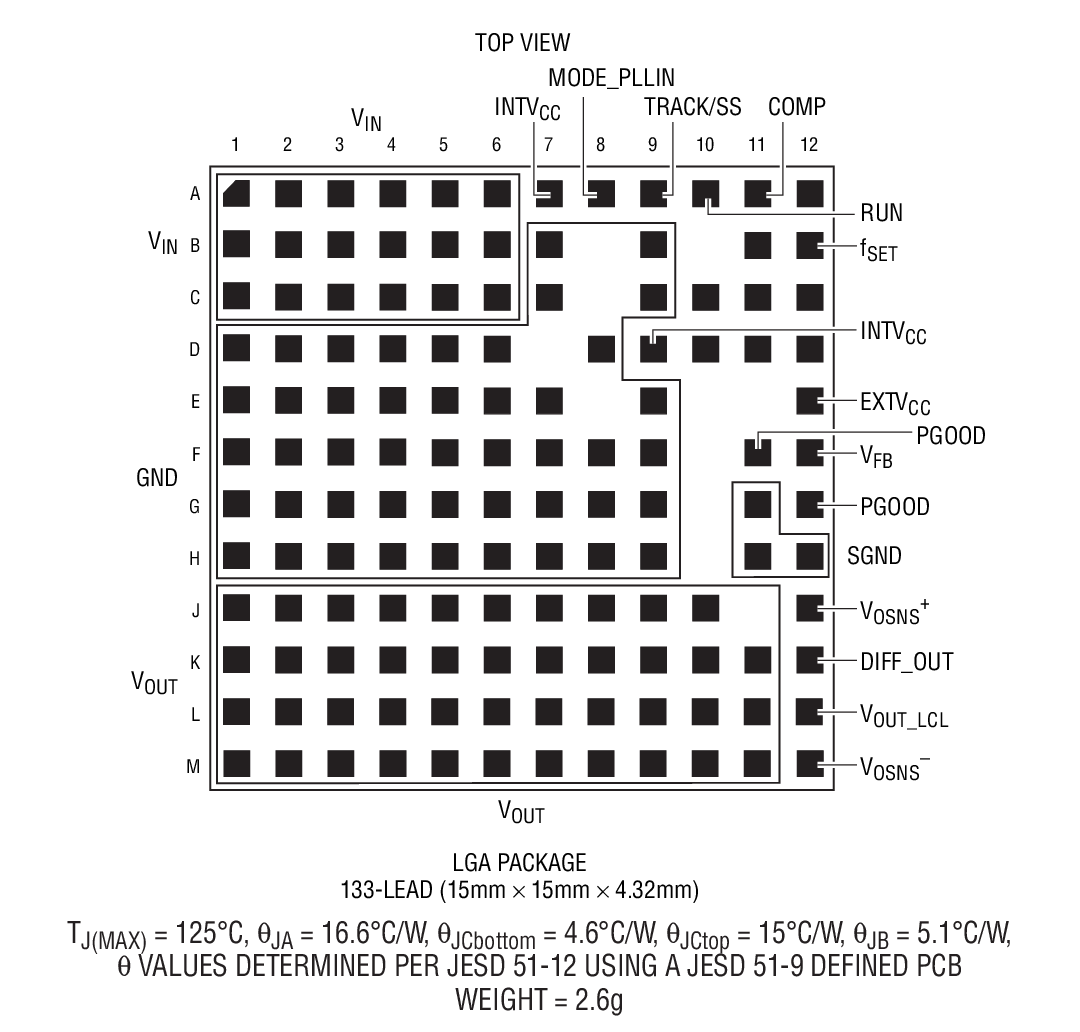

  • 小占板面积的表面贴装型扁平 15mm x 15mm x 4.32mm LGA 和 15mm x 15mm x 4.92mm BGA 封装

更多细节
show more Icon

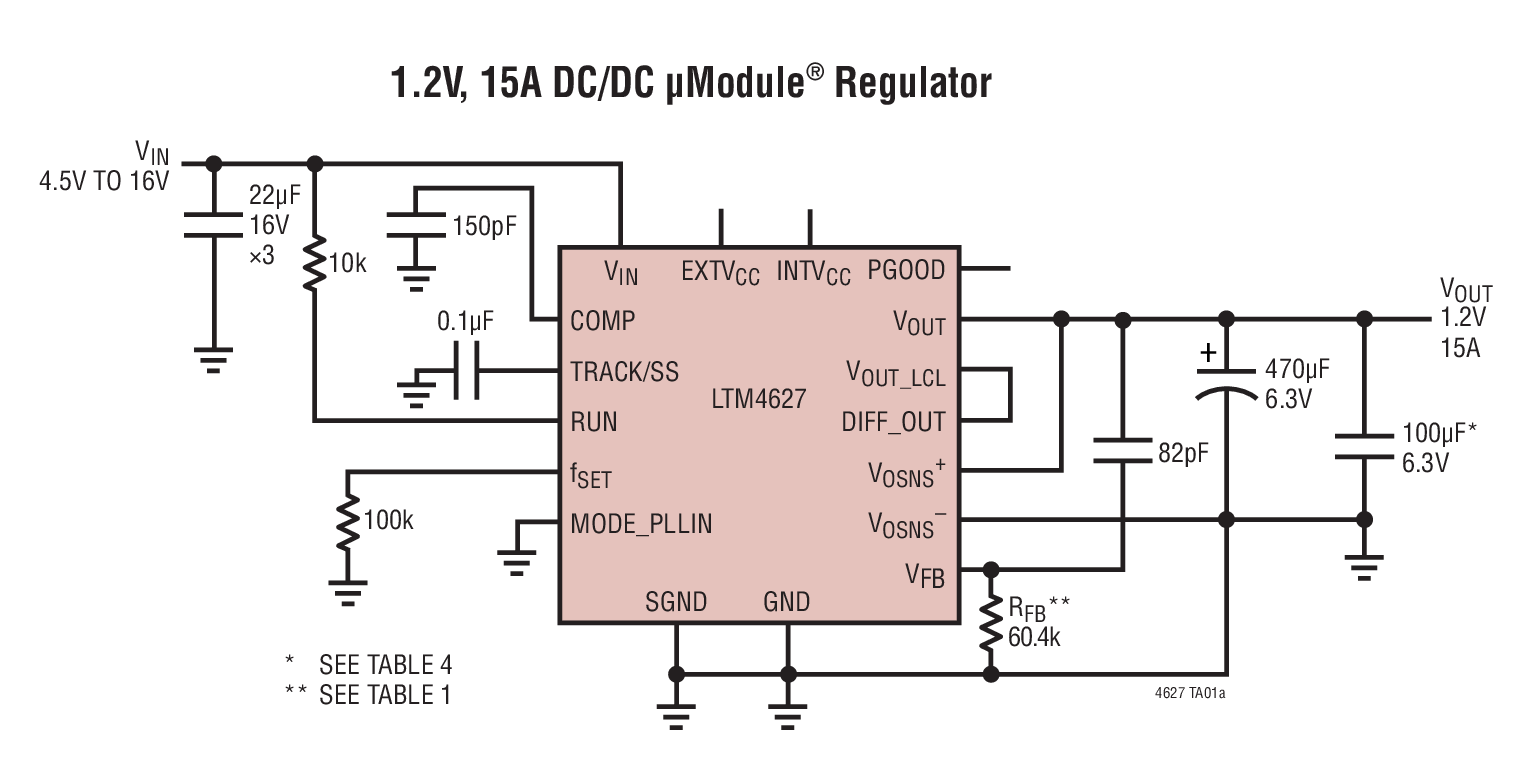

LTM®4627 是一款完整的 15A 输出、高效率、开关模式 DC/DC 电源。封装中内置了开关控制器、功率 FET、电感器和补偿元件。LTM4627 可在一个 4.5V 至 20V 的输入电压范围内运作,支持一个 0.6V 至 5V 的输出电压范围 (由单个外部电阻器来设定)。仅需少量的输入和输出电容器。

电流模式操作实现了多达 4 个 LTM4627 稳压器的精准均流,以获得 60A 输出。高开关频率和一种电流模式架构的运用提供了针对电压和负载变化的快速瞬态响应,而并未牺牲稳定性。该器件支持频率同步、多相 / 均流运作、突发模式操作以及用于电源轨排序的输出电压跟踪功能。

LTM4627 采用耐热性能增强型 15mm x 15mm x 4.32mm LGA 和 15mm x 15mm x 4.92mm BGA 封装。LTM4627 具有符合 SnPb (BGA) 或 RoHS 标准的引脚涂层。


Applications

  • 电信服务器和网络设备
  • ATCA 和存储卡
  • 工业设备
  • 医疗系统

产品模型 7

产品技术资料帮助

close icon

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

参考资料

参考资料

产品型号 引脚/封装图-中文版 文档 CAD 符号,脚注和 3D模型
LTM4627EV#PBF
  • HTML
  • HTML
LTM4627EY#PBF
  • HTML
  • HTML
LTM4627IV#PBF
  • HTML
  • HTML
LTM4627IY
  • HTML
  • HTML
LTM4627IY#PBF
  • HTML
  • HTML
LTM4627MPY
  • HTML
  • HTML
LTM4627MPY#PBF
  • HTML
  • HTML

根据型号筛选

reset

重置过滤器

产品型号

产品生命周期

PCN

7月 28, 2021

- 20_0245

Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

LTM4627EV#PBF

量产

LTM4627EY#PBF

量产

LTM4627IV#PBF

量产

LTM4627IY

量产

LTM4627IY#PBF

量产

LTM4627MPY

量产

LTM4627MPY#PBF

量产

7月 21, 2021

- 21_0159

Ink Mark to Laser Mark Conversion for µModule

LTM4627EV#PBF

量产

LTM4627EY#PBF

量产

LTM4627IV#PBF

量产

LTM4627IY

量产

LTM4627IY#PBF

量产

LTM4627MPY

量产

LTM4627MPY#PBF

量产

2月 28, 2020

- 20_0123

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM4627EV#PBF

量产

LTM4627EY#PBF

量产

LTM4627IV#PBF

量产

LTM4627IY

量产

LTM4627IY#PBF

量产

LTM4627MPY

量产

LTM4627MPY#PBF

量产

根据型号筛选

reset

重置过滤器

产品型号

产品生命周期

PCN

7月 28, 2021

- 20_0245

arrow down

Notification of Wafer Fab Location Change for 0.6µm BICMOS Process Devices from ADI Milpitas (Hillview) to Vanguard Int. (Taiwan)

LTM4627EV#PBF

量产

LTM4627EY#PBF

量产

LTM4627IV#PBF

量产

LTM4627IY

量产

LTM4627IY#PBF

量产

LTM4627MPY

量产

LTM4627MPY#PBF

量产

7月 21, 2021

- 21_0159

arrow down

Ink Mark to Laser Mark Conversion for µModule

LTM4627EV#PBF

量产

LTM4627EY#PBF

量产

LTM4627IV#PBF

量产

LTM4627IY

量产

LTM4627IY#PBF

量产

LTM4627MPY

量产

LTM4627MPY#PBF

量产

2月 28, 2020

- 20_0123

arrow down

Micro-Module, Test Site Transfer from Analog Devices Singapore to Analog Devices Penang, Malaysia

LTM4627EV#PBF

量产

LTM4627EY#PBF

量产

LTM4627IV#PBF

量产

LTM4627IY

量产

LTM4627IY#PBF

量产

LTM4627MPY

量产

LTM4627MPY#PBF

量产

软件和型号相关生态系统

软件和型号相关生态系统

评估套件

评估套件 3

reference details image

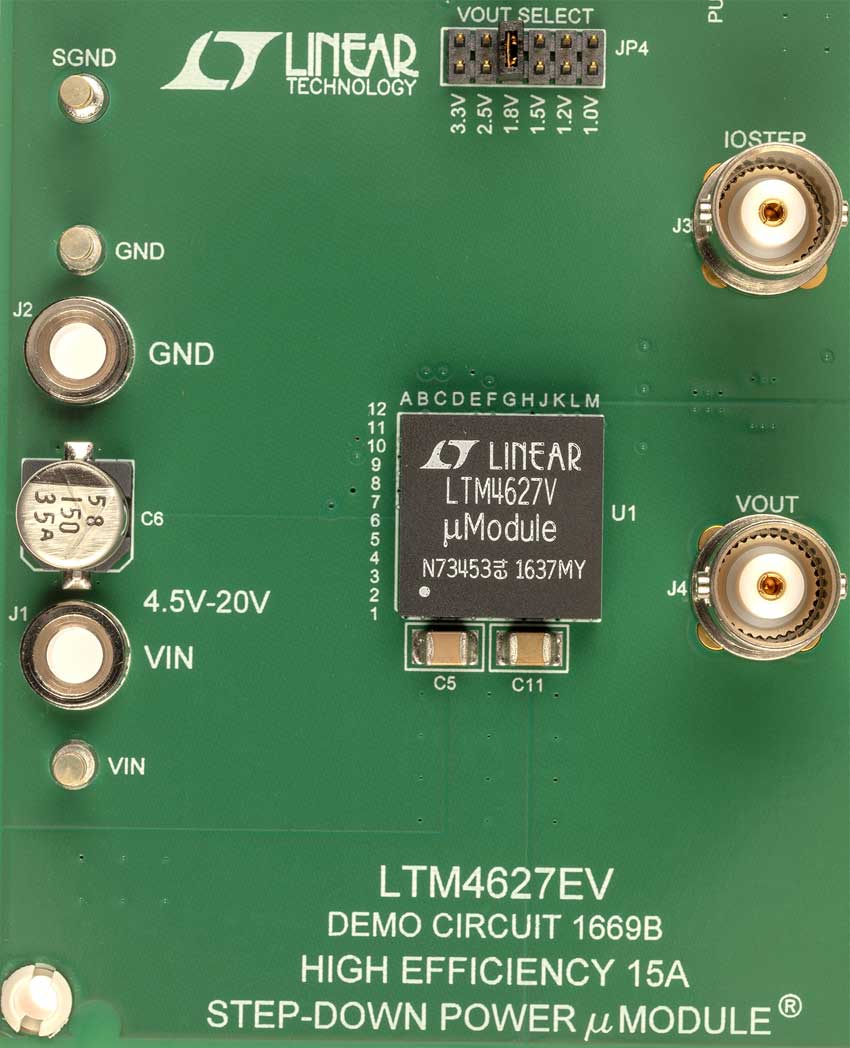

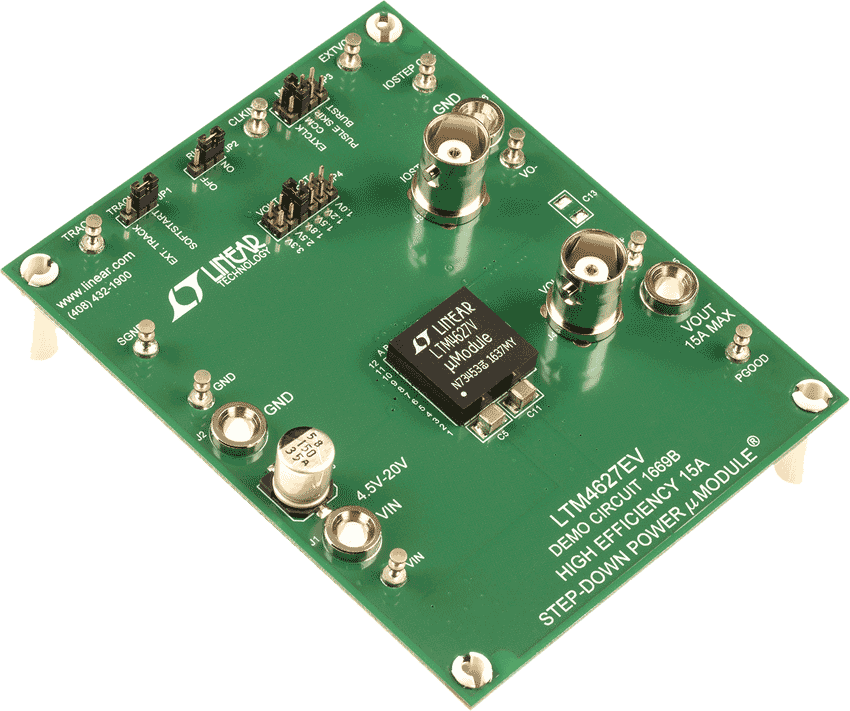

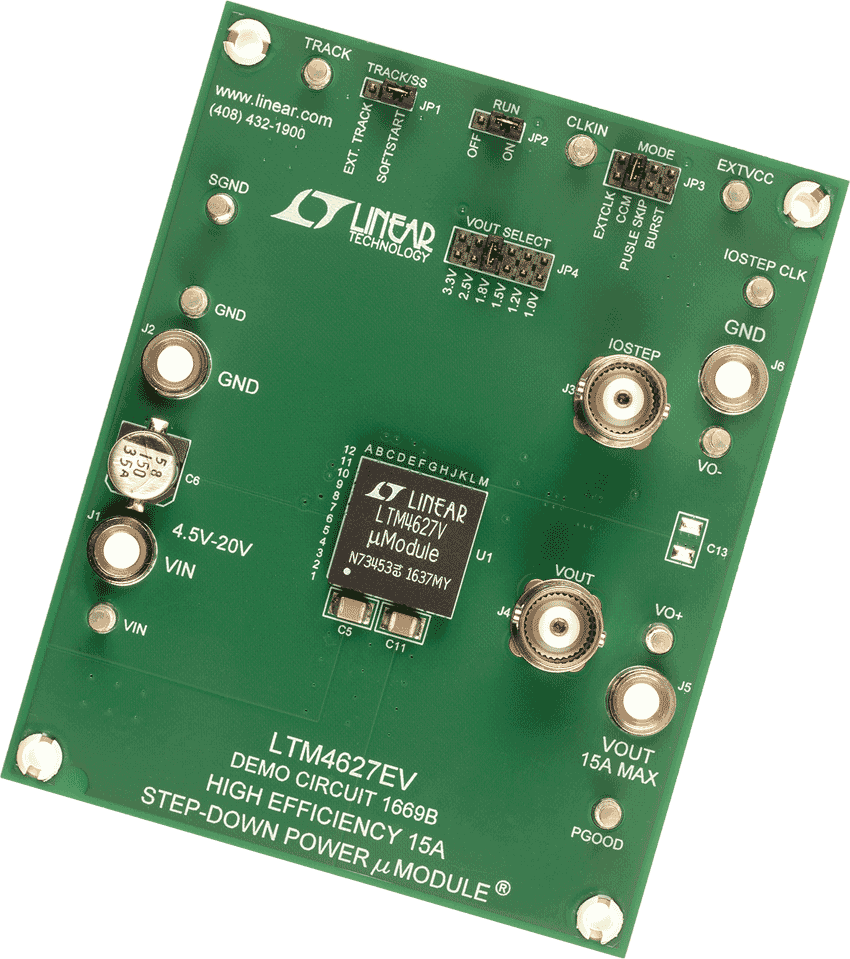

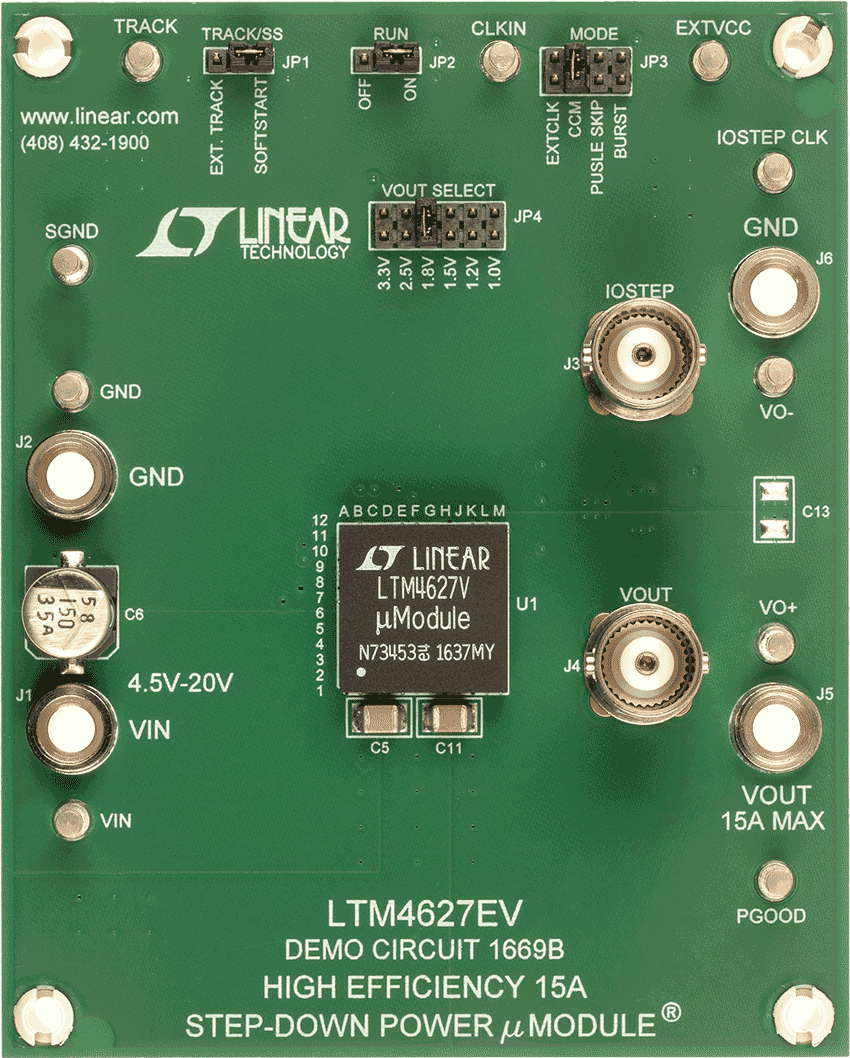

DC1669B

LTM4627EV 15A降压型μModule稳压器

zoom

DC1669B

LTM4627EV 15A降压型μModule稳压器

LTM4627EV 15A降压型μModule稳压器

产品详情

演示电路1669内置LTM4627EVμModule稳压器,这是一款高性能高效率降压型稳压器。LTM4627EV的输入电压范围为4.5V至20V,能够提供高达15A的输出电流。输出电压在0.6V至5V范围内可编程,并可通过内部可选差分远程检测放大器进行远程检测。LTM4627EV是一款完整的DC‐DC负载点稳压器,采用散热增强型15mm × 15mm × 4.32mm LGA封装,仅需几个输入和输出电容。该稳压器经过内部补偿并采用恒定频率电流模式架构,可在较宽的输出电容范围内实现快速瞬态响应和稳定的控制环路。它支持频率同步和突发(Burst Mode®)工作模式,可提高轻载效率。此外也可通过TRACK/SS引脚提供输出电压跟踪,用于电源轨时序监控。在使用或修改演示电路1669之前,必须同时参阅本演示手册和LTM4627数据手册。



reference details image

DC1668B-C

LTM4627EV Demo Board | LTM4627(×4), Paralleled, Polyphase, 4.5V ≤ VIN ≤ 20V, VOUT = 0.6V to 3.3V @ 50A

zoom

DC1668B-C

LTM4627EV Demo Board | LTM4627(×4), Paralleled, Polyphase, 4.5V ≤ VIN ≤ 20V, VOUT = 0.6V to 3.3V @ 50A

LTM4627EV Demo Board | LTM4627(×4), Paralleled, Polyphase, 4.5V ≤ VIN ≤ 20V, VOUT = 0.6V to 3.3V @ 50A

产品详情

Demonstration circuit 1668B-C is a PolyPhase® power supply featuring four LTM4627 high efficiency synchronous buck μModule® regulators. The DC1668B-C input voltage range is between 4.5V to 20V with a jumper programmable output voltage from 0.6V to 3.3V. The demo circuit can deliver up to 50A of load with excellent current-sharing. Current derating may be necessary under certain operating conditions.

reference details image

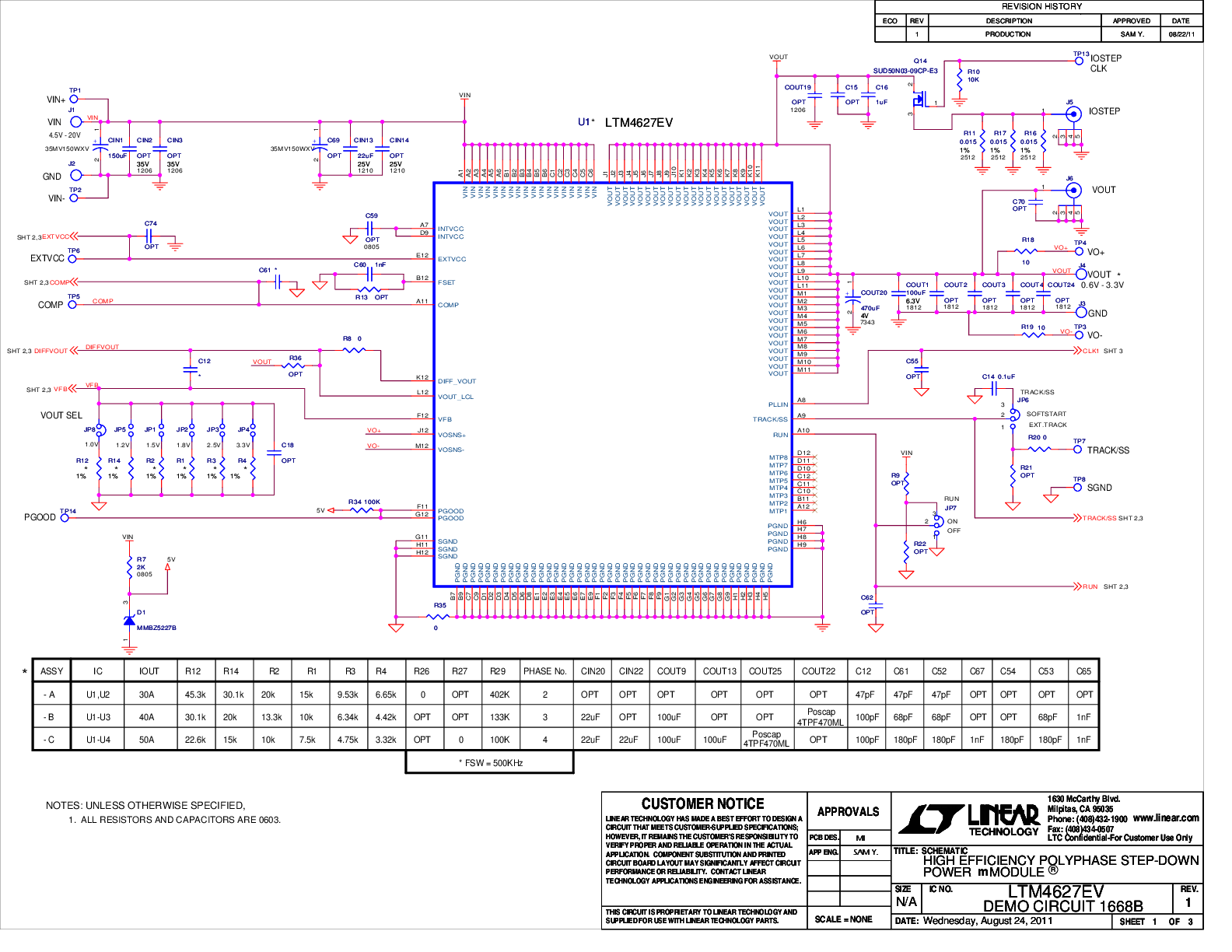

DC1668B-A

LTM4627EV Demo Board | Paralleled, Polyphase, 4.5V ≤ VIN ≤ 20V, VOUT = 0.6V to 3.3V @ 30A

zoom

DC1668B-A

LTM4627EV Demo Board | Paralleled, Polyphase, 4.5V ≤ VIN ≤ 20V, VOUT = 0.6V to 3.3V @ 30A

LTM4627EV Demo Board | Paralleled, Polyphase, 4.5V ≤ VIN ≤ 20V, VOUT = 0.6V to 3.3V @ 30A

产品详情

Demonstration circuit 1668B-A is a PolyPhase® power supply featuring two LTM4627 high efficiency synchronous buck μModule® regulators. The DC1668B-A input voltage range is between 4.5V to 20V with a jumper programmable output voltage from 0.6V to 3.3V. The demo circuit can deliver up to 30A of load with excellent current-sharing. Current derating may be necessary under certain operating conditions.

工具和仿真

工具及仿真模型 2

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器,为改善模拟电路的仿真提供增强功能和模型。

启动此部分的现成LTspice演示电路:

1步:下载并在计算机上安装LTspice

2步:单击下面的链接,下载演示电路。

3步:如果在单击以下链接之后LTspice未自动打开,可通过右击该链接并选择“目标另存为”来运行该仿真。将文件保存到计算机之后,请启动LTspice并从“文件”菜单中选择“打开”来打开演示电路。

参考电路

参考电路 8

Stratix 10 GX PCIE FPGA Development Kit

zoomopens a dialog

intel-stratix-10-fpga-pcie-development-kit

intel-stratix-10-fpga-pcie-development-kit

参考设计

tooltip Info:参考设计

特性和优点

  • Analog Devices has worked closely with Intel PSG to develop verified power solutions that optimize cost, size and efficiency in high performance applications.
  • The validated power solutions include uModules power products that address time and space constraints while delivering high efficiency, reliability, and low noise.
  • The actual power tree represents the best solution at time of design.
  • A recommended power tree has also been included to present the ideal solution at time of Stratix 10 GX PCIe development kit release. An updated alternate version of the power tree represents the latest solutions available from Analog Devices. For many applications, an intermediate rail is not ideal, so recommendations an alternate power tree that allow for direct power conversion from 12V input is provided below.
查看参考设计详情 external link

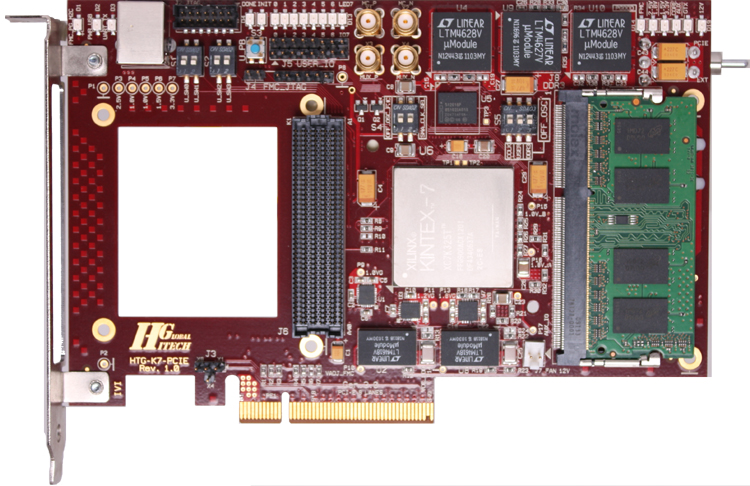

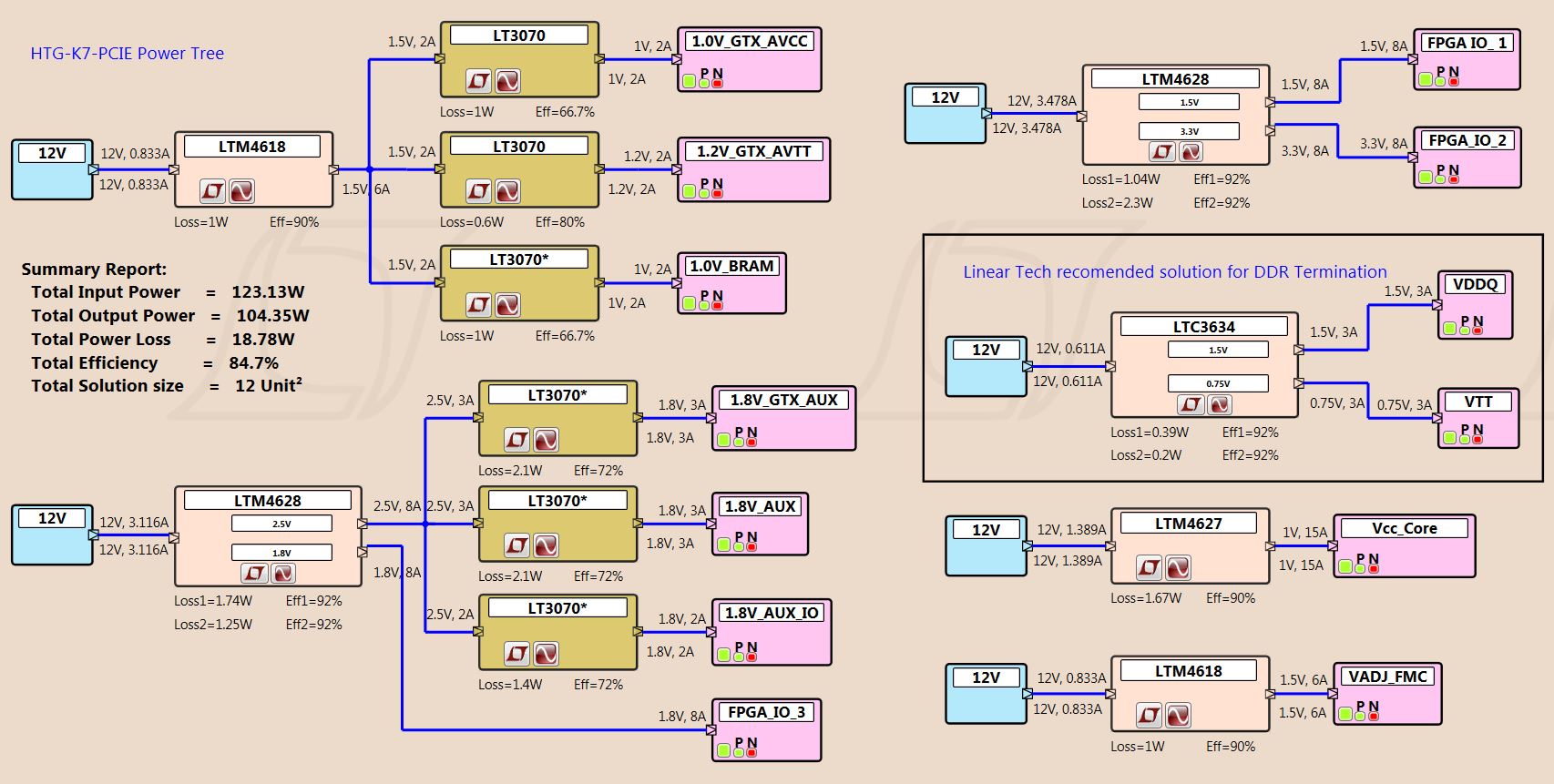

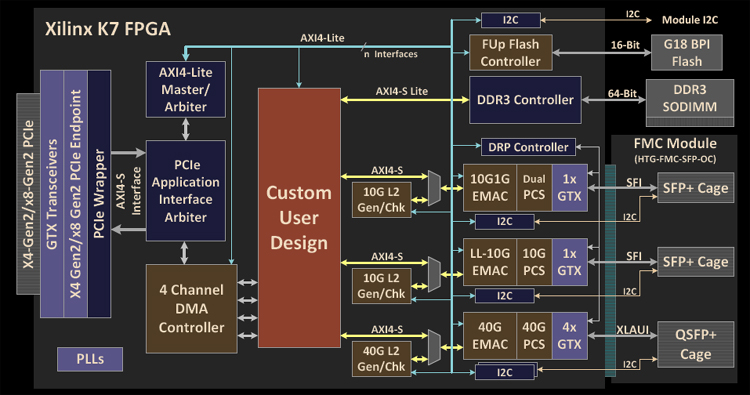

HTG-K7-PCIE Dev Board

zoomopens a dialog

xilinx-kintex-7-pci-express-development-board

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link

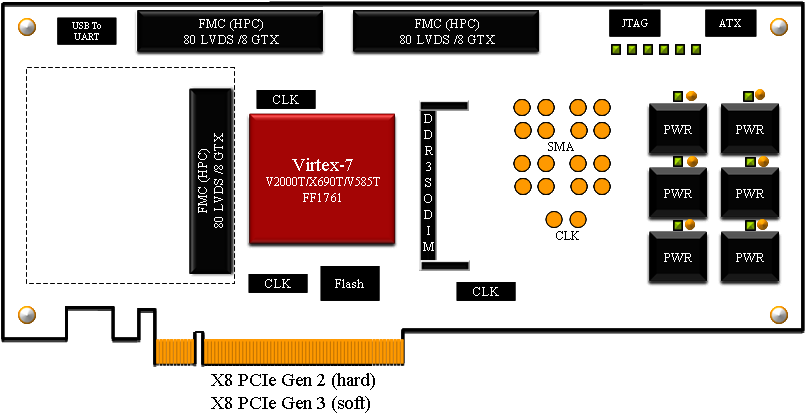

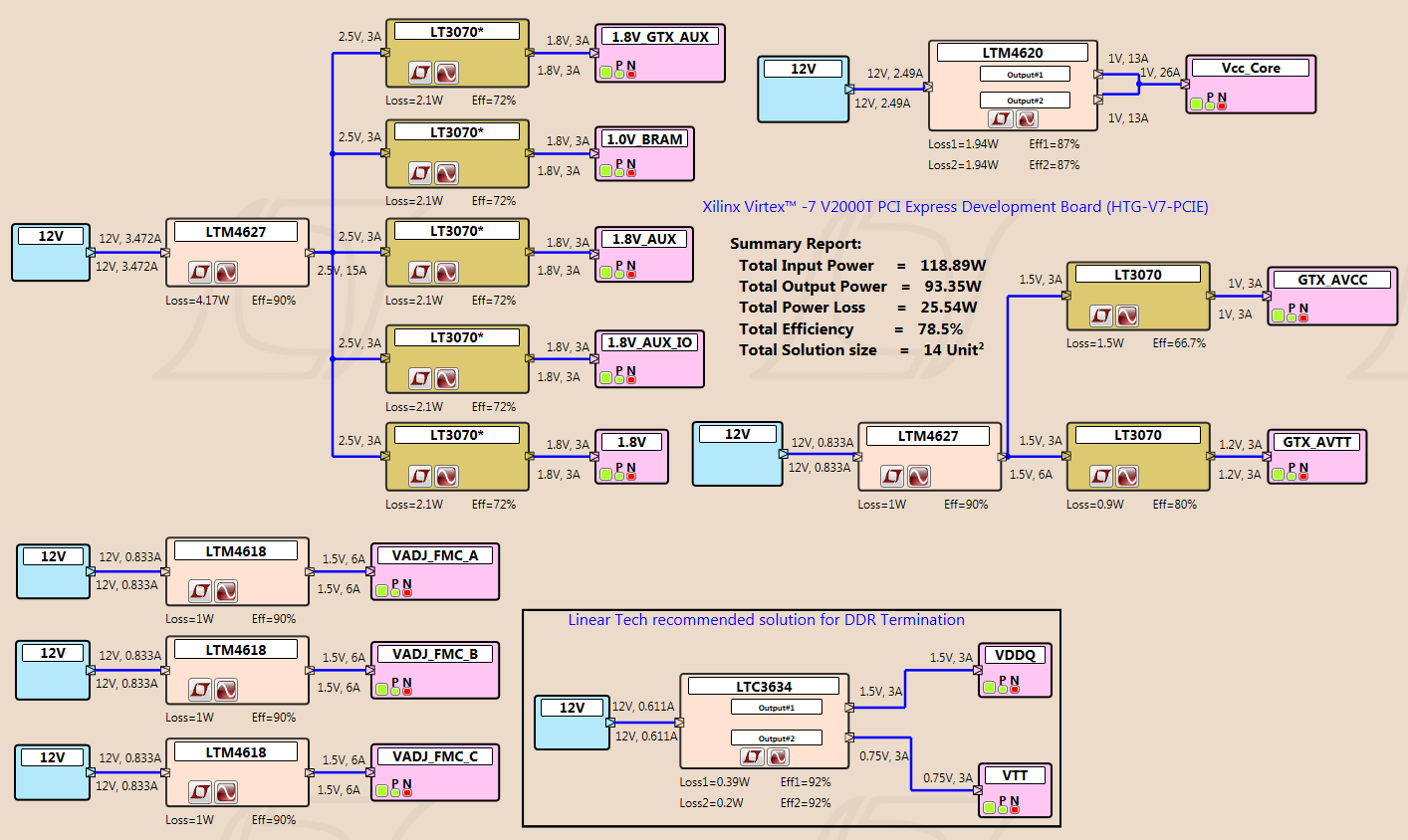

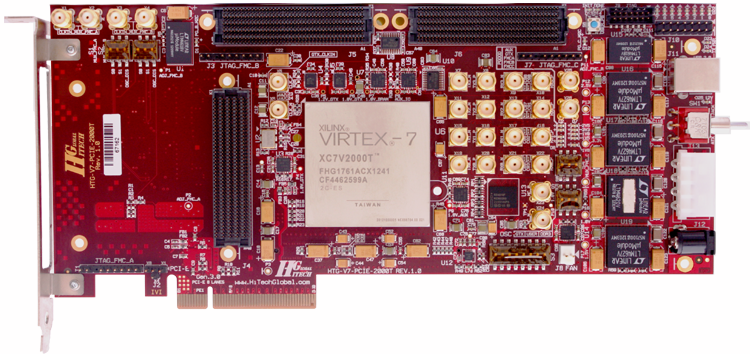

Virtex™ -7 V2000T PCI Express Dev Board

zoomopens a dialog

xilinx-virtex-7-v2000t-pci-express-development-board

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link

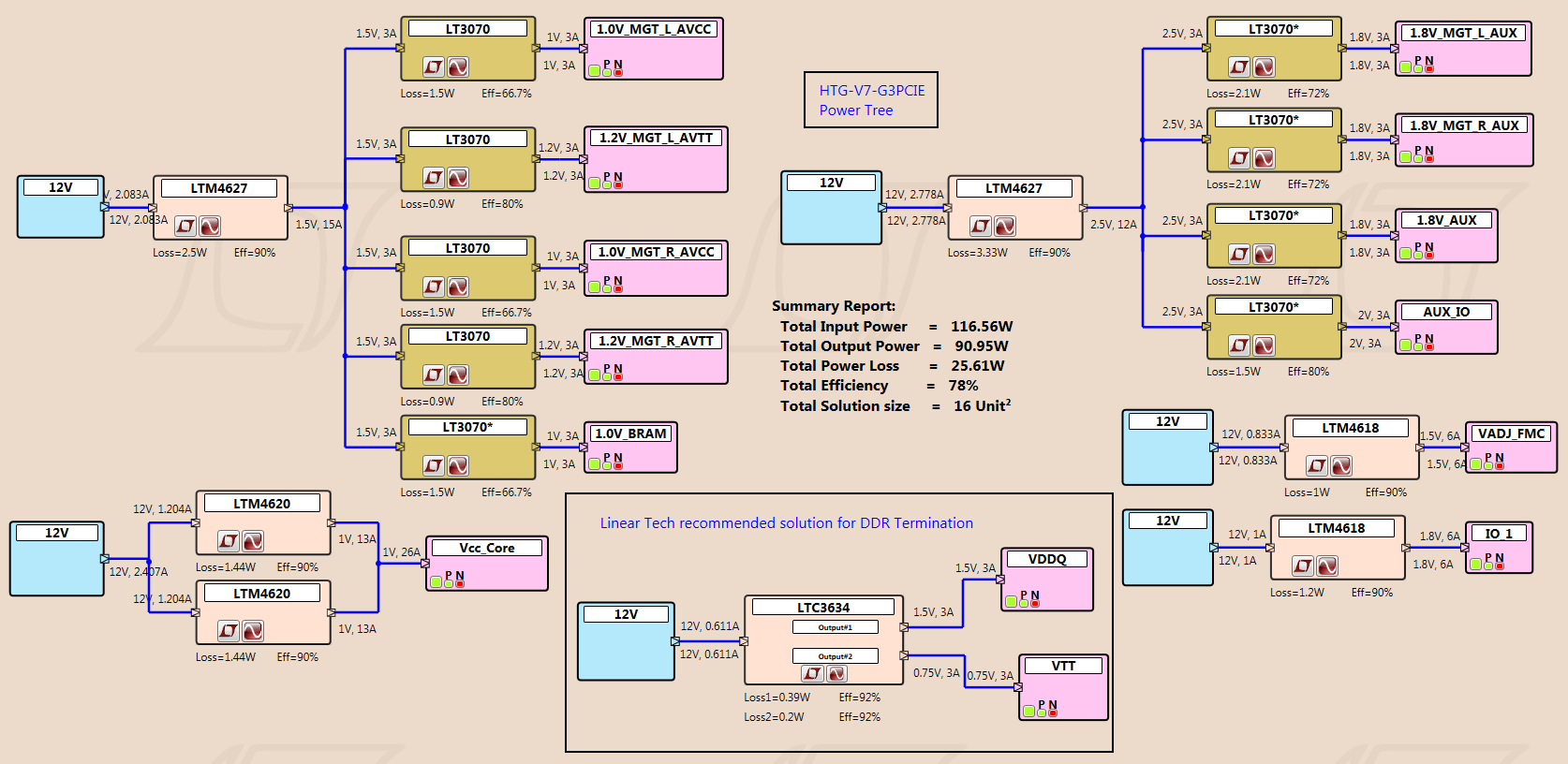

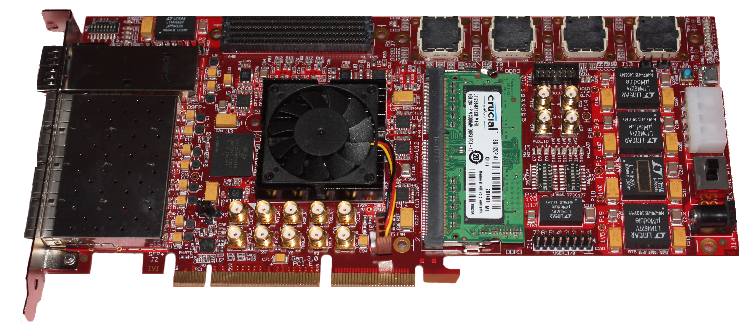

Virtex 7 PCI Express Gen 3 /100Gig Networking Card - Top View

zoomopens a dialog

Xilinx Virtex 7 PCI Express Gen 3/100Gig Networking Card

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link

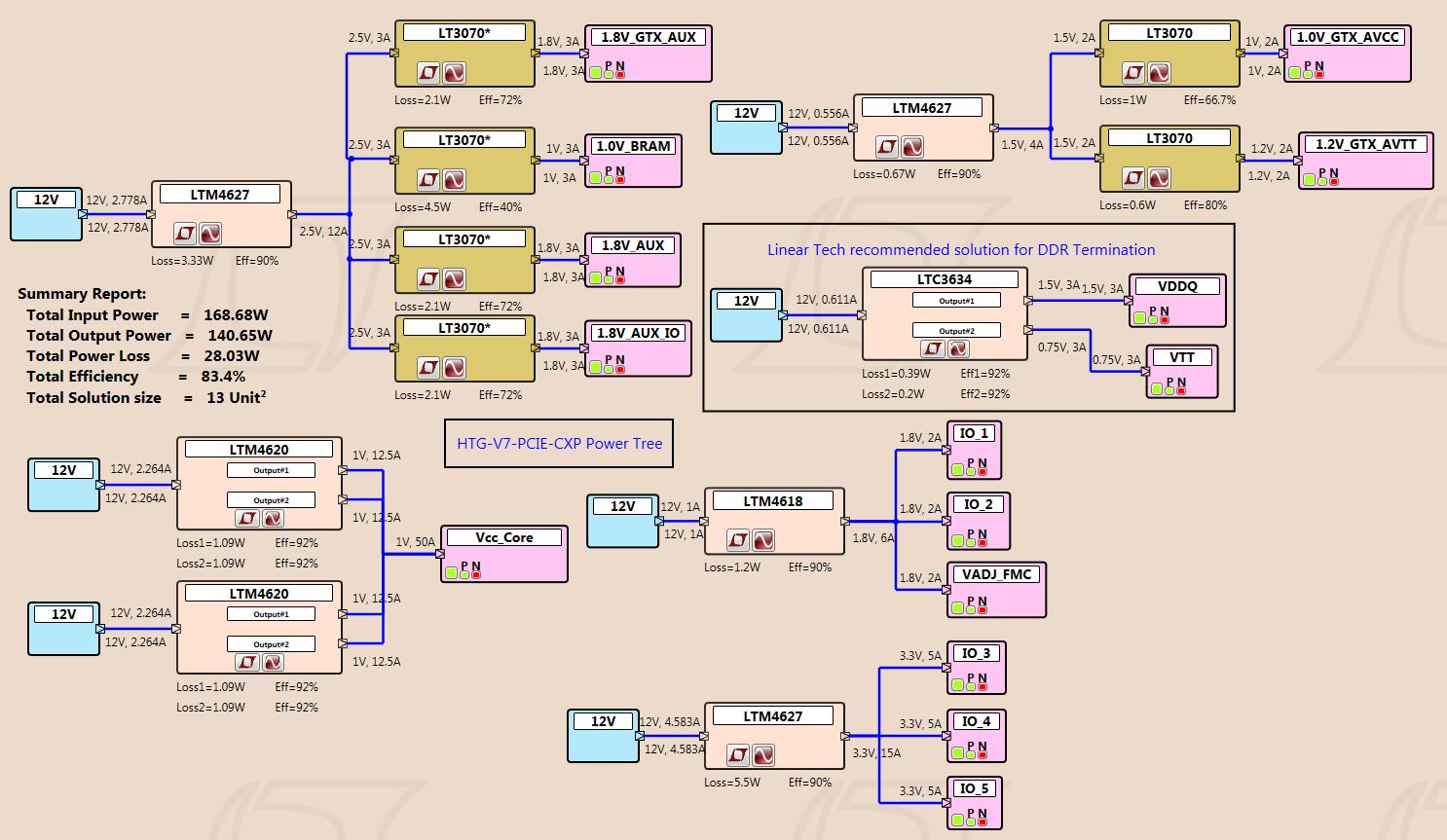

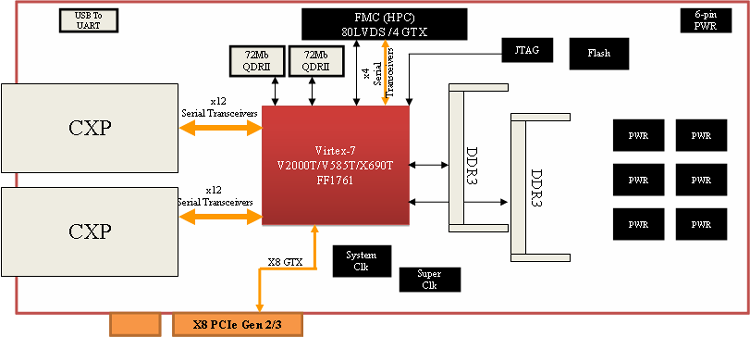

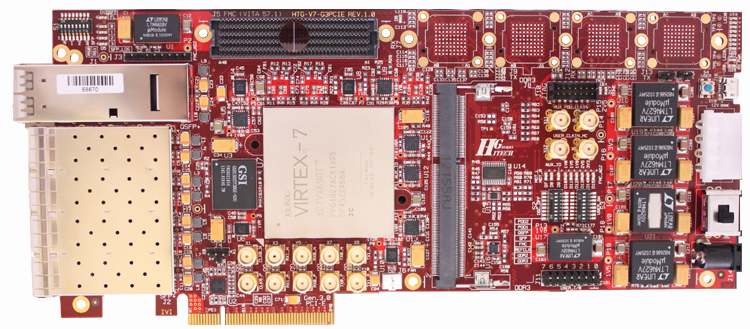

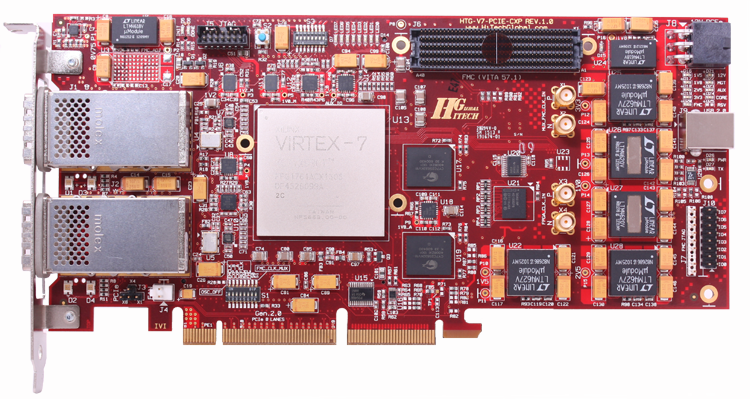

Virtex™ -7 High-End Networking Card With Dual CXP Ports

zoomopens a dialog

xilinx-virtex-7-high-end-networking-card-with-dual-cxp-ports

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link

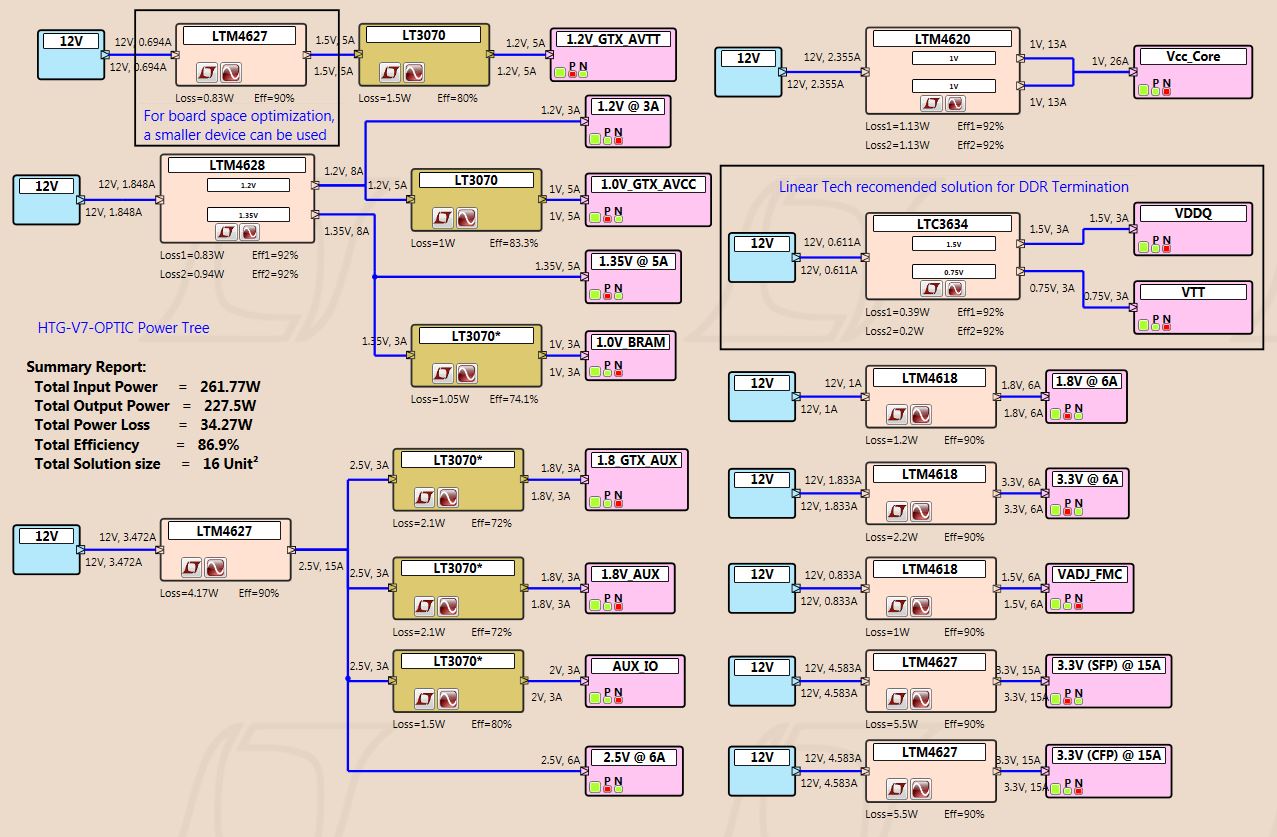

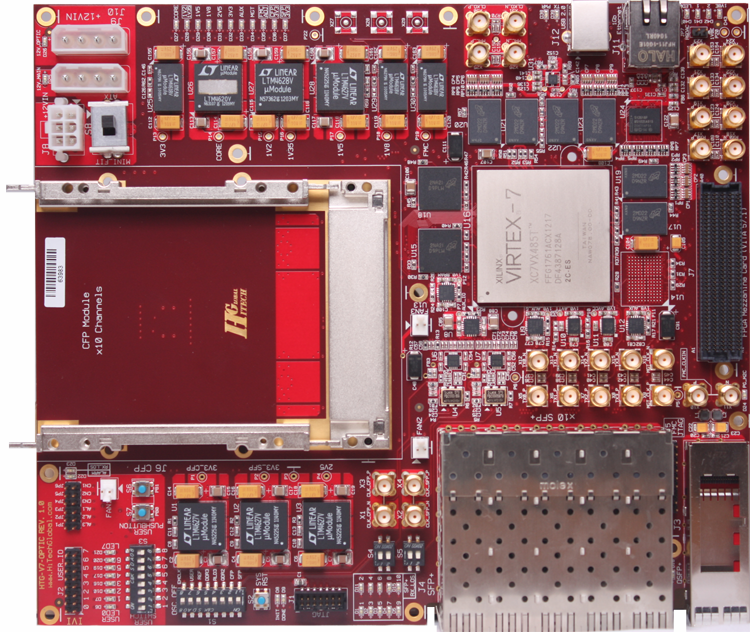

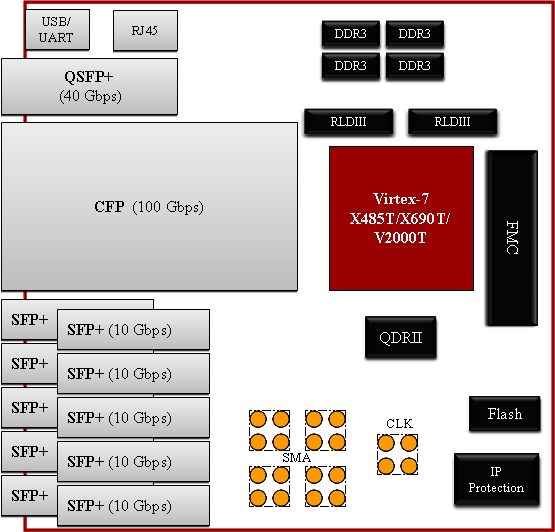

Virtex-7™  10G/40G/100G Optical Interface FPGA Platform

zoomopens a dialog

xilinx-virtex-7-10g-40g-100g-optical-interface-fpga-platform

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link

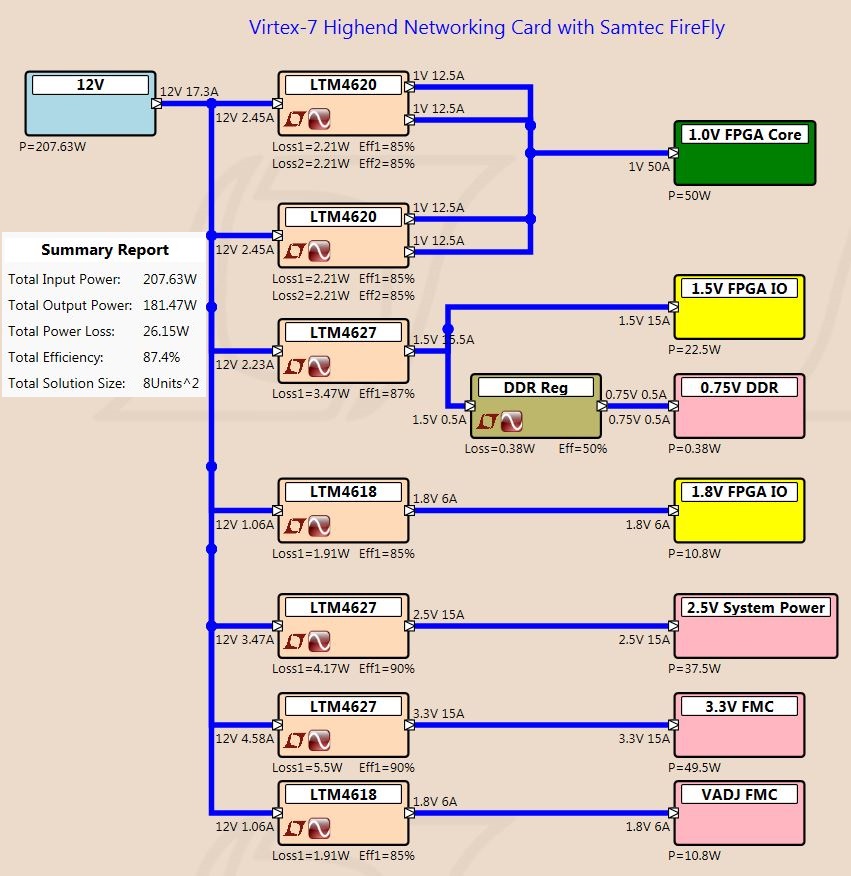

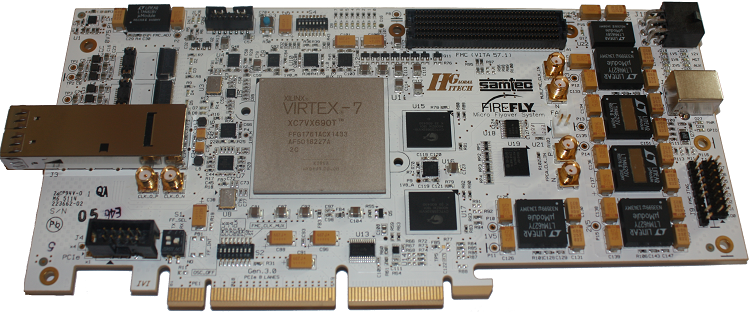

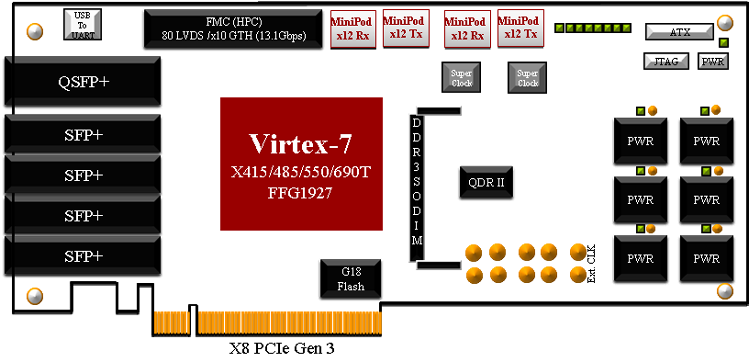

HTG-V7-PCIE-FF Block Diagram

zoomopens a dialog

xilinx-virtex-7-high-end-networking-card-with-samtec-firefly

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link
DK-100G-5SGXEA7N Dev Kit

zoomopens a dialog

altera-100g-development-kit-stratix-v-edition

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
查看参考设计详情 external link
