LTC2418

16 通道、24 位、无延迟增量累加 ΔΣ ADC

英文数据手册

量产

顶部

替代器件

LT5400

四个匹配的电阻器

概览

优势和特点
产品详情

优势和特点

8 通道 / 16 通道单端或 4 通道 / 8 通道差分输入 (LTC2414 / LTC2418)
低电源电流 (200μA，在自动睡眠模式中为 4μA)
差分输入和具 GND 至 V_CC 共模范围的差分基准
2ppm INL，无漏失码
2.5ppm 全标度误差和 0.5ppm 偏移
0.2ppm 噪声
无延迟：数字滤波器可在单个周期内实现稳定。每个转换是准确的 (即使在选择了一个新通道之后也不例外)
2.7V 至 5.5V 单工作电源
内部振荡器 — 无需外部组件
110dB 最小值、50Hz/60Hz 陷波滤波

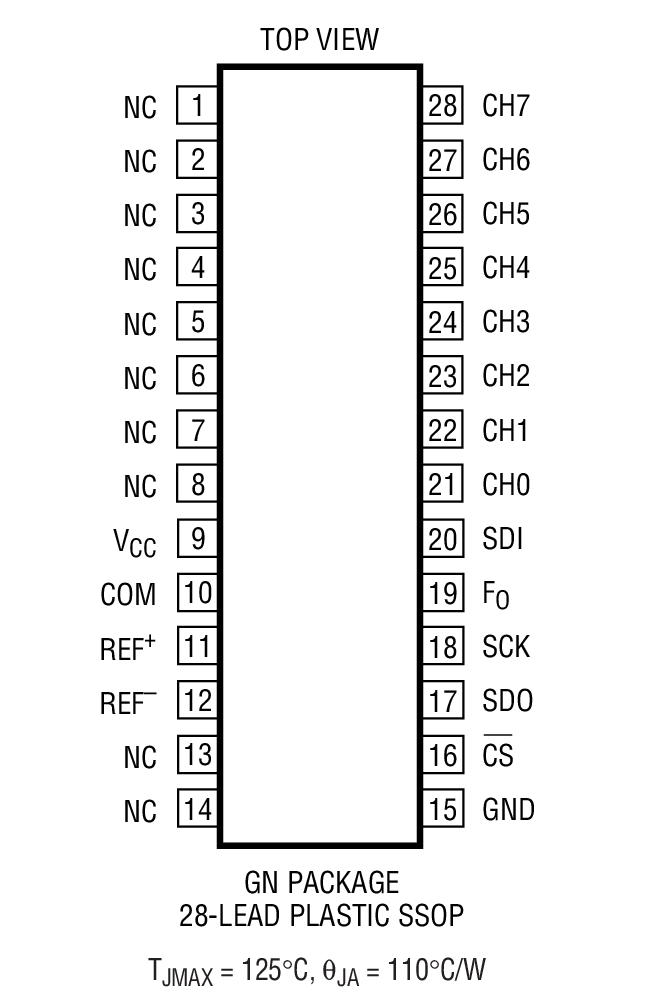

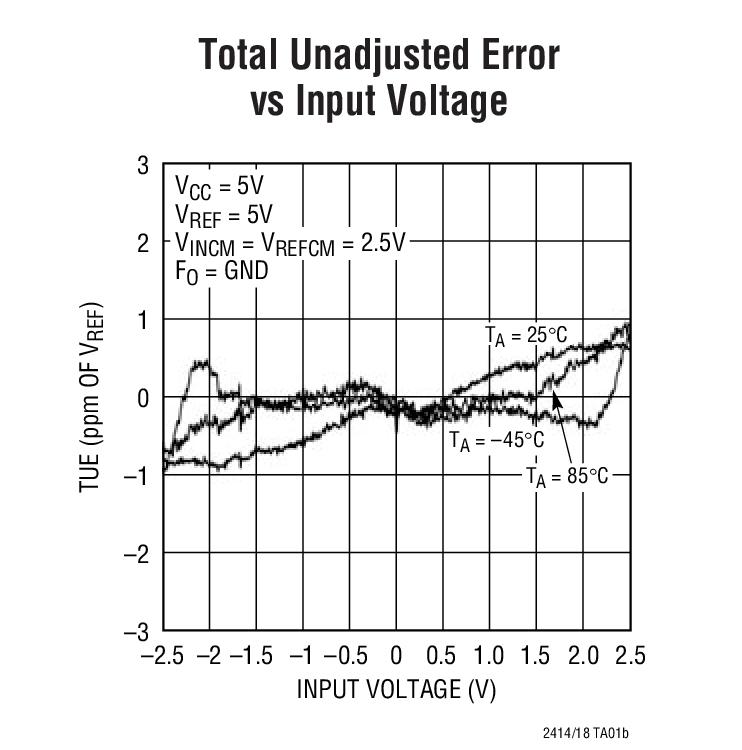

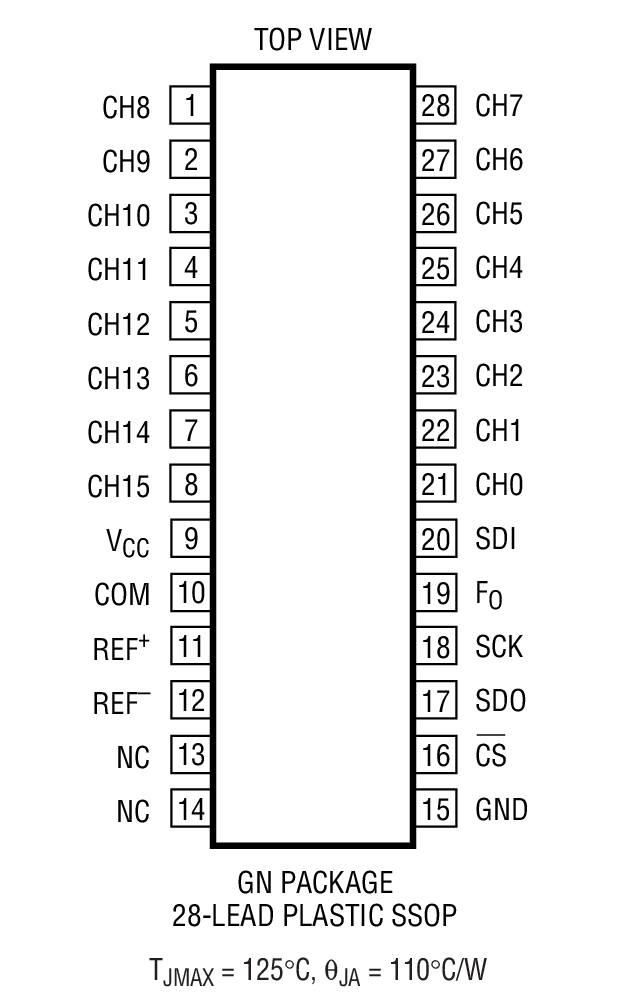

产品详情

LTC^®2414 / LTC2418 是 8 通道 / 16 通道 (4 通道 / 8 差分通道) 微功率、24 位 ΔΣ 模数转换器。它们采用 2.7V 至 5.5V 工作电源，并具有一个集成型振荡器、2ppm INL 和 0.2ppm RMS 噪声。这些器件采用增量-累加技术并提供了适合多路复用应用的单周期稳定时间。可通过单个引脚对 LTC2414 / LTC2418 进行配置以在 50Hz 或 60Hz ±2% 频率下实现优于 110dB 的输入差模抑制，也可针对一个用户定义的抑制频率由一个外部振荡器来驱动 LTC2414 / LTC2418。内部振荡器无需外部频率设定组件。

LTC2414 / LTC2418 接受介于 0.1V 至 V_CC 之间的任何外部差分基准电压，适合于灵活的比例式和远端采样测量应用。可对它们进行配置以接受4 / 8 差分通道或 8 / 16 单端通道。全标度双极输入范围为 –0.5V_REF 至 0.5V_REF。基准共模电压 V_REFCM 和输入共模电压 V_INCM 可独立地设定在 GND 至 V_CC 范围之内。DC 共模输入抑制性能优于 140dB。

LTC2414 / LTC2418 通过一个与 SPI 和 MICROWIRE 协议相兼容的灵活四线式数字接口进行通信。

Applications

直接传感器数字转换器
衡器
直接温度测量
气体分析仪
应变仪换能器
仪表
数据采集
工业过程控制

产品分类

模数转换器
- 多通道ADC

领域

工业自动化技术 (IAT) (1)
- 现场仪器仪表

类似器件点击在参数搜索中查看所有

产品生命周期量产

该产品系列中至少有一个型号已量产并可供采购。该产品适合用于新设计，但也可能有更新的替代产品。

评估套件 (1)

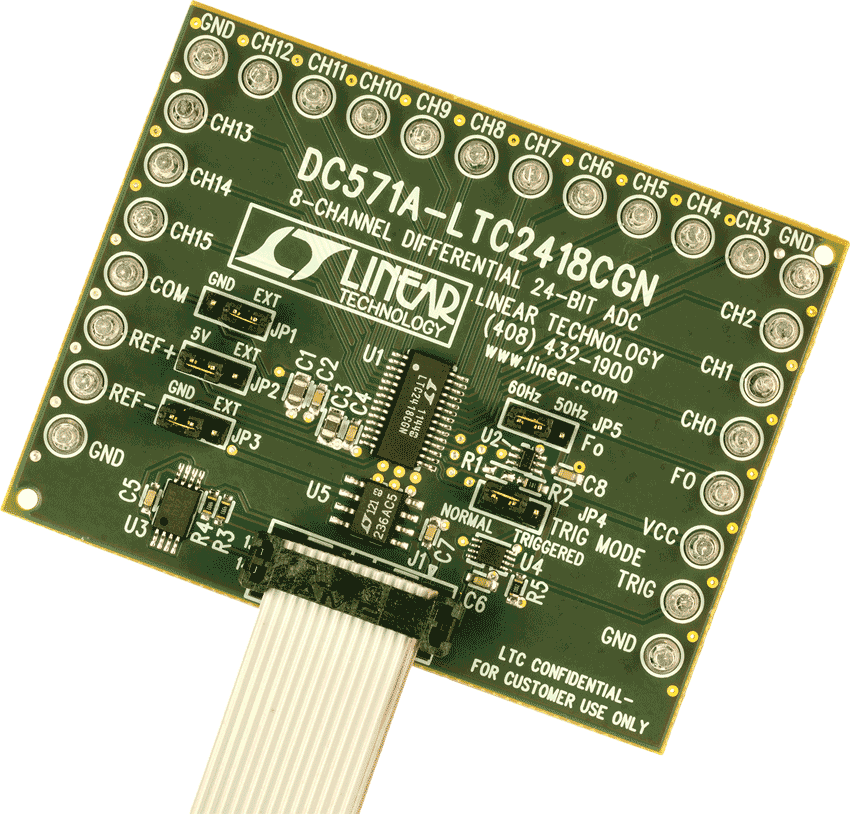

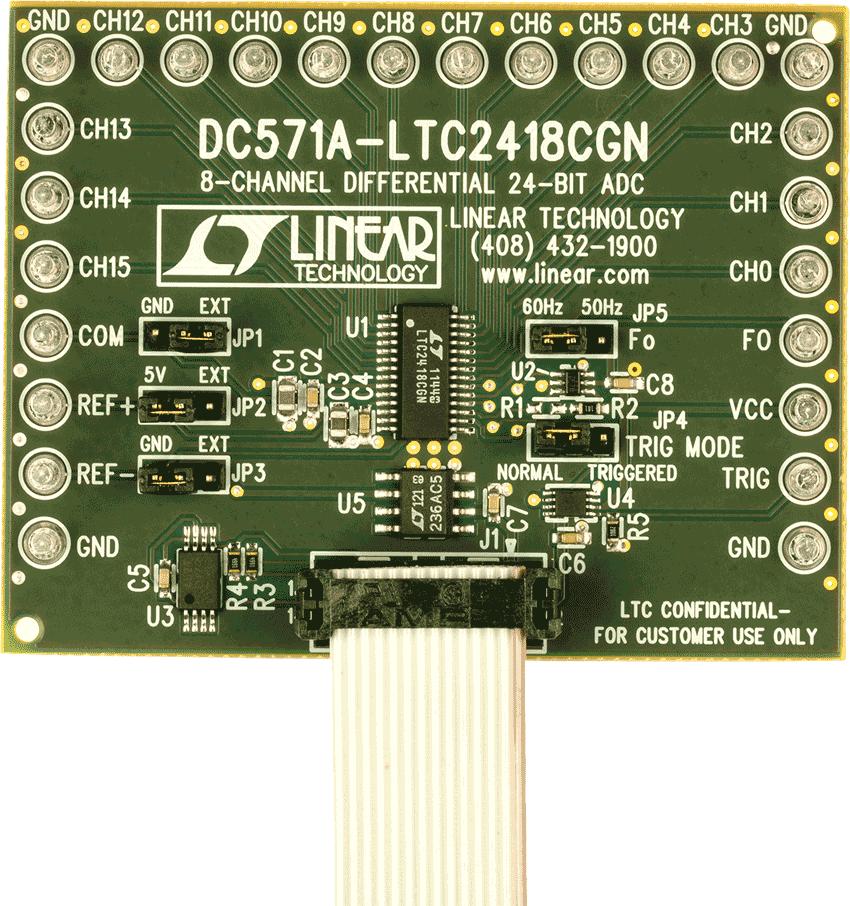

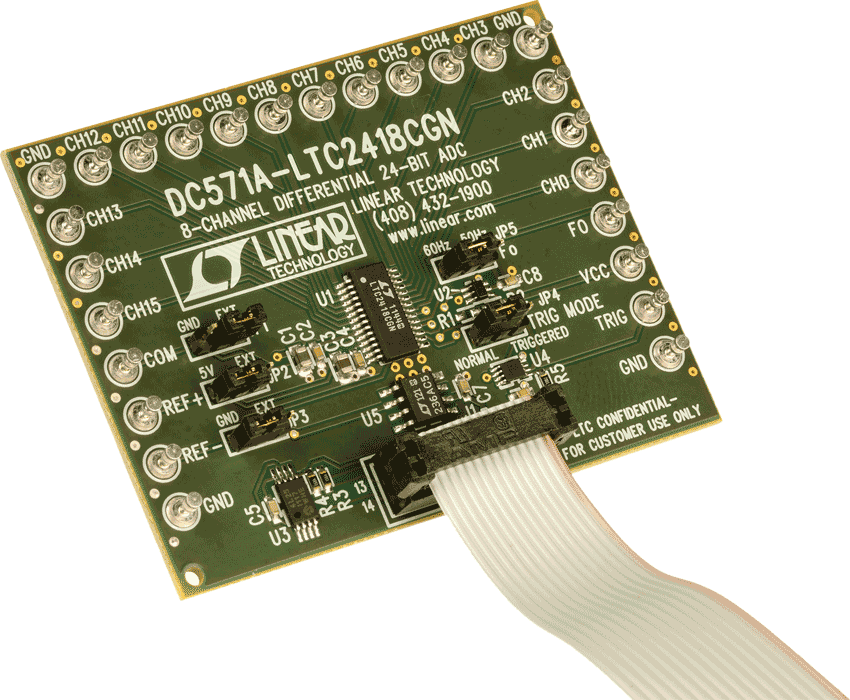

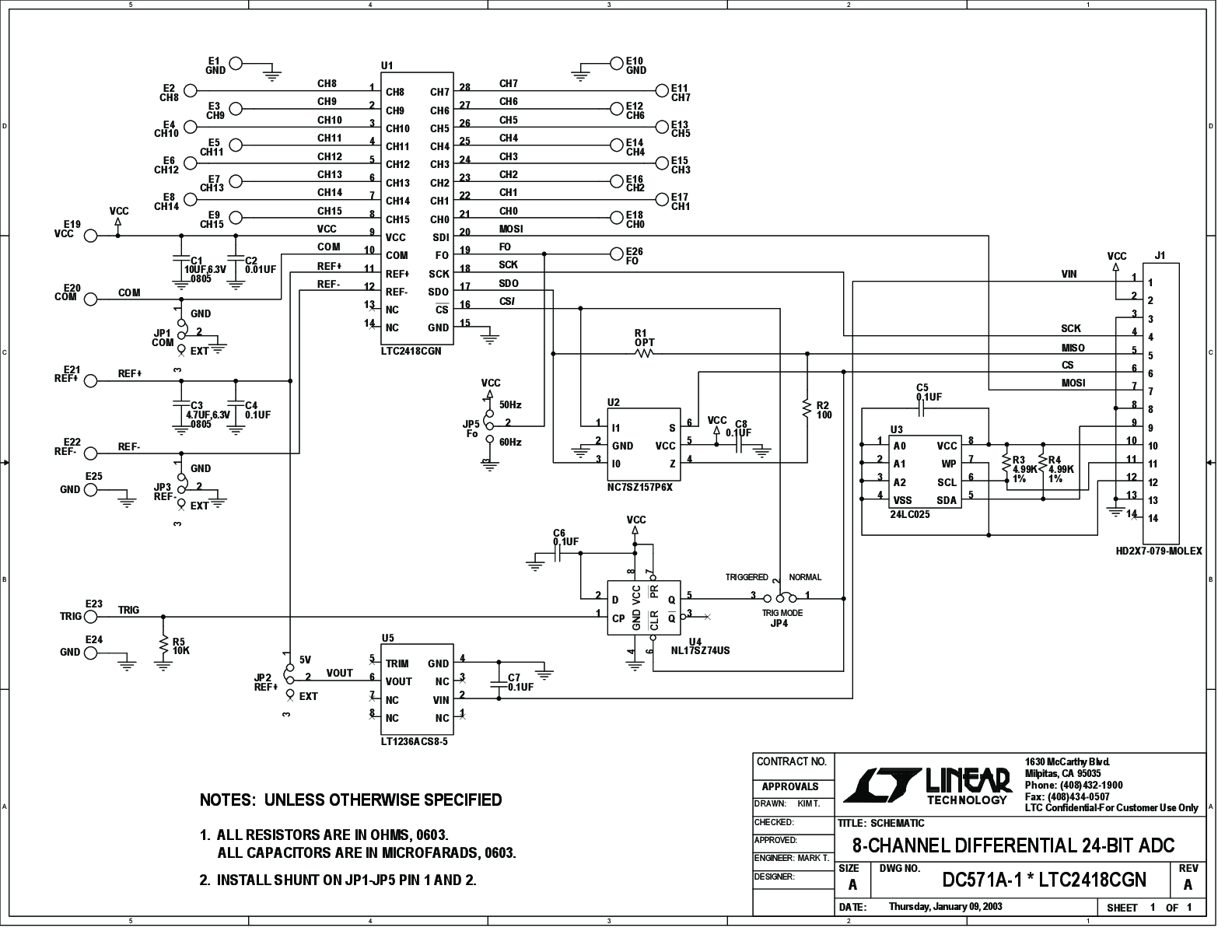

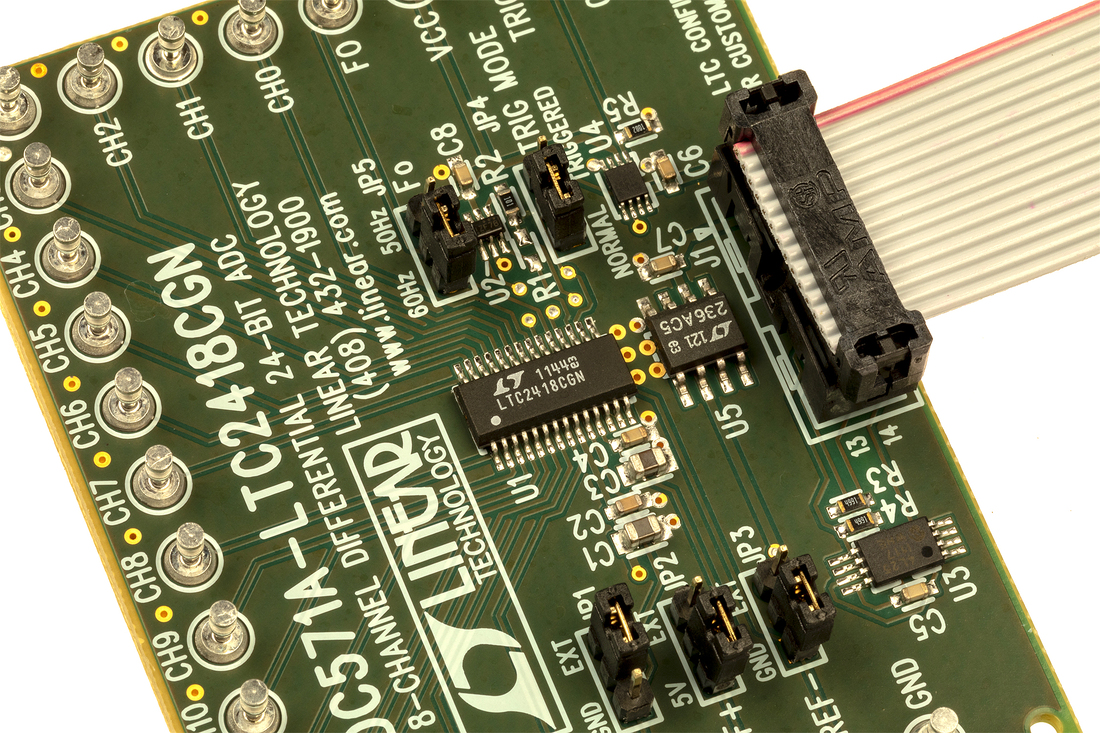

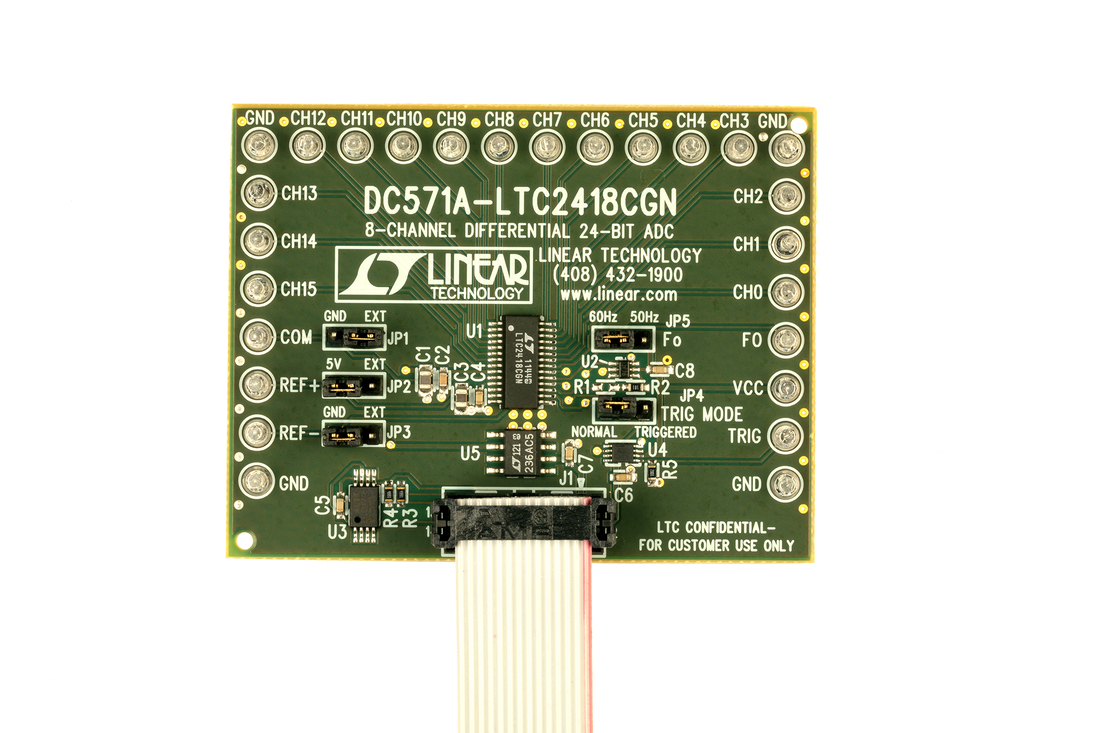

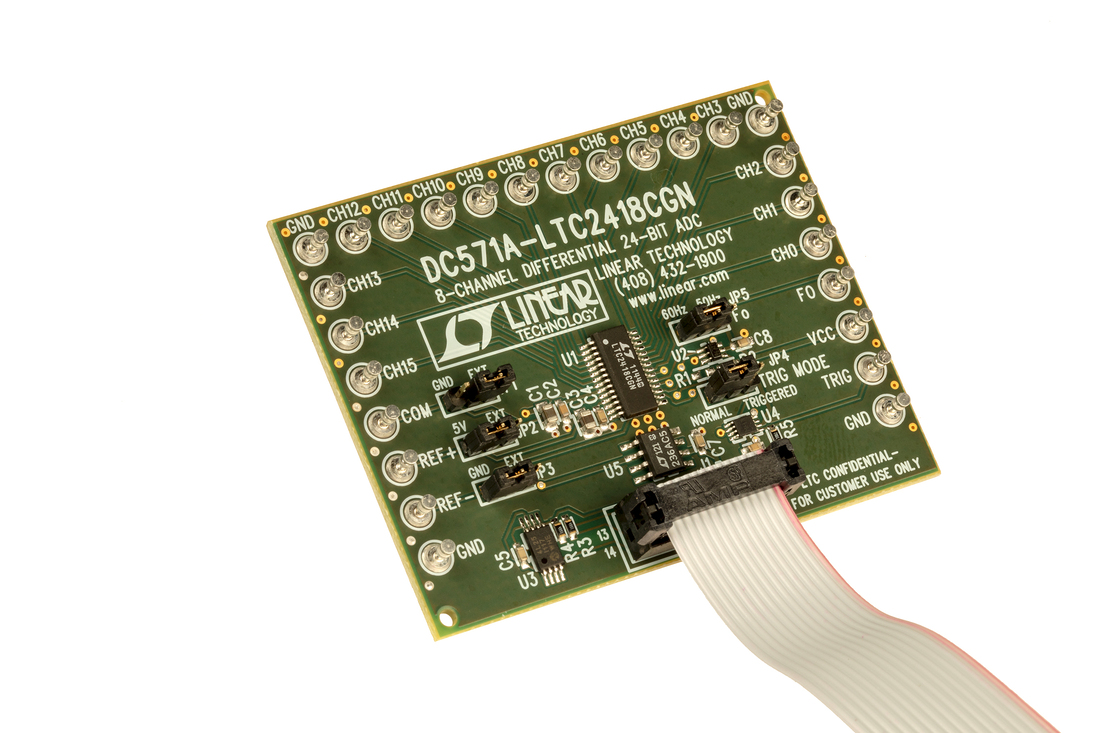

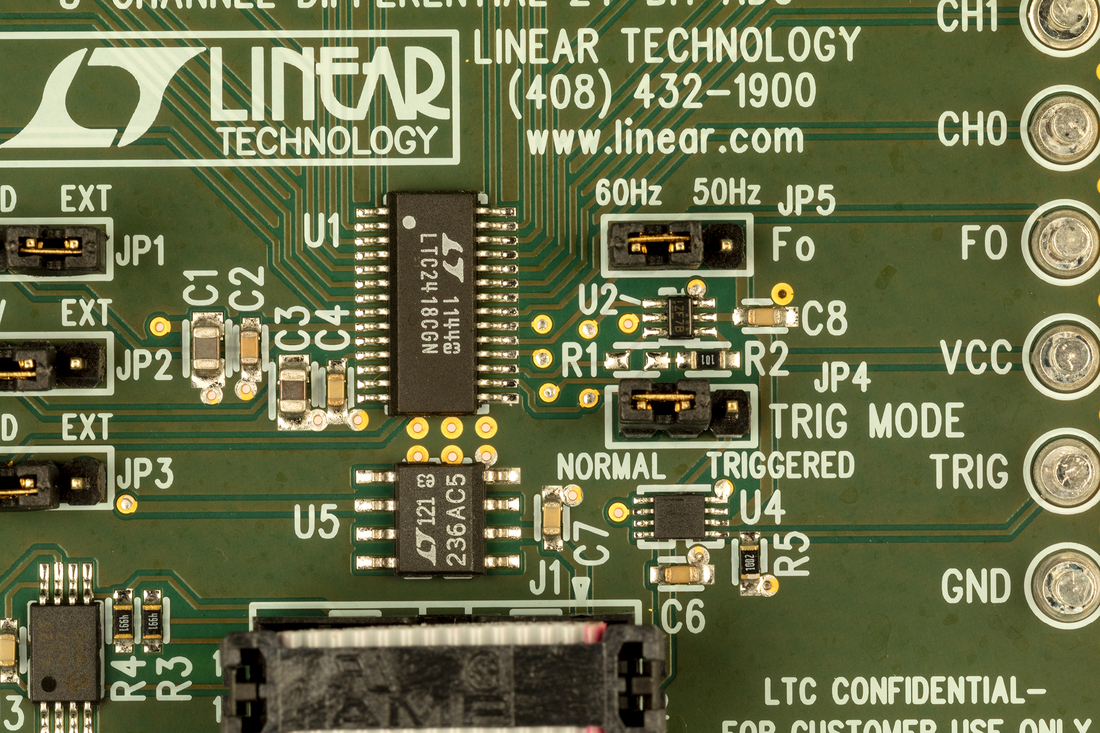

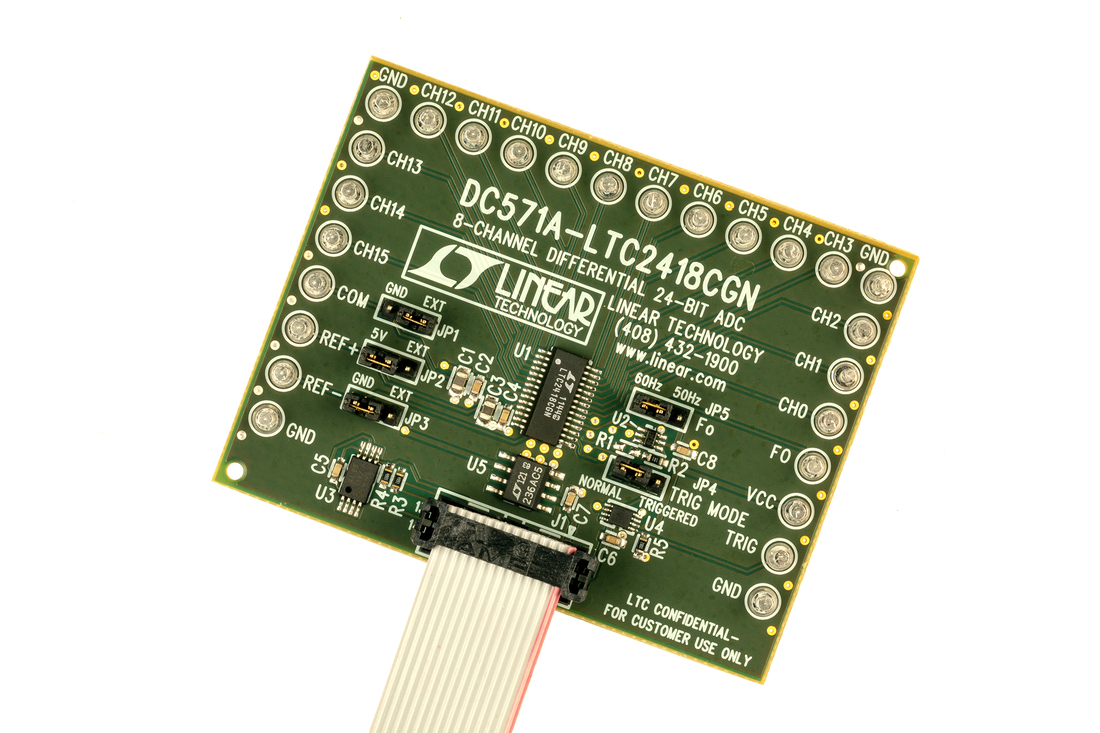

DC571A

LTC2418CGN演示板 | 8通道差分输入24位ADC（需要DC2026）

文档

数据手册 (1)

PDF

871.00K

LTC2414/LTC2418: 8-/16-Channel 24-Bit No Latency Delta Sigma ADCs Data Sheet

Reliability Data (1)

PDF

32.58 K

R411 Reliability Data

应用笔记 (1)

PDF

226.00K

AN96 - Delta Sigma ADC Bridge Measurement Techniques

评估板套件使用手册 (1)

PDF

312.00K

DC571A - Demo Manual

设计笔记 (2)

PDF

103.00K

DN297 - 16-Channel, 24-Bit ΔΣ ADC Provides Small, Flexible and Accurate Solutions for Data Acquisition
