Altera Audio Video Development Kit, Stratix IV GX Edition
顶部
概览
优势和特点
- Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
- Our reference designs are supported by an intuitive design tool set and IP
- Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
产品类别
所用产品
参考资料
-
DK-DEV-4SGX230N / DK-VIDEO-4SGX230N Dev Kit Schematic2014/8/4PDF2M
电路描述

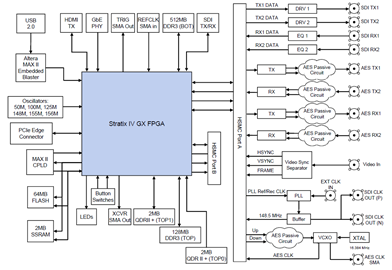

The Audio Video Development Kit, Stratix IV GX Edition, delivers a complete video and image processing development environment for design engineers. The kit facilitates the entire design process, from design conception through hardware implementation. This kit includes the Stratix IV EP4SGX230 FPGA development board, the transceiver serial digital interface (SDI) high-speed mezzanine card (HSMC), Quartus II development software, evaluation intellectual property (IP) cores—including the Video and Image Processing Suit—the serial digital interface (SDI) reference design, as well as power supplies, cables, and documentation.
