LT3080-1

可并联、1.1A、输出可调的单电阻低压差稳压器

更多 showmore-icon

Info : 推荐新设计使用 tooltip
Info : 推荐新设计使用 tooltip
产品详情
产品模型 8
特性
  • 内部镇流电阻器允许直接连接至电源平面,以提供较高电流和散热量
  • 输出电流:1.1A
  • 由单个电阻器来设置输出电压
  • SET 引脚电流的初始准确度为 1%
  • 输出可调至 0V
  • 低输出噪声:40μVRMS (10Hz 至 100kHz)
  • 宽输入电压范围:1.2V 至 36V
  • 低压差:350mV
  • < 0.001%/V 的电压调整率
  • 最小负载电流:0.5mA
  • 采用 2.2μF 最小陶瓷输出电容器可稳定
  • 具折返电流限制和过热保护功能
  • 采用 8 引脚 MSOP 和 3mm x 3mm DFN 封装

更多细节
show more Icon

LT®3080-1 是一款 1.1A 低压差线性稳压器,它包含一个内部镇流电阻器,以在无需 PC 板走线电阻器的情况下实现器件的直接并联。内部镇流电阻器允许在表面安装型电路板上直接并联多个器件,以提供较高输出电流和散热量,同时使电路板布局简单而容易。该器件将传输晶体管的集电极引出,以实现低压差 (低至 350mV) 运作 (当与多个输入电源一起使用)。

LT3080-1 能够提供一个宽输出电压范围。流过单个电阻器的一个基准电流用于把输出电压设置在 0V 至 36V 之间的任何电平。当在输出端上使用 2.2μF 陶瓷电容时,LT3080-1 可实现稳定,而不像其他稳压器所常见的那样需要额外的 ESR。

内部保护功能包括电流限制和热限制。LT3080-1 稳压器采用 8 引脚 MSOP (具有一个裸露衬垫,用于改善热特性) 和 3mm x 3mm DFN 封装。



Applications

  • 高电流全表面安装型电源
  • 高效率线性稳压器
  • 用于开关电源的后置稳压器
  • 低元件数目可变电压电源
  • 低输出电压电源

产品模型 8

产品技术资料帮助

close icon

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许,也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。

参考资料

参考资料

视频

产品型号 引脚/封装图-中文版 文档 CAD 符号,脚注和 3D模型
LT3080EDD-1#PBF
  • HTML
  • HTML
LT3080EDD-1#TRPBF
  • HTML
  • HTML
LT3080EMS8E-1#PBF
  • HTML
  • HTML
LT3080EMS8E-1#TRPBF
  • HTML
  • HTML
LT3080IDD-1#PBF
  • HTML
  • HTML
LT3080IDD-1#TRPBF
  • HTML
  • HTML
LT3080IMS8E-1#PBF
  • HTML
  • HTML
LT3080IMS8E-1#TRPBF
  • HTML
  • HTML

根据型号筛选

reset

重置过滤器

产品型号

产品生命周期

PCN

4月 18, 2022

- 22_0050

UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices

2月 3, 2020

- 20_0128

Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC

LT3080EMS8E-1#PBF

量产

LT3080EMS8E-1#TRPBF

量产

LT3080IMS8E-1#PBF

量产

LT3080IMS8E-1#TRPBF

量产

根据型号筛选

reset

重置过滤器

产品型号

产品生命周期

PCN

4月 18, 2022

- 22_0050

arrow down

UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices

2月 3, 2020

- 20_0128

arrow down

Laser Top Mark for 8 Lead MSOP Packages Assembled in ADPG and UTAC

LT3080EMS8E-1#PBF

量产

LT3080EMS8E-1#TRPBF

量产

LT3080IMS8E-1#PBF

量产

LT3080IMS8E-1#TRPBF

量产

软件和型号相关生态系统

软件和型号相关生态系统

评估套件

评估套件 1

reference details image

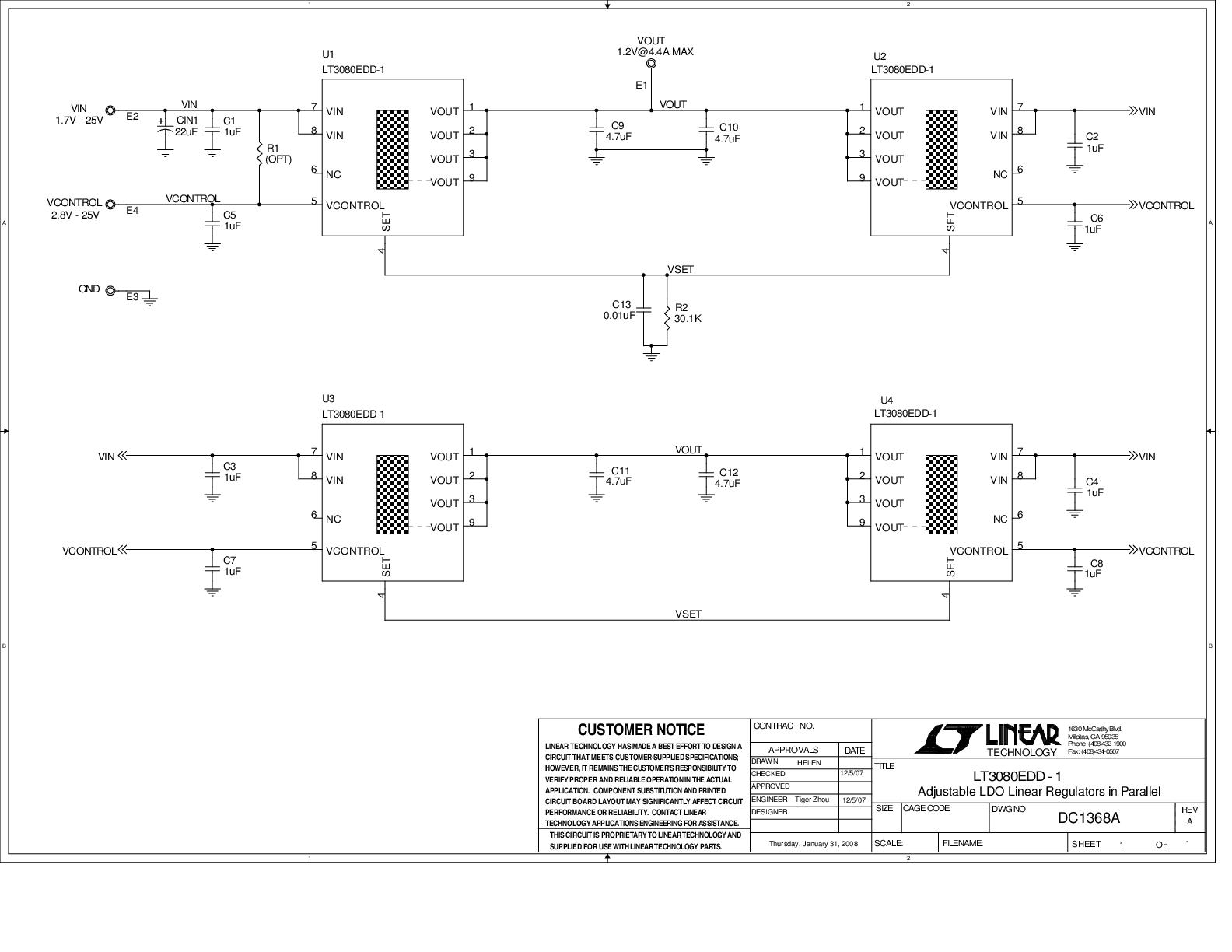

DC1368A

LT3080EDD-1 Demo Board | LT3080-1(x4), Paralleled, Single Resistor Prog Low Noise LDOs, 1.7V ≤ VIN ≤ 25V, VOUT = 1.2V @ 4.4A

zoom

DC1368A

LT3080EDD-1 Demo Board | LT3080-1(x4), Paralleled, Single Resistor Prog Low Noise LDOs, 1.7V ≤ VIN ≤ 25V, VOUT = 1.2V @ 4.4A

LT3080EDD-1 Demo Board | LT3080-1(x4), Paralleled, Single Resistor Prog Low Noise LDOs, 1.7V ≤ VIN ≤ 25V, VOUT = 1.2V @ 4.4A

产品详情

Demonstration circuit 1368A exercises four adjustable linear regulators in parallel using the LT3080-1, which incorporates an internal ballast resistor. The ballast resistor allows direct paralleling of devices without the need for PC board resistors or sensor resistors.The paralleled devices provide up to 4.4A of output current at 1.2V.


Architected as a precision current source and voltage follower, the LT3080-1 can be used in many applications requiring high current, adjustability to zero output, and no heat sink. The device brings out the collector of the pass transistor to allow low dropout operation when used with multiple supplies. The LT3080-1's output voltage can be programmed to any level between 0V and 36V; however the demo board has a reduced input voltage range from 1.7V to 25V due to the input capacitor voltage rating.

工具和仿真

工具及仿真模型 1

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器,为改善模拟电路的仿真提供增强功能和模型。

启动此部分的现成LTspice演示电路:

1步:下载并在计算机上安装LTspice

2步:单击下面的链接,下载演示电路。

3步:如果在单击以下链接之后LTspice未自动打开,可通过右击该链接并选择“目标另存为”来运行该仿真。将文件保存到计算机之后,请启动LTspice并从“文件”菜单中选择“打开”来打开演示电路。

参考电路

参考电路 9

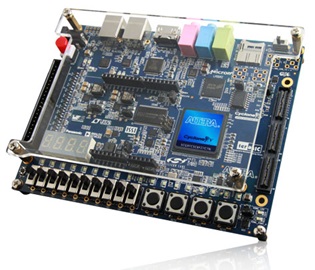

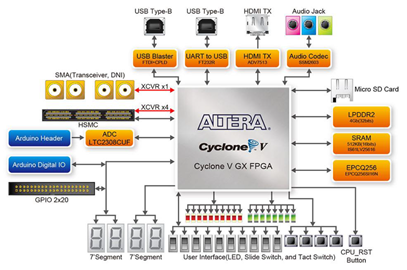

C5G Starter Kit
