500mA 微功率 VLDO 线性稳压器

数据手册 (Rev. H)
产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • 宽输入电压范围：0.9V至5.5V
  • 采用陶瓷电容便可稳定工作
  • 极低压差：85mV (500mA)
  • 可调输出范围：0.4V至3.6V (LTC3025-1)
  • 固定输出：1.2V(LTC3025-2)、1.5V(LTC3025-3)、1.8V(LTC3025-4)
  • 温度、电源和负载范围内的电压精度：±2%
  • 低噪声：80μVRMS（10Hz至100kHz）
  • BIAS电压范围：2.5V至5.5V
  • 快速瞬态恢复
  • 关断将断开VIN和VBIAS负载
  • 低工作电流：IIN = 4μA，IBIAS = 50μA（典型值）
  • 低关断电流：IIN = 1μA，IBIAS = 0.01μA（典型值）
  • 输出电流限值
  • 热过载保护
  • 采用6引脚(2mm × 2mm) DFN封装
  • 通过AEC-Q100汽车应用认证

LTC3025-X是一款微功耗VLDO™（极低压差）线性稳压器，工作输入电压低至0.9V。该器件能够提供500mA输出电流，典型压差仅为85mV。运行内部基准电压源和LDO电路需要BIAS电源，输出电流直接来自IN电源以实现高效调节。LTC3025-1以0.4V低基准电压提供可调输出，LTC3025-2、LTC3025-3和LTC3025-4分别具有1.2V、1.5V和1.8V的固定输出电压。

LTC3025-X具有低静态电流，使其非常适合用于电池供电系统。对于3节NiMH和单节锂离子应用，BIAS电压可直接从电池中提供，输入可来自高效率降压稳压器，从而提供高效率、低噪声输出。

其他特性包括高输出电压精度、出色的瞬态响应、使用低至1μF的超低ESR陶瓷电容提供的稳定性、短路、热过载保护和输出电流限制。LTC3025-X采用采用纤巧、扁平(0.75mm) 的6引脚DFN (2mm × 2mm)封装。

输出电流 输出电压
LTC3025 300mA 可调（0.4V至3.6V）
LTC3025-1 500mA 可调（0.4V至3.6V）
LTC3025-2 500mA 1.2V固定
LTC3025-3 500mA 1.5V固定
LTC3025-4 500mA 1.8V固定

应用

  • 低功耗手持式设备
  • 低电压逻辑电源
  • DSP电源
  • 蜂窝电话
  • 便携式电子设备
  • 手持式医疗仪器
  • 用于开关电源噪声抑制的后置调节器
LTC3025-1
LTC3025-2
LTC3025-3
LTC3025-4
500mA 微功率 VLDO 线性稳压器
LTC3025-1/LTC3025-2/LTC3025-3/LTC3025-4 Application Circuit LTC3025-1/LTC3025-2/LTC3025-3/LTC3025-4 Pin Configuration LTC3025-1/LTC3025-2/LTC3025-3/LTC3025-4 Performance Graph
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 2

可靠性数据 1

用户手册 1

设计笔记 1

技术文章 1

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

软件资源

找不到您所需的软件或驱动?

申请驱动/软件

硬件生态系统

部分模型 产品周期 描述
电源系统管理(PSM)和时序控制器 1
LTC2974
推荐用于新设计 具有精确输出电流的4通道PMBus电源系统管理器
Modal heading
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目

工具及仿真模型

LTspice 1

LTspice中提供以下器件型号：

  • LTC3025
  • LTC3025-1
  • LTC3025-2
  • LTC3025-3
  • LTC3025-4
LTspice

LTspice®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。

评估套件

eval board
schematic 1
schematic 2
schematic 3
schematic 4

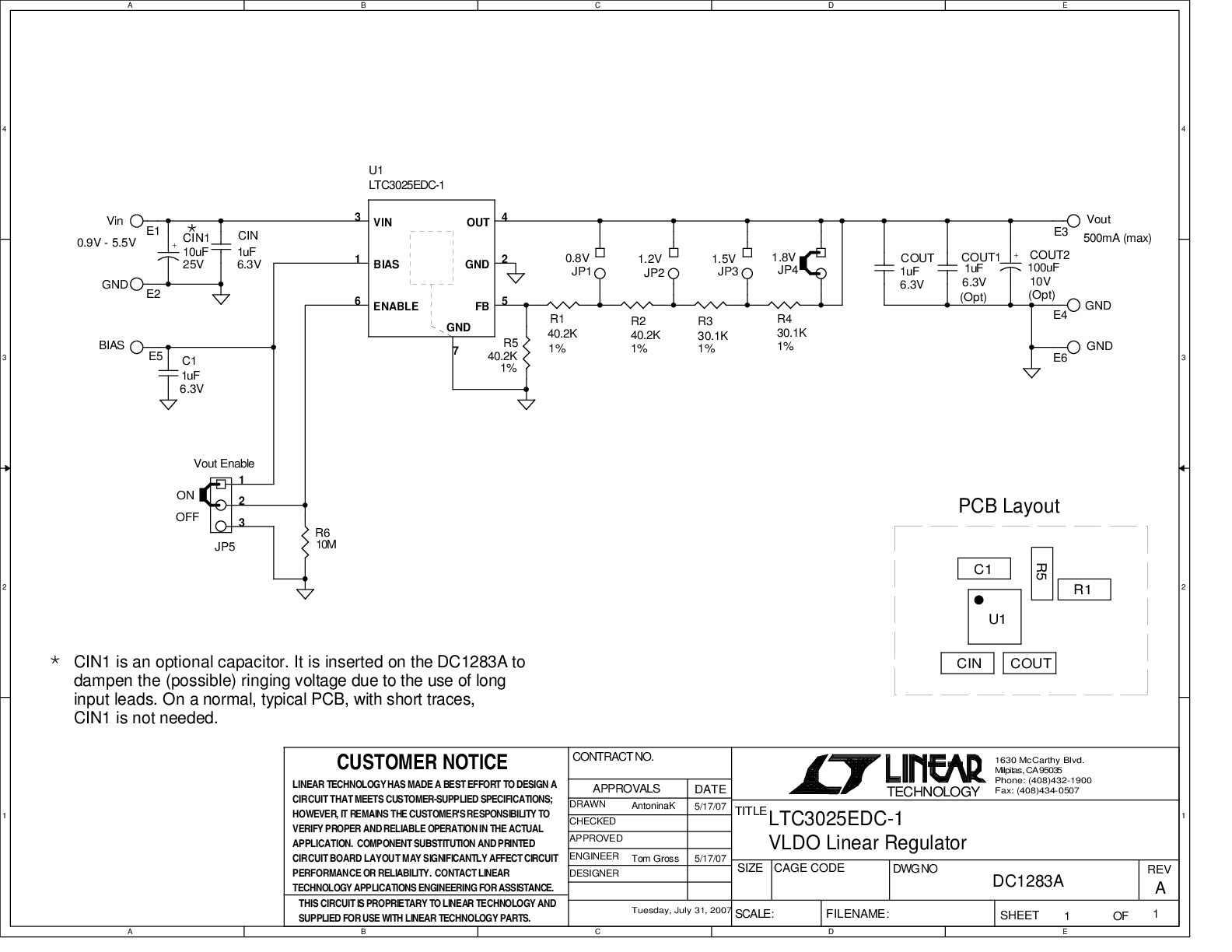

schematic 5

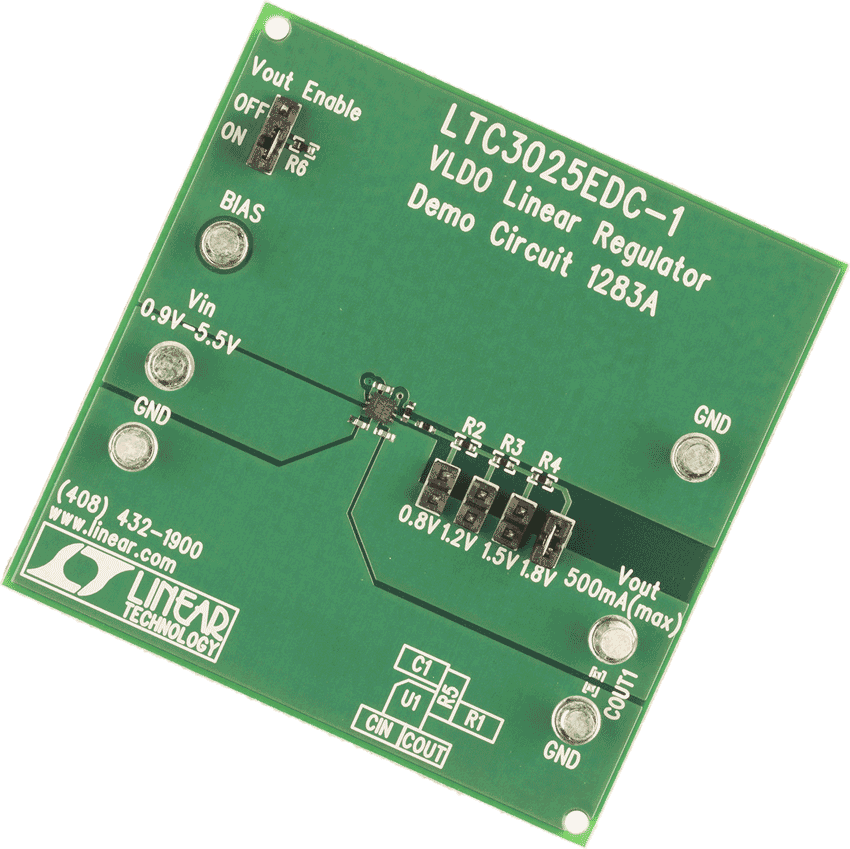

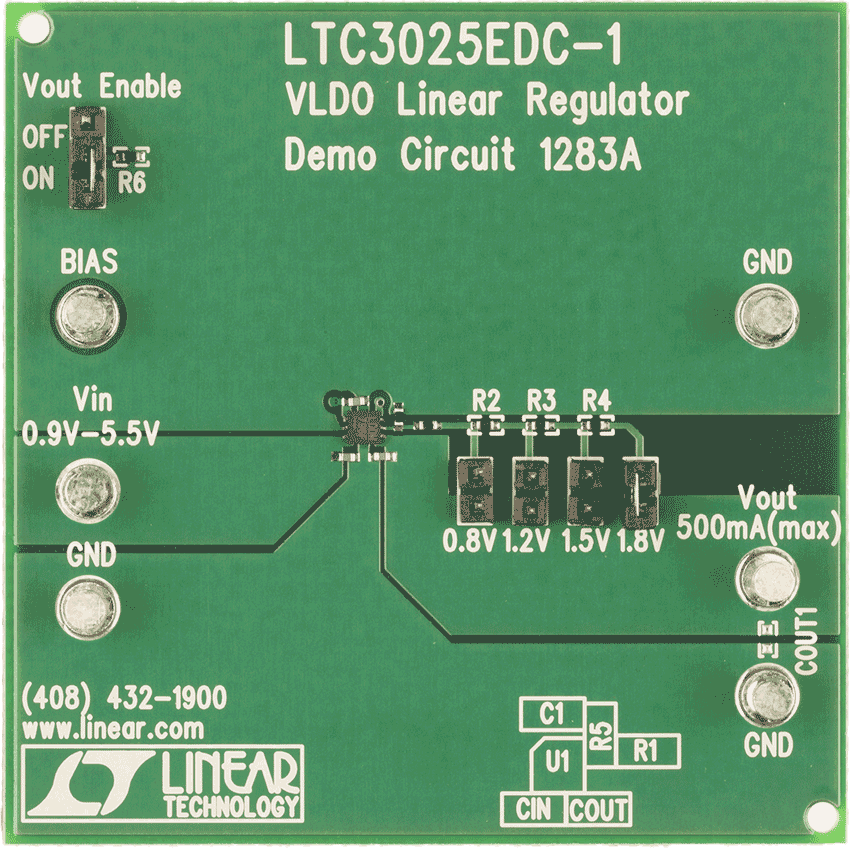

DC1283A

LTC3025EDC-1演示板 | 微功耗VLDO线性稳压器，0.9V ≤ VIN ≤ 5.5V，VOUT = 0.8V/1.2V/1.5V/1.8V/可调(500mA)

立即购买 更多内容

产品详情

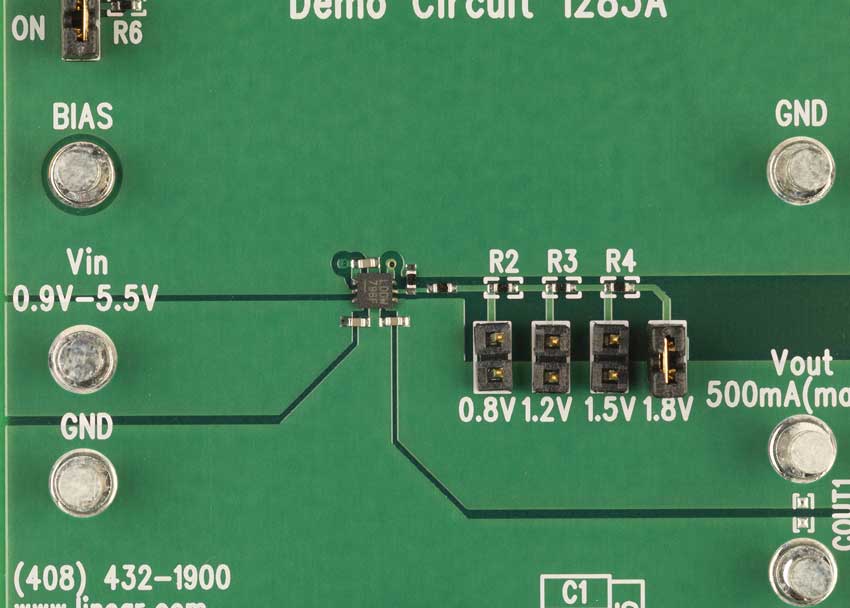

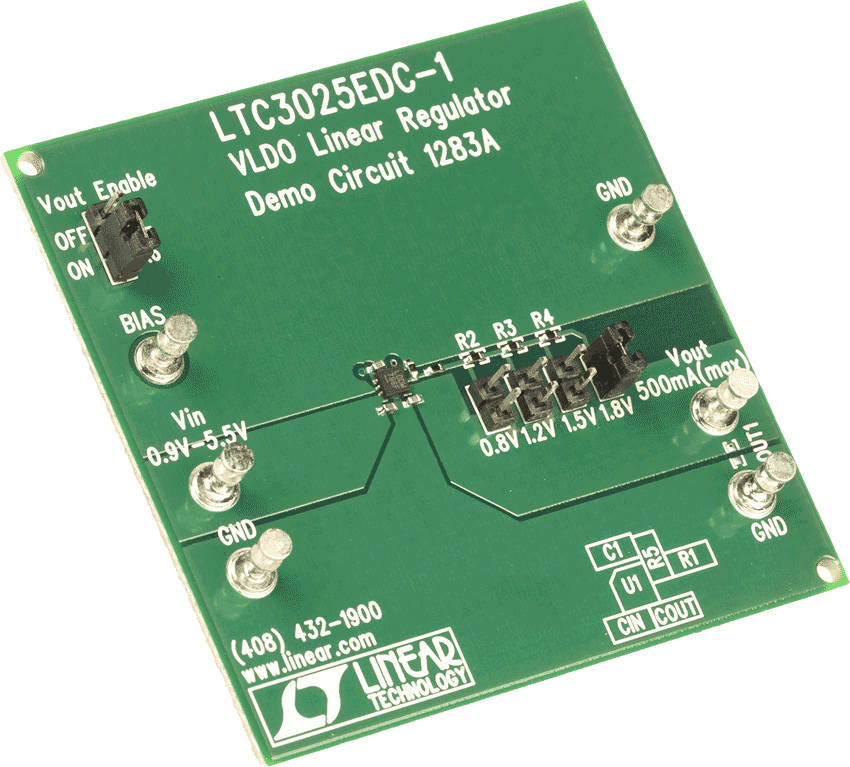

演示电路1283是一款使用LTC3025-1 500mA输出电流线性稳压器的超低压差电源，该稳压器采用小型2mm x 2mm 6引脚DFN封装。DC1283A具有0.9V至5.5V的输入电压范围，并提供跳线可选输出，可设置为0.8V、1.2V、1.5V、1.8V或0.4V至3.6V之间的用户定义值。

LTC3025-1具有0.4V的基准电压，使DC1283A可向极低电压应用供电。DC1283A还非常适用于降压开关稳压器后置调节，可结合使用以构建高效率低噪声电源。DC1283使用小型陶瓷电容，表明LTC3025-1使用陶瓷输出电容能够保持稳定性。

DC1283A
LTC3025EDC-1演示板 | 微功耗VLDO线性稳压器，0.9V ≤ VIN ≤ 5.5V，VOUT = 0.8V/1.2V/1.5V/1.8V/可调(500mA)
DC1283A Demo Board DC1283A Demo Board DC1283A Demo Board DC1283A Demo Board DC1283A - Schematic

参考电路

Simplied Power Tree that directly steps down 12V to required I/O voltage
Arria 10 (Rev E3- Linear Technology) Dev Kit Block Diagram
Altera Arria 10 FPGA Development Kit 参考设计

查看参考设计详情

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
Arria 10 SoC - Top View
Arria 10 SoC - Top View
Arria 10 SoC - Bottom View
Arria 10 Soc Dev Kit Block Diagram
Arria 10 SoC Power Tree
Altera Arria 10 SoC Development Kit 参考设计

查看参考设计详情

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
DK-DEV-5CEA7N Dev Kit
DK-DEV-5CEA7N Dev Kit
DK-DEV-5CEA7N Dev Kit LTC Parts List
DK-DEV-5CEA7N Block Diagram
DK-DEV-5CEA7N Dev Kit Schematic
DK-DEV-5CEA7N Power Tree
Altera Cyclone V E Development Kit 参考设计

查看参考设计详情

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
TR5-F40W Dev Kit
TR5-F40W Dev Kit
TR5-F40W Block Diagram
TR5-F40W Power Tree
Terasic TR5-F40W Stratix V GX FPGA Development Kit 参考设计

查看参考设计详情

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
DK-DEV-5SGXEA7N Dev Kit
DK-DEV-5SGXEA7N Dev Kit
LTC Parts List
DK-DEV-5SGXEA7N Block Diagram
DK-DEV-5SGXEA7N Power Tree
DK-DEV-5SGXEA7N Power Tree No TI
Altera Stratix V GX FPGA Development Kit 参考设计

查看参考设计详情

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
DK-DEV-5CGTD9N Dev Kit
DK-DEV-5CGTD9N Dev Kit
DK-DEV-5CGTD9N Block Diagram
DK-DEV-5CGTD9N Power Tree
DK-DEV-5CGTD9N Power Tree No TI DDR Regulator
Altera Cyclone V GT FPGA Development Kit 参考设计

查看参考设计详情

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
TR4 Stratix IV Board
TR4 Stratix IV Board
LTC Parts List
TR4 Stratix IV Block Diagram
TR4 Stratix IV Power Tree
Terasic TR4 Stratix IV Board 参考设计

查看参考设计详情

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications
SoCKit Dev Kit
SoCKit Dev Kit
SoCKit Block Diagram
SoCKit Development Kit Power Tree
Arrow/Terasic SoCKit Development Kit 参考设计

查看参考设计详情

特性和优点

  • Analog Devices has worked closely with FPGA and processor manufacturers to develop verified power solutions that optimize cost, size and efficiency in high performance applications
  • Our reference designs are supported by an intuitive design tool set and IP
  • Our team can provide designs for quick prototypes that can speed time to market in the most complex applications

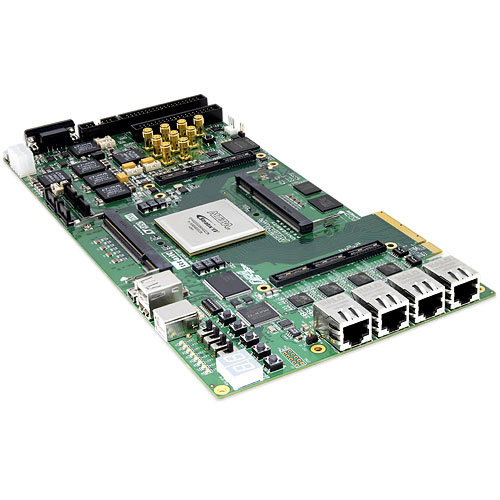

DE4 Dev Kit
DE4 Dev Kit

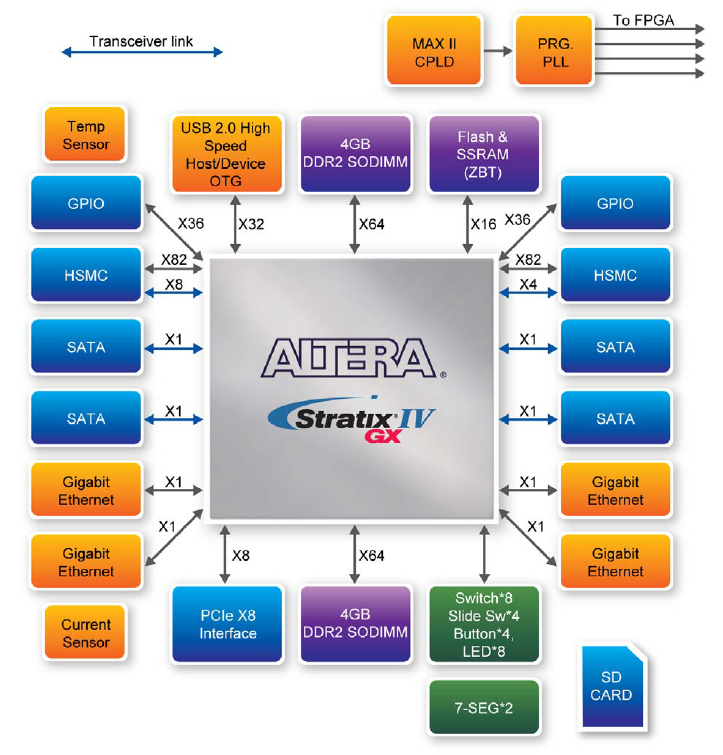

DE4 Block Diagram
