LTC2977

推荐用于新设计

具准确输出电压测量功能的 8 通道 PMBus 电源系统管理器

数据手册 (Rev. G) 产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • 可对8个电源进行时序控制、微调、裕量调节和监控
  • 管理故障，监控遥测并创建故障日志
  • PMBus™兼容命令集

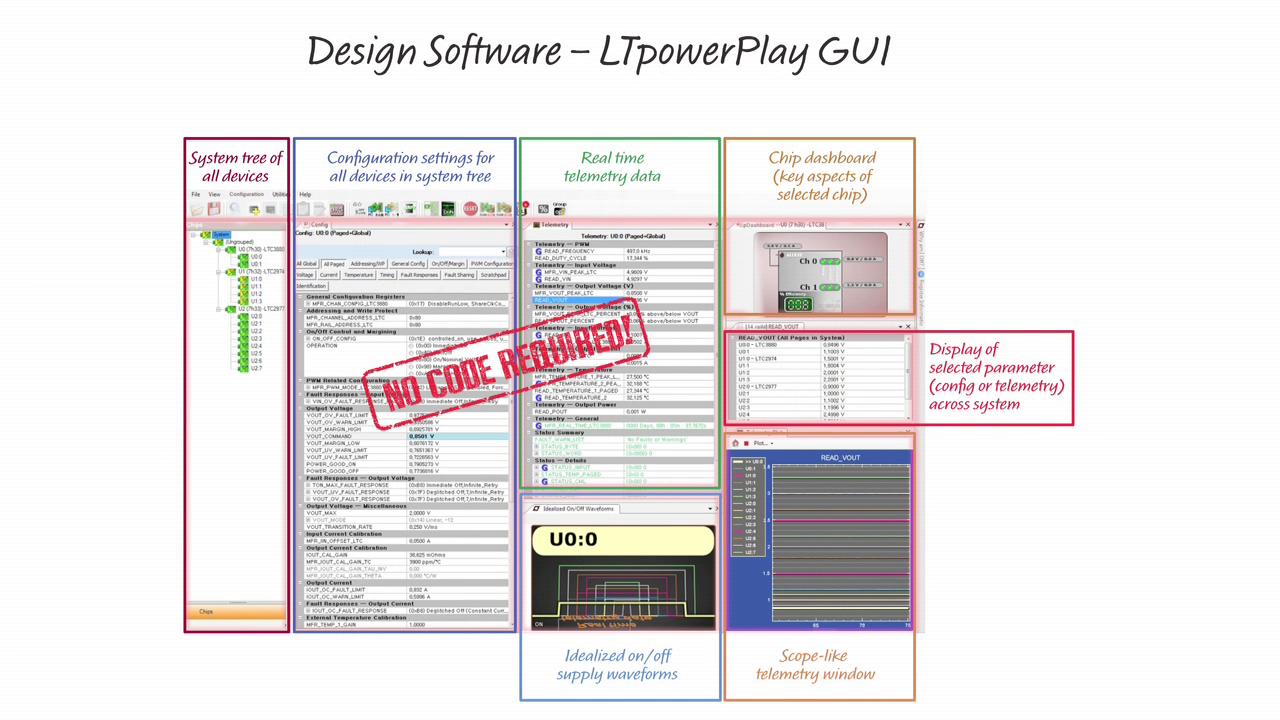

  • 由LTpowerPlay®GUI提供支持
  • 将电源裕量设置或调整电源至目标值的0.25%范围内
  • 每通道快速OV/UV监控器
  • 协调多个LTC PSM器件上的时序和故障管理
  • 将故障自动记录到内部EEPROM
  • 无需附加软件即可自动工作
  • 内部温度和输入电压监控器
  • 精确监控八个输出电压、输入电压和内部芯片温度
  • I2C / SMBus串行接口
  • 可采用3.3V或4.5V至15V电源供电
  • 可编程看门狗定时器
  • LTC2978/LTC2978A的100%引脚兼容升级产品
  • 采用64引脚9mm × 9mm QFN封装
  • 通过AEC-Q100汽车应用认证

LTC2977 是一款 8 通道电源系统管理器，用于排序、修整 (伺服)、裕度调节、监控、管理故障、提供远端采样和创建故障记录。PMBus 命令支持电源排序、精准负载点电压调节和裕度调节。DAC 采用一种专有软连接算法以较大限度地抑制电源扰动。监控功能包括针对 8 个电源输出通道和一个电源输入通道上的过压和欠压门限限值，以及过温和欠温限值。可编程故障响应能够利用“在检测到故障之后执行重试操作”的选项来停用电源。导致电源停用的故障会自动触发黑匣子 EEPROM 存储器记录故障状态及相关的远端采样。一个内部 16 位 ADC 负责监视 8 个输出电压、1 个输入电压和芯片温度。此外，奇数通道还可配置以测量一个电流检测电阻器两端的电压。一个可编程看门狗定时器用于监视微处理器运作的失速状态，并在必要时使微处理器复位。单线式总线可在多个 LTC 电源系统管理 (PSM) 器件上实现同步。配置 EEPROM 支持自主型操作，并不需要额外的软件。

应用

  • 计算机和网络服务器
  • 工业测试和测量
  • 高可靠性系统
  • 医疗成像
  • 视频
LTC2977
具准确输出电压测量功能的 8 通道 PMBus 电源系统管理器
LTC2977 Application Circuit LTC2977 Pin Configuration LTC2977 Performance Graph
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

可靠性数据 1

用户手册 4

应用笔记 7

设计笔记 2

技术文章 7

信息 1

产品信息 2

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

软件资源

器件驱动器 1

硬件生态系统

部分模型 产品周期 描述
电源系统管理(PSM)和时序控制器 1
LTC2937
推荐用于新设计 具 EEPROM 的可编程 6 通道排序器和电压监控器
监控电路和复位器IC 1
LTC2933
量产 具 EEPROM 的可编程 6 通道电压监控器
Modal heading
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目

工具及仿真模型

Linduino 3

评估套件

eval board
schematic 1
schematic 2
DC1962C

电源系统管理演示板 (PowerStick) | 集成LTC2977、LTC2974和LTC3880的14电源管理器件[需要DC1613]

立即购买 更多内容

产品详情

DC1962C演示板适用于：
具有精确输出电流测量功能的4通道PMBus电源系统管理器LTC2974
带数字电源系统管理功能的双通道输出多相降压DC/DC控制器LTC3880
具有精确输出电压测量功能的8通道PMBus电源系统管理器LTC2977

eval board
schematic 3
schematic 4
schematic 5
schematic 6
schematic 7
DC2028A

LTC2977演示板：八通道电源管理器[需要DC1613]

立即购买 更多内容

产品详情

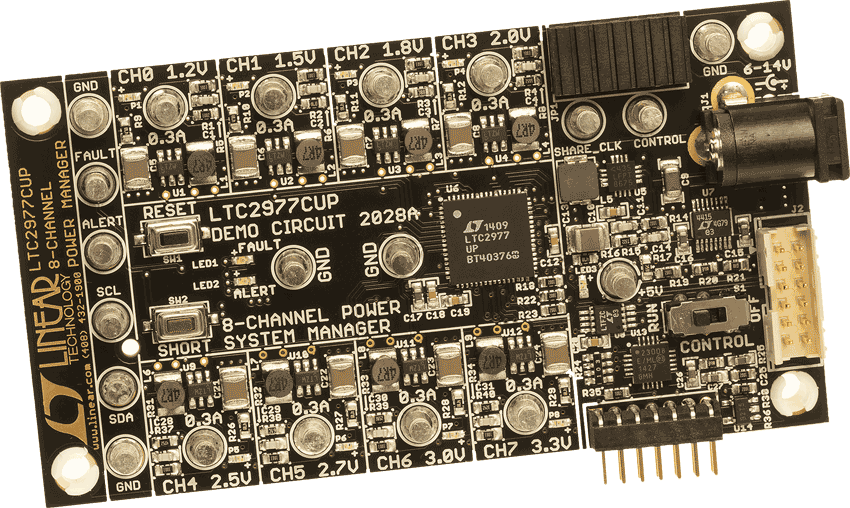

DC2028A：具有精确输出电压测量功能的8通道PMBus电源系统管理器LTC2977演示板。





eval board
schematic 8
schematic 9
schematic 10
schematic 11
schematic 12
schematic 13
DC1540B

LTC2977演示板集合：八个µModule电源管理器件（包括DC1360B + DC1361B）（需要DC1613）

立即购买 更多内容

产品详情

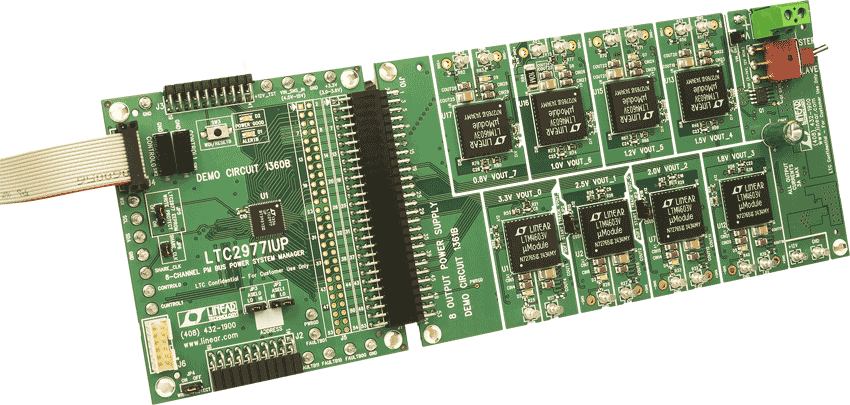

DC1540B是一款展示具有EEPROM的8通道I2C/SMBus/PMBus电源系统管理器LTC2977的演示系统。它由2个电路板DC1360B和DC1361B组成。DC1360B包含将LTC2977插入电源系统并控制八个电源所需的所有电路。DC1361B包含八个电源(LTM4603EV)，均配置为由LTC2977控制。这两个电路板共同构成一个复杂的8通道、数字可编程电源。

eval board
schematic 14
schematic 15
DC1508B-A

LTC2977、LTC2978A、LTC2978插座式编程板（需要DC1613）

立即购买 更多内容

产品详情

DC1508B编程板包含对LTC2974、LTC2975、LTC2977、LTC2978和LTC2978A的EEPROM进行编程和验证所需的电路。这是它的主要用途。DC1508B配有一个翻盖式编程插座。EEPROM包含出厂默认配置。可以在GUI中找到与出厂默认配置相对应的LTpowerPlay™ *.proj 文件。

eval board
schematic 16
schematic 17
DC1962C-KIT

电源系统管理入门套件（包括DC1962C、DC1613A）

立即购买 更多内容

产品详情

DC1962C-KIT演示板适用于：
具有精确输出电压测量功能的8通道PMBus电源系统管理器LTC2977
具有精确输出电流测量功能的4通道PMBus电源系统管理器LTC2974
带数字电源系统管理功能的双通道输出多相降压DC/DC控制器LTC3880





ADXBAND16EBZ

16Tx/16Rx Direct X-Band Sampled Phased-Array/RADAR/SATCOM Development Platform

立即购买 更多内容

特性和优点

ADXBAND16EBZ Digitizing Card
  • Multi-Channel, Wideband System Development Platform Using Apollo (AD9084)
  • Mates With Xilinx VCU118 Evaluation Board (Not Included)
  • 16x RF Receive (Rx) Channels
    • Total 16x 8GSPS to 20GSPS ADC
    • Digital Down Converters (DDCs), Each Including Complex Numerically-Controlled Oscillators (NCOs)
    • Programmable Finite Impulse Response Filters (pFIRs)
    • Complex Finite Impulse Response Filters (CFIRs)
  • 16x RF Transmit (Tx) Channels
    • Total 16x 8GSPS to 28GSPS DAC
    • Digital Up Converters (DUCs), Each Including Complex Numerically-Controlled Oscillators (NCOs)
    • Programmable Finite Impulse Response Filters (pFIRs)
    • Complex Finite Impulse Response Filters (CFIRs)
  • Flexible Rx & Tx RF Front-Ends
    • Rx: Filtering, Amplification, Digital Step Attenuation for Gain Control
    • Tx: Filtering, Amplification
  • Flexible Clock Distribution
    • On-Board Clock Distribution from Single External 400MHz Reference
    • Support for External Converter Clock per AD9084 via solder rework
  • On-Board Power Regulation from Single 12V Power Adapter (Included)
16Tx / 16Rx Calibration Board
  • Mates to ADXBAND16EBZ Digitizing Card & VCU118 PMOD Interface (Cable Included)
  • Provides Both Individual Adjacent Channel Loopback and Combined Channel Loopback Options
  • Combined Tx Channels Out Option
  • Combined Rx Channels In Option
Software Features and Benefits

Easy Control Tools and Platform Interfaces to Simplify Software Framework Developments:

  • IIO Oscilloscope GUI
  • MATLAB Add-Ons & Example Scripts
  • Example HDL Builds including JESD204C Bring-Up
  • Embedded Software Solutions for Linux and Device Drivers
Software Reference Design Examples for ADEF Applications to Reduce Prototyping Time:
  • Multi-Chip Synchronization for Power-Up Phase Determinism
  • System-Level Amplitude/Phase Alignment Using NCOs
  • Low-Latency ADC-to-DAC Loopback Bypassing JESD Interface
  • pFIR Control for Broadband Channel-to-Channel Amplitude/Phase Alignment
  • Fast-Frequency Hopping

产品详情

The ADXBAND16EBZ contains four AD9084 mixed‑signal front‑end devices, including the RF front end, clocking, and power circuitry. The ADXBAND16EBZ serves as a complete system solution targeting common applications such as phased‑array radars, wideband systems, and ground‑based SATCOM. Its primary target application is a 16‑Tx/16‑Rx direct X‑band sampling phased array.

The platform is intended as a testbed for demonstrating multi‑chip synchronization, as well as implementing system‑level calibrations, beamforming algorithms, and other signal‑processing techniques. The system is designed to interface with the VCU118 Evaluation Board from Xilinx®, which features the Virtex® UltraScale+™ XCVU9P FPGA, along with provided reference software, HDL code, and MATLAB system‑level interfaces.

A 16‑Tx/16‑Rx Calibration Board can be used to develop system‑level calibration algorithms, including demonstrations of power‑up phase determinism. The Calibration Board provides improvements in combined‑channel dynamic range, spurious performance, and phase noise, and can be controlled via a MATLAB add‑on when connected to the PMOD interface of the VCU118.
DC1962C
电源系统管理演示板 (PowerStick) | 集成LTC2977、LTC2974和LTC3880的14电源管理器件[需要DC1613]
DC1962C - Schematic DC1962 Demoboard
DC2028A
LTC2977演示板：八通道电源管理器[需要DC1613]

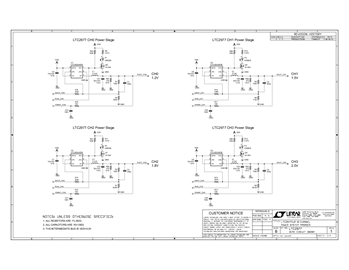

DC2028A Demo Board DC2028A Demo Board DC2028A Demo Board DC2028A Demo Board DC2028A - Schematic
